The Infra tab

The Infra tab isolates issues and causes of infrastructure problems. Further are described the frames you can see on the tab.

Service Alerts – Infrastructure Alerts by Application name

Service alerts

The Service Alerts – Infrastructure Alerts by Application name graph shows the service alerts collected by the New Relic infrastructure agent. This will show service restarts, many associated with deployments.

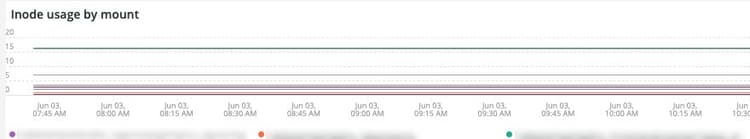

Inode usage by mount

Inode usage by mount

The Inode usage by mount frame shows inode usage by mount across the selected timeframe. Even though there may be plenty of storage free, if a node runs out of inodes, it will show a lack of available storage. Removing files (especially small ones) will free up both space and make inodes available.

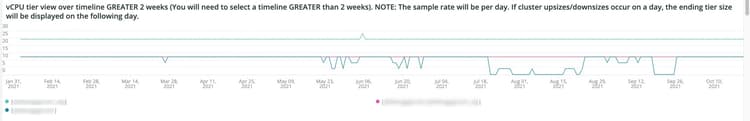

vCPU tier view over timeline GREATER 2 weeks

vCPU tier view over timeline GREATER 2 weeks

The vCPU tier view over timeline GREATER 2 weeks frame shows vCPU tier view across the selected timeframe of more than two weeks. This frame looks at the number of vCPUs assigned to the New Relic application name shown.

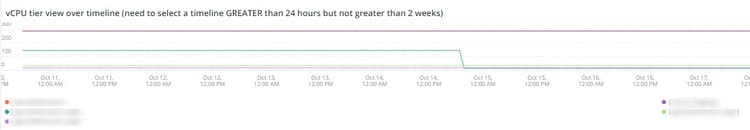

vCPU tier view over timeline

vCPU tier view over timeline

The vCPU tier view over timeline frame shows vCPU tier view across the selected timeframe of more than 24 hours. This frame looks at the number of vCPUs assigned to the New Relic application name shown. It will show both cluster upsizes and downsizes.

vCPU tier view over timeline BY NODE

vCPU tier view over timeline by NODE

The vCPU tier view over timeline BY NODE frame shows vCPU tier views across the selected timeframe by node. This frame is helpful in detecting loss of node(s) or when nodes are upsized or downsized. vCPU tier view over timeline BY NODE, should look at timeline LESS than 24 hours.

Instance details

Instance details

The Instance details table shows instance details of each New Relic application.

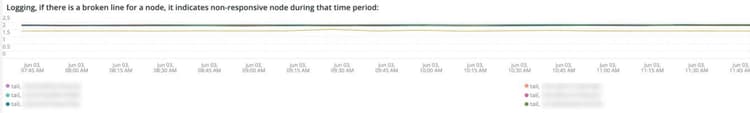

Logging, if there is a broken line for a node, it indicates non-responsive node during that time period

non-responsive-node

The Logging, if there is a broken line for a node, it indicates non-responsive node during that time period frame shows non-responsive nodes across a time period.
