Edge implementation overview

Last update: June 4, 2026

CREATED FOR:

  • User
  • Admin
  • Developer

The Adobe Experience Platform Edge Network lets you send data destined for multiple products to a single endpoint, which then forwards the appropriate information to each product. This consolidates implementation effort across multiple data solutions and is the recommended way to implement the Streaming Media Collection for both Adobe Analytics and Customer Journey Analytics.

Regardless of which codebase you use — the Web SDK, the Mobile SDK (iOS or Android), the Roku SDK, or the Media Edge API — you must first complete the platform setup described on this page: create a schema, create a dataset, and configure a datastream.

Prerequisites

  1. Complete the general prerequisites. See the general prerequisites.

  2. Confirm a compatible Adobe solution. You must have a working Customer Journey Analytics, Adobe Analytics, Adobe Journey Optimizer, or Real-Time Customer Data Platform implementation:

Set up the schema in Adobe Experience Platform

To standardize data collection across applications that use Adobe Experience Platform, Adobe created the open, publicly documented Experience Data Model (XDM) standard.

  1. In Adobe Experience Platform, begin creating the schema as described in Create and edit schemas in the UI.

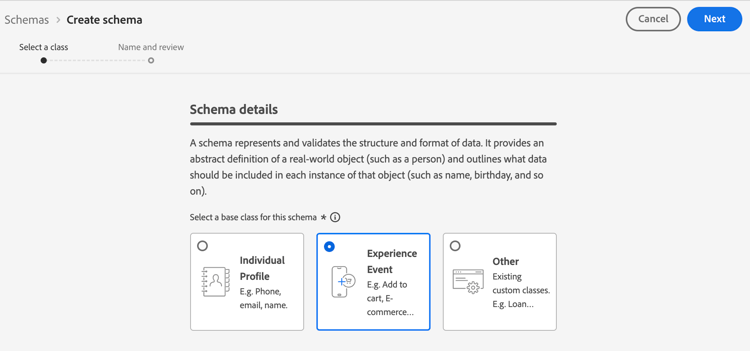

  2. On the Schema details page, choose Experience Event as the base class for the schema.

    Added field groups

  3. Select Next.

  4. Specify a schema display name and description, then select Finish.

  5. In the Composition area, in the Field groups section, select Add, then search for and add the following field groups to the schema:

    • End User ID Details
    • Implementation Details
    • MediaAnalytics Interaction Details

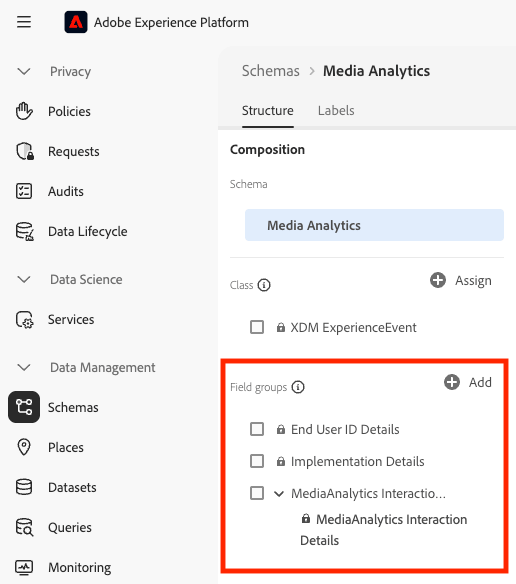

    After you add the field groups, they display in the Field groups section:

    Added field groups

  6. Select Save to save your changes.

  7. (Optional) You can hide certain fields that are not used by the Media Edge API. Hiding these fields makes the schema easier to read but is not required. These fields refer only to those in the MediaAnalytics Interaction Details field group.

    accordion
    Expand to view instructions on fields you can hide.

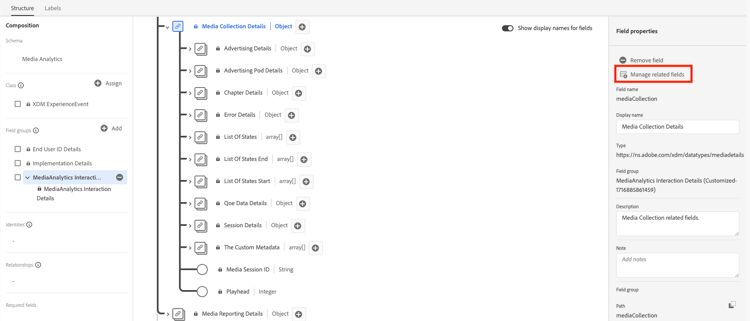

    1. In the Structure area, select the Media Collection Details field, then select Manage related fields.

      manage-related-fields

    2. Enable the option to Show display names for fields, then update the schema as follows:

      • In the Media Collection Details > Advertising Details field, hide the following reporting fields: Ad Completed, Ad Started, and Ad Time Played.

      • In the Media Collection Details > Advertising Pod Details field, hide the following reporting field: Ad Break ID

      • In the Media Collection Details > Chapter Details field, hide the following reporting fields: Chapter Completed, Chapter ID, Chapter Started, and Chapter Time Played.

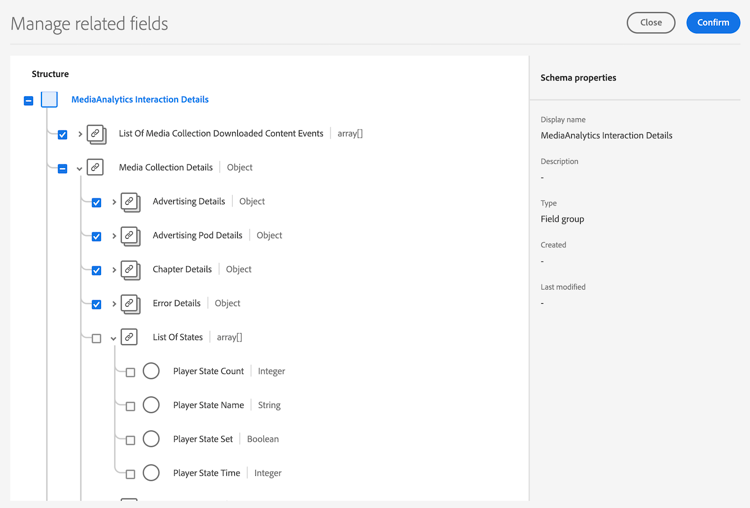

      • In the Media Collection Details field, hide the List Of States field.

        hide media collection states

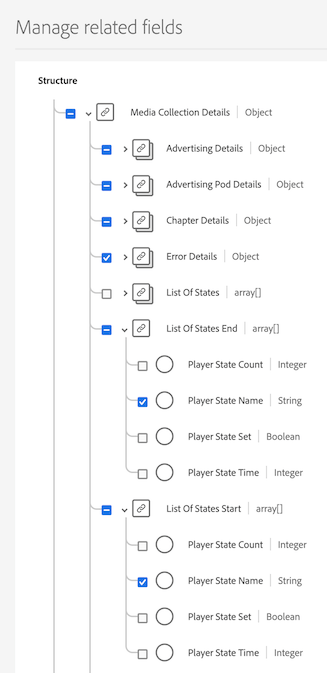

      • In the Media Collection Details > List Of States End and Media Collection Details > List Of States Start field, hide the following reporting fields: Player State Count, Player State Set, and Player State Time.

        fields to hide

      • In the Media Collection Details > Qoe Data Details field, hide the following reporting fields: Average Bitrate, Average Bitrate Bucket, Bitrate Change Impacted Streams, Bitrate Changes, Buffer Impacted Streams, Buffer Events, Dropped Frame Impacted Streams, Drops Before Starts, Errors, External Error IDs, Error Impacted Streams, Media SDK Error IDs, Player SDK Error IDs, Stalling Impacted Streams, Stalling Events, Total Buffer Duration, and Total Stalling Duration.

      • In the Media Collection Details > Session Details field, hide the following reporting fields: 10% Progress Marker, 25% Progress Marker, 50% Progress Marker, 75% Progress Marker, 95% Progress Marker, Ad Count, Average Minute Audience, Content Completes, Chapter Count, Content Starts, Content Time Spent, Estimated Streams, Federated Data, Media Segment Views, Media Downloaded Flag, Media Starts, Media Session ID, Media Session Server Timeout, Media Time Spent, Pause Events, Pause Impacted Streams, Pev3, Pccr, Total Pause Duration, Unique Time Played, and Video Segment.

    3. Select Confirm to save your changes.

    4. In the Structure area, enable the option to Show display names for fields, then select the List Of Media Collection Downloaded Content Events field.

    5. Select Manage related fields, then update the schema as follows:

      • In the List Of Media Collection Downloaded Content Events > Media Details > Advertising Details field, hide the following reporting fields: Ad Completed, Ad Started, and Ad Time Played.

      • In the List Of Media Collection Downloaded Content Events > Media Details > Advertising Pod Details field, hide the following reporting field: Ad Break ID

      • In the List Of Media Collection Downloaded Content Events > Media Details > Chapter Details field, hide the following reporting fields: Chapter Completed, Chapter ID, Chapter Started, and Chapter Time Played.

      • In the List Of Media Collection Downloaded Content Events > Media Details field, hide the List Of States field.

      • In the List Of Media Collection Downloaded Content Events > Media Details > List Of States End and Media Collection Details > List Of States Start field, hide the following reporting fields: Player State Count, Player State Set, and Player State Time.

      • In the List Of Media Collection Downloaded Content Events > Media Details > Qoe Data Details field, hide the following reporting fields: Average Bitrate, Average Bitrate Bucket, Bitrate Change Impacted Streams, Bitrate Changes, Buffer Events, Buffer Impacted Streams, Drops Before Starts, Dropped Frame Impacted Streams, Error Impacted Streams, Errors, External Error IDs, Media SDK Error IDs, Player SDK Error IDs, Stalling Events, Stalling Impacted Streams, Total Buffer Duration, and Total Stalling Duration.

      • In the List Of Media Collection Downloaded Content Events > Media Details > Session Details field, hide the following reporting fields: 10% Progress Marker, 25% Progress Marker, 50% Progress Marker, 75% Progress Marker, 95% Progress Marker, Ad Count, Average Minute Audience, Chapter Count, Content Completes, Content Starts, Content Time Spent, Estimated Streams, Federated Data, Media Downloaded Flag, Media Segment Views, Media Session ID, Media Session Server Timeout, Media Starts, Media Time Spent, Pause Events, Pause Impacted Streams, Pccr, Pev3, Total Pause Duration, Unique Time Played, and Video Segment.

      • In the List Of Media Collection Downloaded Content Events > Media Details field, hide the Media Session ID field.

    6. Select Confirm to save your changes.

    7. In the Structure area, select the Media Reporting Details field, then select Manage related fields.

    8. Enable the option to Show display names for fields, then update the schema as follows:

      • In the Media Reporting Details field, hide the following fields: Error Details, List Of States End, List of States Start, and Media Session ID.

    9. Select Confirm > Save to save your changes.

  8. (Optional) You can add custom metadata to your schema. This lets you include additional, user-defined metadata for specific needs or contexts. For more information about custom metadata with the Media Edge API, see Custom metadata support.

    accordion
    Expand to view instructions on adding custom metadata to your schema.

    1. Locate the tenant name of the org by selecting Account info > Assigned orgs > org name > tenant.

      Custom fields are received through this path. (For example, tenant name: _dcbl → myCustomField path: _dcbl.myCustomField.)

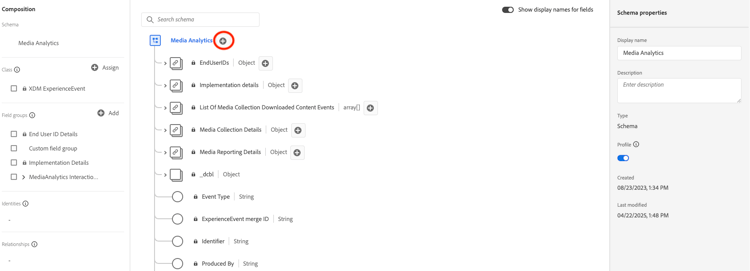

    2. Add a custom field group to your defined media schema.

      add-custom-metadata

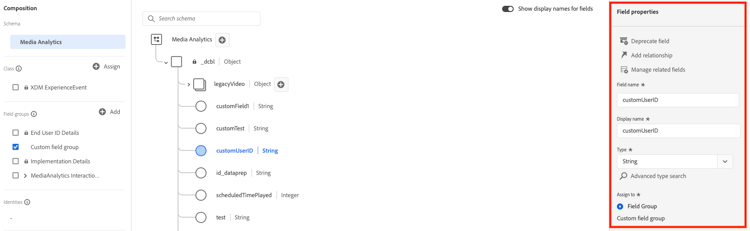

    3. Add any custom fields that you want to track to the field group.

      add-custom-metadata

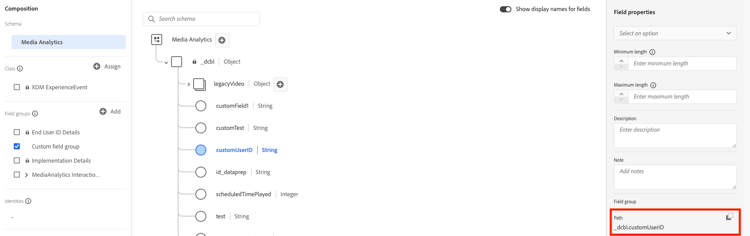

    4. Use the path generated for the custom field in your request payload.

      add-custom-metadata

  9. Continue with Create a dataset in Adobe Experience Platform.

Create a dataset in Adobe Experience Platform

  1. Ensure that you set up a schema as described in Set up the schema in Adobe Experience Platform.

  2. In Adobe Experience Platform, begin creating the dataset as described in the Datasets UI guide.

    When selecting a schema for your dataset, choose the schema that you previously created.

  3. Continue with Configure a datastream in Adobe Experience Platform.

Configure a datastream in Adobe Experience Platform

  1. Ensure that you created a dataset as described in Create a dataset in Adobe Experience Platform.

  2. Create a new datastream as described in Configure a datastream.

    When creating the datastream, make the following selections:

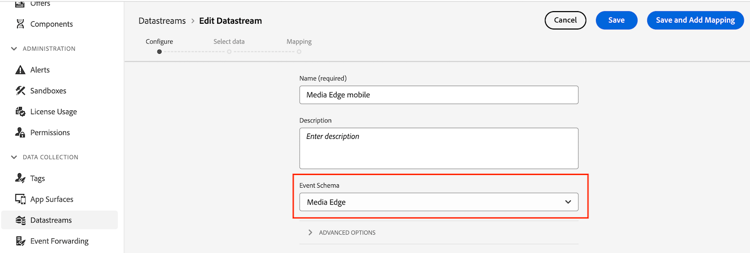

    • In the Event Schema field, select the schema that you created in Set up the schema in Adobe Experience Platform. Select Save.

      note important
      IMPORTANT
      Do not select Save and Add Mapping, because doing so results in mapping errors for the Timestamp field.

      Create datastream and select schema

    • Add either of the following services to the datastream, depending on whether you use Adobe Analytics or Customer Journey Analytics:

      • Adobe Analytics (if using Adobe Analytics)

        If you are using Adobe Analytics, define a report suite as described in Create a report suite.

      • Adobe Experience Platform (if using Customer Journey Analytics)

      For information about adding a service to a datastream, see “Add services to a datastream” in Configure a datastream.

      Add the Adobe Analytics service

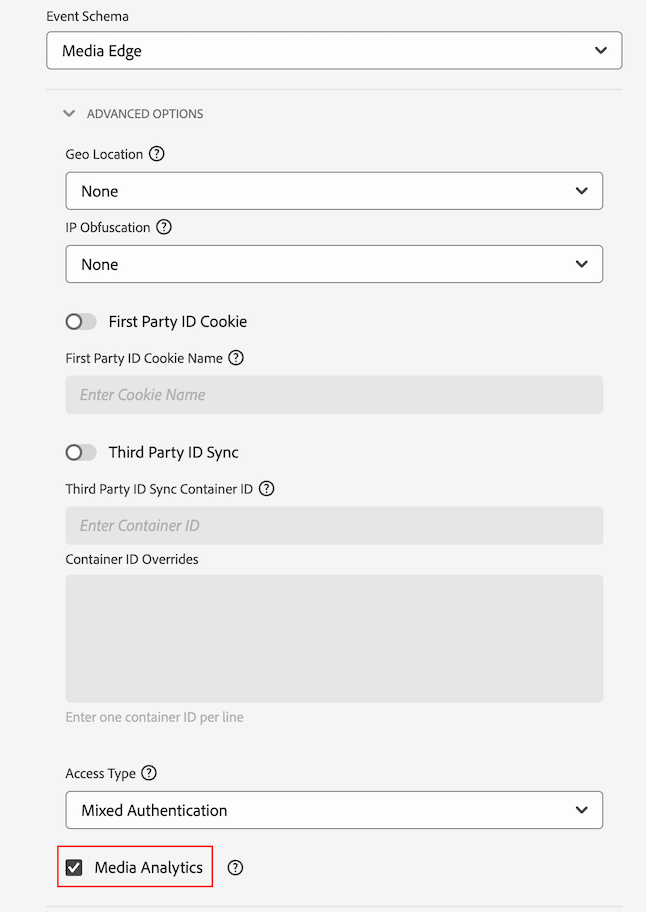

    • Expand Advanced Options, then enable the Media Analytics option.

      Media Analytics option

Choose your implementation method

With the schema, dataset, and datastream in place, implement one of the following codebases to start sending streaming media data to the Edge Network. Each page covers the streaming-media-specific setup; the per-event and per-variable code lives in Events and Variables.

Codebase
In-code
Via Tags
Web
Web SDK
Web SDK tag extension
iOS
iOS
iOS (Tags)
Android
Android
Android (Tags)
Roku
Roku
—
API
Media Edge API
—

Next step

After you begin collecting data, you can configure reporting:
