Integration for Dynamic Media with OpenAPI capabilities integrate-asset-selector-dynamic-media-open-apis
Asset Selector allows you to integrate using various Adobe applications to enable them to work together seamlessly.
Prerequisites prereqs-polaris
Use the following prerequisites if you are integrating Asset Selector with Dynamic Media with OpenAPI capabilities:
-
To access Dynamic Media with OpenAPI capabilities, you must have licenses for:
- Assets repository (for example, Experience Manager Assets as a Cloud Service).
- AEM Dynamic Media.
-
Only approved assets are available for use ensuring brand consistency.
Integration for Dynamic Media with OpenAPI capabilities adobe-app-integration-polaris
Integration of Asset Selector with Dynamic Media OpenAPI process involves various steps that includes creating a customized dynamic media URL or ready to pick dynamic media URL, etc.
Integrate Asset Selector for Dynamic Media with OpenAPI capabilities integrate-dynamic-media
The rootPath and path properties should not be a part of the Dynamic Media with OpenAPI capabilities. Instead, you can configure the aemTierType property. Following is the syntax of configuration:
aemTierType:[1: "delivery"]
This configuration allows you to view all the approved assets without folders or as a flat structure. For more information, navigate to aemTierType property under Asset Selector properties.
Create a Dynamic Delivery URL from approved assets create-dynamic-media-url
Once you set up Asset Selector, a schema of objects is used to create a Dynamic Delivery URL from the selected assets.
For example, a schema of one object from an array of objects that is received upon the selection of an asset:
{
"dc:format": "image/jpeg",
"repo:assetId": "urn:aaid:aem:xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
"repo:name": "image-7.jpg",
"repo:repositoryId": "delivery-pxxxx-exxxxxx.adobe.com",
...
}
All the selected assets are carried by handleSelection function that acts as a JSON object. For example, JsonObj. The dynamic delivery URL is created by combining the below carriers:
assetJsonObj["repo:repositoryId"]/adobe/dynamicmedia/deliverassetJsonObj["repo:assetId"]assetJsonObj["repo:name"].split(".").slice(0,-1).join(".").jpgApproved assets delivery API specification approved-assets-delivery-api-specification
URL format:https://<delivery-api-host>/adobe/dynamicmedia/deliver/<asset-id>/<seo-name>.<format>?<image-modification-query-parameters>
Where,
- Host is
https://delivery-pxxxxx-exxxxxx.adobe.com - API root is
"/adobe/dynamicmedia/deliver" <asset-id>is Asset identifier<seo-name>is name of an asset<format>is the output format<image modification query parameters>as support by the approved assets’ delivery API specification
Approved assets delivery API approved-assets-delivery-api
The dynamic delivery URL possesses the following syntax:https://<delivery-api-host>/adobe/assets/deliver/<asset-id>/<seo-name>, where,
- Host is
https://delivery-pxxxxx-exxxxxx.adobe.com - API root for Original Rendition Delivery is
"/adobe/assets/deliver" <asset-id>is asset identifier<seo-name>is name of the asset that may or may not have an extension
Ready to pick dynamic delivery URL ready-to-pick-dynamic-delivery-url
All the selected assets are carried by handleSelection function that acts as a JSON object. For example, JsonObj. The dynamic delivery URL is created by combining the below carriers:
assetJsonObj["repo:repositoryId"]/adobe/assets/deliverassetJsonObj["repo:assetId"]assetJsonObj["repo:name"]Below are the two ways to traverse the JSON object:
-
Thumbnail: Thumbnails can be images and assets are PDF, video, images, and so on. Although, you can use the height and width attributes of an asset’s thumbnail as the dynamic delivery rendition.
The following set of renditions can be used for the PDF type assets:

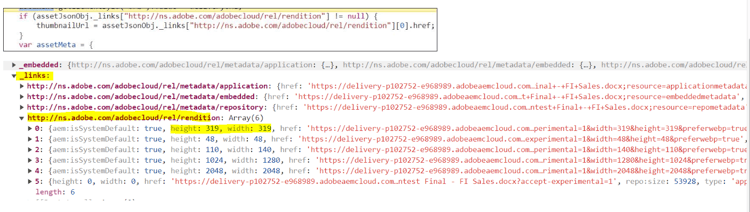

Once a pdf is selected in sidekick, the selection context offers the below information. Below is the way to traverse the JSON object:You can refer to
selection[0].....selection[4]for the array of rendition link from the above screenshot. For example, the key properties of one of the thumbnail renditions include:code language-none { "height": 319, "width": 319, "href": "https://delivery-pxxxxx-exxxxx-cmstg.adobeaemcloud.com/adobe/assets/urn:aaid:aem:8560f3a1-d9cf-429d-a8b8-d81084a42d41/as/algorithm design.jpg?accept-experimental=1&width=319&height=319&preferwebp=true", "type": "image/webp" }
In the above screenshot, the delivery URL of the PDF’s original rendition needs to be incorporated in the target experience if PDF is required and not its thumbnail. For example, https://delivery-pxxxxx-exxxxx-cmstg.adobeaemcloud.com/adobe/assets/urn:aaid:aem:8560f3a1-d9cf-429d-a8b8-d81084a42d41/original/as/algorithm design.pdf?accept-experimental=1
-
Video: You can use video player URL for the video type assets which uses an embedded iFrame. You can use the following array renditions in the target experience:
code language-none { "height": 319, "width": 319, "href": "https://delivery-pxxxxx-exxxxx-cmstg.adobeaemcloud.com/adobe/assets/urn:aaid:aem:2fdef732-a452-45a8-b58b-09df1a5173cd/as/asDragDrop.2.jpg?accept-experimental=1&width=319&height=319&preferwebp=true", "type": "image/webp" }You can refer to
selection[0].....selection[4]for the array of rendition link from the above screenshot. For example, the key properties of one of the thumbnail renditions include:The code snippet in the above screenshot is an example of a video asset. It includes renditions links array. The
selection[5]in the excerpt is the example of image thumbnail which can be used as the placeholder of video thumbnail in the target experience. Theselection[5]in the renditions’ array is for the video player. This serves an HTML, and can be set assrcof the iframe. It supports adaptive bitrate streaming which is web-optimized delivery of the video.In the above example, the video player URL is
https://delivery-pxxxxx-exxxxx-cmstg.adobeaemcloud.com/adobe/assets/urn:aaid:aem:2fdef732-a452-45a8-b58b-09df1a5173cd/play?accept-experimental=1
Configure custom filters configure-custom-filters-dynamic-media-open-api
Asset Selector for Dynamic Media with OpenAPI capabilities allows you to configure custom properties and the filters based on them. The filterSchema property is used to configure such properties. The customization can be exposed as metadata.<metadata bucket>.<property name>. against which the filters can be configured, where,
metadatais the information of an assetembeddedis the static parameter used for configuration, and<propertyname>is the filter name that you are configuring
For the configuration, properties that are defined at jcr:content/metadata/ level are exposed as metadata.<metadata bucket>.<property name>. for the filters that you want to configure.
For example, in Asset Selector for Dynamic Media with OpenAPI capabilities, a property on asset jcr:content/metadata/client_name:market is converted into metadata.embedded.client_name:market for filter configuration.
To get the name, a one-time activity must be done. Make a search API call for the asset and get the property name (the bucket, essentially).

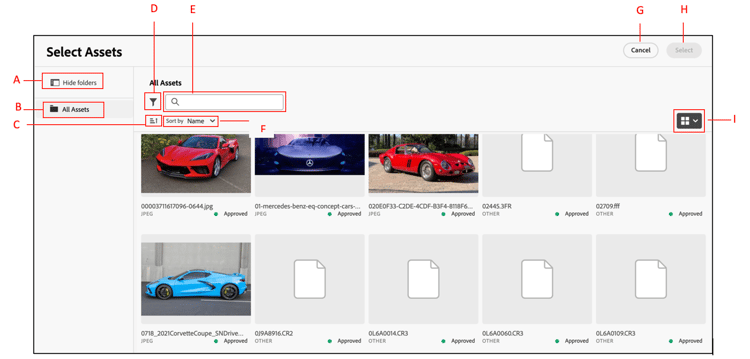

Asset Selector user interface for Dynamic Media with OpenAPI capabilities interface-dynamic-media-open-api
After integration with the Adobe’s Micro-Frontend Asset Selector, you can see the assets only structure of all the approved assets available in Experience Manager assets repository.
- A: Hide/Show panel
- B: Assets
- C: Sorting
- D: Filters
- E: Search bar
- F: Sorting in ascending or descending order
- G: Cancel Selection
- H: Select single or multiple assets
