DocumentationJourney OptimizerJourney Optimizer Guide

Support for archiving archiving-support

Last update: Wed Oct 16 2024 00:00:00 GMT+0000 (Coordinated Universal Time)

CREATED FOR:

  • Experienced
  • Admin

How to archive messages about-archiving

Regulations such as HIPAA require that Journey Optimizer should provide a way to archive messages sent to individuals. Indeed, if your customers raise a claim, they should have the ability to get a copy of the sent message for verification purpose.

  • For the email channel, Journey Optimizer provides a built-in BCC email capability. Learn more

  • Additionnaly, for all channels, you can use the ‘Template’ field in the Entity Dataset, which contains the details of the non-personalized message templates. Export the dataset with this field to save metadata such as: who sent the message, to whom and when. Note that personalized data is not exported - only the template (format and structure of the message) is taken into account. Learn more

NOTE
Journey Optimizer does not own support for SMS archival requirement. For dedicated archival support, work with your SMS vendor (Sinch, Infobip, or Twilio).

How to use BCC for emails bcc-email

You can send blind carbon copy (BCC) of an email sent by Journey Optimizer to a dedicated BCC address. This optional feature allows you to retain copies of email communications you send to your users for compliance and/or archival purposes. The BCC address is not visible to other recipients of the message.

Enable BCC email enable-bcc

To enable the BCC email option, enter the email address of your choice in the dedicated field of the channel configuration (i.e. message preset). You can specify any external address in correct format, except an email address defined on a subdomain delegated to Adobe. For example, if you delegated the marketing.luma.com subdomain to Adobe, any address like abc@marketing.luma.com is prohibited.

CAUTION
You can only define one BCC email address. Make sure the BCC address has enough reception capacity to store all the emails that are sent using the current channel configuration.
More recommendations are listed in this section.
NOTE
If you have purchased the Healthcare Shield add-on offering, you must ensure that your BCC addresse’s ISP supports the TLS 1.2 protocol.

Once configuration is done, all email messages based on this configuration are blind-copied to the BCC email address you entered. From there, messages can be processed and archived using an external system.

CAUTION
Your BCC feature usage is counted against the number of messages you are licensed for. Hence, only enable it in the configurations used for critical communications that you wish to archive. Check your contract for licensed volumes.

The BCC email address setting is immediately saved and processed at the configuration level. When you create a new message using this configuration, the BCC email address is automatically displayed.

However, the BCC address gets picked up for sending communications following the logic described here.

Recommendations and limitations bcc-recommendations-limitations

  • To ensure your privacy compliance, BCC emails must be processed by an archiving system capable of storing securely personally identifiable information (PII).

  • As messages can contain sensitive or private data, such as personally identifiable information (PII), make sure the BCC address is correct, and secure the access to messages.

  • Your inbox used for BCC should be properly managed for space and delivery. If the inbox returns bounces, some emails may not be received and therefore will fail to get archived.

  • Messages may be delivered to the BCC email address before the target recipients. BCC messages can also been sent even though the original messages may have bounced.

  • Do not open or click through the emails sent to the BCC address as it is taken into account in the total opens and clicks from the send analysis, which could cause some miscalculations in reports.

  • Do not mark messages as spam in the BCC inbox, as it will impact all the other emails sent to this address.

CAUTION
Do not click the unsubscribe link in the emails sent to the BCC address as you will immediately unsubscribe the corresponding recipients.

GDPR compliance gdpr-compliance

Regulations such as GDPR state that Data Subjects should be able to modify their consent at any time. Because the BCC emails you are sending with Journey Optimizer include securely personally identifiable information (PII), you must edit the CJM Email BCC Feedback Event Schema to be able to manage these PII in compliance with GDPR and similar regulations.

To do this, follow the steps below.

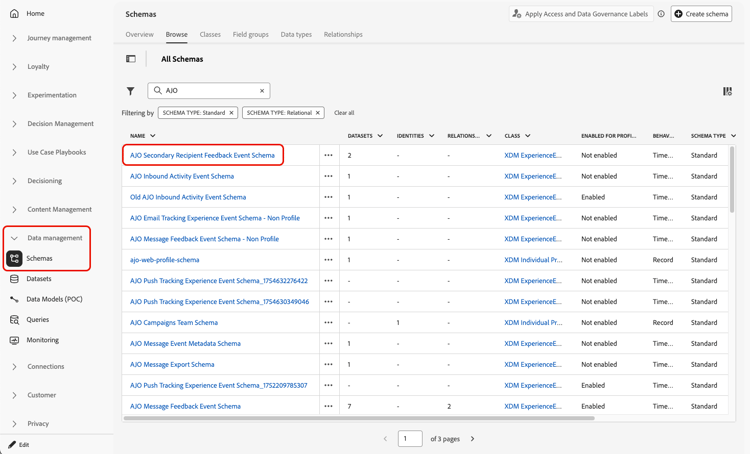

  1. Go to Data management > Schemas > Browse and select CJM Email BCC Feedback Event Schema.

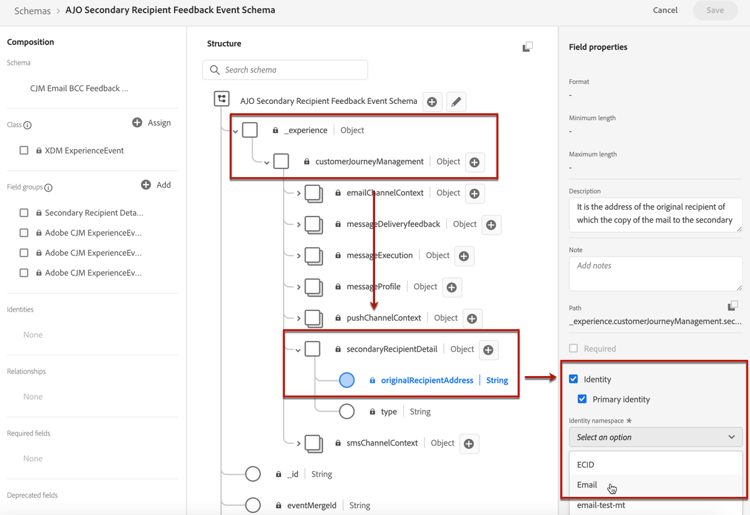

  2. Click to expand _experience, customerJourneyManagment then secondaryRecipientDetail.

  3. Select originalRecipientAddress.

  4. In the Field properties on the right, scroll down to the Identity checkbox.

  5. Select it and also select Primary identity.

  6. Select a namespace from the drop-down list.

  7. Click Apply.

NOTE
Learn more on managing Privacy and the applicable regulations in the Experience Platform documentation.

BCC reporting data bcc-reporting

Reporting as such on BCC is not available in the journey and message reports. However, information is stored on a system dataset called AJO BCC Feedback Event Dataset. You can run queries against this dataset to find useful information for debugging purpose for example.

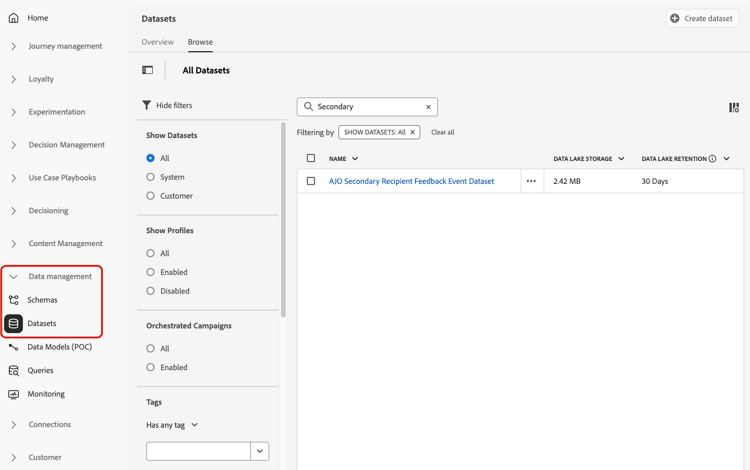

To access this dataset through the user interface, select Data management > Datasets > Browse. Learn more on how to access datasets in this section.

To run queries against this dataset, you can use the Query Editor provided by the Adobe Experience Platform Query Service. To access it, select Data management > Queries and click Create query. Learn more

Depending on what information you are looking for, you can run the following queries.

  1. For all the other queries below, you will need the journey action ID. Run this query to fetch all action IDs associated with a particular journey version ID within the last 2 days:

    code language-none
    SELECT
DISTINCT
CAST(TIMESTAMP AS DATE) AS EventTime,
_experience.journeyOrchestration.stepEvents.journeyVersionID,
_experience.journeyOrchestration.stepEvents.actionName,
_experience.journeyOrchestration.stepEvents.actionID
FROM journey_step_events
WHERE
_experience.journeyOrchestration.stepEvents.journeyVersionID = '<journey version id>' AND
_experience.journeyOrchestration.stepEvents.actionID is not NULL AND
TIMESTAMP > NOW() - INTERVAL '2' DAY
ORDER BY EventTime DESC;
    note note
    NOTE

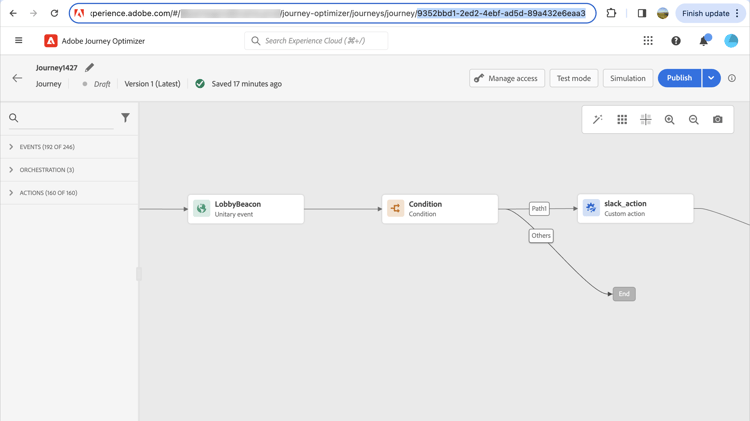

    To get the <journey version id>parameter, select the corresponding journey version from the Journey management > Journeys menu. The journey version ID is displayed at the end of the URL displayed in your web browser.

  2. Run this query to fetch all message feedback events (especially feedback status) generated for a particular message targeted to a specific user within the last 2 days:

    code language-none
    SELECT
_experience.customerJourneyManagement.messageExecution.journeyVersionID AS JourneyVersionID,
_experience.customerJourneyManagement.messageExecution.journeyActionID AS JourneyActionID,
timestamp AS EventTime,
_experience.customerJourneyManagement.emailChannelContext.address AS RecipientAddress,
_experience.customerjourneymanagement.messagedeliveryfeedback.feedbackStatus AS FeedbackStatus,
CASE _experience.customerjourneymanagement.messagedeliveryfeedback.feedbackStatus
    WHEN 'sent' THEN 'Sent'
    WHEN 'delay' THEN 'Retry'
    WHEN 'out_of_band' THEN 'Bounce'
    WHEN 'bounce' THEN 'Bounce'
END AS FeedbackStatusCategory
FROM cjm_message_feedback_event_dataset
WHERE
    timestamp > now() - INTERVAL '2' day  AND
    _experience.customerJourneyManagement.messageExecution.journeyVersionID = '<journey version id>' AND
    _experience.customerJourneyManagement.messageExecution.journeyActionID = '<journey action id>' AND
    _experience.customerJourneyManagement.emailChannelContext.address = '<recipient email address>'
    ORDER BY EventTime DESC;
    note note
    NOTE
    To get the <journey action id> parameter, run the first query described above using the journey version id. The <recipient email address> parameter is the targeted or actual recipient’s email address.

  3. Run this query to fetch all BCC message feedback events generated for a particular message targeted to a specific user within the last 2 days:

    code language-none
    SELECT
_experience.customerJourneyManagement.messageExecution.journeyVersionID AS JourneyVersionID,
_experience.customerJourneyManagement.messageExecution.journeyActionID AS JourneyActionID,
_experience.customerJourneyManagement.emailChannelContext.address AS BccEmailAddress,
timestamp AS EventTime,
_experience.customerJourneyManagement.secondaryRecipientDetail.originalRecipientAddress AS RecipientAddress,
_experience.customerjourneymanagement.messagedeliveryfeedback.feedbackStatus AS FeedbackStatus,
CASE _experience.customerjourneymanagement.messagedeliveryfeedback.feedbackStatus
            WHEN 'sent' THEN 'Sent'
            WHEN 'delay' THEN 'Retry'
            WHEN 'out_of_band' THEN 'Bounce'
            WHEN 'bounce' THEN 'Bounce'
        END AS FeedbackStatusCategory
FROM ajo_bcc_feedback_event_dataset
WHERE
timestamp > now() - INTERVAL '2' day  AND
_experience.customerJourneyManagement.messageExecution.journeyVersionID = '<journey version id>' AND
_experience.customerJourneyManagement.messageExecution.journeyActionID = '<journeyaction id>' AND
_experience.customerJourneyManagement.secondaryRecipientDetail.originalRecipientAddress = '<recipient email address>'
ORDER BY EventTime DESC;

  4. Run this query to fetch all recipient addresses who have not received the message whereas its BCC entry exists within the last 30 days:

    code language-none
     SELECT
     DISTINCT
 bcc._experience.customerJourneyManagement.secondaryRecipientDetail.originalRecipientAddress AS RecipientAddressesNotRecievedMessage
 FROM ajo_bcc_feedback_event_dataset bcc
 LEFT JOIN cjm_message_feedback_event_dataset mfe
 ON
bcc._experience.customerJourneyManagement.messageExecution.journeyVersionID =
         mfe._experience.customerJourneyManagement.messageExecution.journeyVersionID AND    bcc._experience.customerJourneyManagement.messageExecution.journeyActionID = mfe._experience.customerJourneyManagement.messageExecution.journeyActionID AND
bcc._experience.customerJourneyManagement.secondaryRecipientDetail.originalRecipientAddress = mfe._experience.customerJourneyManagement.emailChannelContext.address AND
mfe._experience.customerJourneyManagement.messageExecution.journeyVersionID = '<journey version id>' AND
mfe._experience.customerJourneyManagement.messageExecution.journeyActionID = '<journey action id>' AND
mfe.timestamp > now() - INTERVAL '30' DAY AND
mfe._experience.customerjourneymanagement.messagedeliveryfeedback.feedbackstatus IN ('bounce', 'out_of_band')
 WHERE bcc.timestamp > now() - INTERVAL '30' DAY;

Use message header to reconcile BCC copy and sent email information bcc-header

When your email BCC copies are archived on an external system for example, you can retrieve the information on the corresponding sent emails using a header included in the message.

Every email message now contains a header called x-message-profile-id. This header’s value is different for each profile: it is unique to each sent email and to its corresponding BCC email copy.

The x-message-profile-id header is also stored in the following system datasets: AJO Message Feedback Event Dataset (sent emails) and AJO BCC Feedback Event Dataset (BCC copies). You can query these datasets to reconcile the BCC copy and the corresponding actual email.

  • To access these datasets through the user interface, select Data management > Datasets > Browse. Learn more on how to access datasets in this section.

  • Use the Query Editor provided by the Adobe Experience Platform Query Service. To access it, select Data management > Queries and click Create query. Learn more

Below are a few sample queries you can run to retrieve information corresponding to your BCC copies.

Query 1

To get the BCC event stitched with the corresponding feedback event for the actual email with the campaign action details:

SELECT
  mfe.timestamp AS OriginalRecipientFeedbackEventTime,
  mfe._experience.customerJourneyManagement.emailChannelContext.address AS OriginalRecipientEmailAddress,
  bcc._experience.customerJourneyManagement.emailChannelContext.address AS BCCEmailAddress,
  mfe._experience.customerjourneymanagement.messagedeliveryfeedback.feedbackstatus AS OriginalRecipientMessageFeedbackStatus,
  mfe._experience.customerJourneyManagement.messageExecution.campaignID AS CampaignID,
  mfe._experience.customerJourneyManagement.messageExecution.campaignActionID AS CampaignActionID,
  mfe._experience.customerJourneyManagement.messageExecution.batchInstanceID AS BatchInstanceID,
  mfe._experience.customerJourneyManagement.messageExecution.messageID AS MessageID
FROM ajo_bcc_feedback_event_dataset bcc
LEFT JOIN ajo_message_feedback_event_dataset mfe
ON bcc._experience.customerJourneyManagement.messageProfile.messageProfileID =
    mfe._experience.customerJourneyManagement.messageProfile.messageProfileID AND
    mfe.timestamp > now() - INTERVAL '30' day
WHERE
  bcc.timestamp > now() - INTERVAL '30' DAY AND
  bcc._experience.customerJourneyManagement.messageProfile.messageProfileID = '<x-message-profile-id>'
ORDER BY mfe.timestamp DESC;

Query 2

To get the BCC event stitched with the corresponding feedback event for the actual email with the journey action details:

SELECT
  mfe.timestamp AS OriginalRecipientFeedbackEventTime,
  mfe._experience.customerJourneyManagement.emailChannelContext.address AS OriginalRecipientEmailAddress,
  bcc._experience.customerJourneyManagement.emailChannelContext.address AS BCCEmailAddress,
  mfe._experience.customerjourneymanagement.messagedeliveryfeedback.feedbackstatus AS OriginalRecipientMessageFeedbackStatus,
  mfe._experience.customerJourneyManagement.messageExecution.journeyActionID AS journeyActionID,
  mfe._experience.customerJourneyManagement.messageExecution.journeyVersionID AS JourneyVersionID,
  mfe._experience.customerJourneyManagement.messageExecution.journeyVersionInstanceID AS JourneyVersionInstanceID,
  mfe._experience.customerJourneyManagement.messageExecution.batchInstanceID AS BatchInstanceID,
  mfe._experience.customerJourneyManagement.messageExecution.messageID AS MessageID
FROM ajo_bcc_feedback_event_dataset bcc
LEFT JOIN ajo_message_feedback_event_dataset mfe
ON bcc._experience.customerJourneyManagement.messageProfile.messageProfileID =
    mfe._experience.customerJourneyManagement.messageProfile.messageProfileID AND
    mfe.timestamp > now() - INTERVAL '30' day
WHERE
  bcc.timestamp > now() - INTERVAL '30' DAY AND
  bcc._experience.customerJourneyManagement.messageProfile.messageProfileID = '<x-message-profile-id>'
ORDER BY mfe.timestamp DESC;
