在此页面上：了解如何使用与Adobe Campaign v7和v8的集成从历程发送电子邮件，包括创建事务型模板、事件和操作。
此用例说明了使用与Adobe Campaign v7和Adobe Campaign v8的集成发送电子邮件所需的所有步骤。
首先，在Campaign中创建事务性电子邮件模板。 然后，在Journey Optimizer中创建事件、操作并设计旅程。
要了解有关Campaign集成的更多信息，请参阅以下页面：
Adobe Campaign
必须为此集成配置您的Campaign实例。 必须配置事务性消息传递功能。
-
登录到Campaign控制实例。
-

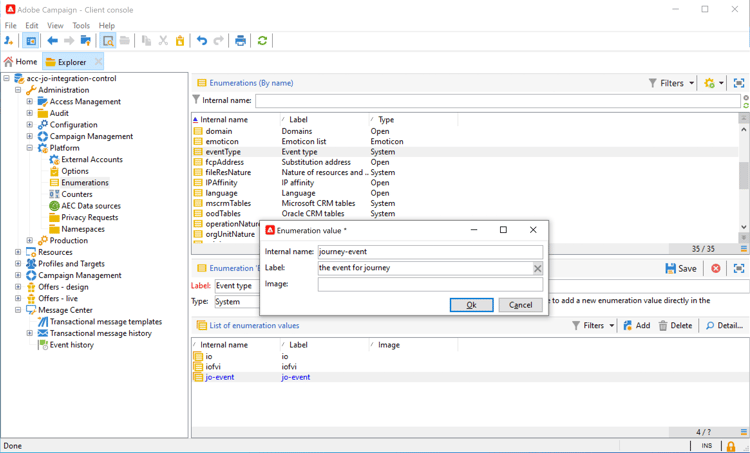

在管理 > 平台 > 枚举下，选择事件类型 (eventType)枚举。 创建新的事件类型（在我们的示例中为“journey-event”）。 在稍后写入JSON文件时使用事件类型的内部名称。
-
断开并重新连接到实例，以使创建生效。
-

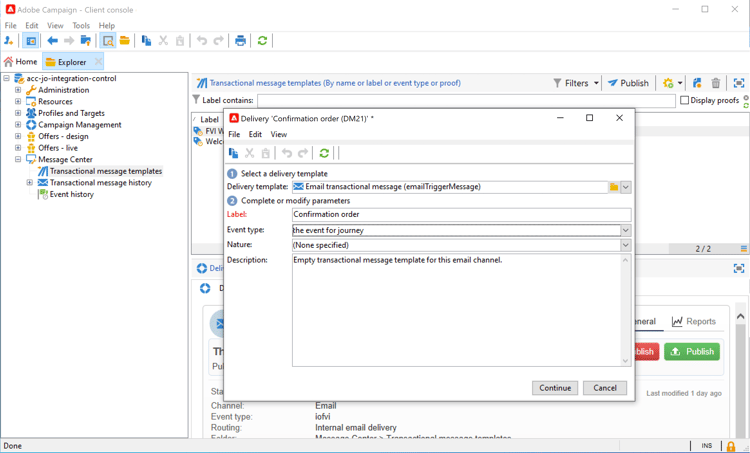

在消息中心 > 事务性消息模板下，根据之前创建的事件类型创建新的电子邮件模板。
-

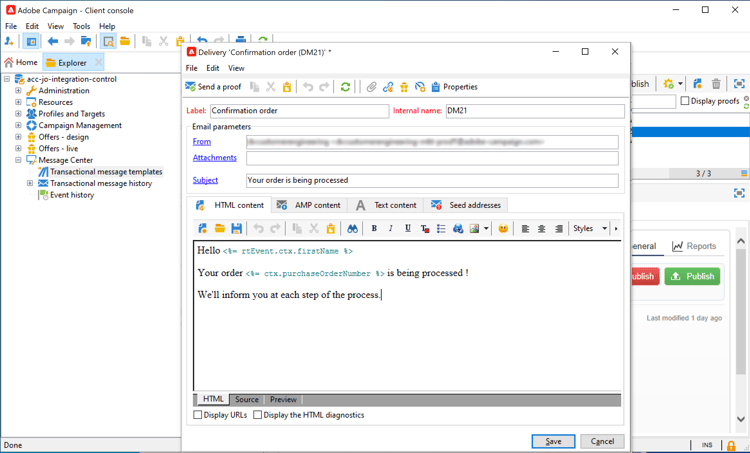

设计您的模板。 在此示例中，个性化应用于用户档案的名字和订单号。 名字在Adobe Experience Platform数据源中，订单号是Journey Optimizer事件中的字段。 确保在Campaign中使用正确的字段名称。
-

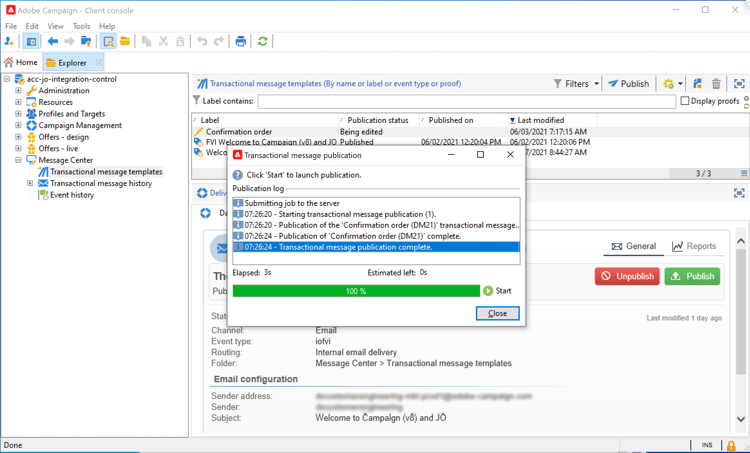

发布事务型模板。
-
编写与模板对应的JSON有效负载。
{
"channel": "email",
"eventType": "journey-event",
"email": "Email address",
"ctx": {
"firstName": "First name", "purchaseOrderNumber": "Purchase order number"
}
}
- 对于渠道，您需要键入“email”。
- 对于eventType，使用之前创建的事件类型的内部名称。
- 电子邮件地址将是一个变量，因此您可以键入任何标签。
- 在ctx下，个性化字段也是变量。
Journey Optimizer
-

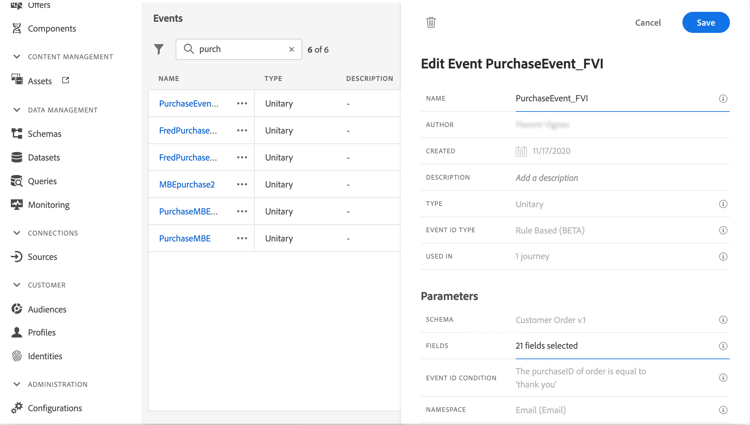

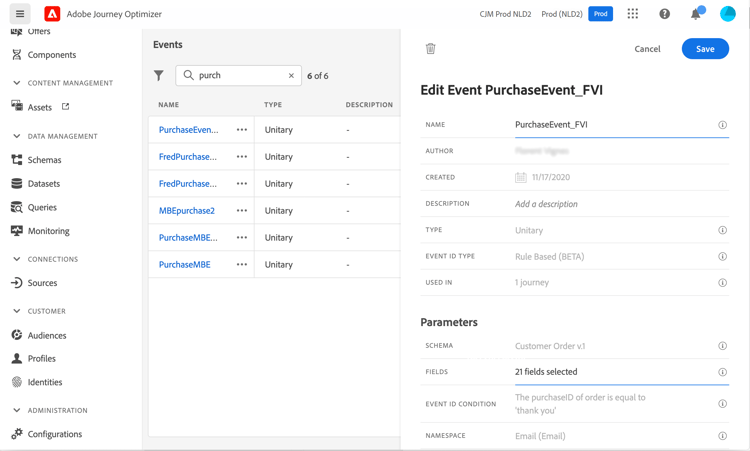

创建一个事件。 包括“purchaseOrderNumber”字段。
-

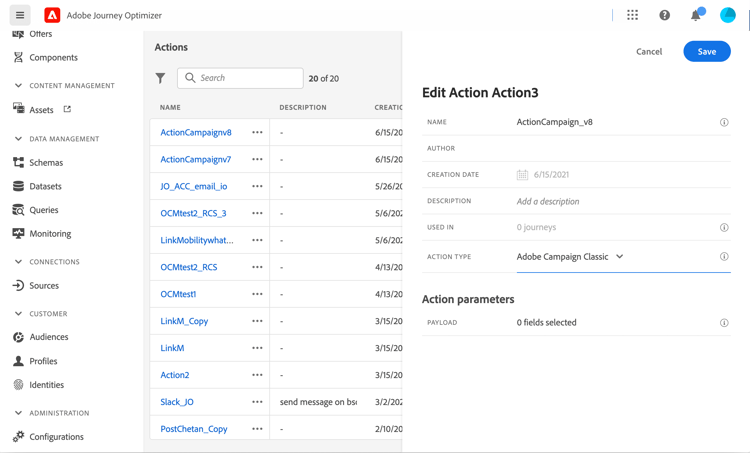

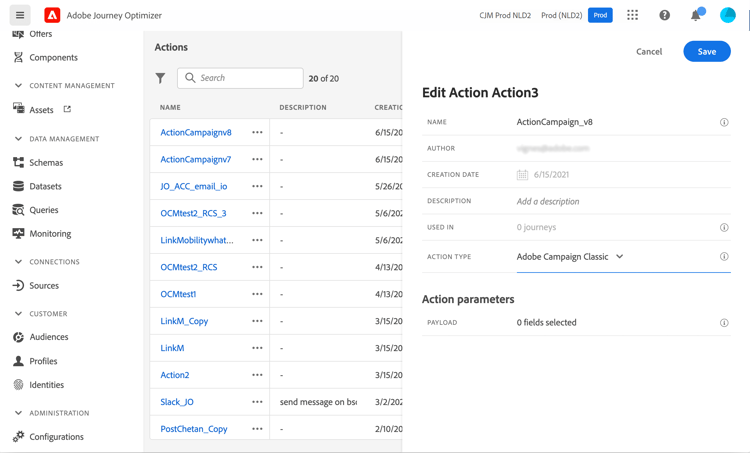

在Journey Optimizer中创建与活动模板对应的操作。 在 操作类型 下拉列表中，选择Adobe Campaign经典。
-

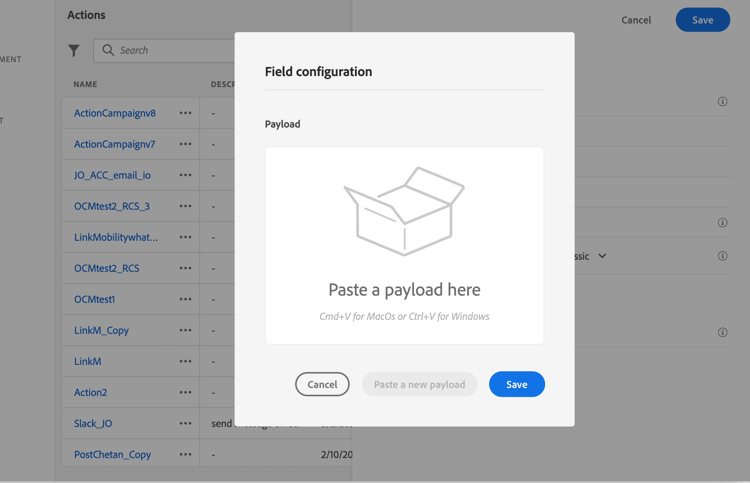

单击 有效负载字段 并粘贴之前创建的JSON。
用于操作集成的
-

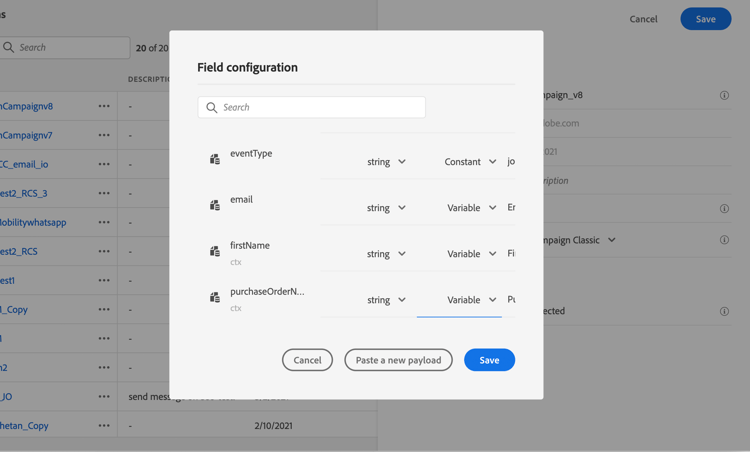

对于电子邮件地址和两个个性化字段，请将 常量 更改为变量。
针对Campaign集成使用字段映射的
-

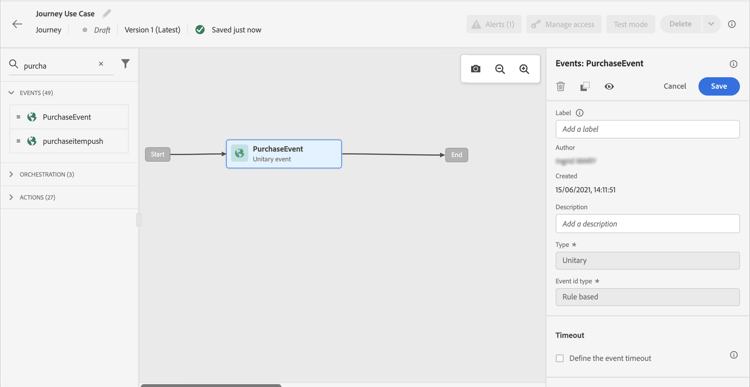

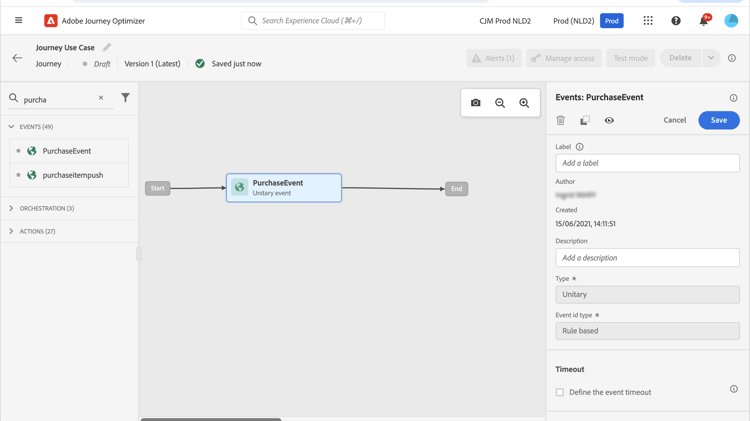

现在，创建一个新历程，并从之前创建的事件开始。
-

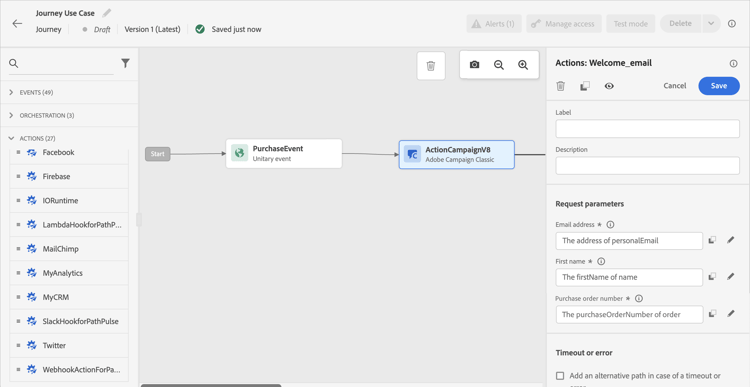

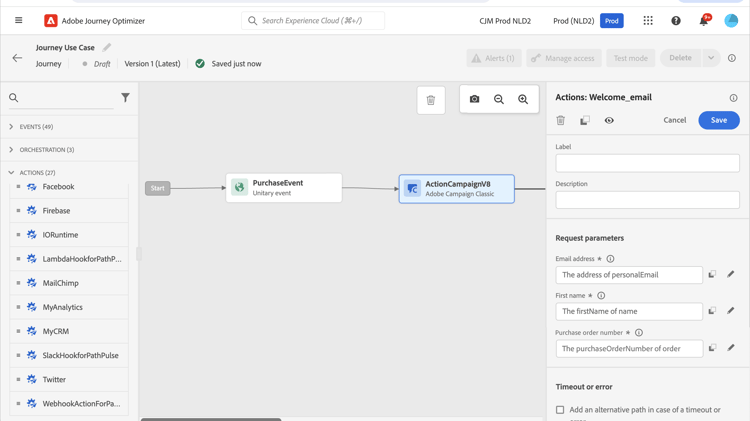

添加操作并将每个字段映射到Journey Optimizer中的正确字段。
-

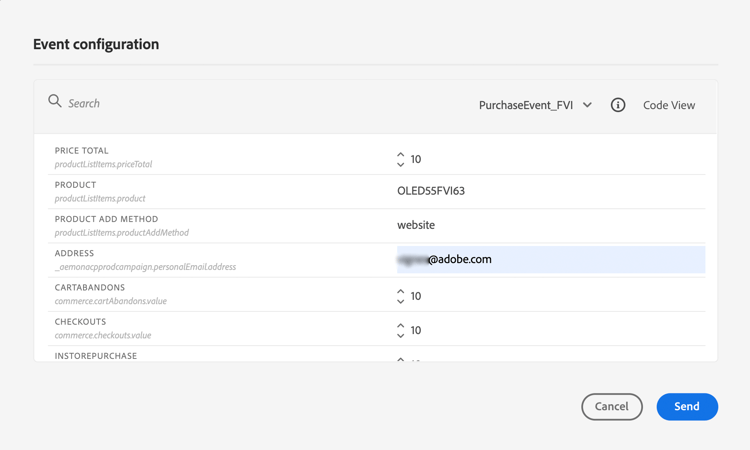

测试您的历程。
-
您现在可以发布历程。
