1.2.5 Frame.io and Workfront Fusion

In the previous exercise you configured the scenario --aepUserLdap-- - Firefly + Photoshop and configured an incoming webhook to trigger the scenario, and a webhook response when the scenario completed successfully. You then used Postman to trigger that scenario. Postman is a great tool for testing, but in a real business scenario, business users wouldn’t use Postman to trigger a scenario. Instead, they would use another application and they would expect that other application to activate a scenario in Workfront Fusion. In this exercise, that is exactly what you’ll be doing with Frame.io.

1.2.5.1 Prerequisites

Before continuing with this exercise, you need to have completed the setup of your Adobe I/O project including adding the Frame.io API to your Adobe I/O project, and you also need to have configured an application to interact with APIs, such as Postman or PostBuster.

1.2.5.2 Accessing Frame.io

Go to https://next.frame.io/.

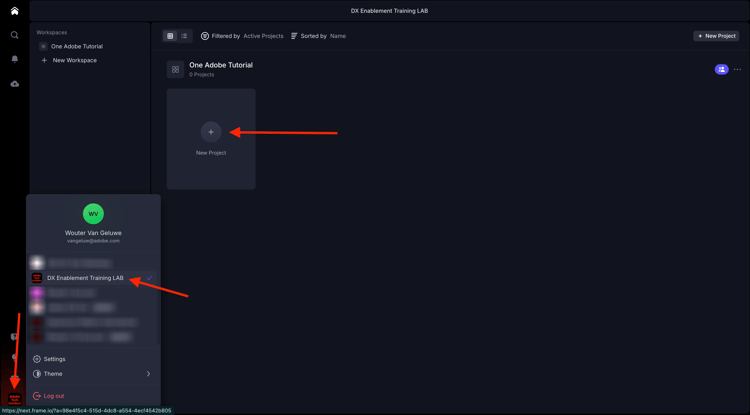

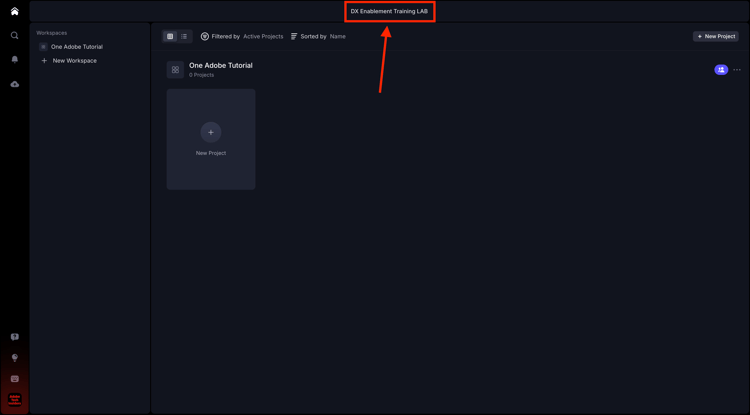

Verify which instance you’re currently logged in to by clicking the instance icon. Choose the instance that you have been given access to, which should be --aepImsOrgName--.

Click the + New Project to create your own project in Frame.io.

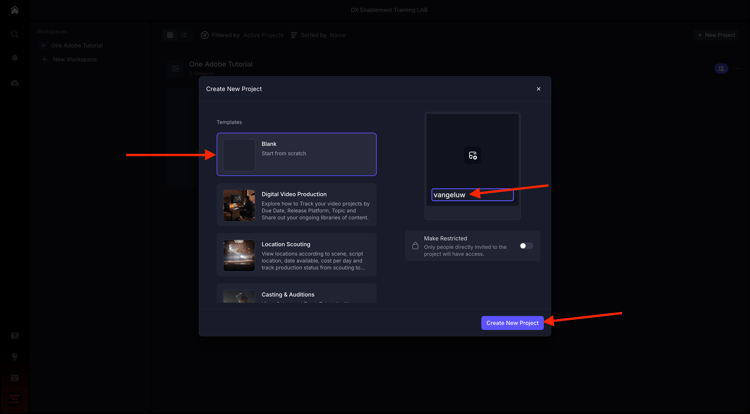

Select the Blank template and then enter the name --aepUserLdap-- for your project. Click Create New Project.

You’ll then see your project in the left menu. Click the + icon and then select New Folder.

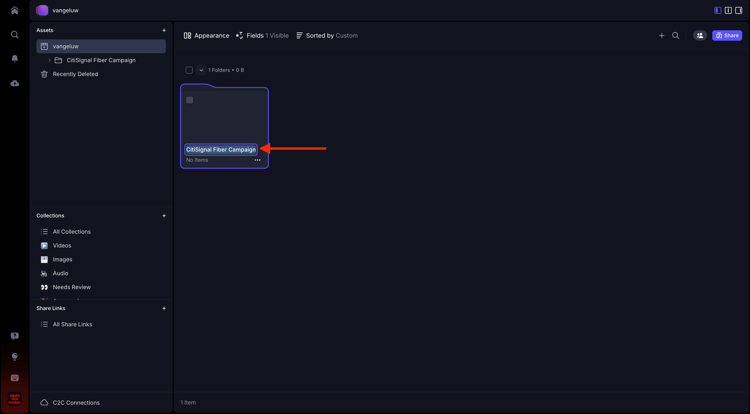

Enter the name CitiSignal Fiber Campaign and then double-click the folder to open it.

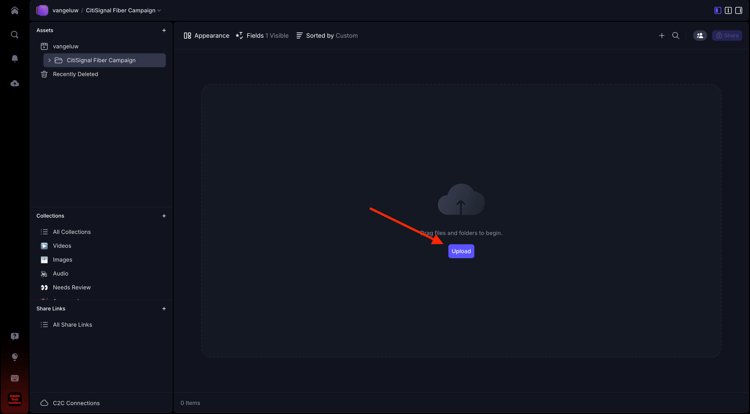

Click Upload.

In one of the previous exercises, you downloaded citisignal-fiber.psd. Select that file and click Open.

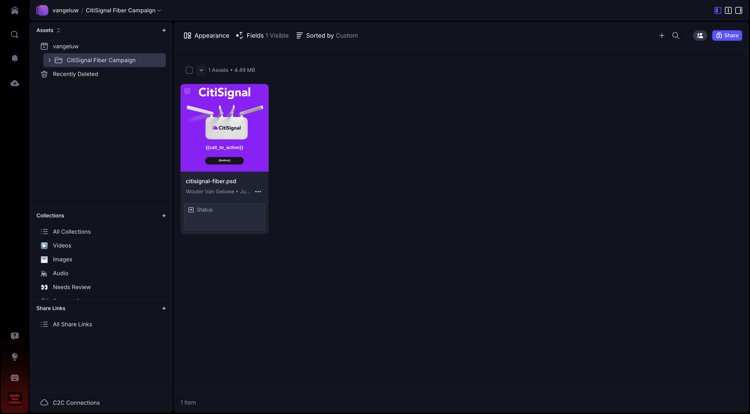

The file citisignal-fiber.psd will then be available in your newly created folder.

1.2.5.3 Workfront Fusion and Frame.io

In the previous exercise, you created the scenario --aepUserLdap-- - Firefly + Photoshop, which started off with a custom webhook and that ended with a webhook response. The usage of the webhooks was then tested using Postman, but obviously, the point of such a scenario is to be called by an external application. As stated before, Frame.io will be that exercise, but in between Frame.io and the --aepUserLdap-- - Firefly + Photoshop another Workfront Fusion scenario is needed. you will now configure that scenario.

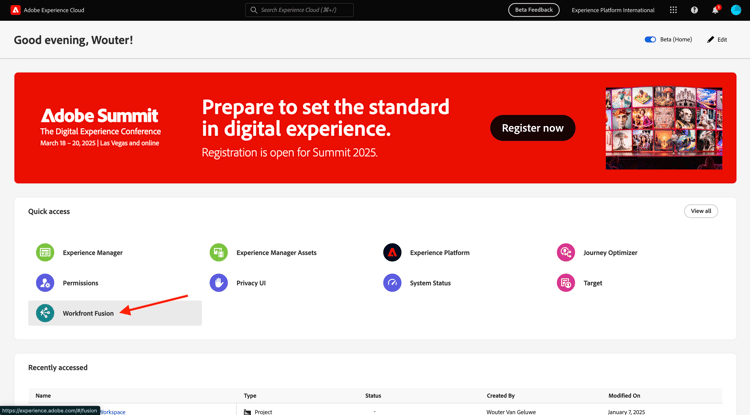

Go to https://experience.adobe.com/. Open Workfront Fusion.

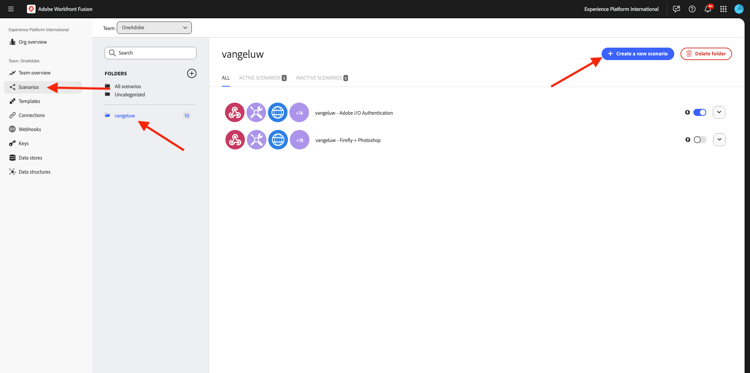

In the left menu, go to Scenarios and select your folder --aepUserLdap--. Click Create a new scenario.

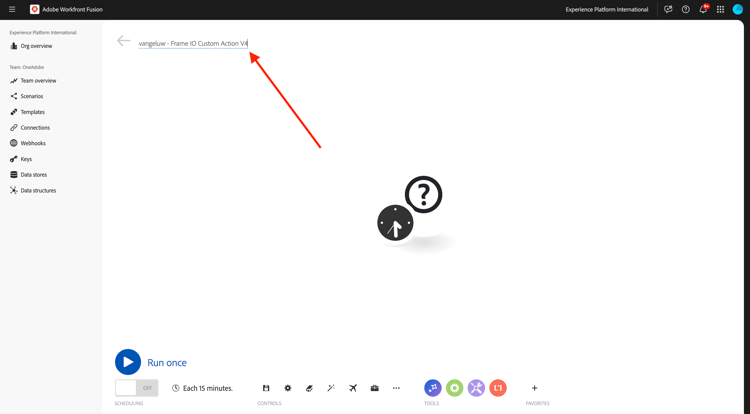

Use the name --aepUserLdap-- - Frame IO Custom Action V4.

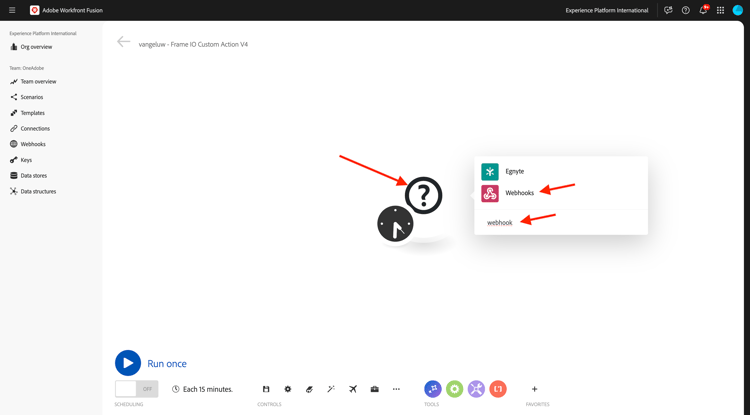

Click the question mark object on the canvas. Enter the text webhook in the search box and click Webhooks.

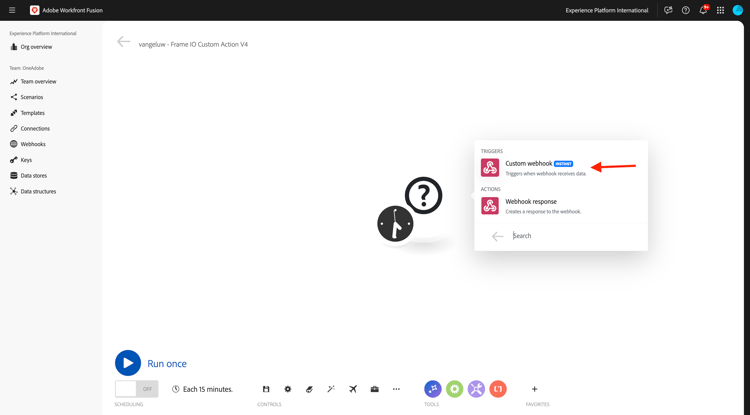

Click Custom webhook.

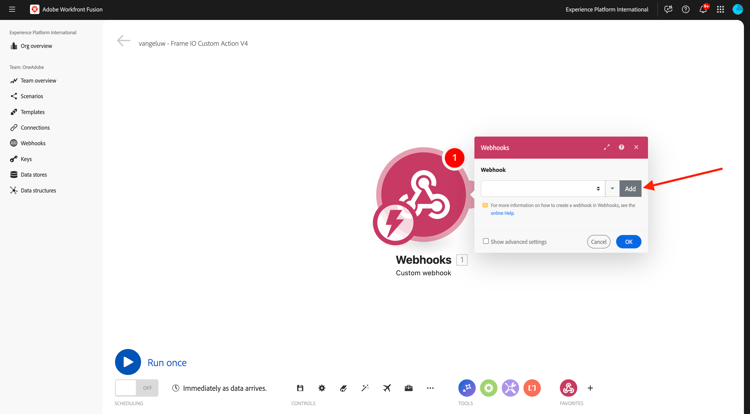

Click Add to create a new webhook url.

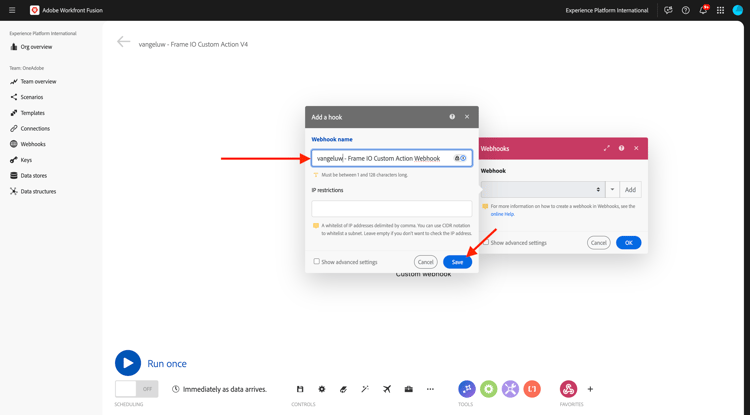

For the Webhook name, use --aepUserLdap-- - Frame IO Custom Action Webhook. Click Save.

You should then see this. Leave this screen open and untouched as you’ll need it in a next step. You will have to copy the webhook URL in a next step, by clicking Copy address to clipboard.

1.2.5.4 Frame.io V4 Custom Actions API

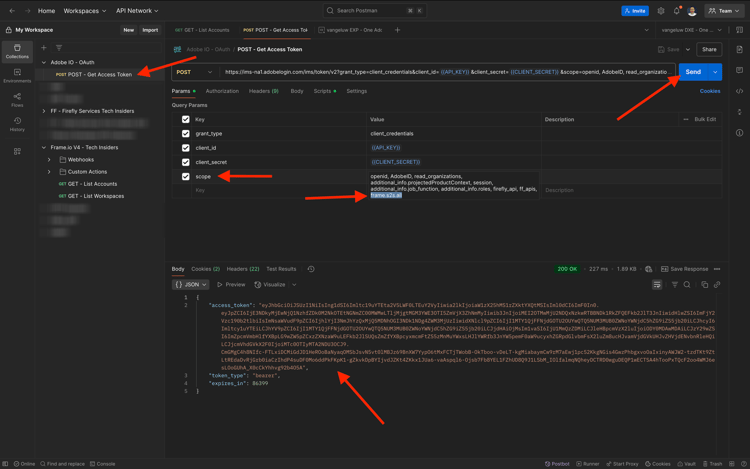

Go to Postman and open the request POST - Get Access Token in the collection Adobe IO - OAuth. Verify the field scope under Params. The field scope should include the scope frame.s2s.all. If it’s missing, please add it. Next, click Send to request a new access_token.

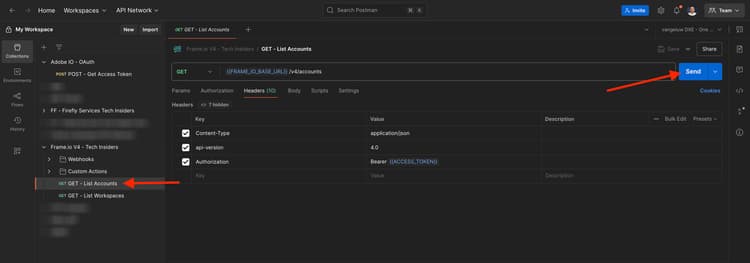

Next, open the request GET - List Accounts in the collection Frame.io V4 - Tech Insiders. Click Send.

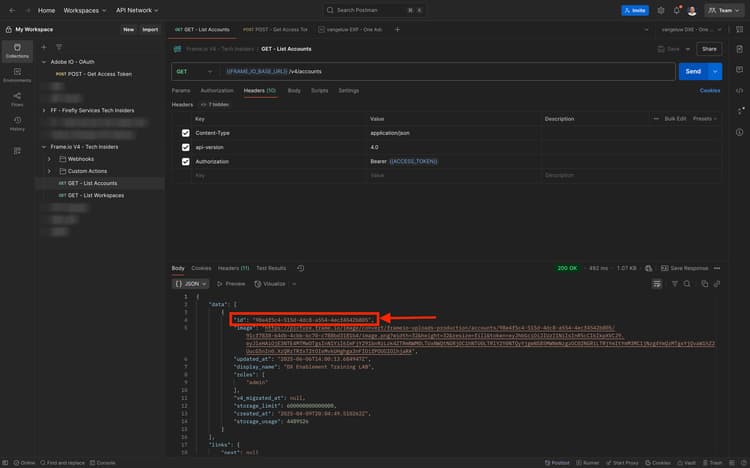

You should then see a similar response that contains one or more accounts. Review the response and locate the field id for the Frame.io V4 Account you’re using. You can find the name of the Account in the Frame.io V4 user interface:

Copy the value of the field id.

In the left menu, go to Environments and select the environment you’re using. Find the variable FRAME_IO_ACCOUNT_ID and paste the id that you got from the previous request in both the Initial value column and the Current value column. Click Save.

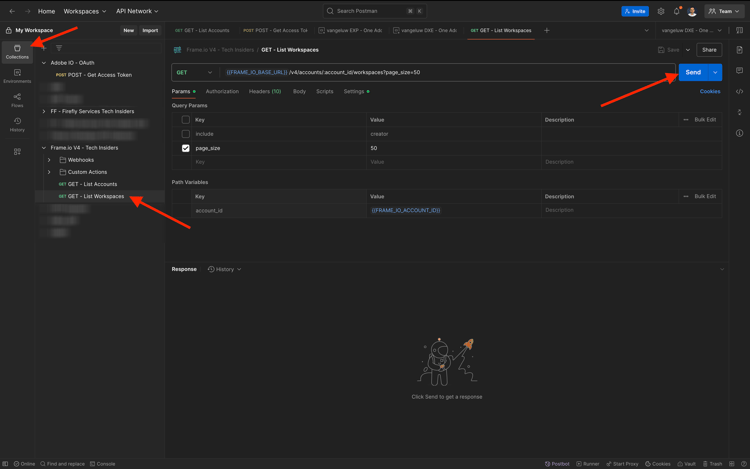

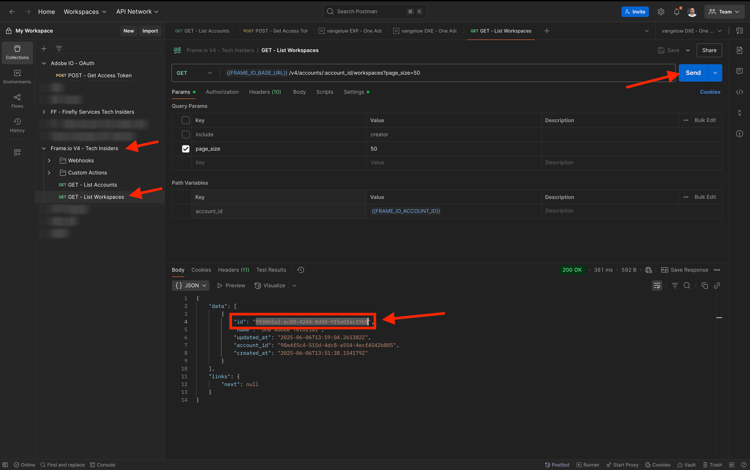

In the left menu, go back to Collections. Open the request GET - List Workspaces in the collection Frame.io V4 - Tech Insiders. Click Send.

You should then see a similar response that contains one or more accounts. Review the response and locate the field id for the Frame.io V4 Workspace you’re using. Copy the value of the field id.

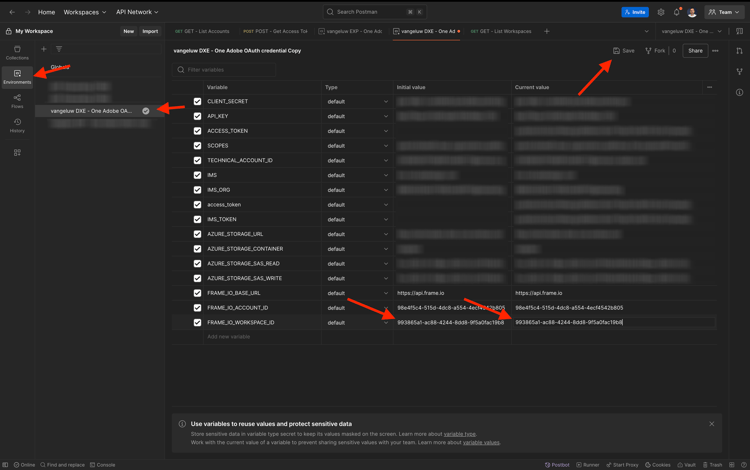

In the left menu, go to Environments and select the environment you’re using. Find the variable FRAME_IO_WORKSPACE_ID and paste the id that you got from the previous request in both the Initial value column and the Current value column. Click Save.

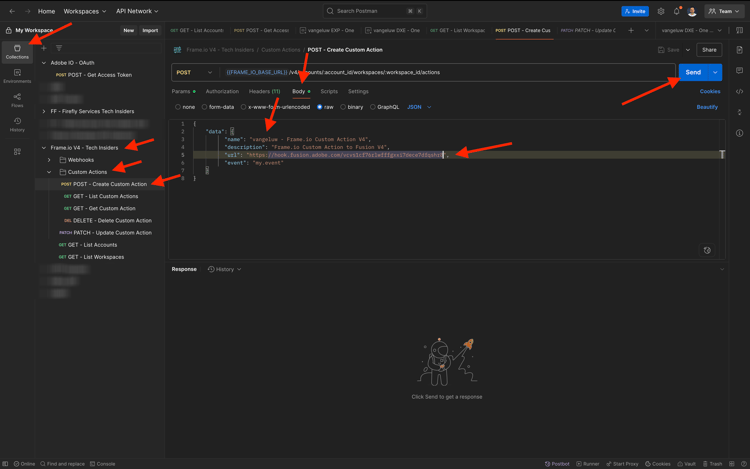

In the left menu, go back to Collections. Open the request POST - Create Custom Action in the collection Frame.io V4 - Tech Insiders, in the folder Custom Actions.

Go to the Body of the request. Change the field name to --aepUserLdap-- - Frame.io Custom Action V4 and then change the field url to the value of the Webhook URL you copied from Workfront Fusion.

Click Send.

Your Frame.io V4 Custom Action has now been created.

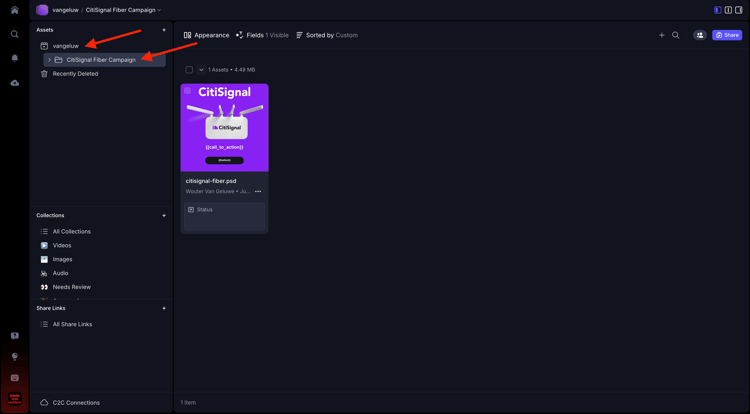

Go back to https://next.frame.io/ and go to the folder CitiSignal Fiber Campaign that you created in your project --aepUserLdap--. Refresh the page.

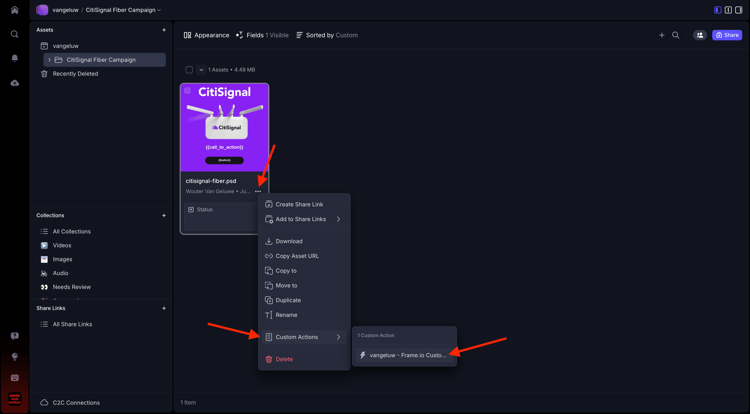

After having refreshed the page, click the 3 dots … on the asset citisignal-fiber.psd and open the Custom Actions menu. You should then see the custom action that you created earlier appear in the menu that is shown. Click the custom action --aepUserLdap-- - Frame IO Custom Action Fusion V4.

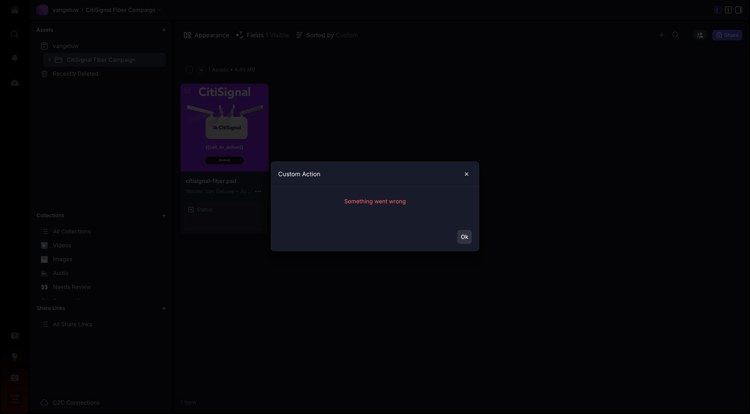

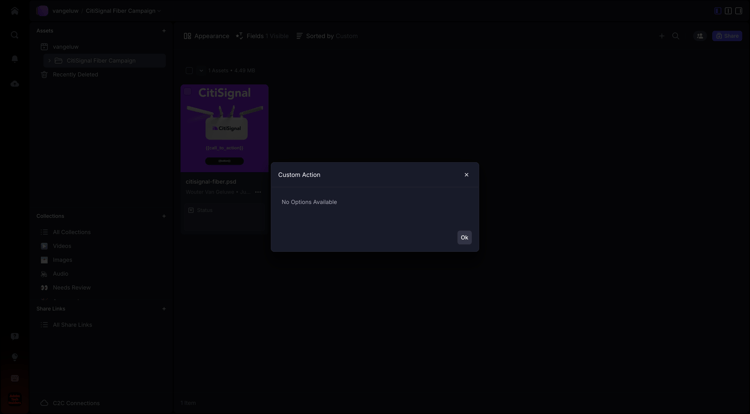

You should then see a similar Custom Action popup. This popup is the result of the communication between Frame.io and Workfront Fusion.

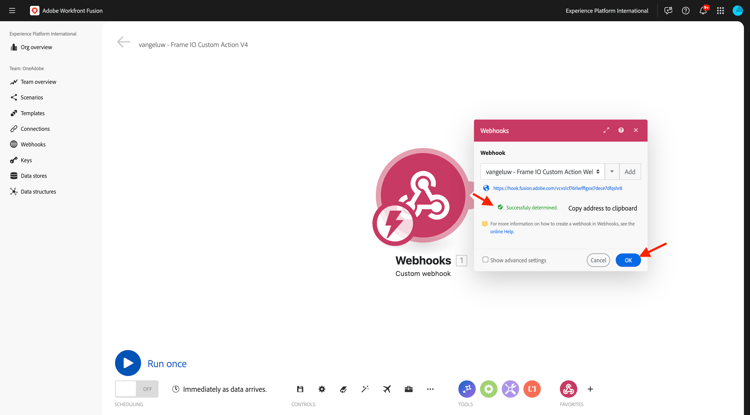

Change the screen back to Workfront Fusion. You should now see Successfully determined appear on the Custom Webhook object. Click OK.

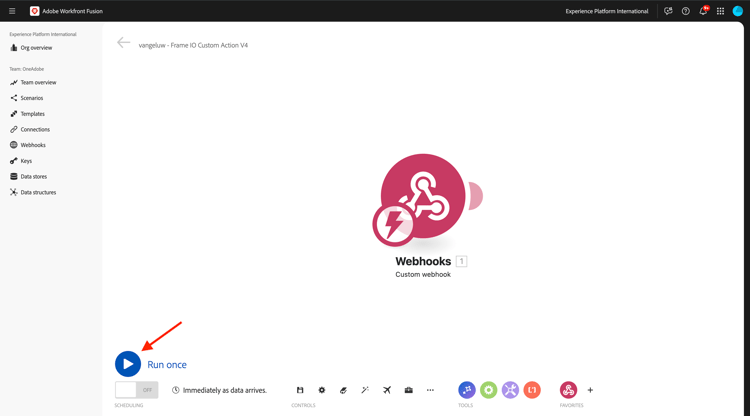

Click Run Once to enable test mode, and test the communication with Frame.io again.

Go back to Frame.io and click the custom action --aepUserLdap-- - Frame IO Custom Action Fusion V4 again.

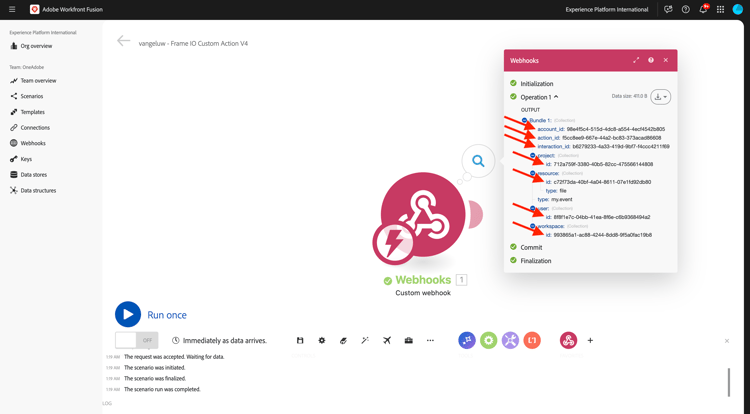

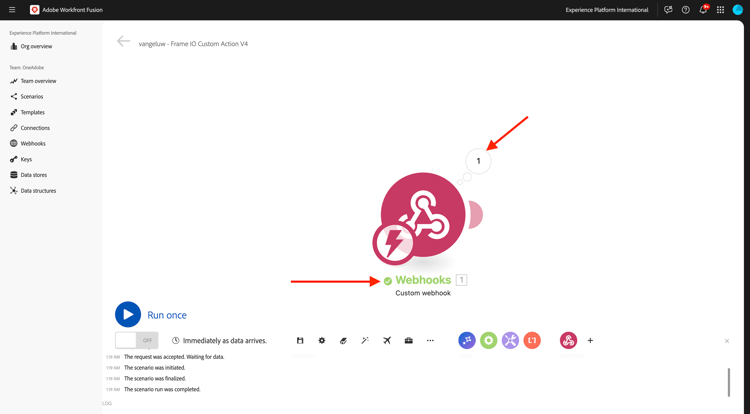

Switch the screen back to Workfront Fusion. You should now see a green checkmark, and a bubble showing 1. Click the bubble to see the details.

The detailed view of the bubble shows you the data that was received from Frame.io. You should see various ID’s. As an example, the field resource.id shows the unique ID in Frame.io of the asset citisignal-fiber.psd.

Now that communication has been established between Frame.io and Workfront Fusion, you can continue your configuration.

1.2.5.5 Providing a custom form response to Frame.io

When the custom action is invoked in Frame.io, Frame.io expects to receive a response from Workfront Fusion. If you think back to the scenario you built in the previous exercise, a number of variables are required to update the standard Photoshop PSD file. Those variables are defined in the payload that you used:

{
    "psdTemplate": "citisignal-fiber.psd",
    "xlsFile": "placeholder",
    "prompt":"misty meadows",
    "cta": "Buy this now!",
    "button": "Click here to buy!"
}

So in order for the scenario --aepUserLdap-- - Firefly + Photoshop to run successfully, fields like prompt, cta, button and psdTemplate are needed.

The first 3 fields, prompt, cta, button, require user input which needs to be collected in Frame.io when the user invokes the custom action. So the first thing that needs to be done inside Workfront Fusion is to check whether or not these variables are available and if not, Workfront Fusion should reply back to Frame.io requesting those variables to be entered. The way to achieve that is by using a form in Frame.io.

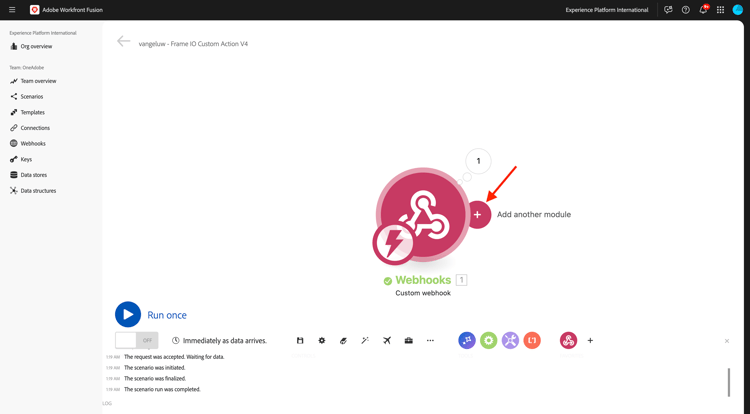

Go back to Workfront Fusion and open your scenario --aepUserLdap-- - Frame IO Custom Action. Hover over the Custom webhook object and click the + icon to add another module.

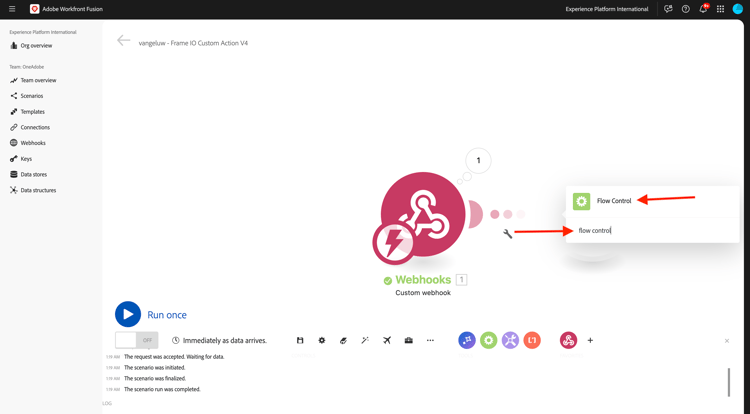

Search for Flow Control and click Flow Control.

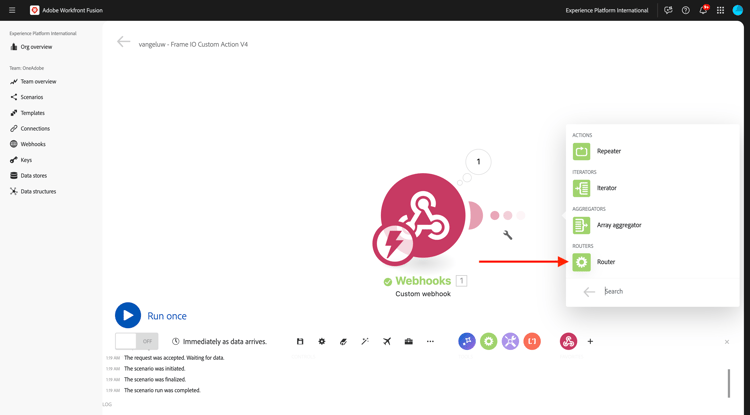

Click to select Router.

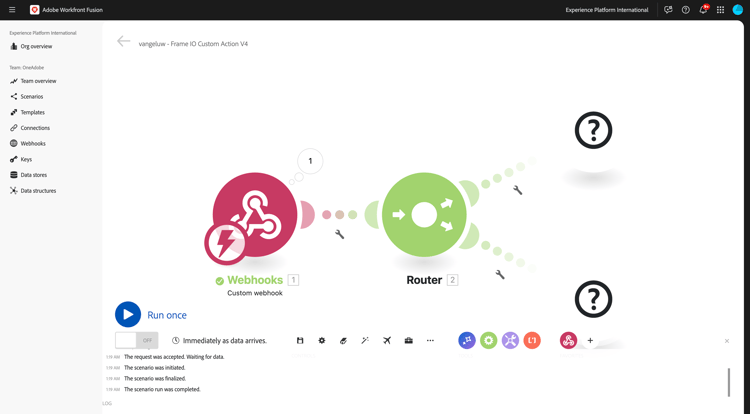

You should then see this.

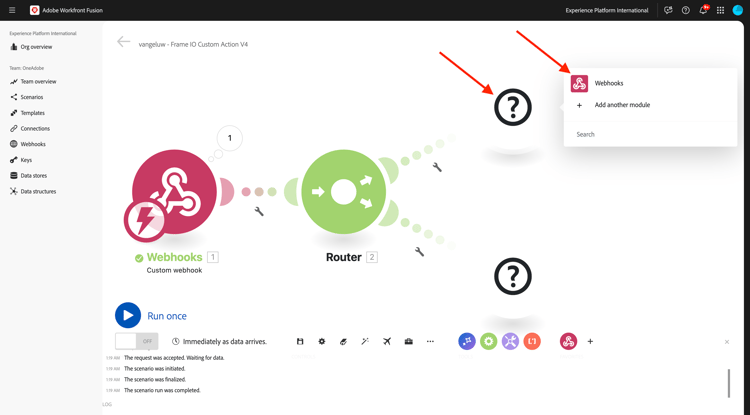

Click the ? object and then click to select Webhooks.

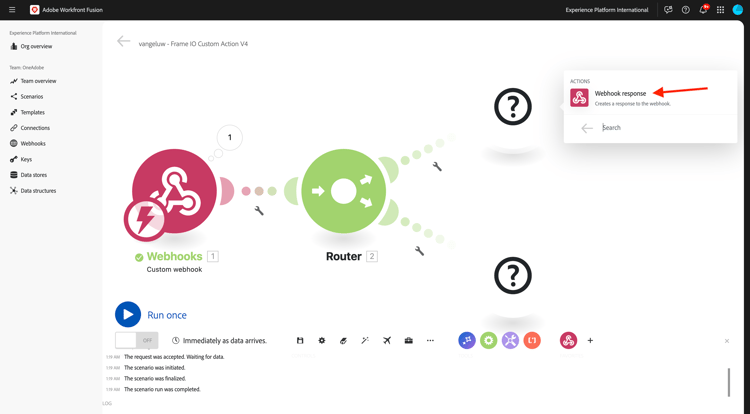

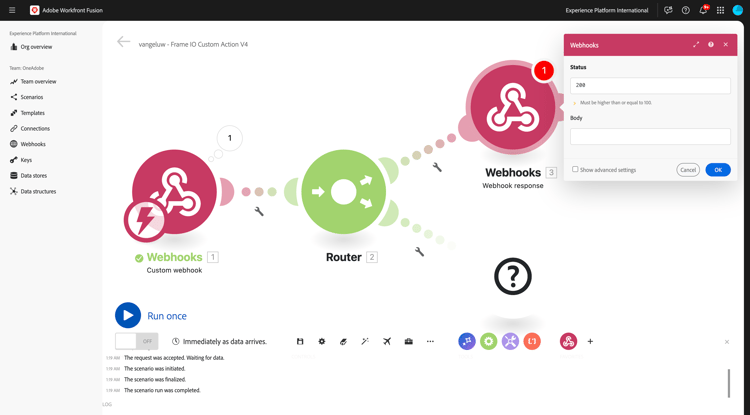

Select Webhook response.

You should then see this.

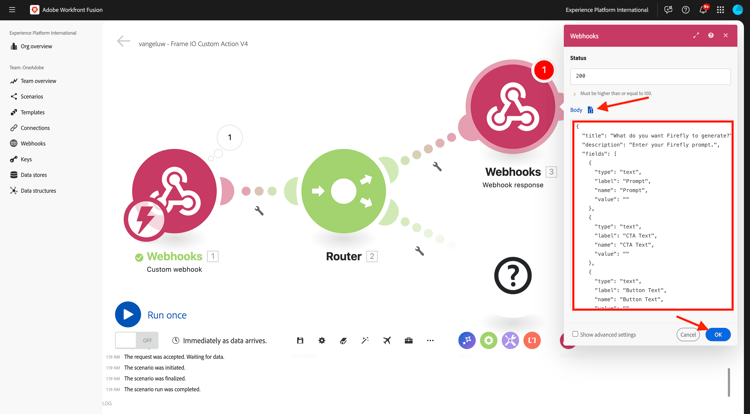

Copy the below JSON code and paste it in the field Body.

{
  "title": "What do you want Firefly to generate?",
  "description": "Enter your Firefly prompt.",
  "fields": [
    {
      "type": "text",
      "label": "Prompt",
      "name": "Prompt",
      "value": ""
    },
    {
      "type": "text",
      "label": "CTA Text",
      "name": "CTA Text",
      "value": ""
    },
    {
      "type": "text",
      "label": "Button Text",
      "name": "Button Text",
      "value": ""
    }
  ]
}

Click the icon to clean up and beautify the JSON code. Then, click OK.

Click Save to save your changes.

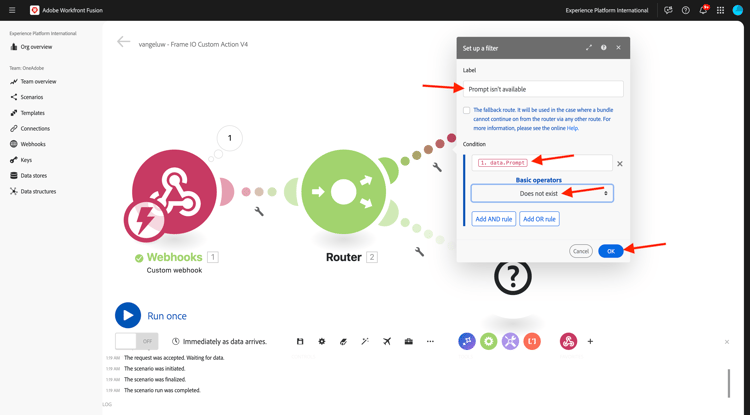

Next, you need to set up a filter to ensure that this path of the scenario only runs when no prompt is available. Click the wrench icon and then select Set up a filter.

Configure the following fields:

Click OK.

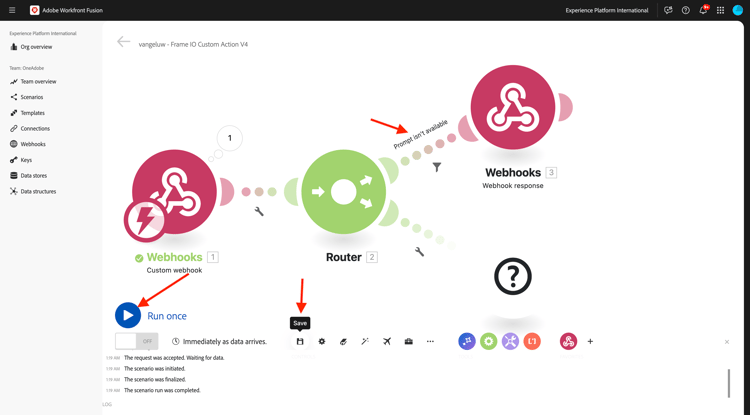

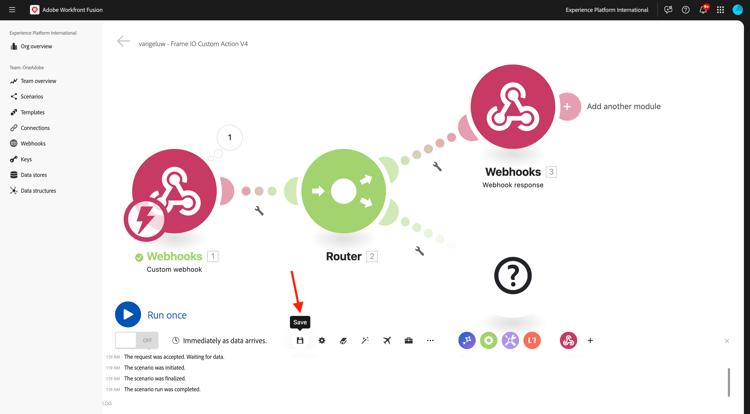

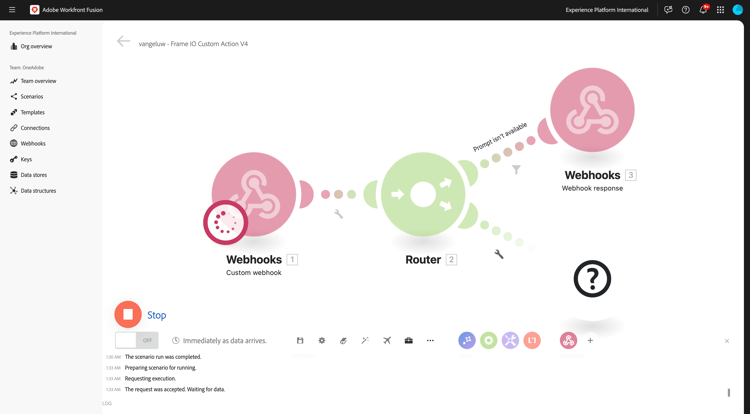

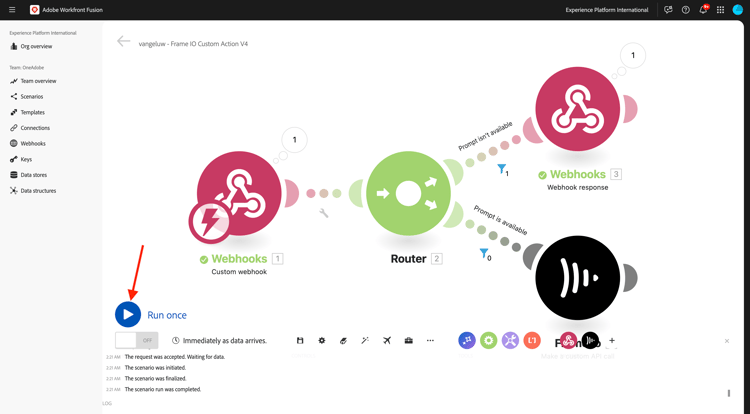

You should then see this. Click the Save icon first, and then click Run once to test your scenario.

You should then see this.

Go back to Frame.io and click the custom action --aepUserLdap-- - Frame IO Custom Action Fusion on the asset citisignal-fiber.psd again.

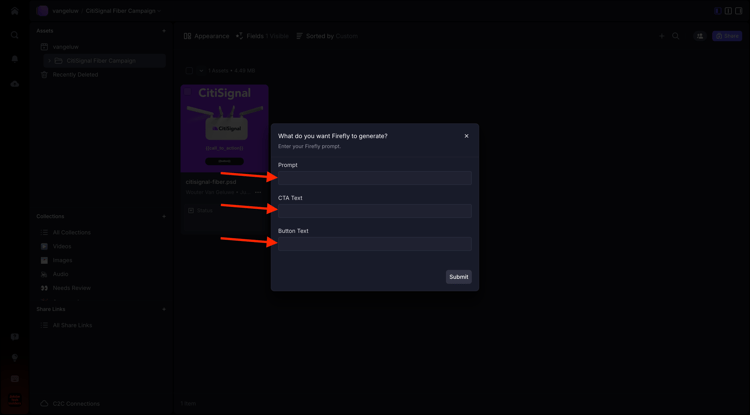

You should now see a prompt inside Frame.io. Don’t fill out the fields yet and don’t submit the form yet. This prompt is shown based off of the response from Workfront Fusion that you just configured.

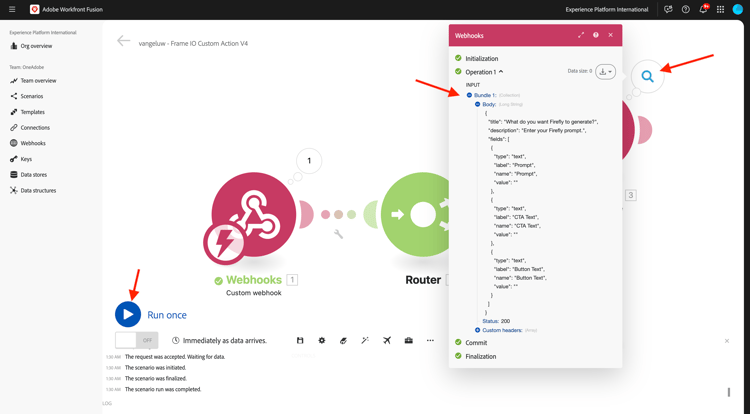

Switch back to Workfront Fusion and click the bubble on the Webhook response module. You’ll see that under INPUT, you see the body containing the JSON payload for the form. Click Run once again.

You should then see this again.

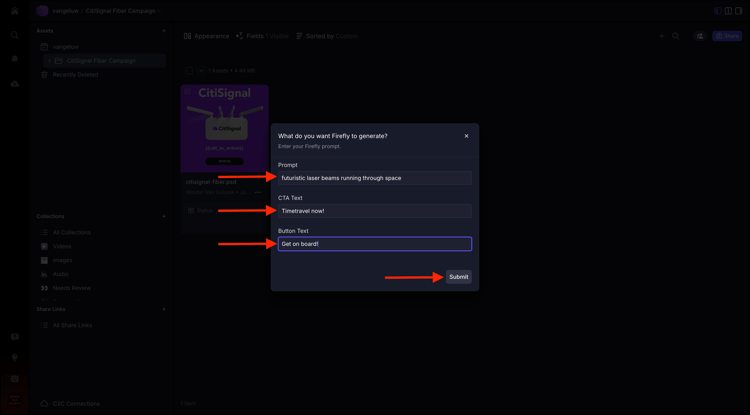

Go back to Frame.io and fill out the fields as indicated.

Click Submit.

You should then see a popup in Frame.io which looks like this.

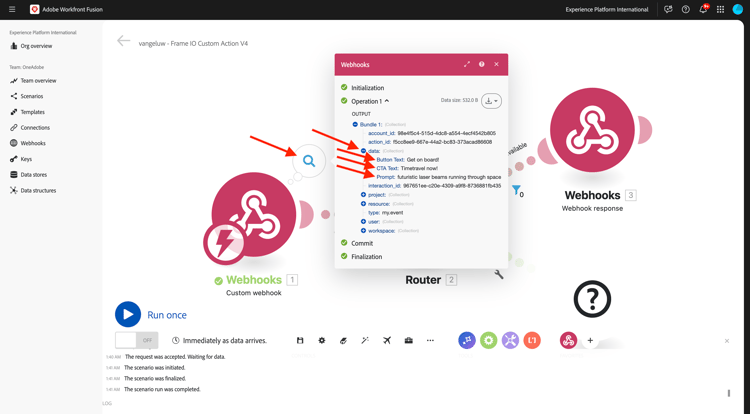

Switch back to Workfront Fusion and click the bubble on the Custom webhook module. In Operation 1, under OUTPUT, you can now see a new data object that contains fields like Button Text, CTA Text and Prompt. With these user input variables available in your scenario, you have enough to continue your configuration.

1.2.5.6 Retrieve file location from Frame.io

As dicussed before, fields like prompt, cta, button and psdTemplate are needed for this scenario to function. The first 3 fields are now available already but the psdTemplate to use is still missing. The psdTemplate will now reference a Frame.io location as the file citisignal-fiber.psd is hosted in Frame.io. In order to retrieve the location of that file, you need to configure and use the Frame.io connection in Workfront Fusion.

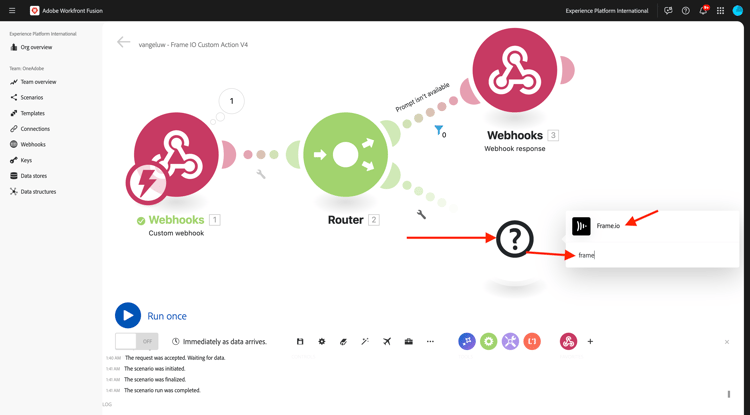

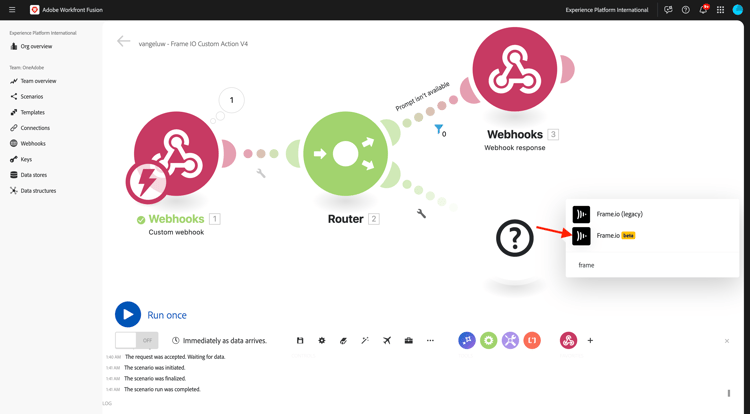

Go back to Workfront Fusion and open your scenario --aepUserLdap-- - Frame IO Custom Action V4. Hover over the ? module, click the + icon to add another module and search for frame. Click Frame.io.

Click Frame.io.

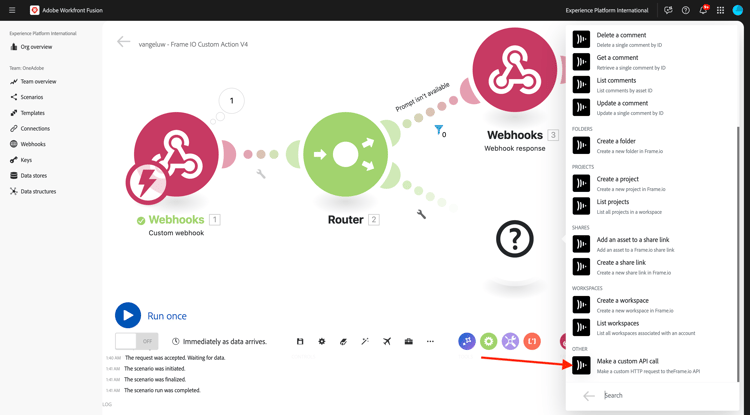

Click Make a custom API call.

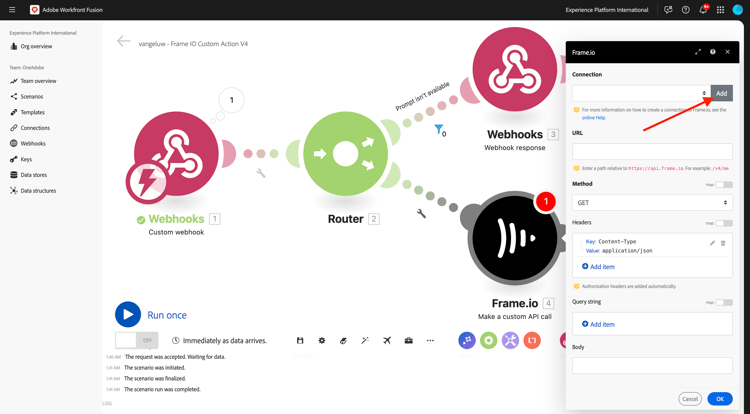

In order to use the Frame.io connection, you need to configure it first. Click Add to do that.

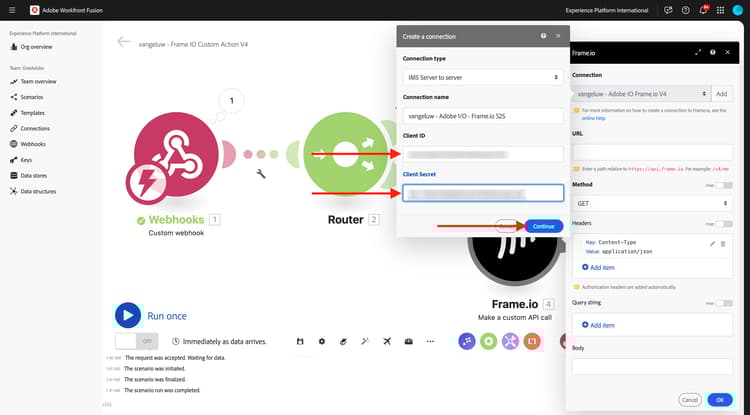

Select the Connection type IMS Server to Server and enter the name --aepUserLdap-- - Adobe I/O - Frame.io S2S.

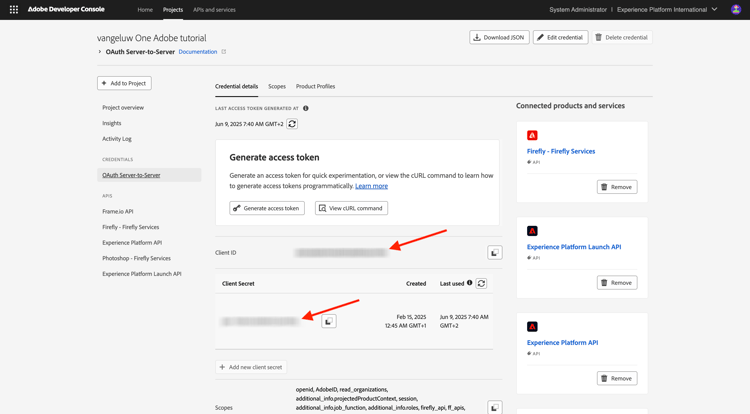

Next, you need to enter the Client ID and the Client Secret of the Adobe I/O project that you configured as part of the Getting Started module. You can find the Client ID and Client Secret of your Adobe I/O project here.

Go back to your scenario in Workfront Fusion. Paste the values of the Client ID and Client Secret in their respective field in the connection setup window. Click Continue. Your connection will now be tested by Workfront Fusion.

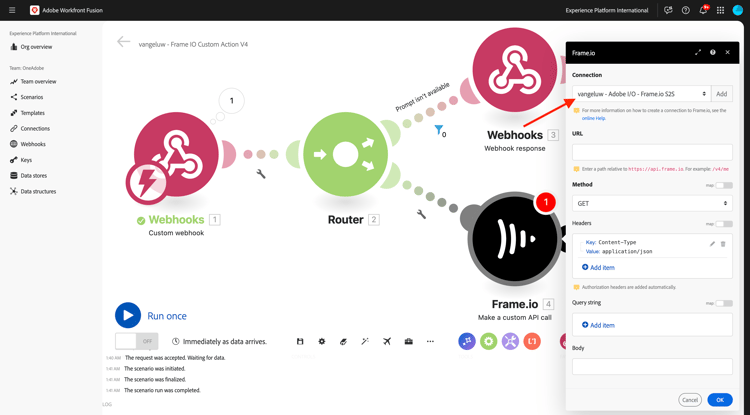

If the connection was tested successfully, it will appear automatically under Connnection. You now have a succesful connection, and you need to finish the configuration to get all the asset details from Frame.io, including the file location. To do this, you’ll need to use the Resource ID.

The field Resource ID is shared by Frame.io to Workfront Fusion as part of the initial Custom webhook communication and can be found under the field resource.id.

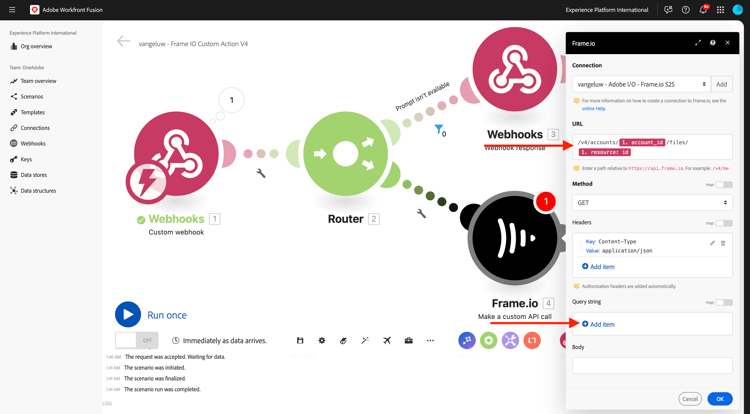

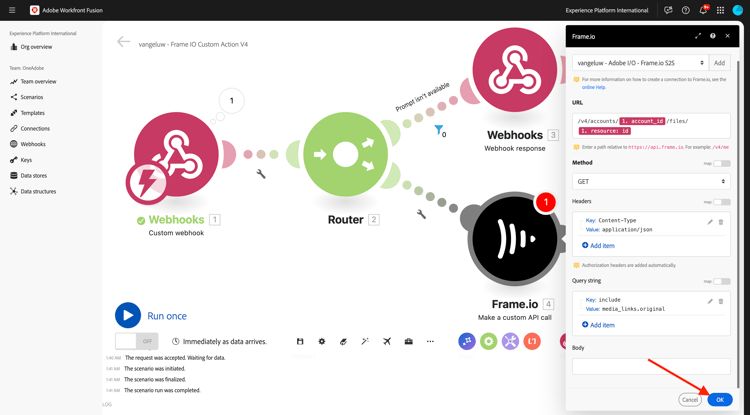

For the configuration of the module Frame.io - Make a custom API call, use the URL: /v4/accounts/{{1.account_id}}/files/{{1.resource.id}}.

Next, click + Add item under Query String.

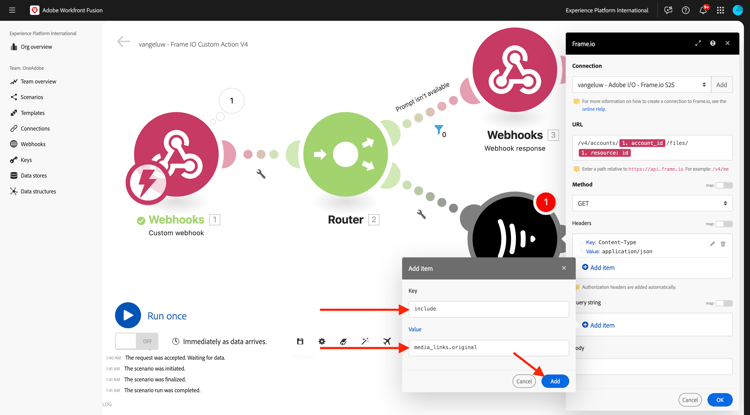

Enter these values and click Add.

You should now have this. Click OK.

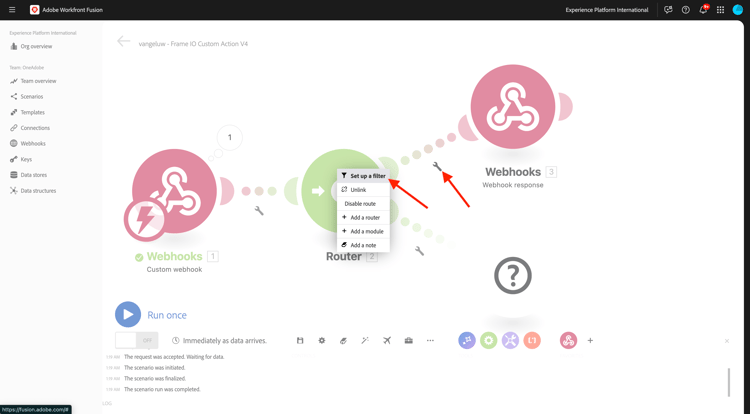

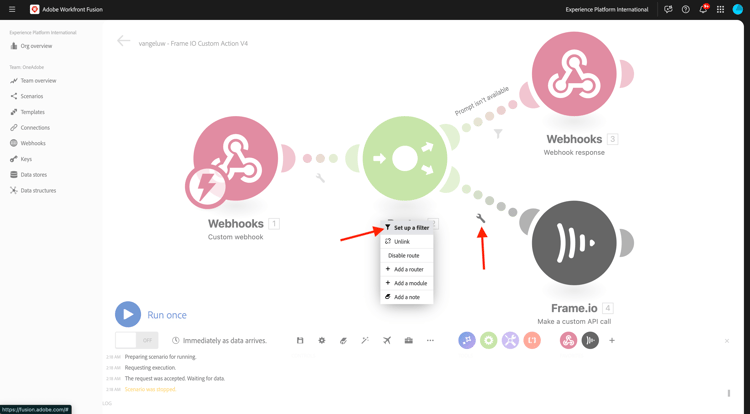

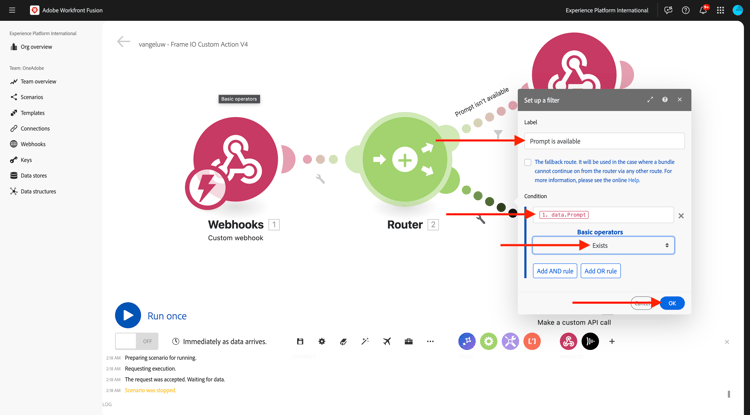

Next, you need to set up a filter to ensure that this path of the scenario only runs when no prompt is available. Click the wrench icon and then select Set up a filter.

Configure the following fields:

Click OK.

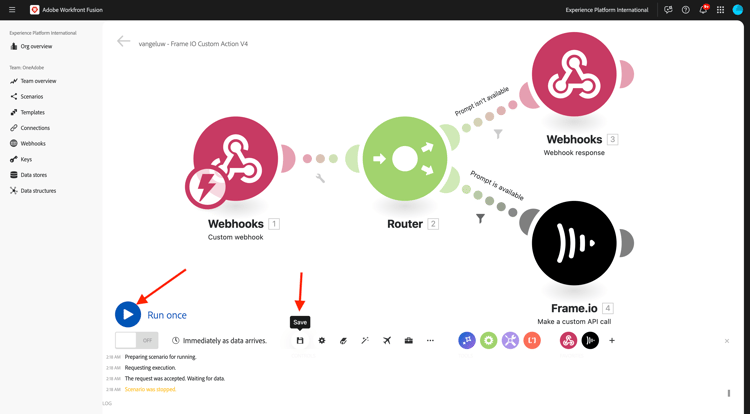

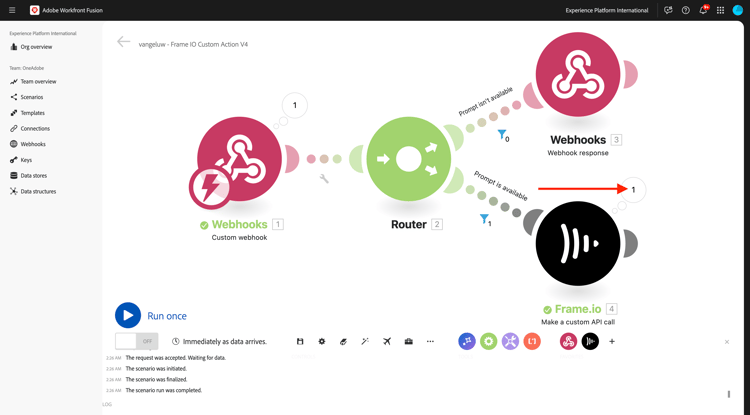

You should now see this. Save your changes and then click Run once to test your scenario.

Go back to Frame.io and click the custom action --aepUserLdap-- - Frame IO Custom Action Fusion V4 on the asset citisignal-fiber.psd again.

You should now see a prompt inside Frame.io. Don’t fill out the fields yet and don’t submit the form yet. This prompt is shown based off of the response from Workfront Fusion that you just configured.

Switch back to Workfront Fusion. Click Run once again.

Go back to Frame.io and fill out the fields as indicated. Click Submit.

Switch back to Workfront Fusion and click the bubble on the Frame.io - Make a custom API call module.

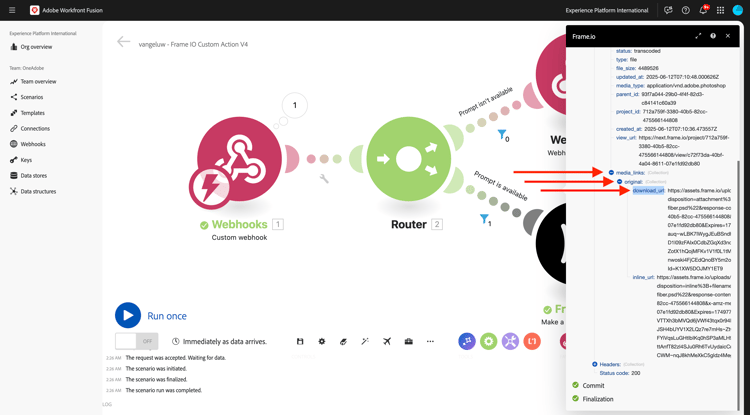

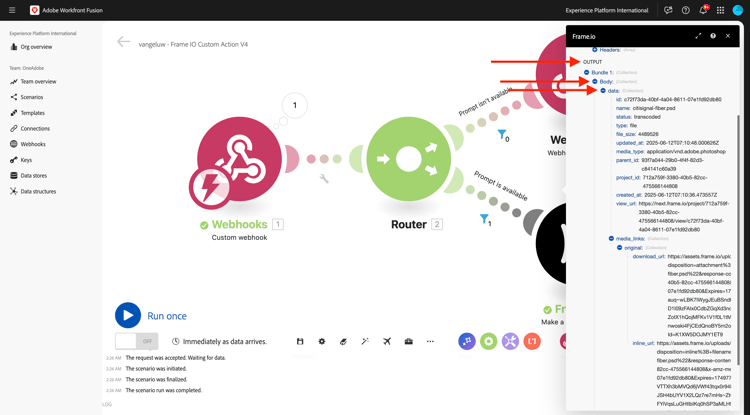

Under OUTPUT > Body > data, you can now see a lot of metadata about the specific asset citisignal-fiber.psd.

The specific piece of information that is needed for this use case, is the location url of the file citisignal-fiber.psd, which you can find by scrolling down to the field media_links > Original > download_url.

You now have all the information (prompt, cta, button and psdTemplate) availabe that is needed for this use case to function.

1.2.5.7 Invoke Workfront scenario

In the previous exercise you configured the scenario --aepUserLdap-- - Firefly + Photoshop. You now need to make a minor change to that scenario.

Open the scenario --aepUserLdap-- - Firefly + Photoshop in another tab and click the first Adobe Photoshop - Apply PSD edits module. You should now see that the input file is configured to use a dynamic location in Microsoft Azure. Given that for this use case, the input file isn’t stored in Microsoft Azure anymore but instead using Frame.io storage, you need to change these settings.

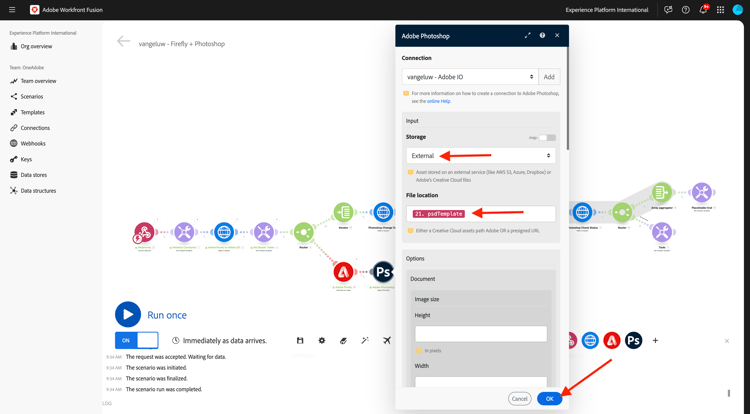

Change Storage to External and change File location to only use the psdTemplate variable that is taken from the incoming Custom webhook module. Click OK and then click Save to save your changes.

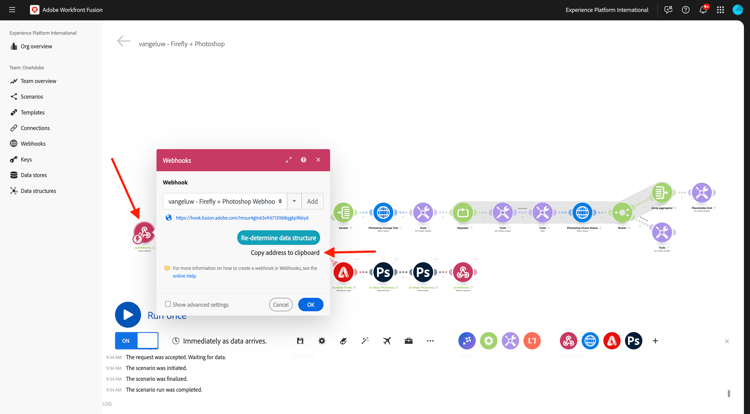

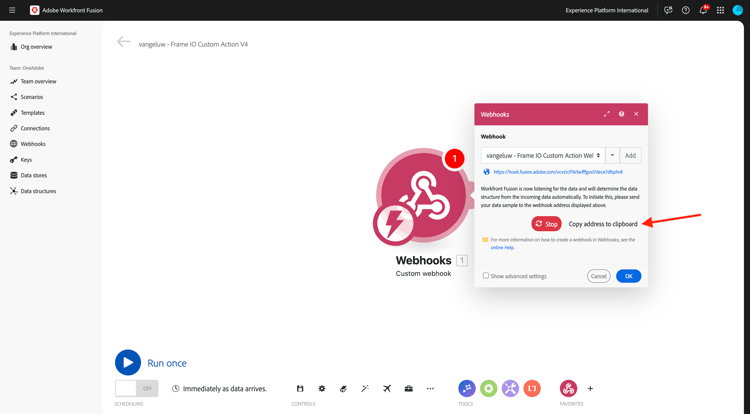

Click the Custom webhook module and then click Copy address to clipboard. You need to copy the URL as you’ll need to use it in the other scenario.

Go back to your scenario --aepUserLdap-- - Frame IO Custom Action V4. Hover over the Frame.io - Make a custom API call module and click the + icon.

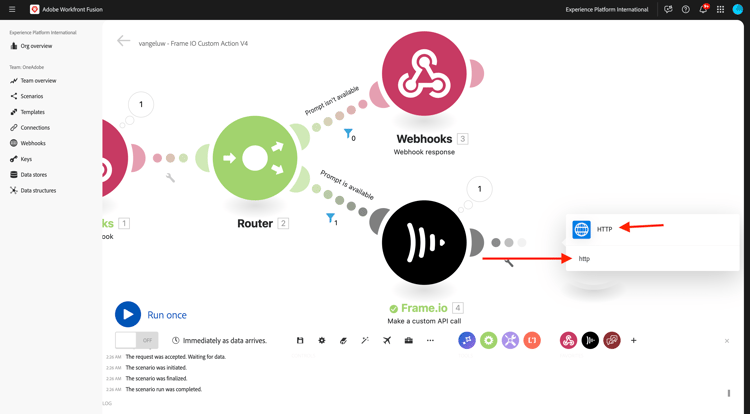

Enter http and then click HTTP.

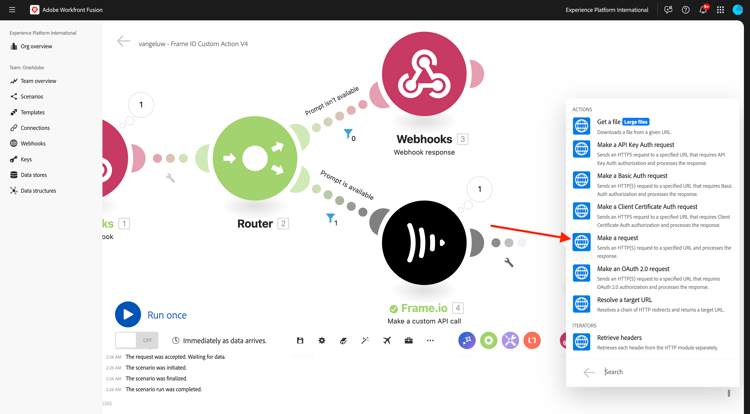

Select Make a request.

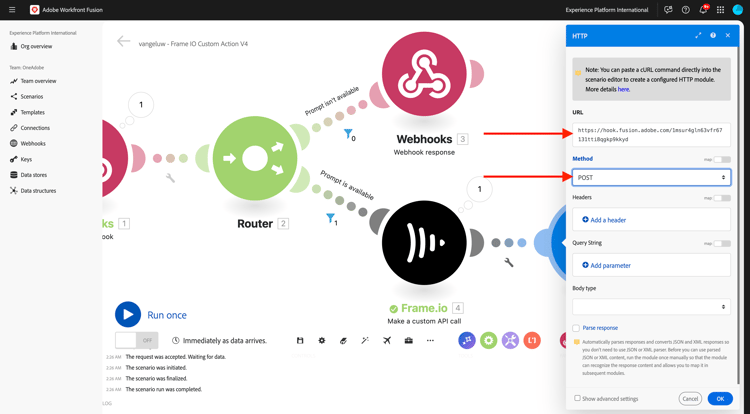

Paste the URL of the custom webhook in the field URL. Set the Method to POST.

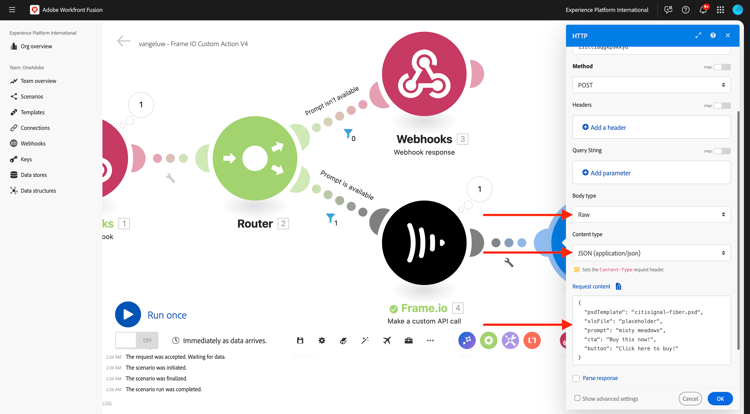

Set Body type to Raw and Content type to JSON (application/json).
Paste the below JSON payload in the field Request content and enable the checkbox for Parse response.

{
    "psdTemplate": "citisignal-fiber.psd",
    "xlsFile": "placeholder",
    "prompt":"misty meadows",
    "cta": "Buy this now!",
    "button": "Click here to buy!"
}

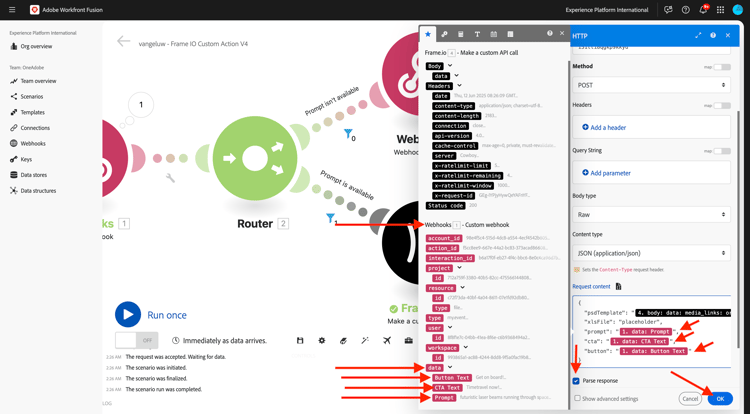

You now have a static payload configured, but it needs to become dynamic using the previously collected variables.

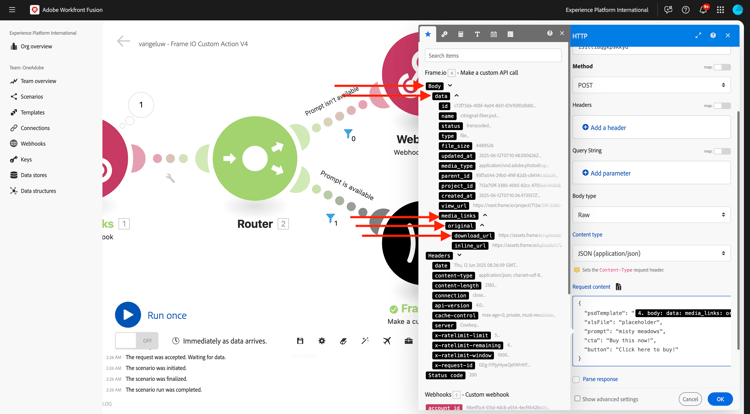

For the field psdTemplate, replace the static variable citisignal-fiber.psd by the variable Body > data > media_links > original > download_url.

For the fields prompt, cta and button, replace the static variables by the dynamic variables that were inserted into the scenario by the incoming webhook request from Frame.io, which are the fields data.Prompt, data.CTA Text and data.Button Text.

Also, enable the checkbox for Parse response.

Click OK.

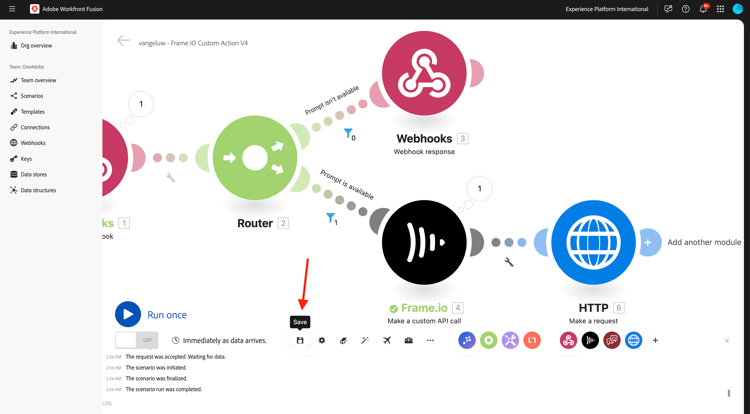

Click Save to save your changes.

1.2.5.8 Save new asset in Frame.io

Once the other Workfront Fusion scenario has been invoked, the result will be a new Photoshop PSD template that is available. That PSD file needs to be stored back into Frame.io, which is the last step in this scenario.

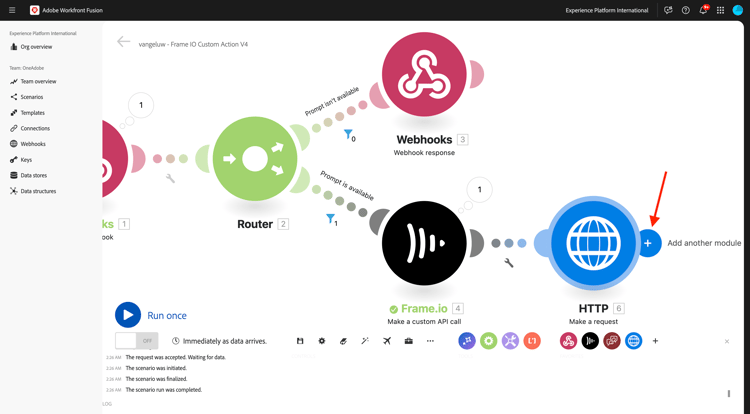

Hover over the HTTP - Make a request module and click the + icon.

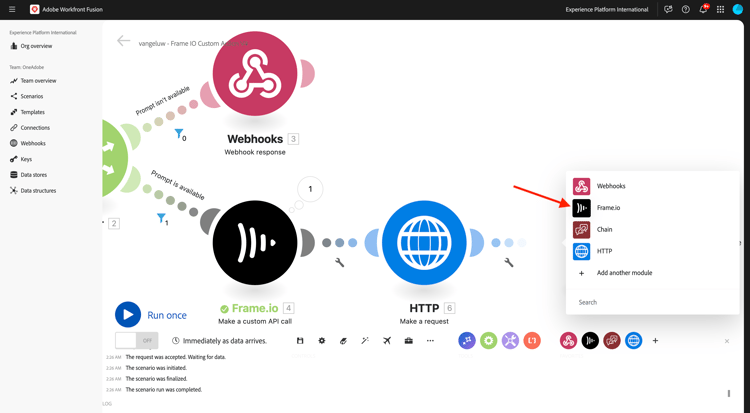

Select Frame.io.

Select Make a custom API call.

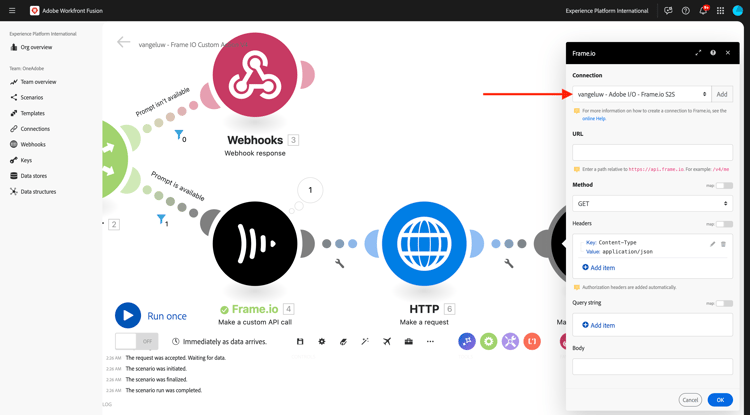

Your Frame.io connection will be automatically selected.

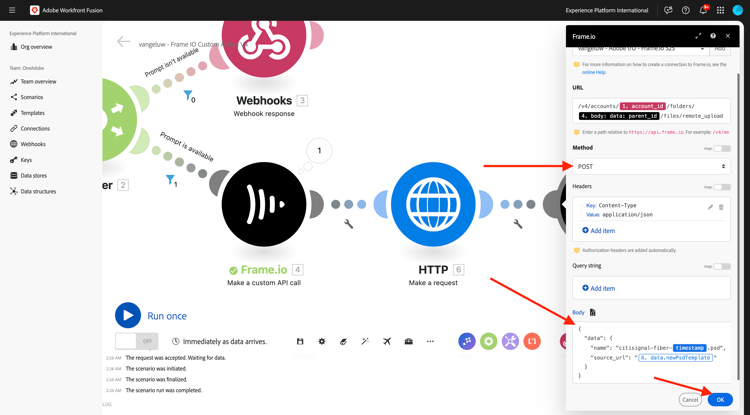

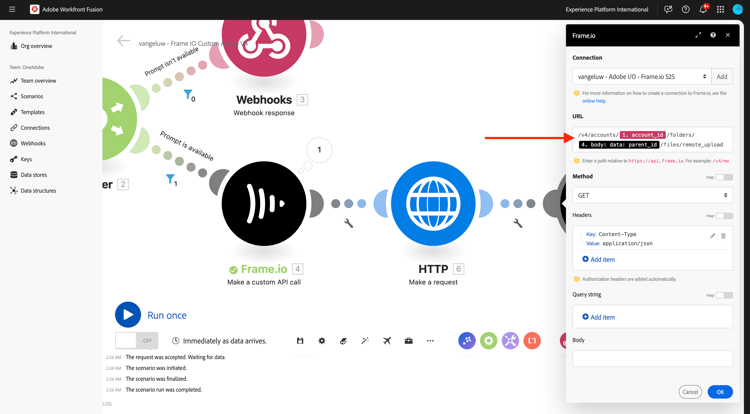

For the configuration of the module Frame.io - Make a custom API call, use the URL: /v4/accounts/{{1.account_id}}/folders/{{4.body.data.parent_id}}/files/remote_upload.

Change the field Method to POST.

Copy and paste the below JSON snippet into the field Body.

{
  "data": {
    "name": "citisignal-fiber-{{timestamp}}.psd",
    "source_url": "{{6.data.newPsdTemplate}}"
  }
}

Click OK.

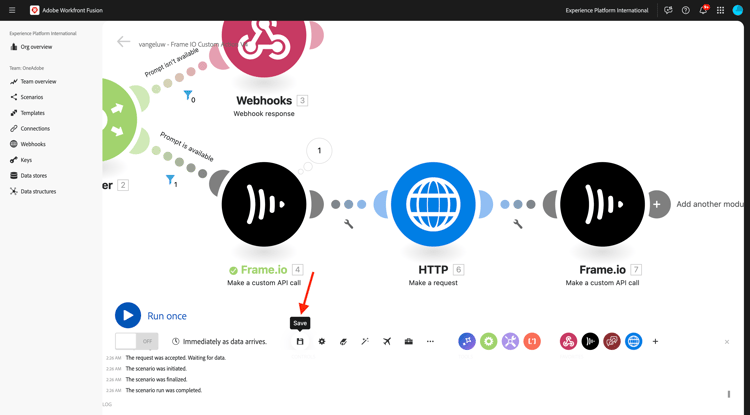

Click Save to save your changes.

1.2.5.9 Test your end-to-end use case

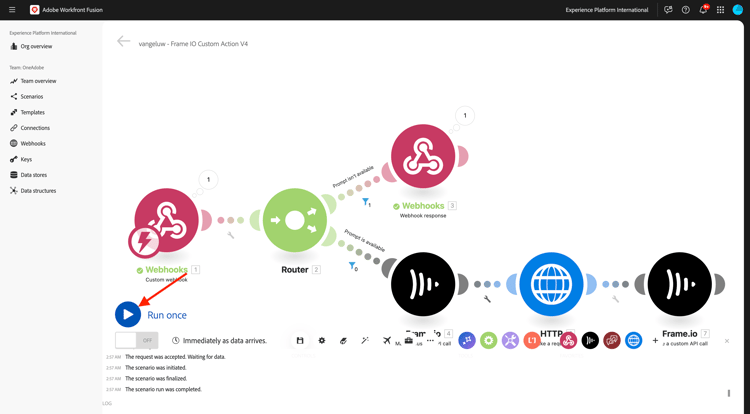

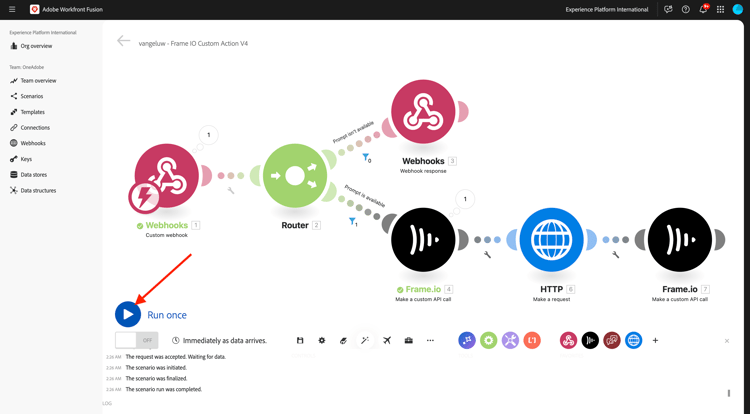

Click Run once in your scenario --aepUserLdap-- - Frame IO Custom Action.

Go back to Frame.io and click the custom action --aepUserLdap-- - Frame IO Custom Action Fusion V4 on the asset citisignal-fiber.psd again.

You should now see a prompt inside Frame.io. Don’t fill out the fields yet and don’t submit the form yet. This prompt is shown based off of the response from Workfront Fusion that you just configured.

Switch back to Workfront Fusion. Click Run once in your scenario --aepUserLdap-- - Frame IO Custom Action V4.

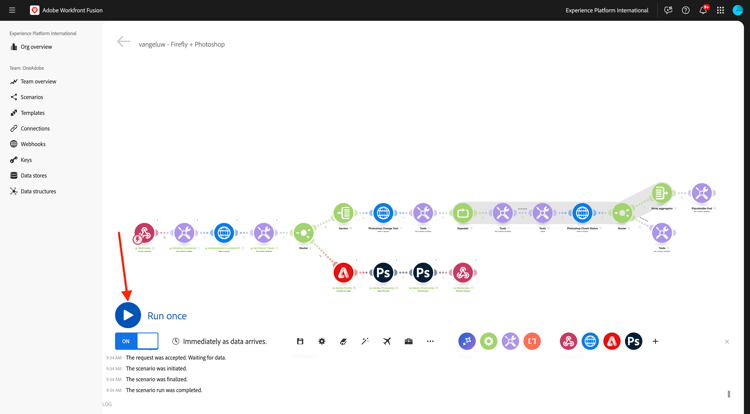

In Workfront Fusion, open the scenario --aepUserLdap-- - Firefly + Photoshop and also click Run once in that scenario.

Go back to Frame.io and fill out the fields as indicated. Click Submit.

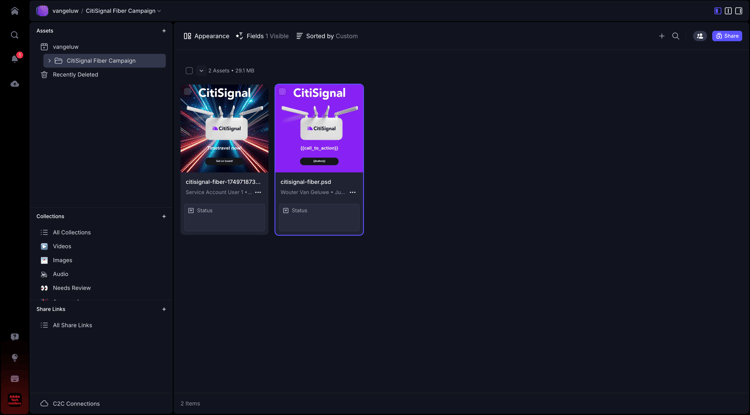

After 1-2 minutes, you should see a new asset appearing automatically in Frame.io. Double-click the new asset to open it.

You can now clearly see that all the user input variables have been automatically applied.
