1.1.3 Working with Photoshop APIs

Learn how to work with the Photoshop APIs and Firefly Services.

1.1.3.1 Prerequisites

Before continuing with this exercise, you need to have completed the setup of your Adobe I/O project, and you also need to have configured an application to interact with APIs, such as Postman or PostBuster.

1.1.3.2 Adobe I/O - access_token

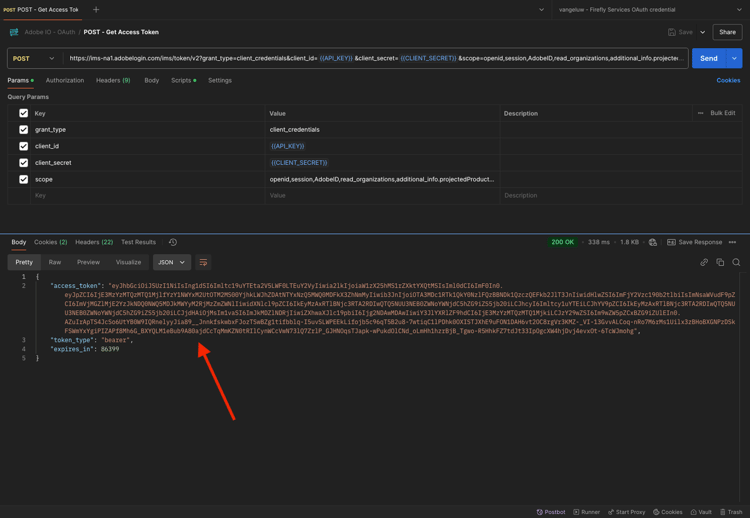

In the Adobe IO - OAuth collection, select the request named POST - Get Access Token and select Send. The response should contain a new accestoken.

1.1.3.3 Programmatically interact with a PSD file

Download citisignal-fiber.psd to your desktop.

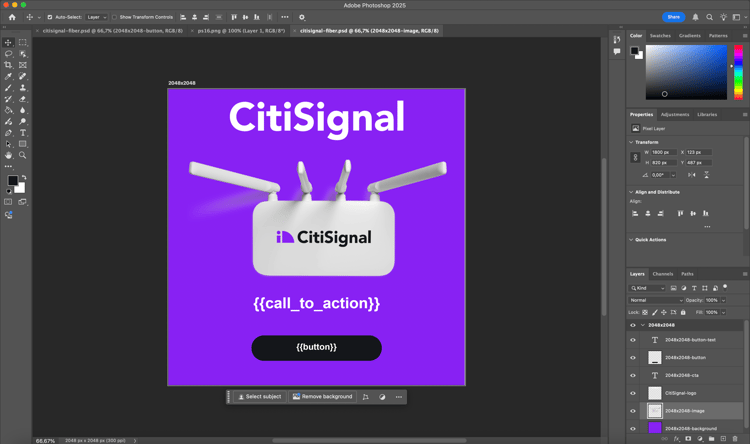

Open citisignal-fiber.psd in Photoshop.

In the Layers pane, the designer of the file has given a unique name to each layer. You can see the layer information by opening the PSD file in Photoshop, but you can also do this programmatically.

Let’s send your first API request to Photoshop APIs.

Photoshop API - Hello World

Next, let’s say hello to Photoshop APIs to test if all permissions and access is set correctly.

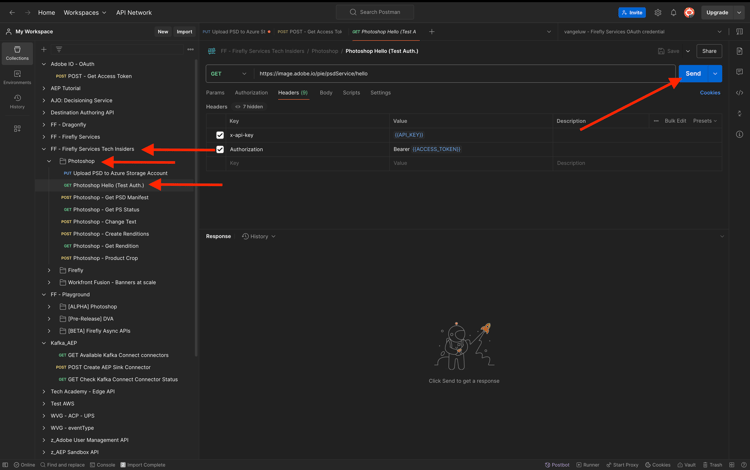

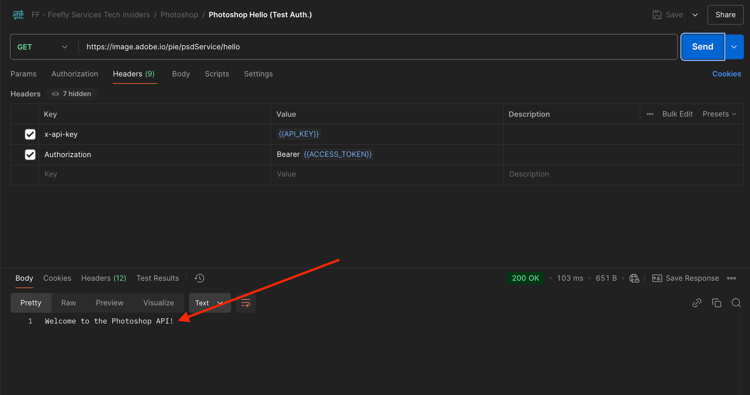

In the collection Photoshop, open the request Photoshop Hello (Test Auth.). Select Send.

You should receive the response Welcome to the Photoshop API!.

Next, in order to programmatically interact with the PSD file citisignal-fiber.psd, you need to upload it to your storage account. You can do that manually-- by dragging and dropping it into your container using Azure Storage explorer–but this time you should do it through the API.

Upload PSD to Azure

In Postman, open the request Upload PSD to Azure Storage Account. In the previous exercise, you configured these environment variables in Postman, which you’ll use now:

As you can see in the request Upload PSD to Azure Storage Account, the URL is configured to use these variables.

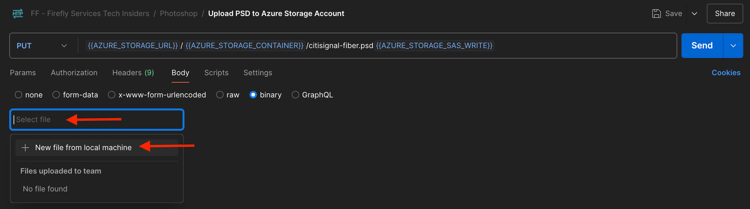

In Body, select the file citisignal-fiber.psd.

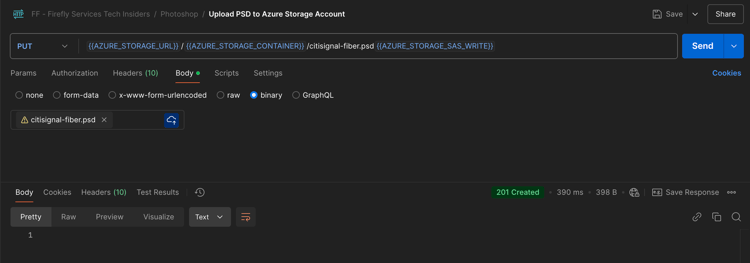

Your screen should look like this. Select Send.

You should get this empty response back from Azure, which means that your file is stored in your container in your Azure Storage account.

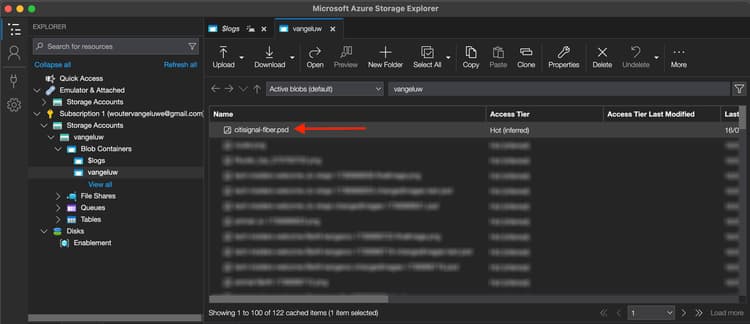

If you use Azure Storage Explorer to look at your file, be sure to refresh your folder.

Photoshop API - Get manifest

Next, you need to get the manifest file of your PSD file.

In Postman, open the request Photoshop - Get PSD Manifest. Go to Body.

The body should look like this:

  {
    "inputs": [
      {
        "storage": "external",
        "href": "{{AZURE_STORAGE_URL}}/{{AZURE_STORAGE_CONTAINER}}/citisignal-fiber.psd{{AZURE_STORAGE_SAS_READ}}"
      }
    ],
    "options": {
      "thumbnails": {
        "type": "image/jpeg"
      }
    }
  }

Select Send.

In the response, you now see a link. As operations in Photoshop can sometimes take some time to complete, Photoshop provides a status file as a response to most incoming requests. To understand what is happening with your request, you need to read the status file.

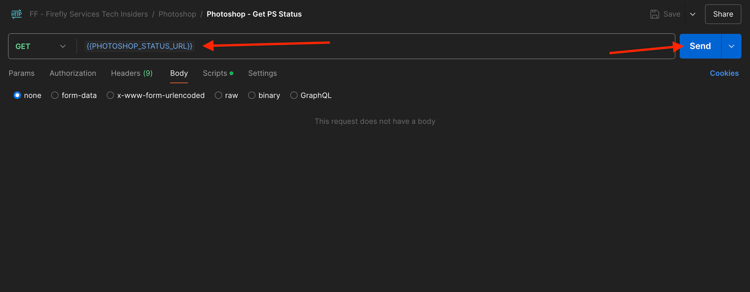

To read the status file, open the request Photoshop - Get PS Status. You can see that this request is using a variable as a URL, which is a variable that is set by the previous request that you sent, Photoshop - Get PSD Manifest. Variables are set in the Scripts of each request. Select Send.

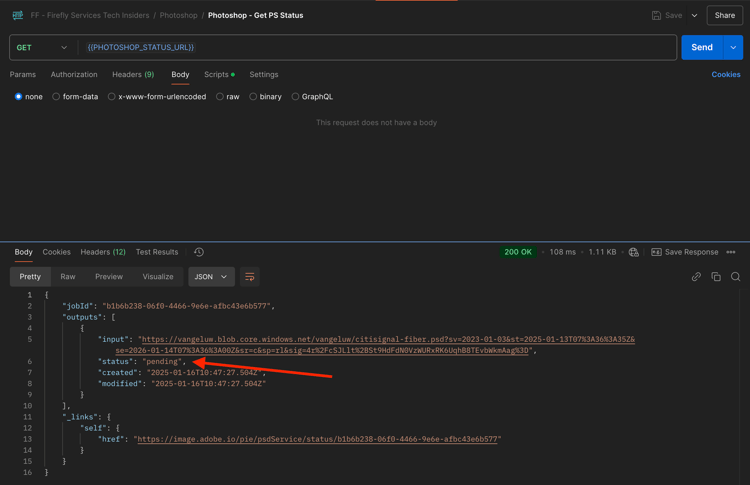

Your screen should look like this. Currently, the status is set to pending, which means that the process hasn’t completed yet.

Select send a couple more times on Photoshop - Get PS Status, until the status changes to succeeded. This may take a couple of minutes.

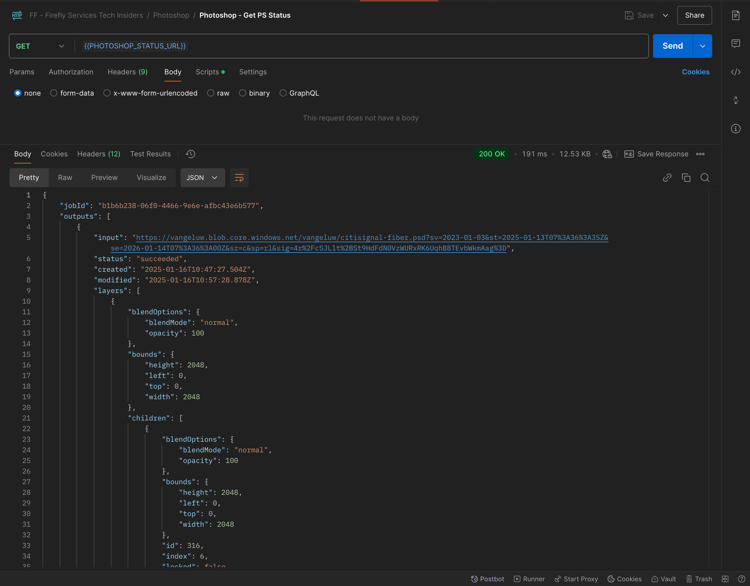

When the response is available, you can see the json file contains information on all the layers of the PSD file. This is useful information, as things like the layer name or layer ID can be identified.

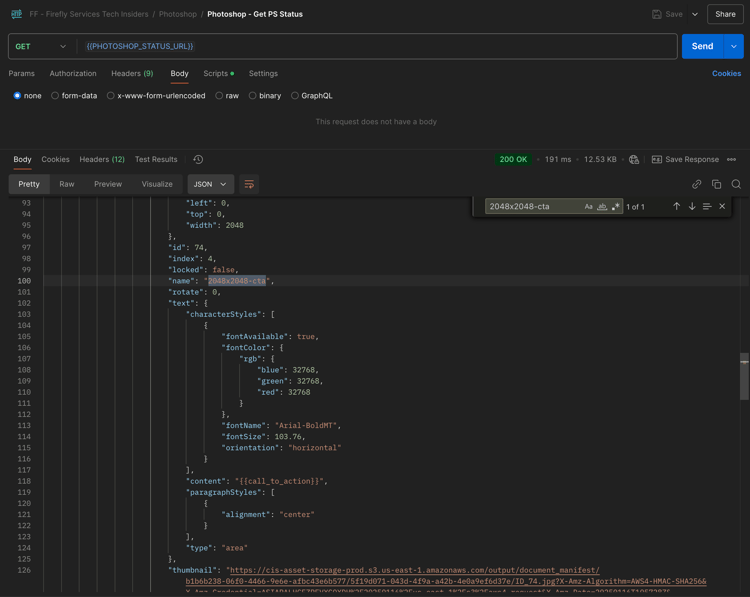

As an example, search for the text 2048x2048-cta. Your screen should look like this:

Photoshop API - SmartObject Replace

Next, you need to change the background of the file citisignal-fiber.psd by using the image that you generated using Firefly in one of the previous exercises.

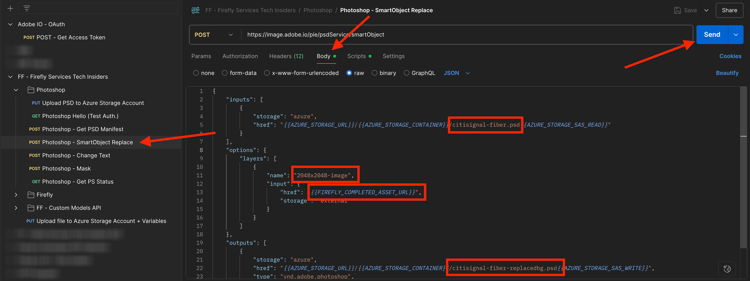

In Postman, open the request Photoshop - SmartObject Replace and go to Body.

Your screen should look like this:

  {
    "inputs": [
        {
            "storage": "azure",
            "href": "{{AZURE_STORAGE_URL}}/{{AZURE_STORAGE_CONTAINER}}/citisignal-fiber.psd{{AZURE_STORAGE_SAS_READ}}"
        }
    ],
    "options": {
        "layers": [
            {
                "name": "2048x2048-image",
                "input": {
                    "href": "{{FIREFLY_COMPLETED_ASSET_URL}}",
                    "storage": "external"
                }
            }
        ]
    },
    "outputs": [
        {
            "storage": "azure",
            "href": "{{AZURE_STORAGE_URL}}/{{AZURE_STORAGE_CONTAINER}}/citisignal-fiber-replacedbg.psd{{AZURE_STORAGE_SAS_WRITE}}",
            "type": "vnd.adobe.photoshop",
            "overwrite": true
        }
    ]
}

The output file has a different name, because you don’t want to override the original input file.

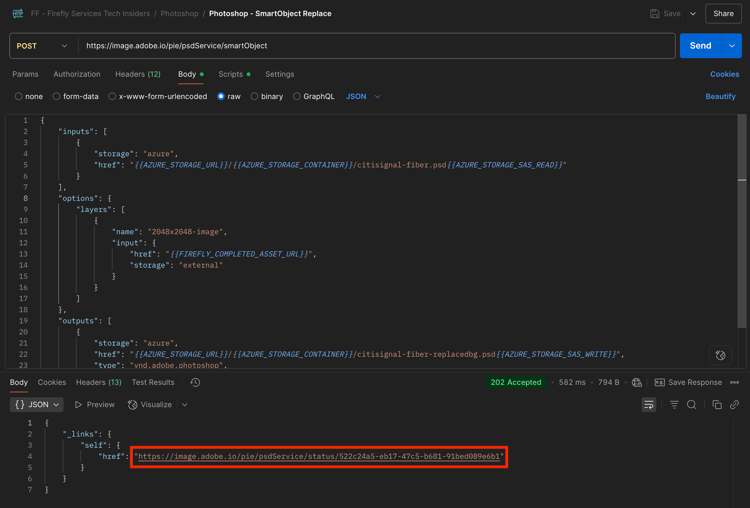

Select Send.

Just like before, the response contains a link that points to the status file that keeps track of the progress.

To read the status file, open the request Photoshop - Get PS Status and select Send. If the status isn’t set to succeeded immediately, wait a couple of seconds and then select Send again.

Select the URL to download the output file.

Open citisignal-fiber-replacedbg.psd after downloading the file to your computer. You should see that the background image has changed to a similar image like below:

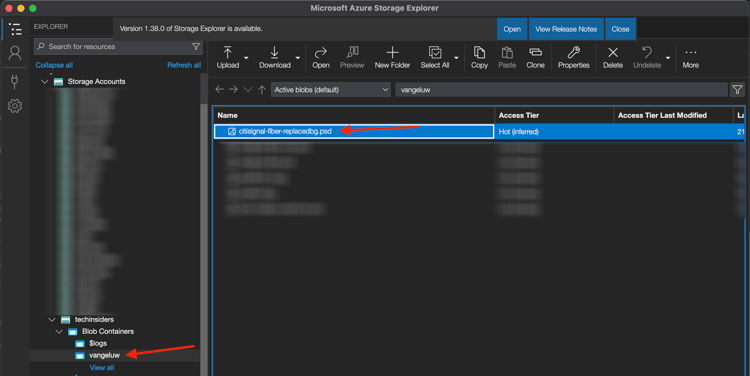

You can also see this file in your container using Azure Storage explorer.

Photoshop API - Change Text

Next, you need to change the text for the call to action using the APIs.

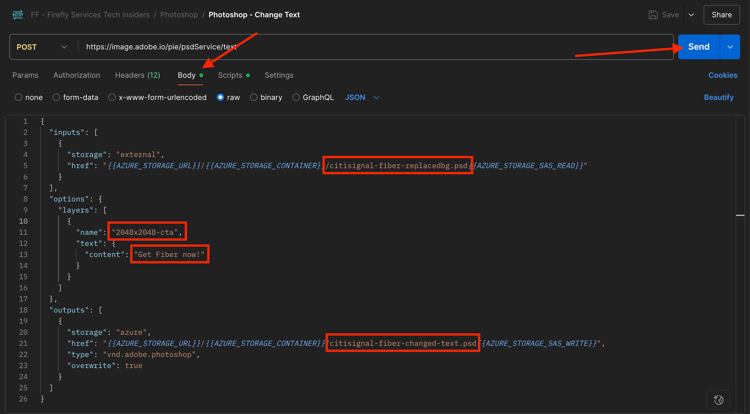

In Postman, open the request Photoshop - Change Text and go to Body.

Your screen should look like this:

  {
  "inputs": [
    {
      "storage": "external",
      "href": "{{AZURE_STORAGE_URL}}/{{AZURE_STORAGE_CONTAINER}}/citisignal-fiber-replacedbg.psd{{AZURE_STORAGE_SAS_READ}}"
    }
  ],
  "options": {
    "layers": [
      {
        "name": "2048x2048-cta",
        "text": {
          "content": "Get Fiber now!"
        }
      }
    ]
  },
  "outputs": [
    {
      "storage": "azure",
      "href": "{{AZURE_STORAGE_URL}}/{{AZURE_STORAGE_CONTAINER}}/citisignal-fiber-changed-text.psd{{AZURE_STORAGE_SAS_WRITE}}",
      "type": "vnd.adobe.photoshop",
      "overwrite": true
    }
  ]
}

The output file has a different name, because you don’t want to override the original input file.

Select Send.

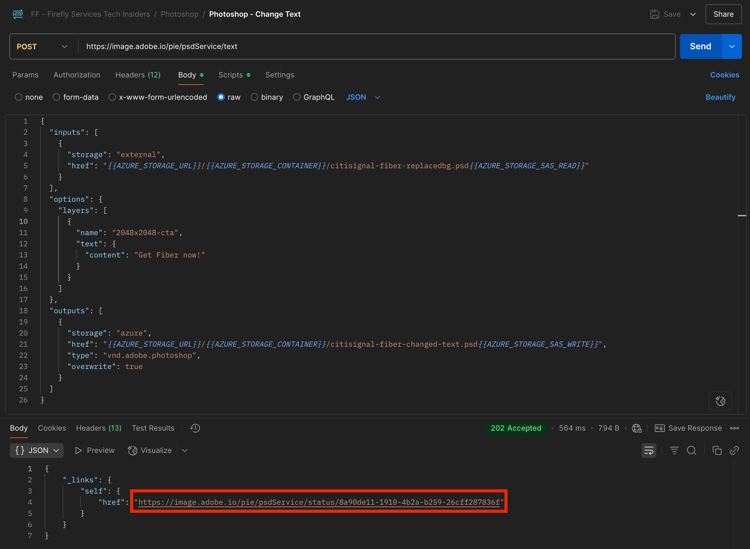

Just like before, the response contains a link that points to the status file that keeps track of the progress.

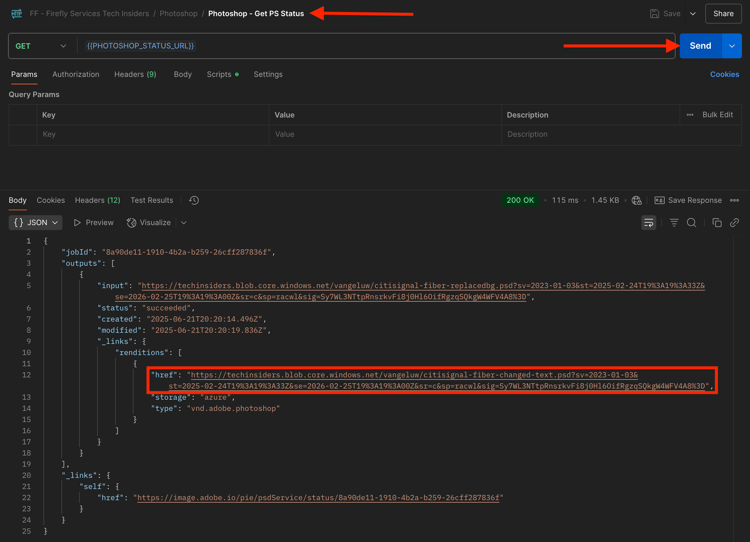

To read the status file, open the request Photoshop - Get PS Status and select Send. If the status isn’t set to succeeded immediately, wait a couple of seconds and then select Send again.

Select the URL to download the output file.

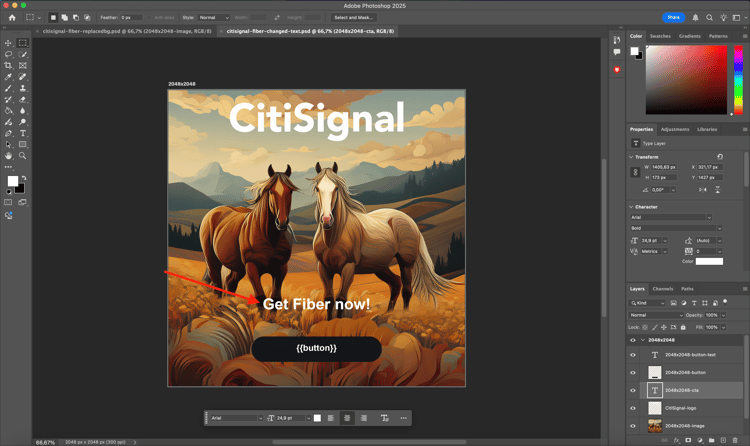

Open citisignal-fiber-changed-text.psd after downloading the file to your computer. You should see the placeholder for the call to action has been replaced by the text Get Fiber now!.

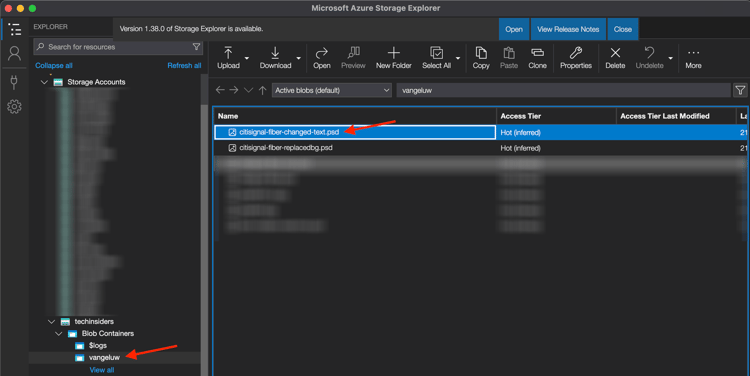

You can also see this file in your container using Azure Storage explorer.
