Export datasets by using the Flow Service API

AVAILABILITY
  • This functionality is available to customers who have purchased the Real-Time CDP Prime and Ultimate package, Adobe Journey Optimizer, or Customer Journey Analytics. Contact your Adobe representative for more information.

This article explains the workflow required to use the Flow Service API to export datasets from Adobe Experience Platform to your preferred cloud storage location, such as Amazon S3, SFTP locations, or Google Cloud Storage.

TIP
You can also use the Experience Platform user interface to export datasets. Read the export datasets UI tutorial for more information.

Datasets available for exporting datasets-to-export

The datasets that you can export depend on the Experience Platform application (Real-Time CDP, Adobe Journey Optimizer), the tier (Prime or Ultimate), and any add-ons that you purchased (for example: Data Distiller).

Refer to the table on the UI tutorial page to understand which datasets you can export.

Supported destinations supported-destinations

Currently, you can export datasets to the cloud storage destinations highlighted in the screenshot and listed below.

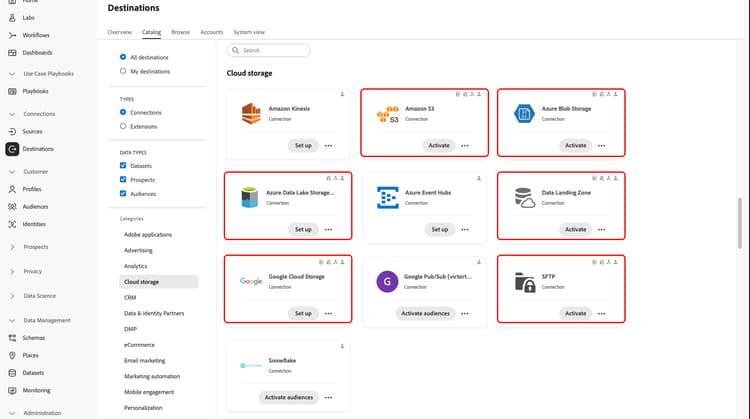

Destinations which support dataset exports

Getting started get-started

Overview - the steps to create a destination and export datasets

This guide requires a working understanding of the following components of Adobe Experience Platform:

  • Experience Platform datasets: All data that is successfully ingested into Adobe Experience Platform is persisted within the Data Lake as datasets. A dataset is a storage and management construct for a collection of data, typically a table, that contains a schema (columns) and fields (rows). Datasets also contain metadata that describes various aspects of the data they store.
  • Sandboxes: Experience Platform provides virtual sandboxes which partition a single Platform instance into separate virtual environments to help develop and evolve digital experience applications.

The following sections provide additional information that you must know in order to export datasets to cloud storage destinations in Platform.

Required permissions permissions

To export datasets, you need the View Destinations, View Datasets, and Manage and Activate Dataset Destinations access control permissions. Read the access control overview or contact your product administrator to obtain the required permissions.

To ensure that you have the necessary permissions to export datasets and that the destination supports exporting datasets, browse the destinations catalog. If a destination has an Activate or an Export datasets control, then you have the appropriate permissions.

Reading sample API calls reading-sample-api-calls

This tutorial provides example API calls to demonstrate how to format your requests. These include paths, required headers, and properly formatted request payloads. Sample JSON returned in API responses is also provided. For information on the conventions used in documentation for sample API calls, see the section on how to read example API calls in the Experience Platform troubleshooting guide.

Gather values for required and optional headers gather-values-headers

In order to make calls to Platform APIs, you must first complete the Experience Platform authentication tutorial. Completing the authentication tutorial provides the values for each of the required headers in all Experience Platform API calls, as shown below:

  • Authorization: Bearer {ACCESS_TOKEN}
  • x-api-key: {API_KEY}
  • x-gw-ims-org-id: {ORG_ID}

Resources in Experience Platform can be isolated to specific virtual sandboxes. In requests to Platform APIs, you can specify the name and ID of the sandbox that the operation will take place in. These are optional parameters.

  • x-sandbox-name: {SANDBOX_NAME}
NOTE
For more information on sandboxes in Experience Platform, see the sandbox overview documentation.

All requests that contain a payload (POST, PUT, PATCH) require an additional media type header:

  • Content-Type: application/json

API reference documentation api-reference-documentation

You can find accompanying reference documentation for all the API operations in this tutorial. Refer to the Flow Service - Destinations API documentation on the Adobe Developer website. We recommend that you use this tutorial and the API reference documentation in parallel.

Glossary glossary

For descriptions of the terms that you will be encountering in this API tutorial, read the glossary section of the API reference documentation.

Gather connection specs and flow specs for your desired destination gather-connection-spec-flow-spec

Before starting the workflow to export a dataset, identify the connection spec and flow spec IDs of the destination to which you are intending to export datasets to. Use the table below for reference.

Destination
Connection spec
Flow spec
Amazon S3
4fce964d-3f37-408f-9778-e597338a21ee
269ba276-16fc-47db-92b0-c1049a3c131f
Azure Blob Storage
6d6b59bf-fb58-4107-9064-4d246c0e5bb2
95bd8965-fc8a-4119-b9c3-944c2c2df6d2
Azure Data Lake Gen 2(ADLS Gen2)
be2c3209-53bc-47e7-ab25-145db8b873e1
17be2013-2549-41ce-96e7-a70363bec293
Data Landing Zone(DLZ)
10440537-2a7b-4583-ac39-ed38d4b848e8
cd2fc47e-e838-4f38-a581-8fff2f99b63a
Google Cloud Storage
c5d93acb-ea8b-4b14-8f53-02138444ae99
585c15c4-6cbf-4126-8f87-e26bff78b657
SFTP
36965a81-b1c6-401b-99f8-22508f1e6a26
354d6aad-4754-46e4-a576-1b384561c440

You need these IDs to construct various Flow Service entities. You also need to refer to parts of the Connection Spec itself to set up certain entities so you can retrieve the Connection Spec from Flow Service APIs. See the examples below of retrieving connection specs for all the destinations in the table:

Amazon S3

Request

accordion
Retrieve connection spec for Amazon S3
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/4fce964d-3f37-408f-9778-e597338a21ee' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Response

accordion
Amazon S3 - Connection spec
code language-json
{
    "items": [
        {
            "id": "4fce964d-3f37-408f-9778-e597338a21ee",
            "name": "Amazon S3",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
//...
Azure Blob Storage

Request

accordion
Retrieve connection spec for Azure Blob Storage
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/6d6b59bf-fb58-4107-9064-4d246c0e5bb2' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Response

accordion
Azure Blob Storage - Connection spec
code language-json
{
    "items": [
        {
            "id": "6d6b59bf-fb58-4107-9064-4d246c0e5bb2",
            "name": "Azure Blob Storage",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
//...
Azure Data Lake Gen 2(ADLS Gen2)

Request

accordion
Retrieve connection spec for Azure Data Lake Gen 2(ADLS Gen2)
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/be2c3209-53bc-47e7-ab25-145db8b873e1' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Response

accordion
Azure Data Lake Gen 2(ADLS Gen2) - Connection spec
code language-json
{
    "items": [
        {
            "id": "be2c3209-53bc-47e7-ab25-145db8b873e1",
            "name": "Azure Data Lake Gen2",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
//...
Data Landing Zone(DLZ)

Request

accordion
Retrieve connection spec for Data Landing Zone(DLZ)
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/10440537-2a7b-4583-ac39-ed38d4b848e8' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Response

accordion
Data Landing Zone(DLZ) - Connection spec
code language-json
{
    "items": [
        {
            "id": "10440537-2a7b-4583-ac39-ed38d4b848e8",
            "name": "Data Landing Zone",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
//...
Google Cloud Storage

Request

accordion
Retrieve connection spec for Google Cloud Storage
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/c5d93acb-ea8b-4b14-8f53-02138444ae99' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Response

accordion
Google Cloud Storage - Connection spec
code language-json
{
    "items": [
        {
            "id": "c5d93acb-ea8b-4b14-8f53-02138444ae99",
            "name": "Google Cloud Storage",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
//...
SFTP

Request

accordion
Retrieve connection spec for SFTP
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/36965a81-b1c6-401b-99f8-22508f1e6a26' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Response

accordion
SFTP - Connection spec
code language-json
{
    "items": [
        {
            "id": "36965a81-b1c6-401b-99f8-22508f1e6a26",
            "name": "SFTP",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
//...

Follow the steps below to set up a dataset dataflow to a cloud storage destination. For some steps, the requests and responses differ between the various cloud storage destinations. In those cases, use the tabs on the page to retrieve the requests and responses specific to the destination that you want to connect and export datasets to. Be sure to use the correct connection spec and flow spec for the destination you are configuring.

Retrieve a list of datasets retrieve-list-of-available-datasets

Diagram showing step 1 in the export datasets workflow

To retrieve a list of datasets eligible for activation, start by making an API call to the below endpoint.

recommendation-more-help

Request

Retrieve eligible datasets - Request
code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/connectionSpecs/23598e46-f560-407b-88d5-ea6207e49db0/configs?outputType=activationDatasets&outputField=datasets&start=0&limit=20&properties=name,state' \
--header 'accept: application/json' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-api-key: {API_KEY}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}'

Note that to retrieve eligible datasets, the connection spec ID used in the request URL must be the data lake source connection spec ID, 23598e46-f560-407b-88d5-ea6207e49db0, and the two query parameters outputField=datasets and outputType=activationDatasets must be specified. All other query parameters are the standard ones supported by the Catalog Service API.

Response

Retrieve datasets - Response
code language-json
{
    "items": [
        {
            "id": "5ef3e324052581191aa6a466",
            "name": "AAM Authenticated Profiles Meta Data",
            "description": "Activation profile export dataset",
            "fileDescription": {
                "persisted": true,
                "containerFormat": "parquet",
                "format": "parquet"
            },
            "aspect": "production",
            "state": "DRAFT"
        },
        {
            "id": "5ef3e3259ad2a1191ab7dd7d",
            "name": "AAM Devices Data",
            "description": "Activation profile export dataset",
            "fileDescription": {
                "persisted": true,
                "containerFormat": "parquet",
                "format": "parquet"
            },
            "aspect": "production",
            "state": "DRAFT"
        },
        {
            "id": "5ef3e325582424191b1beb42",
            "name": "AAM Devices Profile Meta Data",
            "description": "Activation profile export dataset",
            "fileDescription": {
                "persisted": true,
                "containerFormat": "parquet",
                "format": "parquet"
            },
            "aspect": "production",
            "state": "DRAFT"
        },
        {
            "id": "5ef3e328582424191b1beb44",
            "name": "AAM Realtime",
            "description": "Activation profile export dataset",
            "fileDescription": {
                "persisted": true,
                "containerFormat": "parquet",
                "format": "parquet"
            },
            "aspect": "production",
            "state": "DRAFT"
        },
        {
            "id": "5ef3e328fe742a191b2b3ea5",
            "name": "AAM Realtime Profile Updates",
            "description": "Activation profile export dataset",
            "fileDescription": {
                "persisted": true,
                "containerFormat": "parquet",
                "format": "parquet"
            },
            "aspect": "production",
            "state": "DRAFT"
        }
    ],
    "pageInfo": {
        "start": 0,
        "end": 4,
        "total": 149,
        "hasNext": true
    }
}

A successful response contains a list of datasets eligible for activation. These datasets can be used when constructing the source connection in the next step.

For information about the various response parameters for each returned dataset, refer to the Datasets API developer documentation.

Create a source connection create-source-connection

Diagram showing step 2 in the export datasets workflow

After retrieving the list of datasets that you want to export, you can create a source connection using those dataset IDs.

Request

Create source connection - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-16
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/sourceConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
  "name": "Connecting to Data Lake",
  "description": "Data Lake source connection to export datasets",
  "connectionSpec": {
    "id": "23598e46-f560-407b-88d5-ea6207e49db0", // this connection spec ID is always the same for Source Connections
    "version": "1.0"
  },
  "params": {
    "datasets": [ // datasets to activate
      {
        "dataSetId": "5ef3e3259ad2a1191ab7dd7d",
        "name": "AAM Devices Data"
      }
    ]
  }
}'

Response

Create source connection - Response
code language-json
{
    "id": "900df191-b983-45cd-90d5-4c7a0326d650",
    "etag": "\"0500ebe1-0000-0200-0000-63e28d060000\""
}

A successful response returns the ID (id) of the newly created source connection and an etag. Note down the source connection ID as you will need it later when creating the dataflow.

Please also remember that:

  • The source connection created in this step needs to be linked to a dataflow for its datasets to be activated to a destination. See the create a dataflow section for information on how to link a source connection to a dataflow.
  • The dataset IDs of a source connection cannot be modified after creation. If you need to add or remove datasets from a source connection, you must create a new source connection and link the ID of the new source connection to the dataflow.

Create a (target) base connection create-base-connection

Diagram showing step 3 in the export datasets workflow

A base connection securely stores the credentials to your destination. Depending on the destination type, the credentials needed to authenticate against that destination can vary. To find these authentication parameters, first retrieve the connection spec for your desired destination as described in the section Gather connection specs and flow specs and then look at the authSpec of the response. Reference the tabs below for the authSpec properties of all supported destinations.

Amazon S3
accordion
Amazon S3 - Connection spec showing auth spec

Note the highlighted line with inline comments in the connection spec example below, which provide additional information about where to find the authentication parameters in the connection spec.

code language-json line-numbers data-start-1 data-line-offset-4 h-8
{
    "items": [
        {
            "id": "4fce964d-3f37-408f-9778-e597338a21ee",
            "name": "Amazon S3",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [ // describes the authentication parameters
                {
                    "name": "Access Key",
                    "type": "KeyBased",
                    "spec": {
                        "$schema": "http://json-schema.org/draft-07/schema#",
                        "description": "Defines auth params required for connecting to amazon-s3",
                        "type": "object",
                        "properties": {
                            "s3AccessKey": {
                                "description": "Access key id",
                                "type": "string",
                                "pattern": "^[A-Z2-7]{20}$"
                            },
                            "s3SecretKey": {
                                "description": "Secret access key for the user account",
                                "type": "string",
                                "format": "password",
                                "pattern": "^[A-Za-z0-9\/+]{40}$"
                            }
                        },
                        "required": [
                            "s3SecretKey",
                            "s3AccessKey"
                        ]
                    }
                }
            ],
//...
Azure Blob Storage
accordion
Azure Blob Storage - Connection spec showing auth spec

Note the highlighted line with inline comments in the connection spec example below, which provide additional information about where to find the authentication parameters in the connection spec.

code language-json line-numbers data-start-1 data-line-offset-4 h-8
{
    "items": [
        {
            "id": "6d6b59bf-fb58-4107-9064-4d246c0e5bb2",
            "name": "Azure Blob Storage",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [ // describes the authentication parameters
                {
                    "name": "ConnectionString",
                    "type": "ConnectionString",
                    "spec": {
                        "$schema": "http://json-schema.org/draft-07/schema#",
                        "description": "Connection String for Azure Blob based destinations",
                        "type": "object",
                        "properties": {
                            "connectionString": {
                                "description": "connection string for login",
                                "type": "string",
                                "format": "password"
                            }
                        },
                        "required": [
                            "connectionString"
                        ]
                    }
                }
            ],
//...
Azure Data Lake Gen 2(ADLS Gen2)
accordion
Azure Data Lake Gen 2(ADLS Gen2) - Connection spec showing auth spec

Note the highlighted line with inline comments in the connection spec example below, which provide additional information about where to find the authentication parameters in the connection spec.

code language-json line-numbers data-start-1 data-line-offset-4 h-8
{
    "items": [
        {
            "id": "be2c3209-53bc-47e7-ab25-145db8b873e1",
            "name": "Azure Data Lake Gen2",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [ // describes the authentication parameters
                {
                    "name": "Azure Service Principal Auth",
                    "type": "AzureServicePrincipal",
                    "spec": {
                        "$schema": "http://json-schema.org/draft-07/schema#",
                        "description": "defines auth params required for connecting to adlsgen2 using service principal",
                        "type": "object",
                        "properties": {
                            "url": {
                                "description": "Endpoint for Azure Data Lake Storage Gen2.",
                                "type": "string"
                            },
                            "servicePrincipalId": {
                                "description": "Service Principal Id to connect to ADLSGen2.",
                                "type": "string"
                            },
                            "servicePrincipalKey": {
                                "description": "Service Principal Key to connect to ADLSGen2.",
                                "type": "string",
                                "format": "password"
                            },
                            "tenant": {
                                "description": "Tenant information(domain name or tenant ID).",
                                "type": "string"
                            }
                        },
                        "required": [
                            "servicePrincipalKey",
                            "url",
                            "tenant",
                            "servicePrincipalId"
                        ]
                    }
                }
            ],
//...
Data Landing Zone(DLZ)
accordion
Data Landing Zone(DLZ) - Connection spec showing auth spec
note note
NOTE
The Data Landing Zone destination does not require an auth spec.
code language-json
{
    "items": [
        {
            "id": "10440537-2a7b-4583-ac39-ed38d4b848e8",
            "name": "Data Landing Zone",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [],
//...
Google Cloud Storage
accordion
Google Cloud Storage - Connection spec showing auth spec

Note the highlighted line with inline comments in the connection spec example below, which provide additional information about where to find the authentication parameters in the connection spec.

code language-json line-numbers data-start-1 data-line-offset-4 h-8
{
    "items": [
        {
            "id": "c5d93acb-ea8b-4b14-8f53-02138444ae99",
            "name": "Google Cloud Storage",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [ // describes the authentication parameters
                {
                    "name": "Google Cloud Storage authentication credentials",
                    "type": "GoogleCloudStorageAuth",
                    "spec": {
                        "$schema": "http://json-schema.org/draft-07/schema#",
                        "description": "defines auth params required for connecting to google cloud storage connector.",
                        "type": "object",
                        "properties": {
                            "accessKeyId": {
                                "description": "Access Key Id for the user account",
                                "type": "string"
                            },
                            "secretAccessKey": {
                                "description": "Secret Access Key for the user account",
                                "type": "string",
                                "format": "password"
                            }
                        },
                        "required": [
                            "accessKeyId",
                            "secretAccessKey"
                        ]
                    }
                }
            ],
//...
SFTP
accordion
SFTP - Connection spec showing auth spec
note note
NOTE
The SFTP destination contains two separate items in the auth spec, as it supports both password and SSH key authentication.

Note the highlighted line with inline comments in the connection spec example below, which provide additional information about where to find the authentication parameters in the connection spec.

code language-json line-numbers data-start-1 data-line-offset-4 h-8
{
    "items": [
        {
            "id": "36965a81-b1c6-401b-99f8-22508f1e6a26",
            "name": "SFTP",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [ // describes the authentication parameters
                {
                    "name": "SFTP with Password",
                    "type": "SFTP",
                    "spec": {
                        "$schema": "http://json-schema.org/draft-07/schema#",
                        "description": "defines auth params required for connecting to sftp locations with a password",
                        "type": "object",
                        "properties": {
                            "domain": {
                                "description": "Domain of server",
                                "type": "string"
                            },
                            "username": {
                                "description": "Username",
                                "type": "string"
                            },
                            "password": {
                                "description": "Password",
                                "type": "string",
                                "format": "password"
                            }
                        },
                        "required": [
                            "password",
                            "domain",
                            "username"
                        ]
                    }
                },
                {
                    "name": "SFTP with SSH Key",
                    "type": "SFTP",
                    "spec": {
                        "$schema": "http://json-schema.org/draft-07/schema#",
                        "description": "defines auth params required for connecting to sftp locations using SSH Key",
                        "type": "object",
                        "properties": {
                            "domain": {
                                "description": "Domain of server",
                                "type": "string"
                            },
                            "username": {
                                "description": "Username",
                                "type": "string"
                            },
                            "sshKey": {
                                "description": "Base64 string of the private SSH key",
                                "type": "string",
                                "format": "password",
                                "contentEncoding": "base64",
                                "uiAttributes": {
                                    "tooltip": {
                                        "id": "platform_destinations_connect_sftp_ssh",
                                        "fallbackUrl": "http://www.adobe.com/go/destinations-sftp-connection-parameters-en "
                                    }
                                }
                            }
                        },
                        "required": [
                            "sshKey",
                            "domain",
                            "username"
                        ]
                    }
                }
            ],
//...

Using the properties specified in the authentication spec (i.e. authSpec from the response) you can create a base connection with the required credentials, specific to each destination type, as shown in the examples below:

Amazon S3

Request

accordion
Amazon S3 - Base connection request
note tip
TIP
For information on how to obtain the required authentication credentials, refer to the authenticate to destination section of the Amazon S3 destination documentation page.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-18
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "Amazon S3 Base Connection",
  "auth": {
    "specName": "Access Key",
    "params": {
      "s3SecretKey": "<Add secret key>",
      "s3AccessKey": "<Add access key>"
    }
  },
  "connectionSpec": {
    "id": "4fce964d-3f37-408f-9778-e597338a21ee", // Amazon S3 connection spec
    "version": "1.0"
  }
}'

Response

accordion
Amazon S3 Base connection response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Azure Blob Storage

Request

accordion
Azure Blob Storage - Base connection request
note tip
TIP
For information on how to obtain the required authentication credentials, refer to the authenticate to destination section of the Azure Blob Storage destination documentation page.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-16
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "Azure Blob Storage Base Connection",
  "auth": {
    "specName": "ConnectionString",
    "params": {
      "connectionString": "<Add Azure Blob connection string>"
    }
  },
  "connectionSpec": {
    "id": "6d6b59bf-fb58-4107-9064-4d246c0e5bb2", // Azure Blob Storage connection spec
    "version": "1.0"
  }
}'

Response

accordion
Azure Blob Storage - Base connection response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Azure Data Lake Gen 2(ADLS Gen2)

Request

accordion
Azure Data Lake Gen 2(ADLS Gen2) - Base connection request
note tip
TIP
For information on how to obtain the required authentication credentials, refer to the authenticate to destination section of the Azure Data Lake Gen 2(ADLS Gen2) destination documentation page.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-20
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "Azure Data Lake Gen 2(ADLS Gen2) Base Connection",
  "auth": {
    "specName": "Azure Service Principal Auth",
    "params": {
      "servicePrincipalKey": "<Add servicePrincipalKey>",
      "url": "<Add url>",
      "tenant": "<Add tenant>",
      "servicePrincipalId": "<Add servicePrincipalId>"
    }
  },
  "connectionSpec": {
    "id": "be2c3209-53bc-47e7-ab25-145db8b873e1", // Azure Data Lake Gen 2(ADLS Gen2) connection spec
    "version": "1.0"
  }
}'

Response

accordion
Azure Data Lake Gen 2(ADLS Gen2) - Base connection response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Data Landing Zone(DLZ)

Request

accordion
Data Landing Zone(DLZ) - Base connection request
note tip
TIP
No authentication credentials are required for the Data Landing Zone destination. For more information, refer to the authenticate to destination section of the Data Landing Zone destination documentation page.
code language-shell
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "Data Landing Zone(DLZ) Base Connection"
}'

Response

accordion
Data Landing Zone - Base connection response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Google Cloud Storage

Request

accordion
Google Cloud Storage - Base connection request
note tip
TIP
For information on how to obtain the required authentication credentials, refer to the authenticate to destination section of the Google Cloud Storage destination documentation page.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-18
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "Google Cloud Storage Base Connection",
  "auth": {
    "specName": "Google Cloud Storage authentication credentials",
    "params": {
      "accessKeyId": "<Add accessKeyId>",
      "secretAccessKey": "<Add secret Access Key>"
    }
  },
  "connectionSpec": {
    "id": "c5d93acb-ea8b-4b14-8f53-02138444ae99", // Google Cloud Storage connection spec
    "version": "1.0"
  }
}'

Response

accordion
Google Cloud Storage - Base connection response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
SFTP

Request

accordion
SFTP with password - Base connection request
note tip
TIP
For information on how to obtain the required authentication credentials, refer to the authenticate to destination section of the SFTP destination documentation page.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-19
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "SFTP with password Base Connection",
  "auth": {
    "specName": "SFTP with Password",
    "params": {
      "domain": "<Add domain>",
      "username": "<Add username>",
      "password": "<Add password>"
    }
  },
  "connectionSpec": {
    "id": "36965a81-b1c6-401b-99f8-22508f1e6a26", // SFTP connection spec
    "version": "1.0"
  }
}'
accordion
SFTP with SSH key - Base connection request
note tip
TIP
For information on how to obtain the required authentication credentials, refer to the authenticate to destination section of the SFTP destination documentation page.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-19
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/connections' \
--header 'accept: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-api-key: <API-KEY>' \
--header 'x-gw-ims-org-id: <IMS-ORG-ID>' \
--header 'x-sandbox-name: <SANDBOX-NAME>' \
--header 'Content-Type: application/json' \
--data-raw '{
  "name": "SFTP with SSH key Base Connection",
  "auth": {
    "specName": "SFTP with SSH Key",
    "params": {
      "domain": "<Add domain>",
      "username": "<Add username>",
      "sshKey": "<Add SSH key>"
    }
  },
  "connectionSpec": {
    "id": "36965a81-b1c6-401b-99f8-22508f1e6a26", // SFTP connection spec
    "version": "1.0"
  }
}'

Response

accordion
SFTP - Base connection response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}

Note the connection ID from the response. This ID will be required in the next step when creating the target connection.

Create a target connection create-target-connection

Diagram showing step 4 in the export datasets workflow

Next, you need to create a target connection which stores the export parameters for your datasets. Export parameters include location, file format, compression, and other details. Refer to the targetSpec properties provided in the destination’s connection spec to understand the supported properties for each destination type. Reference the tabs below for the targetSpec properties of all supported destinations.

WARNING
Exports to JSON files are supported in a compressed mode only. Exports to Parquet files are supported in a compressed and uncompressed mode.
Amazon S3
accordion
Amazon S3 - Connection spec showing target connection parameters

Note the highlighted lines with inline comments in the connection spec example below, which provide additional information about where to find the target spec parameters in the connection spec. You can see also in the example below which target parameters are not applicable to dataset export destinations.

code language-json line-numbers data-start-1 data-line-offset-4 h-10 h-41 h-56
{
    "items": [
        {
            "id": "4fce964d-3f37-408f-9778-e597338a21ee",
            "name": "Amazon S3",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [...],
            "encryptionSpecs": [...],
            "targetSpec": { // describes the target connection parameters
                "name": "User based target",
                "type": "UserNamespace",
                "spec": {
                    "$schema": "http://json-schema.org/draft-07/schema#",
                    "type": "object",
                    "properties": {
                        "bucketName": {
                            "title": "Bucket name",
                            "description": "Bucket name",
                            "type": "string",
                            "pattern": "(?=^.{3,63}$)(?!^(\\d+\\.)+\\d+$)(^(([a-z0-9]|[a-z0-9][a-z0-9\\-]*[a-z0-9])\\.)*([a-z0-9]|[a-z0-9][a-z0-9\\-]*[a-z0-9])$)",
                            "uiAttributes": {
                                "tooltip": {
                                    "id": "platform_destinations_connect_s3_bucket",
                                    "fallbackUrl": "http://www.adobe.com/go/destinations-amazon-s3-connection-parameters-en"
                                }
                            }
                        },
                        "path": {
                            "title": "Folder path",
                            "description": "Output path for copying files",
                            "type": "string",
                            "pattern": "^[0-9a-zA-Z\/\\!\\-_\\.\\*\\''\\(\\)]*((\\%SEGMENT_(NAME|ID)\\%)?\/?)+$",
                            "uiAttributes": {
                                "tooltip": {
                                    "id": "platform_destinations_connect_s3_folderpath",
                                    "fallbackUrl": "http://www.adobe.com/go/destinations-amazon-s3-connection-parameters-en"
                                }
                            }
                        },
                        "fileType": {...}, // not applicable to dataset destinations
                        "datasetFileType": {
                            "conditional": {
                                "field": "flowSpec.attributes._workflow",
                                "operator": "CONTAINS",
                                "value": "DATASETS"
                            },
                            "title": "File Type",
                            "description": "Select file format",
                            "type": "string",
                            "enum": [
                                "JSON",
                                "PARQUET"
                            ]
                        },
                        "csvOptions": {...}, // not applicable to dataset destinations
                        "compression": {
                            "title": "Compression format",
                            "description": "Select the desired file compression format.",
                            "type": "string",
                            "enum": [
                                "NONE",
                                "GZIP"
                            ]
                        }
                    },
                    "required": [
                        "bucketName",
                        "path",
                        "datasetFileType",
                        "compression",
                        "fileType"
                    ]
                }
//...
Azure Blob Storage
accordion
Azure Blob Storage - Connection spec showing target connection parameters

Note the highlighted lines with inline comments in the connection spec example below, which provide additional information about where to find the target spec parameters in the connection spec. You can see also in the example below which target parameters are not applicable to dataset export destinations.

code language-json line-numbers data-start-1 data-line-offset-4 h-10 h-29 h-44
{
    "items": [
        {
            "id": "6d6b59bf-fb58-4107-9064-4d246c0e5bb2",
            "name": "Azure Blob Storage",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [...],
            "encryptionSpecs": [...],
            "targetSpec": { // describes the target connection parameters
                "name": "User based target",
                "type": "UserNamespace",
                "spec": {
                    "$schema": "http://json-schema.org/draft-07/schema#",
                    "type": "object",
                    "properties": {
                        "path": {
                            "title": "Folder path",
                            "description": "Output path (relative) indicating where to upload the data",
                            "type": "string",
                            "pattern": "^[0-9a-zA-Z\/\\!\\-_\\.\\*\\'\\(\\)]+$"
                        },
                        "container": {
                            "title": "Container",
                            "description": "Container within the storage where to upload the data",
                            "type": "string",
                            "pattern": "^[a-z0-9](?!.*--)[a-z0-9-]{1,61}[a-z0-9]$"
                        },
                        "fileType": {...}, // not applicable to dataset destinations
                        "datasetFileType": {
                            "conditional": {
                                "field": "flowSpec.attributes._workflow",
                                "operator": "CONTAINS",
                                "value": "DATASETS"
                            },
                            "title": "File Type",
                            "description": "Select file format",
                            "type": "string",
                            "enum": [
                                "JSON",
                                "PARQUET"
                            ]
                        },
                        "csvOptions": {...}, // not applicable to dataset destinations
                        "compression": {
                            "title": "Compression format",
                            "description": "Select the desired file compression format.",
                            "type": "string",
                            "enum": [
                                "NONE",
                                "GZIP"
                            ]
                        }
                    },
                    "required": [
                        "container",
                        "path",
                        "datasetFileType",
                        "compression",
                        "fileType"
                    ]
                }
//...
Azure Data Lake Gen 2(ADLS Gen2)
accordion
Azure Data Lake Gen 2(ADLS Gen2) - Connection spec showing target connection parameters

Note the highlighted lines with inline comments in the connection spec example below, which provide additional information about where to find the target spec parameters in the connection spec. You can see also in the example below which target parameters are not applicable to dataset export destinations.

code language-json line-numbers data-start-1 data-line-offset-4 h-10 h-22 h-37
{
    "items": [
        {
            "id": "be2c3209-53bc-47e7-ab25-145db8b873e1",
            "name": "Azure Data Lake Gen2",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [...],
            "encryptionSpecs": [...],
            "targetSpec": { // describes the target connection parameters
                "name": "User based target",
                "type": "UserNamespace",
                "spec": {
                    "$schema": "http://json-schema.org/draft-07/schema#",
                    "type": "object",
                    "properties": {
                        "path": {
                            "title": "Folder path",
                            "description": "Enter the path to your Azure Data Lake Storage folder",
                            "type": "string"
                        },
                        "fileType": {...}, // not applicable to dataset destinations
                        "datasetFileType": {
                            "conditional": {
                                "field": "flowSpec.attributes._workflow",
                                "operator": "CONTAINS",
                                "value": "DATASETS"
                            },
                            "title": "File Type",
                            "description": "Select file format",
                            "type": "string",
                            "enum": [
                                "JSON",
                                "PARQUET"
                            ]
                        },
                        "csvOptions":{...}, // not applicable to dataset destinations
                        "compression": {
                            "title": "Compression format",
                            "description": "Select the desired file compression format.",
                            "type": "string",
                            "enum": [
                                "NONE",
                                "GZIP"
                            ]
                        }
                    },
                    "required": [
                        "path",
                        "datasetFileType",
                        "compression",
                        "fileType"
                    ]
                }
//...
Data Landing Zone(DLZ)
accordion
Data Landing Zone(DLZ) - Connection spec showing target connection parameters

Note the highlighted lines with inline comments in the connection spec example below, which provide additional information about where to find the target spec parameters in the connection spec. You can see also in the example below which target parameters are not applicable to dataset export destinations.

code language-json line-numbers data-start-1 data-line-offset-4 h-9 h-21 h-36
"items": [
    {
        "id": "10440537-2a7b-4583-ac39-ed38d4b848e8",
        "name": "Data Landing Zone",
        "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
        "version": "1.0",
        "authSpec": [],
        "encryptionSpecs": [],
        "targetSpec": { // describes the target connection parameters
            "name": "User based target",
            "type": "UserNamespace",
            "spec": {
                "$schema": "http://json-schema.org/draft-07/schema#",
                "type": "object",
                "properties": {
                    "path": {
                        "title": "Folder path",
                        "description": "Enter the path to your Azure Data Lake Storage folder",
                        "type": "string"
                    },
                    "fileType": {...}, // not applicable to dataset destinations
                    "datasetFileType": {
                        "conditional": {
                            "field": "flowSpec.attributes._workflow",
                            "operator": "CONTAINS",
                            "value": "DATASETS"
                        },
                        "title": "File Type",
                        "description": "Select file format",
                        "type": "string",
                        "enum": [
                            "JSON",
                            "PARQUET"
                        ]
                    },
                    "csvOptions": {...}, // not applicable to dataset destinations
                    "compression": {
                        "title": "Compression format",
                        "description": "Select the desired file compression format.",
                        "type": "string",
                        "enum": [
                            "NONE",
                            "GZIP"
                        ]
                    }
                },
                "required": [
                    "path",
                    "datasetFileType",
                    "compression",
                    "fileType"
                ]
            }
//...
Google Cloud Storage
accordion
Google Cloud Storage - Connection spec showing target connection parameters

Note the highlighted lines with inline comments in the connection spec example below, which provide additional information about where to find the target spec parameters in the connection spec. You can see also in the example below which target parameters are not applicable to dataset export destinations.

code language-json line-numbers data-start-1 data-line-offset-4 h-10 h-29 h-44
{
    "items": [
        {
            "id": "c5d93acb-ea8b-4b14-8f53-02138444ae99",
            "name": "Google Cloud Storage",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [...],
            "encryptionSpecs": [...],
            "targetSpec": { // describes the target connection parameters
                "name": "User based target",
                "type": "UserNamespace",
                "spec": {
                    "$schema": "http://json-schema.org/draft-07/schema#",
                    "type": "object",
                    "properties": {
                        "bucketName": {
                            "title": "Bucket name",
                            "description": "Bucket name",
                            "type": "string",
                            "pattern": "(?!^goog.*$)(?!^.*g(o|0)(o|0)gle.*$)(((?=^.{3,63}$)(^([a-z0-9]|[a-z0-9][a-z0-9\\-_]*)[a-z0-9]$))|((?=^.{3,222}$)(?!^(\\d+\\.)+\\d+$)(^(([a-z0-9]{1,63}|[a-z0-9][a-z0-9\\-_]{1,61}[a-z0-9])\\.)*([a-z0-9]{1,63}|[a-z0-9][a-z0-9\\-_]{1,61}[a-z0-9])$)))"
                        },
                        "path": {
                            "title": "Folder path",
                            "description": "Output path for copying files",
                            "type": "string",
                            "pattern": "^[0-9a-zA-Z\/\\!\\-_\\.\\*\\''\\(\\)]*((\\%SEGMENT_(NAME|ID)\\%)?\/?)+$"
                        },
                        "fileType": {...}, // not applicable to dataset destinations
                        "datasetFileType": {
                            "conditional": {
                                "field": "flowSpec.attributes._workflow",
                                "operator": "CONTAINS",
                                "value": "DATASETS"
                            },
                            "title": "File Type",
                            "description": "Select file format",
                            "type": "string",
                            "enum": [
                                "JSON",
                                "PARQUET"
                            ]
                        },
                        "csvOptions": {...}, // not applicable to dataset destinations
                        "compression": {
                            "title": "Compression format",
                            "description": "Select the desired file compression format.",
                            "type": "string",
                            "enum": [
                                "NONE",
                                "GZIP"
                            ]
                        }
                    },
                    "required": [
                        "bucketName",
                        "path",
                        "datasetFileType",
                        "compression",
                        "fileType"
                    ]
                }
//...
SFTP
accordion
SFTP - Connection spec showing target connection parameters

Note the highlighted lines with inline comments in the connection spec example below, which provide additional information about where to find the target spec parameters in the connection spec. You can see also in the example below which target parameters are not applicable to dataset export destinations.

code language-json line-numbers data-start-1 data-line-offset-4 h-10 h-22 h-37
{
    "items": [
        {
            "id": "36965a81-b1c6-401b-99f8-22508f1e6a26",
            "name": "SFTP",
            "providerId": "14e34fac-d307-11e9-bb65-2a2ae2dbcce4",
            "version": "1.0",
            "authSpec": [...],
            "encryptionSpecs": [...],
            "targetSpec": { // describes the target connection parameters
                "name": "User based target",
                "type": "UserNamespace",
                "spec": {
                    "$schema": "http://json-schema.org/draft-07/schema#",
                    "type": "object",
                    "properties": {
                        "remotePath": {
                            "title": "Folder path",
                            "description": "Enter your folder path",
                            "type": "string"
                        },
                        "fileType": {...}, // not applicable to dataset destinations
                        "datasetFileType": {
                            "conditional": {
                                "field": "flowSpec.attributes._workflow",
                                "operator": "CONTAINS",
                                "value": "DATASETS"
                            },
                            "title": "File Type",
                            "description": "Select file format",
                            "type": "string",
                            "enum": [
                                "JSON",
                                "PARQUET"
                            ]
                        },
                        "csvOptions": {...}, // not applicable to dataset destinations
                        "compression": {
                            "title": "Compression format",
                            "description": "Select the desired file compression format.",
                            "type": "string",
                            "enum": [
                                "GZIP",
                                "NONE"
                            ]
                        }
                    },
                    "required": [
                        "remotePath",
                        "datasetFileType",
                        "compression",
                        "fileType"
                    ]
                },
//...

By using the above spec, you can construct a target connection request specific to your desired cloud storage destination, as shown in the tabs below.

Amazon S3

Request

accordion
Amazon S3 - Target connection request
note tip
TIP
For information on how to obtain the required target parameters, refer to the fill in destination details section of the Amazon S3 destination documentation page.
For other supported values of datasetFileType, see the API reference documentation.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-19
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/targetConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Amazon S3 Target Connection",
    "baseConnectionId": "<FROM_STEP_CREATE_TARGET_BASE_CONNECTION>",
    "params": {
        "mode": "Server-to-server",
        "bucketName": "your-bucket-name",
        "path": "folder/subfolder",
        "compression": "NONE",
        "datasetFileType": "JSON"
    },
    "connectionSpec": {
        "id": "4fce964d-3f37-408f-9778-e597338a21ee", // Amazon S3 connection spec id
        "version": "1.0"
    }
}'

Response

accordion
Target connection - Response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Azure Blob Storage

Request

accordion
Azure Blob Storage - Target connection request
note tip
TIP
For information on how to obtain the required target parameters, refer to the fill in destination details section of the Azure Blob Storage destination documentation page.
For other supported values of datasetFileType, see the API reference documentation.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-19
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/targetConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Azure Blob Storage Target Connection",
    "baseConnectionId": "<FROM_STEP_CREATE_TARGET_BASE_CONNECTION>",
    "params": {
        "mode": "Server-to-server",
        "container": "your-container-name",
        "path": "folder/subfolder",
        "compression": "NONE",
        "datasetFileType": "JSON"
    },
    "connectionSpec": {
        "id": "6d6b59bf-fb58-4107-9064-4d246c0e5bb2", // Azure Blob Storage connection spec id
        "version": "1.0"
    }
}'

Response

accordion
Target connection - Response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Azure Data Lake Gen 2(ADLS Gen2)

Request

accordion
Azure Blob Storage - Target connection request
note tip
TIP
For information on how to obtain the required target parameters, refer to the fill in destination details section of the Azure Data Lake Gen 2(ADLS Gen2) destination documentation page.
For other supported values of datasetFileType, see the API reference documentation.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-18
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/targetConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Azure Data Lake Gen 2(ADLS Gen2) Target Connection",
    "baseConnectionId": "<FROM_STEP_CREATE_TARGET_BASE_CONNECTION>",
    "params": {
        "mode": "Server-to-server",
        "path": "folder/subfolder",
        "compression": "NONE",
        "datasetFileType": "JSON"
    },
    "connectionSpec": {
        "id": "be2c3209-53bc-47e7-ab25-145db8b873e1", // Azure Data Lake Gen 2(ADLS Gen2) connection spec id
        "version": "1.0"
    }
}'

Response

accordion
Target connection - Response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Data Landing Zone(DLZ)

Request

accordion
Data Landing Zone - Target connection request
note tip
TIP
For information on how to obtain the required target parameters, refer to the fill in destination details section of the Data Landing Zone destination documentation page.
For other supported values of datasetFileType, see the API reference documentation.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-18
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/targetConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Data Landing Zone Target Connection",
    "baseConnectionId": "<FROM_STEP_CREATE_TARGET_BASE_CONNECTION>",
    "params": {
        "mode": "Server-to-server",
        "path": "folder/subfolder",
        "compression": "NONE",
        "datasetFileType": "JSON"
    },
    "connectionSpec": {
        "id": "10440537-2a7b-4583-ac39-ed38d4b848e8", // Data Landing Zone connection spec id
        "version": "1.0"
    }
}'

Response

accordion
Target connection - Response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Google Cloud Storage

Request

accordion
Google Cloud Storage - Target connection request
note tip
TIP
For information on how to obtain the required target parameters, refer to the fill in destination details section of the Google Cloud Storage destination documentation page.
For other supported values of datasetFileType, see the API reference documentation.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-19
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/targetConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Google Cloud Storage Target Connection",
    "baseConnectionId": "<FROM_STEP_CREATE_TARGET_BASE_CONNECTION>",
    "params": {
        "mode": "Server-to-server",
        "bucketName": "your-bucket-name",
        "path": "folder/subfolder",
        "compression": "NONE",
        "datasetFileType": "JSON"
    },
    "connectionSpec": {
        "id": "c5d93acb-ea8b-4b14-8f53-02138444ae99", // Google Cloud Storage connection spec id
        "version": "1.0"
    }
}'

Response

accordion
Target connection - Response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
SFTP

Request

accordion
SFTP - Target connection request
note tip
TIP
For information on how to obtain the required target parameters, refer to the fill in destination details section of the SFTP destination documentation page.
For other supported values of datasetFileType, see the API reference documentation.

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-18
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/targetConnections' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "SFTP Target Connection",
    "baseConnectionId": "<FROM_STEP_CREATE_TARGET_BASE_CONNECTION>",
    "params": {
        "mode": "Server-to-server",
        "remotePath": "folder/subfolder",
        "compression": "NONE",
        "datasetFileType": "JSON"
    },
    "connectionSpec": {
        "id": "36965a81-b1c6-401b-99f8-22508f1e6a26", // SFTP connection spec id
        "version": "1.0"
    }
}'

Response

accordion
Target Connection - Response
code language-json
{
    "id": "12401496-2573-4ca7-8137-fef1aeb9dd4c",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}

Note the Target Connection ID from the response. This ID will be required in the next step when creating the dataflow to export datasets.

Create a dataflow create-dataflow

Diagram showing step 5 in the export datasets workflow

The final step in the destination configuration is to set up a dataflow. A dataflow ties together previously created entities and also provides options for configuring the dataset export schedule. To create the dataflow, use the payloads below, depending on your desired cloud storage destination, and replace the entity IDs from previous steps.

Amazon S3

Request

accordion
Create dataset dataflow to Amazon S3 destination - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-22-25
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/flows' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Activate datasets to an Amazon S3 cloud storage destination",
    "description": "This operation creates a dataflow to export datasets to an Amazon S3 cloud storage destination",
    "flowSpec": {
        "id": "269ba276-16fc-47db-92b0-c1049a3c131f", // Amazon S3 flow spec ID
        "version": "1.0"
    },
    "sourceConnectionIds": [
        "<FROM_STEP_CREATE_SOURCE_CONNECTION>"
    ],
    "targetConnectionIds": [
        "<FROM_STEP_CREATE_TARGET_CONNECTION>"
    ],
    "transformations": [],
    "scheduleParams": { // specify the scheduling info
        "interval": 3, // also supports 6, 9, 12 hour increments
        "timeUnit": "hour", // also supports "day" for daily increments. Use "interval": 1 when you select "timeUnit": "day"
        "startTime": 1675901210 // UNIX timestamp start time (in seconds)
    }
}'

Response

accordion
Create dataflow - Response
code language-json
{
    "id": "eb54b3b3-3949-4f12-89c8-64eafaba858f",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Azure Blob Storage

Request

accordion
Create dataset dataflow to Azure Blob Storage destination - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-22-25
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/flows' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Activate datasets to an Azure Blob Storage cloud storage destination",
    "description": "This operation creates a dataflow to export datasets to an Azure Blob Storage cloud storage destination",
    "flowSpec": {
        "id": "95bd8965-fc8a-4119-b9c3-944c2c2df6d2", // Azure Blob Storage flow spec ID
        "version": "1.0"
    },
    "sourceConnectionIds": [
        "<FROM_STEP_CREATE_SOURCE_CONNECTION>"
    ],
    "targetConnectionIds": [
        "<FROM_STEP_CREATE_TARGET_CONNECTION>"
    ],
    "transformations": [],
    "scheduleParams": { // specify the scheduling info
        "interval": 3, // also supports 6, 9, 12, 24 hour increments
        "timeUnit": "hour",
        "startTime": 1675901210 // UNIX timestamp start time(in seconds)
    }
}'

Response

accordion
Create dataflow - Response
code language-json
{
    "id": "eb54b3b3-3949-4f12-89c8-64eafaba858f",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Azure Data Lake Gen 2(ADLS Gen2)

Request

accordion
Create dataset dataflow to Azure Data Lake Gen 2(ADLS Gen2) destination - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-22-25
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/flows' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Activate datasets to an Azure Data Lake Gen 2(ADLS Gen2) cloud storage destination",
    "description": "This operation creates a dataflow to export datasets to an Azure Data Lake Gen 2(ADLS Gen2) cloud storage destination",
    "flowSpec": {
        "id": "17be2013-2549-41ce-96e7-a70363bec293", // Azure Data Lake Gen 2(ADLS Gen2) flow spec ID
        "version": "1.0"
    },
    "sourceConnectionIds": [
        "<FROM_STEP_CREATE_SOURCE_CONNECTION>"
    ],
    "targetConnectionIds": [
        "<FROM_STEP_CREATE_TARGET_CONNECTION>"
    ],
    "transformations": [],
    "scheduleParams": { // specify the scheduling info
        "interval": 3, // also supports 6, 9, 12, 24 hour increments
        "timeUnit": "hour",
        "startTime": 1675901210 // UNIX timestamp start time(in seconds)
    }
}'

Response

accordion
Create dataflow - Response
code language-json
{
    "id": "eb54b3b3-3949-4f12-89c8-64eafaba858f",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Data Landing Zone(DLZ)

Request

accordion
Create dataset dataflow to Data Landing Zone destination - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-22-25
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/flows' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Activate datasets to a Data Landing Zone cloud storage destination",
    "description": "This operation creates a dataflow to export datasets to a Data Landing Zone cloud storage destination",
    "flowSpec": {
        "id": "cd2fc47e-e838-4f38-a581-8fff2f99b63a", // Data Landing Zone flow spec ID
        "version": "1.0"
    },
    "sourceConnectionIds": [
        "<FROM_STEP_CREATE_SOURCE_CONNECTION>"
    ],
    "targetConnectionIds": [
        "<FROM_STEP_CREATE_TARGET_CONNECTION>"
    ],
    "transformations": [],
    "scheduleParams": { // specify the scheduling info
        "interval": 3, // also supports 6, 9, 12, 24 hour increments
        "timeUnit": "hour",
        "startTime": 1675901210 // UNIX timestamp start time(in seconds)
    }
}'

Response

accordion
Create dataflow - Response
code language-json
{
    "id": "eb54b3b3-3949-4f12-89c8-64eafaba858f",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
Google Cloud Storage

Request

accordion
Create dataset dataflow to Google Cloud Storage destination - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-22-25
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/flows' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Activate datasets to a Google Cloud Storage cloud storage destination",
    "description": "This operation creates a dataflow to export datasets to a Google Cloud Storage destination",
    "flowSpec": {
        "id": "585c15c4-6cbf-4126-8f87-e26bff78b657", // Google Cloud Storage flow spec ID
        "version": "1.0"
    },
    "sourceConnectionIds": [
        "<FROM_STEP_CREATE_SOURCE_CONNECTION>"
    ],
    "targetConnectionIds": [
        "<FROM_STEP_CREATE_TARGET_CONNECTION>"
    ],
    "transformations": [],
    "scheduleParams": { // specify the scheduling info
        "interval": 3, // also supports 6, 9, 12, 24 hour increments
        "timeUnit": "hour",
        "startTime": 1675901210 // UNIX timestamp start time(in seconds)
    }
}'

Response

accordion
Create dataflow - Response
code language-json
{
    "id": "eb54b3b3-3949-4f12-89c8-64eafaba858f",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}
SFTP

Request

accordion
Create dataset dataflow to SFTP destination - Request

Note the highlighted lines with inline comments in the request example, which provide additional information. Remove the inline comments in the request when copy-pasting the request into your terminal of choice.

code language-shell line-numbers data-start-1 data-line-offset-4 h-12 h-22-25
curl --location --request POST 'https://platform.adobe.io/data/foundation/flowservice/flows' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--data-raw '{
    "name": "Activate datasets to an SFTP cloud storage destination",
    "description": "This operation creates a dataflow to export datasets to an SFTP cloud storage destination",
    "flowSpec": {
        "id": "354d6aad-4754-46e4-a576-1b384561c440", // SFTP flow spec ID
        "version": "1.0"
    },
    "sourceConnectionIds": [
        "<FROM_STEP_CREATE_SOURCE_CONNECTION>"
    ],
    "targetConnectionIds": [
        "<FROM_STEP_CREATE_TARGET_CONNECTION>"
    ],
    "transformations": [],
    "scheduleParams": { // specify the scheduling info
        "interval": 3, // also supports 6, 9, 12, 24 hour increments
        "timeUnit": "hour",
        "startTime": 1675901210 // UNIX timestamp start time(in seconds)
    }
}'

Response

accordion
Create dataflow - Response
code language-json
{
    "id": "eb54b3b3-3949-4f12-89c8-64eafaba858f",
    "etag": "\"0000d781-0000-0200-0000-63e29f420000\""
}

Note the Dataflow ID from the response. This ID will be required in the next step when retrieving the dataflow runs to validate the successful dateset exports.

Get the dataflow runs get-dataflow-runs

Diagram showing step 6 in the export datasets workflow

To check the executions of a dataflow, use the Dataflow Runs API:

Request

Get dataflow runs - Request

In the request to retrieve dataflow runs, add as query parameter the dataflow ID that you obtained in the previous step, when creating the dataflow.

code language-shell
curl --location --request GET 'https://platform.adobe.io/data/foundation/flowservice/runs?property=flowId==eb54b3b3-3949-4f12-89c8-64eafaba858f' \
--header 'accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \

Response

Get dataflow runs - Response
code language-json
{
    "items": [
        {
            "id": "4b7728dd-83c9-4c38-95a4-24ddab545404",
            "createdAt": 1675807718296,
            "updatedAt": 1675807731834,
            "createdBy": "aep_activation_batch@AdobeID",
            "updatedBy": "acp_foundation_connectors@AdobeID",
            "createdClient": "aep_activation_batch",
            "updatedClient": "acp_foundation_connectors",
            "sandboxId": "7dfdcd30-0a09-11ea-8ea6-7bf93ce86c28",
            "sandboxName": "sand-1",
            "imsOrgId": "5555467B5D8013E50A494220@AdobeOrg",
            "flowId": "aae5ec63-b0ac-4808-9a44-abf2ea67bd5a",
            "flowSpec": {
                "id": "615d3489-36d2-4671-9467-4ae1129facd3",
                "version": "1.0"
            },
            "providerRefId": "ba56f98e0c49b572adb249980c39b1c7",
            "etag": "\"08005e9e-0000-0200-0000-63e2cbf30000\"",
            "metrics": {
                "durationSummary": {
                    "startedAtUTC": 1675807719411,
                    "completedAtUTC": 1675807719416
                },
                "sizeSummary": {
                    "inputBytes": 0
                },
                "recordSummary": {
                    "inputRecordCount": 0,
                    "skippedRecordCount": 0,
                    "sourceSummaries": [
                        {
                            "id": "ea2b1205-4692-49de-b448-ebf75b1d188a",
                            "inputRecordCount": 0,
                            "skippedRecordCount": 0,
                            "entitySummaries": [
                                {
//...

You can find information about the various parameters returned by the Dataflow runs API in the API reference documentation.

Verify successful dataset export verify

When exporting datasets, Experience Platform creates a .json or .parquet file in the storage location that you provided. Expect a new file to be deposited in your storage location according to the export schedule you provided when creating a dataflow.

Experience Platform creates a folder structure in the storage location you specified, where it deposits the exported dataset files. A new folder is created for each export time, following the pattern below:

folder-name-you-provided/datasetID/exportTime=YYYYMMDDHHMM

The default file name is randomly generated and ensures that exported file names are unique.

Sample dataset files sample-files

The presence of these files in your storage location is confirmation of a successful export. To understand how the exported files are structured, you can download a sample .parquet file or .json file.

Compressed dataset files compressed-dataset-files

In the step to create a target connection, you can select the exported dataset files to be compressed.

Note the difference in file format between the two file types, when compressed:

  • When exporting compressed JSON files, the exported file format is json.gz
  • When exporting compressed parquet files, the exported file format is gz.parquet

API error handling api-error-handling

The API endpoints in this tutorial follow the general Experience Platform API error message principles. Refer to API status codes and request header errors in the Platform troubleshooting guide for more information on interpreting error responses.

Next steps next-steps

By following this tutorial, you have successfully connected Platform to one of your preferred batch cloud storage destinations and set up a dataflow to the respective destination to export datasets. See the following pages for more details, such as how to edit existing dataflows using the Flow Service API:

7f4d1967-bf93-4dba-9789-bb6b505339d6
