Use the Adobe Experience Manager with the Frame.io integration
You can use the Experience Manager Assets to manage and store your digital assets that have gone through the review and approval cycle. This integration allows you to leverage the capabilities of Adobe Experience Manager, Frame.io, and Workfront to streamline your content management and collaboration processes.
Configure the Experience Manager Assets integration
You can connect your work with your content in Experience Manager Assets:
- Push assets and metadata from Adobe Workfront to Experience Manager Assets
- Facilitate versioning use cases
- Track metadata for assets
- Sync project metadata between Workfront and Experience Manager Assets
Access requirements
| table 0-row-2 1-row-2 2-row-2 3-row-2 4-row-2 html-authored no-header | |
|---|---|
| Adobe Workfront package |
Prime or Ultimate Workflow Ultimate |
| Adobe Workfront licenses |
To configure the integration: Standard Plan To send documents to Experience Manager Assets: Contributor or higher Request or higher |
| Adobe Experience Manager licenses | Standard |
| Additional products | You must have Experience Manager Assets as a Cloud Service, and you must be added to the product as a user. |
| Access level configurations | You must be a Workfront administrator. |
For more detail about the information in this table, see Access requirements in Workfront documentation.
Prerequisites
Before you begin,
- You must have Workfront and Adobe Experience Manager Assets associated with an Organization ID in the Adobe Admin Console. For more information see, Platform-based administration differences (Adobe Workfront/Adobe Business Platform).
- Your Workfront instance must be using Adobe Enterprise Storage.
Set up the integration information
-
Click the Main Menu icon
-
Select Documents in the left panel, then select Experience Manager Integration.
-
Select Add Experience Manager Integration.
-

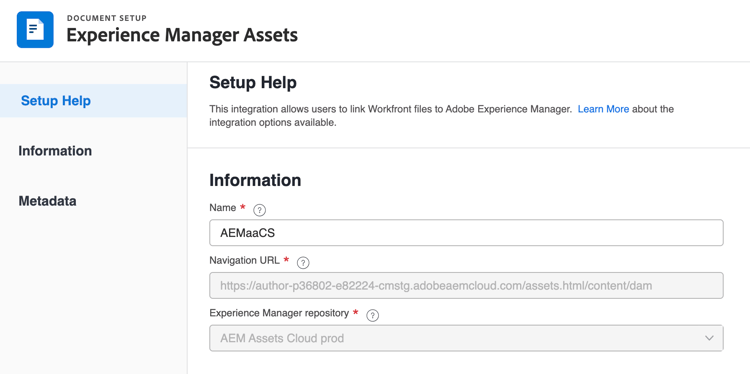

In the Name field, enter the name you want users to see when interacting with this integration in Workfront and Experience Manager Assets.
-
In the Navigation URL field, the system automatically populates the Navigation URL. This read-only URL is used to link to your organization’s Experience Manager instance from the Main Menu for quick access.
-
Choose a repository from the Experience Manager Assets repository drop-down menu. The system automatically populates any Experience Manager repositories associated with the Organization ID that your user profile is assigned to.
-
Click Save or move on to the Set up metadata (Optional) section in this article.
note important IMPORTANT Due to the complexity of the integration, you can’t change the repository after you save the initial configuration.
Set up metadata (Optional)
You can map Workfront object data to asset media fields in Experience Manager Assets.
Configure metadata fields
Before you begin mapping metadata fields, you must configure metadata fields in both Workfront and Experience Manager Assets.
To configure metadata fields:
-
Configure a metadata schema in Experience Manager Assets as explained in Configure asset metadata mapping between Adobe Workfront and Experience Manager Assets.
-
Configure custom form fields in Workfront. Workfront has many built-in custom fields you can use. However, you can also create your own custom fields as explained in Create a custom form.
Experience Manager Assets Tags
You can map any Workfront supported field to a tag in Experience Manager Assets. To do this, you must ensure that tag values in Experience Manager Assets match Workfront.
- Tags and Workfront field values must be an exact match in spelling, and format.
- Workfront field values that are mapped to experience Manager assets tags must be all lowercase, even if the tag in Experience Manager Assets appears to have uppercase letters.
- Workfront field values must not include spaces.
- The field value in Workfront must also include the folder structure of the Experience Manager Assets tag.
- To map multiple single-line text fields to tags, enter a comma-separated list of the tag values into the Workfront side of the metadata mapping, and
xcm:keywordson the Experience Manager Assets side. Each field value maps to a separate tag. You can use a calculated field to combine multiple Workfront fields into a single comma-separated text field. - You can map values from drop-down, radio button, or checkbox fields by entering a comma-separated list of the available values in that field.
| note info |
|---|
| INFO |

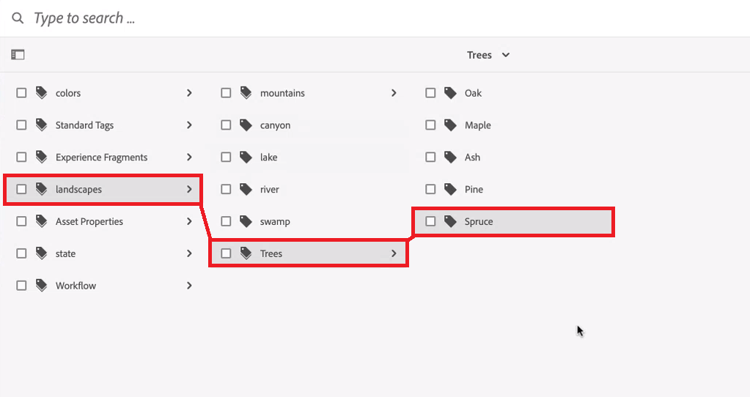

Example: To match the tag shown in the folder structure here, the field value in Workfront would be landscapes:trees/spruce. Note the lowercase letters in the Workfront field value. |
If you want the tag to be leftmost item in the tag tree, it must be followed by a colon. In this example, to map to the landscapes tag, the field value in Workfront would be landscapes:. |
|
After you have created the tags in Experience Manager Assets, they will appear under the Tags drop-down in the Metadata section. To link a field to a tag, select xcm:keywords in the Experience Manager Assets field dropdown in the metadata mapping area.
For more information on tags in Experience Manager Assets, including how to create and manage tags, see Administering Tags.
Experience Manager Assets custom metadata schema fields
You can map both built-in and custom Workfront fields to custom metadata schema fields in Experience Manager Assets.

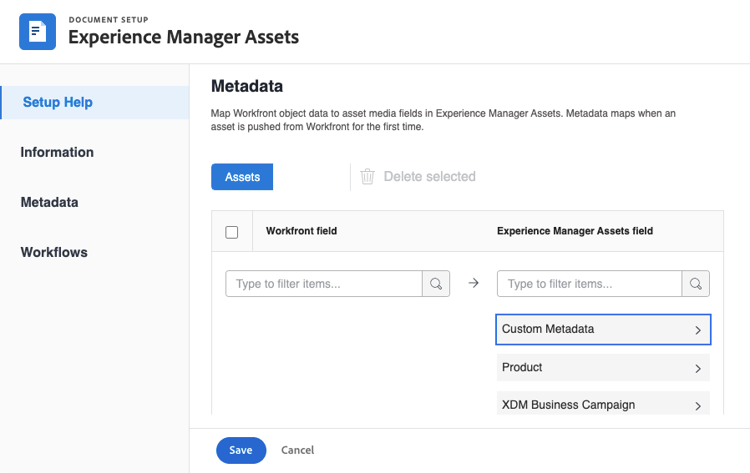

Custom metadata fields created in Experience Manager Assets are organized in their own section in the Metadata setup area.
Workfront fields
You can map both built-in and custom Workfront fields to Experience Manager Assets. The following field values must match in both case and spelling between Workfront and Experience Manager Assets:
- Drop-down fields
- Multi-select fields
| note tip |
|---|
| TIP |
| To check if the field values match exactly, go to |
|
Map metadata for assets
Metadata maps when an asset is pushed from Workfront for the first time. Documents with the built-in or custom fields automatically map to the specified fields the first time an asset is sent to Experience Manager Assets.
To map metadata for assets:
-
In the Workfront field column, choose a built-in or custom Workfront field.
note note NOTE You can map a single Workfront field to multiple Experience Manager Assets fields. You can’t map multiple Workfront fields to a single Experience Manager Assets field. -
In the Experience Manager Assets field, search through the pre-populated categories or enter at least two letters in the search field to access additional categories.
-
Repeat steps 2 and 3 as needed.
-
Click Save or move to the Object metadata sync section in this article.
Object metadata sync
An Experience Manager fields that is mapped to Workfront portfolio, program, project, task, issue, and document fields update automatically when the field is changed in Workfront.
When this option is enabled, any asset that has been pushed to Adobe Experience manager displays a real-time view of the document’s Adobe Experience Manager metadata on the Document Details page in Workfront.

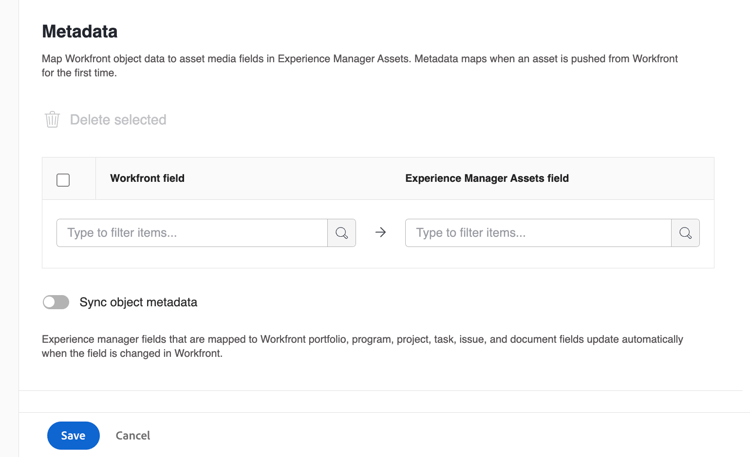

- Enable the Sync object metadata field, then click Save.
Send a Document to Experience Manager Assets or Assets Essentials
You can send documents from Workfront to Experience Manager Assets or Assets Essentials. Documents uploaded and sent from Workfront to Assets Essentials still count against your overall document storage.
Assets sent to Experience Manager through this integration have a size limit of 5 GB.
Metadata fields are first mapped when you send an asset from Workfront to Experience Manager Assets or Assets Essentials. Any metadata configured to map for parent objects is sent as well. For more information on configuring metadata mapping, see Configure the Experience Manager Assets as a Cloud Service integration or Configure the Experience Manager Assets Essentials integration.
Send a Document from Workfront
When a user sends a document from Workfront to Experience Manager Assets or Assets Essentials, mapped metadata transfers along the document. After the document is sent, changes made to the document’s metadata in Workfront are not reflected in Assets or Assets Essentials. If a mapped field in Workfront is changed, you must send a new version of the document with the updated metadata to Assets or Assets Essentials.
To send a document:
-
Go to the Documents area in Workfront, and select the document you want to send.
-

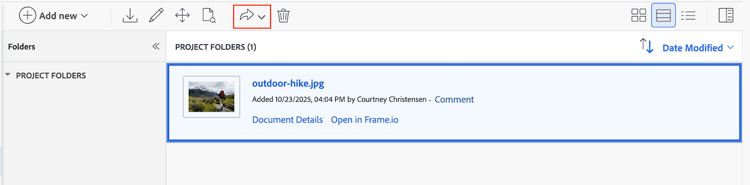

Click Send to, then choose the Experience Manager integration your administrator set up.
note note NOTE The Workfront administrator can choose any name for this integration, so it may not specifically mention Assets or Assets Essentials.
-
Choose where you want the asset to go, then click Select Folder.
-
When you find your desired destination, click Save.
Send a new version
You can add a new version to a document you have previously uploaded to Workfront. For more information, see Upload a new version of a document. After the latest version is uploaded, you can send it to Assets Essentials. If a mapped field in Workfront has changed, the new version updates the metadata in Assets Essentials when it sends.
To send the most recent version:
-
Go to the Documents area in Workfront, and locate the document.
-
Select Send to, then choose the Experience Manager integration your administrator set up.
note note NOTE The Workfront administrator can choose any name for this integration, so it might not specifically mention Assets or Assets Essentials.
-
Click Save. The new version saves in the same location as the previous version.
