3.6.1 Content Cards

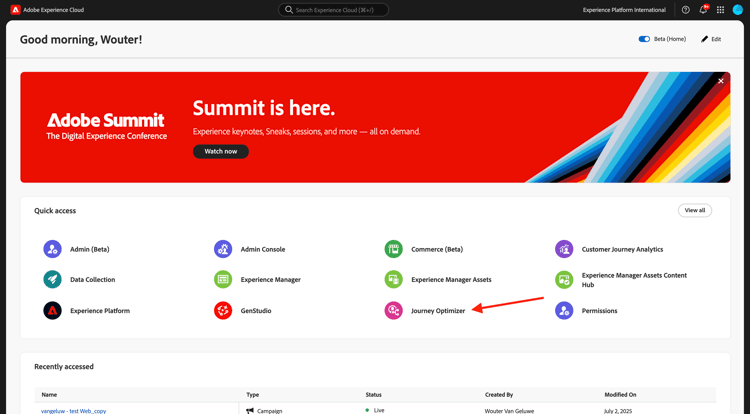

Login to Adobe Journey Optimizer by going to Adobe Experience Cloud. Click Journey Optimizer.

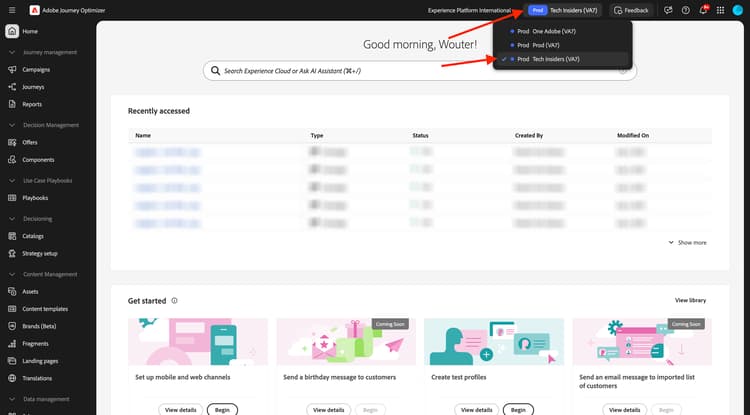

You’ll be redirected to the Home view in Journey Optimizer. First, make sure you’re using the correct sandbox. The sandbox to use is called --aepSandboxName--. You’ll then be in the Home view of your sandbox --aepSandboxName--.

3.6.1.1 Content Cards Channel configuration

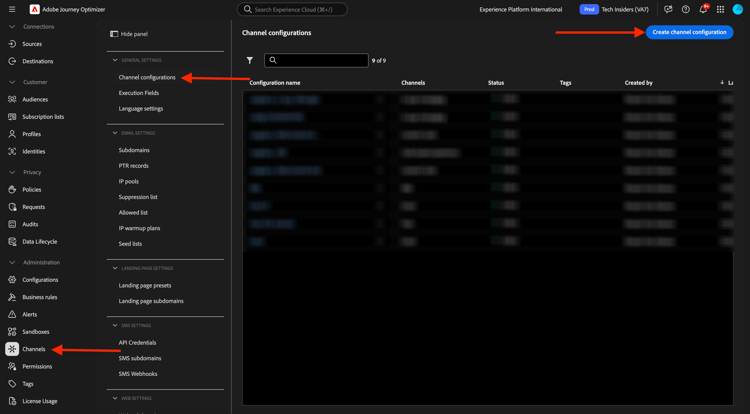

In the left menu, go to Channels and then select Channel configurations. Click Create channel configuration.

Enter the name: --aepUserLdap--_Content_Cards_Web, select the channel Content Cards and then enable the platform Web.

Scroll down, and make sure that the option Single page is enabled.

Enter the URL of the website that was created earlier as part of the Getting Started module, which looks like this: https://dsn.adobe.com/web/--aepUserLdap---XXXX. Don’t forget to change the XXXX to the unique code of your website.

Set the field Location on page to CitiSignalContentCardContainer.

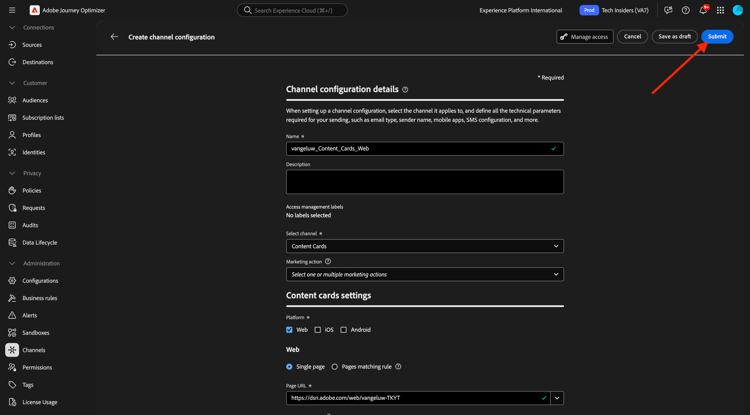

Scroll up and click Submit.

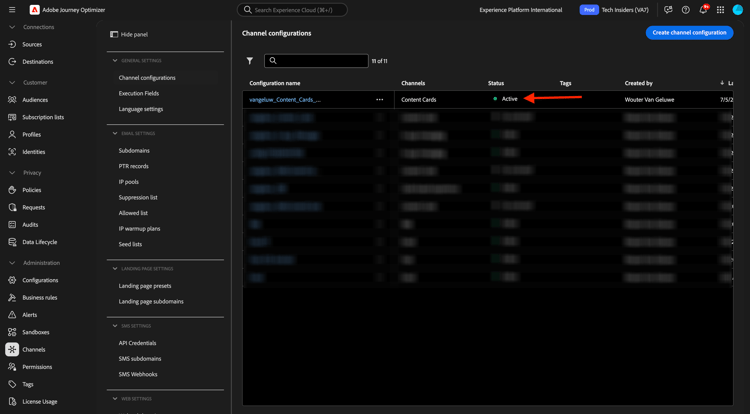

Your channel configuration is now ready to be used.

3.6.1.2 Configure a scheduled campaign for Content Cards

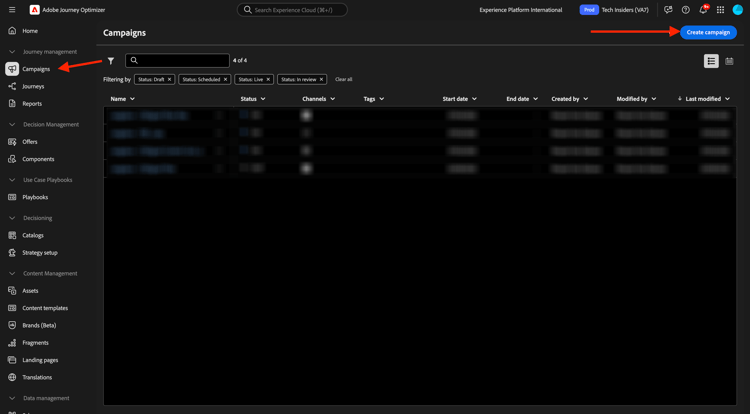

In the left menu, go to Campaigns and then click Create campaign.

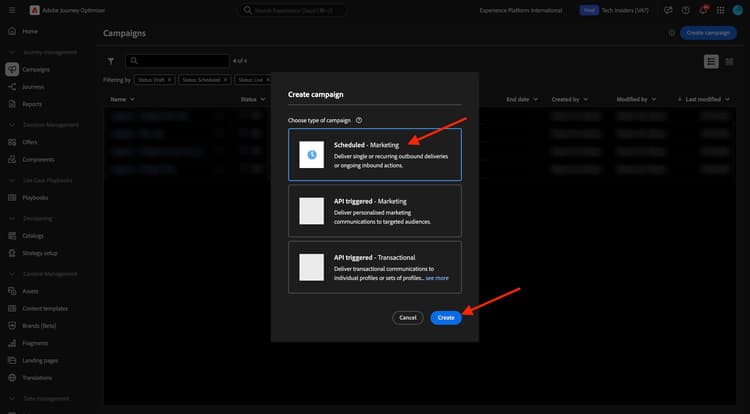

Select Scheduled - Marketing and then click Create.

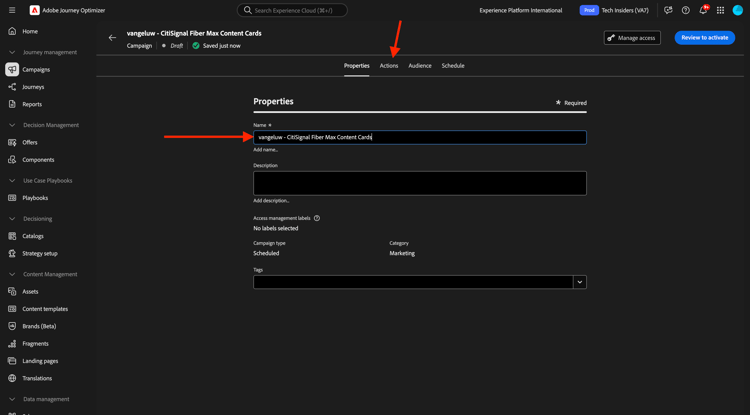

Enter the name --aepUserLdap-- - CitiSignal Fiber Max Content Cards and then click Actions.

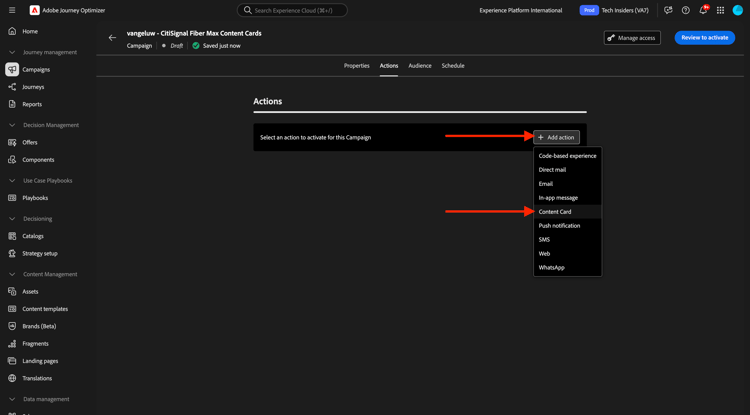

Click + Add action and then select Content Card.

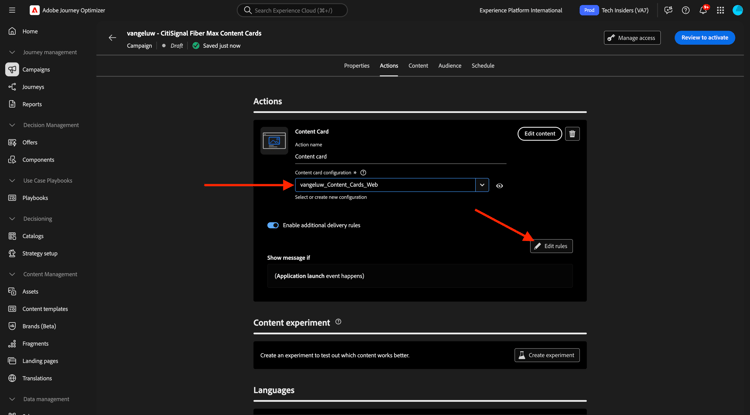

Select the content cards channel configuration that you created in the previous step, which is named: --aepUserLdap--_Content_Cards_Web.

Next, click Edit Rules.

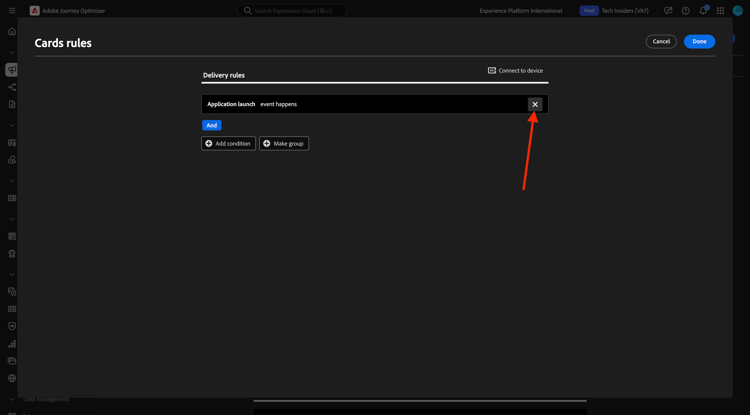

Click the X to remove the current rule.

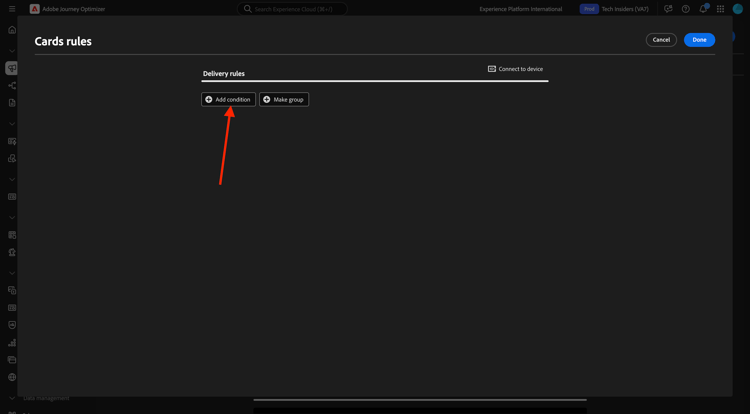

Click + Add Condition.

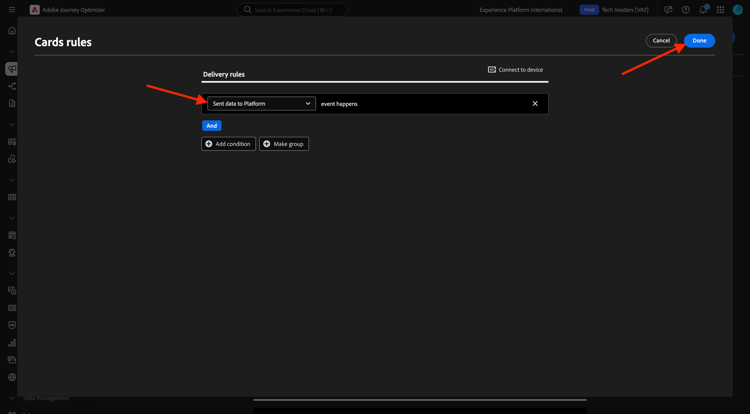

Select the condition Sent data to Platform. Click Done

You should then see this. Click Edit content.

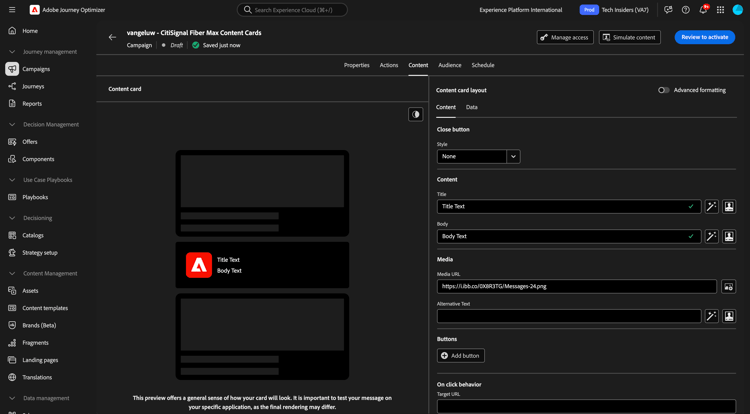

You should then see this.

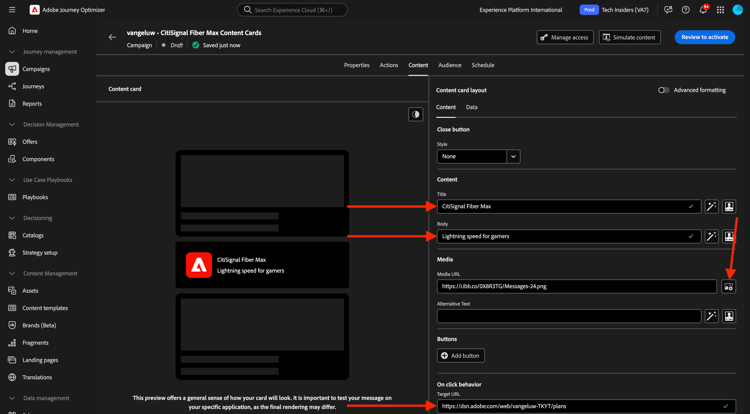

Configure the following settings:

Click the icon to change the URL, by selecting an asset from AEM Assets.

Go to the folder citisignal-imaes and select the file neon_rabbit_banner.jpg. Click Select.

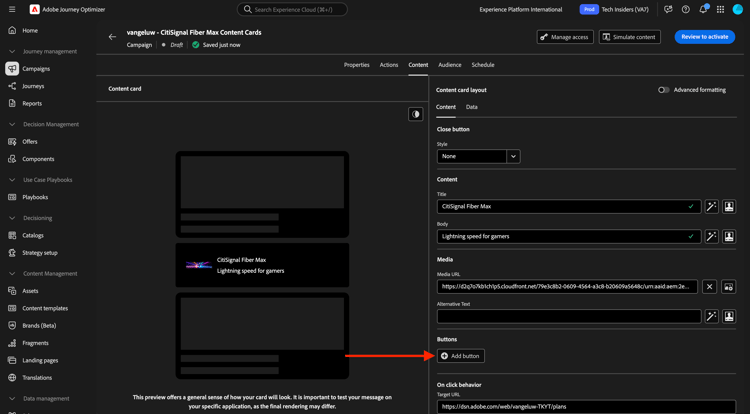

You should then have this. Click + Add button.

Configure the following settings for the button:

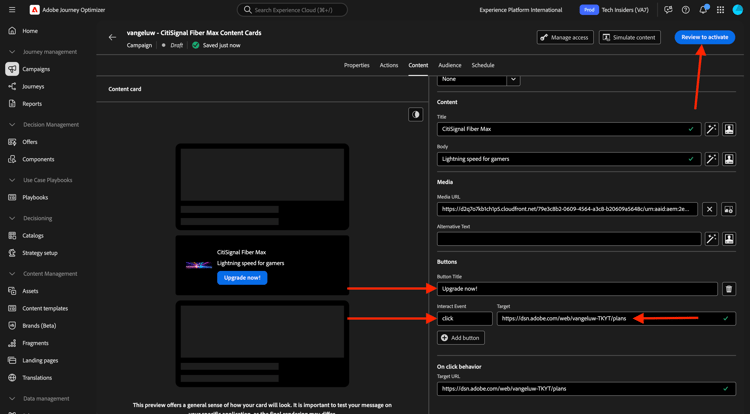

Click Review to activate.

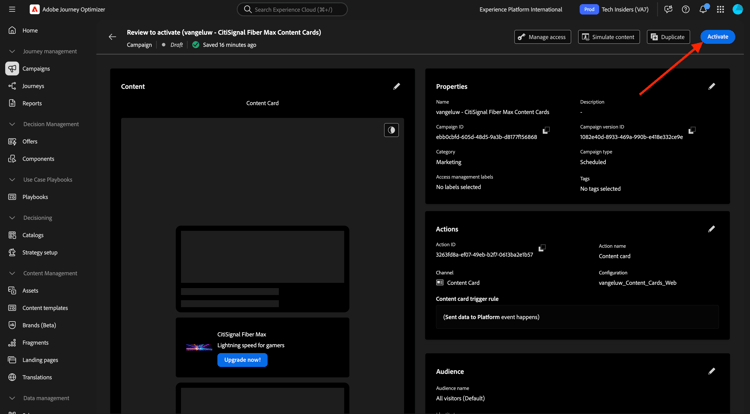

Click Activate.

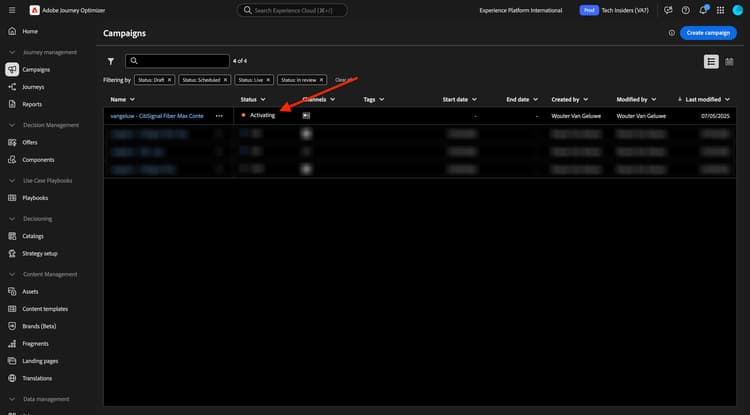

Your campaign will then be activated, which may take a couple of minutes.

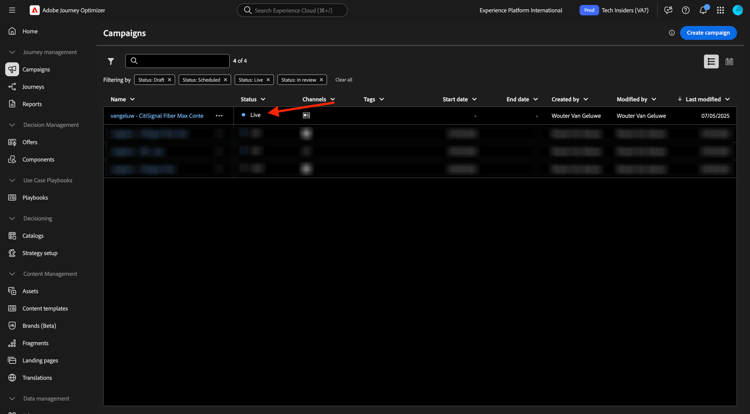

After a couple of minutes, your campaign will be live.

3.6.1.3 Update your DSN website

In order to show the content card on the website, you need to make a change to the design of the homepage of your CitiSignal demo website.

Go to https://dsn.adobe.com/. Click the 3 dots on your website and click Edit.

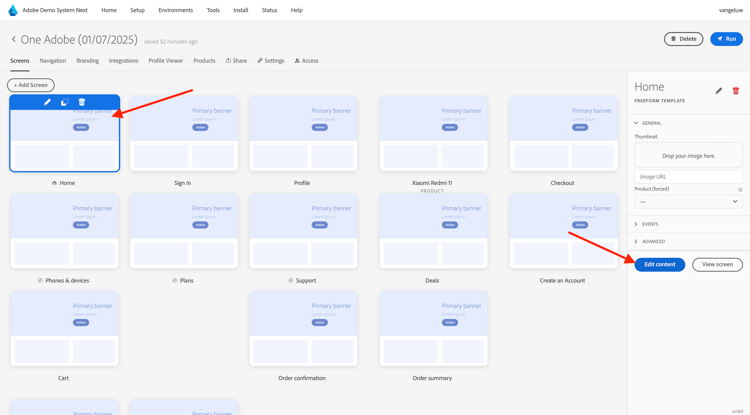

Click to select the page Home. Click Edit content.

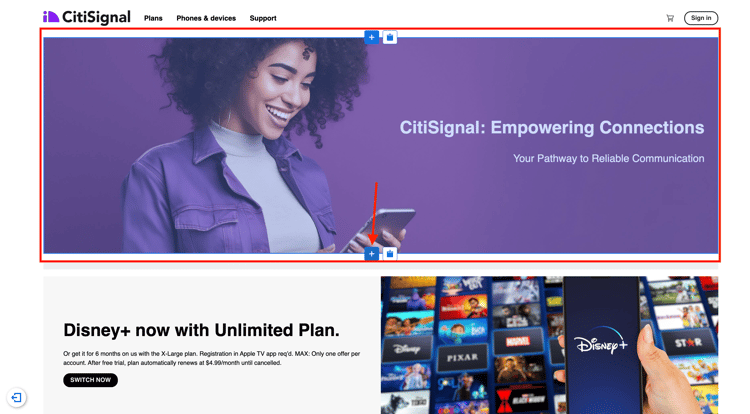

Hover over the hero image and click the + button.

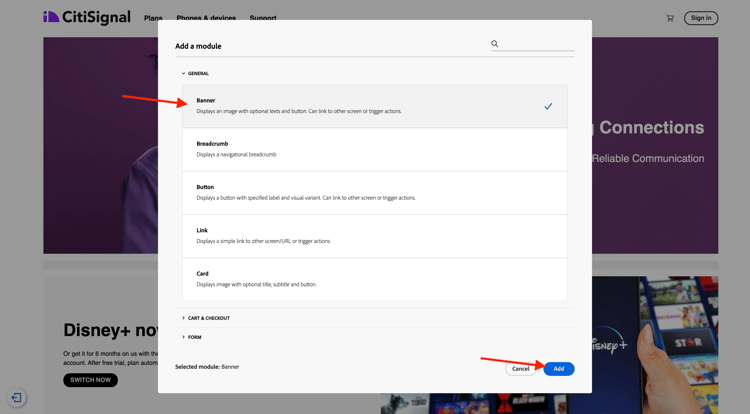

Go to General, select Banner and then click Add.

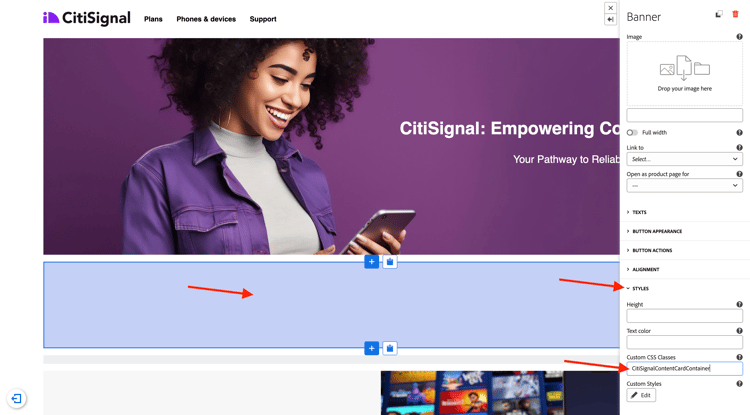

Click to select the newly created banner. Go to Style and enter CitiSignalContentCardContainer in the field Custom CSS Classes.

Go to Alignment. Set the field Alignment to left and set the field Vertical Alignment to middle.

Click the X icon to close the dialog window.

The changes to your website design have now been made.

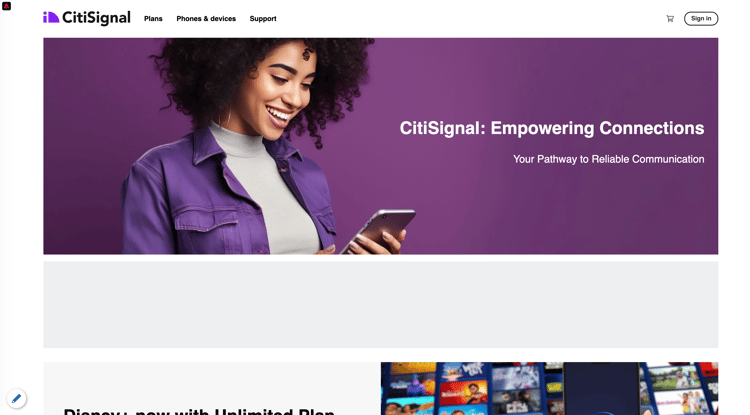

If you open your site in a new browser window now, it should look like this. the gray area is the newly created banner, but it doesn’t have any content yet.

To ensure the content is loaded dynamically in the newly created banner, a change is needed in your Data Collection Tags property.

3.6.1.4 Update your Data Collection Tags property

Go to https://experience.adobe.com/#/data-collection/, to Tags. As part of the Getting Started module, Data Collection Tags properties were created.

You’ve been using these Data Collection Tags properties already as part of previous modules.

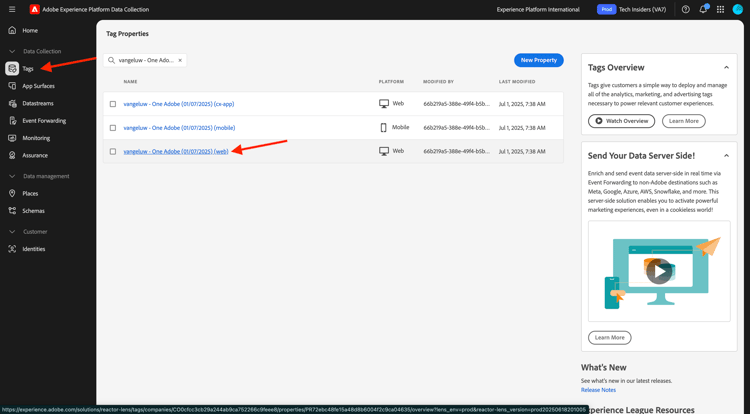

Click to open the Data Collection property for web.

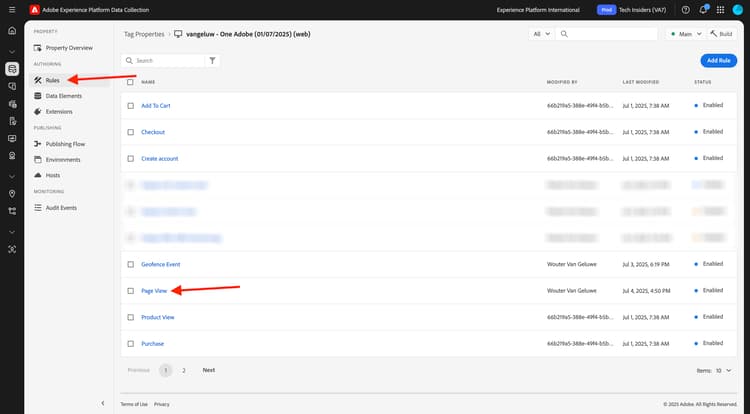

In the left menu, go to Rules and click to open the rule Page View.

Click the action Send “Page View” Experience Event.

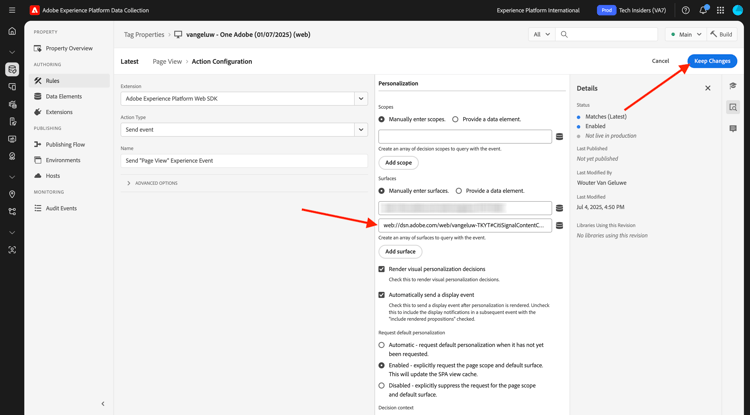

As part of the Page View rule, it is required to request the personalisation instructions from the Edge for a specific surface. The surface is the banner that you configured in the previous step. To do that, scroll down to Personalization and enter web://dsn.adobe.com/web/--aepUserLdap---XXXX#CitiSignalContentCardContainer under Surfaces.

Click Keep Changes.

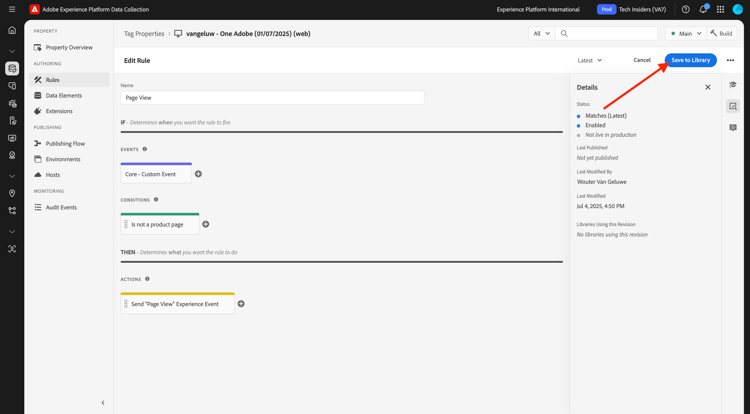

Click Save or Save to Library.

In the left menu, go to Rules and click Add rule.

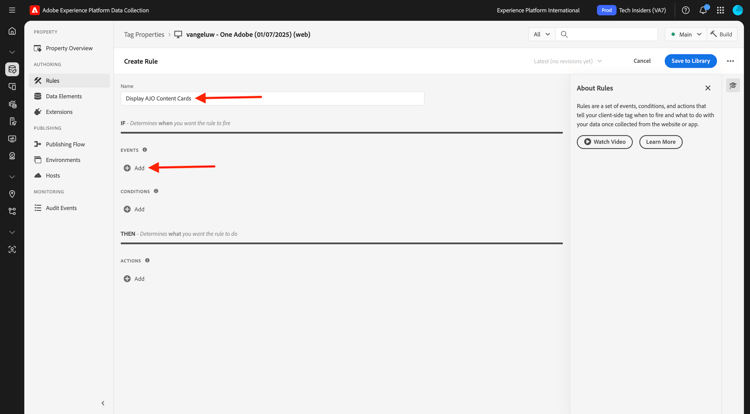

Enter the name: Display AJO Content Cards. Click + Add to add a new event.

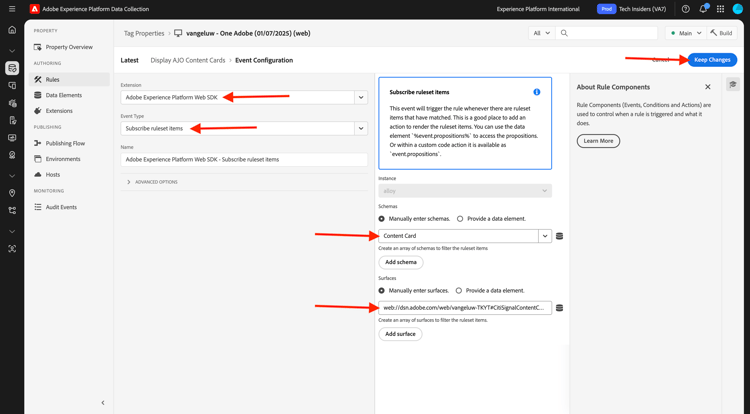

Select the extension: Adobe Experience Platform Web SDK, and the select the Event Type: Subscribe ruleset items.

Under Schemas, select Content Card.

Under Surfaces, enter web://dsn.adobe.com/web/--aepUserLdap---XXXX#CitiSignalContentCardContainer

Click Keep Changes.

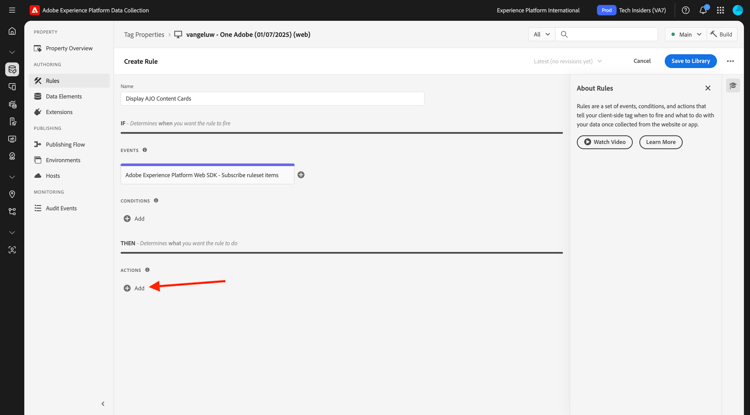

You should then see this. Click + Add to add a new action.

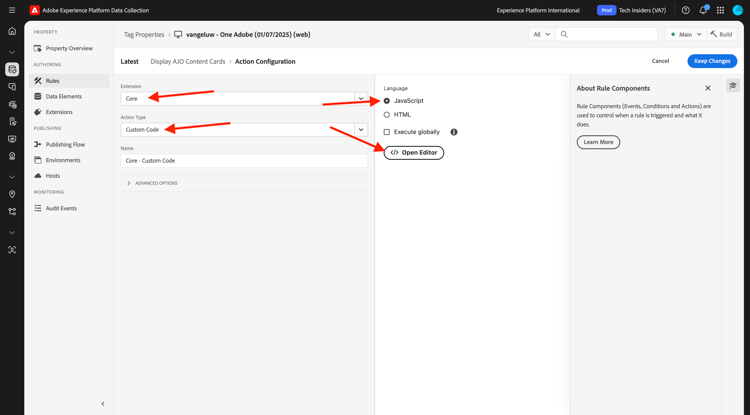

Select the Extension: Core, and select the Action Type: Custom Code.

Enable the checkbox for the Language: JavaScript and then click Open Editor.

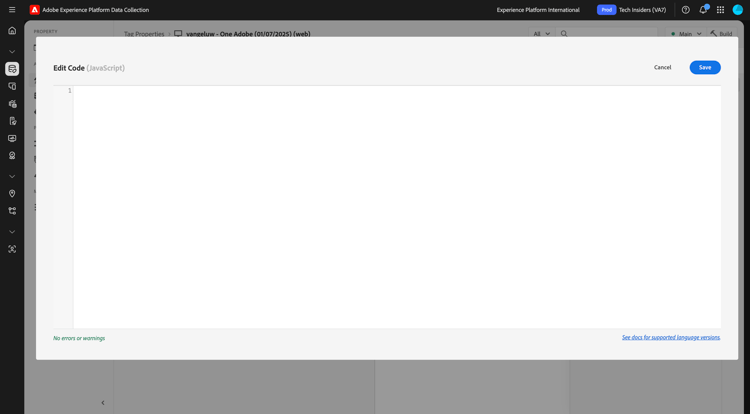

You should then see an empty editor window.

Paste the below code into the editor, and click Save.

if (!Array.isArray(event.propositions)) {
  console.log("No personalization content");
  return;
}

console.log(">>> Content Card response from Edge: ", event.propositions);

event.propositions.forEach(function (payload) {
  payload.items.forEach(function (item) {
    if (!item.data || !item.data.content || item.data.content === "undefined") {
      return;
    }
    console.log(">>> Content Card response from Edge: ", item);
    const { content } = item.data;
    const { title, body, image, buttons } = content;
    const titleValue = title.content;
    const description = body.content;
    const imageUrl = image.url;
    const buttonLabel = buttons[0]?.text.content;
    const buttonLink = buttons[0]?.actionUrl;
    const html = `<div  class="Banner Banner--alignment-left Banner--verticalAlignment-left hero-banner ContentCardContainer"  oxygen-component-id="cmp-0"  oxygen-component="Banner"  role="presentation"  style="color: rgb(255, 255, 255); height: 60%;">  <div class="Image" role="presentation">    <img src="${imageUrl}" style="object-fit: cover; height: 100%"    />  </div>  <div class="Banner__content">    <div class="Title Title--alignment-left Title--textAlignment-left">      <div class="Title__content" role="presentation">        <strong class="Title__pretitle">${titleValue}</strong>        <h2>${description}</h2>      </div>    </div>    <div class="Button Button--alignment-left Button--variant-cta">              <button          class="Dniwja_spectrum-Button Dniwja_spectrum-BaseButton Dniwja_i18nFontFamily Dniwja_spectrum-FocusRing Dniwja_spectrum-FocusRing-ring"          type="button"          data-variant="accent"          data-style="fill"          onclick="window.open('${buttonLink}')"       style="color:#FFFFFF;padding: 12px 28px;font-size: 24px;font-family: adobe-clean;font-weight: bolder;" >          <span            id="react-aria5848951631-49"            class="Dniwja_spectrum-Button-label"            >${buttonLabel}</span          >        </button>            </div>  </div></div>`;
    if (document.querySelector(".CitiSignalContentCardContainer")) {
      const contentCardContainer = document.querySelector(
        ".CitiSignalContentCardContainer"
      );
      contentCardContainer.innerHTML = html;
      contentCardContainer.style.height = "60%";
    }
  });
});

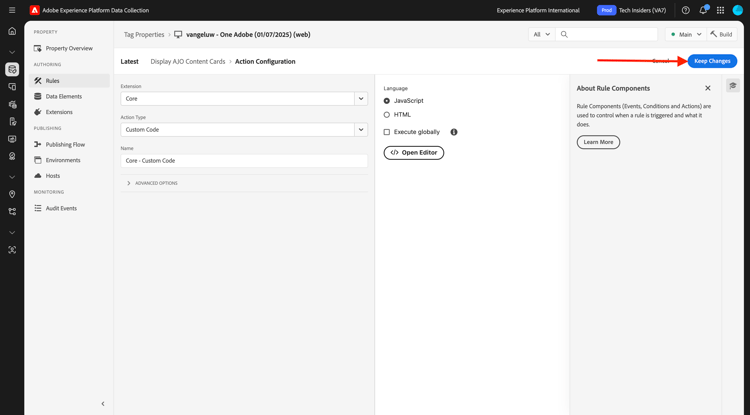

Click Keep Changes.

Click Save or Save to Library.

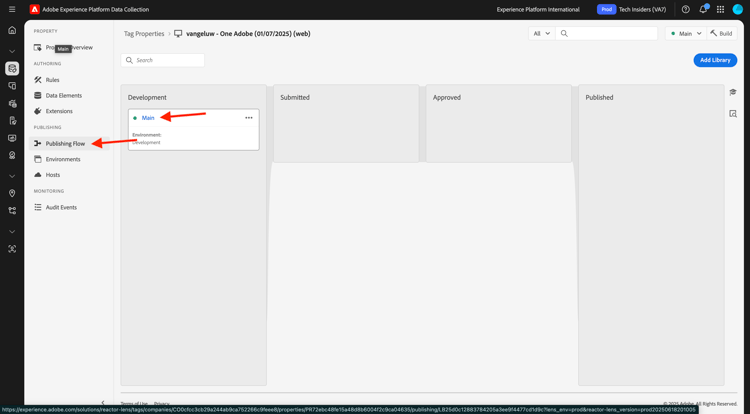

In the left menu, go to Publishing Flow and click to open the Main library.

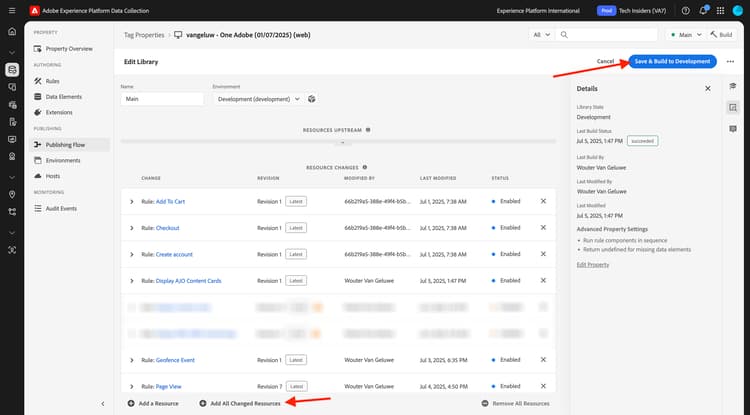

Click Add All Changed Resources and then click Save & Build to Development.

3.6.1.5 Test your content card on your website

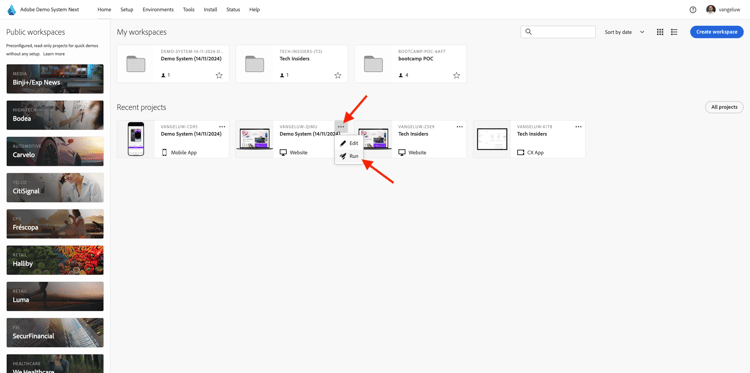

Go to https://dsn.adobe.com. After logging in with your Adobe ID, you’ll see this. Click the 3 dots … on your website project and then click Run to open it.

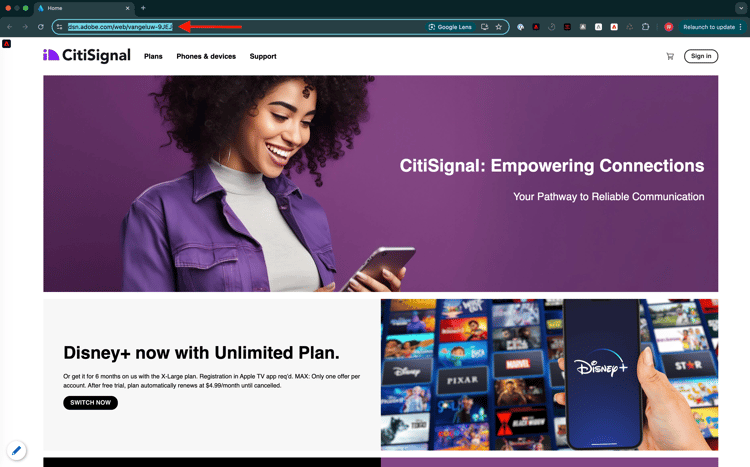

You’ll then see your demo website open up. Select the URL and copy it to your clipboard.

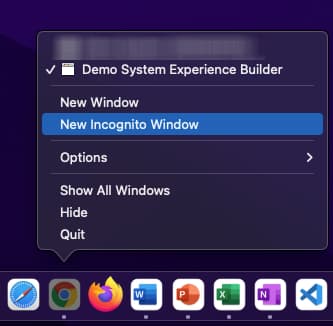

Open a new incognito browser window.

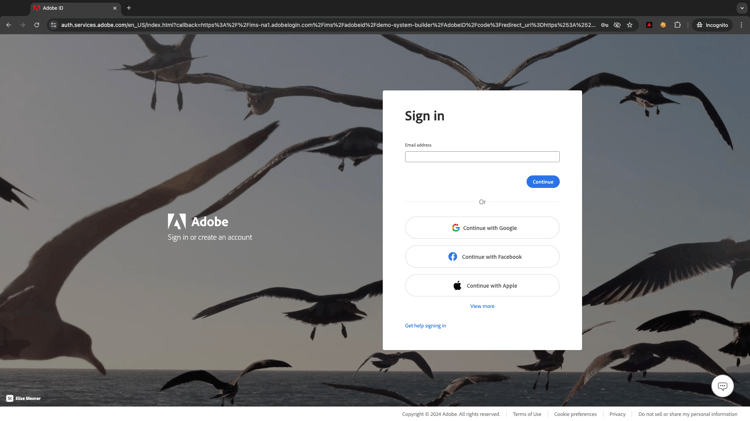

Paste the URL of your demo website, which you copied in the previous step. You’ll then be asked to login using your Adobe ID.

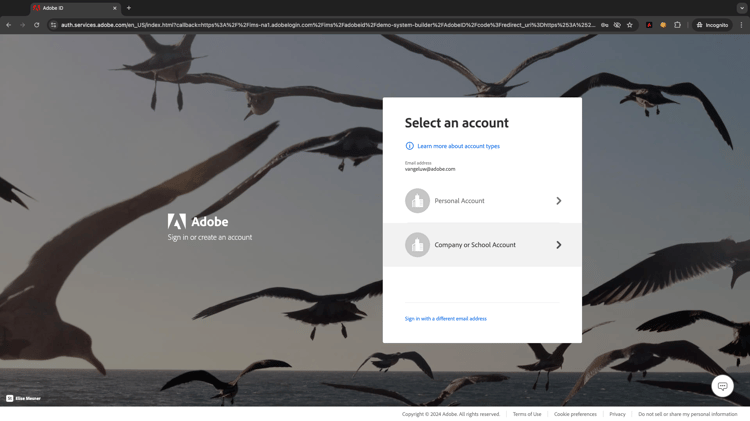

Select your account type and complete the login process.

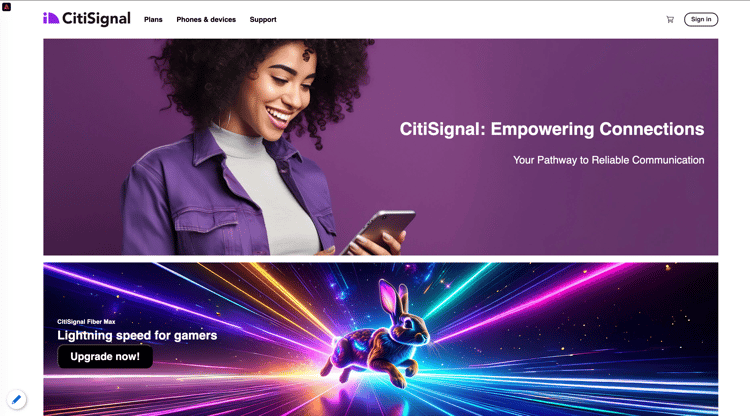

You should now the CitiSignal website being loaded, and the content card that you configured should now be shown instead of the empty gray area that you had there before.
