Create feedback webhooks for API triggered campaigns webhooks

Feedback webhooks allow you to receive real-time status updates for messages sent through transactional API triggered campaigns. By configuring a webhook, you can automatically receive delivery outcomes directly to your systems, enabling monitoring, logging, and automated processing.

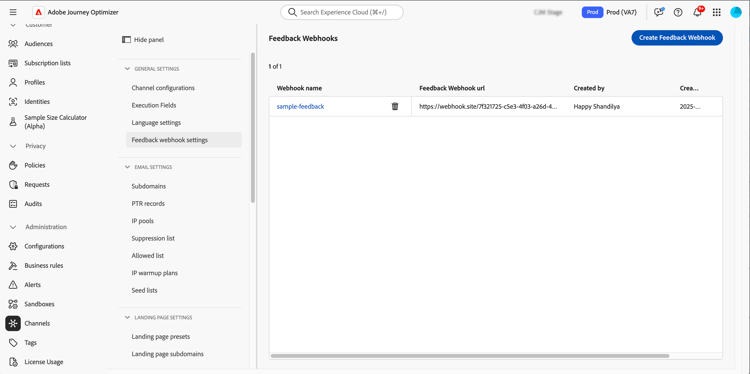

You can manage webhook configurations from the Administration / Channels / Feedback webhook settings menu.

NOTE
Only one webhook configuration per Organization + sandbox combination is allowed.

Create a feedback webhook

To create a webhook, follow these steps:

  1. Navigate to Administration / Channels / Feedback webhook settings.

  2. Click Create Feedback Webhook.

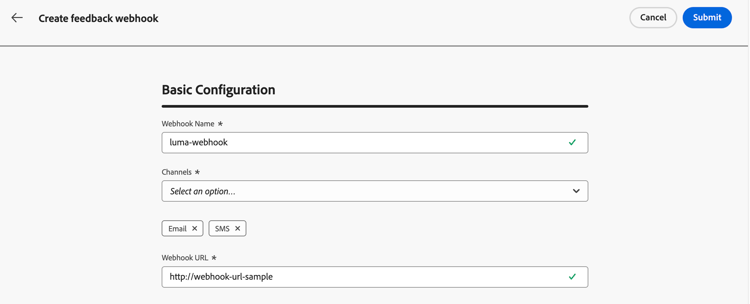

  3. In the Basic Configuration section, provide the following details:

    • Webhook Name - Enter a descriptive name to identify the webhook.
    • Channels - Select the channel(s) for which this webhook should receive feedback (Email and/or SMS).
    • Webhook URL - Provide the HTTPS endpoint where feedback events must be delivered.

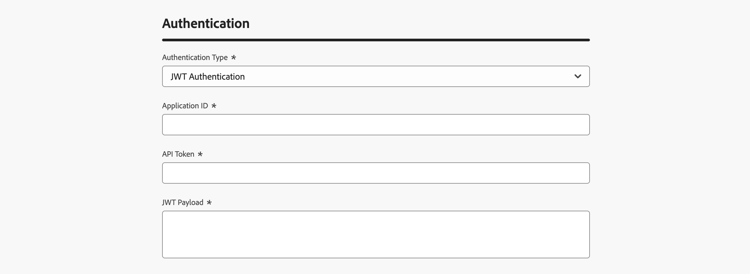

  4. In the Authentication section, select the authentication method:

    • No Authentication – No authentication headers are added.
    • JWT Authentication – Provide the required details if your endpoint requires JWT authentication.

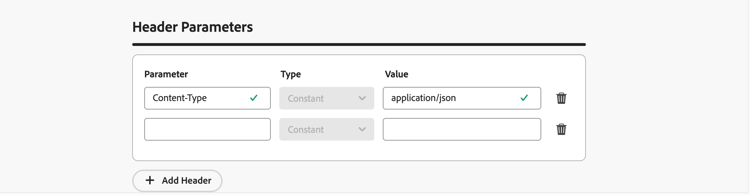

  5. In the Header Parameters section, configure additional custom headers to be sent with each webhook request.

  6. Click Submit to save the configuration.

NOTE
ou can edit a webhook at any time. To do so, open it from the inventory then click the Edit button.

Webhook payload structure

After a message execution, Journey Optimizer sends the following payload to the configured endpoint.

{
  "requestId": "8NoByJneShCdCGRnrGS1t1m3CdA73dhR",
  "imsOrg": "myImsOrg",
  "sandbox": {
    "id": "068abf40-575e-11ea-8512-9b1bfdb82603",
    "name": "prod"
  },
  "channel": "email",
  "eventType": "message.feedback",
  "messageExecution": {
    "messageExecutionID": "HUMA-26362805",
    "messageType": "transactional",
    "campaignID": "16f24a15-7e21-477c-848a-d5695ca7f137",
    "campaignVersionID": "2ca10c10-56dd-4505-87cd-fa5da84e7a5d"
  },
  "messageDeliveryFeedback": {
    "feedbackStatus": {
      "value": "bounce"
    },
    "offers": null,
    "messageExclusion": null,
    "messageFailure": {
      "category": "sync",
      "type": "Ignored",
      "code": "25",
      "reason": "Admin Failure"
    },
    "retryCount": 0
  },
  "identityMap": {
    "email": [
      {
        "id": "john.doe@luma.com",
        "primary": true
      }
    ]
  }
}

The webhook can capture the following events:

  • Sent
  • Delivered
  • Bounce (see example above)
  • Errors

Every incoming request also includes a unique requestId that is sent back to the webhook.

Next steps next

Once a feedback webhook has been created, you can enable it when configuring a transactional API triggered campaign audience. Learn more in this section: Enable webhooks
