Authoring Content with the Universal Editor authoring

Learn how easy and intuitive it is for content authors to create content using the Universal Editor.

Introduction introduction

The Universal Editor enables editing any aspect of any content in any implementation so you can deliver exceptional experiences, increase content velocity, and provide a state-of-the-art developer experience.

To do this, the Universal Editor provides content authors with an intuitive UI that requires minimal training to simply be able to jump in and begin editing content. This document describes the authoring experience of the Universal Editor.

TIP
For a more detailed introduction to the Universal Editor, see the document Universal Editor Introduction.

Prepare the App prepare-app

To author content for an app using the Universal Editor, the app must be instrumented by a developer to support the editor.

TIP
See Getting Started with the Universal Editor in AEM for an example of how to configure an AEM app to work with the Universal Editor.

Accessing the Universal Editor accessing

Once the app is instrumented to work with the Universal Editor, the Universal Editor can be access both inside of AEM as a Cloud Service and directly without accessing AEM.

Accessing within AEM as a Cloud Service accessing-aem

  1. Sign into your AEM as a Cloud Service authoring instance.
  2. Use the Sites console to navigate to the page created for use with the Universal Editor that you wish to edit.
  3. Edit the page.
  4. The Universal Editor opens to edit the selected page.
NOTE
When editing a page in the Sites console, the console will open the editor appropriate to the page’s template: either the Universal Editor described in this document, or the page editor.

Accessing Directly accessing-directly

  1. Sign into the Universal Editor. You need an Adobe ID to sign in and have access to the Universal Editor.

  2. After you are signed in, enter the URL of the page you want to edit in the location bar. so you can start editing content such as text content or media content.

Understand The UI ui

The UI is divided into these main areas.

The Universal Editor UI

The Experience Cloud Header experience-cloud-header

The Experience Cloud header is always present at the top of the screen. It is an anchor that tells you where you are within Experience Cloud and helps you navigate to other Experience Cloud apps.

The Experience Cloud header

Experience Manager experience-manager

Select the Adobe Experience Cloud link at the left of the header to navigate to the root of your Experience Manager solution to access tools such as Cloud Manager, Cloud Acceleration Manager, and Software Distribution.

Global Navigation button

Organization organization

This displays the organization you are currently signed into. Select to switch to another organization if your Adobe ID is associated with multiple.

Organization indicator

Solutions solutions

Tapping or clicking the solutions switcher lets you quickly jump to other Experience Cloud solutions.

Solutions switcher

Help help

The help icon provides quick access to learning and support resources.

Help

Notifications notifications

This icon is badged with the number of currently assigned incomplete notifications.

Notifications

User Properties user-properties

Select the icon representing your user to access your user settings. If you do not have a user picture configured, an icon is randomly assigned.

User properties

The Universal Editor Toolbar universal-editor-toolbar

The Universal Editor toolbar is always present at the top of the screen just below the Experience Cloud header. It gives you quick access to navigate to another page to edit and to publish the current page.

The Universal Editor toolbar

The Home Button home-button

The home button returns you to the start page of the Universal Editor

Hamburger menu

On the start page you can enter the URL of the site you want to edit with the Universal Editor.

Start page

NOTE
Any page that you want to edit with the Universal Editor must be instrumented to support he Universal Editor.

Location Bar location-bar

The location bar shows you the address of the page you are editing. Select to enter the address of another page to edit.

Location bar

TIP
Use the hot key L to open the address bar.
NOTE
Any page that you want to edit with the Universal Editor must be instrumented to support he Universal Editor.

Authentication Header Settings authentication-settings

Select the authentication header settings icon if you need to set a custom authentication header for local development purposes.

Authentication heder settings button

Emulator Settings emulator

Select the emulation icon to define how the Universal Editor renders the page.

Emulator icon

Tapping or clicking the emulation icon reveals the options.

Emulation options

By default the editor opens in desktop layout where the height and width are automatically defined by the browser.

You can also chose to emulate a mobile device and within the Universal Editor:

  • Define its orientation
  • Define the width and height
  • Change the orientation

Preview Mode preview-mode

In preview mode, the page rendered in the editor as it would be seen on your published service. This allows the content author to navigate the content by clicking links, and so on.

Preview mode

TIP
Use the hot key P to toggle to and from preview mode.

Open App Preview open-app-preview

Select the open app preview icon to open the page you are currently editing in its own browser tab, free of the editor to preview your content.

Open app preview

TIP
Use the hot key O (the letter O) to open the app preview.

Publish publish

Select the publish button so you can publish the changes to the content live for consumption by your readers.

Publish button

TIP
See the document Publishing Content with the Universal Editor for more information on publishing with the Universal Editor.

The Editor editor

The editor occupies most of the window and is where the page specified in the location bar is rendered.

Editor

If the editor is in preview mode, the content will be navigable and you can follow links, but you cannot edit the content.

Properties Rail properties-rail

The properties rail is always present along the right side of the editor. Depending on its mode, it can show details for a component selected in the content or the hierarchy of the page contents.

The properties rail

Properties Mode properties-mode

In properties mode, the rail shows the properties of the component currently selected in the editor. This is the default mode of the properties rail when a page is loaded.

Properties mode

Depending on the type of component you select, details can be displayed and modified in the properties rail.

Component details

Not all components have details that can be shown and/or edited.

TIP
Use the hot key D to switch to properties mode.

Content Tree Mode content-tree-mode

In content tree mode, the rail shows the hierarchy of the page content.

Content tree mode

When selecting an item in the content tree, the editor scrolls to that content and selects it.

Content tree

TIP
Use the hot key F to switch to content tree mode.
Edit edit

When editing, the options for the selected component appear in the properties rail, where you can edit the selected component. If the selected component is a Content Fragment, you can also select the edit button.

Edit icon

Tapping or clicking the edit button opens the Content Fragment editor in a new tab. This allows you access to the full power of the Content Fragment Editor to edit the associated Content Fragment.

Depending on the needs of your workflow, you may want to edit the Content Fragment in the Universal Editor or directly in the Content Fragment editor.

TIP
Use the hot key E to edit a selected component.
Add add

If you select a container component either in the content tree or in the editor, the add option appears on the properties rail.

Add icon

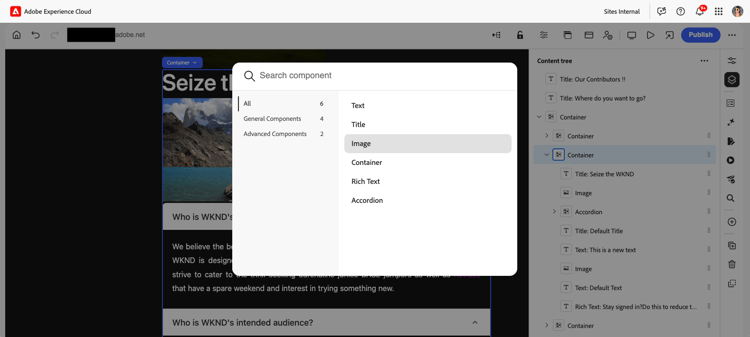

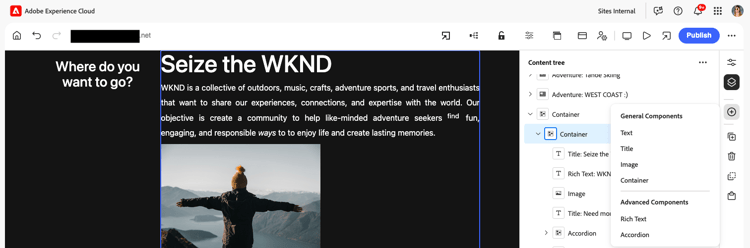

Tapping or clicking the add button opens a drop-down menu of components that are available to add to the selected container.

Add context menu

TIP
Use the hot key A to add a component to a selected container component.
Delete delete

If you select a component within a container component either in the content tree or in the editor, the delete option appears on the properties rail.

Delete icon

Tapping or clicking the delete button deletes the component.

TIP
Use the hot key Shift+Backspace to delete a selected component from a container.

Editing Content editing-content

Editing content is simple and intuitive. As you mouse over content in the editor, editable content is highlighted with a blue box.

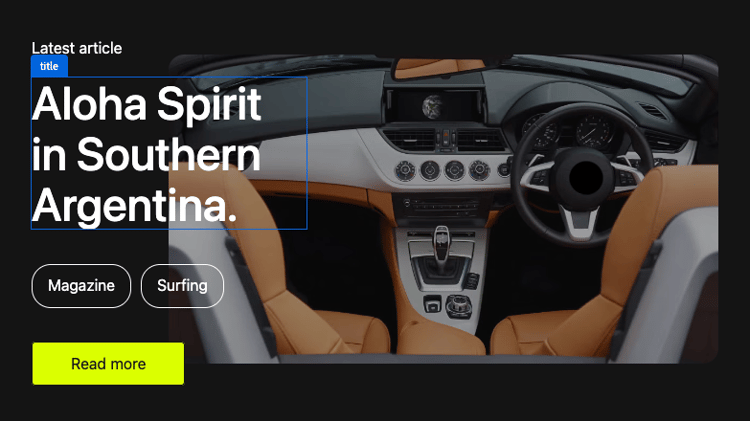

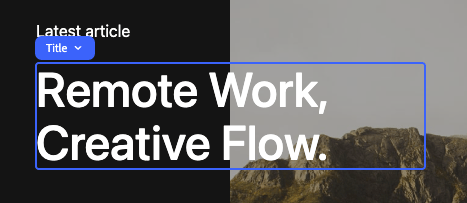

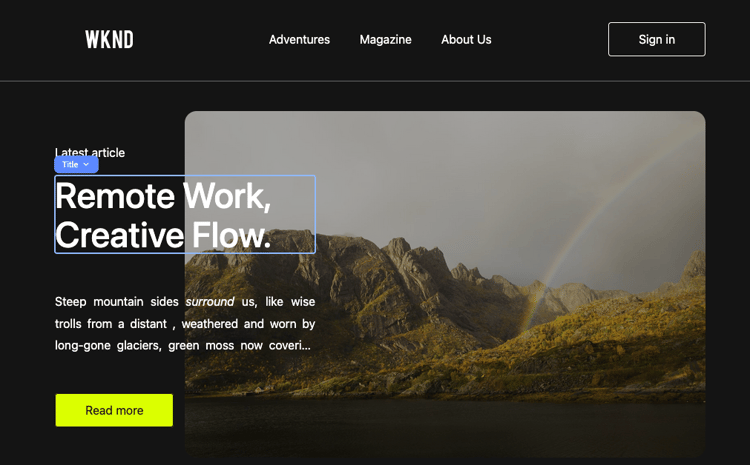

Editable content is highlighted by a blue box

TIP
By default, tapping or clicking on content selects it for editing. If you want to navigate your content by following links, switch to preview mode.

Depending on the content you select, you may have different in-place editing options and you may additional information and options for the content in the properties rail.

Editing Plain Text edit-plain-text

You can edit the text in place by double-clicking or double-tapping the component.

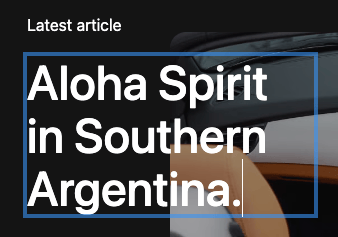

Editing content

Press enter/return or select outside of the text box to save your changes.

When you select to select the text component, its details are shown in the properties rail. You can also edit the text in the rail.

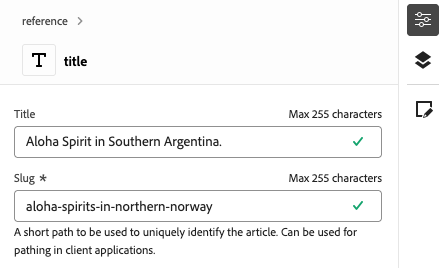

Editing text in the properties rail

Also, details on your text are available in the properties rail. Changes are automatically saved once focus leaves the edited field in the properties rail.

Editing Rich Text edit-rich-text

You can edit the text in place by double-clicking or double-tapping the component.

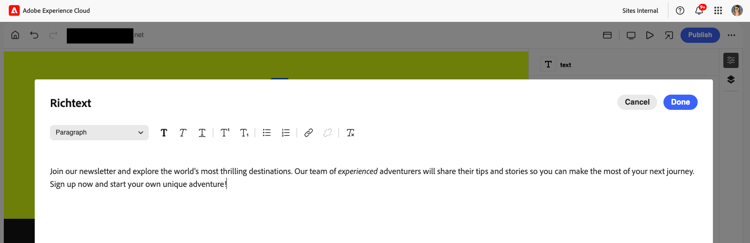

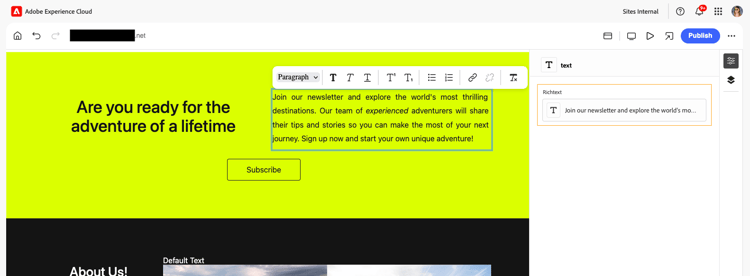

Editing a rich text component

For your convenience, formatting options and details on your text are available in two places.

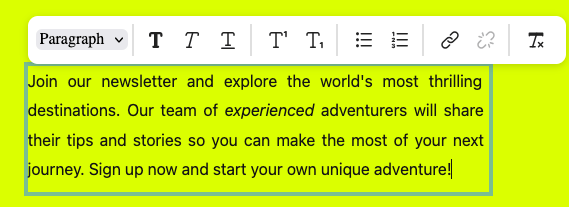

  • The context menu opens above the rich text block and offers basic formatting options in context. Due to space limitations, some options may be hidden behind the ellipsis button.
  • The properties rail shows all formatting options available along with the text.

Changes are automatically saved once focus leaves the edited field.

Editing Media edit-media

You can view its details in the properties rail.

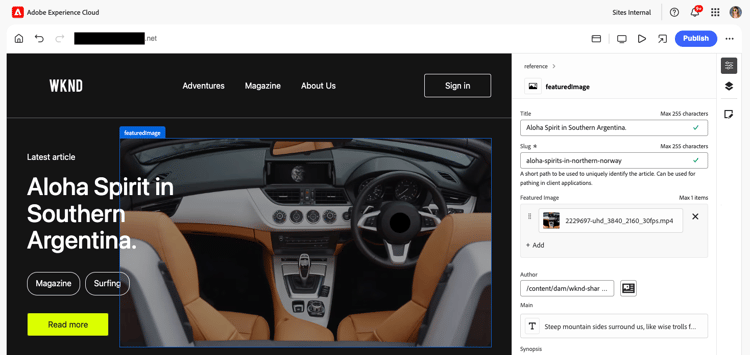

Editing media

  1. Tap or click the preview of the selected image in the properties rail.
  2. The asset selector window opens to allow you to select an asset.
  3. Select to select a new asset.
  4. Select Select to return to the properties rail where the asset was replaced.

Changes are saved to your content automatically.

Editing Content Fragments edit-content-fragment

If you select a Content Fragment, you can edit its details in the properties rail.

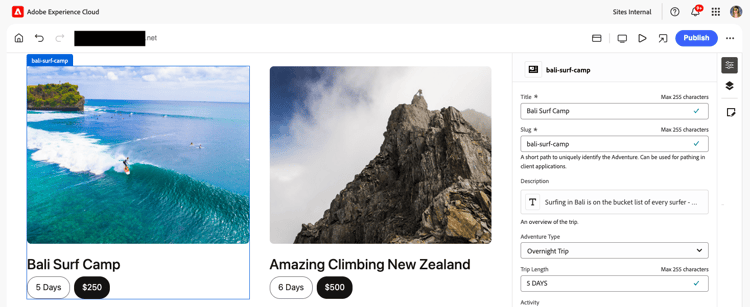

Editing a Content Fragment

The fields defined in the content model of the selected Content Fragment are displayed and editable in the properties rail.

If you select a field that is related to a Content Fragment, the Content Fragment loads in the components rail and the field is automatically scrolled to.

Changes are automatically saved once focus leaves the edited field in the properties rail.

If you want to edit your Content Fragment in the Content Fragment editor instead, click the edit button in the mode rail.

Depending on the needs of your workflow, you may want to edit the Content Fragment in the Universal Editor or directly in the Content Fragment editor.

Adding Components to Containers adding-components

  1. Select a container component in the content tree or in the editor.

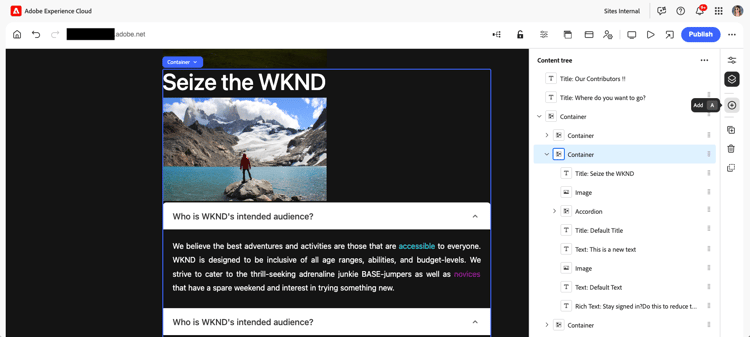

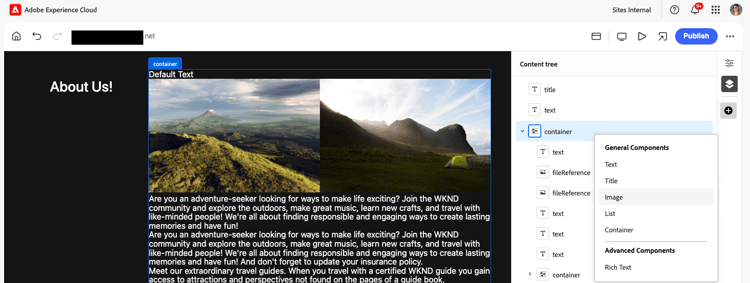

  2. Then select the add icon in the properties rail.

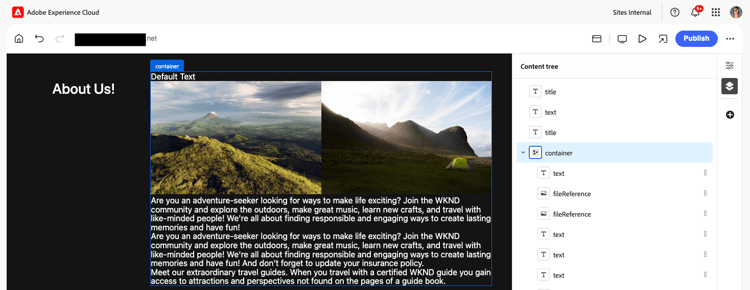

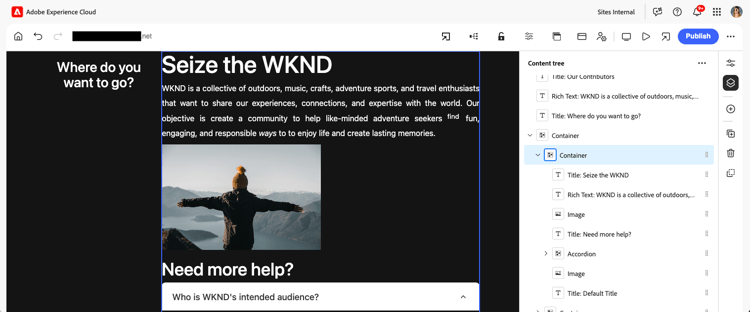

    Selecting a component to add to a container

The component is inserted into the container and can be edited in the editor.

TIP
Use the hot key A to add a component to the selected container.

Deleting Components from Containers deleting-components

  1. Select a container component in the content tree or in the editor.

  2. Select the chevron icon of the container to expand its contents in the content tree.

  3. Then, in the content tree, select a component within the container.

  4. Select the delete icon in the properties rail.

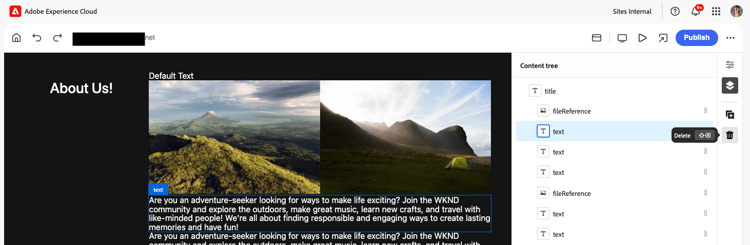

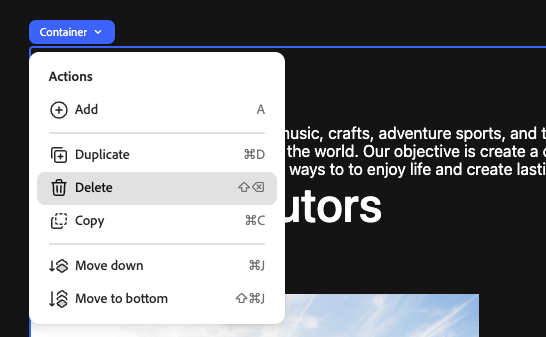

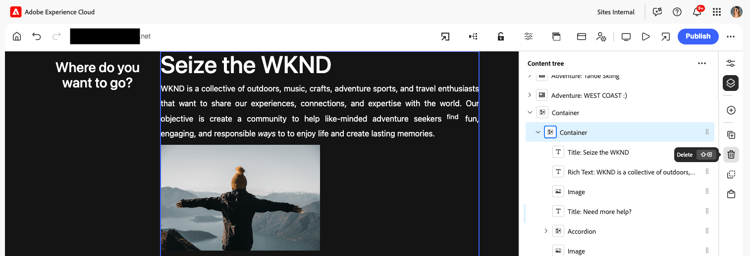

    Deleting a component

The selected component deleted.

TIP
Use the hot key Shift+Backspace to delete the selected component from its container.

Reordering Components in Containers reordering-components

  1. Select a container component in the content tree or in the editor.

  2. If not already in content tree mode, switch to it.

  3. Select the chevron icon of the container to expand its contents in the content tree.

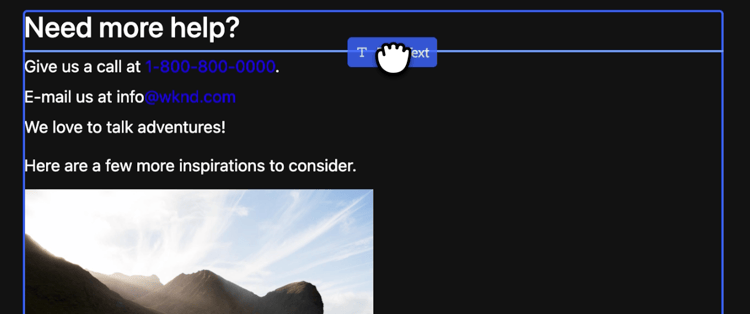

  4. Drag handle icons next to the components within the container show that you can rearrange them. Drag the components to reorder them within the container.

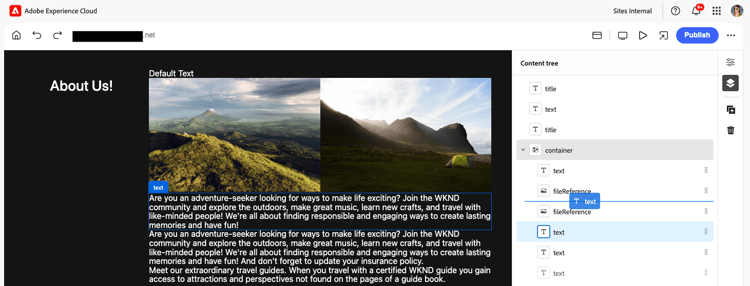

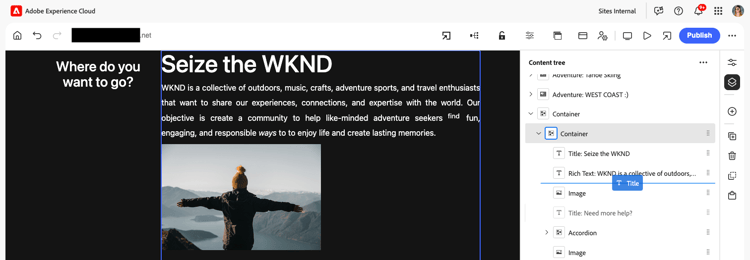

    Reordering components

  5. The dragged component turns gray in the component tree, while your insertion point is represented by a blue line. Release the component to place it in its new location.

The components are reordered in both the content tree and in the editor

Previewing Content previewing-content

When you are finished editing content, you often want to navigate it to see how it looks in the content of other pages. In preview mode you can click links to navigate your content as a reader would. The content is rendered in the editor as it would be published.

In preview mode, tapping or clicking on content reacts as it would to a reader of the content. If you want to select the content for editing, toggle out of preview mode.

Additional Resources additional-resources

To learn how to publish content with the universal editor, please see this document.

To learn more about the technical details of the Universal Editor, please see these developer documents.
