Create datasets for capturing IAB TCF 2.0 consent data

In order for Adobe Experience Platform to process customer consent data in accordance with the IAB Transparency & Consent Framework (TCF) 2.0, that data must be sent to datasets whose schemas contain TCF 2.0 consent fields.

Specifically, two datasets are required for capturing TCF 2.0 consent data:

  • A dataset based on the XDM Individual Profile class, enabled for use in Real-time Customer Profile.
  • A dataset based on the XDM ExperienceEvent class.

This document provides steps for setting up these two datasets to collect IAB TCF 2.0 consent data. For an overview of the full workflow to configure your Platform data operations for TCF 2.0, refer to the IAB TCF 2.0 compliance overview.

Prerequisites

This tutorial requires a working understanding of the following components of Adobe Experience Platform:

  • Experience Data Model (XDM): The standardized framework by which Experience Platform organizes customer experience data.
  • Adobe Experience Platform Identity Service: Allows you to bridge customer identities from your disparate data sources across devices and systems.
    • Identity namespaces: Customer identity data must be provided under a specific identity namespace recognized by Identity Service.
  • Real-time Customer Profile: Leverages Identity Service to let you create detailed customer profiles from your datasets in real time. Real-time Customer Profile pulls data from the Data Lake and persists customer profiles in its own separate data store.

Privacy Details mixin structure

The Privacy Details mixin provides customer consent fields that are required for TCF 2.0 support. There are two versions of this mixin: one compatible with the XDM Individual Profile class, and the other with the XDM ExperienceEvent class.

The sections below explain the structure of each of these mixins, including the data they expect during ingestion.

Profile mixin

For schemas based on XDM Individual Profile, the Privacy Details mixin provides a single map-type field, xdm:identityPrivacyInfo, which maps customer identities to their TCF consent preferences. The following JSON is an example of the kind of data xdm:identityPrivacyInfo expects upon data ingestion:

{
  "xdm:identityPrivacyInfo": {
      "ECID": {
        "13782522493631189": {
          "xdm:identityIABConsent": {
            "xdm:consentTimestamp": "2020-04-11T05:05:05Z",
            "xdm:consentString": {
              "xdm:consentStandard": "IAB TCF",
              "xdm:consentStandardVersion": "2.0",
              "xdm:consentStringValue": "BObdrPUOevsguAfDqFENCNAAAAAmeAAA.PVAfDObdrA.DqFENCAmeAENCDA",
              "xdm:gdprApplies": true,
              "xdm:containsPersonalData": false
            }
          }
        }
      }
    }
}

As the example shows, each root-level key of xdm:identityPrivacyInfo corresponds with an identity namespace recognized by Identity Service. In turn, each namespace property must have at least one sub-property whose key matches the customer’s corresponding identity value for that namespace. In this example, the customer is identified with an Experience Cloud ID (ECID) value of 13782522493631189.

NOTE

While the above example uses a single namespace/value pair to represent the customer’s identity, you can add additional keys for other namespaces, and each namespace can have multiple identity values, each with their own set of TCF consent preferences.

Within the identity value object is a single field, xdm:identityIABConsent. This object captures the customer’s TCF consent values for the specified identity namespace and value. The sub-properties contained in this field are listed below:

Property Description
xdm:consentTimestamp An ISO 8601 timestamp of when the TCF consent values changed.
xdm:consentString An object containing the customer’s updated consent data and other contextual information. See the section on consent string properties to learn about this object’s required sub-properties.

Event mixin

For schemas based on XDM ExperienceEvent, the Privacy Details mixin provides a single array-type field: xdm:consentStrings. Each item in this array must be an object that contains the necessary properties for a TCF consent string, similar to the xdm:consentString field in the profile mixin. For more information on these sub-properties, see the next section.

{
  "xdm:consentStrings": [
    {
      "xdm:consentStandard": "IAB TCF",
      "xdm:consentStandardVersion": "2.0",
      "xdm:consentStringValue": "BObdrPUOevsguAfDqFENCNAAAAAmeAAA.PVAfDObdrA.DqFENCAmeAENCDA",
      "xdm:gdprApplies": true,
      "xdm:containsPersonalData": false
    }
  ]
}

Both versions of the Privacy Details mixin require at least one object that captures the necessary fields that describe the TCF consent string for the customer. These properties are explained below:

Property Description
xdm:consentStandard The consent framework that the data applies to. For TCF compliance, the value must be IAB TCF.
xdm:consentStandardVersion The version number of the consent framework indicated by xdm:consentStandard. For TCF 2.0 compliance, the value must be 2.0.
xdm:consentStringValue The consent string that was generated by the consent management platform (CMP) based on the customer’s selected settings.
xdm:gdprApplies A boolean value indicating whether or not the GDPR applies to this customer. The value must be set to true in order for TCF 2.0 enforcement to occur. Defaults to true if not included.
xdm:containsPersonalData A boolean value indicating whether or not the consent update contains personal data. Defaults to false if not included.

Create customer consent schemas

In order to create datasets that captures consent data, you must first create XDM schemas to base those datasets on.

In the Platform UI, select Schemas in the left navigation to open the Schemas workspace. From here, follow the steps in the sections below to create each required schema.

NOTE

If you have existing XDM schemas that you want to use to capture consent data instead, you can edit those schemas instead of creating new ones. However, if an existing schema has been enabled for use in Real-time Customer Profile, its primary identity cannot be a directly identifiable field that is prohibited from use in interest-based advertising, such as an email address. Consult your legal counsel if you are unsure which fields are restricted.

Additionally, when editing existing schemas, only additive (non-breaking) changes can be made. See the section on the principles of schema evolution for more information.

Create a record-based consent schema

In the Schemas workspace, select Create schema, then choose XDM Individual Profile from the dropdown.

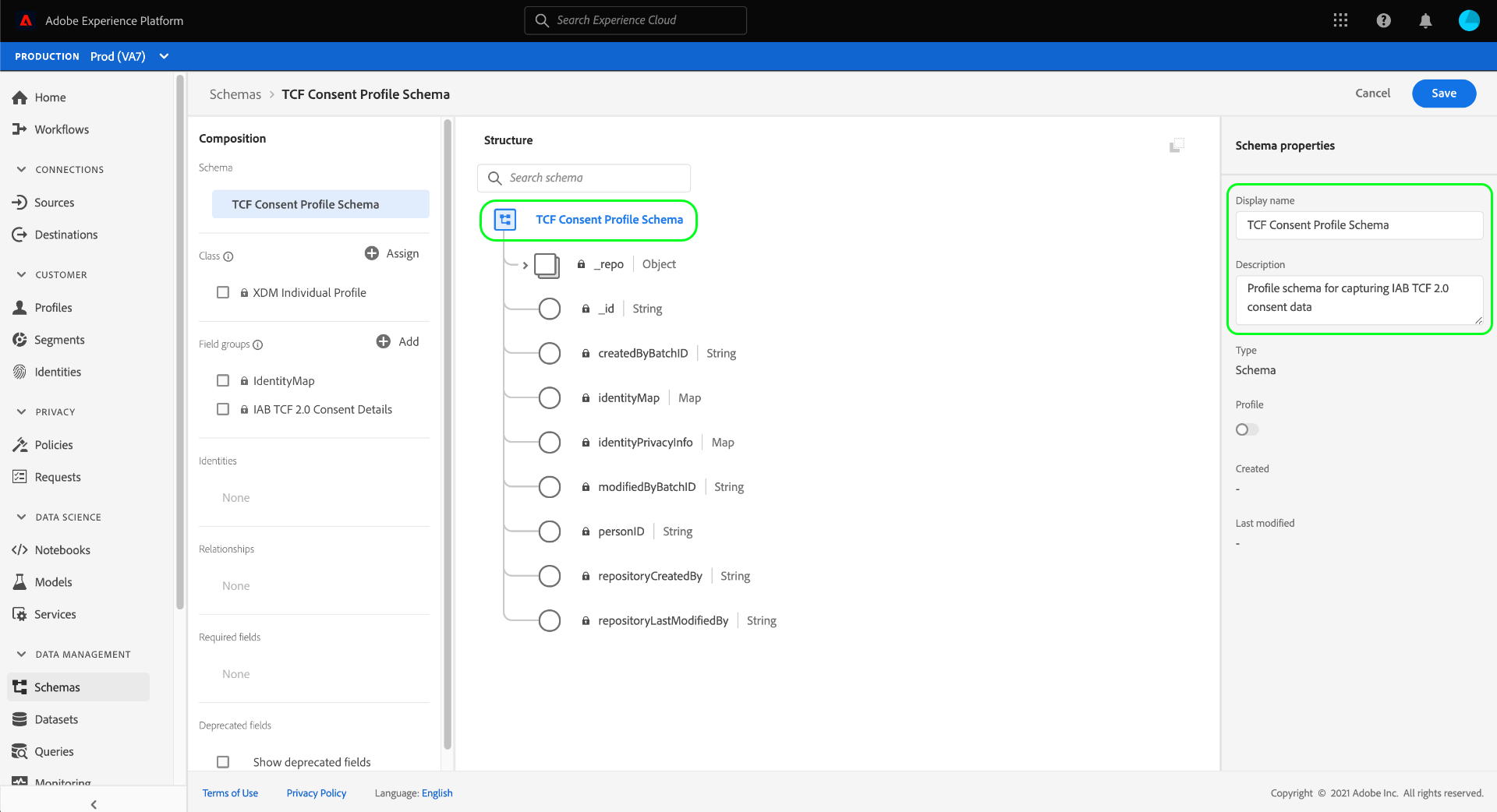

The Schema Editor appears, showing the structure of the schema in the canvas. Use the right rail to provide a name and description for the schema, then select Add under the Mixins section on the left side of the canvas.

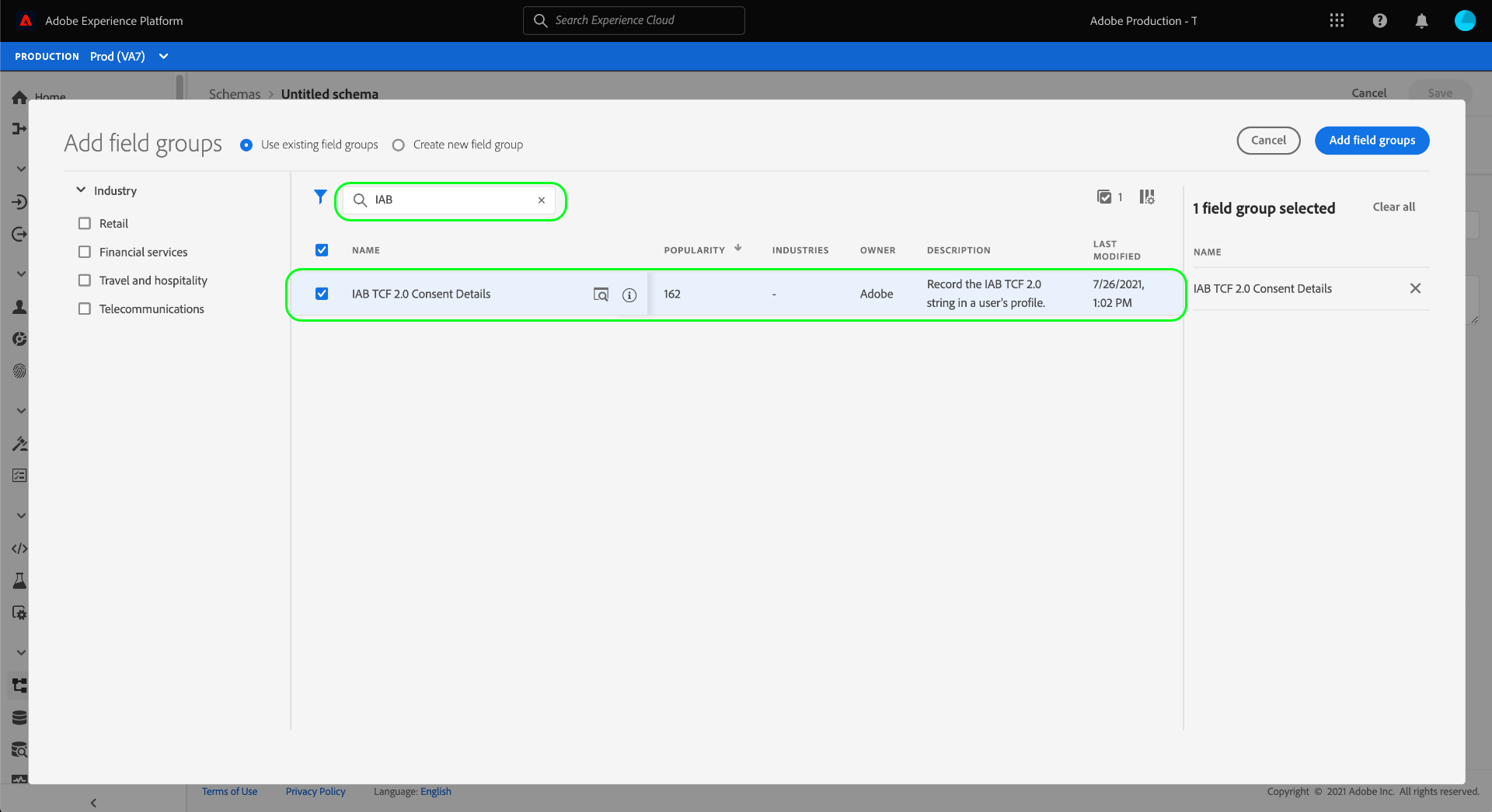

The Add mixin dialog appears. From here, select Privacy Details from the list. You can optionally use the search bar to narrow down results to locate the mixin easier. Once the mixin is selected, select Add mixin.

The canvas reappears, showing that the identityPrivacyInfo field has been added to the schema structure.

From here, repeat the above steps to add the following additional mixins to the schema:

  • IdentityMap
  • Data capture region for Profile
  • Demographic Details
  • Personal Contact Details

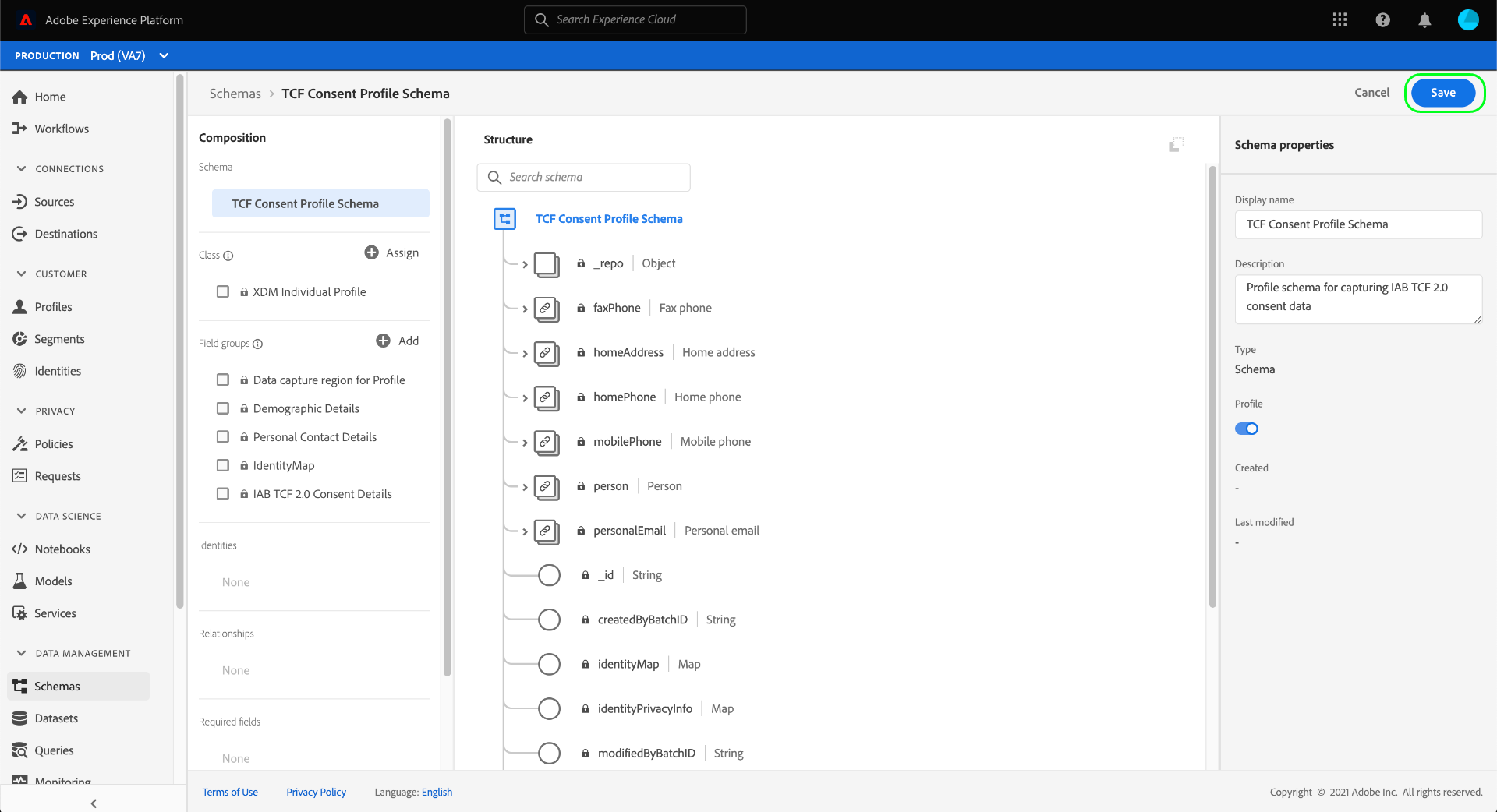

If you are editing an existing schema that has already been enabled for use in Real-time Customer Profile, select Save to confirm your changes before skipping ahead to the section on creating a dataset based on your consent schema. If you are creating a new schema, continue following the steps outlined in the subsection below.

Enable the schema for use in Real-time Customer Profile

In order for Platform to associate the consent data it receives to specific customer profiles, the consent schema must be enabled for use in Real-time Customer Profile.

NOTE

The example schema shown in this section uses its identityMap field as its primary identity. If you wish to set another field as a primary identity, ensure that you are using an indirect identifier like a cookie ID, and not a directly identifiable field that is prohibited from use in interest-based advertising, such as an email address. Consult your legal counsel if you are unsure which fields are restricted.

Steps on how to set a primary identity field for a schema can be found in the schema creation tutorial.

To enable the schema for Profile, select the schema’s name in the left-hand rail to open the Schema properties dialog in the right-hand rail. From here, select the Profile toggle button.

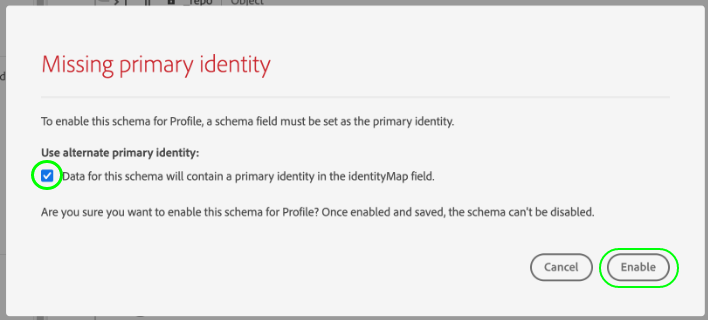

A popover appears, indicating a missing primary identity. Select the checkbox for using an alternate primary identity, as the primary identity will be contained in the identityMap field.

Finally, select Save to confirm your changes.

Create a time-series-based consent schema

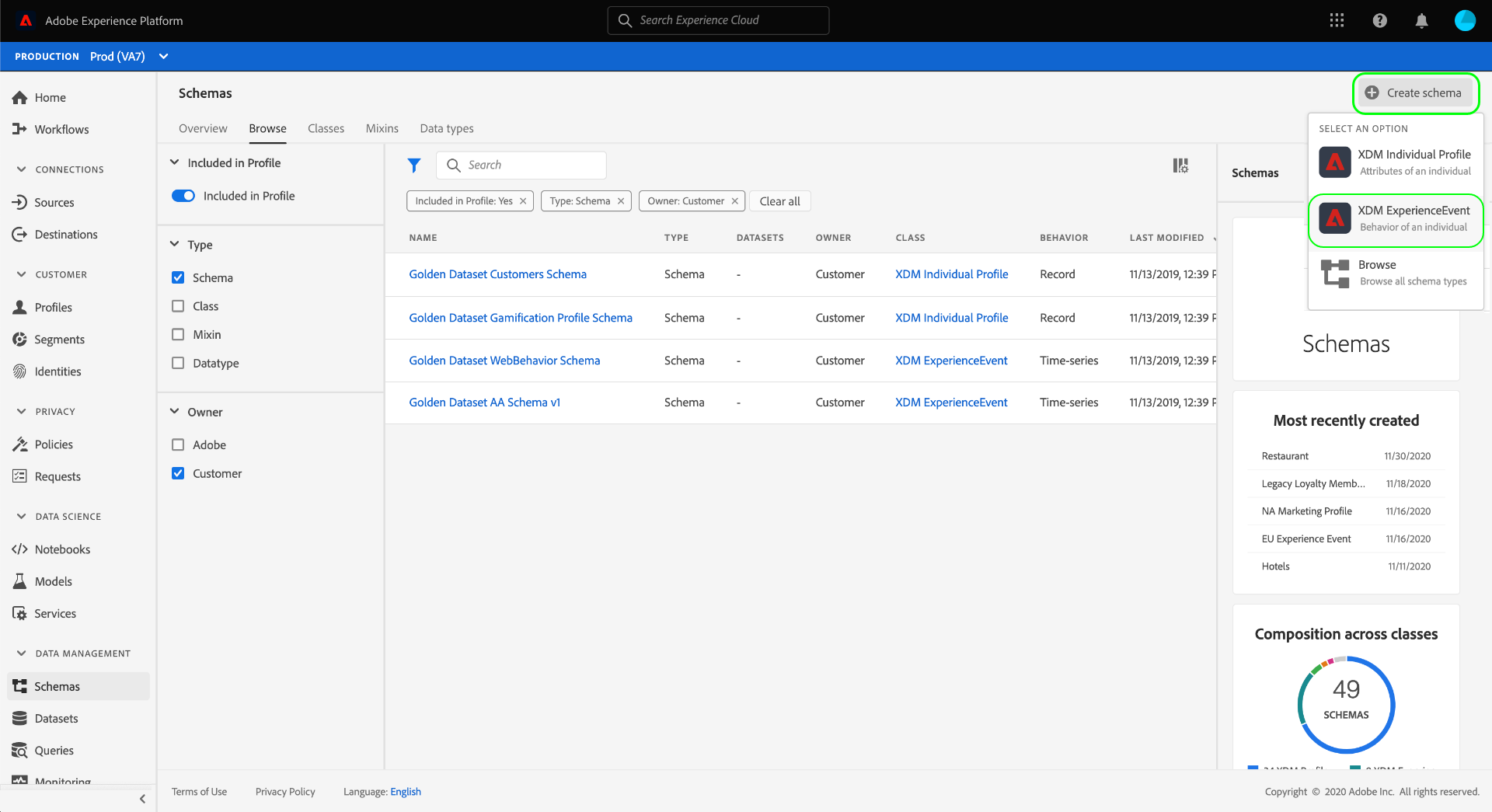

In the Schemas workspace, select Create schema, then choose XDM ExperienceEvent from the dropdown.

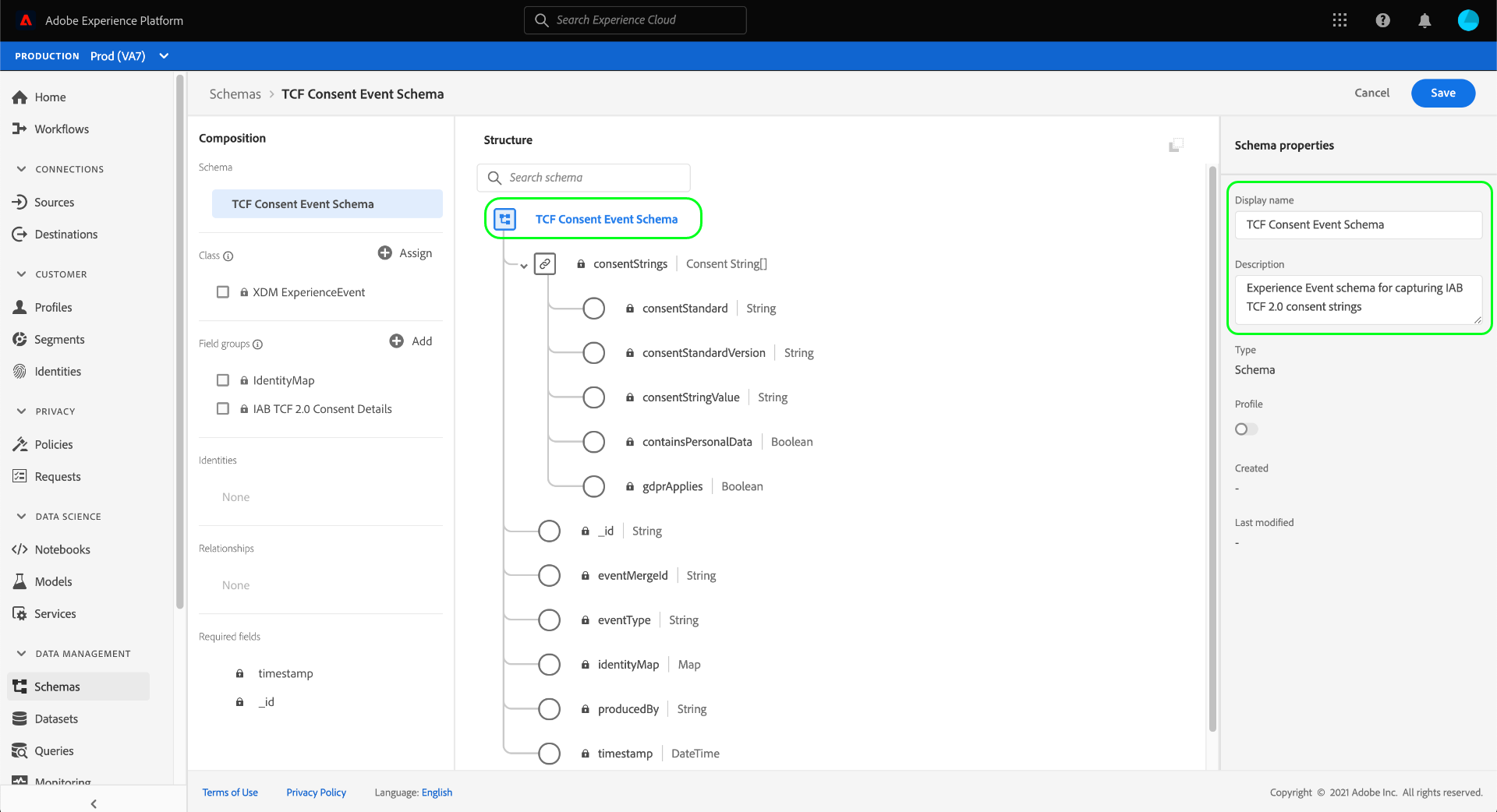

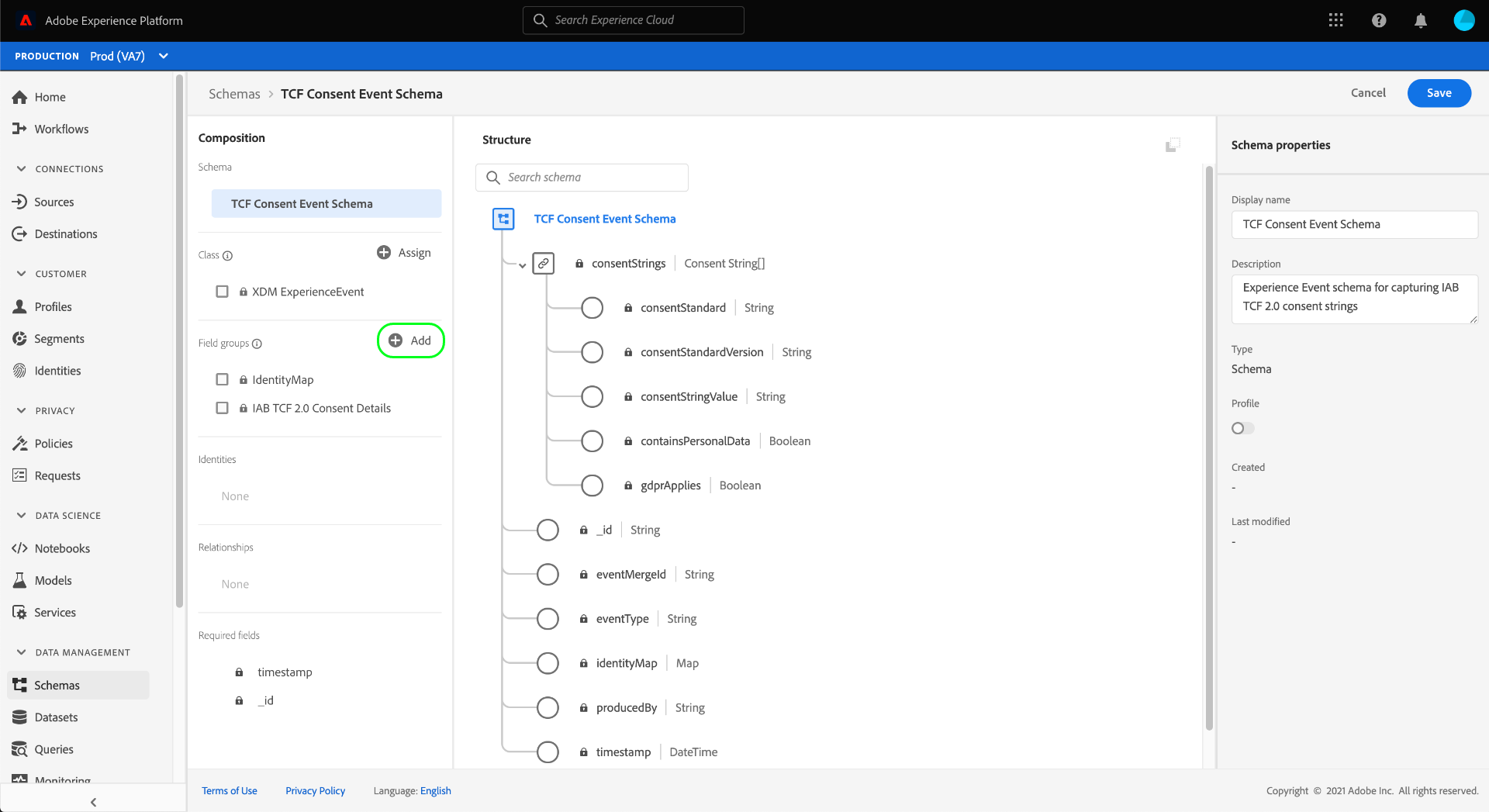

The Schema Editor appears, showing the structure of the schema in the canvas. Use the right rail to provide a name and description for the schema, then select Add under the Mixins section on the left side of the canvas.

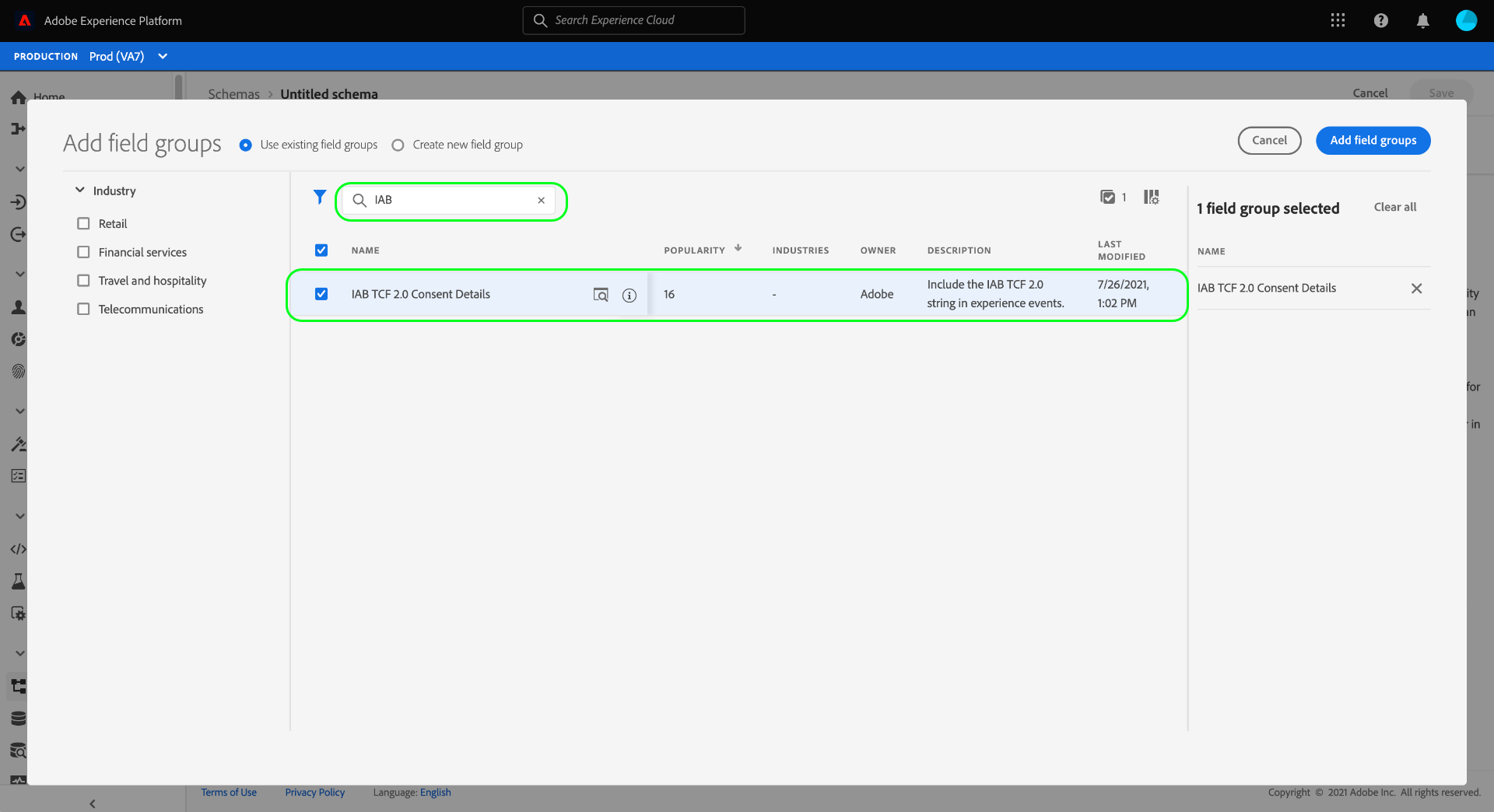

The Add mixin dialog appears. From here, select Privacy Details from the list. You can optionally use the search bar to narrow down results to locate the mixin easier. Once you have chosen a mixin, select Add mixin.

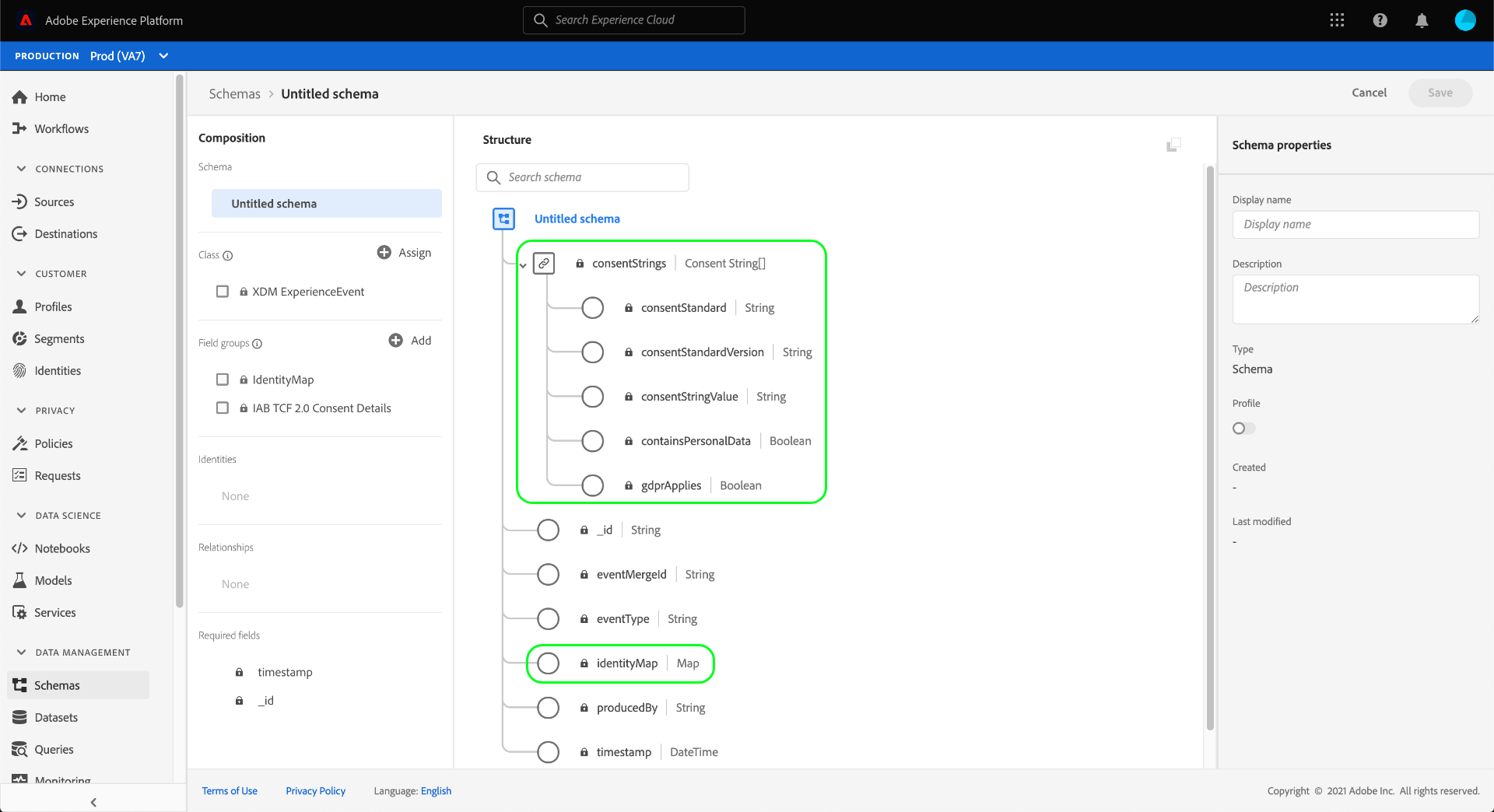

The canvas reappears, showing that the consentStrings array has been added to the schema structure.

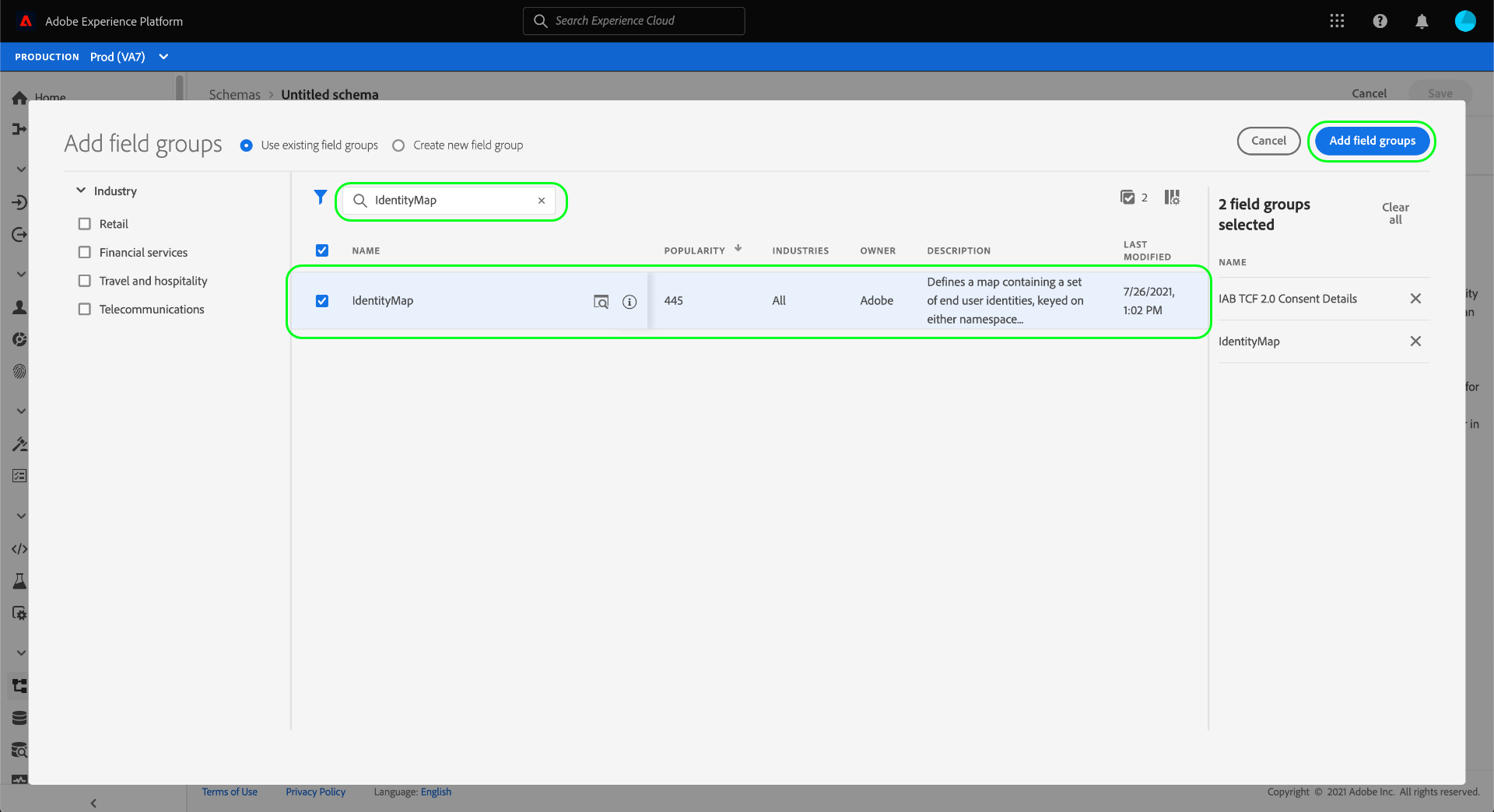

From here, repeat the above steps to add the following additional mixins to the schema:

  • IdentityMap
  • Environment Details
  • Web Details
  • Implementation Details

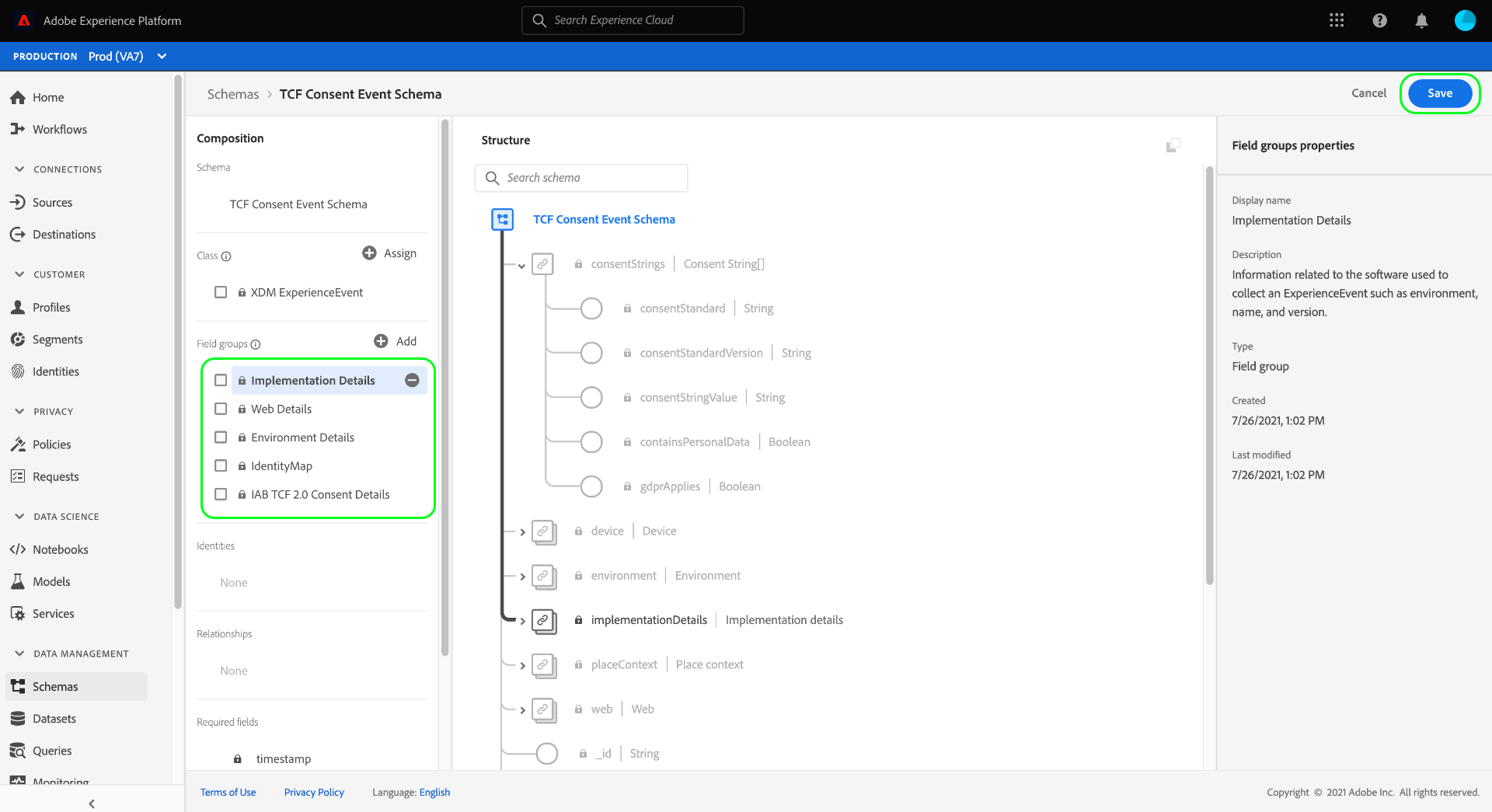

Once the mixins have been added, finish by selecting Save.

Create datasets based on your consent schemas

For each of the required schemas described above, you must create a dataset that will ultimately ingest your customers’ consent data. The dataset based on the record schema must be enabled for Real-time Customer Profile, while the dataset based on the time-series schema should not be Profile-enabled.

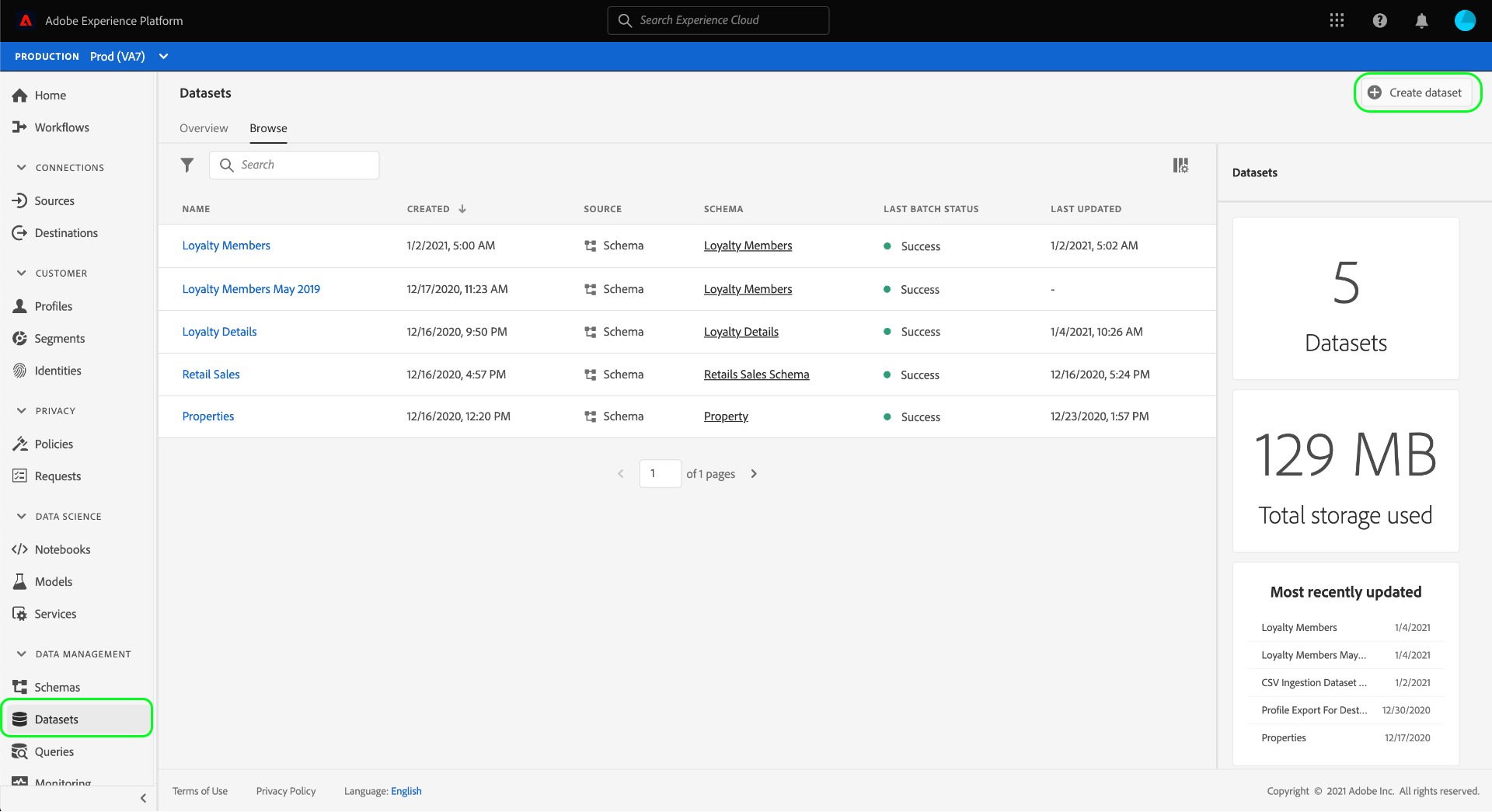

To begin, select Datasets in the left navigation, then select Create dataset in the top-right corner.

On the next page, select Create dataset from schema.

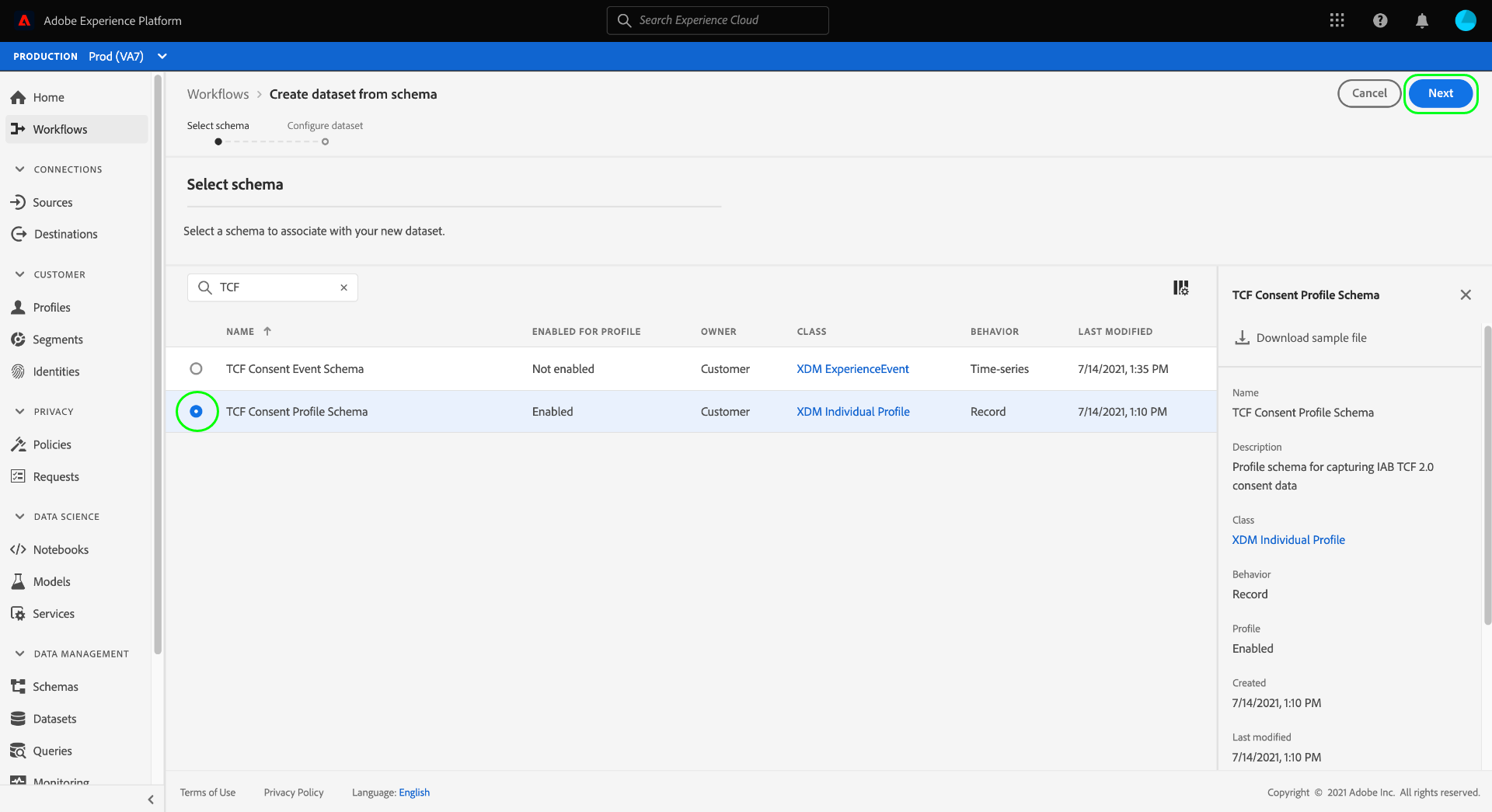

The Create dataset from schema workflow appears, starting at the Select schema step. In the provided list, locate one of the consent schemas that you created earlier. You can optionally use the search bar to narrow down results and locate your schema easier. Select the radio button next to the desired schema, then select Next to continue.

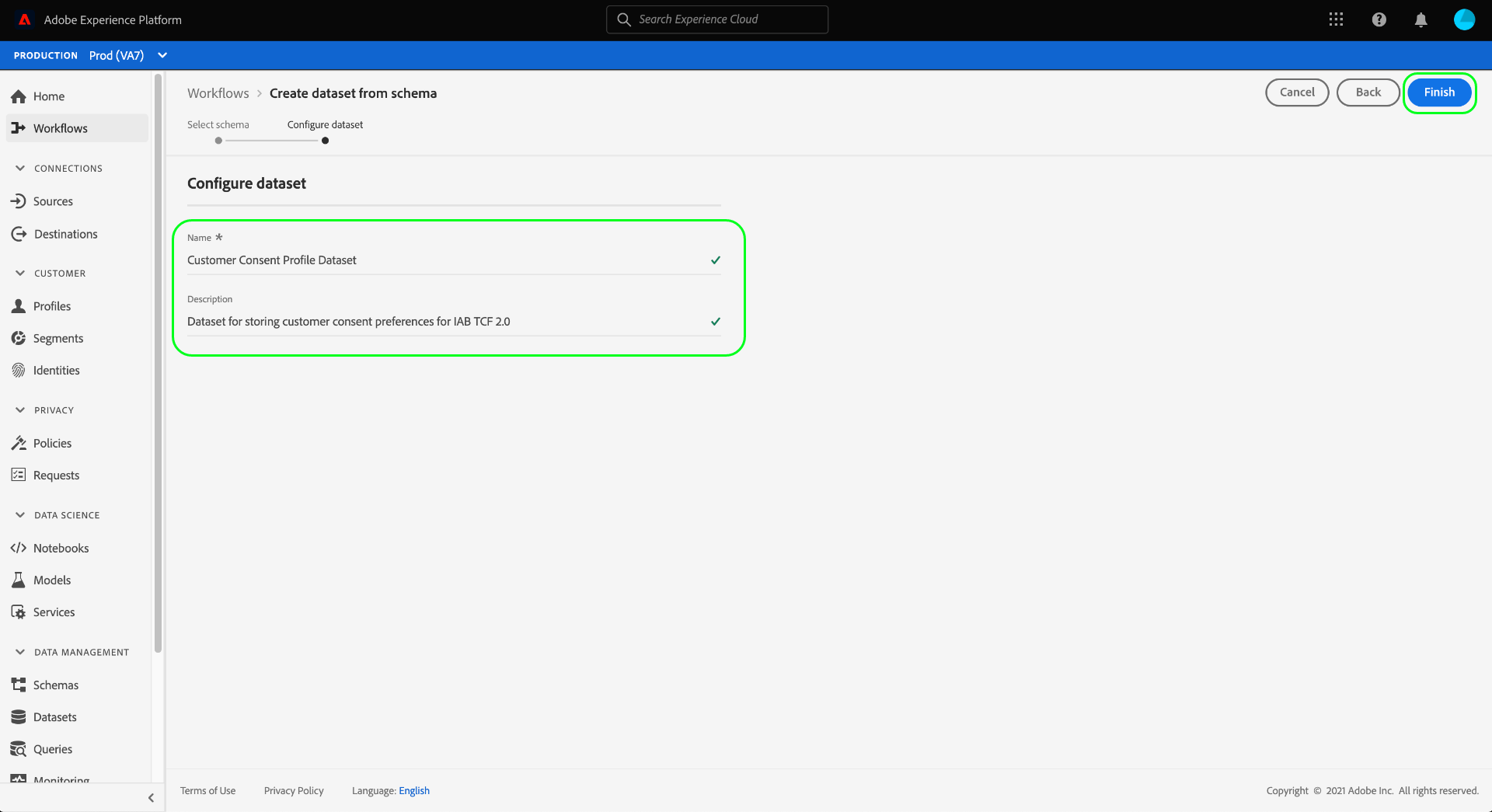

The Configure dataset step appears. Provide a unique, easily identifiable name and description for the dataset before selecting Finish.

The details page for the newly created dataset appears. If the dataset is based on your time-series schema, then the process is complete. If the dataset is based on your record schema, the final step in the process is to enable the dataset for use in Real-time Customer Profile.

In the right-hand rail, select the Profile toggle, then select Enable in the confirmation popover to enable the schema for Profile.

Follow the above steps again to create the other required dataset for TCF 2.0 compliance.

Next steps

By following this tutorial, you have created two datasets that can now be used to collect customer consent data:

  • A record-based dataset that is enabled for use in Real-time Customer Profile.
  • A time-series-based dataset that is not enabled for Profile.

You can now return to the IAB TCF 2.0 overview to continue the process of configuring Platform for TCF 2.0 compliance.
