建立及測試訊息轉換範本 create-template
概觀 overview
在Destination SDK過程中,Adobe會提供開發人員工具,協助您設定和測試目的地。 此頁面說明如何建立和測試訊息轉換範本。 如需如何測試目的地的詳細資訊,請閱讀 測試您的目的地設定.
至 建立及測試訊息轉換範本 在Adobe Experience Platform的目標結構描述和目的地支援的訊息格式之間,使用 範本製作工具 如下所述。 深入瞭解中的來源和目標結構描述之間的資料轉換 訊息格式檔案.
以下說明建立和測試訊息轉換範本如何符合 目的地設定工作流程 Destination SDK:
為何需要建立和測試訊息轉換範本 why-create-message-transformation-template
在Destination SDK中建立目的地的首要步驟之一,就是思考將對象成員資格、身分和設定檔屬性的資料格式從Adobe Experience Platform匯出至目的地時,如何進行轉換。 在中尋找有關AdobeXDM結構描述和您的目的地結構描述之間轉換的資訊 訊息格式檔案.
若要轉換成功,您必須提供轉換範本,類似於以下範例: 建立可傳送區段、身分和設定檔屬性的範本.
Adobe提供範本工具,可讓您建立並測試訊息範本,將資料從AdobeXDM格式轉換為目的地支援的格式。 此工具有兩個API端點可供您使用:
- 使用 範例範本API 以取得範例範本。
- 使用 轉譯器範本API 以轉譯範例範本,使您可以將結果與目的地的預期資料格式進行比較。 將匯出的資料與目的地預期的資料格式比較後,您可以編輯範本。 如此一來,您產生的匯出資料就會符合目的地預期的資料格式。
建立範本前需完成的步驟 prerequisites
在您準備好建立範本之前,請務必完成下列步驟:
-
建立目的地伺服器設定. 根據您為提供的值,將產生的範本會有所不同
maxUsersPerRequest
引數。- 使用
maxUsersPerRequest=1
如果您希望目的地的API呼叫包含單一設定檔,以及其對象資格、身分和設定檔屬性。 - 使用
maxUsersPerRequest
大於一的值(如果您希望目的地的API呼叫包含多個設定檔,以及其對象資格、身分和設定檔屬性)。
- 使用
-
建立目的地設定 並將目的地伺服器設定的ID新增至
destinationDelivery.destinationServerId
. -
取得目的地設定的ID 您剛剛建立的,所以您可以在範本建立工具中使用它。
-
瞭解 您可以使用哪些函式和篩選器 在訊息轉換範本中。
如何使用範例範本API和轉譯範本API為您的目的地建立範本 iterative-process
"template": "{% for profile in input.profiles %}{{profile|raw}}{% endfor %}}"
取得和測試範本的程式是反複進行的。 重複下列步驟,直到匯出的設定檔符合目的地預期的資料格式。
使用範本範例API取得範本範例 sample-template-api
將目的地ID新增至呼叫,如下所示,回應會傳回與目的地ID對應的範本範例。
curl --location --request GET 'https://platform.adobe.io/data/core/activation/authoring/testing/template/sample/5114d758-ce71-43ba-b53e-e2a91d67b67f' \
--header 'Content-Type: application/json' \
--header 'Accept: application/json' \
--header 'x-api-key: {API_KEY}' \
--header 'Authorization: Bearer {ACCESS_TOKEN}' \
--header 'x-gw-ims-org-id: {ORG_ID}' \
--header 'x-sandbox-name: {SANDBOX_NAME}' \
如果您提供的目的地ID對應至具有的目的地設定 最大努力彙總 和 maxUsersPerRequest=1
在彙總原則中,要求會傳回類似以下的範例範本:
{#- THIS is an example template for a single profile -#}
{#- A '-' at the beginning or end of a tag removes all whitespace on that side of the tag. -#}
{
"identities": [
{%- for idMapEntry in input.profile.identityMap -%}
{%- set namespace = idMapEntry.key -%}
{%- for identity in idMapEntry.value %}
{
"type": "{{ namespace }}",
"id": "{{ identity.id }}"
}{%- if not loop.last -%},{%- endif -%}
{%- endfor -%}{%- if not loop.last -%},{%- endif -%}
{% endfor %}
],
"AdobeExperiencePlatformSegments": {
"add": [
{%- for segment in input.profile.segmentMembership.ups | added %}
"{{ segment.key }}"{%- if not loop.last -%},{%- endif -%}
{% endfor %}
],
"remove": [
{#- Alternative syntax for filtering audiences by status: -#}
{% for segment in removedSegments(input.profile.segmentMembership.ups) %}
"{{ segment.key }}"{%- if not loop.last -%},{%- endif -%}
{% endfor %}
]
}
}
如果您提供的目的地ID對應至目的地伺服器範本,並附有 可設定的彙總 或 最大努力彙總 替換為 maxUsersPerRequest
大於一個時,請求會傳回類似以下的範例範本:
{#- THIS is an example template for multiple profiles -#}
{#- A '-' at the beginning or end of a tag removes all whitespace on that side of the tag. -#}
{
"profiles": [
{%- for profile in input.profiles %}
{
"identities": [
{%- for idMapEntry in profile.identityMap -%}
{%- set namespace = idMapEntry.key -%}
{%- for identity in idMapEntry.value %}
{
"type": "{{ namespace }}",
"id": "{{ identity.id }}"
}{%- if not loop.last -%},{%- endif -%}
{%- endfor -%}{%- if not loop.last -%},{%- endif -%}
{% endfor %}
],
"AdobeExperiencePlatformSegments": {
"add": [
{%- for segment in profile.segmentMembership.ups | added %}
"{{ segment.key }}"{%- if not loop.last -%},{%- endif -%}
{% endfor %}
],
"remove": [
{#- Alternative syntax for filtering audiences by status: -#}
{% for segment in removedSegments(profile.segmentMembership.ups) %}
"{{ segment.key }}"{%- if not loop.last -%},{%- endif -%}
{% endfor %}
]
}
}{%- if not loop.last -%},{%- endif -%}
{% endfor %}
]
}
逸出範本的字元 character-escape-template

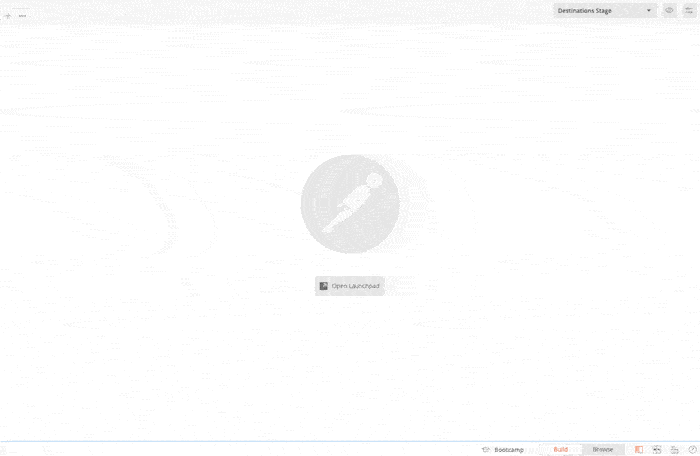

在使用範本轉譯符合目的地預期格式的設定檔之前,您必須對範本進行字元逸出,如下面的熒幕錄製所示。
您可以使用線上字元逸出工具。 上述示範使用 JSON逸出格式器.
轉譯器範本API render-template-api
使用建立訊息轉換範本後 範例範本API,您可以 演算範本 以根據它產生匯出的資料。 這可讓您驗證Adobe Experience Platform要匯出至目的地的設定檔是否符合目的地的預期格式。
請參考API參考以取得您可以進行的呼叫範例:
編輯範本並呼叫轉譯器範本API端點,直到匯出的設定檔符合目的地的預期資料格式為止。
將您的字元逸出範本新增至目的地伺服器設定
在您滿意訊息轉換範本後,請將其新增至您的 目的地伺服器設定,在 httpTemplate.requestBody.value
.
