View data flow in a running scenario

You can watch a running scenario to see how data flows through it.

NOTE
Workfront Fusion is transitioning the scenario editor to a new experience. During this transition, both the classic and new experiences are available, and you can switch between them at any time. We recommend using the new experience. For more information, see New and classic experiences in the article Scenario editor.

While a scenario runs, the active module is marked by a spinning ring on the module’s icon in the new experience, or by a growing ring around the module in the classic experience. The ring shows only that the module is running, not its progress. Modules that run quickly may only display a small part of the ring.

New experience

Spinning ring on the module's icon in the new experience

Classic experience

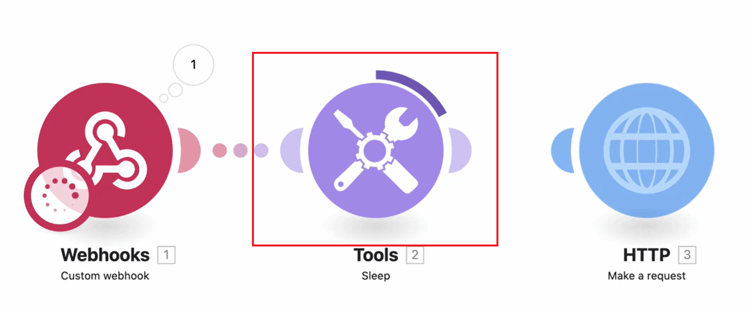

Ring around module in the classic experience

After the module has run, an output indicator appears.

New experience

Output indicator in the new experience

Classic experience

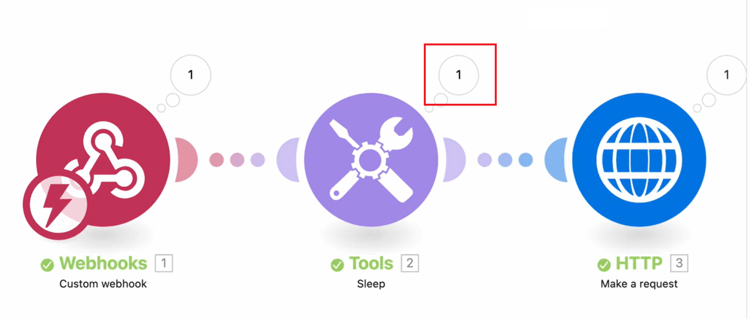

Output indicator in the classic experience

If the module processes more than one bumdle, the ring appears for each processed bundle, and the output indicator counts up for each bundle it outputs.

Fore more information on scenario data flow, see Scenario execution flow.

Access requirements

Expand to view access requirements for the functionality in this article.
table 0-row-2 1-row-2 2-row-2 layout-auto html-authored no-header
Adobe Workfront package

Any Adobe Workfront Workflow package and any Adobe Workfront Automation and Integration package

Workfront Ultimate

Workfront Prime and Select packages, with an additional purchase of Workfront Fusion.

Adobe Workfront licenses

Standard

Work or higher

Product If your organization has a Select or Prime Workfront package that does not include Workfront Automation and Integration, your organization must purchase Adobe Workfront Fusion.

For more detail about the information in this table, see Access requirements in documentation.

View data flow in a running scenario

  1. Click the Scenarios tab in the left panel.
  2. Select the scenario where you want to view data flow.
  3. Click anywhere on the scenario to enter the Scenario editor.
  4. If the scenario is not running, activate it or click Run once to start the scenario execution.

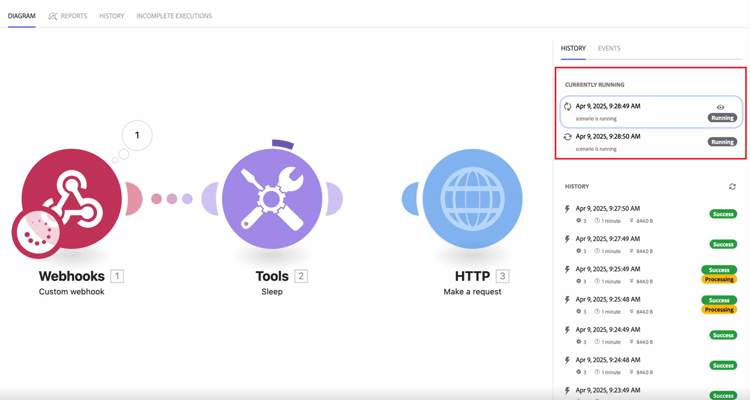

  5. Select the execution that you want to view in the Currently Running section of the execution history panel.

Currently running
