View a specific scenario execution
You can view details of a specific scenario execution, including filtering and searching for scenario events.
Access requirements
| table 0-row-2 1-row-2 2-row-2 layout-auto html-authored no-header | |
|---|---|
| Adobe Workfront package |
Any Adobe Workfront Workflow package and any Adobe Workfront Automation and Integration package Workfront Ultimate Workfront Prime and Select packages, with an additional purchase of Workfront Fusion. |
| Adobe Workfront licenses |
Standard Work or higher |
| Product | If your organization has a Select or Prime Workfront package that does not include Workfront Automation and Integration, your organization must purchase Adobe Workfront Fusion. |
For more detail about the information in this table, see Access requirements in documentation.
View a specific execution
You can view an execution from the scenario’s scenario history.
-
Click the Scenarios tab in the left panel, then click the scenario.
Or
If you are working on the scenario in the Scenario editor, click the left arrow
-
Click History near the name of the scenario.
-
Locate the execution you want to view, and click Details in the far right on the line for that execution. The details link is visible only if the execution has details available.
The scenario diagram opens, with the execution details panel open on the right.
Modules that produced output for this execution are marked with green titles.
Modules that did not run are dimmed.
-

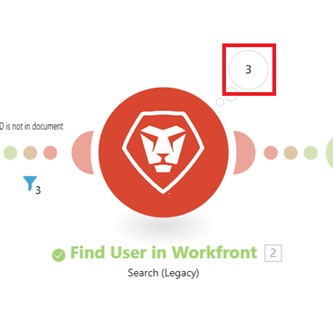

To view output from a module, click the output details bubble near the module. The number in the bubble represents the number of bundles that the module output.
-
To view the bundles that passed through a filter, click the filter. The number near the filter represents the number of bundles that passed through the filter.
-
To search for a specific module or event in the execution panel, enter the search term into the Search execution events box. Results appear as you type.
-
To limit execution panel search results by status such as Success or Warning, click the Status Filter dropdown and select the status.
?moduleId=<module-id> to the URL when viewing the following pages:- Scenario edit page (URL ends in
/edit) - A specific scenario execution (URL ends in
/logs/<log-id>)
<module-id> refers to the number next to the module label when viewing the scenario.Review an execution in the new scenario editor
In the new experience, when you open an execution from the execution history, the controls near the right side of the canvas help you find what went wrong without editing the scenario:
The Compact view switch is also available in the upper-right corner. When you review an execution, it changes the layout only while you look at that execution. It does not change your Compact view setting for editing, and nothing is saved to the scenario.
Select an event in the execution to center and highlight the matching module. When operation details are available, the request and response panel opens. If the panel has no data, request and response details were not kept for that run. To collect them for future runs, see Temporary debug logs.
