Visible if expressions

Last update: Thu Feb 26 2026 00:00:00 GMT+0000 (Coordinated Universal Time)

The ‘Visible if’ expression lets you control the visibility of inputs, outputs and parameters in graphs.

When exposing parameters, you may want to hide or show parameters or node connectors based on the status of other parameters. E.g., a slider only showing when a boolean parameter button is set to true, because it would have no effect otherwise and that might confuse users.

To achieve this, you may input a logical expression into the Visible if property of:

a graph’s input parameter;
a graph’s Input node;
a graph’s Output node.

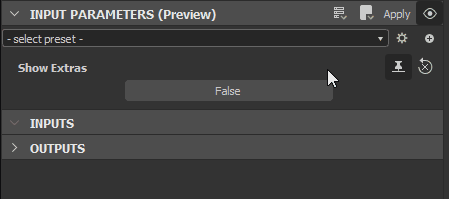

Toggling input parameter visibility {width="512px"}

If the logical expression evaluates to true, the parameter, input or output is displayed in all instance nodes representing the current graph. Otherwise, it is hidden.

Complex conditions are possible, provided the logical expression stating these conditions is valid.

NOTE

Caveats

This feature only impacts whether a parameter or connector is displayed in the user interface, and has no effect on the computations and result of a graph.
When exposing or applying a function to any parameter used in ‘Visible if’ statements, those statements will be ignored and default to ‘true’.

IMPORTANT

While this functionality works inside the Substance 3D ecosystem, some integrations may not support it. If unsupported, the visibility condition defaults to true.

Writing ‘Visible if’ expressions

ACCESSING INPUT PARAMETERS

Any Visible If Expression will need to use at least one input, this can be done through the following syntax:


input.identifier

input["identifier"]

WARNING

The identifier must be the exact name of an existing input parameter’s Identifier property, and it must be typed case-sensitive. You cannot refer to a parameter by its Label.
If a referenced parameter does not exist, or the logical expression is invalid, a warning is displayed on the Visible if property.

AVAILABLE OPERATORS

The “Visible if” fields accepts the following parameters:

Boolean, Float and Integer inputs.
true and false values (case sensitive, no caps!)
.x : access the subparameter
&& : and
|| : or
! : not
<, >, <=, >=, ==, != : comparison
() : brackets

MUST ALWAYS EVALUATE TO BOOLEANS

A Visible If Expression is used as the condition for an “IF” statement, that means it must always result in true or false.

Boolean values can directly evaluate as the condition. A simple button with a boolean value requires no more than this. See below examples, first case;
Non-boolean parameters generally require a comparison operation. See above for comparison operators, below for examples;
Some non-boolean values can be truthy or falsy, which means they can evaluate as true of false – E.g. an integer value of 0 evaluates to false.

Examples

Condition (“If”)

Formula

Note

True

input["my_input"] input.my_input input["my_input"] == true input.my_input == true

my_input is a boolean value

False

!input["my_input"] !input.my_input input["my_input"] == false input.my_input == false input["my_input"] != true input.my_input != true

my_input is a boolean value

Lower than

input["my_input"] < 3 input.my_input < 3

my_input is an integer value

Equal

input["param1"] == 2 input.param1 == 2

param1 is a float or integer value

Lower than

input["my_input"].y < 3 input.my_input.y < 3

my_input is a float or integer value with one or more components – e.g. float2(x, y), integer3(x, y, z)

input["param1"] || input["param2"] input.param1 || input.param2

param1 and param2 are boolean values

And

input["param1"] > 0 && input["param2"] > 1 input.param1 > 0 && input.param2 > 1

param1 and param2 are float or integer values
