Cells 2

Last update: September 10, 2026

Cells 2 - Icon {width="200px"}

In: Texture generators > Noises

Description

A variation of the Cells walled noises.

A binary mask of the cells with an adjustable wall thickness.

See also: Cells 1, Cells 3, Cells 4

Outputs

Output Grayscale
The generated noise as a grayscale bitmap.

Parameters

Scale Integer
The subdivision of the grid used to generate the noise tiles. A higher value results in more tiles being drawn and a denser noise.
Edge width Float
Adjusts the thickness of the walls between cells, as a ratio of the grid. (I.e. not dependent on resolution)
Invert Boolean
Switches blacks and whites in the output image.
Disorder Float
Displaces the ingredients of the noise. This can be used to animate the noise.
Disorder speed Float
Adjusts the distance of displacement applied by the Disorder parameter. This can be used to control the speed of displacement when animating the noise.
Non-square expansion Boolean
In non-square images, keeps the generated tile square and expands the noise generation to the image’s bounds.

Examples

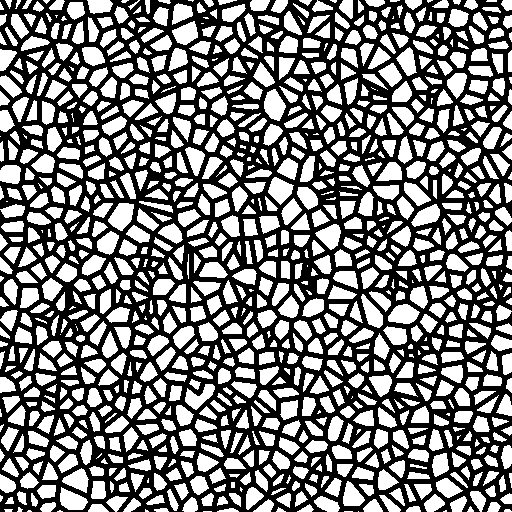

Cells 2 - Example 1 {modal="regular"}

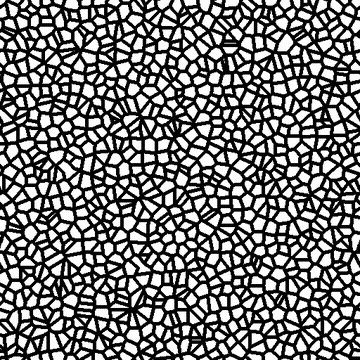

Cells 2 - Example 2 {modal="regular"}
