1.2.4 Automation using Connectors

You will now start using the out-of-the-box connectors in Workfront Fusion for Photoshop and you’ll connect the Firefly Text-2-Image request and the Photoshop requests into one scenario.

1.2.4.1 Update variables

Before continuing with the connector setup, the following variables need to be added to the Initialize Constants module.

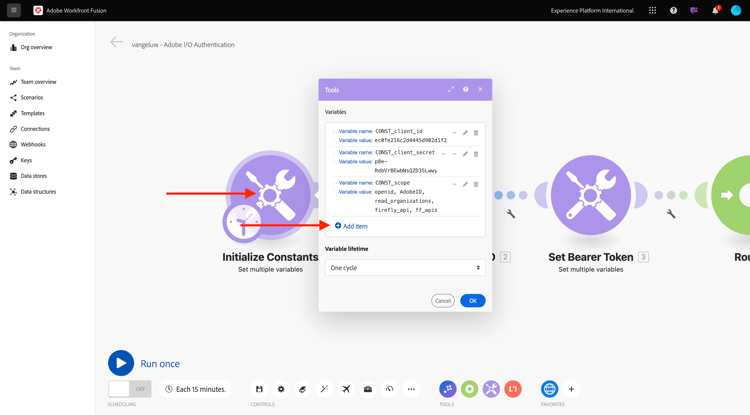

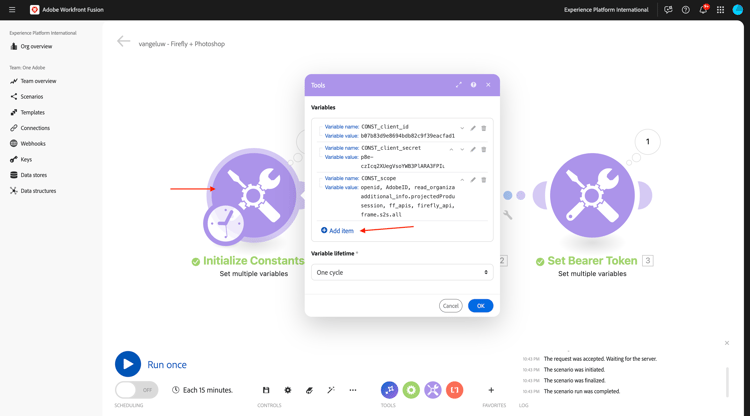

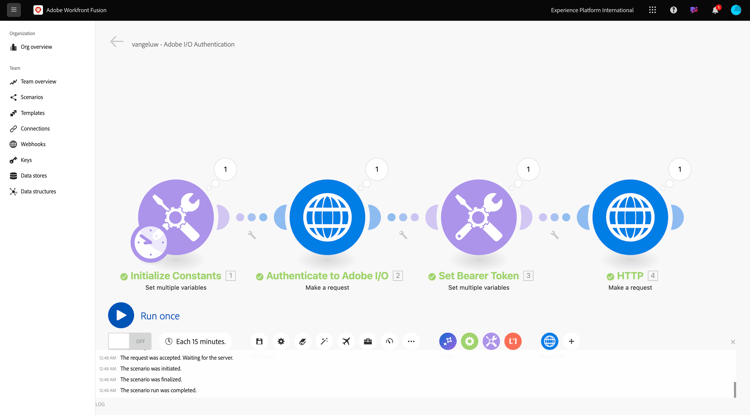

Go back to your first node, select Initialize Constants and then choose Add item for each of these variables.

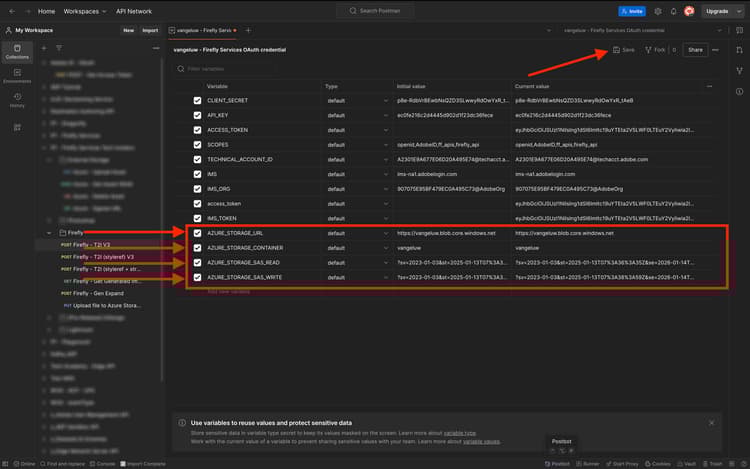

You can find your variables by going back to Postman, and opening your Environment Variables.

Copy these values across to Workfront Fusion, and add a new item for each of these 4 variables.

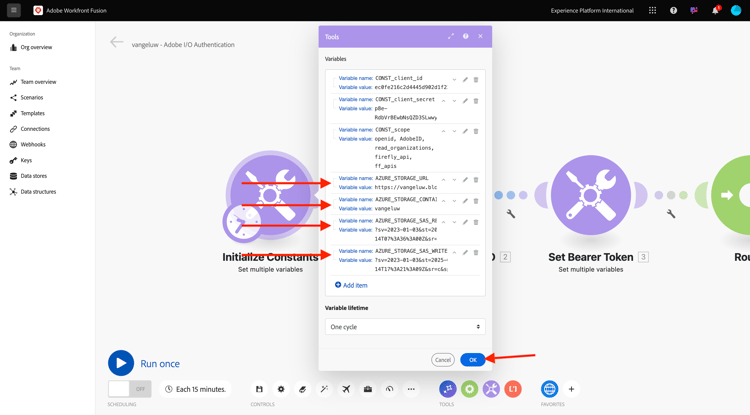

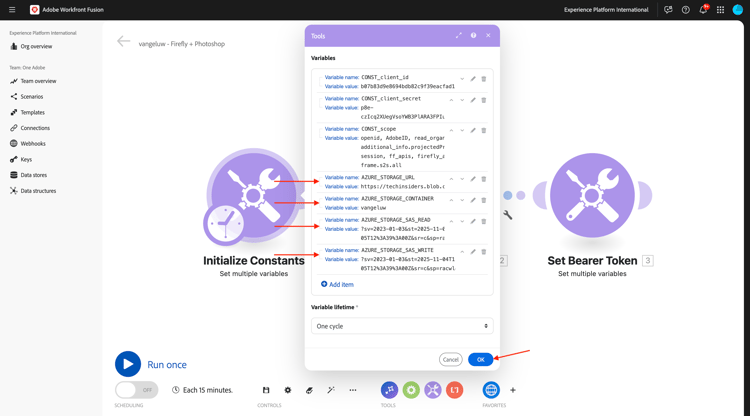

Your screen should look like this. Select OK.

1.2.4.2 Activate your scenario using a webhook

So far, you’ve run your scenario manually to test. Let’s now update your scenario with a webhook, so that it can be activated from an external enviroment.

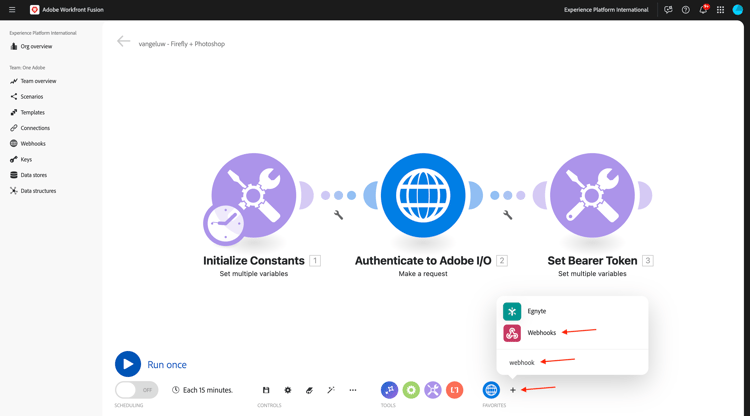

Select +, search for webhook and then select Webhooks.

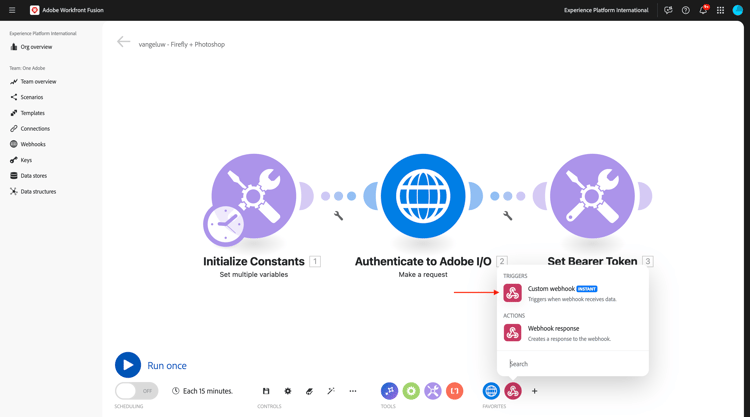

Select Custom webhook.

Drag the Custom webhook module to the beginning of your scenario. Next, select the clock icon and drag it onto the Custom webhook module.

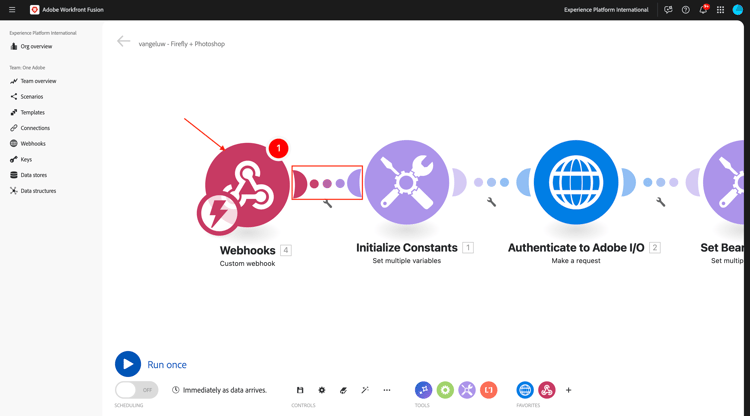

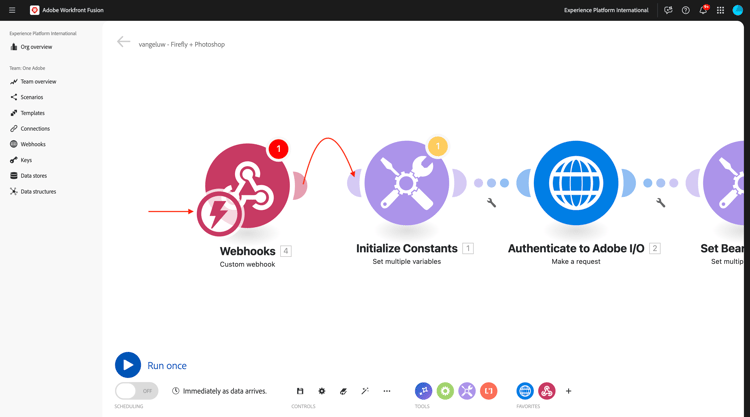

You should then see this. Next, drag the red dot on the first module towards the purple dot on the second module.

You should then see this. Newt, click the Custom webhook module.

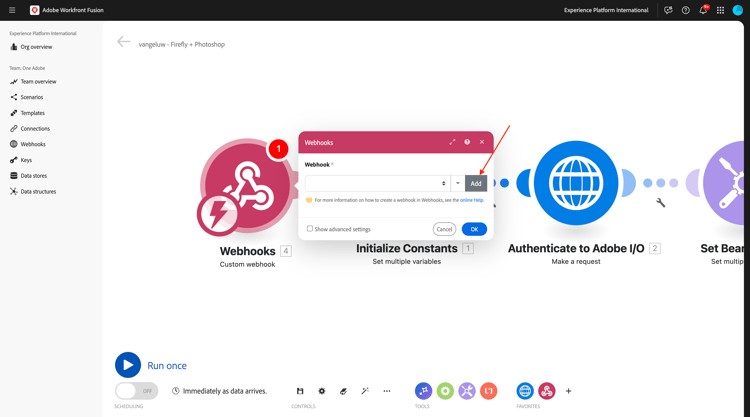

Click Add.

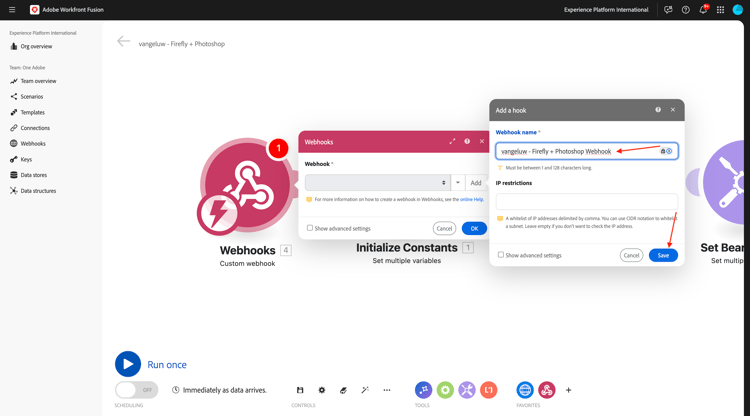

Set the Webhook name to --aepUserLdap-- - Firefly + Photoshop Webhook. Click Save.

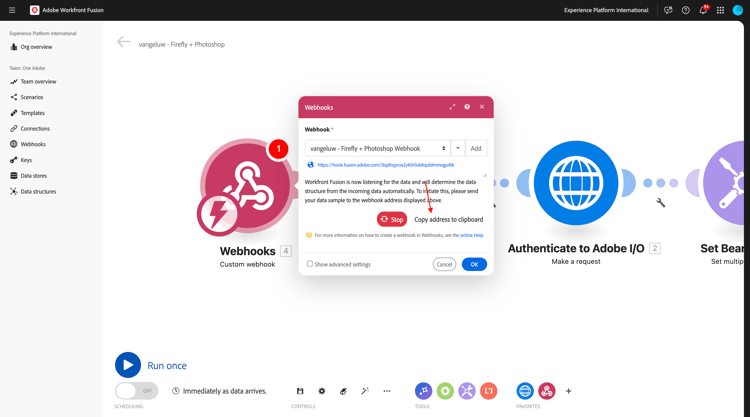

Your webhook URL is now available. Click Copy address to clipboard to copy the URL.

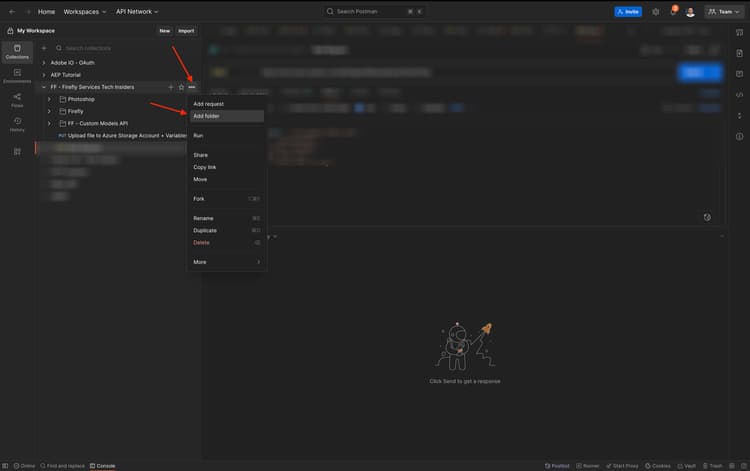

Open Postman, and add a new folder in the collection FF - Firefly Services Tech Insiders.

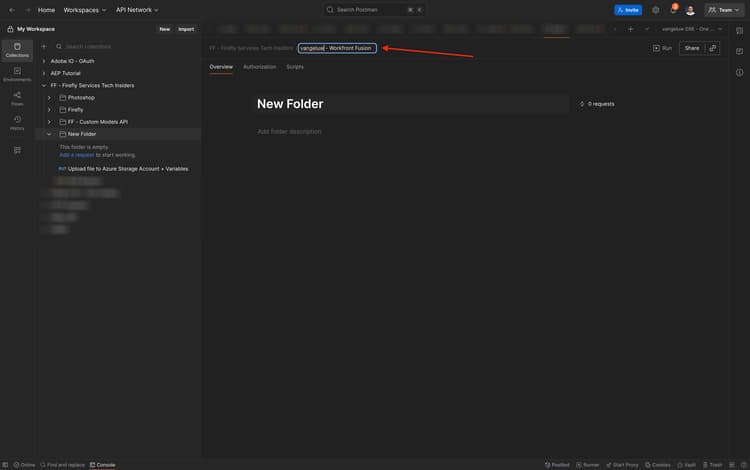

Name your folder --aepUserLdap-- - Workfront Fusion.

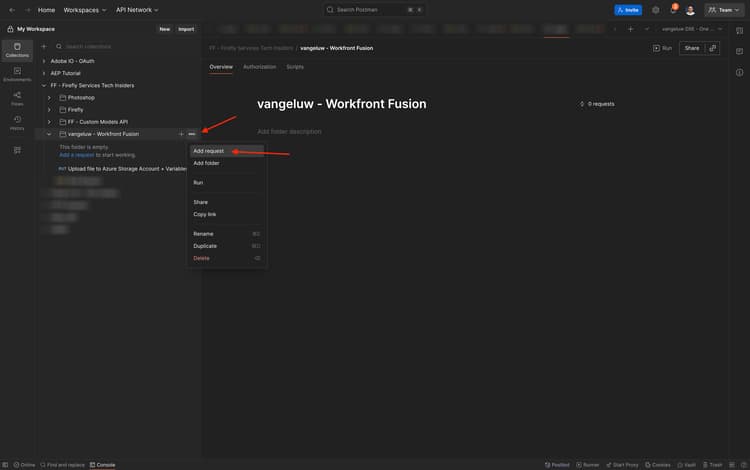

In the folder that you just created, select the 3 dots … and select Add request.

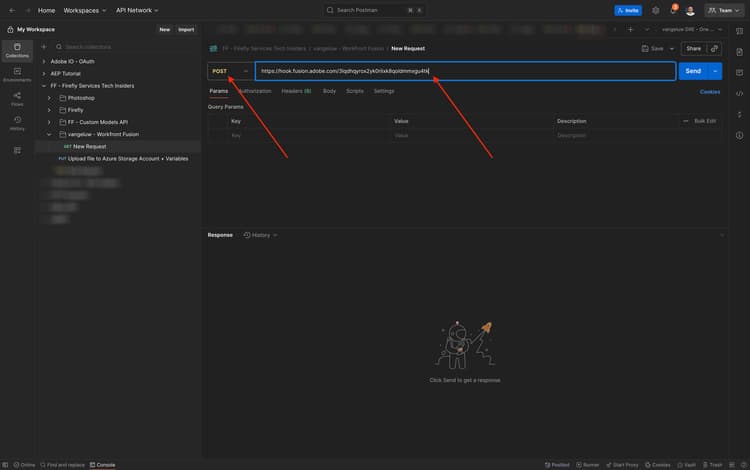

Set the Method type to POST and paste the URL of your webhook in the address bar.

You need to send a custom body, so that the variable elements can be provided from an external source to your Workfront Fusion scenario.

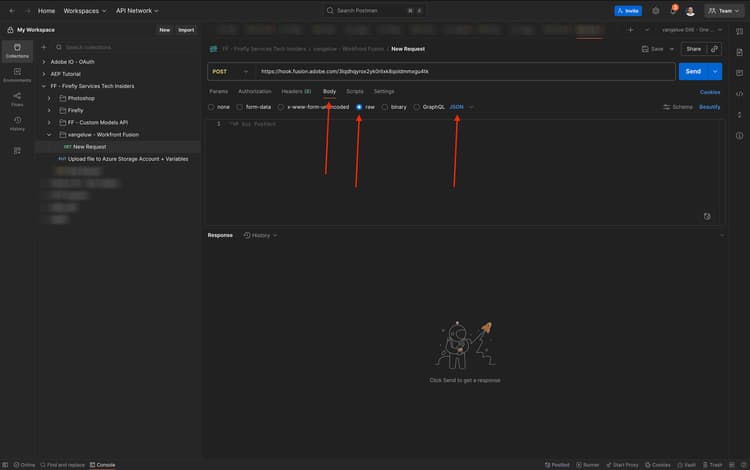

Go to Body and select raw.

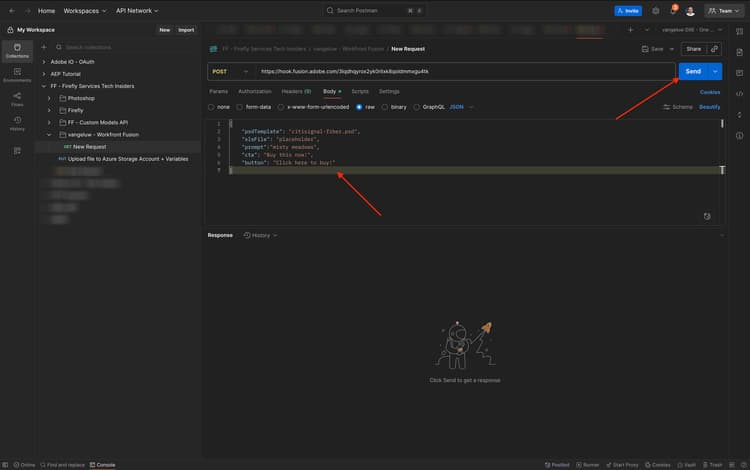

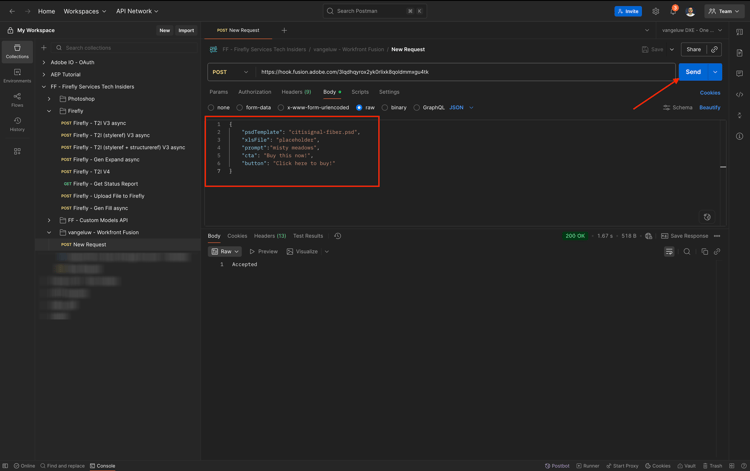

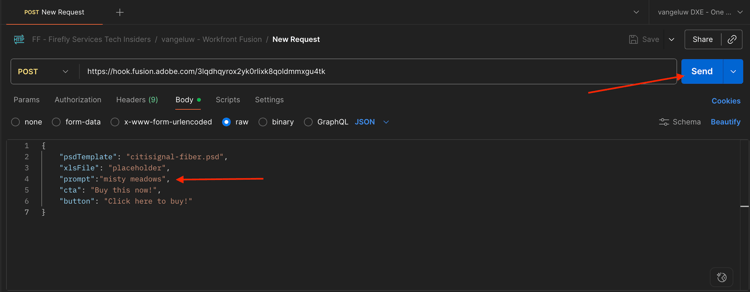

Paste the below text in the body of your request. Select Send.

{
    "psdTemplate": "citisignal-fiber.psd",
    "xlsFile": "placeholder",
    "prompt":"misty meadows",
    "cta": "Buy this now!",
    "button": "Click here to buy!"
}

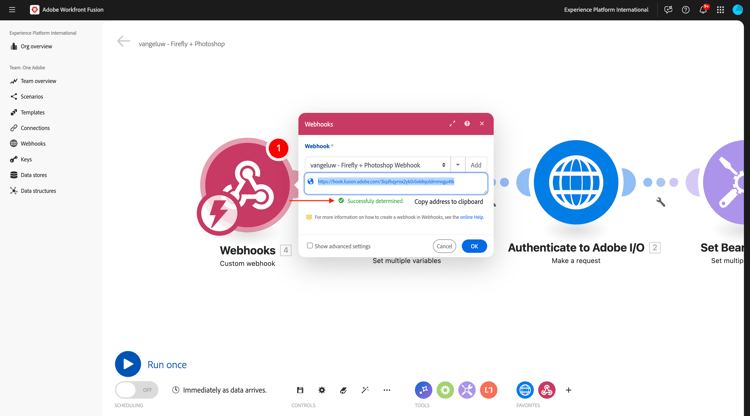

Back in Workfront Fusion, a message on your custom webhook appears that says: Successfully determined.

1.2.4.3 Adobe Firefly Connector

Click the + icon to add a new module.

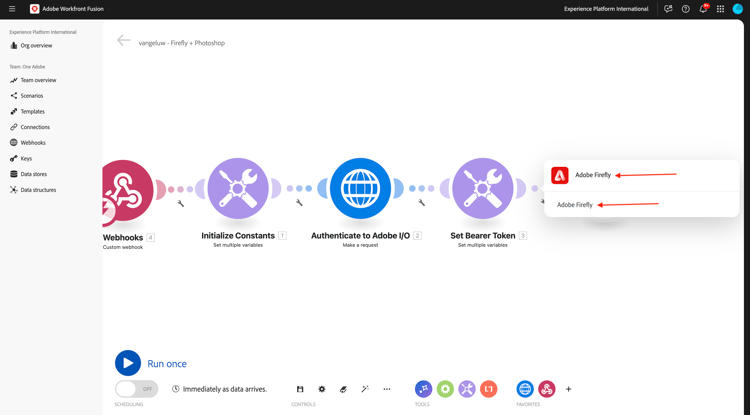

Enter the search term Adobe Firefly and then select Adobe Firefly.

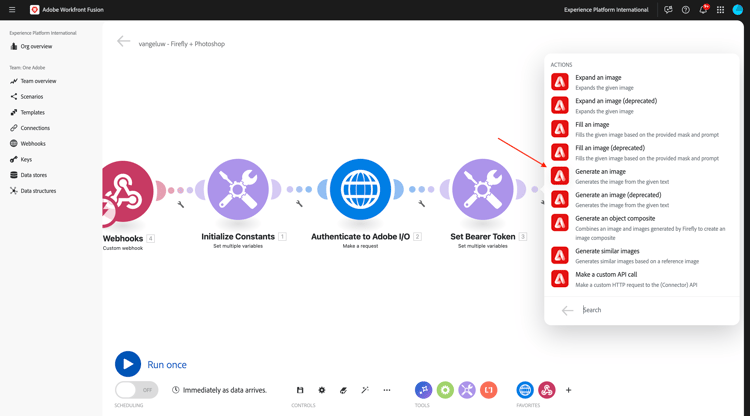

Select Generate an image.

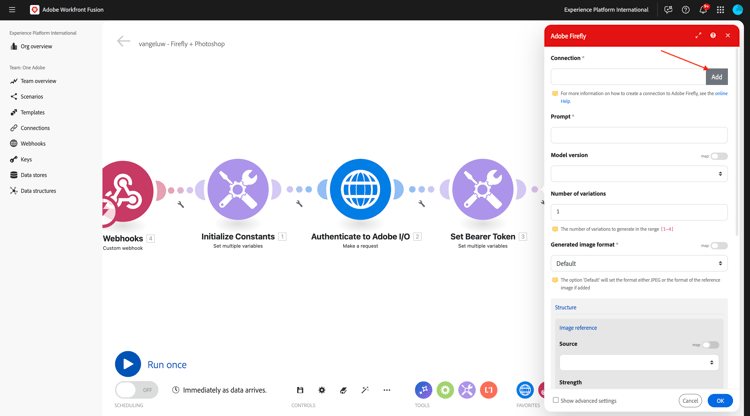

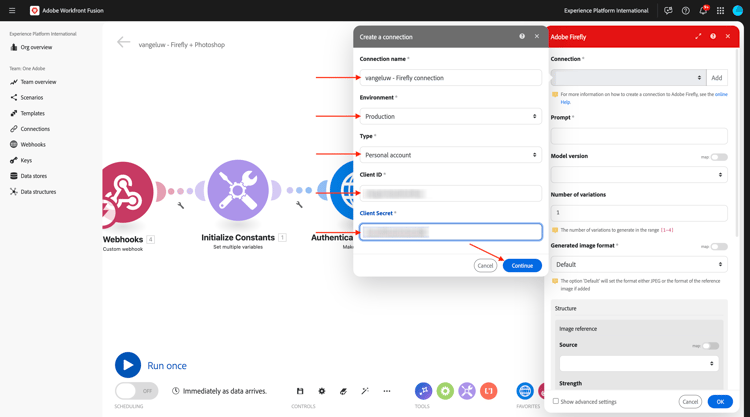

Click the Adobe Firefly module to open it, and then click Add to create a new connection.

Fill outthe following fields:

You can find the Client ID and Client Secret of your Adobe I/O project here.

Once you’ve filled out all the fields, click Continue. Your connection will then be validated automatically.

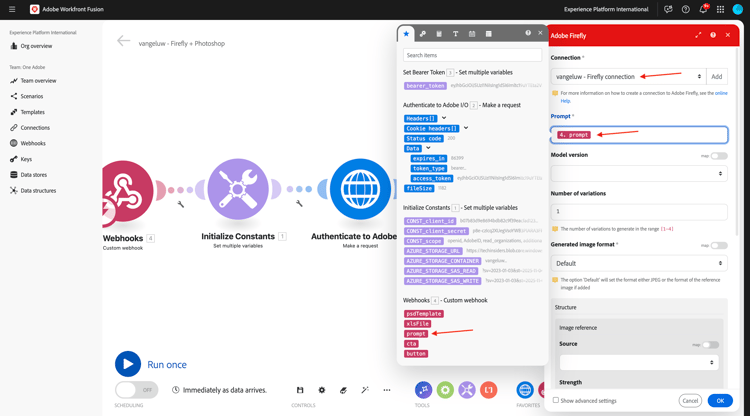

Next, select the variable prompt which is provided to the scenario by the incoming Custom webhook.

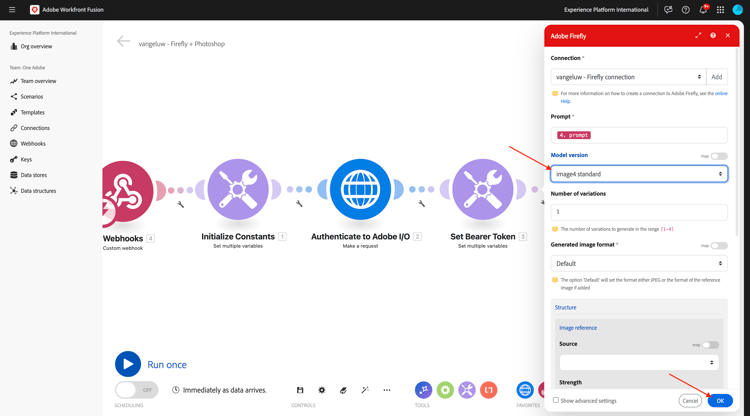

Set the Model version prompt to image4 standard. Click OK.

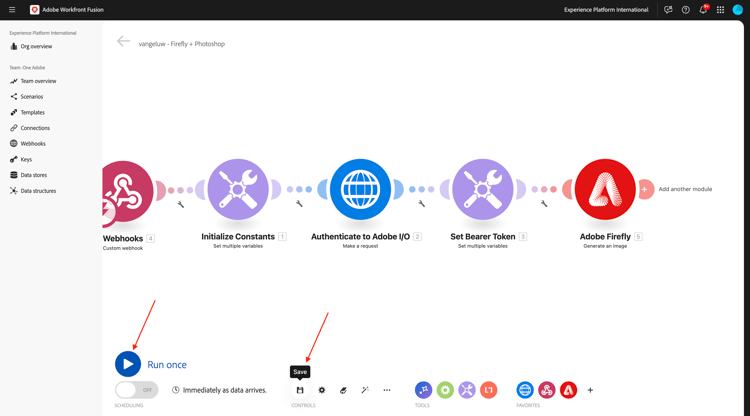

Click Save to save your changes and then click Run once to test your configuration.

Go to Postman, verify the prompt in your request and then click Send.

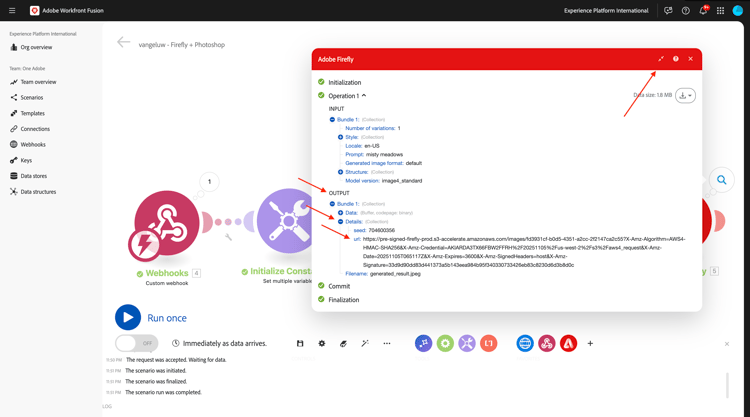

Once you’ve clicked send, go back to Workfront Fusion and click the bubble icon on the Adobe Firefly module to verify the details.

Go into OUTPUT to Details > url to find the URl of the image that was generated by Adobe Firefly.

Copy the URL and past it in your browser. You should now see an image that represents the prompt you sent in from the Postman request, in this case misty meadows.

1.2.4.2 Change background of PSD file

You will now update your scenario to make it smarter by using more out-of-the-box connectors. You’ll also connect the output from Firefly to Photoshop, so that the background image of the PSD-file changes dynamically by using the output from the Firefly Generate Image action.

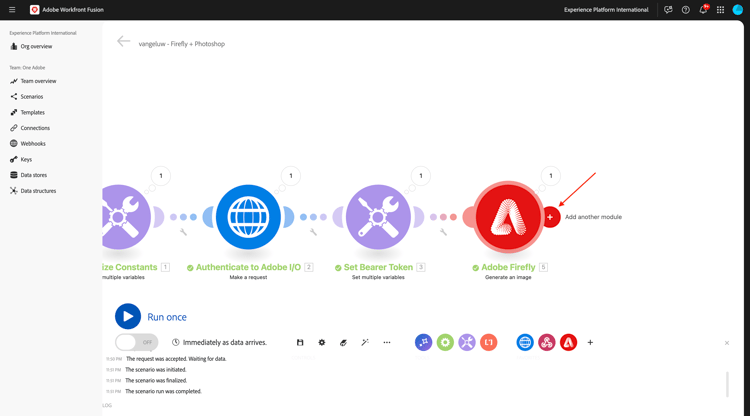

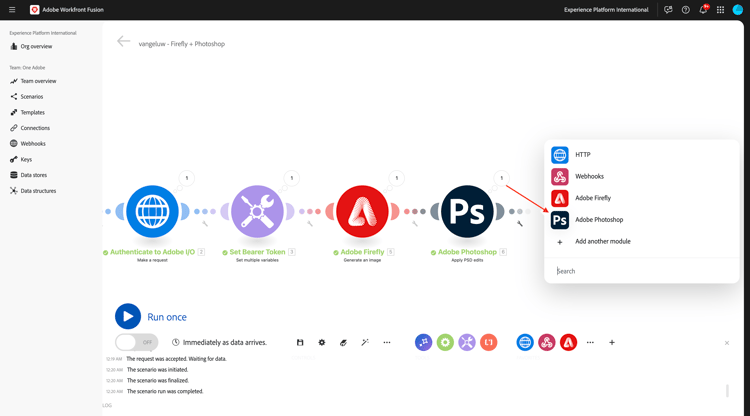

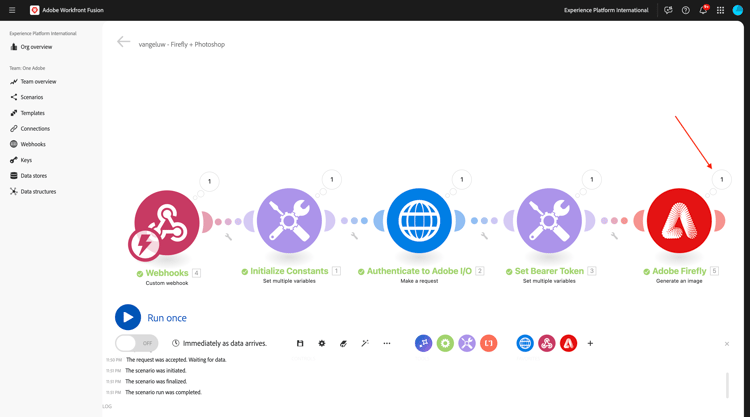

You should then see this. Next, hover over the Adobe Firefly module and click the + icon.

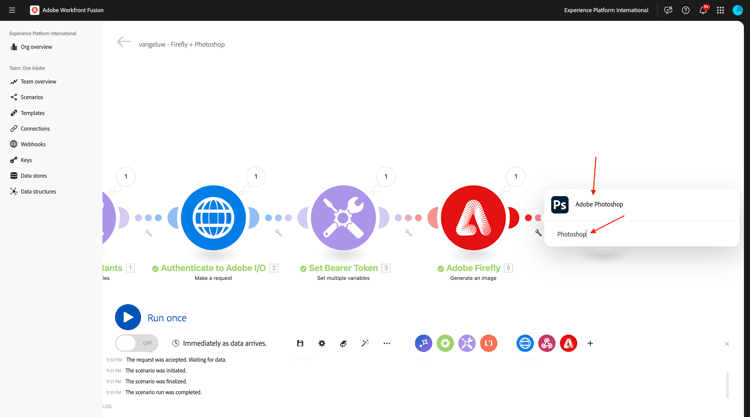

In the search menu, enter Photoshop and then click the Adobe Photoshop action.

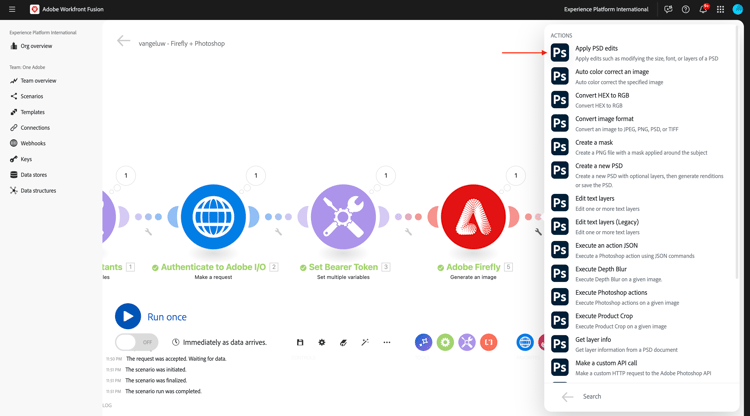

Select Apply PSD edits.

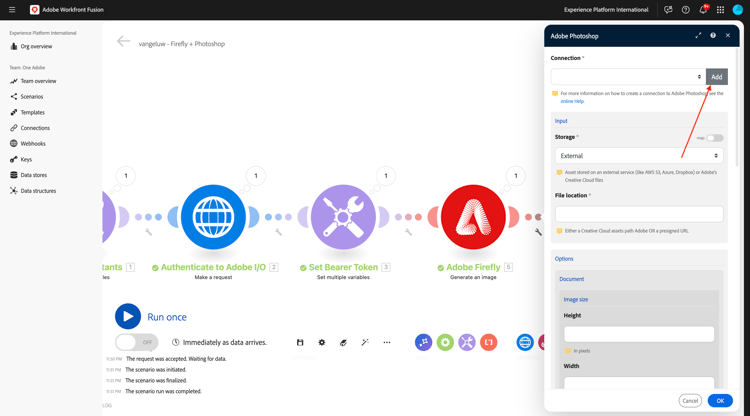

You should then see this. Click Add to add a new connection to Adobe Photoshop.

Configure your connection as follows:

Click Continue.

To find your Client ID and Client Secret, go to https://developer.adobe.com/console/home and open your Adobe I/O project, which is named --aepUserLdap-- One Adobe tutorial. Go to OAuth Server-to-Server to find your Client ID and Client Secret. Copy those values and paste them in the connection setup in Workfront Fusion.

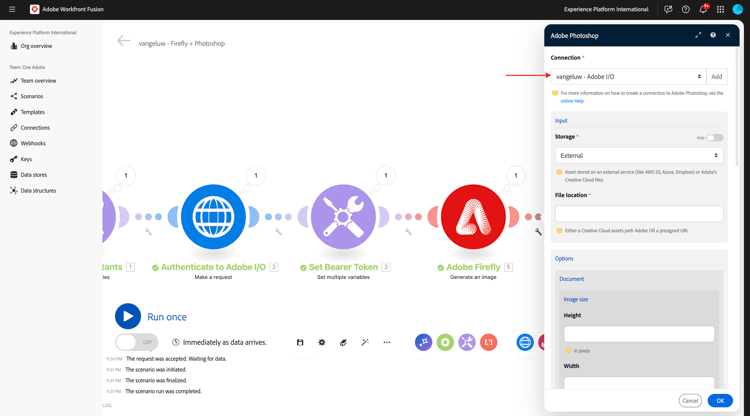

After clicking Continue, a popup window will be shown briefly while your credentials are being verified. Once done, you should see this.

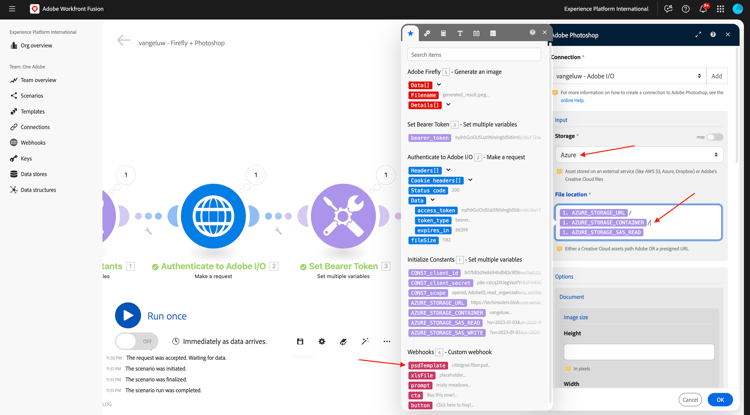

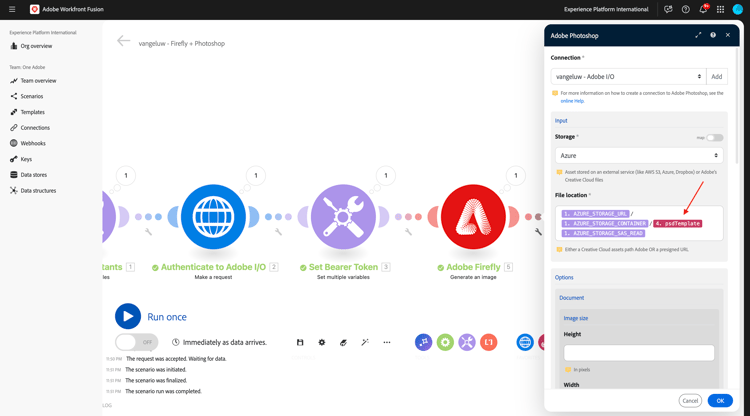

You now need to enter the file location of the PSD file that you want Fusion to work with. For Storage, select Azure and for File location, enter {{1.AZURE_STORAGE_URL}}/{{1.AZURE_STORAGE_CONTAINER}}/{{1.AZURE_STORAGE_SAS_READ}}. Put the cursor next to the second /. Then, have a look a the available variables and scroll down to find the variable psdTemplate. Click the variable psdTemplate to select it.

You should then see this.

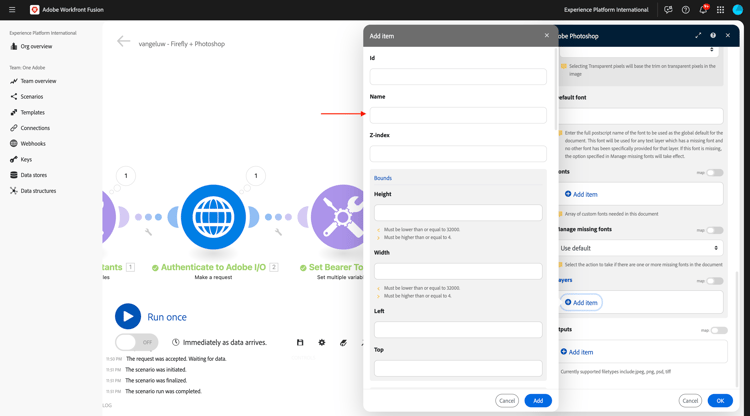

Scroll all the way down until you see Layers. Click Add item.

You should then see this. You now need to enter the name of the layer in your Photoshop PSD template that is used for the background of the file.

In the file citisignal-fiber.psd, you’ll find the layer that used for the background. In this example, that layer is named 2048x2048-background.

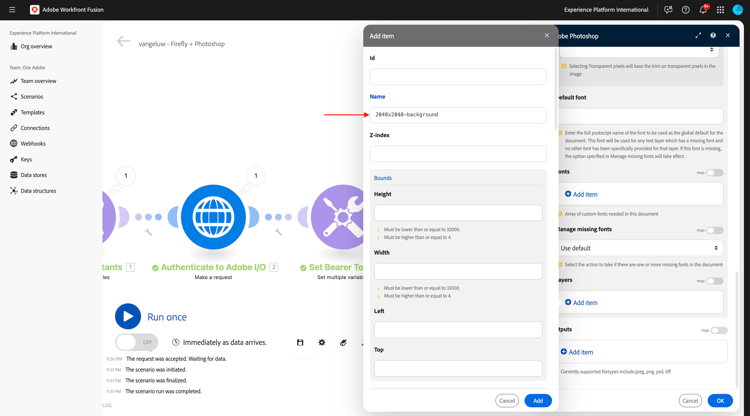

Paste the name 2048x2048-background in the Workfront Fusion dialog.

Scroll down until you see Input. You now need to define what needs to be inserted in the background layer. In this case, you need to select the output of the Adobe Firefly module, which contains the dynamically generated image.

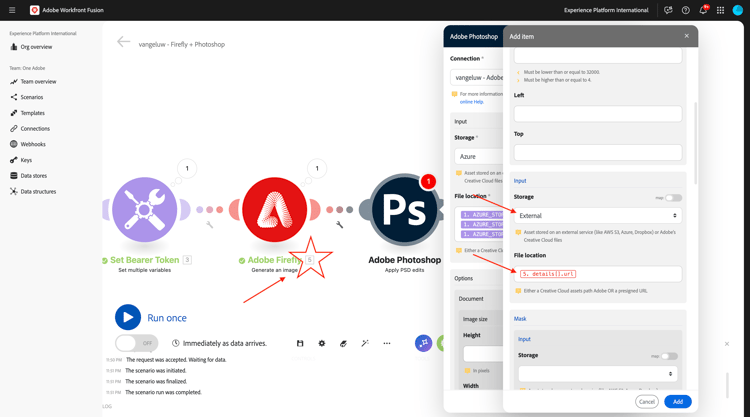

For Storage, select External. For File location, you will need to copy and paste the variable {{XX.details[].url}} from the output of the Adobe Firefly module but you need to replace XX in the variable by the sequence number of the Adobe Firefly module, which in this example is 5.

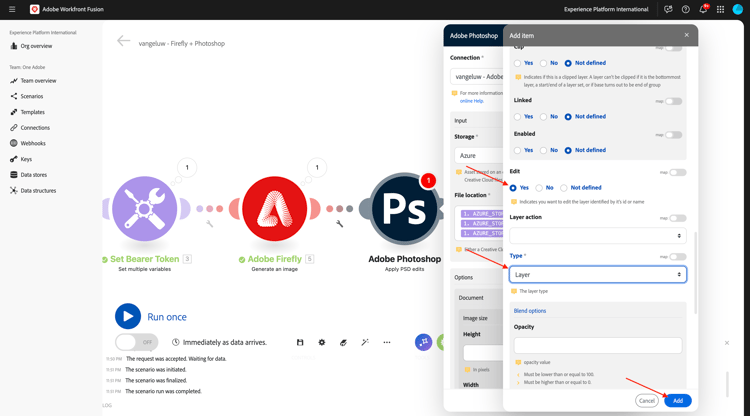

Next, scroll down until you see Edit. Set Edit to Yes and set Type to Layer. Click Add.

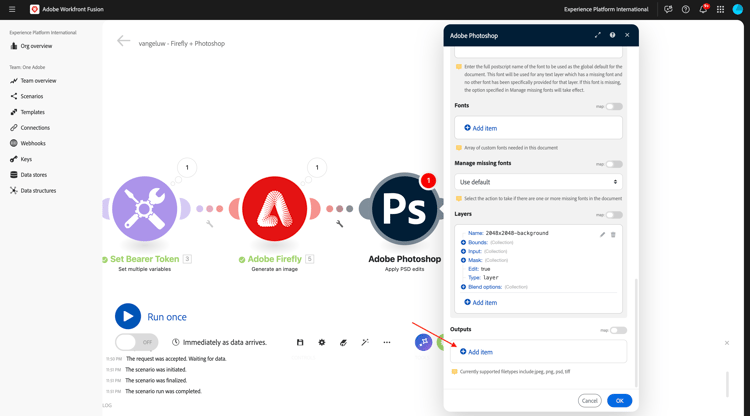

You should then see this. Next, you need to define the output of the action. Click Add item under outputs.

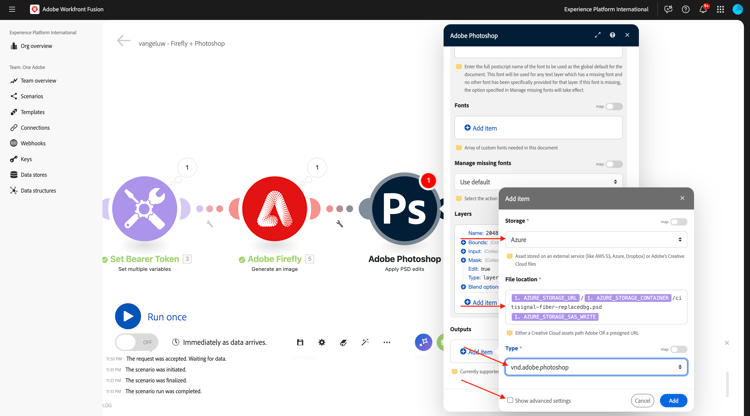

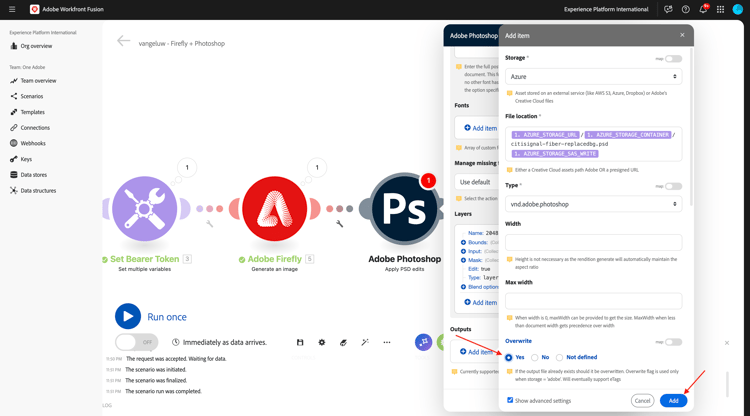

Select Azure for Storage, paste this {{1.AZURE_STORAGE_URL}}/{{1.AZURE_STORAGE_CONTAINER}}/citisignal-fiber-replacedbg.psd{{1.AZURE_STORAGE_SAS_WRITE}} under File Location and select vnd.adobe.photoshop under Type. Click to enable Show advanced settings.

Under Advanced Settings, select Yes to overwrite files with the same name.
Click Add.

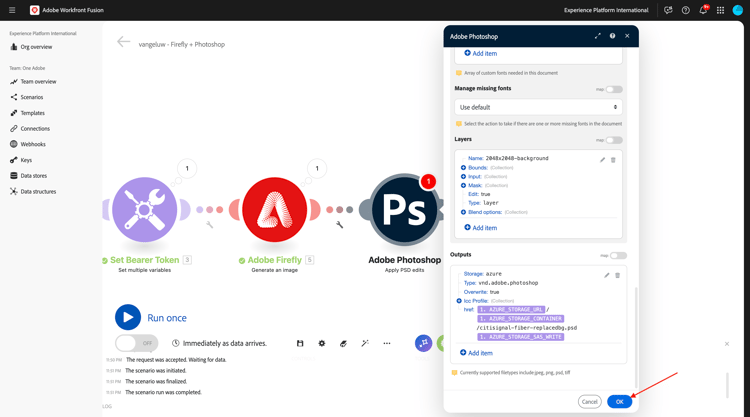

You should then have this. Click OK.

Click Save to save your changes and then click Run once to test your configuration.

Go to Postman, verify the prompt in your request and then click Send.

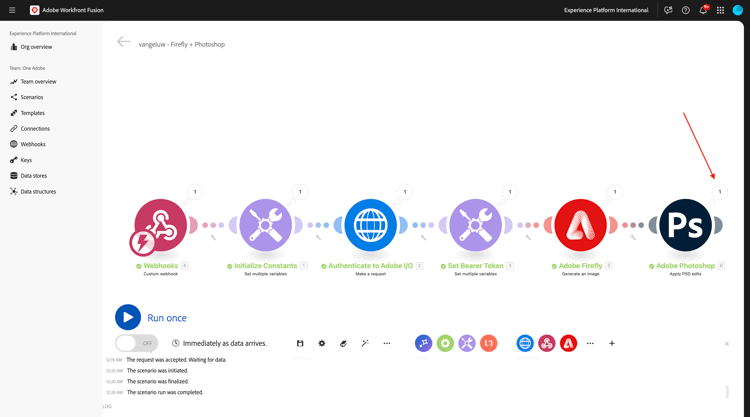

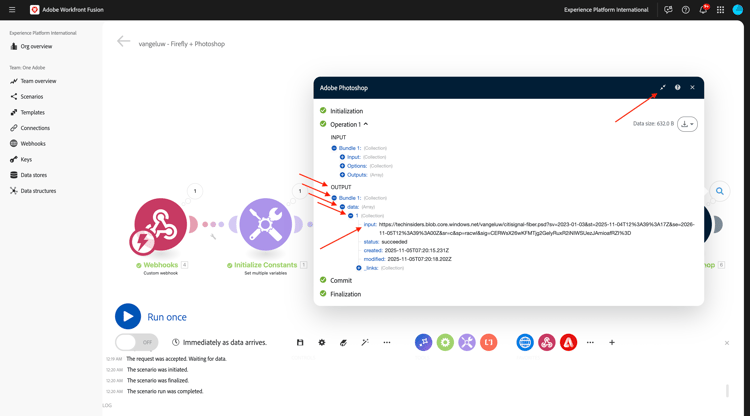

You should then see this. Click the bubble on the Adobe Photoshop - Apply PSD edits module.

You can now see that a new PSD file was generated successfully and stored in your Microsoft Azure Storage Account.

1.2.4.3 Change text layers of PSD file

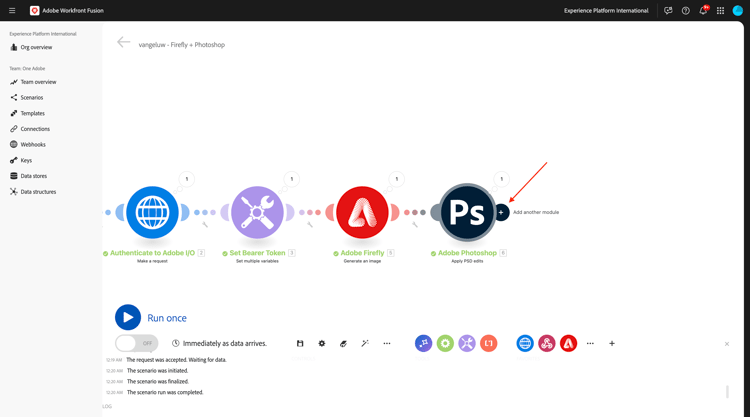

Next, hover over the Adobe Photoshop - Apply PSD edits module and click the + icon.

Select Adobe Photoshop.

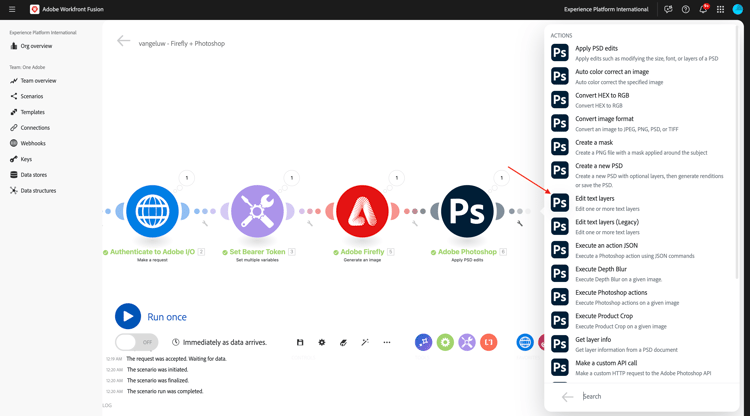

Select Edit text layers.

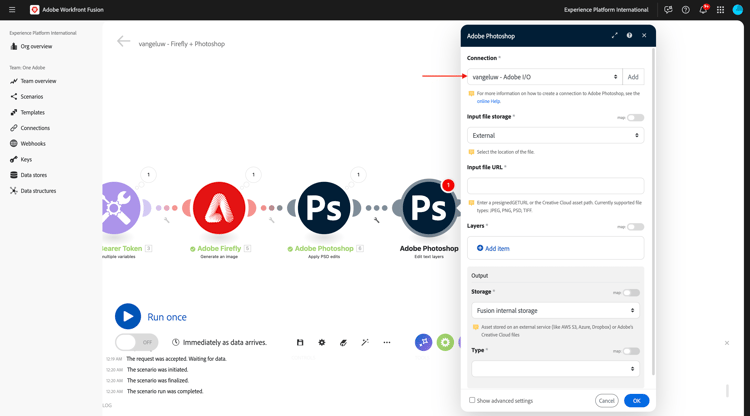

You should then see this. First, select your previously already configured Adobe Photoshop connection, which should be named --aepUserLdap-- Adobe I/O.

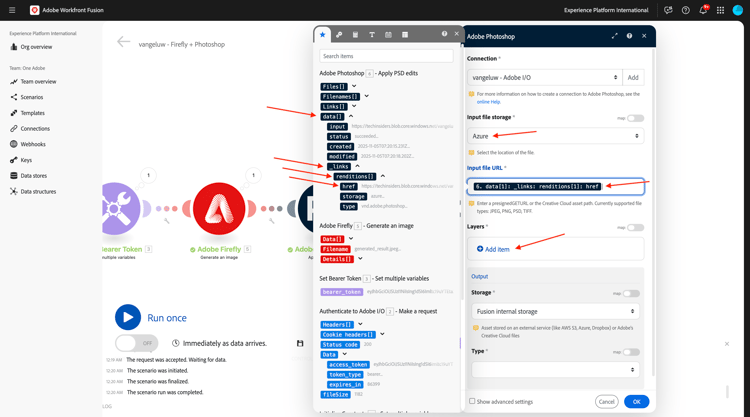

For the Input file, select Azure for Input file storage and make sure to select the output from the previous request, Adobe Photoshop - Apply PSD edits, which you can define like this: {{XX.data[].`_links`.renditions[].href}} (replace XX by the sequence number of the previous module Adobe Photoshop - Apply PSD edits).

Next, click +Add item under Layers to start adding the text layers that need to be updated.

There are 2 changes to make, the CTA text and the button text in the file citisignal-fiber.psd need to be updated.

To find the layer names, open the file citisignal-fiber.psd. In the file, you’ll notice that the layer containing the call to action is named 2048x2048-cta.

In the file citisignal-fiber.psd, you’ll also notice that the layer containing the call to action is named 2048x2048-button-text.

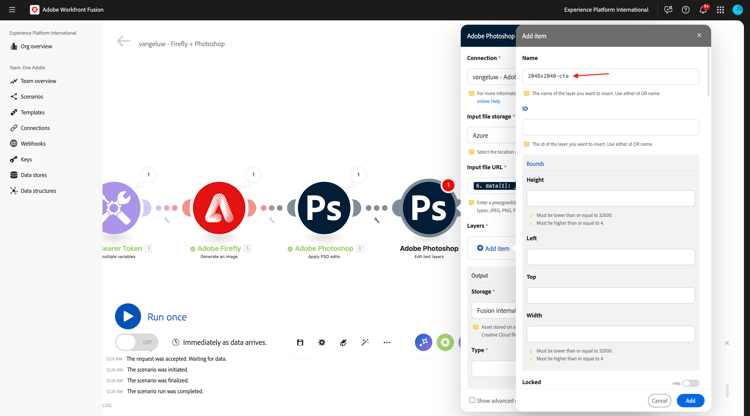

You first need to configure the changes that need to happen to the layer 2048x2048-cta. Enter the name 2048x2048-cta under Name in the dialog.

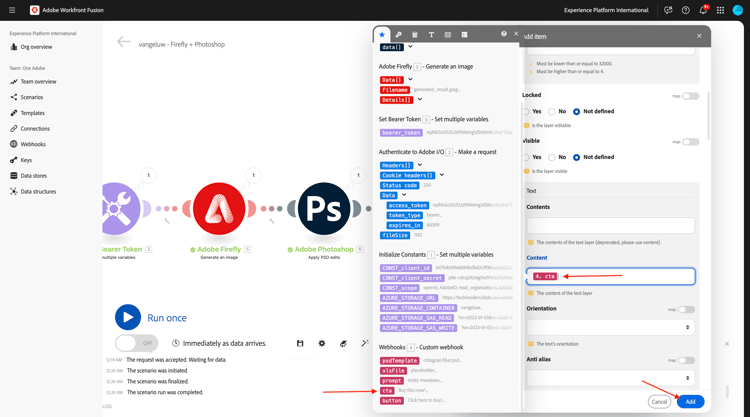

Scroll down until you see Text > Content. Select the variable cta from the Webhook payload. Click Add.

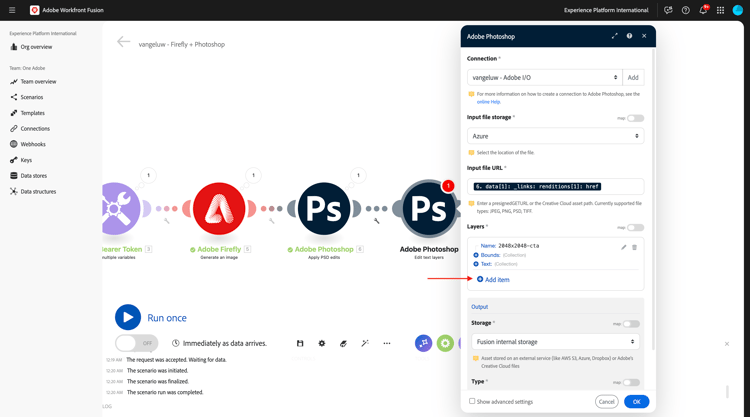

You should then see this. Click click +Add item under Layers to start adding the next text layer that needs to be updated.

Enter the name 2048x2048-button-text under Name in the dialog.

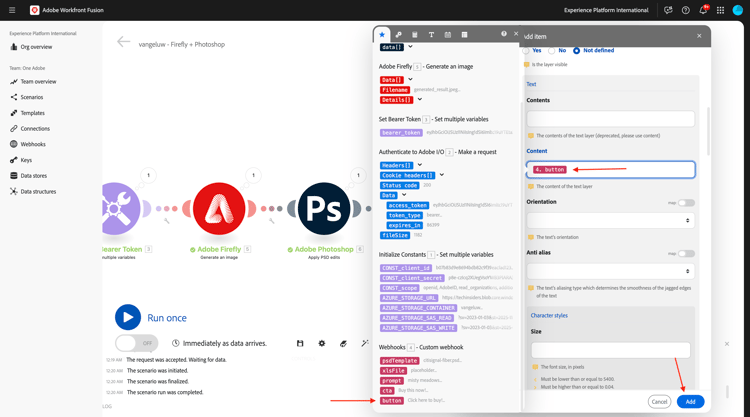

Scroll down until you see Text > Content. Select the variable button from the Webhook payload. Click Add.

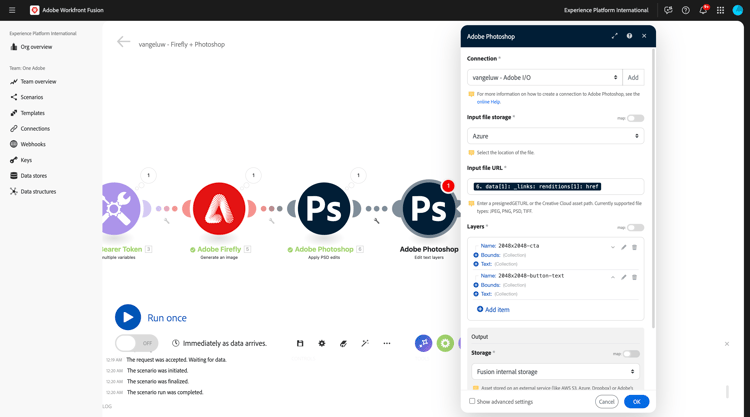

You should then see this.

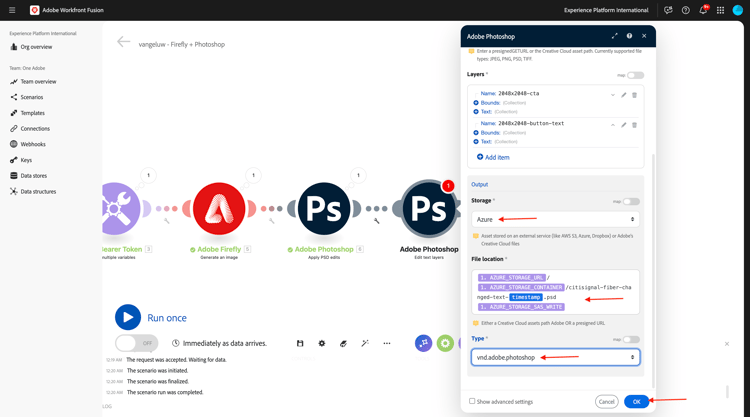

Scroll down until you see Output. For Storage, select Azure. For File location, enter the below location. Please note the addition of the variable {{timestamp}} to the filename which is used to ensure that every file that is generated has a unique name. Also, set the Type to vnd.adobe.photoshop.

{{1.AZURE_STORAGE_URL}}/{{1.AZURE_STORAGE_CONTAINER}}/citisignal-fiber-changed-text-{{timestamp}}.psd{{1.AZURE_STORAGE_SAS_WRITE}}

Set Type to vnd.adobe.photoshop. Click OK.

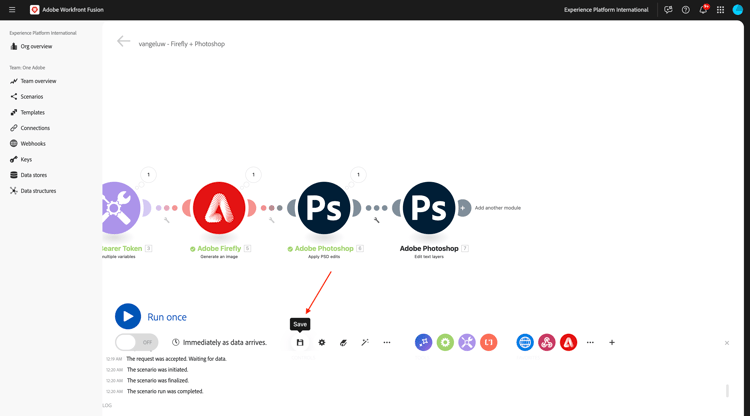

Click Save to save your changes.

1.2.4.4 Webhook response

After applying these changes to your Photoshop file, you now need to configure a Webhook response which will be sent back to whichever application has activated this scenario.

Hover over the module Adobe Photoshop - Edit text layers and click the + icon.

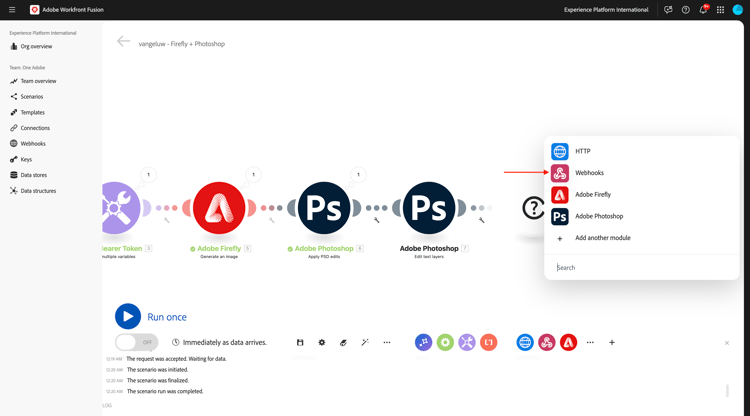

Search for webhooks and select Webhook.

Select Webhook response.

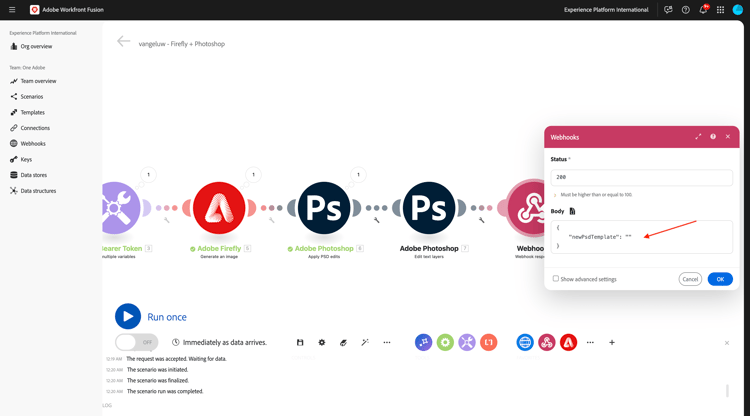

You should then see this. Paste the below payload in Body.

{
    "newPsdTemplate": ""
}

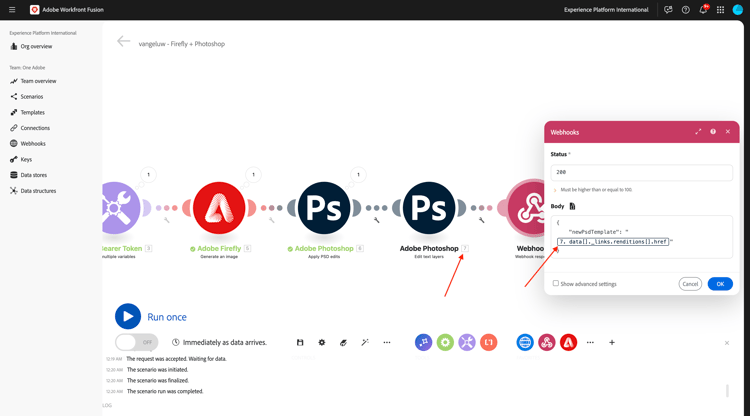

Copy and paste the variable {{XX.data[]._links.renditions[].href}} and replace XX by the sequence number of the last Adobe Photoshop - Edit text layers module, which in this case is 7.

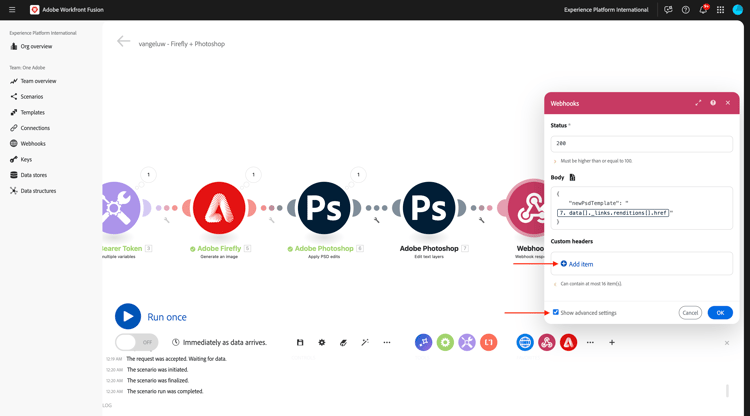

Enable the checkbox for Show advanced settings and then click Add item.

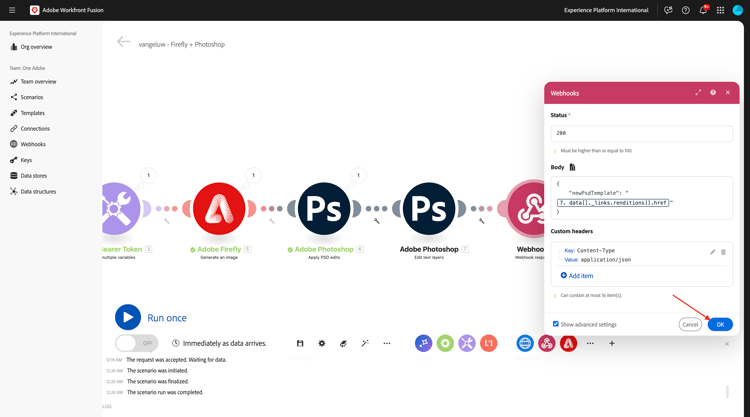

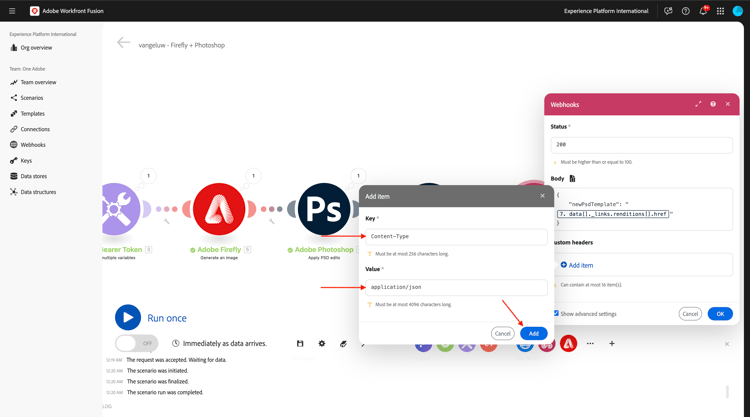

In the field Key, enter Content-Type. In the field Value, enter application/json. Click Add.

You should then have this. Click OK.

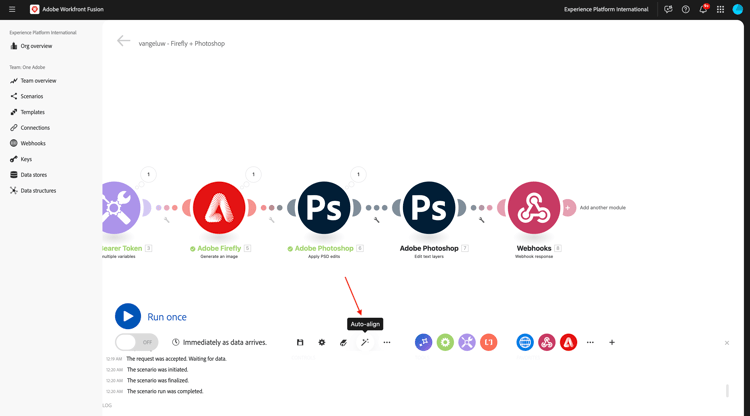

Click Auto-align.

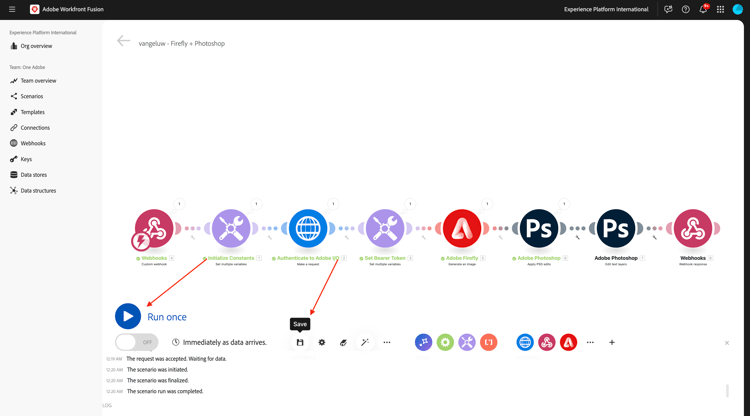

You should then see this. Click Save to save your changes and then click Run once to test your scenario.

Go back to Postman and click Send. The prompt being used here is misty meadows.

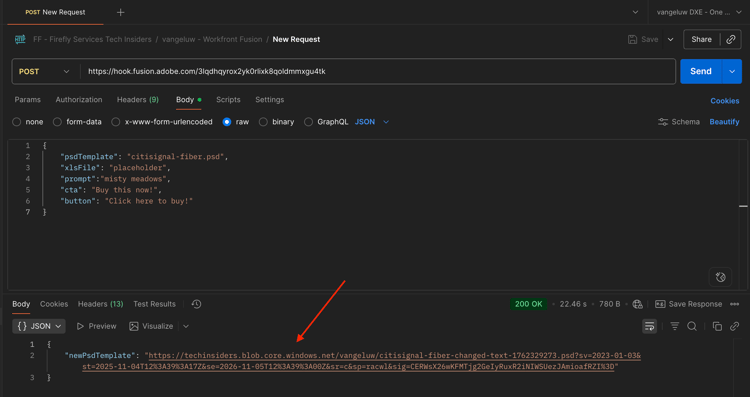

The scenario will then be activated and after some time, a response will be shown in Postman that contains the URL of the newly created PSD file.

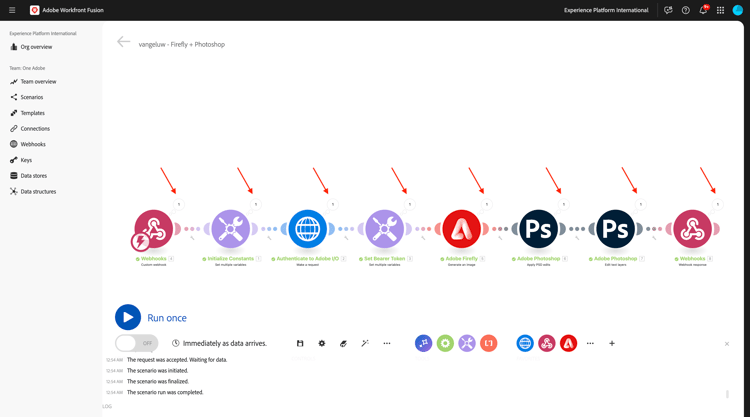

As a reminder: once the scenario has run in Workfront Fusion, you’ll be able to see information about each module by clicking the bubble above each module.

Using Azure Storage Explorer, you can then find and open the newly created PSD file by double-clicking it in Azure Storage Explorer.

Your file should then look like this, with the background that is replaced by a background with misty meadows.

If you run your scenario once again, and then send a new request from Postman using a different prompt, you’ll then see how easy and reusable your scenario has become. In this example, the new prompt being used is sunny desert.

And a couple of minutes later, a new PSD file has been generated with a new background.
