1.1.5 AEM Edge Delivery Services MarTech plugin

The AEM MarTech plugin helps you quickly set up a complete MarTech stack for your AEM project.

1.1.5.1 Add the plugin to your repo

Navigate to the folder that you’re using for your citisignal GitHub repository. Right-click the folder name and then select New Terminal at Folder.

{modal="regular"}

You’ll then see this. Paste the following command and hit enter.

git subtree add --squash --prefix plugins/martech https://github.com/adobe-rnd/aem-martech.git main

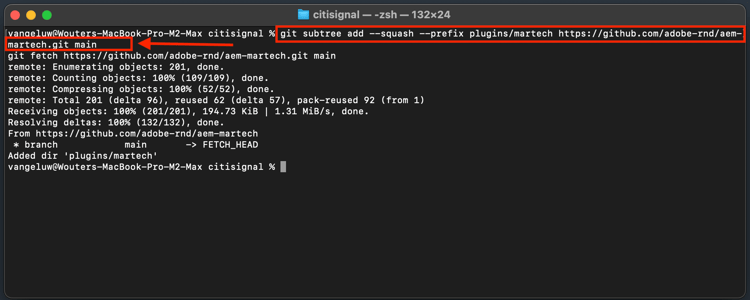

You should then see this.

{modal="regular"}

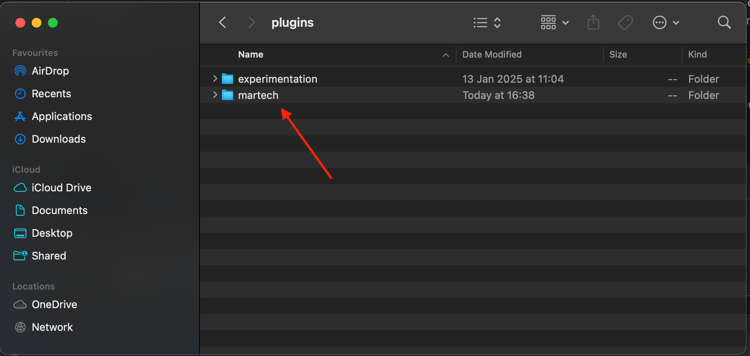

Navigate to the folder that you’re using for your citisignal GitHub repository, open the folder plugins. You should now see a folder named martech.

{modal="regular"}

1.1.5.2 head.html

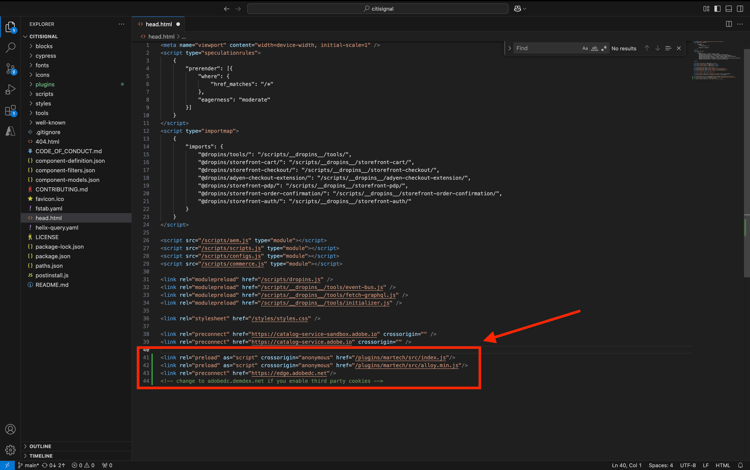

In Visual Studio Code, open the file head.html. Copy the below code and paste it in the file head.html.

<link rel="preload" as="script" crossorigin="anonymous" href="/plugins/martech/src/index.js"/>
<link rel="preload" as="script" crossorigin="anonymous" href="/plugins/martech/src/alloy.min.js"/>
<link rel="preconnect" href="https://edge.adobedc.net"/>
<!-- change to adobedc.demdex.net if you enable third party cookies -->

Save your changes.

{modal="regular"}

1.1.5.3 scripts.js

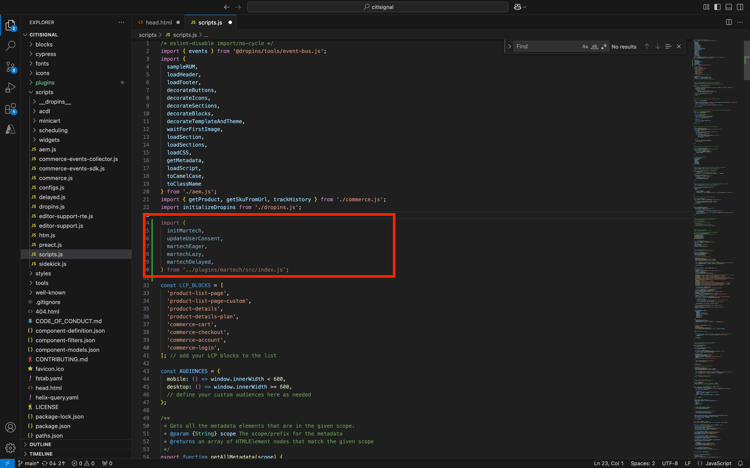

In Visual Studio Code, go to the folder scripts and open the file scripts.js. Copy the below code and paste it in the file scripts.js, under the existing import scripts.

import {
  initMartech,
  updateUserConsent,
  martechEager,
  martechLazy,
  martechDelayed,
} from '../plugins/martech/src/index.js';

Save your changes.

{modal="regular"}

In Visual Studio Code, in the file scripts.js, find the following code:

const AUDIENCES = {
  mobile: () => window.innerWidth < 600,
  desktop: () => window.innerWidth >= 600,
  // define your custom audiences here as needed
};

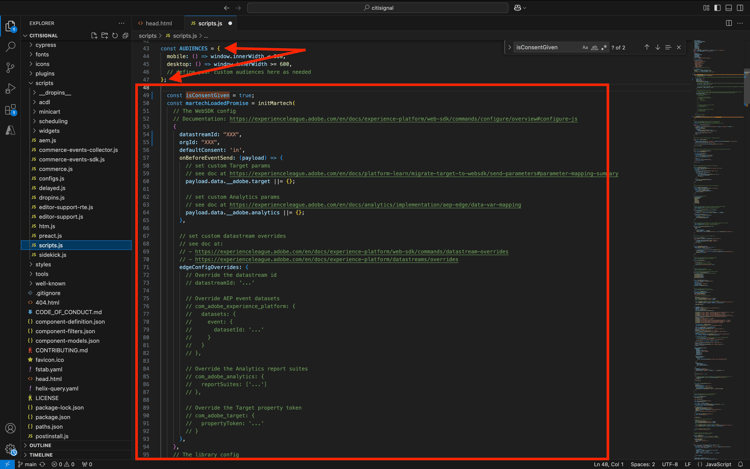

Under const AUDIENCES = {…}; paste the below code:

  const isConsentGiven = true;
  const martechLoadedPromise = initMartech(
    // The WebSDK config
    // Documentation: https://experienceleague.adobe.com/en/docs/experience-platform/web-sdk/commands/configure/overview#configure-js
    {
      datastreamId: "XXX",
      orgId: "XXX",
      defaultConsent: 'in',
      onBeforeEventSend: (payload) => {
        // set custom Target params
        // see doc at https://experienceleague.adobe.com/en/docs/platform-learn/migrate-target-to-websdk/send-parameters#parameter-mapping-summary
        payload.data.__adobe.target ||= {};

        // set custom Analytics params
        // see doc at https://experienceleague.adobe.com/en/docs/analytics/implementation/aep-edge/data-var-mapping
        payload.data.__adobe.analytics ||= {};
      },

      // set custom datastream overrides
      // see doc at:
      // - https://experienceleague.adobe.com/en/docs/experience-platform/web-sdk/commands/datastream-overrides
      // - https://experienceleague.adobe.com/en/docs/experience-platform/datastreams/overrides
      edgeConfigOverrides: {
        // Override the datastream id
        // datastreamId: '...'

        // Override AEP event datasets
        // com_adobe_experience_platform: {
        //   datasets: {
        //     event: {
        //       datasetId: '...'
        //     }
        //   }
        // },

        // Override the Analytics report suites
        // com_adobe_analytics: {
        //   reportSuites: ['...']
        // },

        // Override the Target property token
        // com_adobe_target: {
        //   propertyToken: '...'
        // }
      },
    },
    // The library config
    {
      launchUrls: ["XXX"],
      personalization: !!getMetadata('target') && isConsentGiven,
    },
  );

{modal="regular"}

There are a couple of variables that you need to replace in the above code, by your own environment’s variables:

You can find these variables by following these instructions:

datastreamId

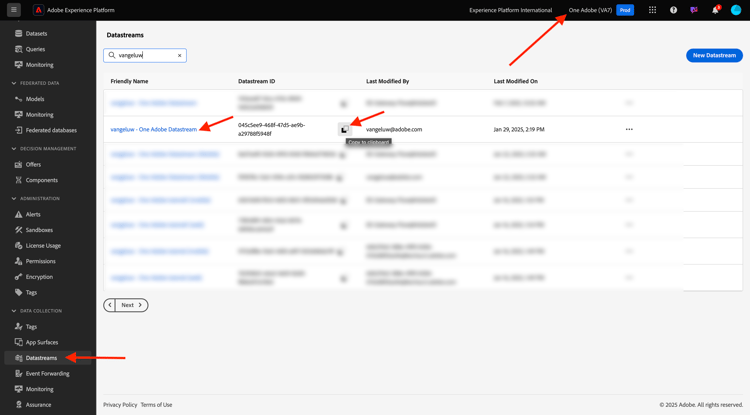

Go to https://platform.adobe.com/ and then go to Datastreams in the left menu. Ensure that you’re in the right sandbox, which should be --aepSandboxName--. Search the datastream that was created in the Getting Started section of this tutorial, which should be named --aepUserLdap-- - One Adobe Datastream. Click the copy icon to copy the Datastream ID and paste it in Visual Studio Code, in the file scripts.js, by replacing the placeholder value XXX next to datastreamId:.

{modal="regular"}

orgId

Go to https://platform.adobe.com/ and then go to Queries in the left menu. Under Credentials, you’ll find the IMS Org ID as Username. Click the copy icon to copy the IMS Org ID and paste it in Visual Studio Code, in the file scripts.js, by replacing the placeholder value XXX next to orgId:.

{modal="regular"}

launchUrls

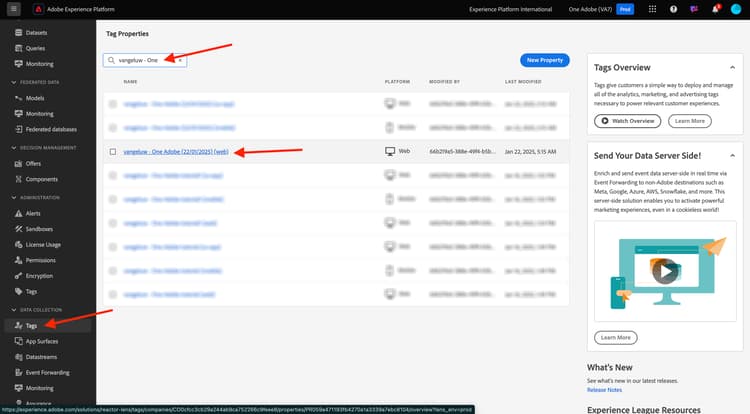

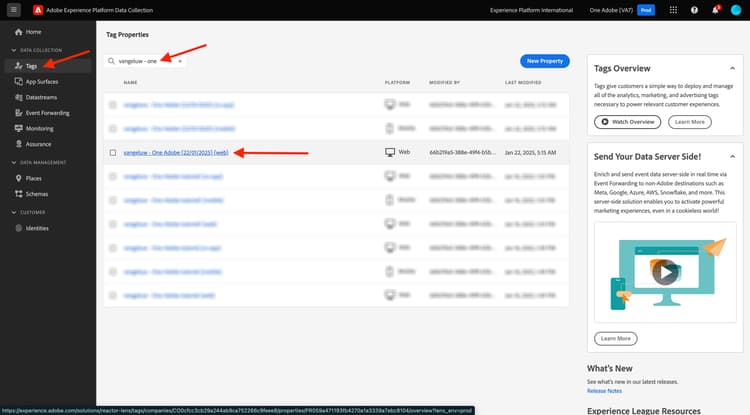

Go to https://platform.adobe.com/ and then go to Tags in the left menu. Search for your property using your LDAP, which should be --aepUserLdap--. Open your Web property.

{modal="regular"}

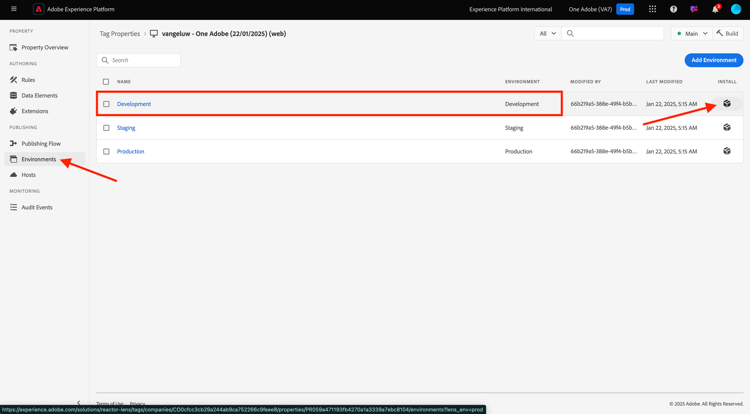

In the left menu, go to Environments and then click the Install icon for the Development environment.

{modal="regular"}

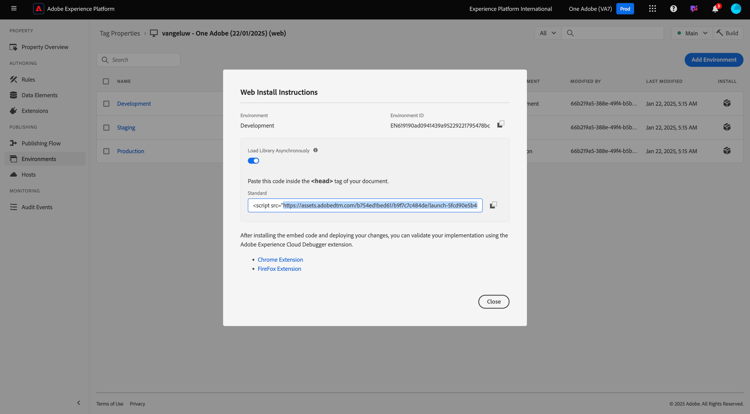

You’ll then find the URL you need, but it’s inside an HTML <script></script> tag. You should only copy the part that starts at https until .min.js.

{modal="regular"}

The URL looks like this: https://assets.adobedtm.com/b754ed1bed61/b9f7c7c484de/launch-5fcd90e5b482-development.min.js. Please ensure that no other text is copied along as that would cause errors. In Visual Studio Code, in the file scripts.js, replace the placeholder value XXX in the launchUrls: array.

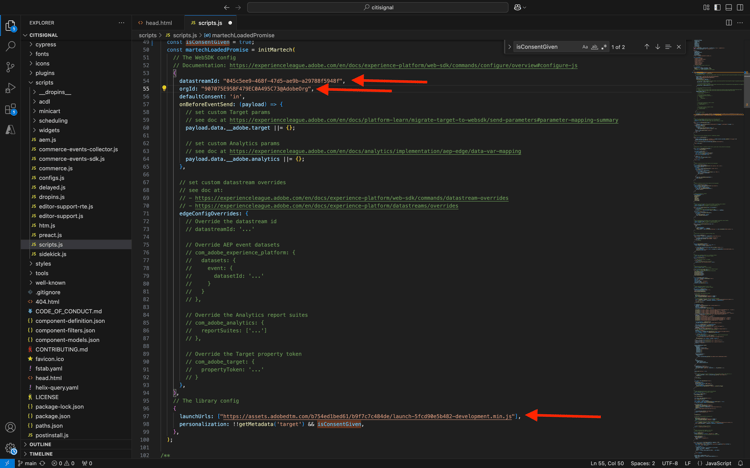

You now have the three variables you need. Your file scripts.js should now look like this:

{modal="regular"}

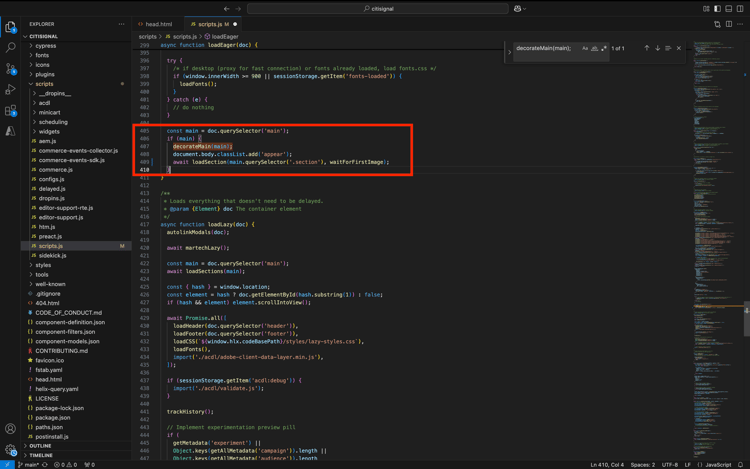

Next, search to find this block of code:

const main = doc.querySelector('main');
  if (main) {
    decorateMain(main);
    document.body.classList.add('appear');
    await loadSection(main.querySelector('.section'), waitForFirstImage);
  }

{modal="regular"}

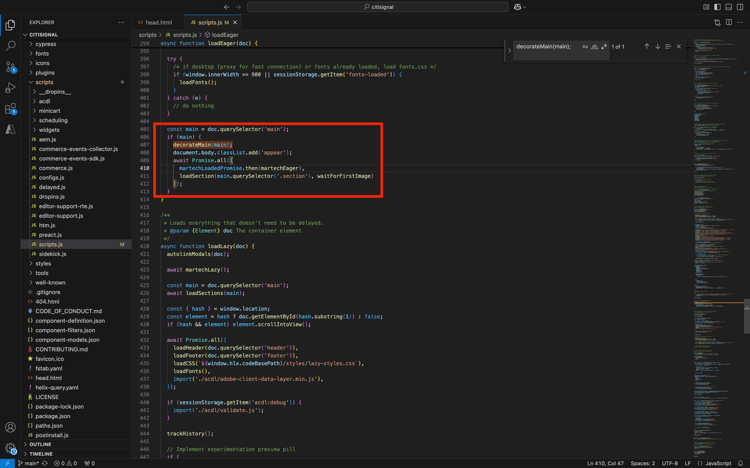

Replace it by this block of code:

const main = doc.querySelector('main');
  if (main) {
    decorateMain(main);
    document.body.classList.add('appear');
    await Promise.all([
      martechLoadedPromise.then(martechEager),
      loadSection(main.querySelector('.section'), waitForFirstImage)
    ]);
  }

{modal="regular"}

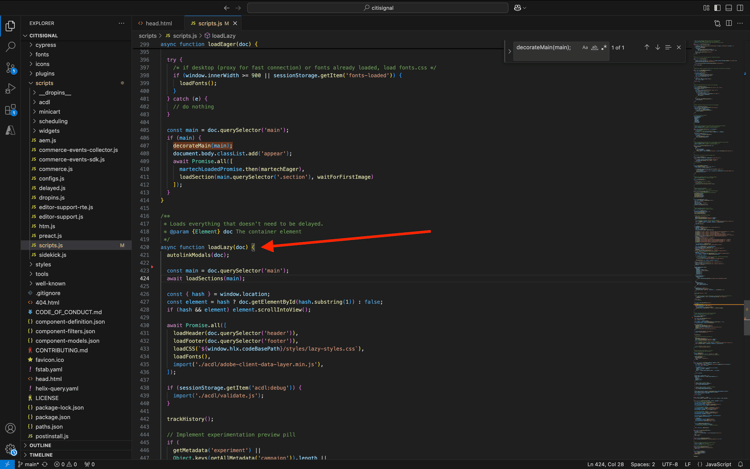

Next, search for and scroll down to async function loadLazy(doc) {.

{modal="regular"}

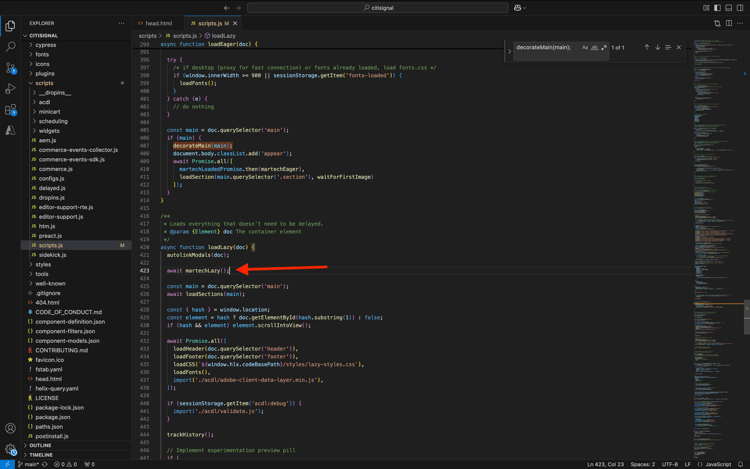

Under the line autolinkModals(doc);, add this line of code:

await martechLazy();

{modal="regular"}

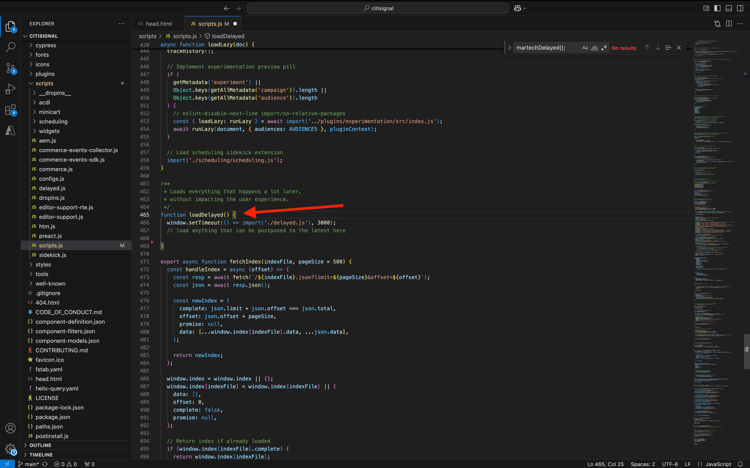

Next, search for and scroll down to the line function loadDelayed() {.

{modal="regular"}

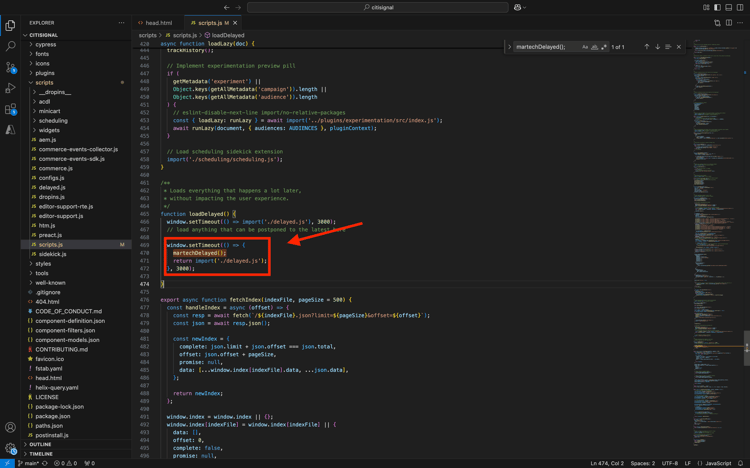

Add this block of code unter the line // load anything that can be postponed to the latest here.

window.setTimeout(() => {
    martechDelayed();
    return import('./delayed.js');
  }, 3000);

{modal="regular"}

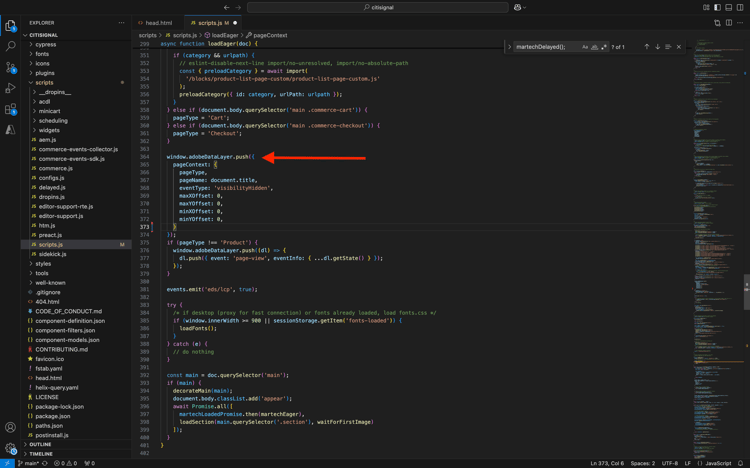

Next, search for and go to the line that contains window.adobeDataLayer.push.

{modal="regular"}

You’ll see the object pageContext being defined like this. You now need to add two objects under pageContext.

    pageContext: {
      pageType,
      pageName: document.title,
      eventType: 'visibilityHidden',
      maxXOffset: 0,
      maxYOffset: 0,
      minXOffset: 0,
      minYOffset: 0,
    }

This is the code that needs to be added:

    ,
    _experienceplatform: {
      identification:{
        core:{
          ecid: sessionStorage.getItem("com.adobe.reactor.dataElements.ECID")
        }
      }
    },
    web: {
      webPageDetails:{
        name: document.title,
        URL: window.location.href
      }
    }

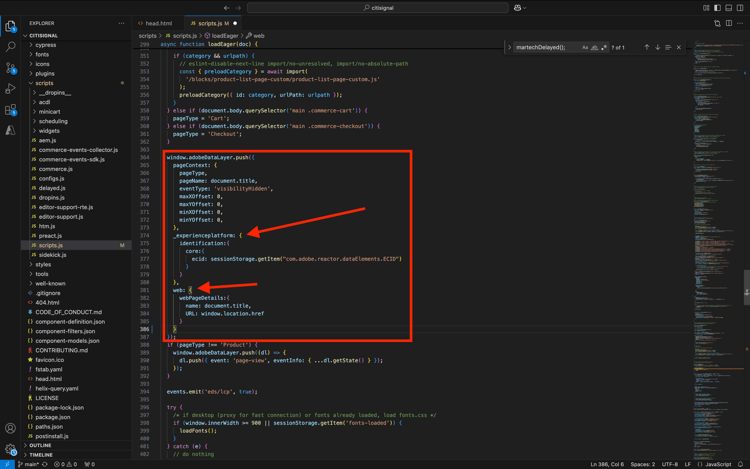

window.adobeDataLayer.push should now look like this:

  window.adobeDataLayer.push({
    pageContext: {
      pageType,
      pageName: document.title,
      eventType: 'visibilityHidden',
      maxXOffset: 0,
      maxYOffset: 0,
      minXOffset: 0,
      minYOffset: 0,
    },
    _experienceplatform: {
      identification:{
        core:{
          ecid: sessionStorage.getItem("com.adobe.reactor.dataElements.ECID")
        }
      }
    },
    web: {
      webPageDetails:{
        name: document.title,
        URL: window.location.href
      }
    }
  });

{modal="regular"}

You’ve now made all the required changes in the file scripts.js.

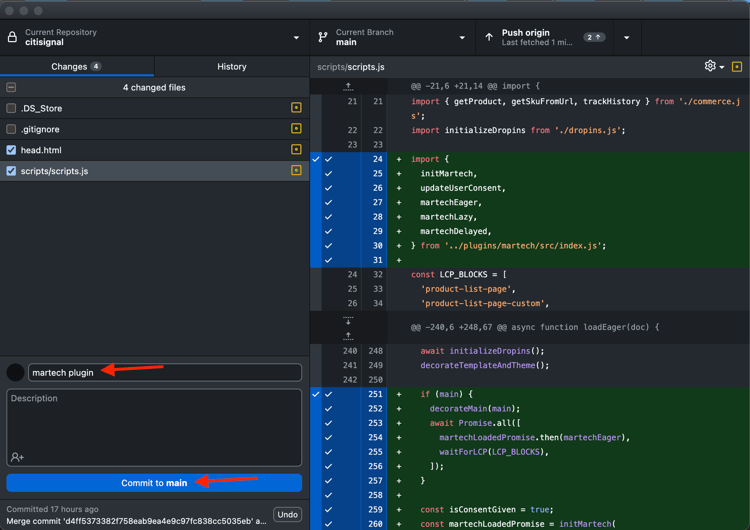

Open GitHub Desktop client and commit your changes.

{modal="regular"}

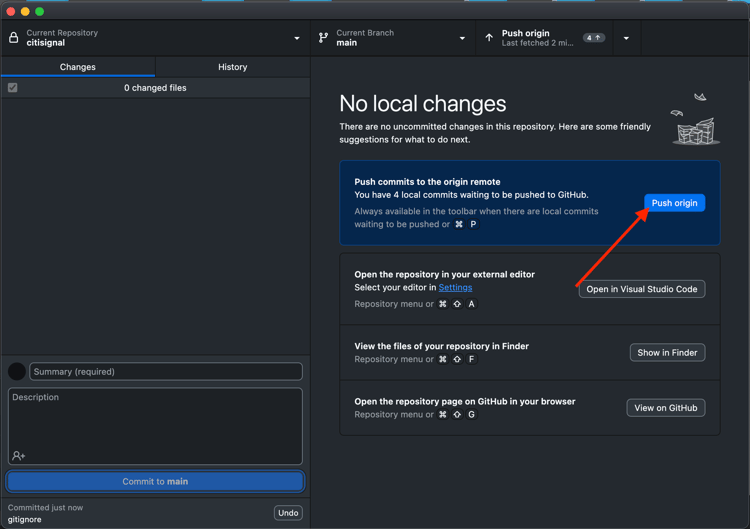

Click Push origin to push your changes to your GitHub repository.

{modal="regular"}

1.1.5.4 ACDL extension in Tags property

In order for the AEM Edge Delivery Services MarTech plugin to function correctly, you need to add the extension for

Go to https://experience.adobe.com/#/data-collection/. Search for and then open your Tags property for Web, which is named --aepUserLdap-- - One Adobe (DD/MM/YYYY).

{modal="regular"}

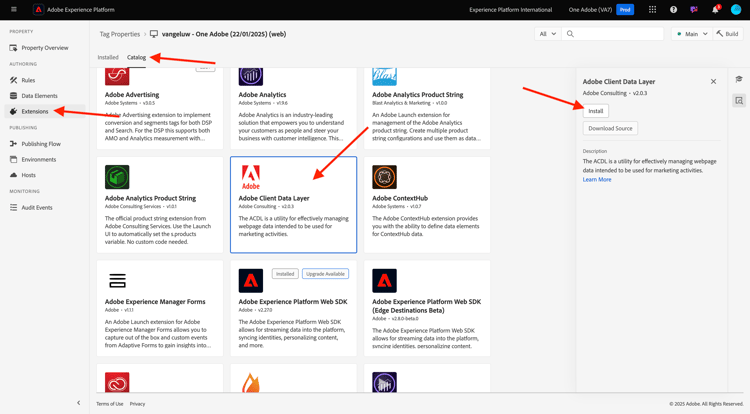

Go to Extensions, to Catalog. Click the extension Adobe Client Data Layer and then click Install.

{modal="regular"}

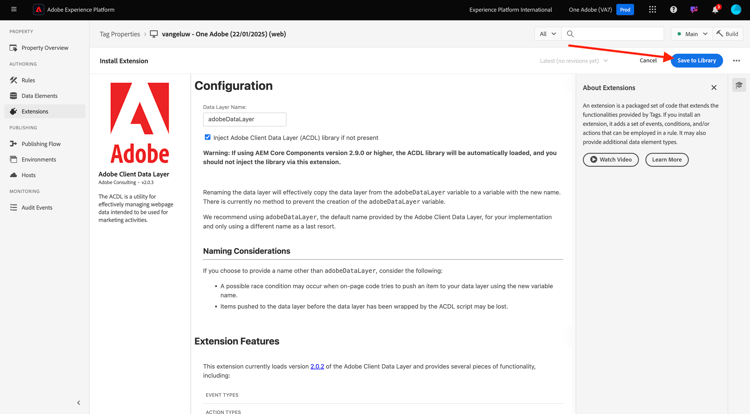

You should then see this. There’s no need to change anything at this moment. Click Save to Library.

{modal="regular"}

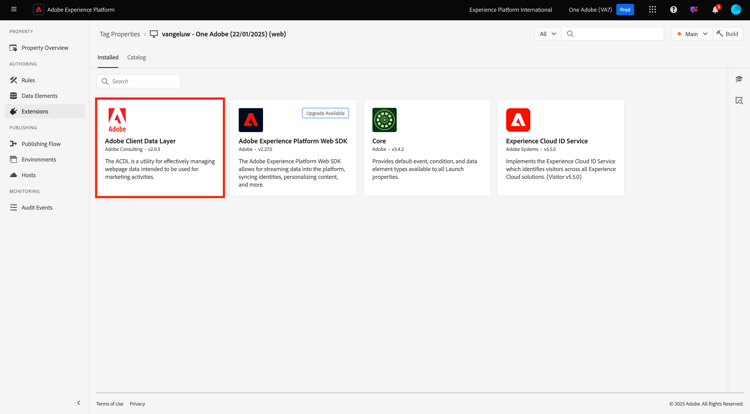

Your extension is then added to your Tags property.

{modal="regular"}

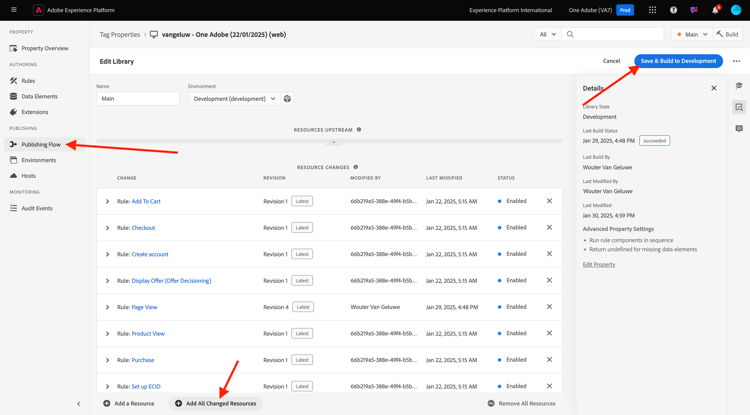

Go to Publishing Flow and open your Main library. Click Add all Changed Resources and then click Save & Build to Development.

{modal="regular"}

Your changes are now deployed.

1.1.5.5 Send data to Adobe Experience Platform Edge Network

You will now be able to view the changes to your website by going to main--citisignal--XXX.aem.page/us/en/ and/or main--citisignal--XXX.aem.live/us/en/, after replacing XXX by your GitHub user account, which in this example is woutervangeluwe.

In this example, the full URL becomes this:
https://main--citisignal--woutervangeluwe.aem.page/us/en/ and/or https://main--citisignal--woutervangeluwe.aem.live/us/en/.

{modal="regular"}

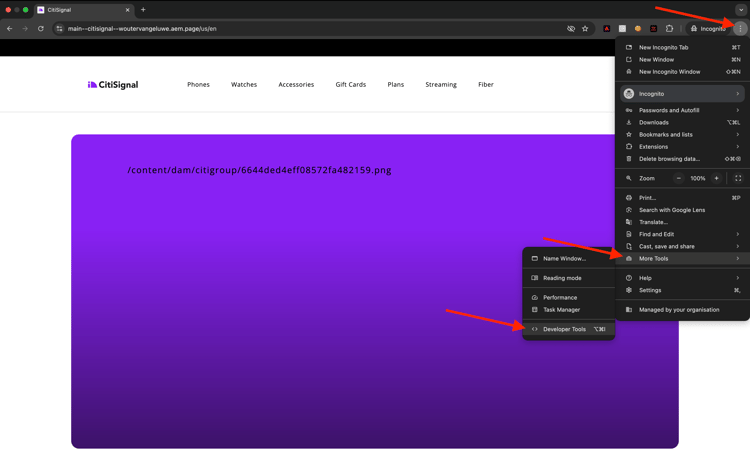

In Chrome, open Developer Tools by going to More Tools > Developer Tools.

{modal="regular"}

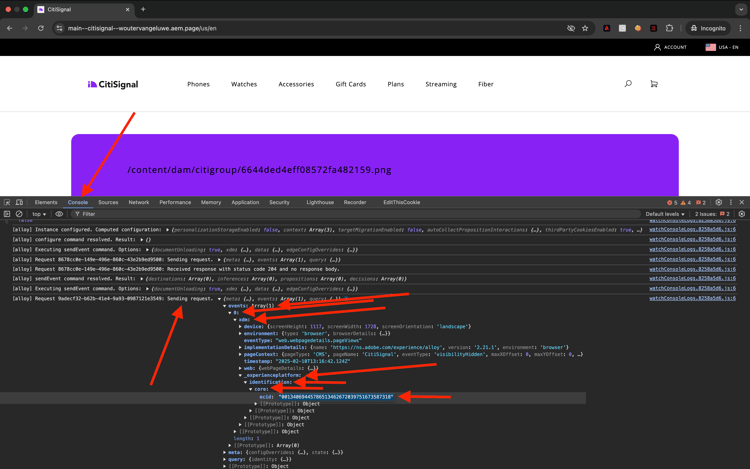

In Console view, you’ll see a number of lines that start with [alloy]. Have a look at the requests, one of them should look like this and have the request body as indicated in the image.

[alloy] Request 55a9ddbc-0521-4ba3-b527-3da2cb35328a: Sending request.

Open the payload and drill down to the field events[0].xdm._experienceplatform.identification.core.ecid, and copy the ECID.

{modal="regular"}

1.1.5.6 View customer profile in Adobe Experience Platform

Log in to Adobe Experience Platform by going to this URL: https://experience.adobe.com/platform.

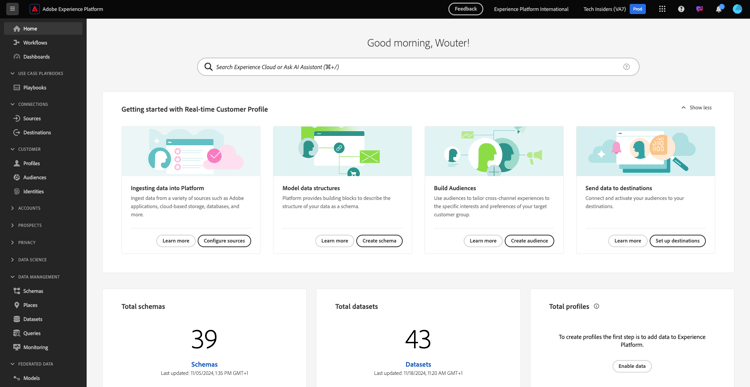

After logging in, you’ll land on the homepage of Adobe Experience Platform.

{modal="regular"}

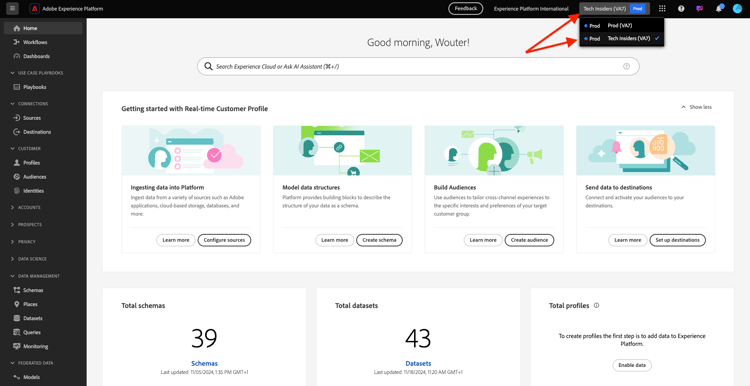

Before you continue, you need to select a sandbox. The sandbox to select is named --aepSandboxName--. After selecting the appropriate sandbox, you’ll see the screen change and now you’re in your dedicated sandbox.

{modal="regular"}

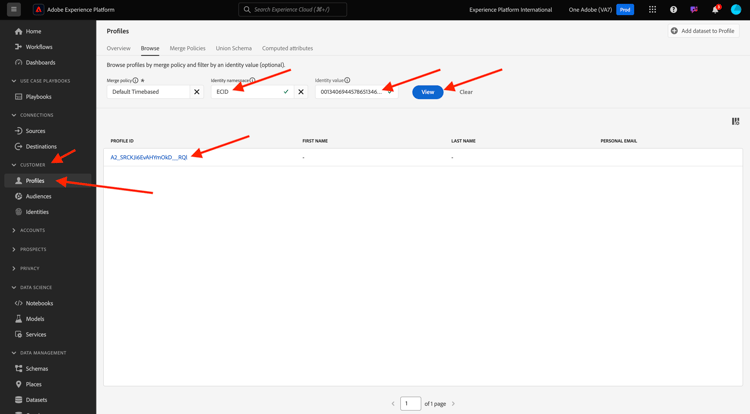

In the left menu, go to Customer > Profiles > Browse. Select the Identity namespace of ECID and then past the ECID that you copied in the previous step. Click View. You should then see a profile being shown in the list. Click it to open it.

{modal="regular"}

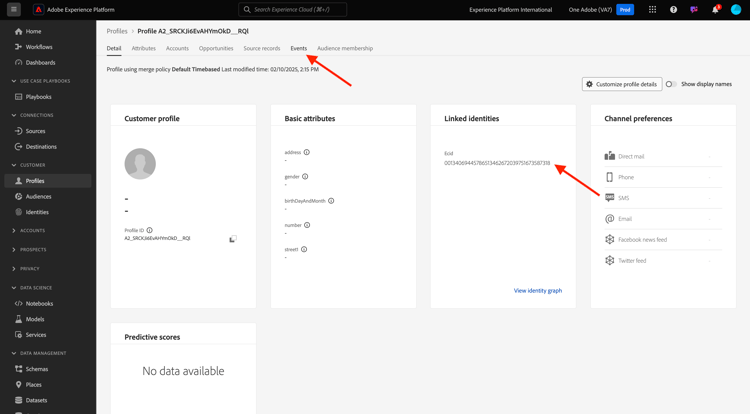

You’ll then see the Profile Dashboard overview, which shows the ECID. Next, go to Events.

{modal="regular"}

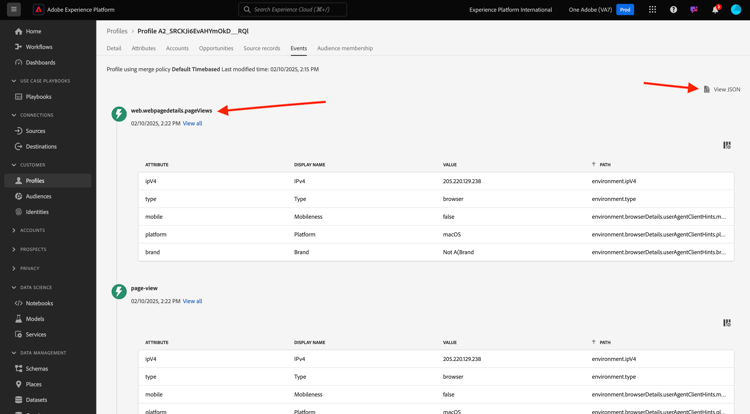

Under Events, you’ll see several Experience Events, including an event with eventType web.webpagedetails.pageViews. Click View JSON to view all of the events that were collected.

{modal="regular"}

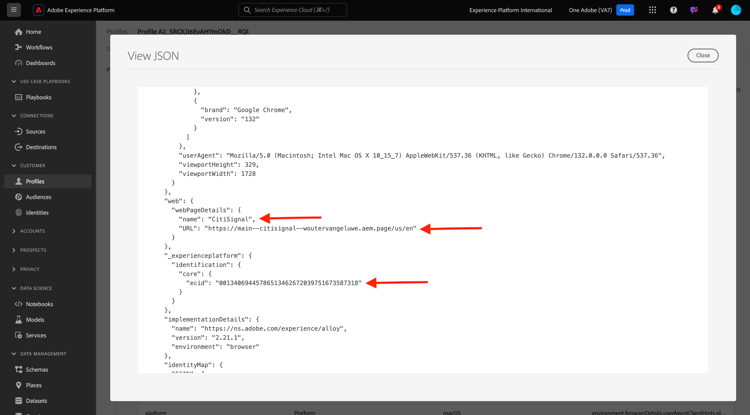

In the JSON view, verify the event with eventType web.webpagedetails.pageViews to see things like the Page Name and the Page URL.

{modal="regular"}

You’ve now completed this exercise.
