1.1.3 Develop a basic custom block

1.1.3.1 Setup your local development environment

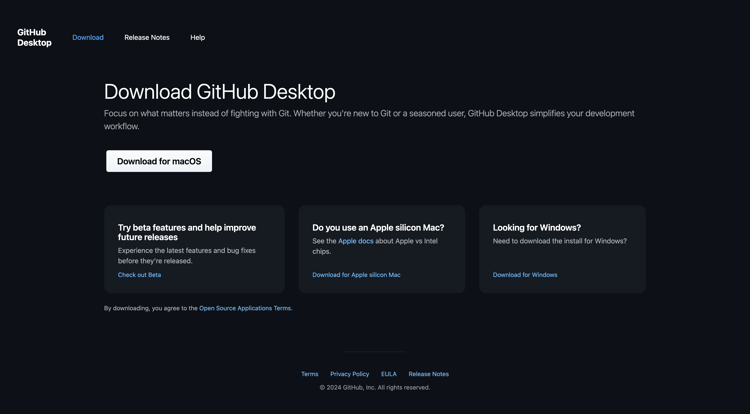

Go to https://desktop.github.com/download/, download and install Github Desktop.

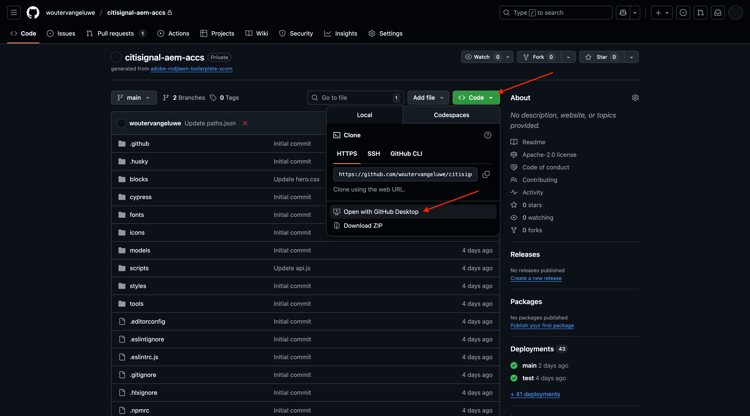

Once Github Desktop is installed, go to the GitHub repo you created in the previous exercise. Click <> Code and then click Open with GitHub Desktop.

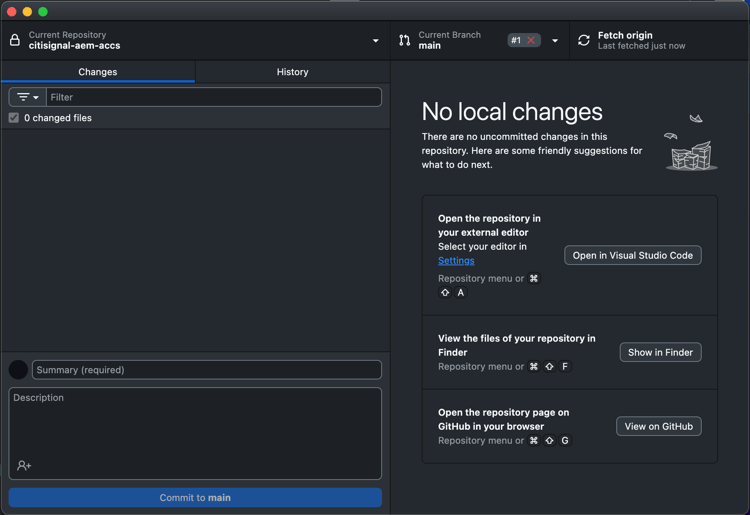

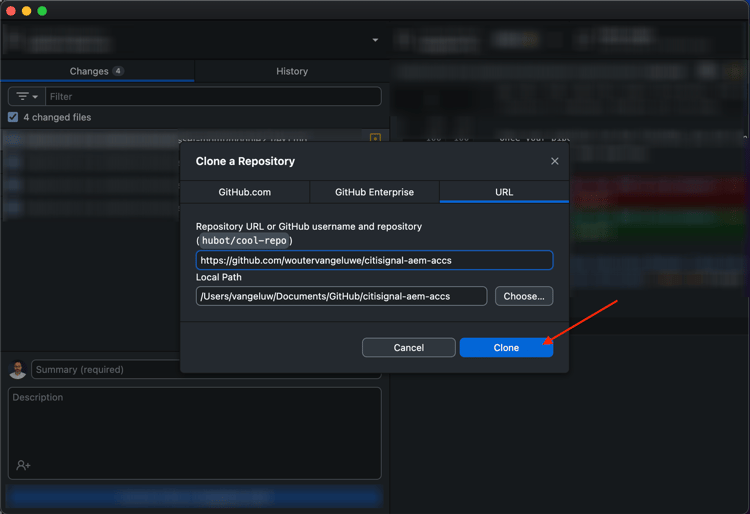

Your GitHub repo will then be opened in GitHub Desktop. Feel free to change the Local Path. Click Clone.

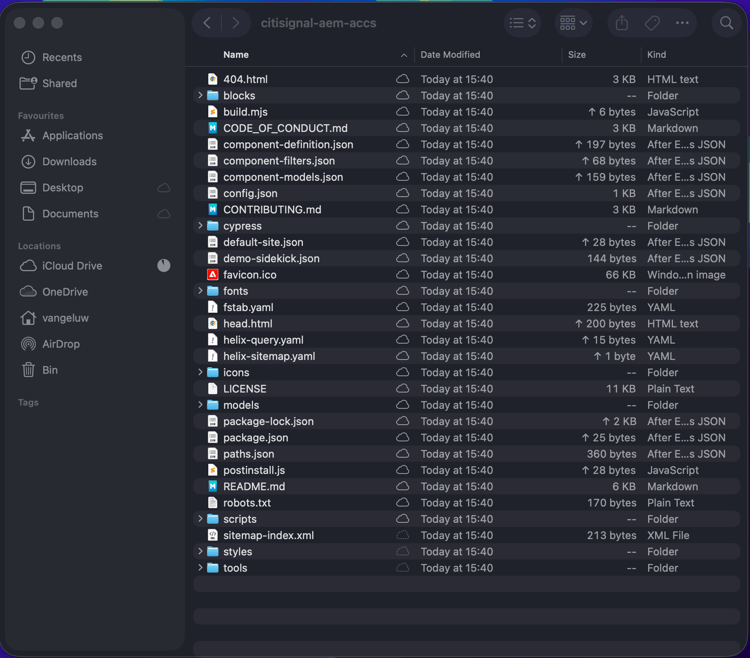

A local folder will now be created.

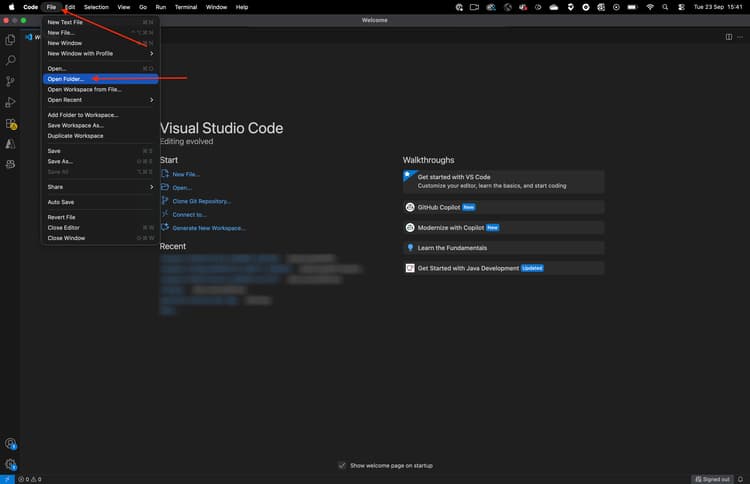

Open Visual Studio Code. Go to File > Open Folder.

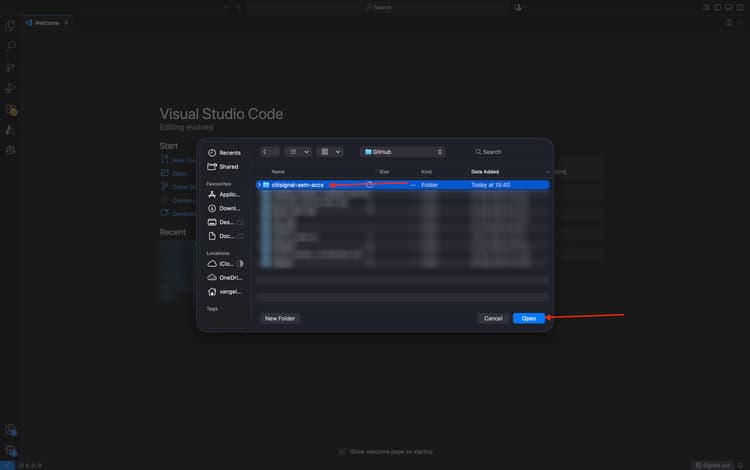

Select the folder that is used by your GitHub setup for citisignal-aem-accs.

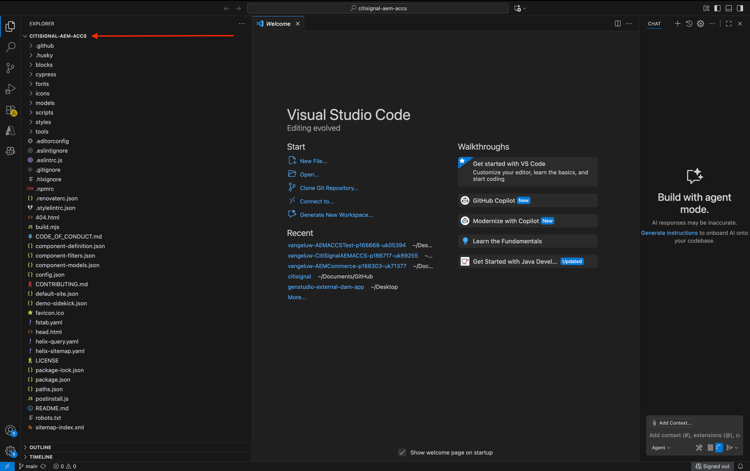

You’ll now see that folder open in Visual Studio Code, you’re now ready to create a new block.

1.1.3.2 Create a basic custom block

Adobe recommends that you develop blocks in a three-phased approach:

component-definition.json

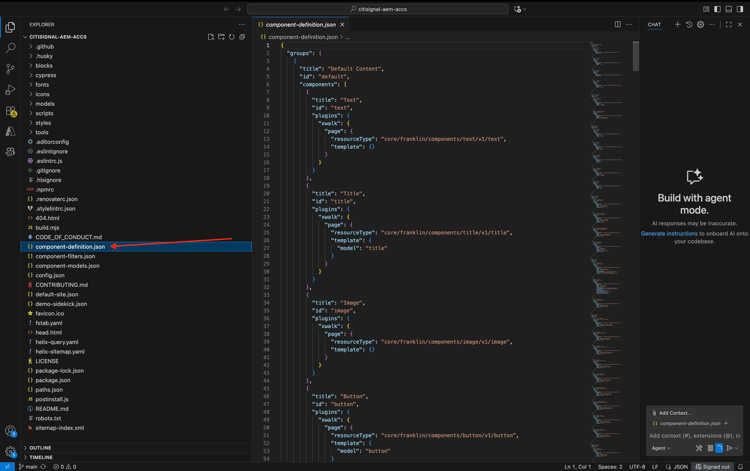

In Visual Studio Code, open the file component-definition.json.

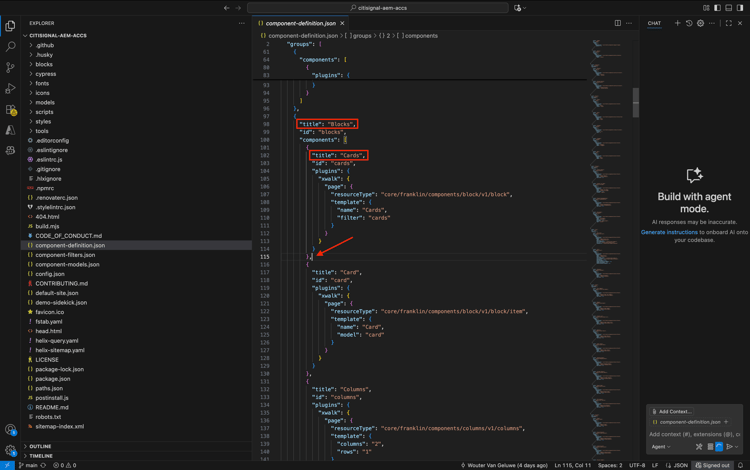

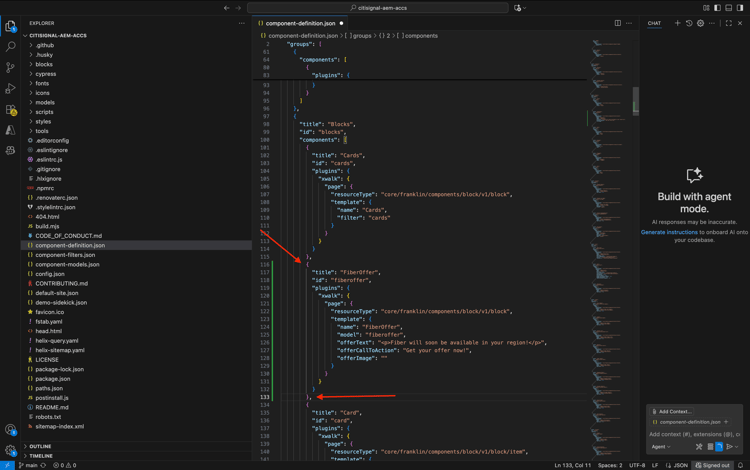

Scroll down until you see the Blocks. Set your cursor under the closing bracket of the component Cards

Paste this code and enter a comma , after the block of code:

{
  "title": "FiberOffer",
  "id": "fiberoffer",
  "plugins": {
    "xwalk": {
      "page": {
        "resourceType": "core/franklin/components/block/v1/block",
        "template": {
          "name": "FiberOffer",
          "model": "fiberoffer",
          "offerText": "<p>Fiber will soon be available in your region!</p>",
          "offerCallToAction": "Get your offer now!",
          "offerImage": ""
        }
      }
    }
  }
}

Save your changes.

component-models.json

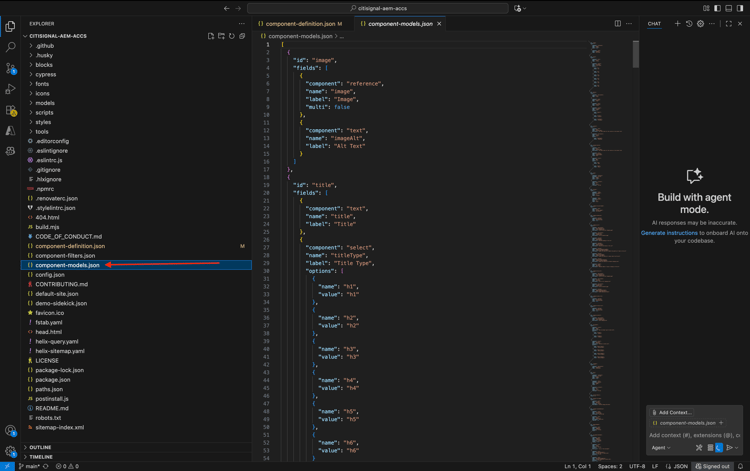

In Visual Studio Code, open the file component-models.json.

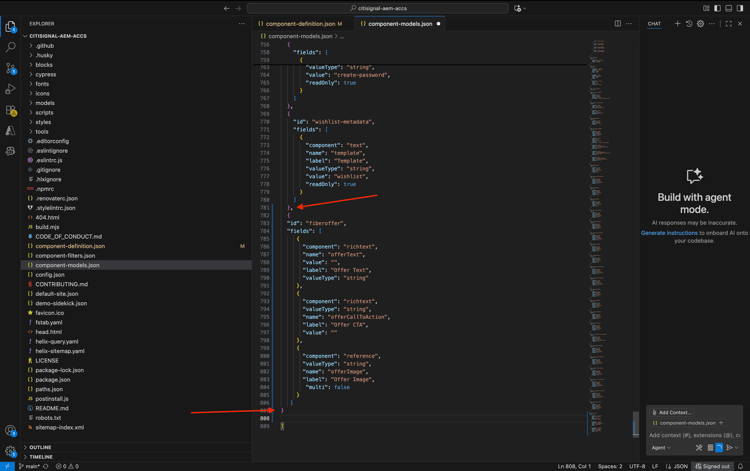

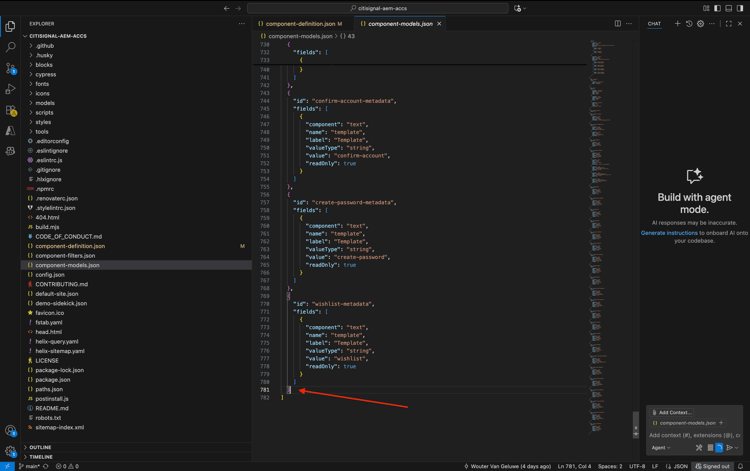

Scroll down until you see the last item. Set your cursor next to the closing bracket of the last component.

Enter a comma ,, then push enter and on the next line, paste this code:

{
  "id": "fiberoffer",
  "fields": [
     {
       "component": "richtext",
       "name": "offerText",
       "value": "",
       "label": "Offer Text",
       "valueType": "string"
     },
     {
       "component": "richtext",
       "valueType": "string",
       "name": "offerCallToAction",
       "label": "Offer CTA",
       "value": ""
     },
     {
       "component": "reference",
       "valueType": "string",
       "name": "offerImage",
       "label": "Offer Image",
        "multi": false
     }
   ]
}

Save your changes.

component-filters.json

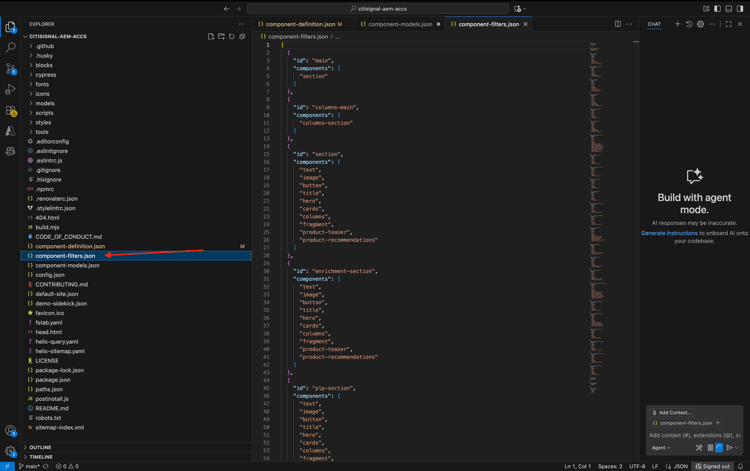

In Visual Studio Code, open the file component-filters.json.

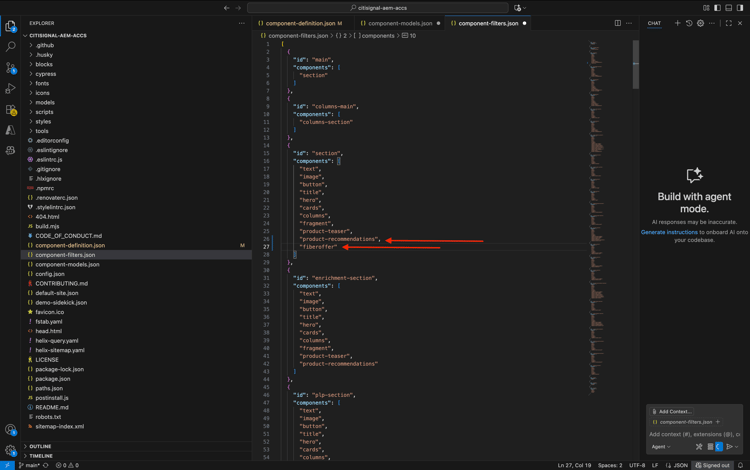

Under section, enter a comma , and paste the id of your component "fiberoffer" after the current last line.

Save your changes.

1.1.3.3 Commit your changes

You’ve now made several changes in your project that need to be committed back to your GitHub repository. To do that, open GitHub Desktop.

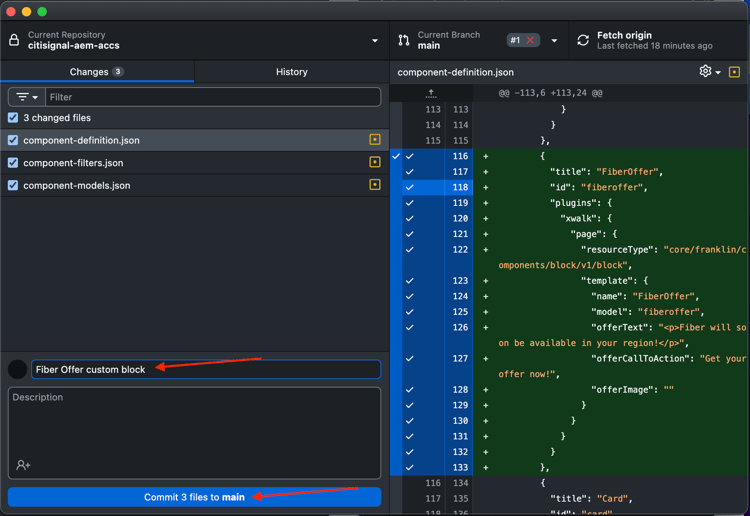

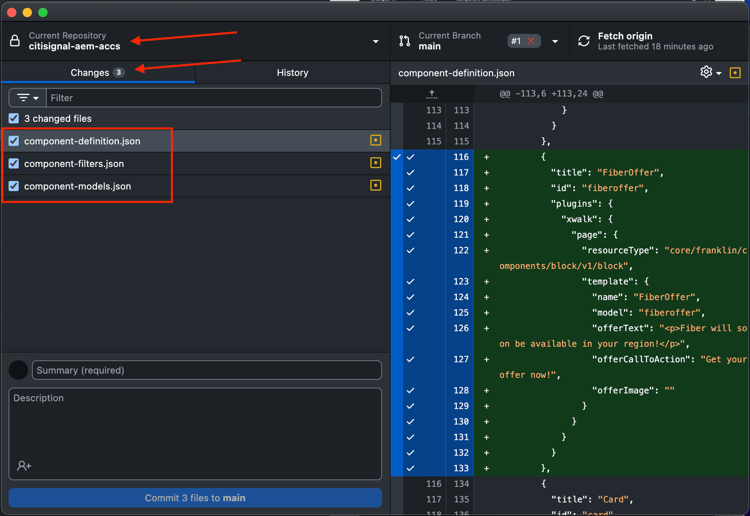

You should then see the 3 files that you just edited under Changes. Review your changes.

Enter a name for your PR, Fiber Offer custom block. Click Commit to main.

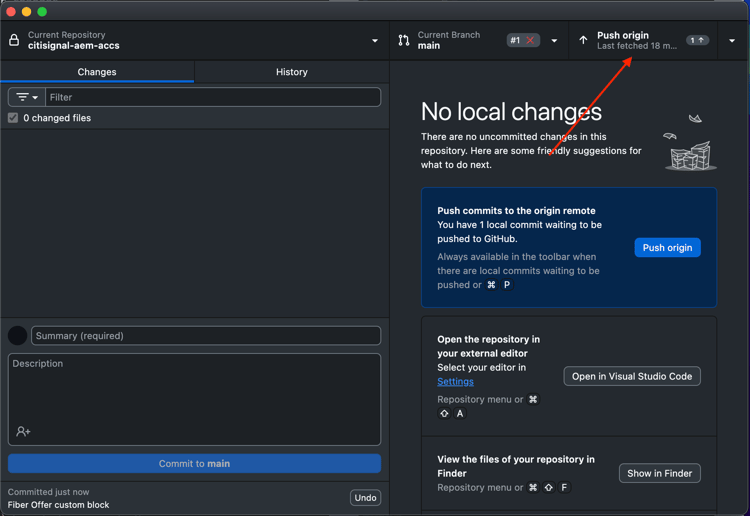

You should then see this. Click Push origin.

After a couple of seconds, your changes have been pushed to your GitHub repository.

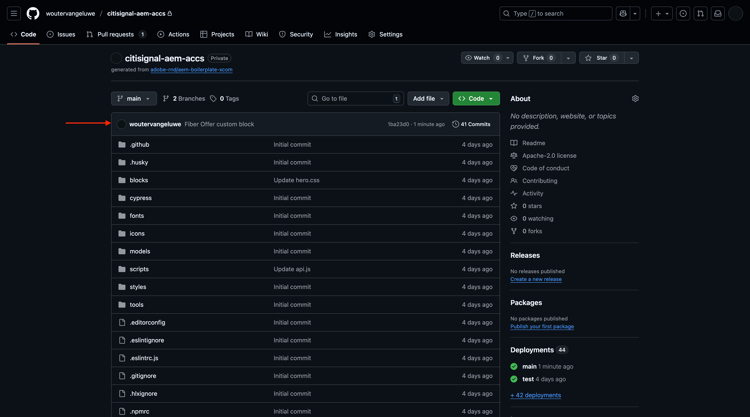

In your browser, go to your GitHub account and to the repository your created for CitiSignal. You should then see something like this, showing that your changes have been received.

1.1.3.4 Add your block to a page

Now that your basic quote block is defined and committed to the CitiSignal project, you can add a fiberoffer block to an existing page.

Go to https://my.cloudmanager.adobe.com. Click your Program to open it.

Next, click the 3 dots … on the Environments tab and click View Details.

You’ll then see your environment details. Click the URL of your Author environment.

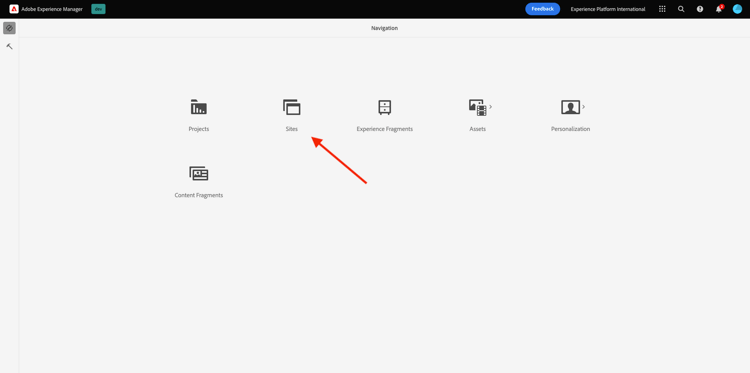

You should then see your AEM Author environment. Go to Sites.

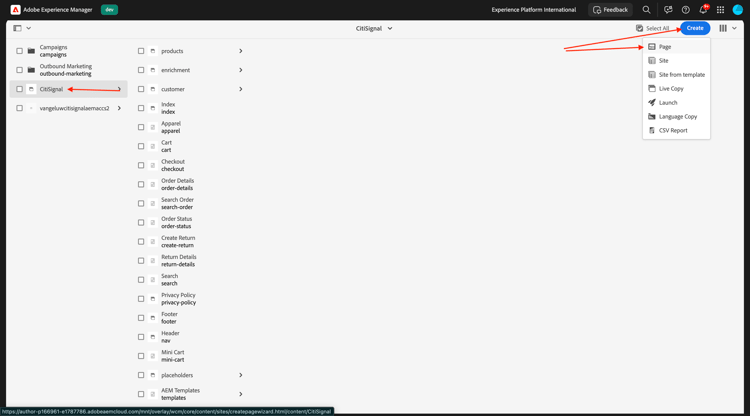

Go to CitiSignal. Click Create and select Page.

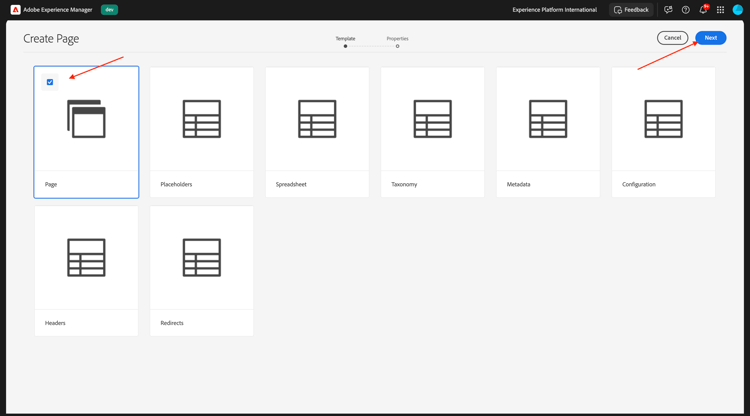

Select Page and click Next.

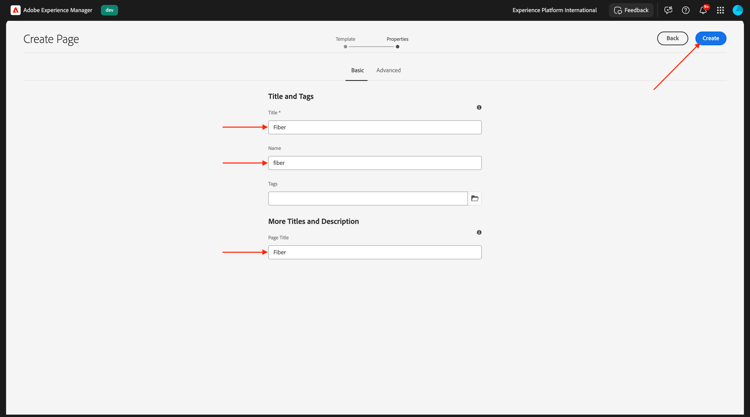

Enter the following values:

Click Create.

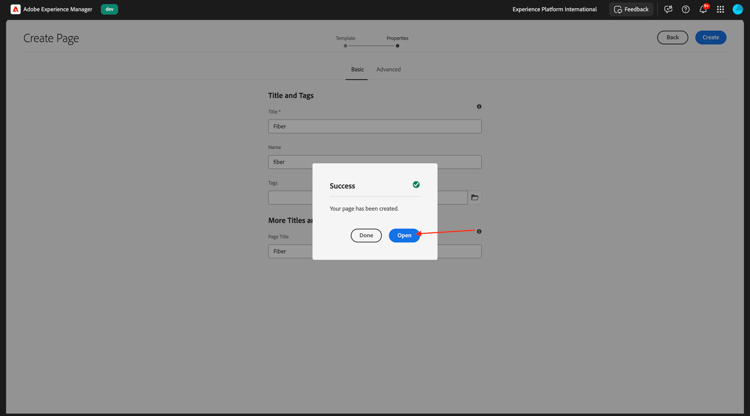

Select Open.

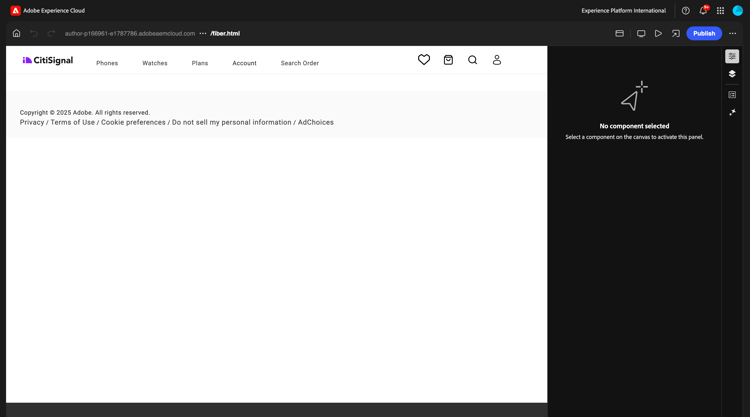

You should then see this.

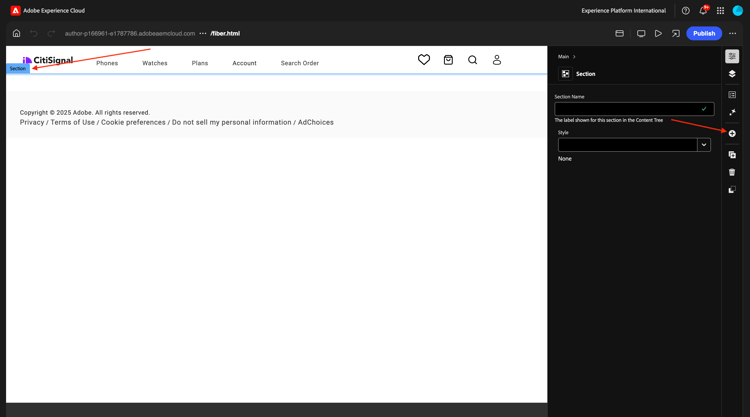

Click in the blank area to select the section component. Then, click the plus + icon in the right menu.

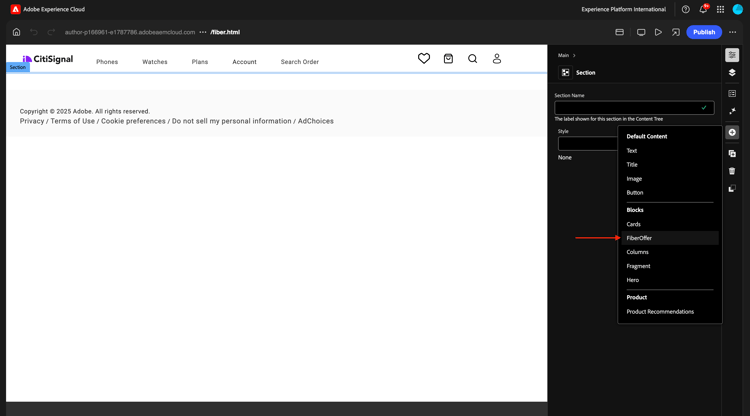

You should then see your custom block shown in the list of available blocks. Click to select it.

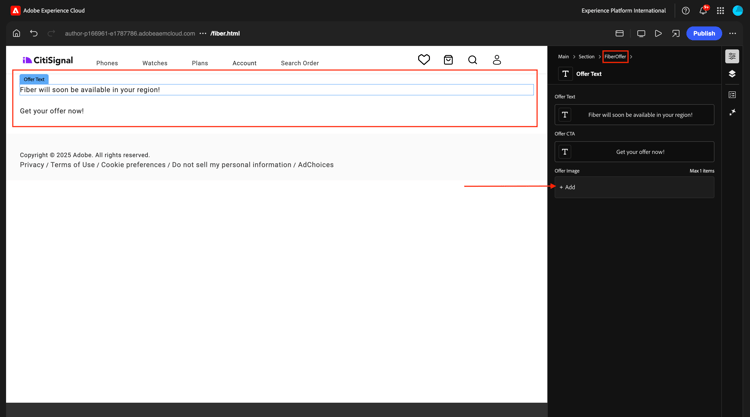

You’ll then see fields like Offer Text, Offer CTA and Offer Image being added to the editor. Click + Add on the Offer Image field to select an image.

You should then see this. Click to open the folder citisignal.

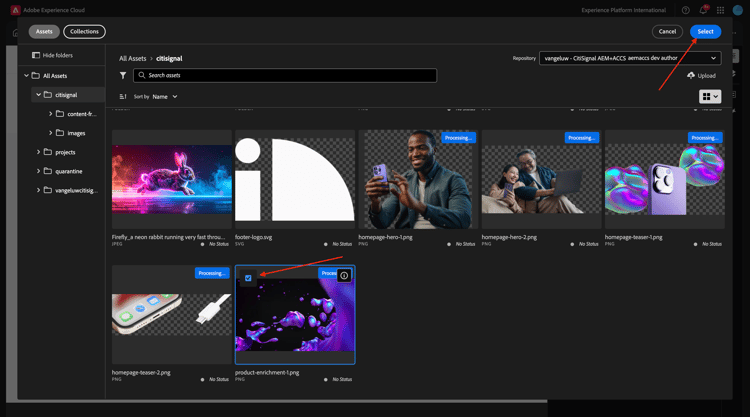

Select the image product-enrichment-1.png. Click Select.

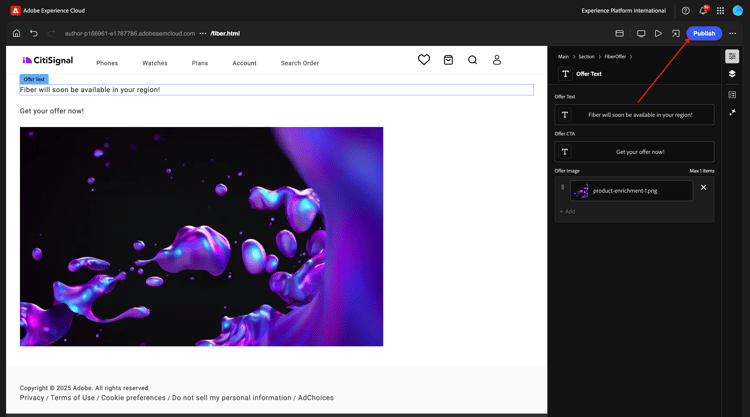

You should then have this. Click Publish.

Click Publish again.

Your new page has now been published.

1.1.3.5 Add your new page to the navigation menu

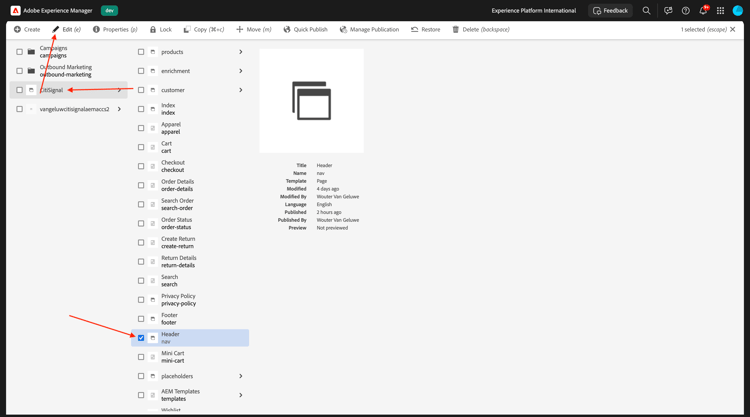

In your AEM Sites overview, go to CitiSignal and check the checkbox for the file Header/nav. Click Edit.

Select the Text field in the preview screen and then click the Text field on the right side of the screen to edit it.

Add a menu option to the nav menu with the text Fiber. Select the text Fiber and click the link icon.

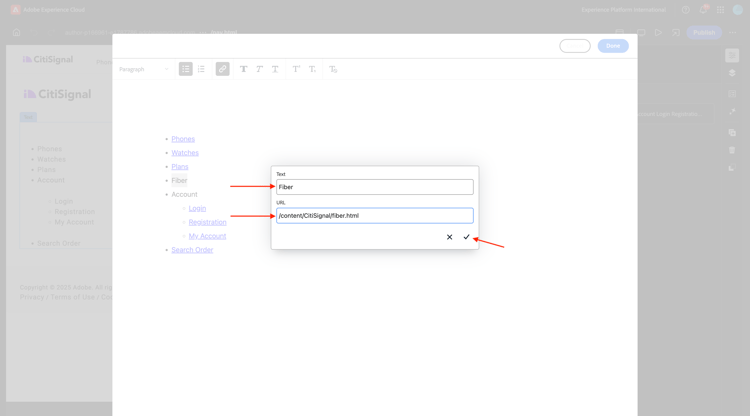

Enter this for the URL /content/CitiSignal/fiber.html and click the V icon to confirm.

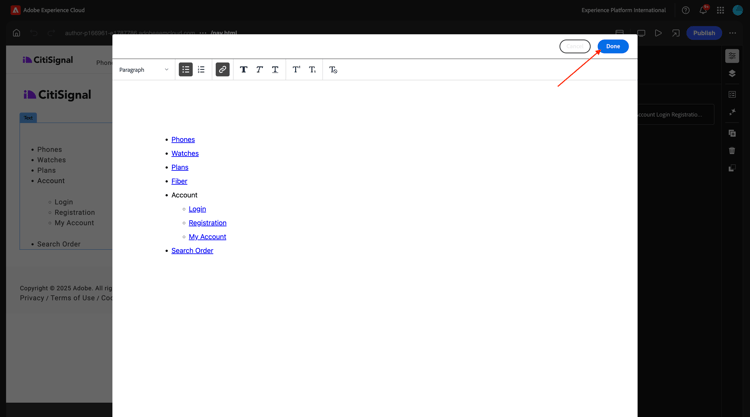

You should then have this. Click Done.

You should then have this. Click Publish.

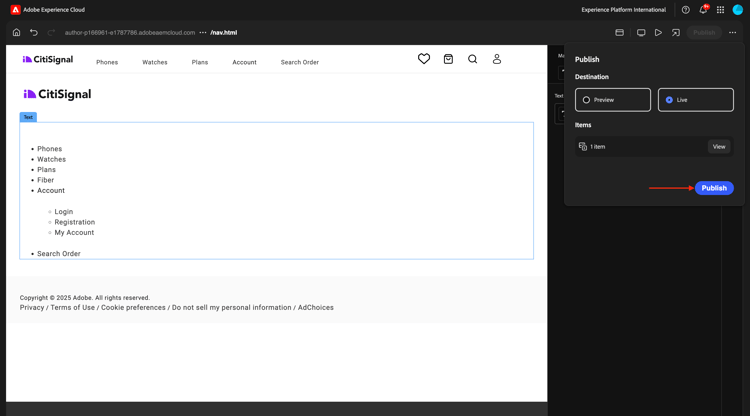

Click Publish again.

You will now be able to view the changes to your website by going to main--citisignal--XXX.aem.page/us/en/ and/or main--citisignal--XXX.aem.live/us/en/, after replacing XXX by your GitHub user account, which in this example is woutervangeluwe.

In this example, the full URL becomes this:
https://main--citisignal--woutervangeluwe.aem.page/us/en/ and/or https://main--citisignal--woutervangeluwe.aem.live/us/en/.

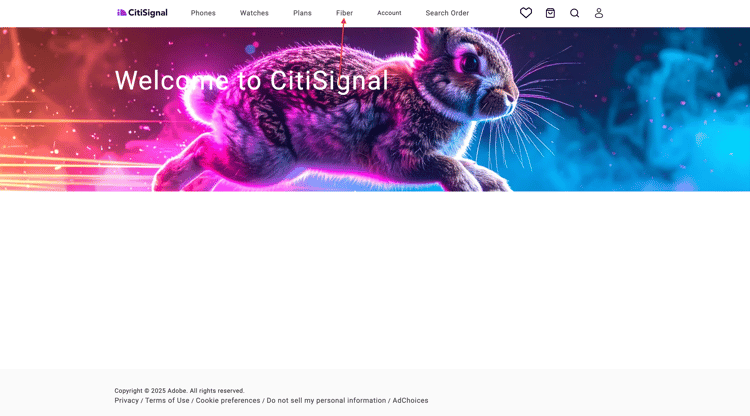

You should then see this. Click Fiber.

Here is your basic custom block, but now rendered on the website.
