On this page: Learn how to make specific fields in visual and expression fragments editable so users can customize them when adding the fragment to a campaign or journey, without breaking inheritance from the original fragment.
When fragments are used in a campaign or journey action, they are locked by default due to inheritance. This means any changes made to a fragment are automatically propagated to all campaigns and journeys where the fragment is used.
With customizable fragments, specific fields within a fragment can be defined as editable when the fragment is added to a campaign or journey action. For example, suppose you have a fragment with a banner, some text, and a button. You can designate certain fields, such as the image or button target URL, as editable. This allows users to modify these elements when they incorporate the fragment into their campaign or journey, providing a tailored experience without affecting the original fragment.
Customizable fragments eliminate the need to break fragment inheritance, which previously stopped centralized changes at fragment level from being propagated to the campaigns and journeys. This approach allows content portions to be adjusted at the time of use, offering the flexibility to override default values with context-specific details.
By leveraging customizable fragments, you can efficiently manage and personalize your content without creating entirely new content blocks or disrupting the inheritance from the original fragment. This ensures that changes made at the fragment level are still propagated, while allowing for necessary customization at the campaign or journey level.
Both visual and expression fragments can be marked as customizable. For detailed instructions on how to proceed with each type of fragment, refer to the sections below.
Add editable fields to visual fragments visual
To make portions of a visual fragment editable, follow these steps:
-
Open the fragment content edition screen.
-
Select the component in your fragment where you want to configure editable fields.
-
The component properties pane opens on the right-hand side. Select the Editable fields tab, then toggle the Enable edition option.
-
All the fields that can be edited for the selected component are listed in the pane. The available fields for editing depend on the selected component type.
In the example below, we allow the editing of the “Click here” button URL.
-
Click the Overview to check all the editable fields and their default values.
In this example, the button URL field displays with the default value defined in the component. This value will be customizable by users after they have added the fragment to their content.
-
When ready, save your changes to update the fragment.
-
After adding the fragment into an email, users will be able to customize all the editable fields configured in the fragment. Learn how to customize editable fields in a visual fragment
Enable rich text editing in a customizable visual fragment rich-text-visual
Rich text is now natively supported in customizable visual fragments.
When a customizable visual fragment is used in an email, you can leverage full formatting options such as bold, italic, line breaks, bulleted lists, and hyperlinks, directly within any editable field in the Text, Button, and Html components of the fragment. Learn how to customize editable fields
However, if you created fragments and defined editable fields before the rich-text capability was introduced, the editable fields are set to text-only mode by default.
-

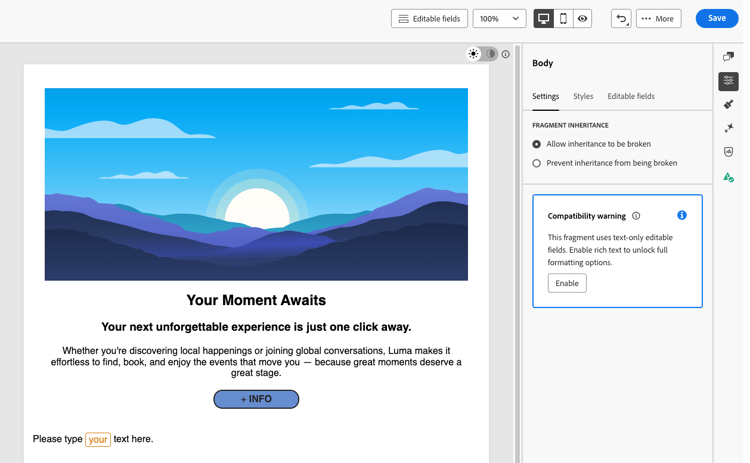

A compatibility warning is displayed in the fragment editor.
To unlock rich-text mode for these editable fields when using the fragment in an email, click the Enable button and save the fragment.
-

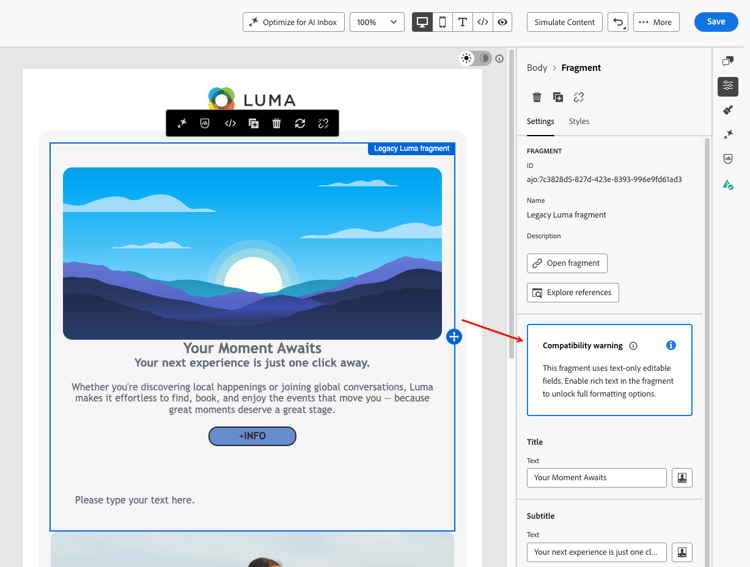

Once you added the fragment to an email, a compatibility warning is also displayed when selecting the fragment in the Email Designer.
To upgrade the fragment to rich-text mode, use the Open fragment button to access the fragment editor and click the Enable button and save the fragment.
Until the rich-text mode is unlocked, the legacy customizable visual fragments continue to support plain text only. Users cannot enter rich text into the editable fields of these fragments.
Add editable fields to HTML components and expression fragments expression
To make portions of an HTML component or an expression fragment editable, you must use a specific syntax in the expression editor. This involves declaring a variable with a default value that users can override after adding the fragment to their content.
For example, suppose you want to create a fragment to add to your emails, and allow users to customize a specific color used in different locations, such as frames or buttons’ background colors. When creating your fragment, you need to declare a variable with a unique ID, for example “color”, and call it at the desired locations in the fragment content where you want to apply this color. When adding the fragment to their content, users will be able to customize the color used wherever the variable is referenced.
For HTML components, only specific elements can become editable fields. Expand the section below for more information.
The elements below can become editable fields in an HTML component:
- A portion of text
- A full URL for link or image (doesn’t work with portion of a URL)
- Entire CSS property (doesn’t work with partial property)

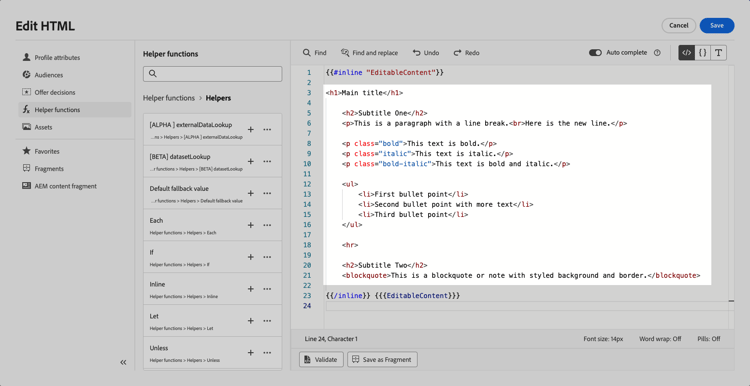

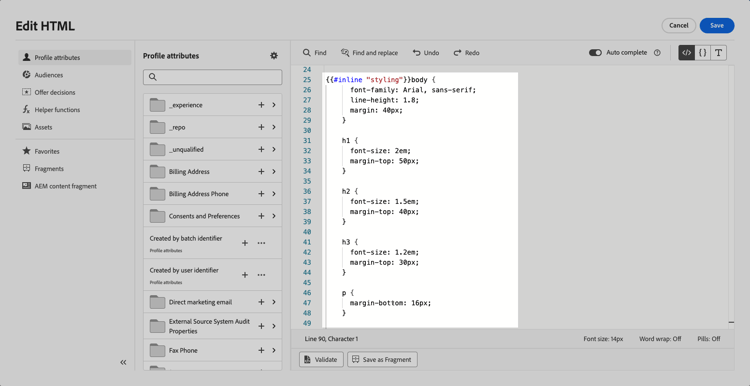

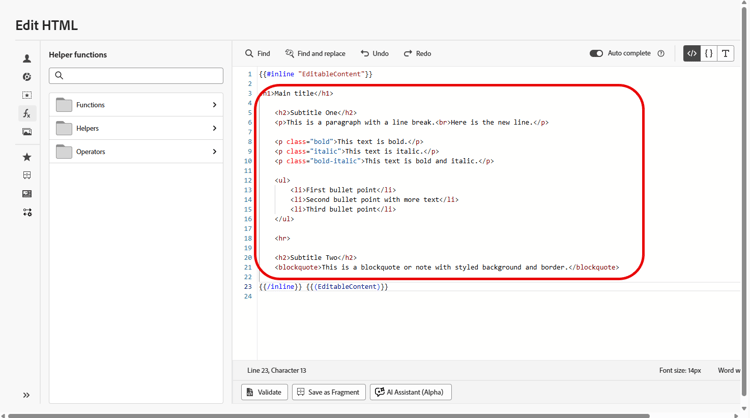

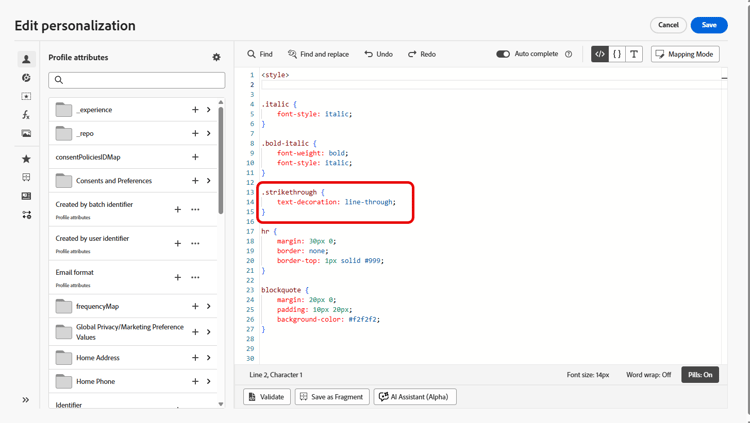

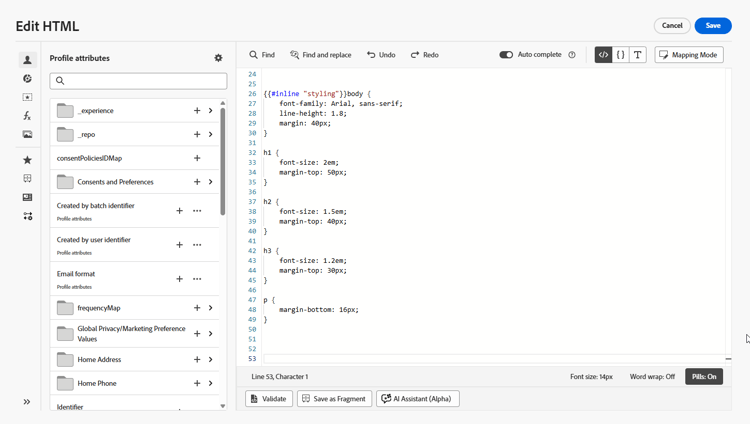

For example, in the code below, each element highlighted in red can become a property:
To declare a variable and use it in your fragment, follow these steps:
-
Open your expression fragment, then edit its content in the personalization editor.
For HTML components, select the component in the fragment and click the Show the source code button.
-
Declare the variable you want users to edit. Navigate to the Helper functions menu in the left navigation pane and add the inline helper function. The syntax to declare and call the variable is automatically added in your content.
-
Replace
"name"with a unique ID to identify the editable field.note NOTE The field ID must be unique and must not have spaces. This ID should be used everywhere in your content where you want to display the variable’s value. -
Adapt the syntax to suit your needs by adding parameters detailed in the table below:
table 0-row-3 1-row-3 2-row-3 3-row-3 4-row-3 Action Parameter Example Declare an editable field with a default value. When adding the fragment to your content, this default value will be used if you do not customize it. Add the default value between the inline tags. {{#inline "editableFieldID"}}default_value{{/inline}}Define a label for the editable field. This label will display in the Email Designer when editing the fragment’s fields. name="title"{{#inline "editableFieldID" name="title"}}default_value{{/inline}}Declare an editable field containing an Image source that needs to be published. assetType="image"{{#inline "editableFieldID" assetType="image"}}default_value{{/inline}}Declare an editable field containing an URL that needs to be tracked.
Note that out-of-the-box “Mirror page URL” and “Unsubscribe link” predefined blocks cannot become editable fields.assetType="url"{{#inline "editableFieldID" assetType="url"}}default_value{{/inline}} -
Use the
{{{name}}}syntax in your code at every place where you want to display the value of the editable field. Replacenamewith the unique ID of the field defined earlier.
-
Save and publish your fragment.
When adding the fragment to their email content, users can now override the variables’ default values with their chosen values:
-
For expression fragments, a specific syntax is used to override variables values. Learn how to customize editable fields in an expression fragment
-

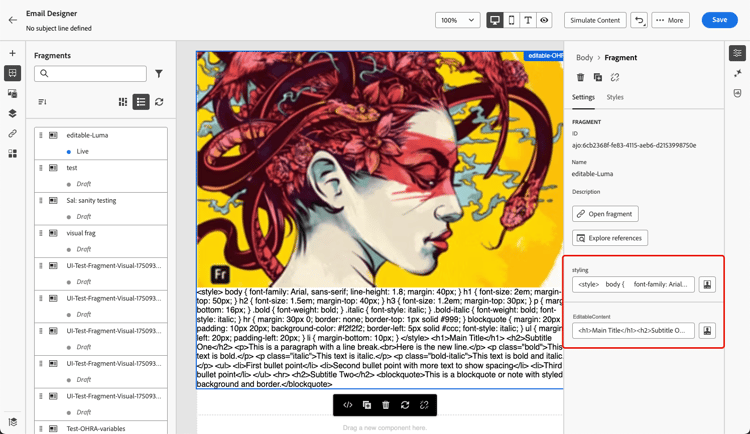

For HTML components, the variable displays in the list of editable fields in the Email Designer. Learn how to customize editable fields in a visual fragment
Example: customizable expression fragment example
In the example below, we are creating an expression fragment presenting new sports collections. By default, the fragment displays this content: Looking for more? Don’t miss our latest sports collection!
We want to allow users to replace “sports” in this content with the sport of their choice. For example: Looking for more? Don’t miss our latest yoga collection!
To do so:
-
Declare a “sport” variable with the ID “sport”.
By default, if users do not change the variable’s value after adding the fragment in their content, it will show the value defined between the
{{#inline}}and{{/inline}}tags, i.e. “sports”. -
Add the
{{{sport}}}syntax in the fragment content where you want to display the variable value, i.e. “sports” by default, or the value chosen by users.
-
When adding the expression fragment to their content, users can change the variable’s value with their choice directly from the expression editor. Learn how to customize editable fields in an expression fragment
