Build Engaging Forms Using Core Components and Headless Adaptive Forms on AEM Forms as a Cloud Service build-engaging-forms-using-core-components-and-headless

Last update: Wed Jul 23 2025 00:00:00 GMT+0000 (Coordinated Universal Time)

CREATED FOR:

  • Developer

Lab Overview lab-overview

In this hands-on lab, you learn the following:

How to use AEM Forms to create adaptive forms easily using the latest core components. These components are consistent with AEM Sites and enable omnichannel data capture experiences by delivering the adaptive forms as headless forms to web, mobile, and chat. You also learn best practices around styling, customizations, and front-end development.

Key takeaways key-takeaways

  • Business Agility: As a business user, I can author Form experience for multiple channels easily.

  • Power to frontend developer: As a frontend developer, I can control the end-user experience using headless forms.

  • Developer Velocity: As a developer, I can easily and consistently customize Sites and Forms components.

Prerequisites prerequisites

To use this hands-on lab:

Lesson 1 lesson-1

Objective lesson-1-objectives

Familiarize yourself with AEM Forms as a Cloud Service environment.

Lesson context lesson-1-context

In this lesson, you familiarize yourself with AEM Forms as a Cloud Service environment by navigating the user interface.

Exercise lesson-1-excercise

  1. Open your browser and enter the URL of the Cloud Service author environment.

  2. Log in to the Cloud Service author environment.
    {width="50%"}

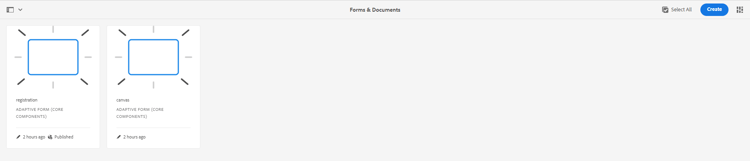

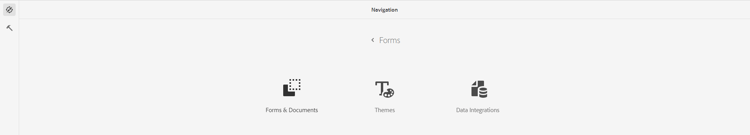

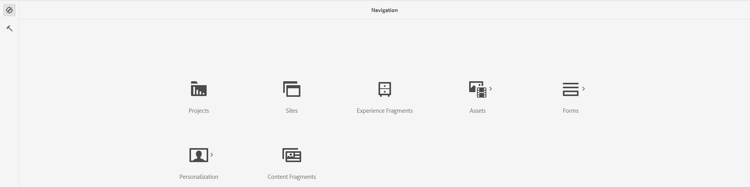

  3. To navigate to the AEM Forms UI, click Forms > Forms & Documents.

    {width="50%"}

    Dismiss any pop-ups related to preferences or information. All the available forms are displayed.

Lesson 2

Objective

Author an adaptive form using the latest core components, configure, and submit the form.

Lesson context

In this lesson, as a business user, you will author an adaptive form for multiple channels like web, mobile, and chat using adaptive forms authoring with standardized OOTB core components for data capture.

Exercise

  1. Create a submission endpoint for the form:

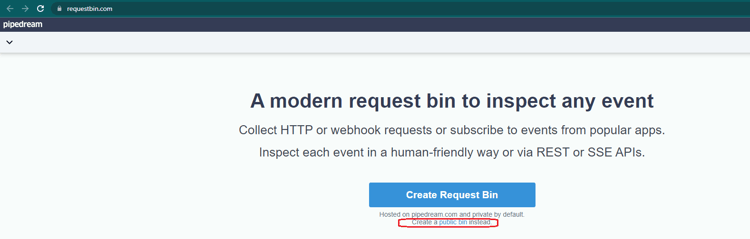

    1. Open https://pipedream.com/requestbin in a new browser tab.

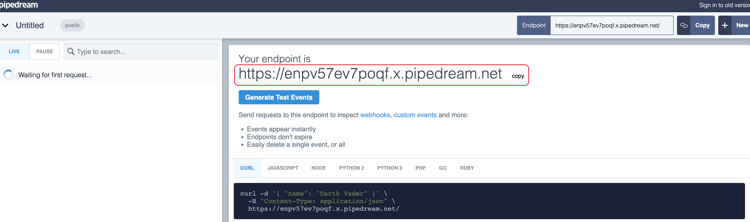

    2. Click Create a public bin and copy the endpoint URL.
      {width="50%"}

      {width="50%"}

  2. Author an adaptive form using the Wizard interface:

    1. In the browser tab used in Lesson 1, navigate to AEM Forms as Cloud Service web interface and navigate to Forms and Documents.

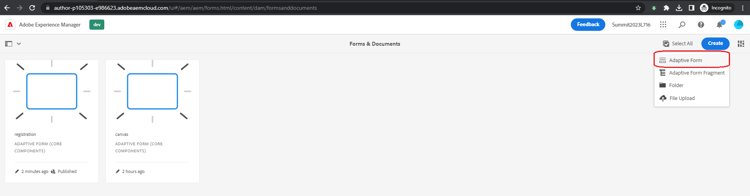

    2. Click Create > Adaptive Form.

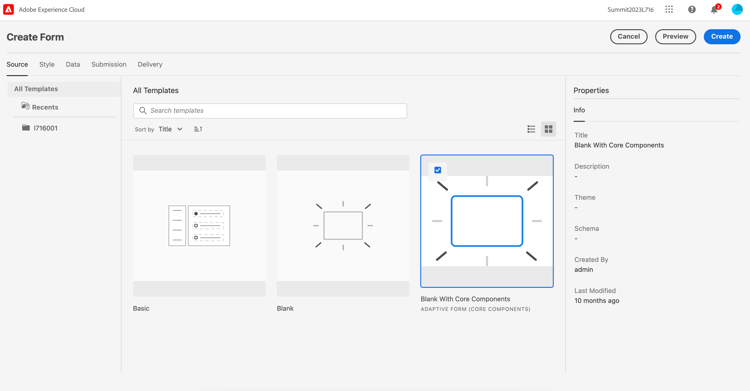

    3. Select the Blank with Core Components template from the template selection screen as shown below:

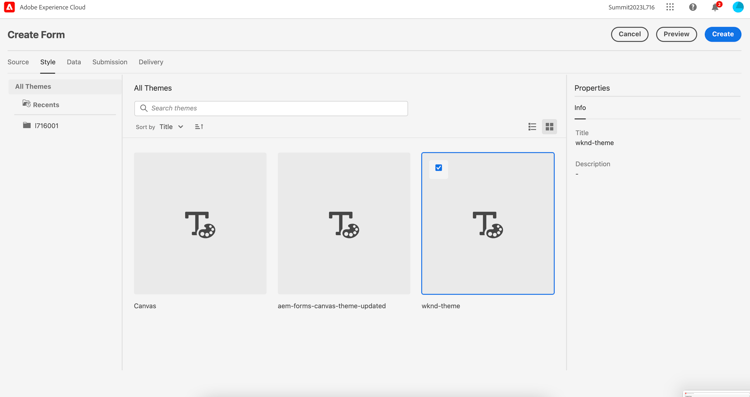

    4. Click the Style tab and select the wknd-theme theme as shown below:

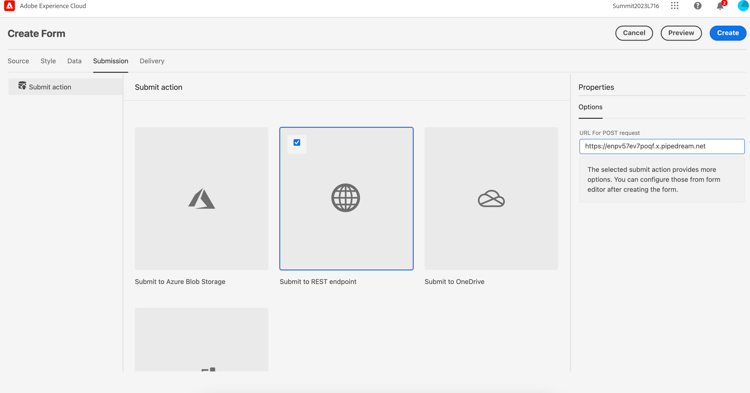

    5. Click the Submission tab and select the Submit to REST end-point card and specify the public bin in the URL for the POST request field as shown below:

    6. Click Create. Specify a name and title on your form. For example, registration. Click Create.

    7. The adaptive form editor opens. Dismiss any pop-ups or dialogs for preferences or information. Click the components browser on the left rail and add the Header and Footer components respectively to the top and bottom of the blank form.

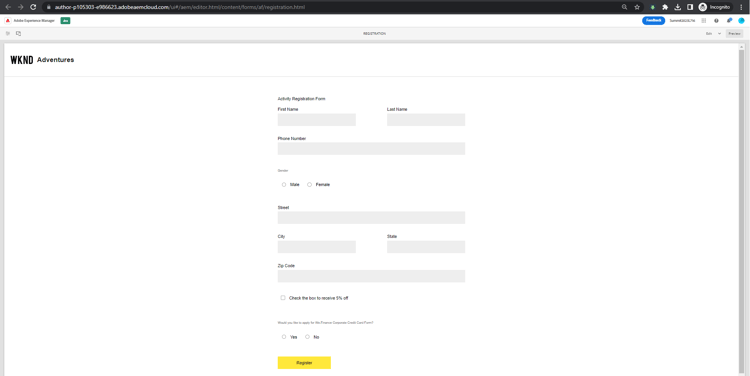

    8. Drag and drop components from the Components browser to create a form, similar to the following:

      {width="50%"}

  3. Add validations to the form:

    1. Click the Phone number component so that the pop-up menu is displayed. Click the Wrench icon in the menu to configure the field.

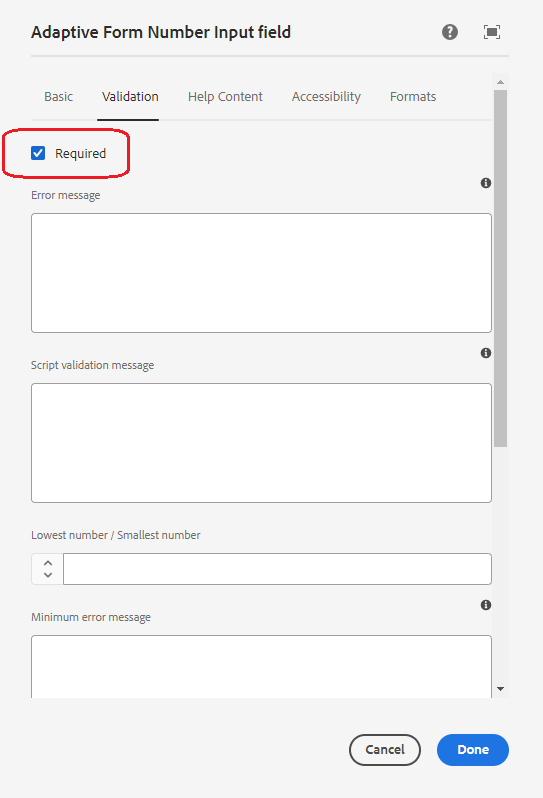

    2. Open the validations tab, mark the field Required, and click Done. The success message is displayed.
      {width="50%"}

      {width="50%"}

  4. Preview and submit the form.

    1. Click Preview to preview the form from an end-user perspective.

    2. Fill the form with dummy data.

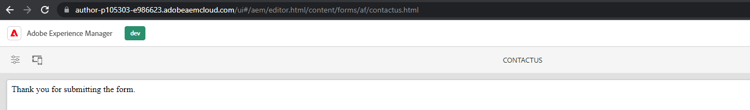

    3. Submit the form.

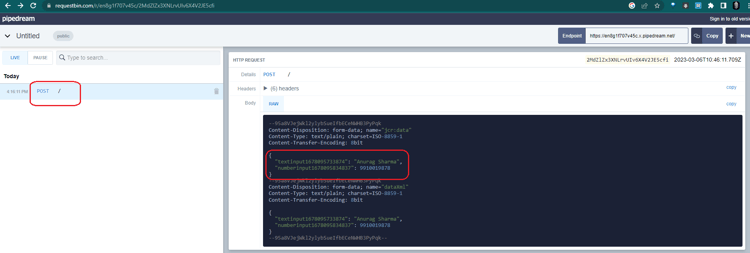

    4. In the Request bin tab, check the submitted data.

  5. Add interactivity to the form with rules:

    1. Click the Check the box to receive 5% off component. On the options toolbar, click the Rules icon. The Rule editor option opens.

    2. Create a rule, when the Check the box to receive 5% off option is selected, the options for applying credit card is disabled.

  6. Publish the form.

    1. Open AEM Forms management interface, for example, https://author-p105303-e986623.adobeaemcloud.com/ui%23/aem/aem/forms.html/content/dam/formsanddocuments, and select the form.

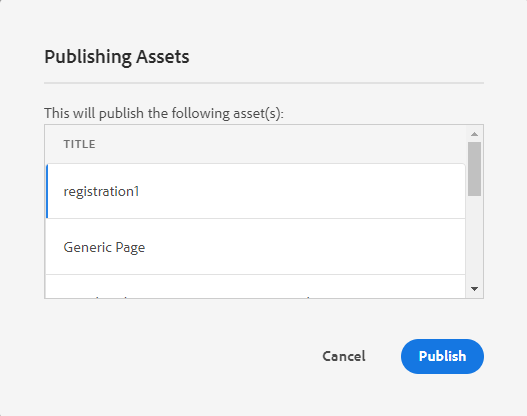

    2. Click Publish.

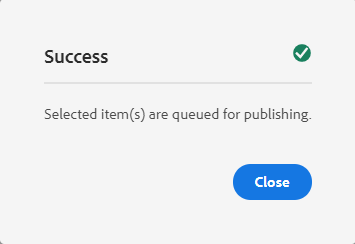

      The success message is displayed.

      The published URL of the form would be similar to https://publish-p105303-e986623.adobeaemcloud.com/content/forms/af/registration.html.

    3. To view the published form, replace the program ID (pXXXXXX) and environment ID (eXXXXXX) in the above URL with the IDs of your
      environment.

Lesson 3

Objective

Update styles using frontend development best practices.

Lesson context

In this lesson, as a front-end developer, you learn how you can update styling for the previously created adaptive form easily.

Exercise

Set up a local repository of the theme:

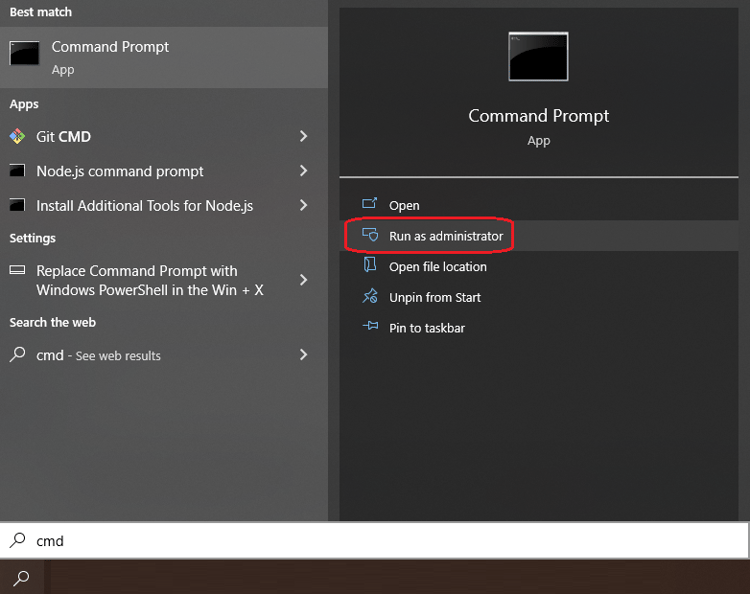

  1. Open the Command Prompt or shell with administrator rights:

    {width="50%"}

  2. On the Command Prompt, use the following command to navigate to c:\git folder

    code language-shell

cd c:\git

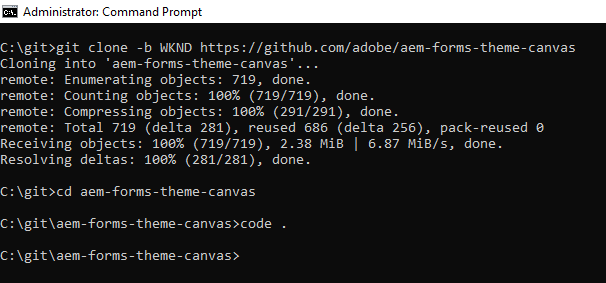

  3. Use the following command to clone the theme frontend code:

    code language-shell

git clone -b WKND https://github.com/adobe/aem-forms-theme-canvas

  4. Use the following command in the listed order to navigate to the aem-forms-theme-canvas directory and open Visual Studio Code.

    code language-shell

cd aem-forms-theme-canvas
code .

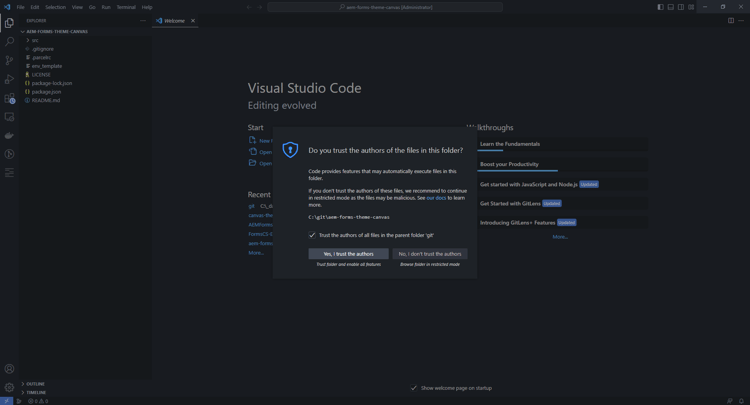

  5. Select Trust the authors of all files in the parent folder and click Yes, I trust the authors.

    {width="50%"}

  6. To render the form hosted on your cloud service publish environment, rename the env_template file. To rename the file, right click the env_template file and select the Rename option.

    {width="50%"}

    {width="50%"}

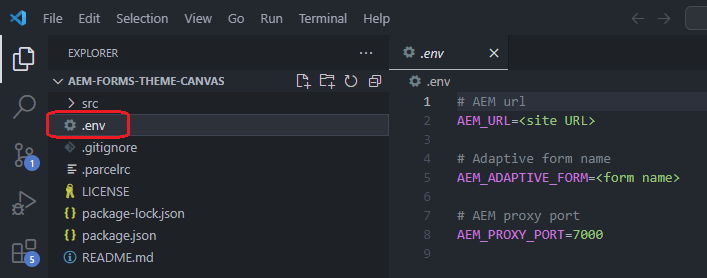

  7. Set the following values for the variables in the .env file and save the file:

    • AEM_URL: Specify your cloud service publish environment. For example, https://publish-p105303-e986623.adobeaemcloud.com/

    • AEM_ADAPTIVE_FORM: Specify the path of the form. For example, if the form path is /content/forms/af/registration, the value of this variable would be registration.

      {width="50%"}

  8. Create a local user in the AEM environment.

    note note
    NOTE
    To create a local user, Go to AEM Home > Tools > Security > Users.
    Ensure that the user is a member of the forms-users group.

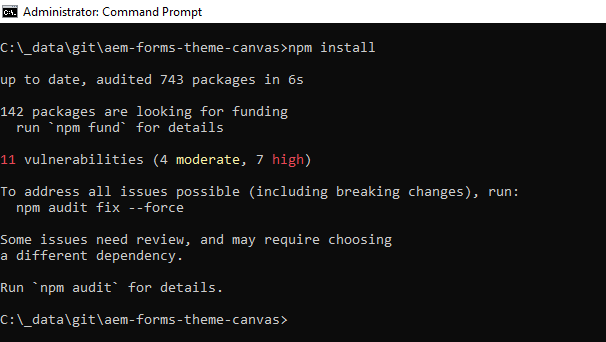

  9. In the Command Prompt window, run the following command:

    code language-shell

npm install

    note note
    NOTE
    • If you get a message asking to update npm through the npm notice Run npm nstall -g npm@9.6.0 command, ignore the message.
    • Unless you are instructed in the workbook, do not run other npm commands.

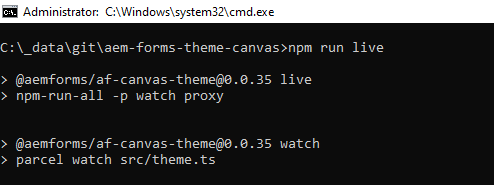

  10. Now, run the following command to preview the form.

    code language-shell

npm run live

    Once the above command is executed, wait for the webpack compiled message and you are redirected to a AEM login page.

  11. Click Sign in Locally (Admin Tasks only) on the AEM login page.

  12. Enter the credentials for the created local user and the form is displayed in a browser tab.

    note note
    NOTE
    If you experience a blank screen in browser after executing the npm run live command for more than 3-4 minutes, change localhost in browser URL to 127.0.0.1 and hit Enter.

    {width="50%"}

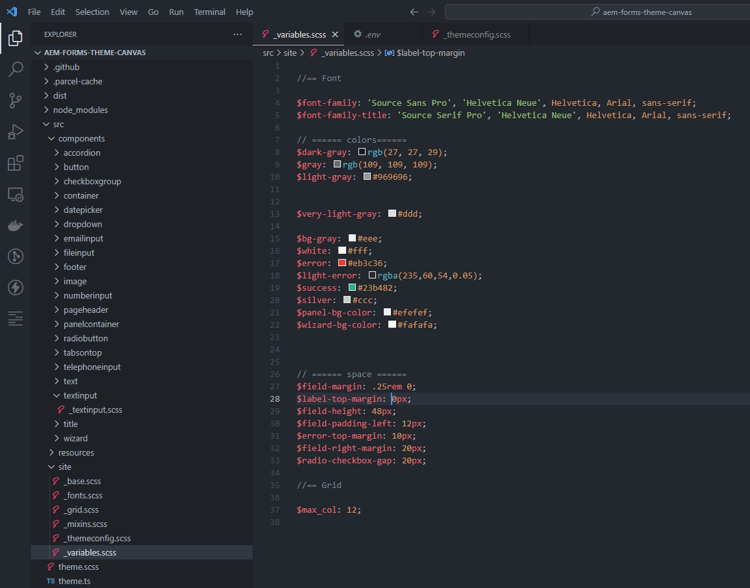

  13. In Visual Studio Code, open the PROJECT\src\site\_variables.scss file. Notice the $error color is a shade of RED.

    {width="50%"}

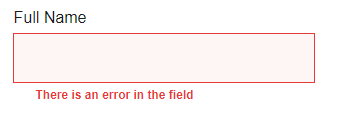

  14. In the browser, submit the form to see the Red color in the First Name field.

  15. Set the $error color to #5736eb and save the file.

    {width="50%"}

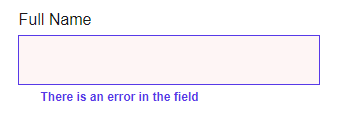

  16. Refresh the browser and submit the form. Notice that the error color on the first name field has changed accordingly.

  17. In the Command Prompt, press CTRL+C, enter Y, and press the Enter key to terminate the npm process. It is important to stop the npm server so it does not conflict with the next set of exercises.

  18. Close Visual Studio Code and Command Prompt windows.

Lesson 4

Objective

Render the form to Web/mobile and other interfaces as a headless form.

Lesson context

In this lesson, as a frontend developer, you learn how you can render the adaptive form created previously as a headless form using a React spectrum design framework.

Exercise

Set up a local repository using the React starter project:

  1. Open the Command Prompt using administrator rights.

    {width="50%"}

  2. On the Command Prompt, use the following command to navigate to c:\git folder

    code language-shell

cd c:\git

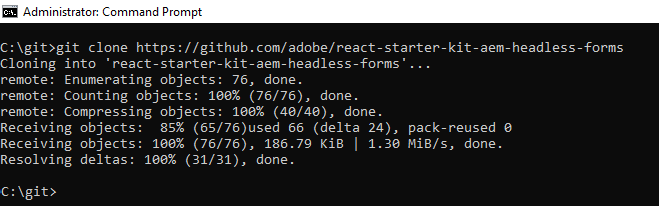

  3. Use the following command to clone the adaptive form React starter project:

    code language-shell

git clone https://github.com/adobe/react-starter-kit-aem-headless-forms

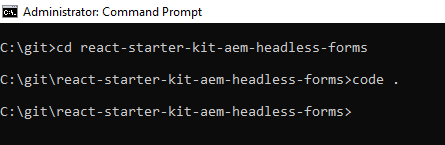

  4. Use the following commands in the listed order to navigate to the react-starter-kit-aem-headless-forms directory and open Visual Studio Code.

    code language-shell

cd react-starter-kit-aem-headless-forms

code .

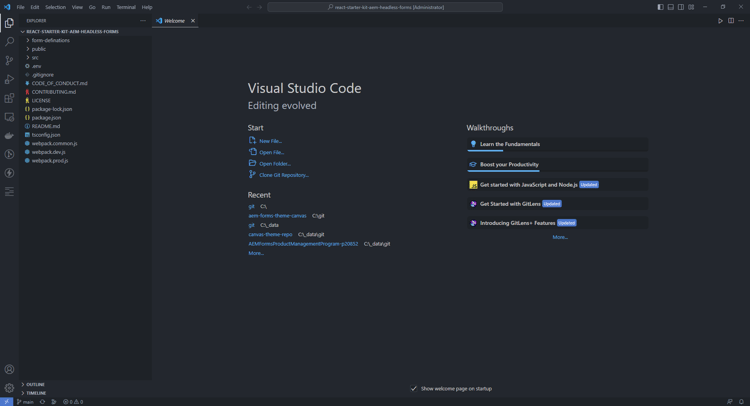

    The Visual Studio Code window opens.

    {width="50%"}

To render the form hosted on your cloud service publish environment:

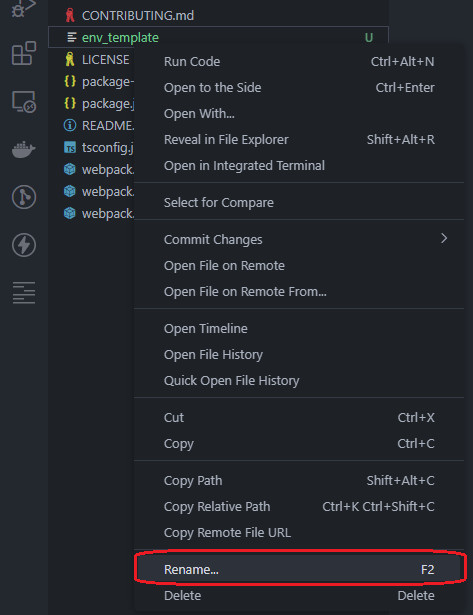

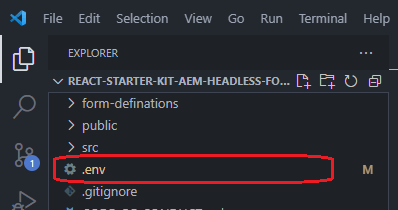

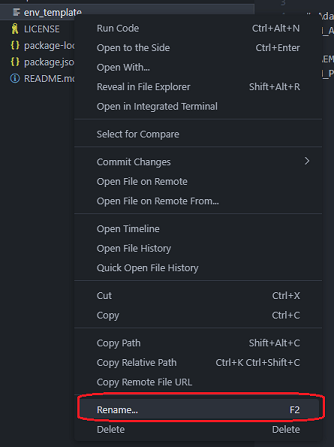

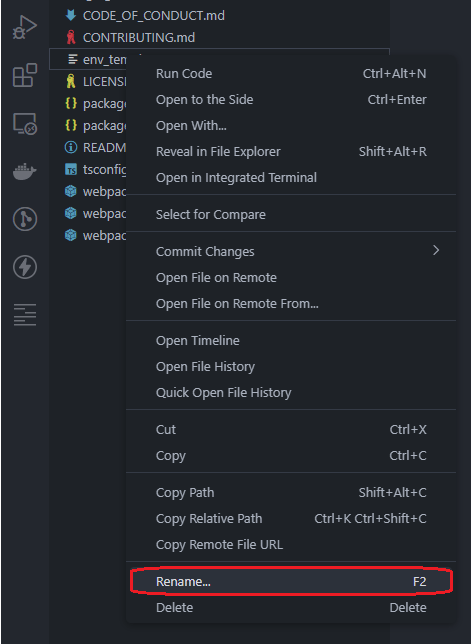

  1. Rename the env_template file to the .env file. To rename, right-click the env_template file and select the Rename option.

    {width="50%"}

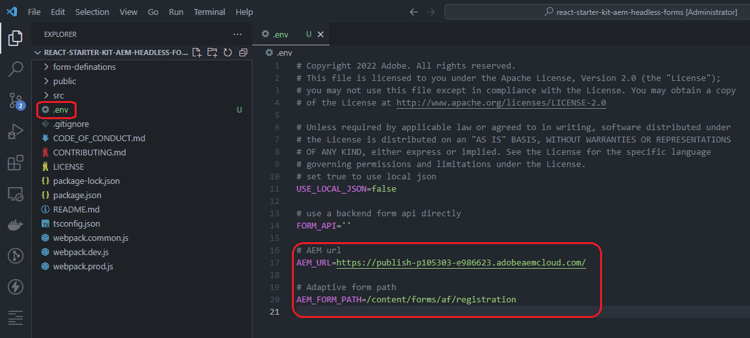

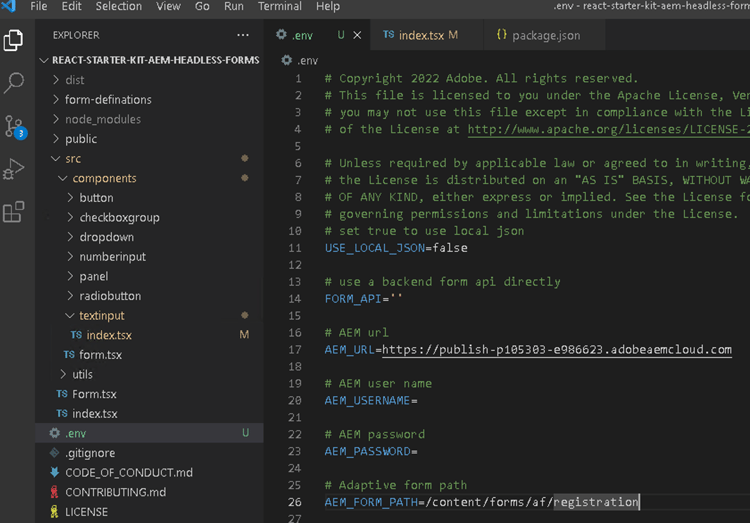

  2. Set the following values for the variables in the .env file. After updating the variables, save the file.

    • AEM_URL: Specify the URL of the cloud service publish environment. For example, https://publish-p105303-e986623.adobeaemcloud.com

    • AEM_FORM_PATH: Specify the path of the adaptive form created in the previous lesson. For example, /content/forms/af/registration/

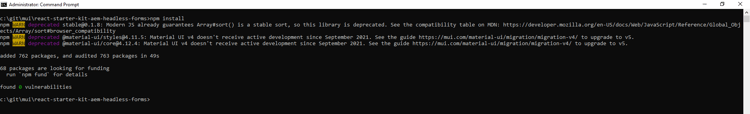

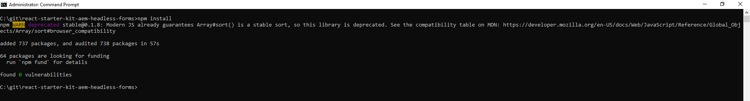

  3. Open the command window, ensure you are at the react-starter-kit-aem-headless-forms directory, and run the following command:

    code language-shell

npm install

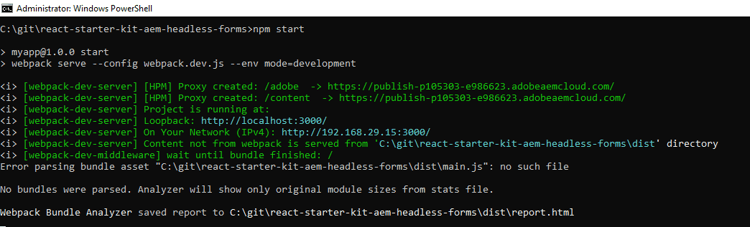

  4. In the Command Prompt window, run the following command:

    code language-shell

npm start

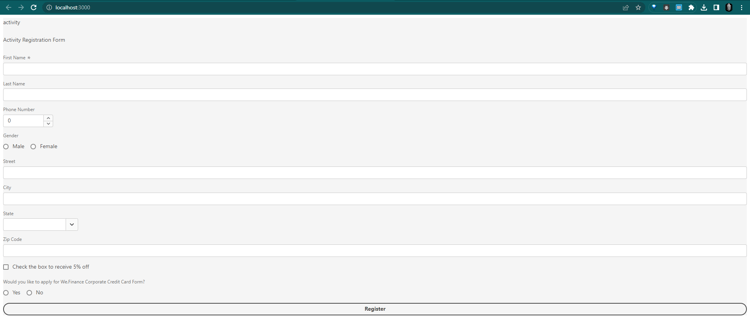

    The above command starts a local development server which would render the form definition fetched from AEM in a headless way using the React spectrum frontend library.

    note note
    NOTE
    If you experience a blank screen in browser after executing the npm start command for more than 3-4 minutes, change localhost in browser URL to 127.0.0.1 and hit Enter.

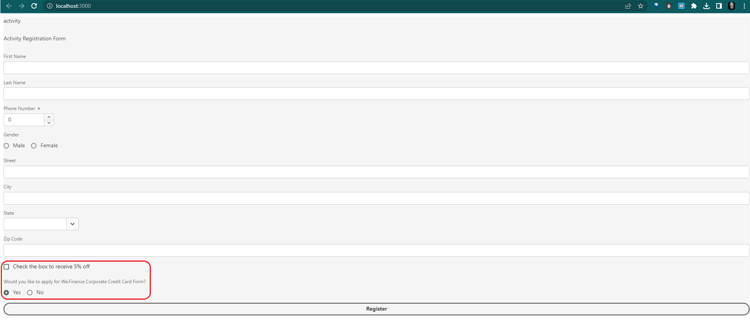

Let’s check the execution of the rules in this headless form:

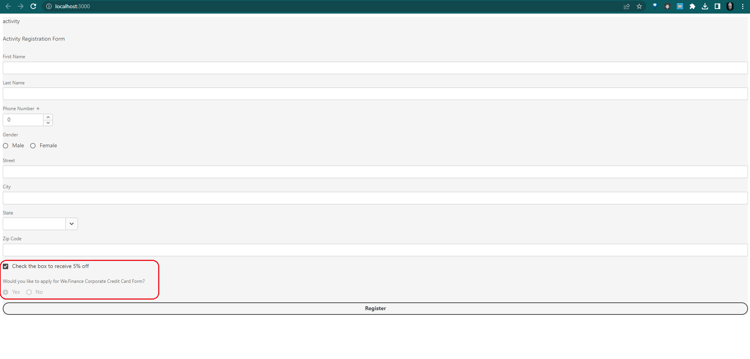

  1. Select the Check the box to receive 5% off option. The subsequent option for applying for a credit card is disabled.

  2. Uncheck Check the box to receive 5% off to enable the credit card option.

Let’s make changes on the form on the server as a business user and view changes reflected in the headless form automatically.

  1. Open the AEM Forms management interface in the browser.

  2. Select the contactus form and click Edit. It opens the form in the adaptive forms editor.

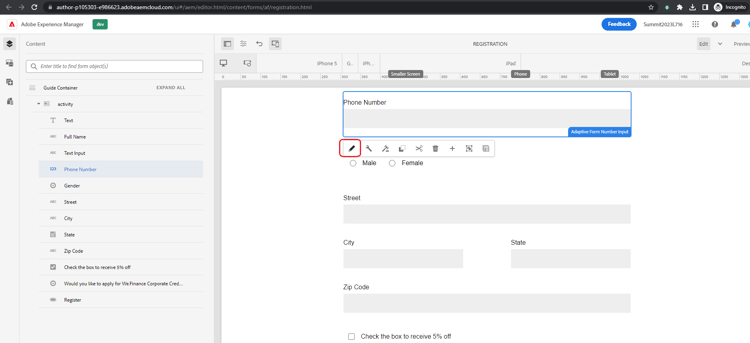

  3. Select the Phone number field and click the Edit icon (Pencil icon) in the toolbar. If you are not able to see the pop-up toolbar, switch to Edit mode. Click the Edit button in top right, left to Preview button.

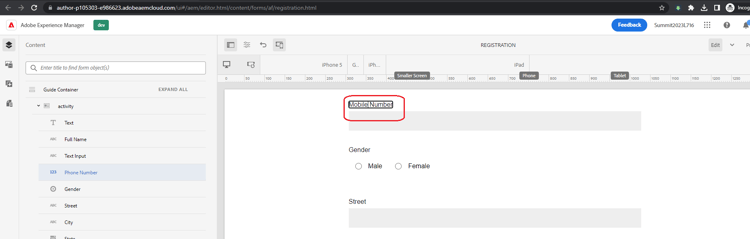

  4. Change the label to Mobile Number. Click any empty space in the form and the changes made to the form are saved.

Let’s publish the updated form to propagate the changes to the published environment.

  1. In the AEM Forms management interface tab, select the registration form, and click Unpublish. If you do not see the Unpublish button, skip to step 3 to publish the changes directly.

  2. Click Unpublish. Click Close in the respective dialog.

  3. After the browser refreshes, select the registration form and click Publish.

  4. Click Publish. Click Close in the respective dialog.

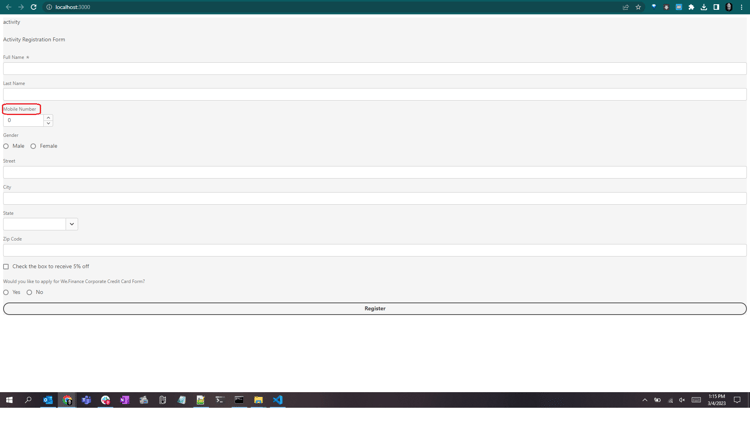

  5. Refresh the browser tab with the headless form displayed. Notice, the Phone number label has changed to Mobile Number.

  6. Open the Command Prompt window that is used to start the react-starter-kit-aem-headless-forms project, press CTRL+C, then
    enter Y and press Enter key to terminate the npm process. It is important to stop the npm server so it does not conflict with the next set of exercises.

  7. Close Visual Studio Code and Command Prompt windows.

Lesson 5

Objective

Render the form as a headless form using Google Material UI

Lesson context

In this lesson, as a front-end developer, you learn how to render the adaptive form created previously as a headless form using Google Material UI.

Exercise

Set up a local repository using the Material UI starter project:

  1. Open the Command Prompt using administrator rights.

    {width="50%"}

  2. On the Command Prompt, use the following command to navigate to c:\git folder:

    code language-shell

cd c:\git

  3. Run the following commands in the listed order to create a folder named mui and navigate to the mui folder using following commands:

    code language-shell

mkdir mui

cd mui

  4. Use the following command to clone the adaptive form React starter project:

    code language-shell

git clone -b mui-lab https://github.com/adobe/react-starter-kit-aem-headless-forms

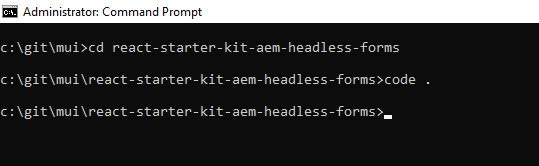

  5. Use the following command in the listed order to navigate to the react-starter-kit-aem-headless-forms folder and open the code in Visual Studio Code:

    code language-shell

cd react-starter-kit-aem-headless-forms

code .

To render the form hosted on your cloud service publish environment:

  1. Rename the env_template file to the .env file. To rename, right-click the env_template file and select Rename.

    {width="50%"}

  2. Set the following values for the variables in the .env file. After updating the variables, save the file. Use the CTRL + S switch combination to save the file.

    • AEM_URL: Specify the URL of the cloud service publish environment. For example, https://publish-p105303-e986623.adobeaemcloud.com

    • AEM_FORM_PATH: Specify the path of the adaptive form created in the previous lesson. For example, /content/forms/af/registration/

  3. Open the command window, ensure you are at the react-starter-kit-aem-headless-forms directory, and run the following command:

    code language-shell

npm install

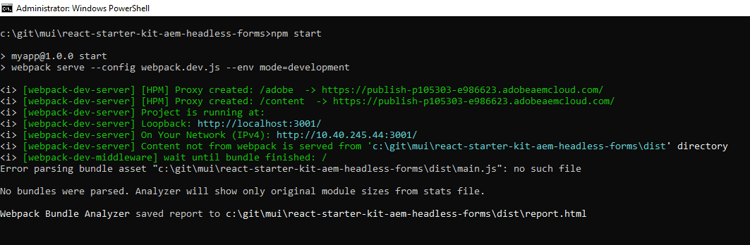

  4. In the Command Prompt window, run the following command:

    code language-shell

npm start

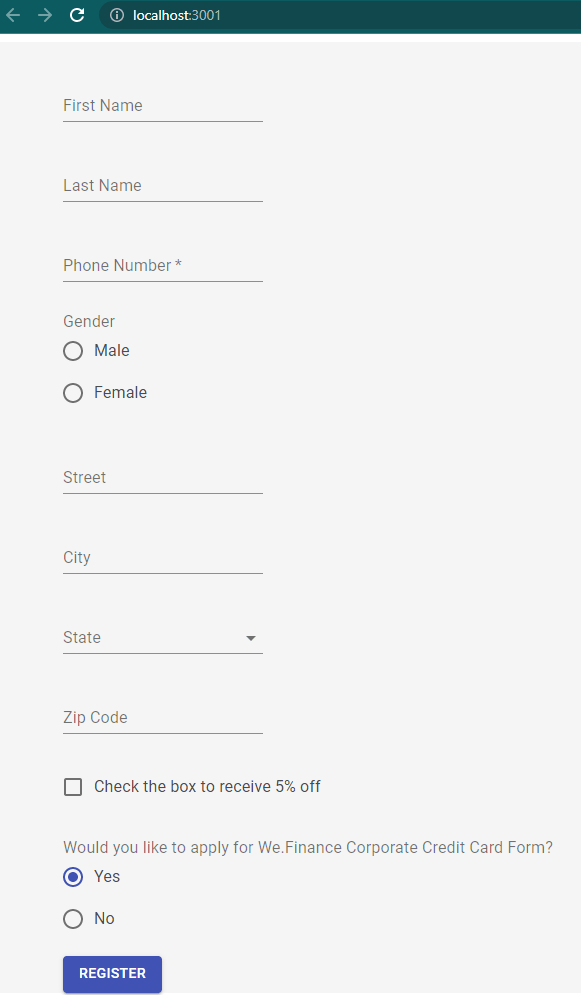

    The command starts a local development server and renders the form definition fetched from AEM in a headless way using the Google
    Material UI frontend library.

    note note
    NOTE
    If you experience a blank screen in browser after executing the npm start command for more than 3-4 minutes, change localhost in browser URL to 127.0.0.1 and hit Enter.

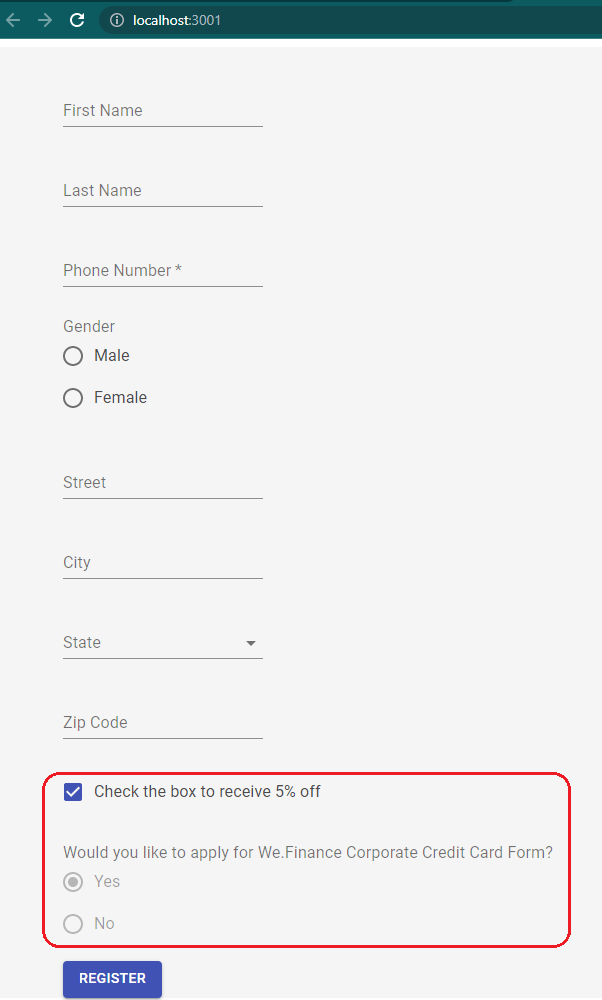

  5. To evaluate the execution of the same business logic in this form rendition:

    Select Check the box to receive 5% off. The subsequent option Would you like to apply for We.Finance Corporate Credit Card Form? gets disabled.

    {width="50%"}

Lesson 6

Objective

Create an alternate look and feel of the headless form using Material UI component variations

Lesson context

In this lesson, as a front-end developer, you learn how to create an alternate representation of different components. You use Material UI for the adaptive form created previously by the business user.

Exercise

Update the variation of components in the headless project. To change the variant of the material UI text input component to OutlinedInput:

  1. In Visual Code, navigate to the text input component by opening the index.tsx file at src/components/textinput/index.tsx.

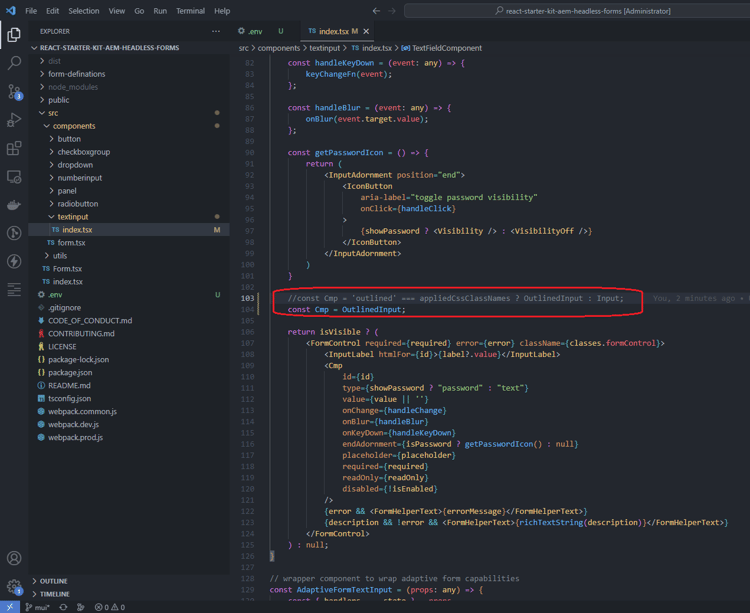

  2. Add // at the beginning of the code line 103. It converts the line to a comment.

    code language-shell

//const Cmp = \'outlined\' === appliedCssClassNames ? OutlinedInput: Input;

  3. Add the following at line 104 to use a different variant of the component and save the file. Use the CTRL + S switch combination to save the file.

    code language-shell

const Cmp = OutlinedInput;

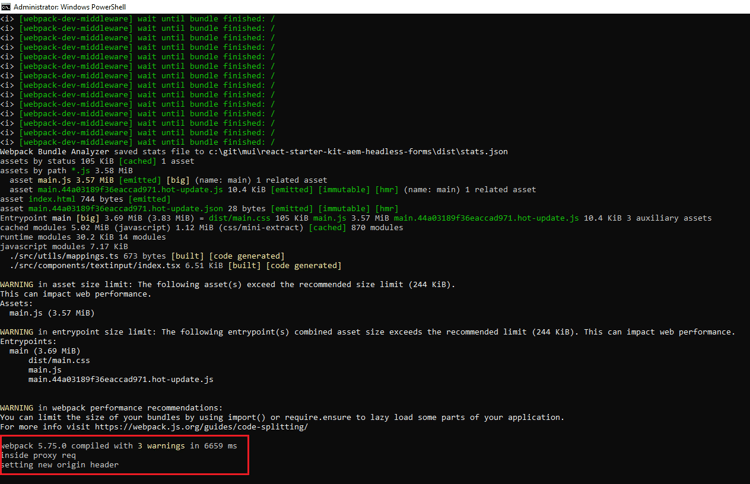

    It is essential to use correct capitalization for the ‘OutlinedInput’ variant else the compilation would fail. The local development environment compilation begins automatically in Command Prompt. Wait until you see the following message

    webpack 5.75.0 compiled with 3 warnings in 6659 ms
    inside proxy req
    setting new origin header

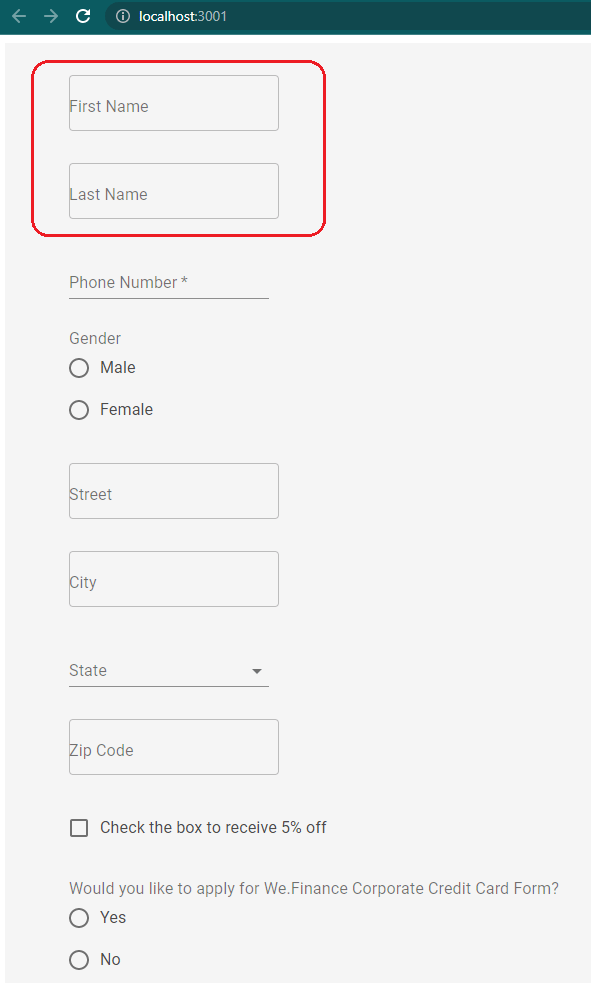

  4. Refresh the browser, if it does not refresh automatically, to see the text input component use a different variant.

    This change happens for end users without any change to form definition at AEM Forms Server and is specific for the headless
    channel under consideration. For example, a web channel in this lab.

    {width="50%"}

  5. Close Visual Studio Code and Command Prompt windows.

Frequently Asked Questions (FAQs)

Is Adaptive Form Wizard available publicly?
Yes, it is available with AEM Forms as Cloud Service.
Are core components available publicly?
Yes, Adaptive Forms core components are available with AEM Forms as Cloud Service.
Are Headless forms available publicly?
Yes, Headless forms are available with AEM Forms as Cloud Service.
Do Headless forms require a separate license?
No, Headless forms use the same licensing value metric, number of form submissions.
Are core components and Headless forms available with AEM 6.5 Forms?
Yes, both adaptive forms core components and headless forms are available with AEM Forms 6.5 Service Pack 16 and onwards.

Next steps

You now know how to build adaptive forms and deliver them across channels with headless forms. Use those skills to create scalable, high-quality data-capture experiences wherever your users are.

Resources

recommendation-more-help
ce8b2828-9203-402e-a565-7b758c99b2ba
