DocumentationAEM Headless adaptive forms

Enable Headless Adaptive Forms on AEM Forms as a Cloud Service enable-headless-adaptive-forms-on-aem-forms-cloud-service

Last update: Wed Jul 23 2025 00:00:00 GMT+0000 (Coordinated Universal Time)

CREATED FOR:

  • Beginner
  • Intermediate
  • Admin

Enabling Headless Adaptive Forms on AEM Forms as a Cloud Service, allows you to start creating, publishing, and delivering Headless Forms using your AEM Forms Cloud Service instances to multiple channels. You require Adaptive Forms Core Components enabled environment to use Headless Adaptive Forms.

Considerations

NOTE
Adobe provides an Adaptive Forms starter kit (React App) to help developers start quickly with Headless Adaptive Forms development, without enabling Headless Adaptive Forms on AEM Forms as a Cloud Service environment. You can enable the Headless Adaptive Forms on a Forms as a Cloud Service environment later after a quick hands-on with developing headless forms.

Enable Headless Adaptive Forms for an AEM Forms as a Cloud Service environment

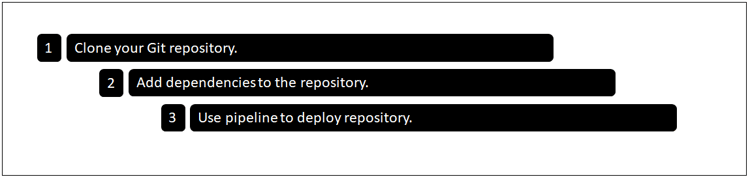

Perform the following steps, in the listed order, to enable Headless Adaptive Forms for an AEM Forms as a Cloud Service environment

1. Clone your AEM Forms as a Cloud Service Git Repository clone-git-repository

  1. Log in to Cloud Manager and select your organization and program.

  2. Navigate to the Pipelines card from your Program Overview page.

  3. Click the Access Repo Info button to access and manage your Git Repository. The page includes the following information:

    • URL to the Cloud Manager Git Repository.
    • Credentials of the Git Repository (Username and Password) Git username.

    Click Generate Password to view or generate the password.

  4. Open terminal or command prompt on your local computer and run the following command:

    code language-shell

git clone [Git Repository URL]

    When prompted, provide the credentials. The repository is cloned to your local computer.

2. Add Adaptive Forms Core Components dependencies to your Git Repository add-adaptive-forms-core-components-dependencies

  1. Open your Git Repository folder in a plain text code editor. For example, VS Code.

  2. Open the [AEM Repository Folder]\pom.xml file for editing.

  3. Replace versions of the core.forms.components.version, core.forms.components.af.version and core.wcm.components.version components with versions specified in core components documentation. If the component does not exist, add these components.

    code language-xml

<!-- Replace the version with the latest released version at https://github.com/adobe/aem-core-forms-components/tags -->

<properties>
    <core.forms.components.version>2.0.14</core.formscomponents.version>
    <core.forms.components.af.version>2.0.14</core.forms.components.af.version>
    <core.wcm.components.version>2.21.2</core.wcmcomponents.version>
</properties>

    Mention latest version of Forms Core Components

  4. In the dependencies section of the [AEM Repository Folder]\pom.xml file, add the following dependencies, and save the file.

    code language-xml

    <!-- WCM Core Component Examples Dependencies -->
        <dependency>
            <groupId>com.adobe.cq</groupId>
            <artifactId>core.wcm.components.examples.ui.apps</artifactId>
            <type>zip</type>
            <version>${core.wcm.components.version}</version>
        </dependency>
        <dependency>
            <groupId>com.adobe.cq</groupId>
            <artifactId>core.wcm.components.examples.ui.content</artifactId>
            <type>zip</type>
            <version>${core.wcm.components.version}</version>
        </dependency>
        <dependency>
            <groupId>com.adobe.cq</groupId>
            <artifactId>core.wcm.components.examples.ui.config</artifactId>
            <version>${core.wcm.components.version}</version>
            <type>zip</type>
        </dependency>
        <!-- End of WCM Core Component Examples Dependencies -->
        <!-- Forms Core Component Dependencies -->
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-core</artifactId>
            <version>${core.forms.components.version}</version>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-apps</artifactId>
            <version>${core.forms.components.version}</version>
            <type>zip</type>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-af-core</artifactId>
            <version>${core.forms.components.version}</version>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-af-apps</artifactId>
            <version>${core.forms.components.version}</version>
            <type>zip</type>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-examples-apps</artifactId>
            <type>zip</type>
            <version>${core.forms.components.version}</version>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-examples-content</artifactId>
            <type>zip</type>
            <version>${core.forms.components.version}</version>
        </dependency>
<!-- End of AEM Forms Core Component Dependencies -->

  5. Open the [AEM Repository Folder]/all/pom.xml file for editing. Add the following dependencies in the <embeddeds> section and save the file.

    code language-xml

<!-- WCM Core Component Examples Dependencies -->

<!-- inside plugin config of filevault-package-maven-plugin -->
<!-- embed wcm core components examples artifacts -->

<embedded>
    <groupId>com.adobe.cq</groupId>
    <artifactId>core.wcm.components.examples.ui.apps</artifactId>
    <type>zip</type>
    <target>/apps/${appId}-vendor-packages/content/install</target>
</embedded>
<embedded>
    <groupId>com.adobe.cq</groupId>
    <artifactId>core.wcm.components.examples.ui.content</artifactId>
    <type>zip</type>
    <target>/apps/${appId}-vendor-packages/content/install</target>
</embedded>
<embedded>
    <groupId>com.adobe.cq</groupId>
    <artifactId>core.wcm.components.examples.ui.config</artifactId>
    <type>zip</type>
    <target>/apps/${appId}-vendor-packages/content/install</target>
</embedded>
<!-- embed forms core components artifacts -->
<embedded>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-af-apps</artifactId>
    <type>zip</type>
    <target>/apps/${appId}-vendor-packages/application/install</target>
</embedded>
<embedded>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-af-core</artifactId>
    <target>/apps/${appId}-vendor-packages/application/install</target>
</embedded>
<embedded>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-examples-apps</artifactId>
    <type>zip</type>
    <target>/apps/${appId}-vendor-packages/content/install</target>
</embedded>
<embedded>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-examples-content</artifactId>
    <type>zip</type>
    <target>/apps/${appId}-vendor-packages/content/install</target>
</embedded>
    note note
    NOTE
    Replace ${appId} with your appId.
    To find your ${appId}, in the [AEM Repository Folder]/all/pom.xml file, search the -packages/application/install term. The text before the -packages/application/install term is your ${appId}. For example, the following code, myheadlessform is ${appId}.
    code language-none




 com.myheadlessform

 myheadlessform.ui.apps

 zip

 /apps/myheadlessform-packages/application install

  6. In the <dependencies> section of the [AEM Repository Folder]/all/pom.xml file, add the following dependencies, and save the file:

    code language-xml

        <!-- Other existing dependencies -->
        <!-- wcm core components examples dependencies -->
        <dependency>
            <groupId>com.adobe.cq</groupId>
            <artifactId>core.wcm.components.examples.ui.apps</artifactId>
            <type>zip</type>
        </dependency>
        <dependency>
            <groupId>com.adobe.cq</groupId>
            <artifactId>core.wcm.components.examples.ui.config</artifactId>
            <type>zip</type>
            </dependency>
        <dependency>
            <groupId>com.adobe.cq</groupId>
            <artifactId>core.wcm.components.examples.ui.content</artifactId>
            <type>zip</type>
        </dependency>
            <!-- forms core components dependencies -->
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-af-apps</artifactId>
            <type>zip</type>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-examples-apps</artifactId>
            <type>zip</type>
        </dependency>
            <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>core-forms-components-examples-content</artifactId>
            <type>zip</type>
        </dependency>

  7. Open the [AEM Repository Folder]/ui.apps/pom.xml for editing. Add the af-core bundle dependency, and save the file.

    code language-xml

    <dependency>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-af-core</artifactId>
    </dependency>
    note note
    NOTE
    Ensure that the following Adaptive Forms Core Components artifacts are not included in your project.
    <dependency>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-apps</artifactId>
    </dependency>
    and
    <dependency>
    <groupId>com.adobe.aem</groupId>
    <artifactId>core-forms-components-core</artifactId>
    </dependency>

  8. Save and close the file.

3. Update the project to include the latest version of Forms Core Components:

  1. Open the [AEM Archetype Project Folder]/pom.xml for editing.

  2. Save and close the file.

4. Commit the updates to your Git Repository and run a pipeline to deploy the repository Commit-the-updates-to-your-git-repository

  1. To commit code to your Git Repository:

    1. Open the terminal or command prompt.

    2. Navigate to your [AEM Repository Folder] and run the following commands in the listed order

      code language-shell

git add pom.xml
git add all/pom.xml
git add ui.apps/pom.xml
git commit -m "Added dependencies for Adaptive Forms Core Components"
git push origin

  2. After the files are committed to Git Repository, Run the pipeline.

    After the pipeline run is successful, Adaptive Forms Core Components are enabled for the corresponding environment. Also, an Adaptive Forms (Core Components) template and Canvas 3.0 theme are added to your Forms as a Cloud Service environment, providing you with options to customize and create Core Components based Adaptive Forms.

Frequently Asked Questions faq

What are the core components? core-components

The Core Components are a set of standardized Web Content Management (WCM) components for AEM to speed up development time and reduce the maintenance cost of your websites.

What all capabilities are added on enabling core components? core-components-capabilities

When the Adaptive Forms Core Components are enabled for your environment, a blank Core Components based Adaptive Form template and Canvas 3.0 theme are added to your environment. After enabling Adaptive Forms Core Components for your environment, you can:

  • Create Core Components based Adaptive Forms.
  • Create Core Components based Adaptive Form templates.
  • Create custom themes for Core Components based Adaptive Form templates.
  • Serve Core Component based Adaptive Form’s JSON representations to channels such as mobile, web, native apps, and services that require a form’s headless representation.

Are Adaptive Forms Core Components enabled for my environment? enable-components

To check that Adaptive Forms Core Components are enabled for your environment:

  1. Clone your AEM Forms as a Cloud Service repository.

  2. Open the [AEM Repository Folder]/all/pom.xml file of your AEM Forms Cloud Service Git Repository.

  3. Search for the following dependencies:

    • core-forms-components-af-core
    • core-forms-components-core
    • core-forms-components-apps
    • core-forms-components-af-apps
    • core-forms-components-examples-apps
    • core-forms-components-examples-content

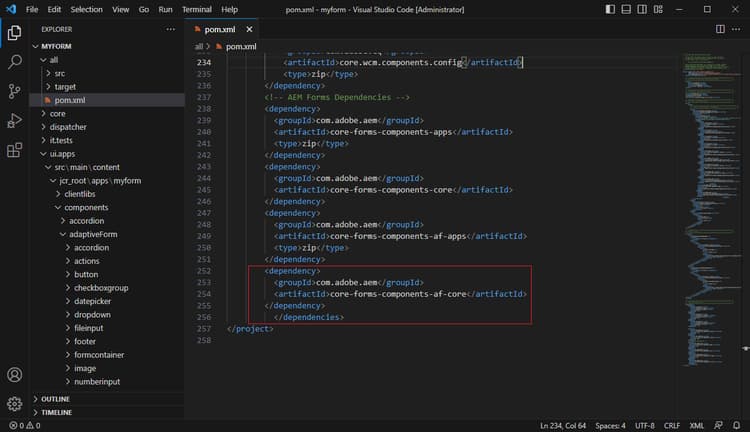

    locate the core-forms-components-af-core artifact in all/pom.xml

    If the dependencies exist, Adaptive Forms Core Components are enabled for your environment.
