Basic Braintree Settings
Field | Scope | Description |
---|---|---|
Title | Store View | Default value: Credit Card (Braintree) |
Environment | Store View | Options: Sandbox / Production |
Payment Action | Store View | Determines the action taken by Braintree when a payment is processed. Options:Authorize - Funds on the customer’s credit card are authorized, but not transferred from the account. An order is created in your store Admin. You can later capture the sale and create an invoice.Intent Sale (previously Authorize and Capture in earlier releases) - Funds on the customer’s credit card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. |
Sandbox Merchant ID | Store View | This is the unique identifier for your entire sandbox gateway account. Also known as the public ID or production ID, your merchant ID is different for your production and sandbox gateways. This field appears when the Environment field is set to Sandbox . |
Sandbox Public Key | Store View | This is your user-specific, public identifier that restricts access to encrypted data. Each user associated with your Sandbox Braintree gateway has their own sandbox public key. This field appears when the Environment field is set to Sandbox . |
Sandbox Private Key | Store View | This is your user-specific, private identifier that restricts access to encrypted data. Each user associated with your Sandbox Braintree gateway has their own private key for the sandbox. This field appears when the Environment field is set to Sandbox . |
Merchant ID | Store View | This is the unique identifier for your entire gateway account, including the multiple merchant accounts that may be in your gateway. Also known as the public ID or production ID, your merchant ID is different for your production and sandbox gateways. This field appears when the Environment field is set to Production . |
Public Key | Store View | This is your user-specific, public identifier that restricts access to encrypted data. Each user associated with your Braintree gateway has their own public key. This field appears when the Environment field is set to Production . |
Private Key | Store View | This is your user-specific, private identifier that restricts access to encrypted data. Each user associated with your Braintree gateway has their own private key. This field appears when the Environment field is set to Production . |
Enable Card Payments | Website | Determines if the Braintree credit card payment method is available to your customers as a payment method. Options: Yes / No |
Enable Vault for Card Payments | Website | When enabled, provides secure storage for customer payment information, so customers don’t have to re-enter their credit card information for each purchase. Options: Yes / No |
Enable Vault CVV Reverification | Website | When enabled, validation is done for the CVV rules setup in your Braintree Account. Options: Yes / No |
Advanced Braintree Settings
Field | Scope | Description |
---|---|---|
Vault Title | Website | A descriptive title for your reference that identifies the vault where your customer card information is stored. |
Merchant Account ID | Website | The Merchant Account ID that is to be associated with Braintree transactions from this website. If left blank, the default merchant account from your Braintree account is used. |
Enable Checkout Express Payments | Website | Provides a faster checkout experience with Express Payment options at the beginning of the checkout process, including PayPal, PayLater, Apple Pay, and Google Pay. Options: Yes / No |
Skip Fraud Checks on Admin Orders | Website | Prevents the transaction from being sent for evaluation as part of Advanced Fraud Tools checks, on orders placed through the admin only when it set to Yes .Options: Yes / No |
Bypass Fraud Protection Threshold | Website | Advanced Fraud Protection checks are bypassed when the threshold value is met or exceeded. Leaving this field blank disables this option. |
Debug | Website | Determines if communications between the Braintree system and your store are recorded in a log file. Options: Yes / No |
CVV Verification | Website | Determines if customers are required to provide the three-digit security code from the back of a credit card. Options: Yes / No |
Send Card Line Items | Website | Send the cart line items for all the payment methods. Options: Yes / No |
Credit Card Types | Website | Specifies each credit card that you accept as payment through Braintree. Press and hold Ctrl (or Command on Mac) to select a combination of cards. Options: American Express / Visa / MasterCard / Discover / JCB / Diners / Maestro International |
Sort Order | Website | Determines the order that Braintree is listed with other payment methods during checkout. |
Braintree Webhooks Settings
Field | Scope | Description |
---|---|---|
Enable Webhook | Website | To enable the webhook functionality for fraud protection, ACH payments, local payment methods, and disputes. Options: Yes / No |
Fraud Protection URL | Website | Add this URL into your Braintree Account as the Webhook Destination URL. This URL must be secure and publicly accessible. |
Fraud Protection Approve Order Status | Website | When fraud protection is approved by Braintree, the selected order status is assigned to the Commerce order. This status is used to update the status of the order where the ACH payment method is used and when it moves to SETTLED in Braintree. |
Fraud Protection Reject Order Status | Website | When fraud protection is rejected by Braintree, the selected order status is assigned to the Commerce order. This status is used to update the status of the order where the ACH payment method is used and when SETTLEMENT is DECLINED in Braintree. |
Country Specific Settings
Field | Scope | Description |
---|---|---|
Payment from Applicable Countries | Website | Determines if you accept payments processed by Braintree from all countries, or only specific countries. Options: All Allowed Countries / Specific Countries |
Payment from Specific Countries | Website | If applicable, identifies the specific countries from which you accept payments processed by Braintree. |
Country Specific Credit Card Types | Website | Identifies the credit cards that are accepted per country for payments processed by Braintree. A record is saved for each country. Options:Country - Choose the country.Allowed Card Types - Select each credit card that is accepted from the country as payment through Braintree.Add - Add a line to allow credit cards for a different country.Action - Deletes the record of allowed credit cards for the country. |
ACH through Braintree
Field | Scope | Description |
---|---|---|
Enabled ACH Direct Debit | Website | Determines if ACH Direct Debit is included as a payment method through Braintree. Options: Yes / No |
Enable Vault for ACH Direct Debit | Website | Customers can vault/store their single-use ACH Direct Debit payment method for future use. Once the payment details are vaulted, the customer can use the ACH Direct Debit payment method without re-entering data or re-authenticating their payment information. Options: Yes / No |
Sort Order | Website | Determines the order that ACH Direct Debit is listed with other payment methods during checkout. |
Apple Pay through Braintree
Field | Scope | Description |
---|---|---|
Enable ApplePay through Braintree | Website | Determines if Apple Pay is included as a payment method through Braintree. Options: Yes / No The domain must be verified in Braintree Account first. |
Enable Vault for ApplePay | Website | Customers can vault/store their Apple Pay payment method for future use. Once the payment details are vaulted, the customer can use Apple Pay without re-entering data or re-authenticating their payment information. Options: Yes / No |
Payment Action | Website | Determines the action taken by Braintree when a payment is processed. Options:Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.Intent Sale - Funds on the customer’s card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. Note: This was Authorize and Capture in 2.3.x and earlier releases. |
Merchant Name | Store View | Label that is displayed to customers in the ApplePay popup. |
Sort Order | Website | Determines the order that Apple Pay is listed with other payment methods during checkout. |

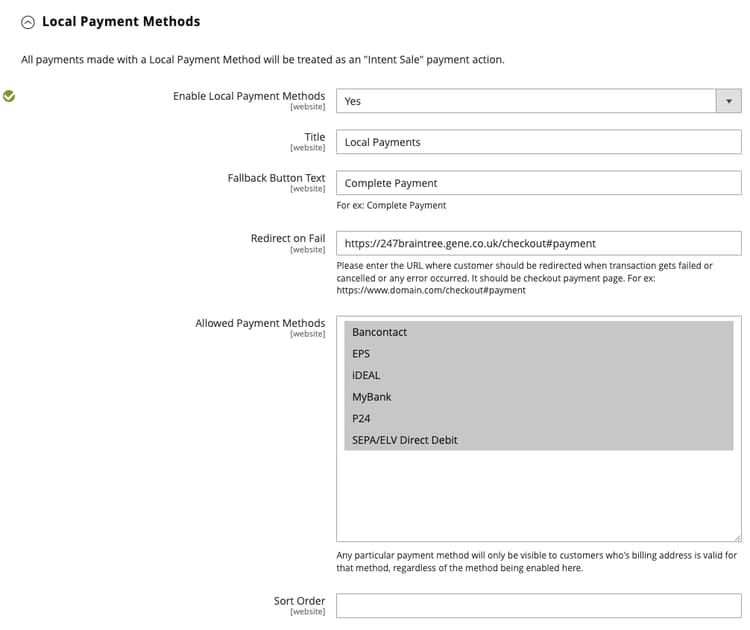

Local Payment Methods
Field | Scope | Description |
---|---|---|
Enabled Local Payment Methods | Website | Determines if Local Payment Method is included as a payment method through Braintree. Options: Yes / No |
Title | Website | Label that appears on the checkout payment method section. Default value: Local Payments |
Fallback Button Text | Website | Enter the text to use for the button that appears on the fallback Braintree page that takes customers back to the website. Default value: Complete Checkout |
Redirect on Fail | Website | Specifies the URL where customers should be redirected when local payment method transactions are cancelled, fail, or encounter errors. It should be the checkout payment page (for example, https://www.domain.com/checkout#payment ). |
Allowed Payment Method | Website | Select the local Payment method to be enabled. Options: Bancontact / EPS / giropay / iDeal / Klarna Pay Now / SOFORT / MyBank / P24 / SEPA/ELV Direct Debit (not yet supported) |
Sort Order | Website | Determines the order that Local Payment Method is listed with other payment methods during checkout. |
GooglePay through Braintree
Field | Scope | Description |
---|---|---|
Enabled GooglePay through Braintree | Website | Determines if Google Pay payment is included as a payment method through Braintree. Options: Yes / No |
Enable Vault for GooglePay | Website | Customers can vault/store their Google Pay payment method for future use. Once the payment details are vaulted, the customer can use Google Pay without re-entering data or re-authenticating their payment information. Options: Yes / No |
Payment Action | Website | Determines the action taken by Braintree when a payment is processed. Options:Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.Intent Sale - Funds on the customer’s card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. Note: This was Authorize and Capture in 2.3.x and earlier releases. |
Button Color | Website | Determines the color of the Google Pay button. Options: White / Black |
Merchant ID | Store View | ID provided by Google must be entered here. |
Accepted Cards | Website | Select the type of cards that a customer can use to place order using Google Pay. |
Sort Order | Website | Determines the order that Google Pay is listed with other payment methods during checkout. |
Venmo through Braintree
Field | Scope | Description |
---|---|---|
Enable Venmo through Braintree | Website | Determines if Venmo is included as a payment method through Braintree. Options: Yes / No |
Enable Vault for Venmo | Website | Customers can vault/store their Venmo payment method for future use. Once the payment details are vaulted, the customer can use the Venmo payment method without re-entering data or re-authenticating their payment information. Options: Yes / No |
Payment Action | Website | Determines the action taken by Braintree when a payment is processed. Options:Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.Intent Sale - Funds on the customer’s card are authorized and captured by Braintree, and an order and invoice are created in your store Admin. Note: This was Authorize and Capture in 2.3.x and earlier releases. |
Sort Order | Website | Determines the order that Venmo is listed with other payment methods during checkout. |

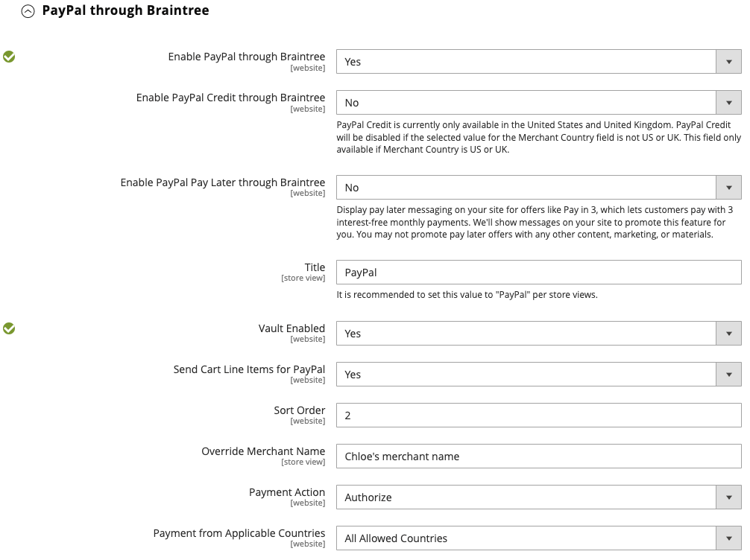

PayPal through Braintree
Field | Scope | Description |
---|---|---|
Enable PayPal through Braintree | Website | Determines if PayPal is included as a payment method through Braintree. Options: Yes / No |
Enable PayPal Credit through Braintree | Website | Determines if PayPal Credit is included as a payment method through Braintree. Options: Yes / No . This field gets visible when Enable PayPal through Braintree is set to Yes |
Enable PayPal PayLater through Braintree | Website | Determines if PayPal PayLater is included as a payment method through Braintree. Options: Yes / No . This field gets visible when Enable PayPal through Braintree is set to Yes |
Title | Store View | The label that identifies PayPal through Braintree to customers during checkout. Default value: PayPal |
Vault Enabled | Website | When enabled, provides secure storage for customer payment information, so customers don’t have to re enter their PayPal information for each purchase. Options: Yes / No |
Send Cart Line Items for PayPal | Website | Send the line items (order items) to PayPal along with Gift Cards, Gift Wrapping for items, Gift Wrapping for order, Store Credit, Shipping, and Tax as line items. Options: Yes / No |
Sort Order | Website | A number that determines the order in which PayPal through Braintree is listed with other payment methods during checkout. |
Override Merchant Name | Store View | An alternate name that can be used to identify the merchant for each store view. |
Payment Action | Website | Determines the action taken by PayPal through Braintree when a payment is processed. Options:Authorize - Funds on the customer’s card are authorized, but not transferred from the customer’s account. An order is created in your store Admin. You can later capture the sale and create an invoice.Authorize and Capture - Funds on the customer’s card are authorized and captured by PayPal through Braintree, and an order and invoice are created in your store Admin. |

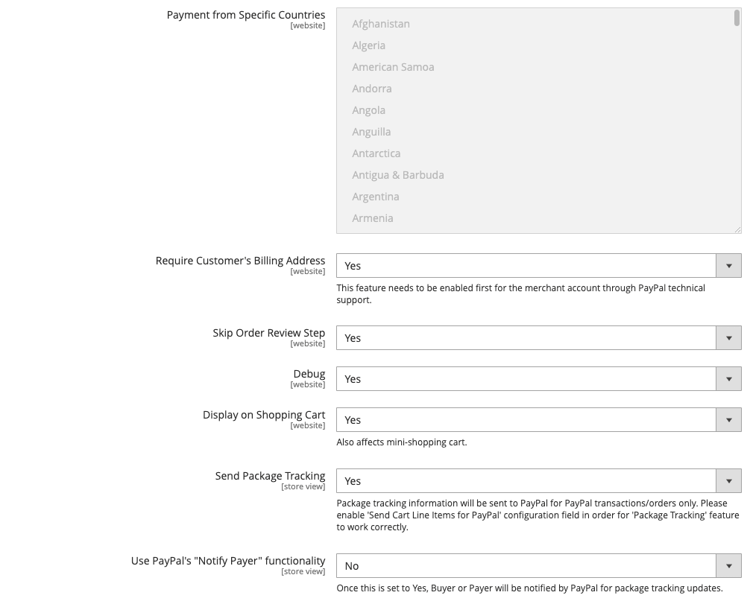

Payment from Applicable Countries | Website | Determines if you accept payments processed by PayPal through Braintree from all countries, or only specific countries. Options: All Allowed Countries / Specific Countries |

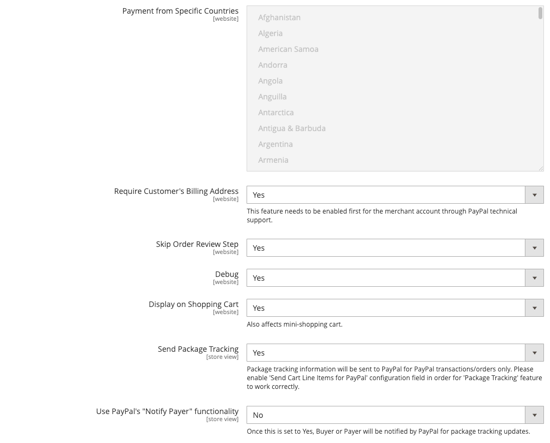

Payment from Specific Countries | Website | If applicable, identifies the specific countries from which you accept payments processed by Braintree. |
Require Customer’s Billing Address | Website | Determines if the customer’s billing address is required to submit an order. Options: Yes / No |
Debug | Website | Determines if communications between the PayPal through Braintree system and your store are recorded in a log file. Options: Yes / No |
Display on Shopping Cart | Website | Determines if the PayPal button appears in the mini cart and on the shopping cart page. Options: Yes / No |

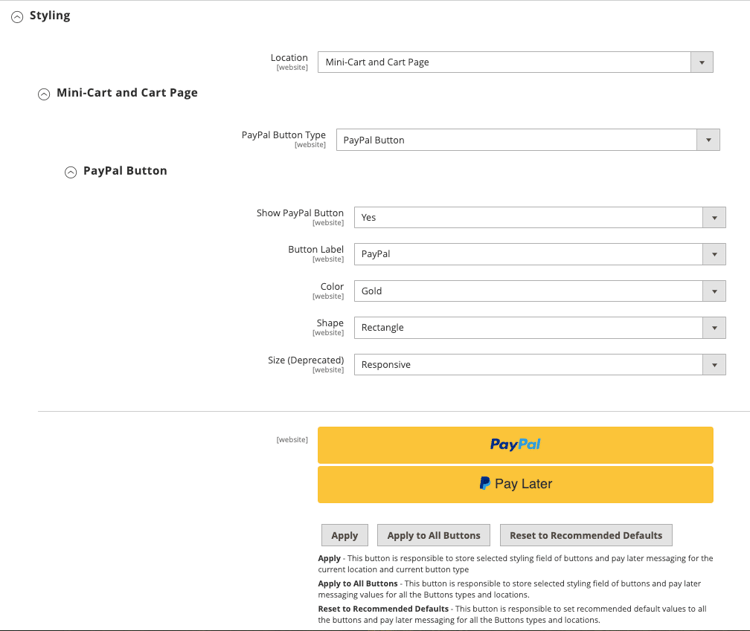

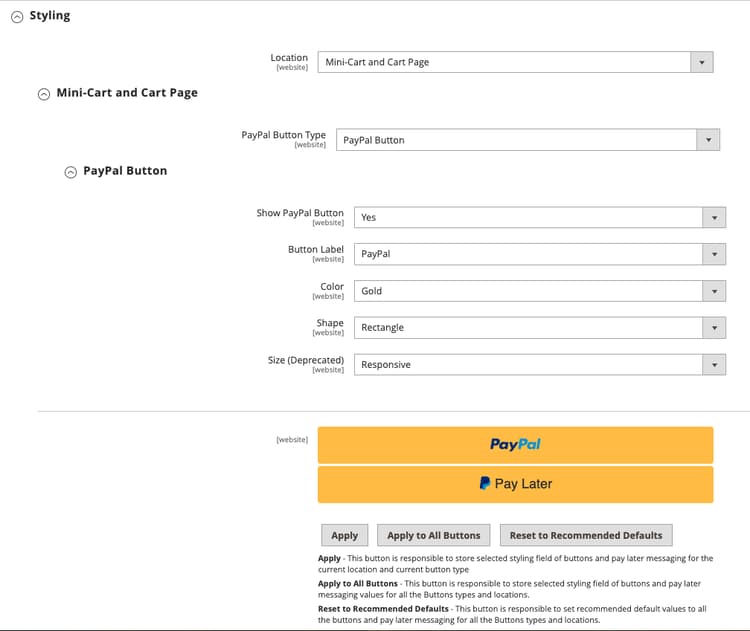

Styling
Field | Scope | Description |
---|---|---|
Location | Website | Determines where PayPal buttons and messages are rendered on the storefront. Options: Mini-Cart and Cart Page / Checkout Page / Product Page |
Mini-Cart and Cart Page
The option and settings in this section vary according to the setting in the Location field.
Field | Scope | Description |
---|---|---|
PayPal Button Type | Website | Sets the button to one of three types: PayPal Button / PayPal Pay Later Button / PayPal Credit Button |
PayPal Button
The options and settings in this section vary according to the button type selected in the PayPal Button Type field.
Field | Scope | Description |
---|---|---|
Show PayPal Button | Website | Determines the location of the PayPal button on the selected location. Options: Yes / No |
Button Label | Website | Determines the label for the PayPal button. Options: Paypal / Checkout / Buy Now / Pay |
Color | Website | Determines the color of the PayPal button. Options: Blue / Black / Gold / Silver |
Shape | Website | Determines the shape of the PayPal button. Options: Pill / Rectangle |
Size(Deprecated) | Website | Determines the size of the PayPal button. Options: Medium / Large / Responsive |

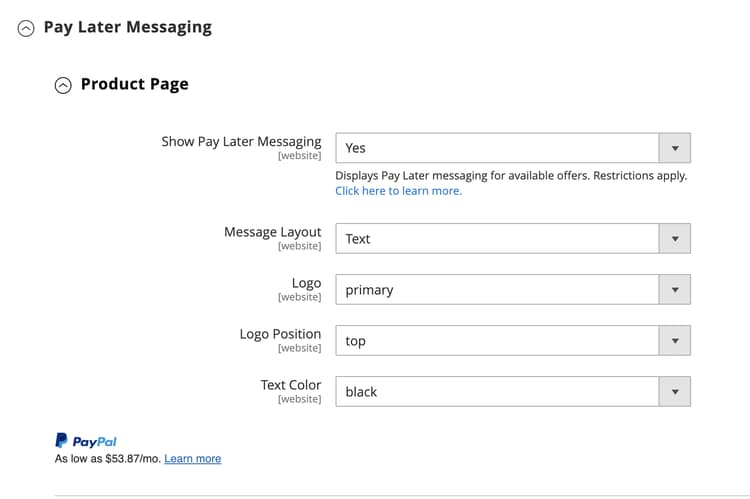

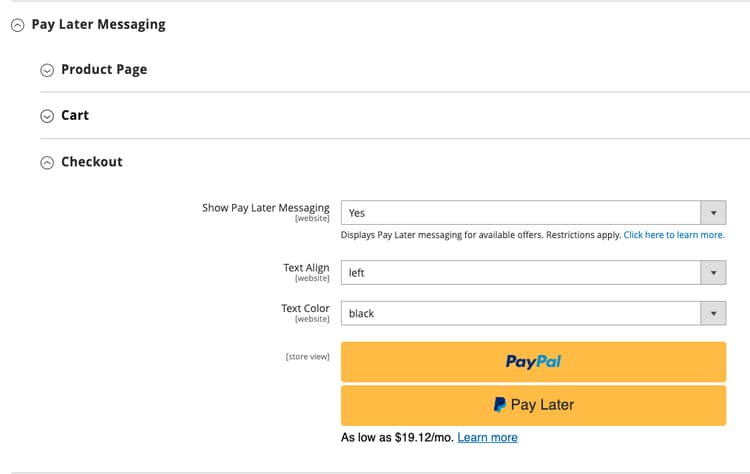

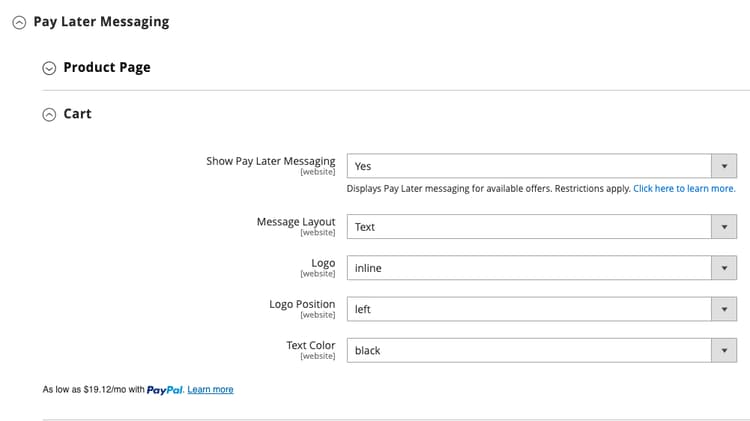

PayLater Messaging
Field | Scope | Description |
---|---|---|
Show PayLater Messaging | Website | Enables PayLater messaging at the selected location. Options: Yes / No . When enabled, it displays PayLater messaging for available offers (restrictions apply). |
Message Layout | Website | Determines the PayLater message layout. Options: Text / Flex |
Logo | Website | Determines the logo type used for the PayPal button. Options: Inline / Primary / Alternative / None |
Logo Position | Website | Determines the logo position for the PayPal button. Options: Left / Right / Top |
Text Color | Website | Determines the text color of the PayPal button. Options: Black / White / Monochrome / Grayscale |
When these options are set, you can see the preview of the PayPal buttons and PayLater messages. There are controls that you can use to apply the settings or reset the values:
Field | Scope | Description |
---|---|---|
Apply | Website | Stores the selected styling settings for buttons and PayLater messaging and applies them to the current location and current button type. |
Apply to All Buttons | Website | Stores the selected styling settings for buttons and PayLater messaging values and applies them to all button types and locations. |
Reset to Recommended Defaults | Website | Returns the styling settings to the recommended default values for buttons and PayLater messaging and applies them to all button types and locations. |
3d Secure Verification Settings
Field | Scope | Description |
---|---|---|
3D Secure Verification | Website | Determines if a transaction must pass an extra verification process when the customer is enrolled in a program such as Verified by VISA. Options: Yes / No |
Always request 3DS | Website | Challenge the 3D Secure request always for all the transactions. Options: Yes / No |
Threshold Amount | Website | Determines the maximum order amount that is authorized for processing on a single order. Braintree declines authorization if the order amount exceeds this threshold amount. |
Verify for Applicable Countries | Website | Determines the countries where payment must be verified. Options: All Allowed Countries / Specific Countries |
Verify for Specific Countries | Website | If applicable, identifies the specific countries from which payment by Braintree must be verified. |
Dynamic Descriptors
Field | Scope | Description |
---|---|---|
Name | Store View | There are two parts to the Name descriptor, which are separated by an asterisk (*). The first part of the descriptor identifies the company or DBA and the second part identifies the product. For example: company*myproduct The length of the Company and Product parts of the descriptor can be allocated in the following ways, for a combined length of up to 22 characters: Option 1 - Company must be three characters / Product can be up to 18 charactersOption 2 - Company must be seven characters / Product can be up to 14 charactersOption 3 - Company must be 12 characters / Product can be up to nine characters |
Phone | Store View | The Phone descriptor must be ten to 14 characters in length, and can include only numbers, dashes, parentheses, and periods. For example: 9999999999 (999) 999-9999 999.999.9999 |
URL | Store View | The URL descriptor represents your domain name, and can be up to 13 characters long. For example: company.com |
