Work with Segments in Report Builder

You can apply segments when you create a new data block or when you select the Edit data block option from the COMMANDS panel.

Apply segments to a data block

To apply a segment to the entire data block, double-click a segment or drag and drop filters from the components list into the Segments section of the Table.

Apply segments to individual metrics

To apply segments to individual metrics, drag and drop a segment onto a metric in the table. You can also click the icon to the right of a metric in the Table pane and then select Segment metric. To view applied segments, hover over or select a metric in the Table pane. Metrics with applied segments display a filter icon.

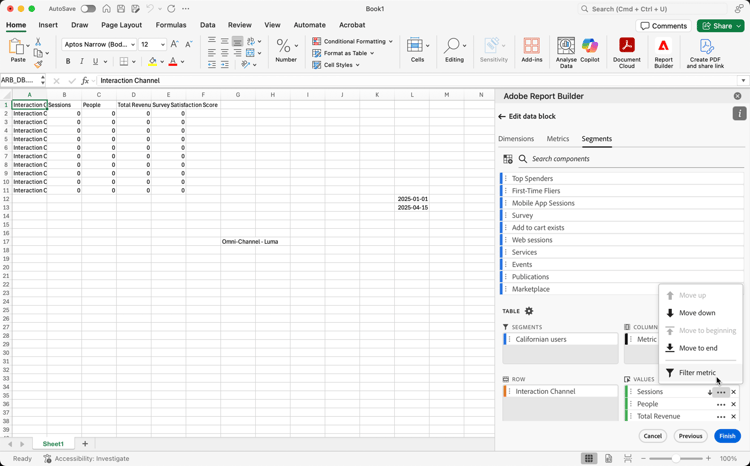

Segments tab displaying metrics.

Quick edit segments

You can use the Quick edit panel to add, remove, or replace segments for existing data blocks.

When you select a range of cells in the spreadsheet, the Segments link in the Quick edit panel displays a summary list of the segments used by the data blocks in that selection.

To edit segments using the Quick edit panel

  1. Select a range of cells from one or multiple data blocks.

    Quick Edit segment panel showing segment options for report suites, date range, and segments.

  2. Click the Segments link to launch the Quick edit - Filters panel.

    the Segments panel showing the Add Segments field and Segments Applied lists.

Add or remove a segment

You can add or remove segments using the Add/Remove options.

  1. Select the Add/Remove tab in the Quick edit-segments panel.

    All segments applied to the selected data blocks are listed in the Quick Edit-segments panel. Segments applied to all data blocks in the selection are listed under the Applied to all selected data blocks heading. Segments applied to some but not all data blocks are listed under the Applied to 1 or more selected data blocks heading.

    When multiple segments are present in the selected data blocks, you can search for specific segments using the Add Filter search field.

    The Add Segments field.

  2. Add segments by selecting segments from the Add segment drop down menu.

    The list of searchable segments includes all segments accessible to the report suites that are present in one or more of the selected data blocks as well as all the segments that are available globally in the organization.

    Adding a segment applies the segment to all data blocks in the selection.

  3. To remove segments, click the delete icon x to the right of segments in the Segments applied list.

  4. Click Apply to save changes and return to the hub panel.

    Report Builder displays a message to confirm the applied segment changes.

Replace a segment

You can replace an existing segment with another segment to change how the data is segmented.

  1. Select the Replace tab in the Quick edit-segment panel.

    Select the Replace tab.

  2. Use the Search list search field to locate specific segments.

  3. Choose one or more segments that you want to replace.

  4. Search for one or more segments in the Replace with field.

    Selecting a filter adds it to the Replace with… list.

    The Replace tab with the People on App data block selected and the Replace with list updated showing People on App Revised.

  5. Click Apply.

    Report Builder updates the list of segments to reflect the replacement.

Define data block segments from cell

Data blocks can reference segments from a cell. Multiple data blocks can reference the same cell for segments, allowing you to easily switch segments for multiple data blocks at a time.

To apply segments from a cell

  1. Navigate to Step 2 in either the data block creation or editing process. See Create a Data Block.

  2. Click the Segments tab to define filters.

  3. Click Create segment from cell.

    Create segment from cell icon.

  4. Select the cell from which you want the data blocks to reference a segment.

  5. Add the segment choice you wish to add to the cell by either double clicking the segment, or by dragging and dropping it into the Segments Included section.

    Note: Only one choice may be selected for the given cell at one time.

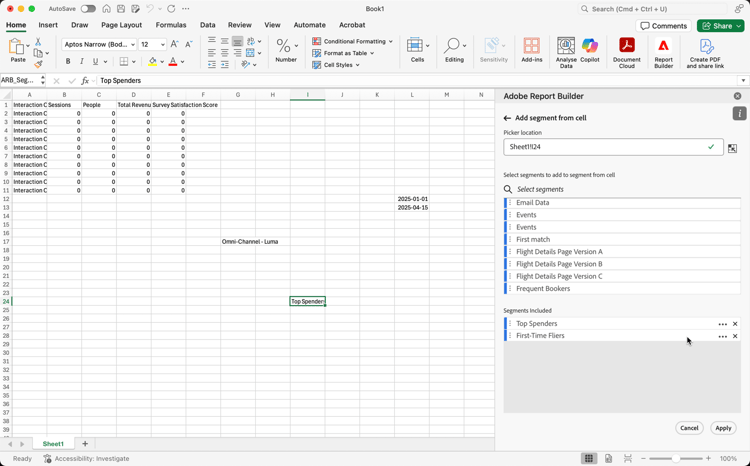

    The Add segment from cell window showing the Filters included.

  6. Click Apply to create the reference cell.

  7. From the Segments tab, add the newly created reference cell segments to your data block.

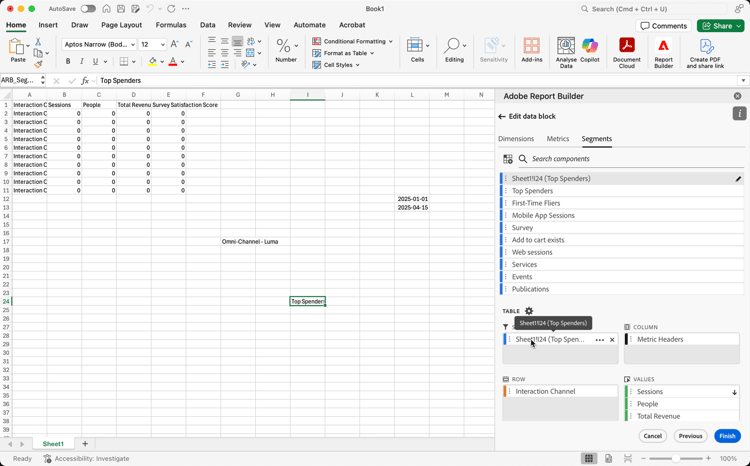

    Segments tab showing Sheet1!J1(All Data) segment added to the table.

  8. Click Finish.

    Now this cell can be referenced by other data blocks in their segments. To apply the reference cell as a segment to other data blocks, simply add the cell reference to their segments from the Segments tab.

Use the reference cell to change data block segments

  1. Select the reference cell in your spreadsheet.

  2. Click the link under Segments from Cell in the Quick Edit menu.

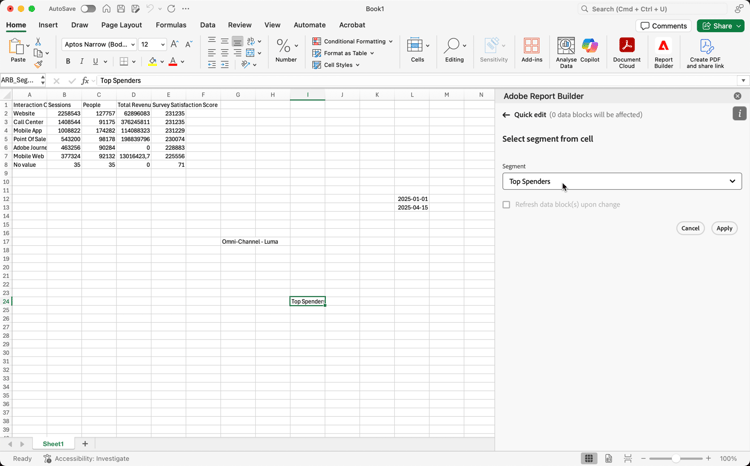

    Segments from cell link showing Sheet1!J1 (All Data)

  3. Select your segment from the drop-down menu.

    Segments drop down menu

  4. Click Apply.
