Audience Composition UI guide

Audience Composition provides a workspace to build and edit audiences, using blocks that are used to represent different actions.

To change the details of the composition, including the title and description, select the button.

The Composition properties popover appears. You can insert details of your composition, including the title and description here.

After updating your composition’s details, select Save to confirm these updates. The audience composition canvas re-appears.

The audience composition canvas is comprised of four different types of blocks: Audience, Exclude, Rank, and Split.

Audience

The Audience block type allows you to add the sub-audiences that you want to compose your new larger audience. By default, an Audience block is included at the top of the composition canvas.

When you select the Audience block, the right rail displays controls for labeling the audience, adding audiences to the block, as well as building custom rules for the audience block.

Add audience

To add audiences to the Audience block. select Add Audience.

A list of audiences appears. Select the audiences you want to include, followed by Add to append them to your audience block.

Your selected audiences now appear within the right rail when the Audience block is selected. From here, you can change the merge type of the combined audiences.

Build rule

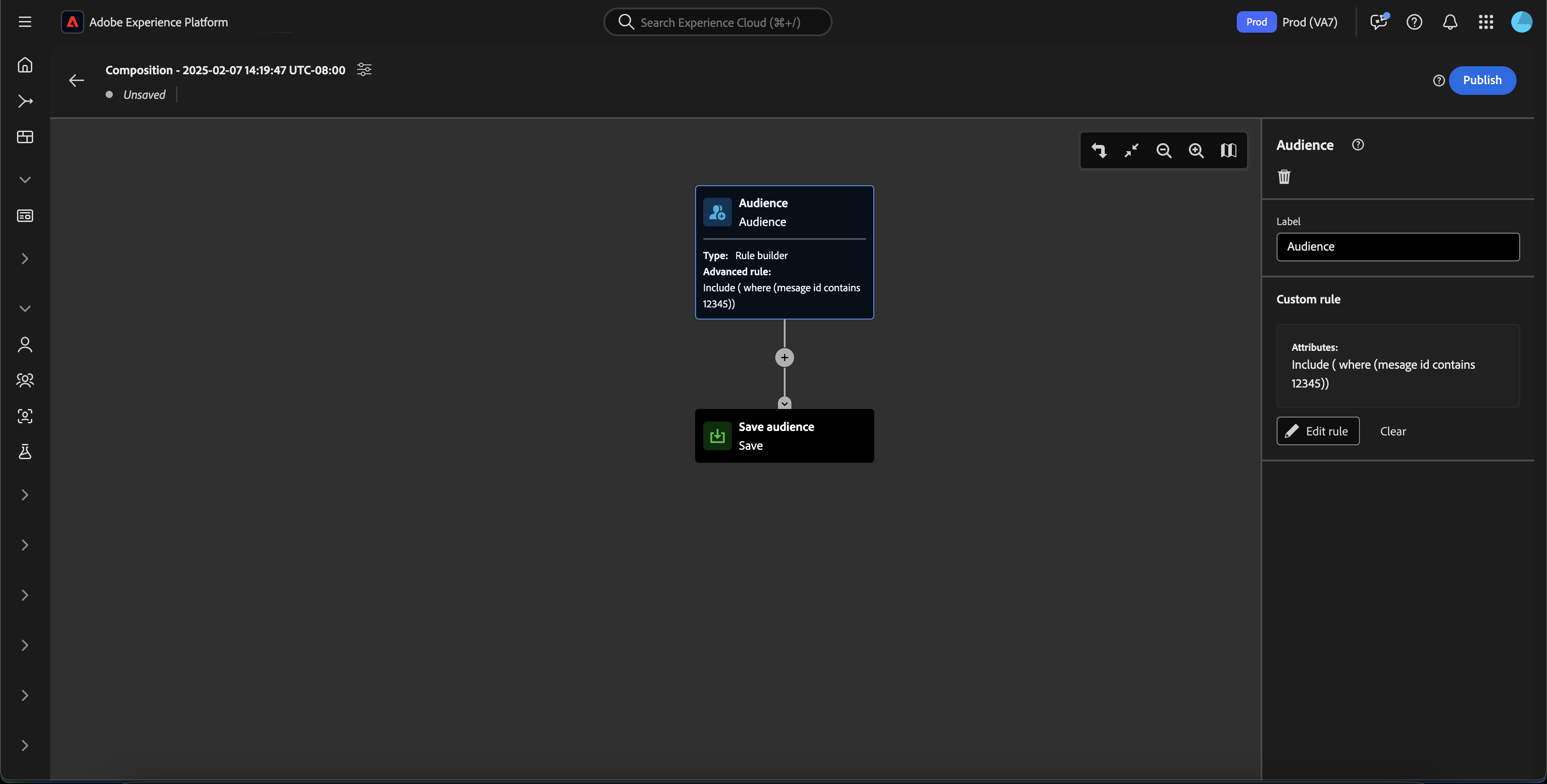

To add a custom rule to the Audience block, select Build rule.

The Segment Builder appears. You can use the Segment Builder to create a custom rule for the audience to follow. More information about using the Segment Builder can be found in the Segment Builder guide.

After adding a custom rule, select Save to add the rule to your audience.

Exclude

The Exclude block type allows you to exclude specified sub-audiences or attributes from your new larger audience.

To add an Exclude block, select the + icon, followed by Exclude.

The Exclude block is added. When this block is selected, details about the exclusion appear in the right rail. This includes the block’s label and exclusion type. You can exclude by audience or by attribute.

Exclude by audience

If you exclude by audience, you can select which audiences you want to exclude by selecting Add Audience.

A list of audiences appears. Select Add to add the audiences you want to exclude to your exclude block.

Exclude by attribute

If you exclude by attribute, you can select which attributes you want to exclude by selecting the icon within the Exclusion rule section.

A list of profile attributes appears. Select the attribute type you want to exclude, followed by Select to add them to your exclude block.

Enrich

The Enrich block type allows you to enrich your audience with additional attributes from a dataset. You can use these attributes in personalization use cases.

To add an Enrich block, select the + icon, followed by Enrich.

The Enrich block is added. When this block is selected, details about the enrichment appear in the right rail. This includes the block’s label and the enrichment dataset.

To select the dataset to enrich the audience with, select the icon.

The Select dataset popover appears. Select the dataset that you want to add for enrichment, followed by Select to add the dataset for enrichment.

The Enrichment criteria section now appears on the right rail. In this section, you can select the Source join key and the Enrichment dataset join key, which lets you link the enrichment dataset with the audience you’re trying to create.

To select the Source join key, select the icon.

The Select a profile attribute popover appears. Select the profile attribute you want to use as the source join key, followed by Select to choose that attribute as your source join key.

To select the Enrichment dataset join key, select the icon.

The Enrichment attributes popover appears. Select the attribute you want to use as the enrichment dataset join key, followed by Select to choose that attribute as your enrichment dataset join key.

Now that you’ve added both of your join keys, the Enrichment attributes section appears. You can now add the attribute you want to enhance your audience with. To add these attributes, select Add attribute.

The Enrichment attributes popover appears. You can select the attributes from the dataset to enrich your audience with, followed by Select to add the attributes to your audience.

Rank

The Rank block type allows you to rank and sort profiles based on a specified attribute and include these ranked profiles to your composition.

To add a Rank block, select the + icon, followed by Rank.

When you select the block, details about the ranking are shown in the right rail, including the block’s label, the attribute to rank by, the ranking order, and a toggle for limiting the number of profiles to rank.

To select which attribute to rank the audiences by, select the icon.

A list of profile attributes appears. On this popover, you can select the attribute type you want to rank your audience by. Select Select to add it to your rank block. Please note that the selected attribute can only be numbers.

After selecting the attribute, you can select the order to rank it by. This is either in ascending (from lowest to highest) or descending (from highest to lowest) order.

Additionally, you can limit the number of audiences returned by enabling the Add profile limit toggle. When this toggle is enabled, you can set the maximum number of audiences returned within the Included profiles field.

Split

The Split block type allows you to split your new audience into various sub-audiences. You can either split this audience based on percentage or by an attribute.

To add a Split block, select the + icon, followed by Split.

When splitting your audience, you can either split by percentage or split by attribute.

Split by percentage

When splitting by percentage, the audiences will be randomly split, based on the number of paths and percentages provided.

For example, you could have three paths, each with a differing percentage of profiles.

Split by attribute

When splitting by attribute, the audiences will be split based on the provided attributes. To select the attribute to split by, select the Split block, followed by the icon.

A list of profile attributes appears. Select the attribute type, followed by Select to add it to your split block.

After selecting the attribute, you can choose which profiles will belong to which sub-audience by adding the values within the Values field.

Additionally, you can enable the Other profiles toggle to create a sub-audience that comprises of all the non-selected profiles.

Publishing your audience

After composing your audience, you can save and publish it by selecting Publish.

If there are any errors in creating the audience, an alert appears, letting you know how to resolve the issue.

Next steps

Audience Composition provides a rich workflow allowing you to create audiences from the different block types. To learn more about other parts of the Segmentation Service UI, please read the Segmentation Service user guide.
