使用查詢服務,您可以善用機器學習平台上建立的預測模型(例如傾向分數)來分析Experience Platform資料。
本指南說明如何使用查詢服務將資料傳送至您的機器學習平台,以便在運算型筆記本中訓練模型。 訓練好的模型可套用至使用SQL的資料,以預測客戶每次造訪的購買傾向。
此程式的一部分需要您訓練機器學習模型,本檔案假設您具備一個或多個機器學習環境的工作知識。
此範例使用 Jupyter Notebook 作為開發環境。 雖然有許多可用選項, Jupyter Notebook 建議使用,因為這是開放原始碼Web應用程式,運算需求低。 它可以 從官方網站下載.
如果您尚未這麼做,請依照以下步驟操作 connect Jupyter Notebook 使用Adobe Experience Platform查詢服務 再繼續閱讀本指南。
此範例中使用的程式庫包括:
python=3.6.7
psycopg2
sklearn
pandas
matplotlib
numpy
tqdm
若要產生傾向分數模型,必須將Platform中儲存之分析資料的投影匯入 Jupyter Notebook. 從 Python 3 Jupyter Notebook 下列命令已連線至查詢服務,並從虛擬服裝商店Luma匯入客戶行為資料集。 當平台資料以Experience Data Model (XDM)格式儲存時,必須產生符合結構描述結構的範例JSON物件。 請參閱檔案以瞭解如何操作的說明 產生範例JSON物件.

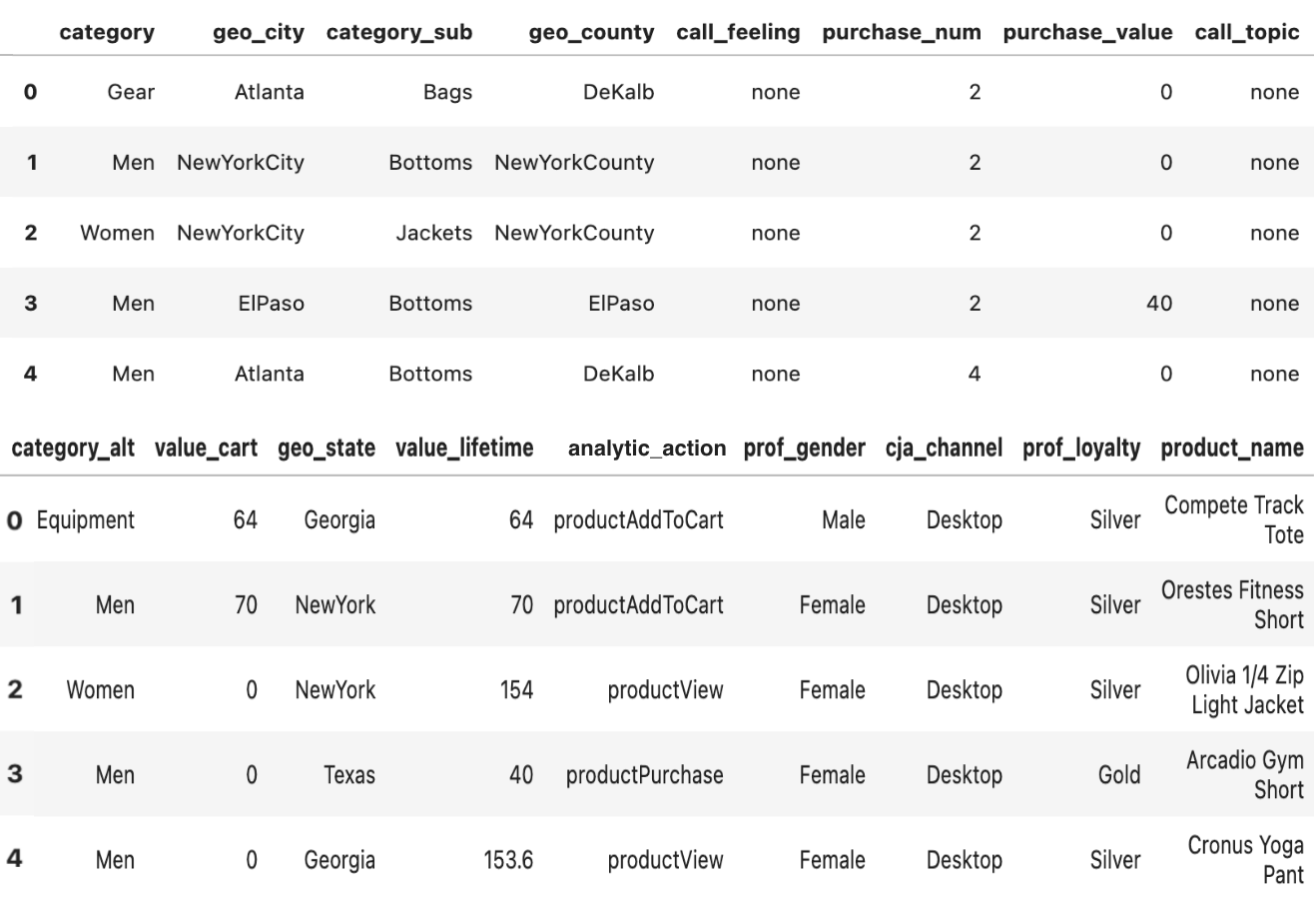

輸出會顯示表格化檢視中Luma行為資料集的所有欄 Jupyter Notebook 儀表板。
必須識別目標欄才能訓練機器學習模型。 由於此使用案例的目標是購買傾向,因此 analytic_action
從Luma結果中選擇欄作為目標欄。 值 productPurchase
是客戶購買的指標。 此 purchase_value
和 purchase_num
欄也會被移除,因為它們與產品購買動作直接相關。
執行這些動作的指令如下:
#define the target label for prediction
df['target'] = (df['analytic_action'] == 'productPurchase').astype(int)
#remove columns that are dependent on the label
df.drop(['analytic_action','purchase_value'],axis=1,inplace=True)
接下來,必須將Luma資料集中的資料轉換為適當的表示方式。 需要兩個步驟:
dataframe
.#convert columns that represent numbers
num_cols = ['purchase_num', 'value_cart', 'value_lifetime']
df[num_cols] = df[num_cols].apply(pd.to_numeric, errors='coerce')
稱為「 」的技術 一個熱編碼 用於轉換分類資料變數,以便與機器和深度學習演演算法搭配使用。 這進而可改善預測及模型的分類準確度。 使用 Sklearn
程式庫,以個別欄表示每個類別值。
from sklearn.preprocessing import OneHotEncoder
#get the categorical columns
cat_columns = list(set(df.columns) - set(num_cols + ['target']))
#get the dataframe with categorical columns only
df_cat = df.loc[:,cat_columns]
#initialize sklearn's OneHotEncoder
enc = OneHotEncoder(handle_unknown='ignore')
#fit the data into the encoder
enc.fit(df_cat)
#define OneHotEncoder's columns names
ohc_columns = [[c+'='+c_ for c_ in cat] for c,cat in zip(cat_columns,enc.categories_)]
ohc_columns = [item for sublist in ohc_columns for item in sublist]
#finalize the data input to the ML models
X = pd.DataFrame( np.concatenate((enc.transform(df_cat).toarray(),df[num_cols]),axis=1),
columns = ohc_columns + num_cols)
#define target column
y = df['target']
定義為下列專案的資料 X
會以表格形式顯示,如下所示:
現在機器學習的必要資料已可供使用,它可符合中預先設定的機器學習模型 Python的 sklearn
資料庫。 Logistics Regression 用於訓練傾向性模型,並可讓您檢視測試資料的準確性。 在此案例中,約為85%。
此 Logistic Regression 用於估計機器學習演演算法效能的演演算法和訓練測試分割方法,會匯入下列程式碼區塊中:
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(
X, y, test_size=0.33, random_state=42)
clf = LogisticRegression(max_iter=2000, random_state=0).fit(X_train, y_train)
print("Test data accuracy: {}".format(clf.score(X_test, y_test)))
測試資料的正確性為0.8518518518518519。
透過使用物流回歸,您可以視覺化購買的原因,並依傾向性的重要性排序(以遞減順序排列)來決定傾向性。 第一個欄位表示導致採購行為的較高原因。 後一欄會指出不會導致購買行為的因素。
將結果視覺化為兩個長條圖的程式碼如下:
from matplotlib import pyplot as plt
#get feature importance as a sorted list of columns
feature_importance = np.argsort(-clf.coef_[0])
top_10_features_purchase_names = X.columns[feature_importance[:10]]
top_10_features_purchase_values = clf.coef_[0][feature_importance[:10]]
top_10_features_not_purchase_names = X.columns[feature_importance[-10:]]
top_10_features_not_purchase_values = clf.coef_[0][feature_importance[-10:]]
#plot the figures
fig, (ax1, ax2) = plt.subplots(1, 2,figsize=(10,5))
ax1.bar(np.arange(10),top_10_features_purchase_values)
ax1.set_xticks(np.arange(10))
ax1.set_xticklabels(top_10_features_purchase_names,rotation = 90)
ax1.set_ylim([np.min(clf.coef_[0])-0.1,np.max(clf.coef_[0])+0.1])
ax1.set_title("Top 10 features to define \n a propensity to purchase")
ax2.bar(np.arange(10),top_10_features_not_purchase_values, color='#E15750')
ax2.set_xticks(np.arange(10))
ax2.set_xticklabels(top_10_features_not_purchase_names,rotation = 90)
ax2.set_ylim([np.min(clf.coef_[0])-0.1,np.max(clf.coef_[0])+0.1])
ax2.set_title("Top 10 features to define \n a propensity to NOT purchase")
plt.show()
結果的垂直長條圖視覺效果如下所示:
可以從長條圖上分辨出數個模式。 作為補助的管道銷售點(POS)和通話主題是決定購買行為的最重要因素。 雖然投訴和發票等通話主題是定義非購買行為的重要角色。 這些是可量化的可操作深入分析,行銷人員可運用這些深入分析進行行銷活動,以解決這些客戶的購買傾向。
建立經過訓練的模型後,必須將其套用至Experience Platform中保留的資料。 若要這麼做,機器學習管道的邏輯必須轉換為SQL。 此轉變的兩個主要元件如下:
首先,SQL必須取代 Logistics Regression 用於取得預測標籤機率的模組。 物流回歸建立的模型產生回歸模型 y = wX + c
其中權重 w
和截距 c
是模型的輸出。 SQL功能可用來將權重相乘以獲得機率。
其次,工程程式達成於 Python 具有一個熱編碼也必須合併到SQL中。 例如,在原始資料庫中,我們有 geo_county
欄以儲存縣/市,但此欄會轉換為 geo_county=Bexar
, geo_county=Dallas
, geo_county=DeKalb
. 下列SQL陳述式會執行相同的轉換,其中 w1
, w2
、和 w3
可用從模型中學習的權重替代。 Python:
SELECT CASE WHEN geo_state = 'Bexar' THEN FLOAT(w1) ELSE 0 END AS f1,
CASE WHEN geo_state = 'Dallas' THEN FLOAT(w2) ELSE 0 END AS f2,
CASE WHEN geo_state = 'Bexar' THEN FLOAT(w3) ELSE 0 END AS f3,
若是數值功能,您可以直接用權重乘以資料行,如下面的SQL陳述式所示。
SELECT FLOAT(purchase_num) * FLOAT(w4) AS f4,
取得數字後,可將其移轉到sigmoid函式,其中物流回歸演演算法產生最終預測。 在以下陳述中, intercept
是回歸中的截距。
SELECT CASE WHEN 1 / (1 + EXP(- (f1 + f2 + f3 + f4 + FLOAT(intercept)))) > 0.5 THEN 1 ELSE 0 END AS Prediction;
如果您有兩個欄(c1
和 c2
),如果 c1
有兩個類別: Logistic Regression 使用下列函式訓練演演算法:
y = 0.1 * "c1=category 1"+ 0.2 * "c1=category 2" +0.3 * c2+0.4
SQL中的對等項如下:
SELECT
CASE WHEN 1 / (1 + EXP(- (f1 + f2 + f3 + FLOAT(0.4)))) > 0.5 THEN 1 ELSE 0 END AS Prediction
FROM
(
SELECT
CASE WHEN c1 = 'Cateogry 1' THEN FLOAT(0.1) ELSE 0 END AS f1,
CASE WHEN c1 = 'Cateogry 2' THEN FLOAT(0.2) ELSE 0 END AS f2,
FLOAT(c2) * FLOAT(0.3) AS f3
FROM TABLE
)
此 Python 自動化翻譯程式的程式碼如下:
def generate_lr_inference_sql(ohc_columns, num_cols, clf, db):
features_sql = []
category_sql_text = "case when {col} = '{val}' then float({coef}) else 0 end as f{name}"
numerical_sql_text = "float({col}) * float({coef}) as f{name}"
for i, (column, coef) in enumerate(zip(ohc_columns+num_cols, clf.coef_[0])):
if i < len(ohc_columns):
col,val = column.split('=')
val = val.replace("'","%''%")
sql = category_sql_text.format(col=col,val=val,coef=coef,name=i+1)
else:
sql = numerical_sql_text.format(col=column,coef=coef,name=i+1)
features_sql.append(sql)
features_sum = '+'.join(['f{}'.format(i) for i in range(1,len(features_sql)+1)])
final_sql = '''
select case when 1/(1 + EXP(-({features} + float({intercept})))) > 0.5 then 1 else 0 end as Prediction
from
(select {cols}
from {db})
'''.format(features=features_sum,cols=",".join(features_sql),intercept=clf.intercept_[0],db=db)
return final_sql
使用SQL來推斷資料庫時,輸出如下:
sql = generate_lr_inference_sql(ohc_columns, num_cols, clf, "fdu_luma_raw")
cur.execute(sql)
samples = [r for r in cur]
colnames = [desc[0] for desc in cur.description]
pd.DataFrame(samples,columns=colnames)
以表格化的結果會顯示每個客戶工作階段的購買傾向 0
表示沒有購買和的傾向 1
表示已證實的購買傾向。
如果您的本機電腦無法儲存資料以進行模型訓練,資料大小太大時,您可以取樣本,而不是從Query Service取完整資料。 若要知道從查詢服務取樣需要多少資料,您可以套用稱為啟動載入的技術。 就此而言,啟動程式意味著使用不同樣本多次訓練模型,並檢查不同樣本之間模型精度的差異。 若要調整上述傾向性模型範例,請先將整個機器學習工作流程封裝成函式。 程式碼如下:
def end_to_end_pipeline(df):
#define the target label for prediction
df['target'] = (df['analytic_action'] == 'productPurchase').astype(int)
#remove columns that are dependent on the label
df.drop(['analytic_action','purchase_value'],axis=1,inplace=True)
num_cols = ['purchase_num','value_cart','value_lifetime']
df[num_cols] = df[num_cols].apply(pd.to_numeric, errors='coerce')
#get the categorical columns
cat_columns = list(set(df.columns) - set(num_cols + ['target']))
#get the dataframe with categorical columns only
df_cat = df.loc[:,cat_columns]
#initialize sklearn's One Hot Encoder
enc = OneHotEncoder(handle_unknown='ignore')
#fit the data into the encoder
enc.fit(df_cat)
#define one hot encoder's columns names
ohc_columns = [[c+'='+c_ for c_ in cat] for c,cat in zip(cat_columns,enc.categories_)]
ohc_columns = [item for sublist in ohc_columns for item in sublist]
#finalize the data input to the ML models
X = pd.DataFrame( np.concatenate((enc.transform(df_cat).toarray(),df[num_cols]),axis=1),
columns = ohc_columns + num_cols)
#define target column
y = df['target']
X_train, X_test, y_train, y_test = train_test_split(
X, y, test_size=0.33, random_state=42)
clf = LogisticRegression(max_iter=2000,random_state=0).fit(X_train, y_train)
return clf.score(X_test, y_test)
此函式接著可以在回圈中執行多次,例如10次。 與前一個程式碼的不同之處在於,範例現在並非取自整個表格,而僅取自列的範例。 例如,下列範常式式碼僅需1000列。 可以儲存每個反複專案的精確度。
from tqdm import tqdm
bootstrap_accuracy = []
for i in tqdm(range(100)):
#sample data from QS
cur.execute('''SELECT *
FROM fdu_luma_raw
ORDER BY random()
LIMIT 1000
''')
samples = [r for r in cur]
colnames = [desc[0] for desc in cur.description]
df_samples = pd.DataFrame(samples,columns=colnames)
df_samples.fillna(0,inplace=True)
#train the propensity model with sampled data and output its accuracy
bootstrap_accuracy.append(end_to_end_pipeline(df_samples))
bootstrap_accuracy = np.sort(bootstrap_accuracy)
然後會排序啟動載入模型的精確度。 之後,模型精確度的第10和第90個數量位數會變成指定樣本大小下模型精確度的95%信賴區間。
上圖指出,如果您只用1000列來訓練模型,可預期精確度會下降約84%至88%。 您可以調整 LIMIT
查詢服務中的子句會根據您的需求來查詢以確保模型的效能。
