使用Destination SDK設定串流目的地

概觀 overview

此頁面說明如何在中使用該資訊 目的地SDK中的設定選項 以及在其他Destination SDK功能和API參考檔案中設定 串流目的地. 這些步驟會依序排列如下。

先決條件 prerequisites

繼續進行下列步驟之前,請閱讀 Destination SDK快速入門 頁面以取得必要的Adobe I/O驗證認證,以及使用Destination SDKAPI的其他必要條件。 這假設您已完成合作關係與許可權必要條件,並準備好開始開發您的目的地。

在Destination SDK中使用設定選項來設定目的地的步驟 steps

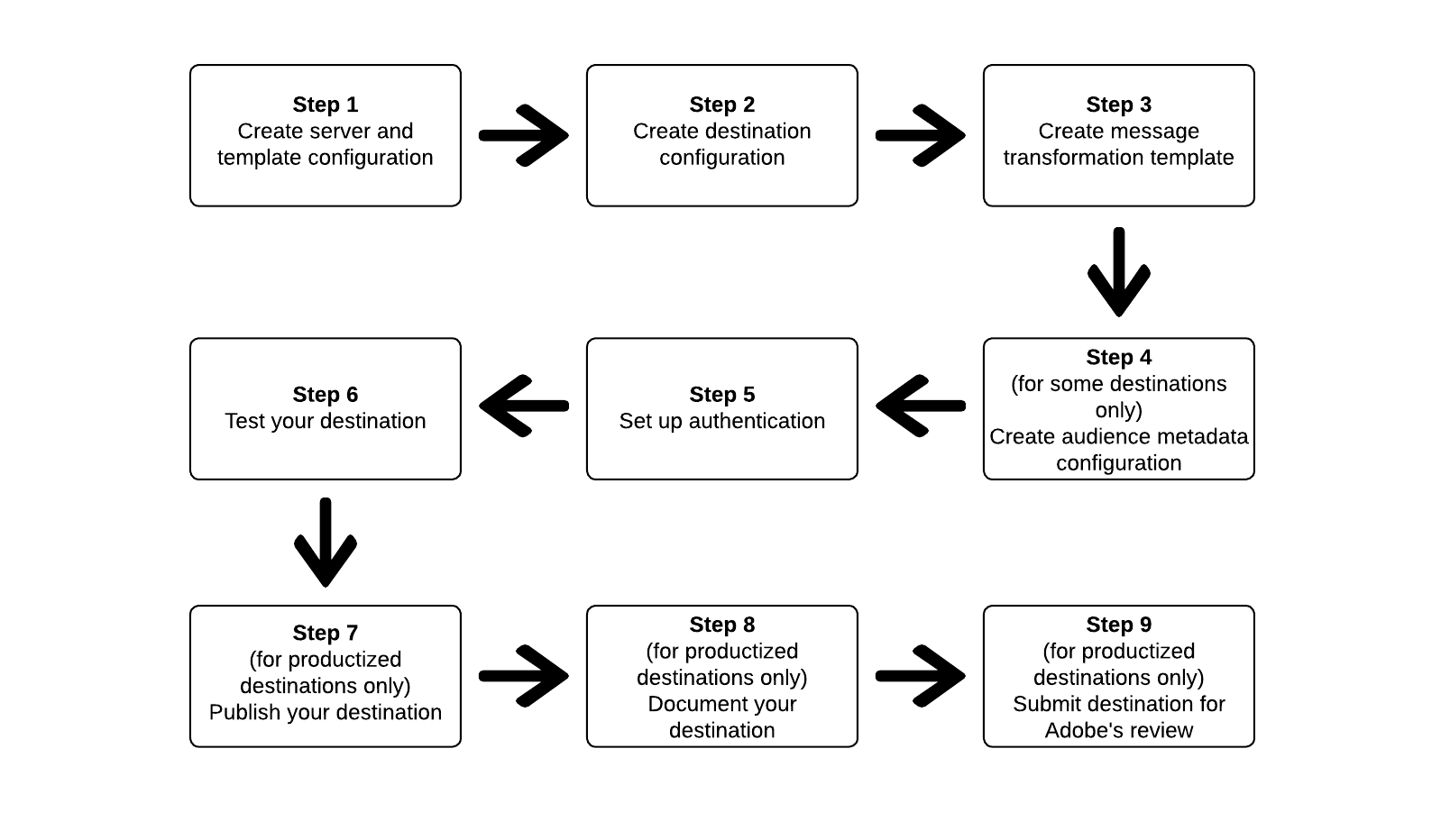

使用Destination SDK端點的圖解步驟

步驟1:建立伺服器和範本設定 create-server-template-configuration

開始者 建立伺服器和範本組態 使用 /destinations-server 端點。

以下是設定範例。 請注意,中的訊息轉換範本 requestBody.value 在步驟3中處理引數, 建立轉換範本.

POST platform.adobe.io/data/core/activation/authoring/destination-servers
{
   "name":"Moviestar destination server",
   "destinationServerType":"URL_BASED",
   "urlBasedDestination":{
      "url":{
         "templatingStrategy":"PEBBLE_V1",
         "value":"https://api.moviestar.com/data/{{customerData.region}}/items"
      }
   },
   "httpTemplate":{
      "httpMethod":"POST",
      "requestBody":{
         "templatingStrategy":"PEBBLE_V1",
         "value":"insert after you create a template in step 3"
      },
      "contentType":"application/json"
   }
}

步驟2:建立目的地設定 create-destination-configuration

以下顯示的是目的地範本的設定範例,範本是使用 /destinations api端點。 另請參閱 建立目的地設定 以取得詳細資訊。

若要在步驟1中將伺服器和範本組態連線至此目的地組態,請將伺服器和範本組態的執行個體ID新增為 destinationServerId 此處。

IMPORTANT
若要建立正確設定的即時(串流)目的地,您必須 必須 在中新增至少一個目標身分 identityNamespaces,如下所示。 如果未設定目標身分,使用者將無法繼續通過 對應步驟 啟動工作流程的。
POST platform.adobe.io/data/core/activation/authoring/destinations
{
   "name":"Moviestar",
   "description":"Moviestar is a fictional destination, used for this example.",
   "status":"TEST",
   "customerAuthenticationConfigurations":[
      {
         "authType":"BEARER"
      }
   ],
   "customerDataFields":[
      {
         "name":"endpointsInstance",
         "type":"string",
         "title":"Select Endpoint",
         "description":"Moviestar manages several instances across the globe for REST endpoints that our customers are provisioned for. Select your endpoint in the dropdown list.",
         "isRequired":true,
         "enum":[
            "US",
            "EU",
            "APAC",
            "NZ"
         ]
      },
      {
         "name":"customerID",
         "type":"string",
         "title":"Moviestar Customer ID",
         "description":"Your customer ID in the Moviestar destination (e.g. abcdef).",
         "isRequired":true,
         "pattern":""
      }
   ],
   "uiAttributes":{
      "documentationLink":"http://www.adobe.com/go/destinations-moviestar-en",
      "category":"mobile",
      "connectionType":"Server-to-server",
      "frequency":"Streaming"
   },
   "identityNamespaces":{
      "external_id":{
         "acceptsAttributes":true,
         "acceptsCustomNamespaces":true
      },
      "another_id":{
         "acceptsAttributes":true,
         "acceptsCustomNamespaces":true
      }
   },
   "audienceMetadataConfig":{
      "mapExperiencePlatformSegmentName":false,
      "mapExperiencePlatformSegmentId":false,
      "mapUserInput":false,
      "audienceTemplateId":"cbf90a70-96b4-437b-86be-522fbdaabe9c"
   },
   "aggregation":{
      "aggregationType":"CONFIGURABLE_AGGREGATION",
      "configurableAggregation":{
         "aggregationPolicyId":null,
         "aggregationKey":{
            "includeSegmentId":true,
            "includeSegmentStatus":true,
            "includeIdentity":true,
            "oneIdentityPerGroup":true,
            "groups":null
         },
         "splitUserById":true,
         "maxBatchAgeInSecs":2400,
         "maxNumEventsInBatch":5000
      }
   },
   "destinationDelivery":[
      {
         "authenticationRule":"CUSTOMER_AUTHENTICATION",
         "destinationServerId":"9c77000a-4559-40ae-9119-a04324a3ecd4"
      }
   ]
}

步驟3:建立訊息轉換範本 — 使用範本化語言指定訊息輸出格式 create-transformation-template

您必須根據目的地支援的負載,建立範本,將匯出的資料格式從AdobeXDM格式轉換為目的地支援的格式。 請參閱區段中的範本範例 使用範本語言進行身分、屬性和對象成員資格轉換 並使用 範本製作工具 由Adobe提供。

在您建立適合您的訊息轉換範本後,請將其新增到您在步驟1中建立的伺服器和範本設定中。

{
   "name":"Moviestar destination server",
   "destinationServerType":"URL_BASED",
   "urlBasedDestination":{
      "url":{
         "templatingStrategy":"PEBBLE_V1",
         "value":"https://api.moviestar.com/data/{{customerData.region}}/items"
      }
   },
   "httpTemplate":{
      "requestBody":{
         "templatingStrategy":"PEBBLE_V1",
         "value":"{\n    \"users\": [\n        {% for profile in input.profiles %}\n            {{profile|raw}}{% if not loop.last %},{% endif %}\n        {% endfor %}\n    ]\n}"
      },
      "contentType":"application/json"
   }
}

步驟4:建立對象中繼資料設定 create-audience-metadata-configuration

對於某些目的地,Destination SDK需要您設定對象中繼資料設定,以程式設計方式在您的目的地建立、更新或刪除對象。 請參閱 對象中繼資料管理 瞭解何時需要設定此設定及如何設定的相關資訊。

如果您使用對象中繼資料設定,則必須將其連線至您在步驟2中建立的目的地設定。 將對象中繼資料設定的例項ID新增至您的目的地設定,如下所示 audienceTemplateId.

{
   "name":"Moviestar",
   "description":"Moviestar is a fictional destination, used for this example.",
   "status":"TEST",
   "customerAuthenticationConfigurations":[
      {
         "authType":"BEARER"
      }
   ],
   "customerDataFields":[
      {
         "name":"endpointsInstance",
         "type":"string",
         "title":"Select Endpoint",
         "description":"Moviestar manages several instances across the globe for REST endpoints that our customers are provisioned for. Select your endpoint in the dropdown list.",
         "isRequired":true,
         "enum":[
            "US",
            "EU",
            "APAC",
            "NZ"
         ]
      },
      {
         "name":"customerID",
         "type":"string",
         "title":"Moviestar Customer ID",
         "description":"Your customer ID in the Moviestar destination (e.g. abcdef).",
         "isRequired":true,
         "pattern":""
      }
   ],
   "uiAttributes":{
      "documentationLink":"http://www.adobe.com/go/destinations-moviestar-en",
      "category":"mobile",
      "connectionType":"Server-to-server",
      "frequency":"Streaming"
   },
   "identityNamespaces":{
      "external_id":{
         "acceptsAttributes":true,
         "acceptsCustomNamespaces":true
      },
      "another_id":{
         "acceptsAttributes":true,
         "acceptsCustomNamespaces":true
      }
   },
   "audienceMetadataConfig":{
      "mapExperiencePlatformSegmentName":false,
      "mapExperiencePlatformSegmentId":false,
      "mapUserInput":false,
      "audienceTemplateId":"cbf90a70-96b4-437b-86be-522fbdaabe9c"
   },
   "aggregation":{
      "aggregationType":"CONFIGURABLE_AGGREGATION",
      "configurableAggregation":{
         "aggregationPolicyId":null,
         "aggregationKey":{
            "includeSegmentId":true,
            "includeSegmentStatus":true,
            "includeIdentity":true,
            "oneIdentityPerGroup":true,
            "groups":null
         },
         "splitUserById":true,
         "maxBatchAgeInSecs":2400,
         "maxNumEventsInBatch":5000
      }
   },
   "destinationDelivery":[
      {
         "authenticationRule":"CUSTOMER_AUTHENTICATION",
         "destinationServerId":"9c77000a-4559-40ae-9119-a04324a3ecd4"
      }
   ]
}

步驟5:設定驗證 set-up-authentication

視您是否指定 "authenticationRule": "CUSTOMER_AUTHENTICATION""authenticationRule": "PLATFORM_AUTHENTICATION" 在上述目的地設定中,您可以使用 /destination/credentials 端點。

NOTE
CUSTOMER_AUTHENTICATION 是兩種驗證規則中較常見的一種,如果您要求使用者先對您的目的地提供某種形式的驗證,然後才能設定連線和匯出資料,則需使用這兩種驗證規則。

如果您已選取 "authenticationRule": "CUSTOMER_AUTHENTICATION" 在目的地設定中,且您的目的地支援OAuth 2驗證方法,請閱讀 OAuth 2驗證.

如果您已選取 "authenticationRule": "PLATFORM_AUTHENTICATION",您必須建立 認證設定.

步驟6:測試您的目的地 test-destination

使用先前步驟中的設定端點設定您的目的地後,您可以使用 目的地測試工具 測試Adobe Experience Platform與目的地之間的整合。

在測試目的地的程式中,您必須使用Experience PlatformUI來建立區段,並啟用至您的目的地。 請參閱以下兩個資源,以取得如何在Experience Platform中建立對象的指示:

步驟7:發佈您的目的地 publish-destination

NOTE
如果您要建立供自己使用的私人目的地,且不想將其發佈到目的地目錄以供其他客戶使用,則不需要執行此步驟。

設定並測試目的地後,請使用 目的地發佈API 將您的設定提交給Adobe進行檢閱。

步驟8:記錄您的目的地 document-destination

NOTE
如果您要建立供自己使用的私人目的地,且不想將其發佈到目的地目錄以供其他客戶使用,則不需要執行此步驟。

如果您是獨立軟體廠商(ISV)或系統整合商(SI),請建立 產品化整合,使用 自助服務檔案程式 若要在中建立您目的地的產品檔案頁面 Experience Platform目的地目錄.

步驟9:提交目的地以供Adobe複查 submit-for-review

NOTE
如果您要建立供自己使用的私人目的地,且不想將其發佈到目的地目錄以供其他客戶使用,則不需要執行此步驟。

最後,在Experience Platform目錄中發佈目的地並對所有Experience Platform客戶可見之前,您必須正式提交目的地以供Adobe檢閱。 尋找關於如何操作的完整資訊 送出供檢閱以Destination SDK撰寫的生產目的地.
