Foundation Components foundation-components

CAUTION
AEM 6.4 has reached the end of extended support and this documentation is no longer updated. For further details, see our technical support periods. Find the supported versions here.
NOTE
This section covers foundation components, which have been available with AEM for many versions and are available out-of-the-box in a standard AEM installation. However a number of the foundation components have been deprecated with AEM 6.4.
Adobe recommends leveraging the more modern and extensible core components. These are part of the We.Retail sample content and can also be installed separately and used for development by your administrator.

The foundation components were designed for use when authoring content for a standard web page. They form a subset of the components available out-of-the-box for a standard installation of AEM.

Some are immediately available through component browser, various others are also available by using design mode (if the page is based on a static template) or by editing the template (if the page is based on an editable template).

The use of foundation components is supported, but they have been superseded by core components which offer more extensibility and flexibility.

NOTE
This section only discusses components that are available out-of-the-box in a standard AEM installation.
Depending on your instance you may have customized components developed explicitly for your requirements. These may even have the same name as some of the components discussed here.

The components are available on the Components tab of the side panel of the page editor when editing a page.

You can select a component and drag it to the required location on your page. You can then edit it using:

Components are sorted according to various categories called component groups including:

  • General: Includes basic components, including text, images, tables, and charts.
  • Columns: Includes components necessary for organizing the layout of the content.
  • Form: Includes all the components needed to create a form.

General general

The General components are the basic components that you use to create content.

Account Item account-item

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Core Components instead.

You can define a link with title and description.

chlimage_1-191

Adaptive Image adaptive-image

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Core Components Image Component instead.

The Adaptive Image foundation component generates images that are sized to fit the window in which the web page is opened. To use the component, you provide an image resource either from the file system or DAM. When the web page is opened, the web browser downloads a copy of the image that has been resized so that it is suitable for the current window.

The following characteristics can determine the size of the window:

  • Device screen: Mobile devices typically display web pages so that they extend across the entire screen.
  • Web browser window size: Users of laptop and desktop computers can resize web browser windows.

For example, the component generates a small image when the web page is opened on a cell phone, and a medium-sized image when opened on a tablet. On a laptop, the component creates an delivers a large image when the page is opened in a maximized web browser. When the web browser is resized to fit a portion of the screen, the component adapts by delivering a smaller image and refreshes the view.

Supported Image Formats supported-image-formats

You can use image files of the following file name extensions with the Adaptive Image component:

  • .jpg
  • .jpeg
  • .png
  • .gif **
CAUTION
** Animated .gif files are not supported in AEM for adaptive renditions.

Images Sizes and Quality images-sizes-and-quality

The following table lists the width of the image that is generated for the given viewport width. The height of the generated image is calculated to maintain a constant aspect ratio and no whitespace occurs inside the image edge. Cropping can be used to avoid whitespace.

When the image is a JPEG image, the viewport size can also influence the JPEG quality. The following JPEG qualities are possible:

  • Low (0.42)
  • Medium (0.82)
  • High (1.00)
Viewport Width Range (pixels)
Image Width (pixels)
JPEG Quality
Targeted Device Type
width <= 319
320
low
width = 320
320
medium
Mobile phone (portrait)
320 < width < 481
480
medium
Mobile phone (landscape)
480 < width < 769
476
high
Tablet (portrait)
768 < width < 1025
620
high
Tablet (landscape)
width <= 1025
full (original size)
high
Desktop

Properties properties

The dialog allows you to edit properties for your instance of the Adaptive Image component, many of which are common with the Image component on which it is based. The properties are available in two tabs:

  • Image

    • Image

      Drag an image from the content finder or click to open a browse window where you can load an image. After the image is loaded, you can crop the image, rotate it, or delete it. To zoom in and out of the image, use the slide bar beneath the image (above the OK and Cancel buttons)

    • Crop

      Crop an image. Drag the border to crop the image.

    • Rotate

      Click Rotate repeatedly until the image is rotated as desired.

    • Clear
      Remove the current image.

  • Advanced

    • Title

      The Adaptive Image component does not use this property.

    • Alt Text

      The alternate text to use for the image.

    • Link To

      The Adaptive Image component does not use this property.

    • Description

      The Adaptive Image component does not use this property.

Extending the Adaptive Image Component extending-the-adaptive-image-component

For information about customizing the Adaptive Image component, see Understanding the Adaptive Image Component.

The Carousel Component allows you to display images associated with individual pages:

  • one at a time
  • for a short time
  • in an order you specify
  • with a time delay that you specify

Clickable controls also let the user cycle through the displayed pages in real time, on demand. Clicking on the currently visible page image takes you to that page. In other words, the Carousel acts as a navigation control.

Properties properties-1

These are available in two tabs:

  • Carousel

    Here you specify how the carousel operates:

    • Play Speed

      The time in milliseconds before the next slide is shown.

    • Transition Time

      Time in milliseconds for the transition between two slides.

    • Controls Style

      Various options are available from a pulldown menu; for example, Prev / Next Buttons, Top-Right Switches.

  • List

    Here you specify how pages are included in your Carousel:

    • Build list using

      There are several ways to build a page list - Child Pages, Fixed List, Search, or Advanced Search (all described below).

      Note that no matter which method you choose, the pages you include in your list should each already have an image associated with the page, it is this image that will be displayed in the Carousel. If there is no image for a given page under that page’s Page Properties, you should associate an image with the page before beginning, as otherwise the Carousel will display a blank (or mostly blank) page. See Editing Page Properties.

      Depending on the item you choose a new panel will appear:

      • Options for Child Pages

        • Parent Page
          Specify a path either manually or using the selector. Leave empty to use the current page as parent.
      • Options for Fixed List

        • Pages
          Select a list of pages. Use + to add more entries and the up/down buttons to adjust the order.
      • Options for Search

        • Start in

          Enter a starting path, either manually or using the selector.

        • Search query

          You can enter a plain text search query.

      • Options for Advanced Search

        • Querybuilder predicate notation

          You can enter a search query using Querybuilder predicate notation. For example, you can enter “fulltext=Marketing” to have all pages with “Marketing” in their content show up in the Carousel.

          See QueryBuilder API for full discussion of query expressions and further examples.

    • Order by

      Select jcr:title, jcr:created, cq:lastModified, or cq:template from the dropdown menu.

    • Limit

      The maximum number of items you would like to use in the Carousel; this is optional.

NOTE
You can create a custom carousel component for Adobe Experience Manager that displays digital assets located in the AEM DAM. For information, see Creating Custom Carousel components for Adobe Experience Manager.

Chart chart

The Chart component lets you add a bar, line, or pie chart. AEM creates a chart from the data you provide. You provide data by typing directly into the Data tab or by copying and pasting a spreadsheet.

  • Data

    • Chart Data

      Enter your chart data using the CSV format; the Comma Separated Values format uses commas (“,”) as the field separator.

  • Advanced

    • Chart Type

      Select from Pie Chart, Line Chart, and Bar Chart.

    • Alternative text

      Alternative text that displays instead of the chart.

    • Width

      Width of the chart in pixels.

    • Height

      Height of the chart in pixels.

The following show an example of chart data followed by the resulting Bar chart:

chlimage_1-192 dc_chart_use

NOTE
You can create a custom AEM chart control that displays data located in the AEM JCR. For information, see Displaying Adobe Experience Manager Data in a Chart.

Content Fragment content-fragment

Content fragments are created and managed as page-independent assets. You can then use these fragments, and their variations, when authoring your content pages.

Design Importer design-importer

This allows you to upload a zip file holding a design package.

Download download

The Download component creates a link on the selected web-page to download a specific file. You can either drag an asset from the Content Finder or upload a file.

  • Download

    • Description

      A short description displayed with the download link.

    • File

      File available for download on the resulting web-page. Drag an asset from the content finder or click the area to upload the file to be available for download.

The following example shows the Download component in Geometrixx:

dc_download_use

External external

The external application integration component (External) enables you to embed external applications into your AEM page using an iframe.

  • External

    • Target application

      Specify the URL of the web application to be integrated; for example:

      code language-none
      https://en.wikipedia.org/wiki/Main_Page

    • Pass parameters

      Check the box for parameters to be passed to the application when required.

    • Width and Height

      Define the size of the iframe

The external application is integrated into the paragraph system of the AEM page; for example, when using a Target application of https://en.wikipedia.org/wiki/Main_Page:

chlimage_1-193

NOTE
Depending on your use case, other options are available for integration of external applications, for example. the Integration of Portlets.

Flash flash

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Core Components instead.
CAUTION
This component is no longer expected to function out-of-the-box without extensive project-level customization.

The Flash component lets you load a Flash movie. You can drag a flash asset from the content finder onto the component, or you can use the dialog:

  • Flash

    • Flash movie

      The flash movie file. Either drag an asset from the content finder, or click to open a browse window.

    • Size

      Dimensions in pixels of the display area holding the movie.

  • Alternative Image

    An alternative image to be shown

  • Advanced

    • Context menu

      Indicates whether the context menu should be shown or hidden.

    • Window Mode

      How the window appears, for example opaque, transparent, or as a distinct (solid) window.

    • Background color

      A background color selected from the color chart provided.

    • Minimum version

      The minimum version of Adobe Flash Player required to run the movie. The default is 9.0.0.

    • Attributes

      Any further attributes required.

Image image

The image component displays an image and accompanying text according to the specified parameters.

You can upload an image, then edit and manipulate it (e.g. crop, rotate, add link/title/text).

You can either drag and drop an image from the Assets Browser directly onto the component or its Configure dialog. You can also upload an image from the Configure dialog; this dialog also controls all definitions and manipulation of the image:

chlimage_1-194

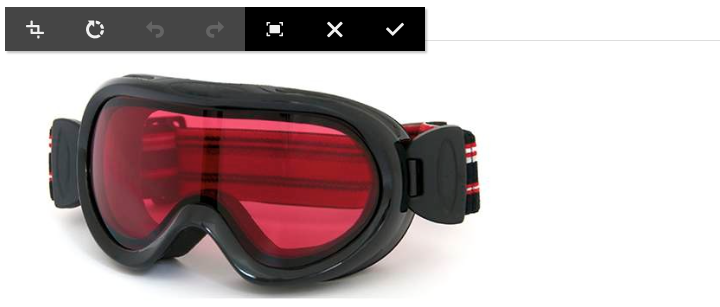

Once the image is uploaded (and not before) you can use inplace editing to crop/rotate the image as required:

NOTE
The in-place editor uses the original size and aspect ratio of the image when editing. You can also specify height and width properties. Any size and aspect ratio restrictions defined in the properties are applied when you save your edit changes.
Depending on your instance, minimum and maximum restrictions may also be imposed by the design of the page; these are developed during project implementation.

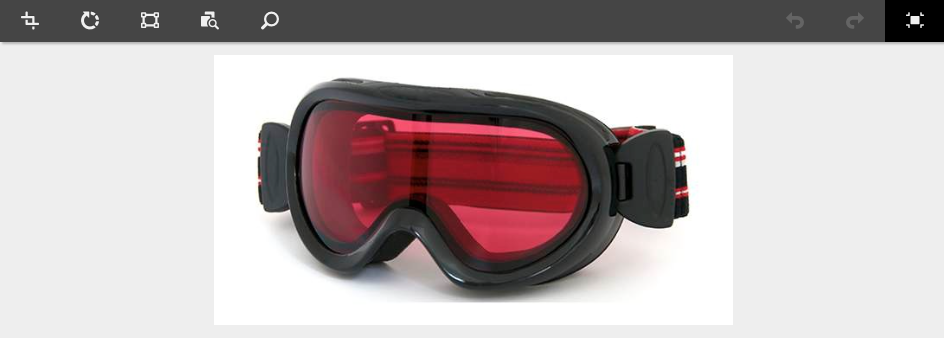

Several additional options are available in the full-screen editing mode; for example, map and zoom:

NOTE
The progress of the upload cannot be monitored with Internet Explorer.
Internet Explorer users need to upload the image and click Ok then re-open the image to see the uploaded file in the preview and to be able to perform modifications (i.e. crop).
See the Supported Platforms section for more information about HTML5 features used by AEM.

When an image is loaded, you can configure the following:

  • Map

    To map an image, select Map. You can specify how you want to create the image map (rectangle, polygon, and so on) and where the area should point to.

  • Crop

    Select Crop to crop an image. Use your mouse to crop the image.

  • Rotate

    To rotate an image, select Rotate. Use repeatedly until the image is rotated the way you want it.

  • Clear

    Remove the current image.

  • Title

    The title of the image.

  • Alt Text

    An alternative text for use when creating accessible content.

  • Link To

    Create a link to assets or other pages within your website.

  • Description

    A description of the image.

  • Size

    Sets the height and the width of the image.

NOTE
Some options are only available in the full-screen editor.

The final image (with Title and Description) may be shown as:

chlimage_1-195

Layout Container layout-container

This component provides a grid-paragraph system to allow you to add and position components within a responsive grid. This allows you to define differing content layouts based on the width of target devices, including a range of phones, tablets and the desktop.

chlimage_1-196

NOTE
This component has been implemented with HTML Template Language (HTL).

List list

The List component allows you to configure search criteria for displaying a list:

  • List

    • Build list using

      Here you specify where the list will retrieve its content. There are several methods:

    • Depending on the item you choose a new panel will appear:

      • Options for Child Pages

        • Children of (Parent Page)

          Specify a path either manually or using the selector. Leave empty to use the current page as parent.

      • Options for Fixed List

        • Pages

          Select a list of pages. Use + to add more entries and the up/down buttons to adjust the order.

      • Options for Search

        • Start in

          Enter a starting path, either manually or using the selector.

        • Search query

          You can enter a plain text search query.

      • Options for Advanced Search

        • Querybuilder predicate notation

          You can enter a search query using Querybuilder predicate notation. For example, you can enter “fulltext=Marketing” to have all pages with “Marketing” in their content show up in the Carousel.

          See QueryBuilder API for full discussion of query expressions and further examples.

      • Tags

        Specify the Parent page, Tags/Keywords and your required match criteria.

    • Display as

      How you want the items to be listed; includes Links, Teasers and News.

    • Order by

      Whether the list is to be ordered, and if so, the criteria to use for sorting. You can enter a criteria or select one from the drop down list provided.

    • Limit

      Specify the maximum number of items that you want displayed in the list.

    • Enable Feed

      Indicates whether an RSS feed should be activated for the list.

    • Paginate after

      Here you can specify the number of list items to display at once. A list with more items than specified will use pagination to display the list in several portions.

The following example shows a List component the way it may display a list of child pages (the design is controlled by a site design’s custom CSS definitions).

dc_list_use

Login login

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Core Components instead.
CAUTION
This component is no longer expected to function out-of-the-box without extensive project-level customization.

These provides the Username and Password fields.

chlimage_1-197

You can configure:

  • Log In

    • Section Label

      Lead-in text for the input fields.

    • Username Label

      Text to label the username field.

    • Password Label

      Text to label the password field.

    • Log In Button Label

      Text for the login button.

    • Redirect to

      You can specify the page on your website that should be opened once the user has logged in.

  • Already Logged In

    • Continue Button Label

      Text to indicate the user is already logged in.

Order Status order-status

CAUTION
This component is no longer expected to function out-of-the-box without extensive project-level customization.
  • Title

    • Title

      Specify the title text you want displayed.

    • Link

      Specify the page (product) for which the order status should be displayed.

    • Type/Size

      Select from the selection provided.

chlimage_1-198

Reference reference

The Reference component lets you reference text from another page of your AEM website (within the current instance). The content of the referenced paragraph then appears as if it was on the current page. The content will be updated when the source paragraph changes (might need a page refresh).

  • Paragraph Reference

    • Reference

      Specify the path to the page and paragraph that you want to reference (include content).

To specify the path to a paragraph you need to suffix the path (to the page) with:

.../jcr:content/par/<paragraph-ID>

For example:

/content/geometrixx-outdoors/en/equipment/biking/cajamara/jcr:content/par/similar-products

As well as referencing a specific paragraph, the path can also be modified to specify an entire par-system. You can do this by suffixing the path with:

/jcr:content/par

For example:

/content/geometrixx-outdoors/en/equipment/biking/cajamara/jcr:content/par

Once configured the content will appear exactly as on the source page. The fact that it is a reference is only seen when you open the component for editing:

chlimage_1-199

Search search-features

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Quick Search Core Component instead.

The Search component adds search capability to your page.

You can configure:

  • Search

    • Node Types

      If the search is to be restricted to specific node type list them here; for example, cq:Page.

    • Path to search in

      Specify the root page of the branch you want to search.

    • Search Button Text

      The name displayed on the actual search button.

    • Statistics Text

      The text displayed above the search results.

    • No Results Text

      If there are no results, the text entered here is displayed.

    • Spellcheck Text

      If someone enters a similar term, this text is displayed before the term.

      For example, if you type geometrixxe, the system displays “Did you mean? geometrixx”.

    • Similar Pages Text

      The text that is displayed next to a result for similar pages. Click this link to see pages that have similar content.

    • Related Searches Text

      The text that appears next to searches for related terms and topics.

    • Search Trends Text

      The title above the search terms users enter.

    • Result Pages Label

      The text that appears at the bottom of this list with links to other results pages.

    • Previous Label

      The name that appears on the link to previous search pages.

    • Next Label

      The name that appears on the link to subsequent search pages.

The following example shows the Search component after a search for the word geometrixx from the root directory of a standard installation. This also illustrates the pagination of results:

dc_search_use

The following example shows a search term that is misspelled and not available:

dc_search_usenotfound

Sitemap sitemap

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Navigation, Language Navigation, and Breadcrumb Core Components instead.

An automatic sitemap listing, which (with the default settings) lists all pages (as active links) in the current website. For example, an extract shows:

dc_sitemap_use

If required you can configure:

  • Sitemap

    • Root Path

      Path from where the listing is to start.

Slideshow slideshow

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Carousel Core Component instead.
CAUTION
This component is no longer expected to function out-of-the-box without extensive project-level customization.

This component allows you to load a series of images to be displayed as a slideshow on your page.You can add or remove images and assign each a title. Under Advanced you can also specify the size of the display area.

You can configure:

  • Slides

    • New Slide

      You can specify a selection of slides using the Add (and Remove) buttons.

    • Title

      Specify a title if required. This is overlaid on the appropriate slide.

  • Advanced

    • Size

      Specify the width and height in pixels.

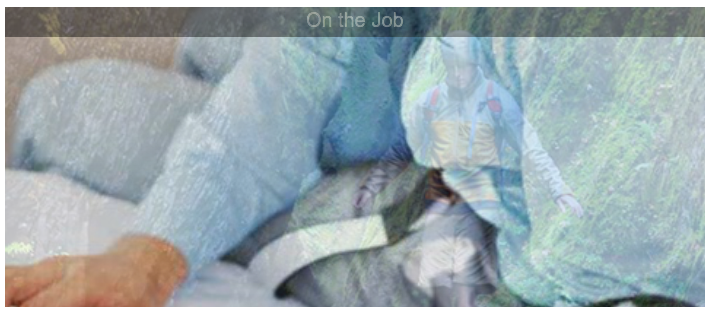

The slideshow component then repeatedly displays each in sequence, for a short period of time, before fading through to the next slide:

dc_slideshow_use

Table table

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Text Core Component instead.
NOTE
The Table component is based on the Rich Text editor, as is the Text component.
It is recommended to use the Table component for tables, although they can also be constructed with the Text component.

The Table component is preconfigured to let you construct, fill and format a table. Using the dialog you can configure your table and create the contents by either:

  • from scratch
  • copying and pasting a spreadsheet or a table from an external editor (such as Excel, OpenOffice, Notepad, etc).

You can make basic changes to the content using the in-line editor:

dc_table

In full screen mode you can configure the table layout:

chlimage_1-200

The following screenshot shows an example of the table component; the design is determined by the site-specific CSS:

dc_table_use

Tag Cloud tag-cloud

A tag cloud shows a graphically presented selection of the tags applied to content within your website:

dc_tagclouduse

When configuring the Tag Cloud component, you can specify:

  • Tags to Display

    Where the tags to be displayed are collected from. Select from a page, a page with all children or all tags.

  • Page

    Select the page to be referenced.

  • No links on tags

    Whether the tags displayed should act as links.

For more information about applying tags, visit Using Tags.

Text text

NOTE
The Text component is based on the Rich Text editor, as is the Table component.
It is recommended to use the Table component for tables, although they can also be constructed with the Text component.

The Text component lets you enter a text block using a WYSIWYG editor, with functionality provided by the Rich Text editor. A selection of icons allow you to format your text, including font characteristics, alignment, links, lists and indentation.

chlimage_1-201

When you open the Configure dialog, you can also set:

  • Spacer
  • Text Style

The formatted text will then be shown on the page; the actual design will depend on the site CSS:

dc_text_use

For more detailed information about the Text component and the functionality provided by the Rich Text editor, see the Rich Text Editor page.

Inplace Editing inplace-editing

In addition to the dialog based Rich Text editing mode, AEM also provides Inplace Editing, which allows direct editing of the text as it is displayed in the layout of the page.

Text & Image text-image

The Text & Image component adds a text block and an image. You can also add and edit text and images separately. See the Text and Image components for details.

chlimage_1-202

You can configure:

  • Component Styles (Styles)

    Here you can either left or right align the image. The default is Left aligned, with the image at the left.

  • Image Properties (Advanced Image Properties)

    Allows you to specify the following:

    • Image asset

      Upload the required image.

    • Title

      The title for the block; will be shown by mouseover.

    • Alt Text

      Alternative text to be shown if the image cannot be displayed. If left empty the title will be used.

    • Link to

      Specify a target path.

    • Description

      A description of the image.

    • Size

      Sets the height and width of the image.

The following example shows a Text Image Component displaying the image left-aligned:

dc_textimage_use

Title title

The title component can either:

  • display the name of the current page; this is done by leaving the Title field blank
  • display a text you specify in the Title field.

You can configure:

  • Title
    If you want to use a name other than the page title, enter it here.

  • Link
    The URI if the title is to operate as a link.

  • Type/Size
    Select Small or Large from the dropdown list. Small is generated as an image. Large is generated as text.

The following example shows a Title component being displayed; the design is determined by the site-specific CSS.

dc_title_use

Video video

CAUTION
This component is no longer expected to function out-of-the-box without extensive project-level customization.

The Video component allows you to place a predefined, out-of-the-box video element on a page.

See also Configure the Video component for use with HTML5 elements.

After placing an instance of the component on your page you can configure:

  • Video

    • Video asset

    Upload or drop your video asset.

    • Size

      The video’s native size (width x height in pixels) will appear in the boxes next to Size (see above). Manually enter width and height dimensions here if you wish to override the video’s native dimensions. Click OK to dismiss the dialog.

NOTE
Formats supported include:
  • .mp4
  • Ogg
  • FLV (Flash video)

Columns columns

Columns are a mechanism to control the layout of content in AEM. In a standard installation components for creating two and/or 3 columns are provided.

The following example shows the 2 Columns component in use. You can use the placeholders for new components:

dc_columncontroluse

2 Columns columns-1

A Column Control component that defaults to 2 equal columns.

3 Columns columns-2

A Column Control component that defaults to 3 equal columns.

Column Control column-control

The Column Control component lets users select how they want to split the content in the main panel of the web-page into multiple columns. Users can select the number of columns required (from a predefined list) and then create, delete, or move content within each of the columns.

  • Column Control

    • Column Layout

      Select the number of columns you want rendered. Once created, each column has its own link for dragging components or assets when adding content.

Form form

Form components are used to create forms for visitors to submit input. Forms and form components can be used to collect information including user feedback (for example, a customer satisfaction questionnaire) and user information (for example, user registration).

NOTE
See AEM Forms Help for information about AEM Forms.

Forms are built up from several different components:

  • Form

    The form component defines the beginning and end of a new form on a page. Other components can then be placed in between these elements, such as tables, downloads, and so on.

  • Form fields and elements

    Form fields and elements can include text boxes, radio buttons, images, and so on. The user often completes an action in a form field, such as typing text. See individual form elements for more information.

  • Profile Components

    Profile components relate to visitor profiles used for social collaboration and other areas where visitor personalization is required.

The following shows an example form. It is comprised of the Form component (start and end), with two Form Text fields used for input, a General Text field used for the lead-in text and a Submit button.

dc_form

NOTE
Information about developing and customizing your forms further is available on the Developing Forms page. This includes adding actions, constraints, preloading fields and using scripts to call a service to take action, amongst others.

Settings Common to (Many) Form Components settings-common-to-many-form-components

Although each of the form components has a different purpose, many are composed of similar options and parameters.

When configuring any of the form components the following tabs are available in the dialog:

  • Title and Text

    Here you need to specify the basic information, such as the title of the form and any accompanying text. Where appropriate it also allows you to define other key information such as whether the field is multi-selectable and items available for selection.

  • Initial Values

    Allows you to specify a default value.

  • Constraints

    Here you can specify whether a field is required and place constraints are on that field (for example, must be numeric, and so on).

  • Styling

    Indicates the size and styling of the fields.

NOTE
The fields you see vary significantly depending on the individual component.

These tabs provide you with the necessary parameters; these can depend on the individual component type, but can include:

  • Title and Text

    • Element Name

      Name of the form element. This indicates where in the repository the data is stored.

      This is a required field and should only contain the following characters:

      • alphanumeric characters
      • _ . / : -
    • Title

      The title displayed with the field. If left blank, the default title will be shown.

    • Description

      Allows you to provide additional information for the user, if necessary. On the form this is shown below the field, in a smaller font than the title.

    • Show/Hide

      Determines when the field is visible.

  • Initial Values

    • Default Value

      The value displayed in the field when the form is opened; ie before the user has made any input.

  • Constraints

    • Required

      This is dependent on the form component type, but provides one or more click boxes to indicate that this field, or certain parts of this field, is/are required.

    • Required Message

      A message to inform users that this field is required; a required field will also be flagged with and asterisk.

    • Constraint

      The constraints available for selection are dependent on the form component type.

    • Constraint Message

      A message to inform users what is required.

  • Styling

    • Size

      In rows and columns.

    • Width

      In pixels.

    • CSS

Form (component) form-component

The Form component defines both the start and end of a form using the Form Start and Form End elements. These are always paired to ensure that the form is correctly defined.

dc_form-1

In between the start and end of a form, you can add form components that define the actual input fields for users.

NOTE
The foundation components form component only supports the use of other foundation components form components (button, text, hidden, etc.). Using core components form components within a foundation component form (and vice versa) is not supported.

Start of Form start-of-form

This component is needed to define the start of a new form on a page. You can configure:

  • Form

    • Thank You Page

      The page to be referenced to thank visitors for providing their input. If left blank, the form re-displays after submission.

    • Start Workflow
      Determines which workflow is triggered once a form is submitted.

  • Advanced

    • Action Type
      A form needs an action. The action defines the operation that is triggered for execution with the data submitted by the user (similar to action= in HTML). Some need a corresponding Action Configuration.

      A selection of action types are included in a standard AEM installation:

      • Account Request

      • Create Content

      • Create Lead

      • Create and Update Account

      • E-Mail Service: Create Subscriber and add to list

      • E-Mail Service: Send auto-responder email

      • E-Mail Service: Unsubscribe user from list

      • Edit Community

      • Edit Resource(s)

      • Edit Workflow Controlled Resource(s)

      • Mail

      • Placed Order Details

      • Profile Update

      • Reset Password

      • Set Password

      • Store Content

        This is the default action type.

      • Store Content with Uploads

      • Submit Order

      • Unsubscribe Subscriber

      • Update Order

    • Form Identifier

      The form identifier uniquely identifies the form. Use the form identifier if you have several forms on a single page; make sure they have different identifiers.

    • Load Path

      The path to node properties used to load predefined values into the form fields.

      This is an optional field that specifies the path to a node in the repository. When this node has properties that match the field names, then the appropriate fields on the form are preloaded with the value of those properties. If no match exists, then the field contains the default value.

      Using Load Path you can preload the form with values in the required fields. See Preloading Form Values.

    • Client Validation

      Indicates whether client validation is required for this form (server validation always occurs.). This can be achieved in conjunction with the Forms Captcha component.

    • Validation Resource Type

      Defines the form validation resource type if you want to validate the entire form (instead of individual fields). If you are validating the complete form, also include one of the following:

      • A script for client validation:

        /apps/<myApp>/form/<myValidation>/formclientvalidation.jsp

      • A script for validation on the server side:

        /apps/<myApp>/form/<myValidation>/formservervalidation.jsp

    • Action Configuration

      The options available in Action Configuration are dependent on the Action Type selected:

      • Account Request

        • Create Account Page

          The page used when creating a new account.

      • Create Content

        • Content Path

          The content path for any content that the form dumps. Enter a path that ends with a slash /. The slash means that for each form port, a new node is created at the given location; for example:

          /forms/feedback/

        • Type

          Select the required type.

        • Form

          Specify the form.

        • Render with

          Select the required option from the list.

        • Resource Type

          If set, this is added to each comment as sling:resourceType

        • View Selector

      • Create Lead

        • Lead will be added to this list

          Specify the required lead list.

      • Create and Update Account

        • Initial Group

          Group to assign new user to.

        • Home

          Page to display after successful login.

        • Path

          The path (relative) to where the new account is created and stored.

        • View Data…

          Click this button to access the information about form results in the bulk editor. From here, you can export the information to a .tsv (tab-separated) file (for use, for example, in an Excel spreadsheet).

      • Mail

        • From

          Enter the email address that the email should come from.

        • Mailto

          Enter the email address(es) that the form is to sent to.

        • CC

          Enter the CC email address(es).

        • BCC

          Enter the BCC email address(es).

        • Subject

          Enter a subject for the email.

      • Reset Password

        • Change Password Page

          The page used when changing the password.

      • Store Content

        • Content Path

          The content path for any content that the form dumps. Enter a path that ends with a slash /. The slash means that for each form port, a new node is created at the given location; for example:

          /forms/feedback/

        • View Data…

          Click this button to access the information about form results in the bulk editor. From here, you can export the information to a .tsv (tab-separated) file (for use, for example, in an Excel spreadsheet).

      • Store Content With Uploads

        This has the same options as Store Content.

      • Unsubscribe Subscriber

        • Lead will be deleted from this list

          Specify the required lead list.

End of Form end-of-form

This marks the end of the form. You can configure:

  • Form End

    • Show Submit Button

      Indicates whether a Submit button should be shown or not.

    • Submit Name

      An identifier if you are using multiple submit buttons in a form.

    • Submit Title

      The name that appears on the button, such as Submit or Send.

    • Show Reset Button

      Select check box to make the Reset button visible.

    • Reset Title

      The name that appears on the Reset button.

    • Description

      Information that appears below the button.

Account Name account-name

This allows the user to input an account name:

dc_form_accountname

Address address

This allows you to add an international address field with the following format:

dc_form_addressfield

The component is configured for immediate use, but you can change the configuration if required. For example, constraints can be added for the individual elements of the address. Leaving fields empty will use default settings.

Captcha captcha

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Core Components instead.
CAUTION
This component is no longer expected to function out-of-the-box without extensive project-level customization.

The Captcha component requires the user to type in an alphanumeric string as displayed on screen. The string changes with each refresh.

dc_form_captcha

You can configure various parameters for this component, including a message to be shown when the captcha string is invalid.

Checkbox Group checkbox-group

A checkbox allows you to build a list of one of more checkboxes, several of which may be selected at the same time.

dc_form_checkboxgroupuse

You can specify various parameters including a title, description and element name. Using the + and - buttons you can add or remove items, then position them with the up and down arrows.

NOTE
Using Items Load Path you can preload the check box group list with values.
See Preloading Form Fields with Multiple Values.

Credit Card Details credit-card-details

CAUTION
This Foundation Component has been deprecated. Adobe recommends leveraging the Core Components instead.

This allows you to provide the fields needed for entering credit card details. You can configure it to specify the types of card accepted and the information required (for example, security code).

chlimage_1-203

A drop down list can be configured to provide your use with a range of values for selection:

dc_form_dropdownlistuse

You can specify a title and items to appear in the list. Using the + and - buttons you can add or remove the list items, then position them with the Up and Down buttons. You can specify whether the users are allowed to select several items from the list and any items that should be automatically selected the first time they open the list (initial values).

NOTE
Using Items Load Path you can preload the drop down list with values.
See Preloading Form Fields with Multiple Values.

File Upload file-upload

The file upload component provides the user with a mechanism for selecting and uploading a file.

dc_form_fileupload

NOTE
You can create a custom upload component to upload files to a Sling Servlet. For information, see Uploading files to Adobe Experience Manager.

Hidden Field hidden-field

This component allows you to create a hidden field. These can be used for various purposes; for example, when you need to perform an action after submitting the form, or when hidden data is required in post processing.

dc_form_hiddenfield

NOTE
You can also customize your form to show or hide specific form components according to the value of other fields in the form. Changing the visibility of a form field is useful when the field is needed only under specific conditions.
See Showing and Hiding Form Components.

Image Button image-button

An image button allows you to create a button with your own image and text:

dc_form_imagebutton

Image Upload image-upload

The image upload component provides the user with a mechanism for selecting and uploading an image file.

dc_form_imageupload

The link field allows the user to specify a URL:

dc_form_link

Most commonly used for the calendar event form, where it is used for the URL/link field of an event.

Password Field password-field

This is used to allow the user to input their password:

dc_form_password

Password Reset password-reset

This component provides your user with two fields for:

  • the input of a password
  • repeated input of the password to check to confirm that input is correct.

With default settings the component will appear as:

dc_password_reset

Radio Group radio-group

A radio group provides you with a list of one of more radio checkboxes, only one of which may be selected at any particular time.

You can specify the element name together with a title and description Using the + and - buttons you can add or remove items, position them with the up and down arrows and specify a default value if required:

dc_form_radiogroupuse

NOTE
Using Items Load Path you can preload the radio group with values.
See Preloading Form Fields with Multiple Values.

Submit Button submit-button

This component allows you to create a submit button, with either the default text:

dc_form_submitbutton

Or with your own text:

dc_form_submitbuttonuse

Tags Field tags-field

This field allows you to select tags:

dc_form_tags_use

You can specify various parameters, including the namespaces can be used using the specialized tab:

  • Tag Field

    • Allowed Namespaces

      • Geometrixx Outdoors
      • Workflow
      • Forum
      • Stock Photography
      • Geometrixx Media
      • Standard Tags
      • Marketing
      • Asset Properties
    • Width in pixels

    • Popup Size

Text Field text-field

The standard text field can be configured to your required size and with with your own lead in message:

dc_form_text

Workflow Submit Button(s) workflow-submit-button-s

This allows you to create a Submit button for use in a workflow.

chlimage_1-204

recommendation-more-help
5f6f1f67-8db1-40cb-84e9-024e65b9fc4c
