Selecting your UI

Understanding the UIs

The author environment allows for:

• Authoring (including page authoring, managing assets, communities)

• Administering tasks you need when generating and maintaining the content on your website

Two graphical user interfaces are provided to achieve this. These are accessible through any modern browser.

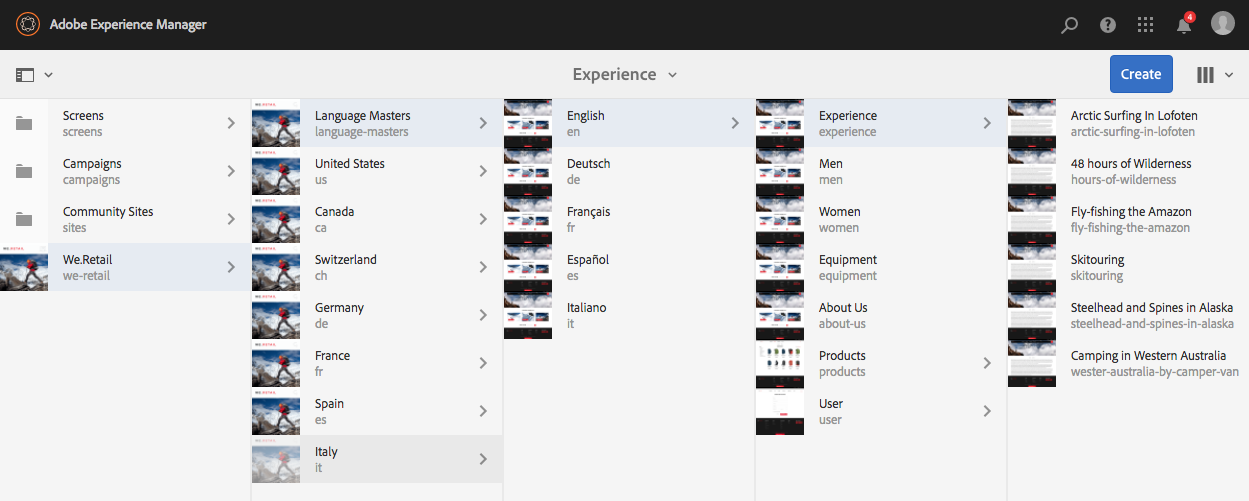

1. Touch-Enabled UI

   • This is the modern, default AEM UI.

   • It is predominantly grey, with a clean, flat interface.

   • Designed for use on both touch and desktop devices, the look and feel is the same on all devices, though viewing and selecting your resources differs slightly (taps versus clicks).

     • Desktop:



   • Tablet devices (or desktop less than 1024 pixels wide):

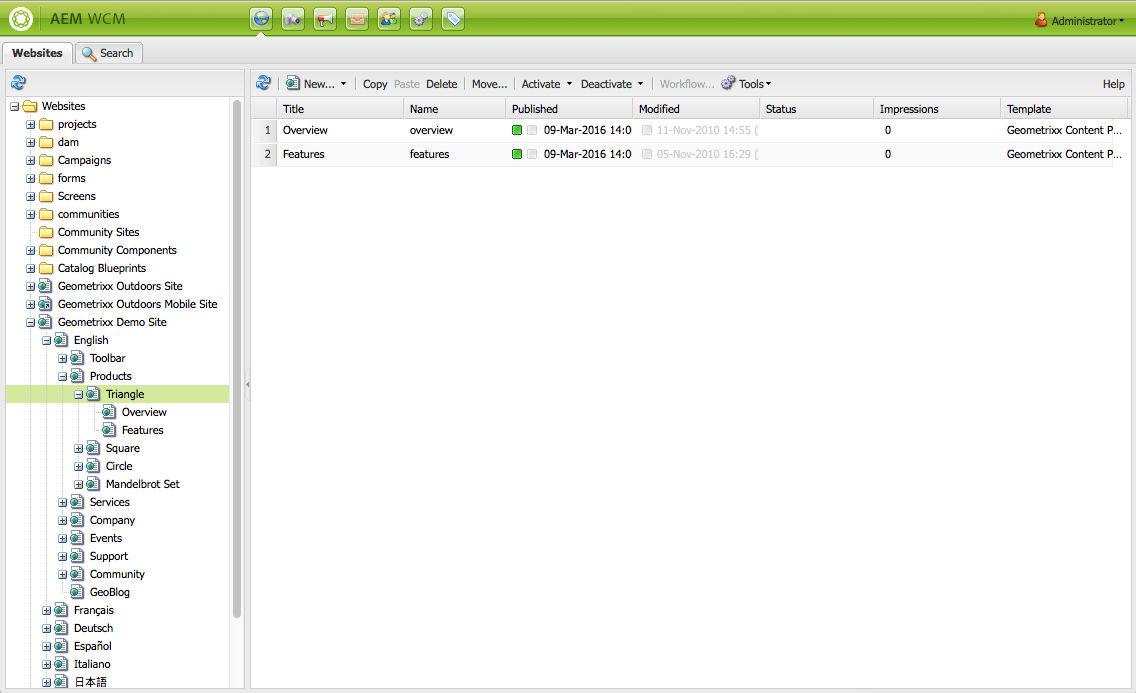

2. Classic UI

   • This is the legacy UI and has been available in AEM for many years.
   • It is predominantly green.
   • It was designed for use on desktop devices.
   • The following documentation focuses on the modern UI. For information about authoring in the classic UI, see the Authoring documentation for the Classic UI.



Switching UIs

Although the touch-enabled UI is now the standard UI and feature parity has been nearly reached with the administration and editing of sites, there may be times when the user wishes to switch to the classic UI. There are several options for doing this.

There are various locations where you can define which UI is to be used:

• Configuring the default UI for your instance - This will set the default UI to be shown at user login, although the user may be able to override this and select a different UI for their account or current session.

• Setting Classic UI Authoring for your account - This will set the UI to be used as default when editing pages, although the user can override this and select a different UI for their account or current session.

• Switching to classic UI for the current session - This switches to the classic UI for the current session.

• For the case of page authoring the system makes certain overrides in the relation to the UI.

Configuring the Default UI for Your Instance

A system administrator can configure the UI that is seen at startup and login by using Root Mapping.

This can be overridden by user defaults or session settings.

Setting Classic UI Authoring for Your Account

Each user can access his/her user preferences to define if he/she wishes to use the classic UI for page authoring (instead of the default UI).

This can be overridden by session settings.

Switching to Classic UI for the Current Session

When using the touch-enabled UI desktop users might want to revert to the classic (desktop only) UI. There are several methods to switch to the classic UI for the current session:

• Navigation Links

  CAUTION

  This option for switching to the classic UI is not immediately available out-of-the-box, it must be specifically configured for your instance.

  See Enabling Access to Classic UI for more information.

  If this is enabled, whenever you mouseover an applicable console, an icon appears (symbol of a monitor), tapping/clicking this will open the appropriate location in the classic UI.

  For examples, the links from Sites to siteadmin:



• URL

  The classic UI can be accessed using the URL for the welcome screen at welcome.html. For example:

  http://localhost:4502/welcome.html

  NOTE

  The touch-enabled UI can be accessed via sites.html. For example:

  http://localhost:4502/sites.html

Switching to Classic UI when Editing a Page

If enabled, Open the Classic UI is available from the Page Information dialog:

UI Overrides for the Editor

The settings defined by a user or system administrator can be overriden by the system in the case of page authoring.

• When authoring pages:

  • Use of the classic editor is forced when accessing the page using cf# in the URL. For example:

    http://localhost:4502/cf#/content/geometrixx/en/products/triangle.html

  • Use of the touch-enabled editor is forced when using /editor.html in the URL or when using a touch device. For example:

    http://localhost:4502/editor.html/content/geometrixx/en/products/triangle.html

• Any forcing is temporary and only valid for the browser session

  • A cookie set will be set dependent on whether touch-enabled ( editor.html) or classic ( cf#) is used.

• When opening pages through siteadmin, checks will be made for the existence of:

  • The cookie
  • A user preference
  • If neither exist, it will default to the definitions set in the OSGi configuration of the WCM Authoring UI Mode Service ( AuthoringUIMode service).
