在自訂動作中使用 API 呼叫回應 custom-action-enhancements

在此頁面上:​擷取自訂動作傳回的JSON回應,並使用其欄位來引導歷程決策、個人化訊息及處理錯誤。

回應裝載需求 custom-action-enhancements-notes

  • 完整回應必須是JSON物件。 不支援做為回應的裸陣列。

  • 陣列可包含在物件中。 支援純量陣列;不支援異質陣列。

支援:

{
  "body": ["val1", "val2"],
  "points": 1290
}

不支援(裸陣列):

["val1", "val2"]

不支援(異質陣列):

{
  "values": [20, "aafw", false]
}

設定自訂動作 config-response

若要擷取自訂動作的回應,請定義端點傳回的裝載範例。

  1. 建立或開啟自訂動作。 請參閱設定自訂動作。

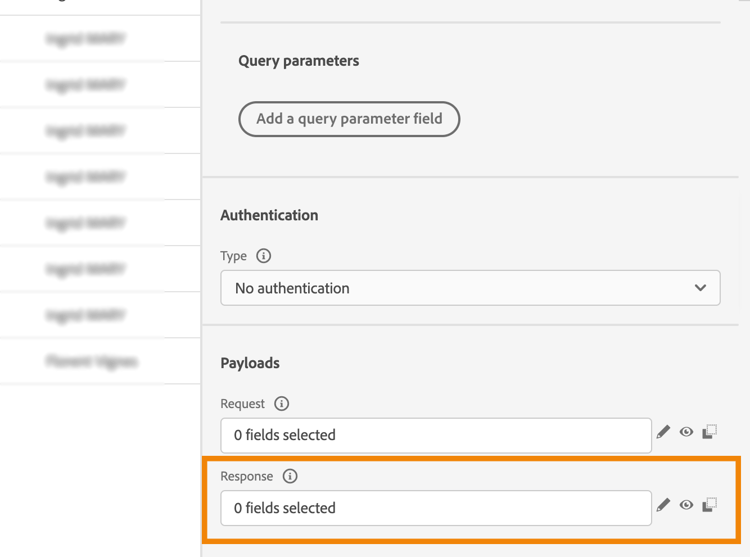

  2. 在​回應 (成功回應)欄位內按一下。

    {width="80%"}

  3. 貼上端點傳回的成功回應範例。 確認範例的欄位型別符合實際回應。 在此範例中,本機端點會傳送熟客點數和設定檔的狀態。

    code language-json
    {
      "customerID": "xY12hye",
      "status": "gold",
      "points": 1290
    }


    {width="80%"}

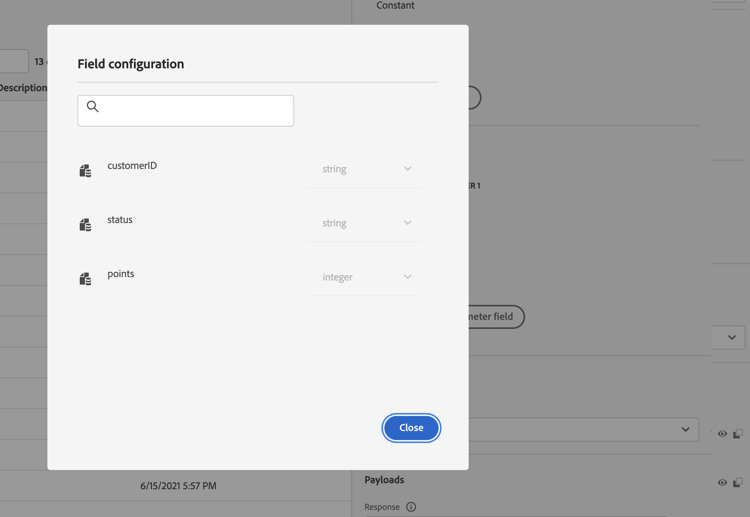

    範例會定義Journey Optimizer每次呼叫動作時擷取的欄位。

  4. (選擇性)若要擷取失敗承載,請選取​定義失敗回應承載,並提供符合呼叫失敗時端點傳回之承載的範例。 例如:

    code language-json
    {
      "message": "customer not found"
    }


    設定後,可在errorResponse節點下使用失敗裝載欄位。 範例的形狀應與實際的失敗回應相符。

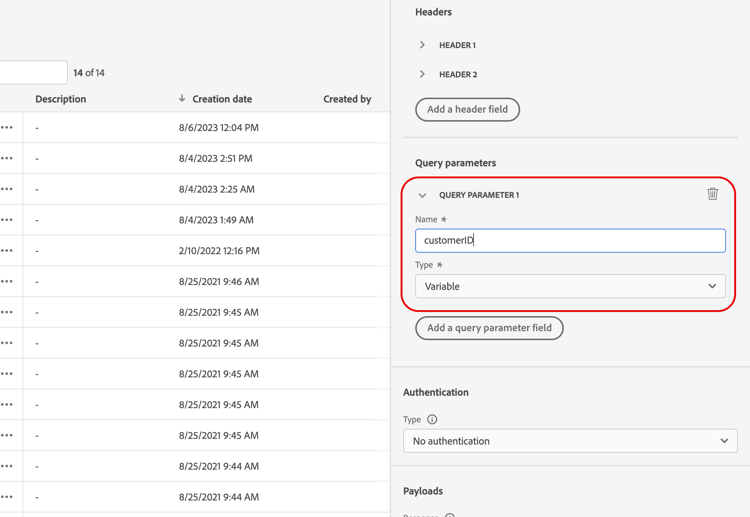

  5. 新增任何必要的請求引數。 在此範例中,customerID是查詢引數。

    {width="80%"}

  6. 按一下「儲存」。

在歷程中使用回應 response-in-journey

將自訂動作新增至歷程。 然後,您可以在條件、後續動作和訊息個人化中使用回應欄位。

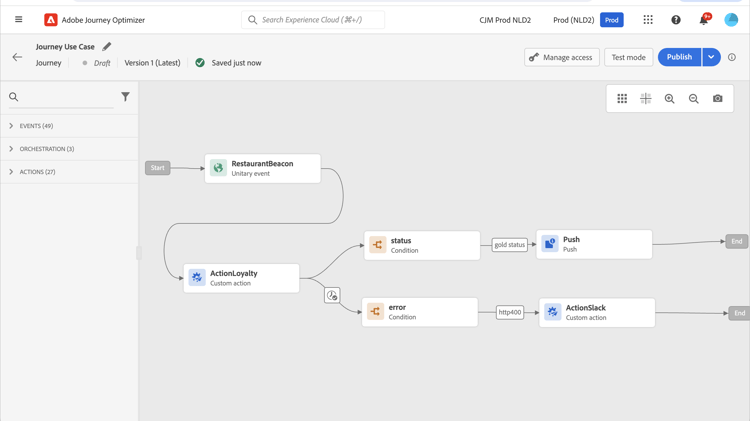

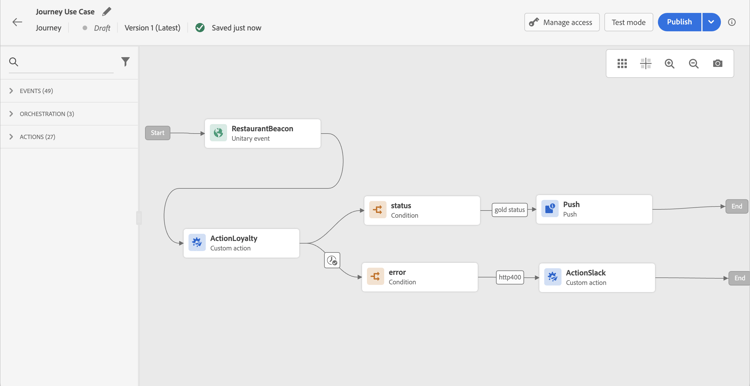

例如,您可以新增條件以檢查熟客點數。 當人員進入餐廳時,您的本機端點會傳送包含設定檔忠誠度資訊的呼叫。 如果設定檔為黃金客戶,則可傳送推播。 如果在呼叫中偵測到錯誤,請傳送自訂動作以通知您的系統管理員。

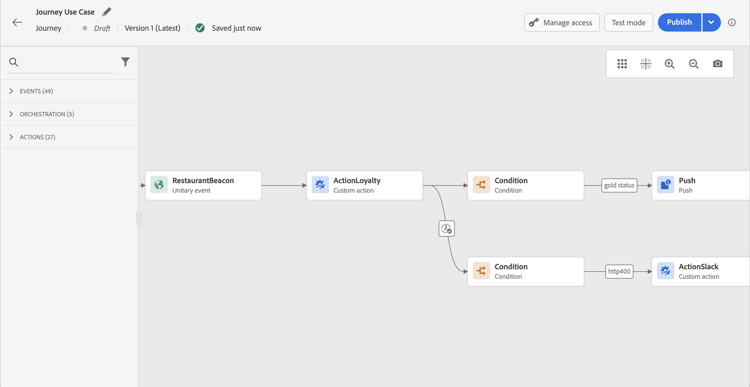

  1. 新增您的事件和先前建立的熟客方案自訂動作。

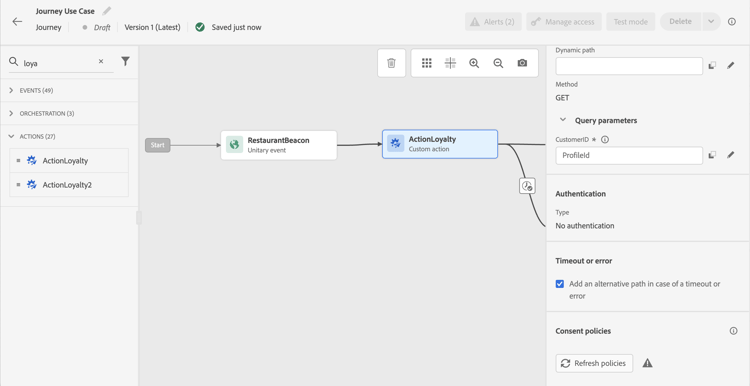

  2. 在忠誠度自訂動作中,對應必要的輸入引數,例如具有設定檔ID的客戶ID查詢引數。 選取​ 在逾時或錯誤的情況下新增替代路徑 ​以分別處理這些結果。

  3. 在成功路徑中,新增條件並使用動作回應欄位。 在進階編輯器中,Context​節點下有可用的回應欄位。

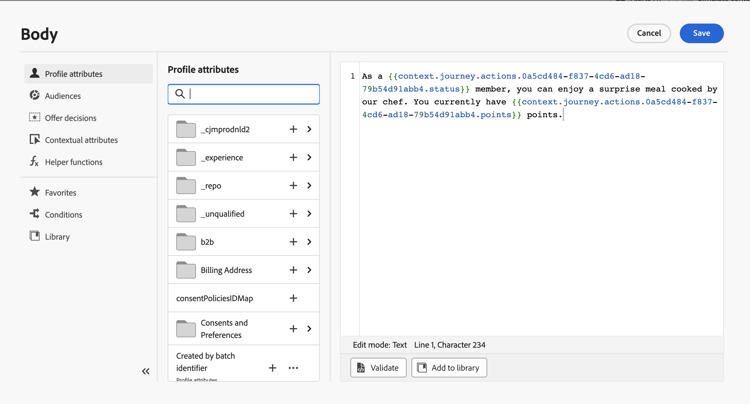

  4. 新增推播或其他動作,並使用回應欄位個人化您的訊息。 在此範例中,內容會使用熟客點數和客戶狀態。 回應欄位位於​內容屬性 > Journey Orchestration > 動作​下。

    note
    NOTE
    即使端點針對每個設定檔傳回相同的回應,輸入自訂動作的每個設定檔都會觸發呼叫。

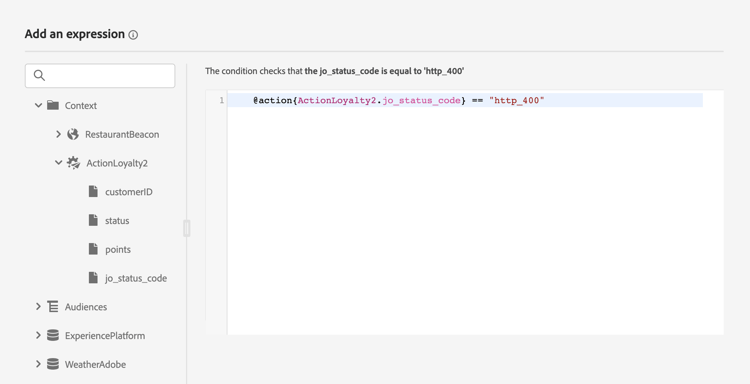

  5. 在逾時和錯誤路徑中,新增條件並使用內建​ jo_status_code ​欄位在呼叫結果上分支。 在此範例中,條件會檢查​ http_400 ​錯誤型別。 檢視錯誤狀態。

    code language-none
    @action{ActionLoyalty.jo_status_code} == "http_400"


    如果您已設定失敗裝載,也可以在其其中一個欄位上分支。 以上例為例:

    code language-none
    @action{ActionLoyalty.errorResponse.message} == "customer not found"


  6. 新增自訂動作以通知您的組織。

測試模式記錄 test-mode-logs

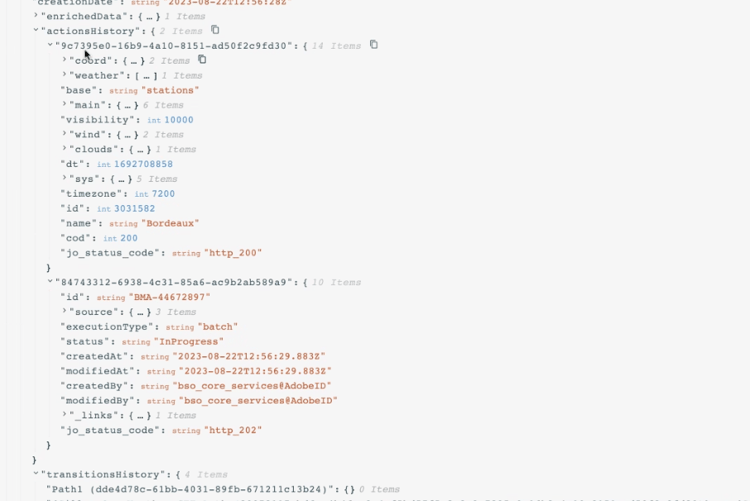

使用測試模式來檢查記錄檔中​ actionsHistory ​區段中的動作傳回的裝載。 對於失敗的呼叫,記錄檔會包含失敗裝載(若已設定)。 這對於偵錯很有用。

錯誤狀態 error-status

jo_status_code​欄位可供使用,即使未定義回應裝載亦然。 可能的值包括:

值
含義
http_<code>
API呼叫傳回的HTTP狀態代碼,例如http_200或http_400
timedout
呼叫逾時
capped
已透過上限封鎖呼叫
internalError
發生內部錯誤

當傳回的HTTP程式碼大於2xx或發生其他錯誤時,會將動作呼叫視為錯誤。 在這種情況下,歷程會遵循設定的逾時或錯誤分支。

依照預設,只有新建立的自訂動作包含​ jo_status_code ​欄位。 若要搭配現有自訂動作使用,請更新並儲存動作。 例如,您可以更新其說明。

如果未設定失敗回應承載,errorResponse節點將不可用。

運算式語法 exp-syntax

參考回應欄位,其中包含:

@action{<action name>.<field path>}

例如:

@action{ActionLoyalty.status}

若要提供預設值,請執行下列動作:

@action{<action name>.<field path>, defaultValue: <expression>}

例如:

@action{ActionLoyalty.points, defaultValue: 0}
@action{ActionLoyalty.points, defaultValue: @event{myEvent.newPoints}}

對於集合,請使用currentActionField來參照目前專案:

count(
  @action{MyAction.MyCollection.all(
    currentActionField.description == "abc"
  )}
)

檢視欄位參考和集合管理函式。

個人化原生通道訊息 response-in-channels

在支援的原生管道個人化(電子郵件、推播、行動訊息)中使用自訂動作回應欄位。 如需陣列和巢狀資料,請參閱使用Handlebars反複處理內容資料。

疑難排解 troubleshooting

症狀
檢查
回應欄位無法使用
確認​ 回應 ​範例是有效的JSON,並反映端點的回應結構和欄位型別。
無法使用回應,因為它是陣列
請改為傳回物件,並將陣列放置在欄位中。
有些陣列值無法使用
確認陣列並非異質性。
現有動作上缺少jo_status_code
更新並儲存動作。 預設情況下,僅新建立的動作會包含欄位。
errorResponse無法使用
設定並儲存失敗回應裝載。
呼叫會在逾時或錯誤分支後進行
檢查jo_status_code並在測試模式記錄檔中檢查失敗承載(若已設定)。
