Schema Registry APIを使用したスキーマの作成

Schema Registryは、Adobe Experience Platform内のSchema Libraryへのアクセスに使用されます。 Schema Libraryには、お客様が使用するアプリケーションのAdobe、Experience Platform社のパートナー、およびベンダーによって提供されたリソースが含まれています。 レジストリは、使用可能なすべてのライブラリリソースにアクセスできるユーザーインターフェイスと RESTful API を提供します。

このチュートリアルでは、Schema Registry APIを使用して、標準クラスを使用してスキーマを作成する手順を説明します。 Experience Platformでユーザーインターフェイスを使用する場合は、​ スキーマエディターチュートリアル ​で、スキーマエディターで同様のアクションを実行するための手順を順を追って説明します。

NOTE
CSV データをExperience Platformに取り込む場合、スキーマを手動で作成しなくても、そのデータをAIが生成した推奨事項 (現在ベータ版)によって作成されたXDM スキーマにマッピングできます。

はじめに

このガイドは、Adobe Experience Platform の次のコンポーネントを実際に利用および理解しているユーザーを対象としています。

  • Experience Data Model (XDM) System:Experience Platform がカスタマーエクスペリエンスのデータの整理に使用する、標準化されたフレームワーク。
    • スキーマ構成の基本:スキーマ構成の主要な原則やベストプラクティスなど、XDM スキーマの基本的な構成要素について説明します。
  • Real-Time Customer Profile:複数のソースから集計したデータに基づいて、統合されたリアルタイム顧客プロファイルを提供します。
  • Sandboxes:Experience Platform には、単一の Experience Platform インスタンスを別々の仮想環境に分割し、デジタルエクスペリエンスアプリケーションの開発と発展に役立つ仮想サンドボックスが用意されています。

このチュートリアルを開始する前に、開発者ガイド ​を確認して、Schema Registry APIを正常に呼び出すために知っておく必要がある重要な情報を確認してください。 そうした情報としては、{TENANT_ID}、「コンテナ」の概念、リクエストを行うのに必要なヘッダーなどがあります( Accept ヘッダーとその取り得る値には特に注意を払います)。

このチュートリアルでは、小売ロイヤルティプログラムのメンバーに関連するデータを記述する「ロイヤルティメンバー」スキーマを作成する手順について説明します。 開始する前に、付録にある完全なロイヤルティメンバースキーマをプレビューできます。

標準クラスでのスキーマを構成

スキーマは、Experience Platformに取り込むデータの設計図と考えることができます。 各スキーマは、クラスと0個以上のスキーマフィールドグループで構成されます。 つまり、スキーマを定義するためにフィールドグループを追加する必要はありませんが、ほとんどの場合、少なくとも1つのフィールドグループが使用されます。

クラスの割り当て

スキーマ構成プロセスは、クラスの選択から始まります。 このクラスは、データの主要な動作面(レコードと時系列)、および取得されるデータを説明するために必要な最小フィールドを定義します。

このチュートリアルで作成するスキーマは、XDM Individual Profile クラスを使用しています。 XDM Individual Profileは、レコードの動作を定義するためにAdobeが提供する標準クラスです。 動作に関する詳細については、スキーマ構成の基本を参照してください。

クラスを割り当てるために、API 呼び出しが行われ、テナントコンテナ内に新しいスキーマが作成(POST)されます。 この呼び出しには、スキーマが実装するクラスが含まれます。 各スキーマは、1 つのクラスのみを実装できます。

API 形式

POST /tenant/schemas

リクエスト

リクエストには、クラスの $id を参照する allOf 属性を含める必要があります。 この属性は、スキーマが実装する「基本クラス」を定義します。 この例では、基本クラスはXDM Individual Profile クラスです。 XDM Individual Profile クラスの$idは、以下のallOf配列の$ref フィールドの値として使用されます。

curl -X POST \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -H 'Content-Type: application/json' \
  -d '{
        "type": "object",
        "title": "Loyalty Members",
        "description": "Information for all members of the loyalty program",
        "allOf": [
            {
              "$ref": "https://ns.adobe.com/xdm/context/profile"
            }
        ]
      }'

応答

リクエストが成功すると、HTTP 応答ステータス 201(作成済み)が返され、応答本文に、$idmeta:altIt、およびversion を含む新しく作成されたスキーマの詳細が含まれています。 これらの値は読み取り専用で、Schema Registryによって割り当てられます。

{
  "$id": "https://ns.adobe.com/tenantId/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:altId": "_tenantId.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:resourceType": "schemas",
  "version": "1.0",
  "title": "Loyalty Members",
  "type": "object",
  "description": "Information for all members of the loyalty program",
  "allOf": [
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": false,
  "meta:abstract": false,
  "meta:extends": [
    "https://ns.adobe.com/xdm/common/auditable",
    "https://ns.adobe.com/xdm/data/record",
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673310304048,
    "repo:lastModifiedDate": 1673310304048,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "6d2ed8acd9c3b768a44de29e069fc6f71329d2550f708381d22fa8bf8c192366",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:class": "https://ns.adobe.com/xdm/context/profile",
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_tenantId"
}

スキーマの検索

新しく作成したスキーマを表示するには、meta:altId またはスキーマの URL エンコードされた $id URI を使用して、参照(GET)リクエストを行します。

API 形式

GET /tenant/schemas/{SCHEMA_ID}
パラメーター
説明
{SCHEMA_ID}
検索するスキーマのmeta:altIdまたはURL エンコードされた$idです。

リクエスト

curl -X GET \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas/https%3A%2F%2Fns.adobe.com%2F{TENANT_ID}%2Fschemas%2F533ca5da28087c44344810891b0f03d9\
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -H 'Accept: application/vnd.adobe.xed+json; version=1'

応答

応答の形式は、リクエストと共に送信されるAccept ヘッダーによって異なります。 様々なAccept ヘッダーを試して、どのヘッダーがニーズに最も適しているかを確認してください。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:resourceType": "schemas",
  "version": "1.0",
  "title": "Loyalty Members",
  "type": "object",
  "description": "Information for all members of the loyalty program",
  "allOf": [
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": false,
  "meta:abstract": false,
  "meta:extends": [
    "https://ns.adobe.com/xdm/common/auditable",
    "https://ns.adobe.com/xdm/data/record",
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673310304048,
    "repo:lastModifiedDate": 1673310304048,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "6d2ed8acd9c3b768a44de29e069fc6f71329d2550f708381d22fa8bf8c192366",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:class": "https://ns.adobe.com/xdm/context/profile",
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}",
  "meta:allFieldAccess": true
}

フィールドグループの追加 add-a-field-group

ロイヤルティメンバースキーマが作成および確認されたので、フィールドグループを追加できます。

選択したスキーマのクラスに応じて、使用できる標準フィールドグループが異なります。 各フィールドグループには、そのフィールドグループと互換性のあるクラスを定義するintendedToExtend フィールドが含まれています。

フィールドグループは、「名前」や「アドレス」などの概念を定義します。これらの概念は、同じ情報を取得する必要があるスキーマで再利用できます。

API 形式

PATCH /tenant/schemas/{SCHEMA_ID}
パラメーター
説明
{SCHEMA_ID}
フィールドグループを追加するスキーマのmeta:altIdまたはURL エンコードされた$idです。

リクエスト

このリクエストは、ロイヤルティメンバースキーマを更新して、​ デモグラフィックの詳細 フィールドグループ ​profile-person-details)内のフィールドを含めるようにします。

profile-person-details フィールドグループを追加することで、ロイヤルティメンバースキーマは、ロイヤルティプログラムメンバーの名前、姓、誕生日などのデモグラフィック情報を取得できるようになりました。

curl -X PATCH \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas/_{TENANT_ID}.schemas.533ca5da28087c44344810891b0f03d9 \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '[
        { "op": "add", "path": "/allOf/-", "value":  {"$ref": "https://ns.adobe.com/xdm/context/profile-person-details"}}
      ]'

応答

応答には、新しく追加されたフィールドグループがmeta:extends配列に表示され、allOf属性のフィールドグループに$refが含まれています。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:resourceType": "schemas",
  "version": "1.1",
  "title": "Loyalty Members",
  "type": "object",
  "description": "Information for all members of the loyalty program",
  "allOf": [
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile-person-details",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": false,
  "meta:abstract": false,
  "meta:extends": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/common/auditable",
    "https://ns.adobe.com/xdm/data/record",
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673310304048,
    "repo:lastModifiedDate": 1673310912096,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "b480f28a35f356b237fc129e796074a3f33a7a67df273f6a8beaee1ec6465540",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:class": "https://ns.adobe.com/xdm/context/profile",
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}",
  "meta:descriptorStatus": {
    "result": []
  }
}

さらなるフィールドグループの追加

ロイヤルティメンバースキーマには、さらに2つの標準フィールドグループが必要です。このフィールドグループを追加するには、別のフィールドグループを使用して手順を繰り返します。

TIP
使用可能なすべてのフィールドグループを確認して、各フィールドグループに含まれるフィールドを把握しておくことが有益です。 特定のクラスで使用できるすべてのフィールドグループを一覧表示(GET)するには、「グローバル」および「テナント」コンテナのそれぞれに対してリクエストを実行し、「meta:intendedToExtend」フィールドが使用しているクラスと一致するフィールドグループのみを返します。 この場合はXDM Individual Profile クラスなので、XDM Individual Profile $idが使用されます。
code language-http
GET /global/fieldgroups?property=meta:intendedToExtend==https://ns.adobe.com/xdm/context/profile
    GET /tenant/fieldgroups?property=meta:intendedToExtend==https://ns.adobe.com/xdm/context/profile

API 形式

PATCH /tenant/schemas/{SCHEMA_ID}
パラメーター
説明
{SCHEMA_ID}
更新中のスキーマのmeta:altIdまたはURL エンコードされた$idです。

リクエスト

このリクエストは、次の標準フィールドグループ内のフィールドを含めるように、ロイヤルティメンバースキーマを更新します。

  • 個人連絡先の詳細profile-personal-details):自宅の住所、電子メールアドレス、自宅の電話などの連絡先情報を追加します。
  • ​ ロイヤルティの詳細profile-loyalty-details):自宅の住所、電子メールアドレス、自宅の電話などの連絡先情報を追加します。
curl -X PATCH \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas/_{TENANT_ID}.schemas.533ca5da28087c44344810891b0f03d9 \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '[
        { "op": "add", "path": "/allOf/-", "value":  {"$ref": "https://ns.adobe.com/xdm/context/profile-personal-details"}},
        { "op": "add", "path": "/allOf/-", "value":  {"$ref": "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details"}}
      ]'

応答

応答には、新しく追加されたフィールドグループがmeta:extends配列に表示され、allOf属性のフィールドグループに$refが含まれています。

ロイヤルティメンバースキーマには、次に示すように、allOf配列に4つの$ref値(profileprofile-person-detailsprofile-personal-details、およびprofile-loyalty-details)が含まれるようになりました。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:resourceType": "schemas",
  "version": "1.2",
  "title": "Loyalty Members",
  "type": "object",
  "description": "Information for all members of the loyalty program",
  "allOf": [
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile-person-details",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile-personal-details",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
    "https://ns.adobe.com/xdm/context/profile-personal-details",
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": false,
  "meta:abstract": false,
  "meta:extends": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
    "https://ns.adobe.com/xdm/context/profile-personal-details",
    "https://ns.adobe.com/xdm/common/auditable",
    "https://ns.adobe.com/xdm/data/record",
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673310304048,
    "repo:lastModifiedDate": 1673311559934,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "1de5ed1a07e3478719952f0a8c94d5e5390d5a9a998761adb4cf1989137fd6ea",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:class": "https://ns.adobe.com/xdm/context/profile",
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}",
  "meta:descriptorStatus": {
    "result": []
  }
}

新しいフィールドグループの定義

標準の​ ロイヤルティの詳細 フィールドグループは、スキーマにロイヤルティ関連の有用なフィールドを提供しますが、標準フィールドグループには含まれていない追加のロイヤルティフィールドがあります。

これらのフィールドを追加するには、tenant コンテナ内で独自のカスタムフィールドグループを定義できます。 これらのフィールドグループは、組織に固有であり、組織外のユーザーに表示または編集することはできません。

新しいフィールドグループを作成(POST)するには、フィールドグループに互換性のあるベースクラスの$idと、フィールドグループに含まれるプロパティを含むmeta:intendedToExtend フィールドをリクエストに含める必要があります。

他のフィールドグループまたはフィールドとの競合を避けるために、カスタムプロパティはTENANT_IDの下にネストする必要があります。

API 形式

POST /tenant/fieldgroups

リクエスト

このリクエストは、会社の特定のロイヤルティプログラムに固有の4つのフィールド(ideffectiveDatecurrentThreshold、およびnextThreshold)を含むloyaltyTier オブジェクトを持つ新しいフィールドグループを作成します。

curl -X POST\
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/fieldgroups\
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -H 'content-type: application/json' \
  -d '{
        "type": "object",
        "title": "Loyalty Tier",
        "meta:intendedToExtend": [
          "https://ns.adobe.com/xdm/context/profile"
        ],
        "description": "Captures info about the current loyalty tier of a customer.",
        "definitions": {
          "loyaltyTier": {
            "properties": {
              "_{TENANT_ID}": {
                "type": "object",
                "properties": {
                  "loyaltyTier": {
                    "type": "object",
                    "properties": {
                      "id": {
                        "title": "Loyalty Tier Identifier",
                        "type": "string",
                        "description": "Loyalty Tier Identifier."
                      },
                      "effectiveDate": {
                        "title": "Effective Date",
                        "type": "string",
                        "format": "date-time",
                        "description": "Date the member joined their current loyalty tier."
                      },
                      "currentThreshold": {
                        "title": "Current Point Threshold",
                        "type": "integer",
                        "description": "The minimum number of loyalty points the member must maintain to remain in the current tier."
                      },
                      "nextThreshold": {
                        "title": "Next Point Threshold",
                        "type": "integer",
                        "description": "The number of loyalty points the member must accrue to graduate to the next tier."
                      }
                    }
                  }
                }
              }
            }
          }
        },
        "allOf": [
          {
            "$ref": "#/definitions/loyaltyTier"
          }
        ]
      }'

応答

リクエストが成功すると、HTTP応答ステータス 201 (作成済み)が返され、新しく作成されたフィールドグループ($idmeta:altIt、およびversionなど)の詳細が含まれています。 これらの値は読み取り専用で、Schema Registryによって割り当てられます。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
  "meta:altId": "_{TENANT_ID}.mixins.9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
  "meta:resourceType": "mixins",
  "version": "1.0",
  "title": "Loyalty Tier",
  "type": "object",
  "description": "Captures info about the current loyalty tier of a customer.",
  "definitions": {
    "loyaltyTier": {
      "properties": {
        "_{TENANT_ID}": {
          "type": "object",
          "properties": {
            "loyaltyTier": {
              "type": "object",
              "properties": {
                "id": {
                  "title": "Loyalty Tier Identifier",
                  "type": "string",
                  "description": "Loyalty Tier Identifier.",
                  "meta:xdmType": "string"
                },
                "effectiveDate": {
                  "title": "Effective Date",
                  "type": "string",
                  "format": "date-time",
                  "description": "Date the member joined their current loyalty tier.",
                  "meta:xdmType": "date-time"
                },
                "currentThreshold": {
                  "title": "Current Point Threshold",
                  "type": "integer",
                  "description": "The minimum number of loyalty points the member must maintain to remain in the current tier.",
                  "meta:xdmType": "int"
                },
                "nextThreshold": {
                  "title": "Next Point Threshold",
                  "type": "integer",
                  "description": "The number of loyalty points the member must accrue to graduate to the next tier.",
                  "meta:xdmType": "int"
                }
              },
              "meta:xdmType": "object"
            }
          },
          "meta:xdmType": "object"
        }
      }
    }
  },
  "allOf": [
    {
      "$ref": "#/definitions/loyaltyTier",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": true,
  "meta:abstract": true,
  "meta:intendedToExtend": [
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673313004645,
    "repo:lastModifiedDate": 1673313004645,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "98e5d48808f5a4d9655493777389568a2581cfce013351ab9e1595d82f698dd6",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}"
}

カスタムフィールドグループをスキーマに追加する

標準フィールドグループ 🔗を追加して、この新しく作成したフィールドグループをスキーマに追加する手順は、同じになります。

API 形式

PATCH /tenant/schemas/{SCHEMA_ID}
パラメーター
説明
{SCHEMA_ID}
スキーマのmeta:altIdまたはURL エンコードされた$idです。

リクエスト

このリクエストは、新しい「ロイヤルティ層」フィールドグループ内のフィールドを含めるように、(PATCH)ロイヤルティメンバースキーマを更新します。

curl -X PATCH \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas/_{TENANT_ID}.schemas.533ca5da28087c44344810891b0f03d9 \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '[
        { "op": "add", "path": "/allOf/-", "value":  {"$ref": "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691"}}
      ]'

応答

フィールドグループが正常に追加されたことを確認できます。応答には、新しく追加されたフィールドグループがmeta:extends配列に表示され、allOf属性に$refがフィールドグループに含まれるようになりました。

{
    "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
    "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
    "meta:resourceType": "schemas",
    "version": "1.3",
    "title": "Loyalty Members",
    "type": "object",
    "description": "Information for all members of the loyalty program",
    "allOf": [
        {
            "$ref": "https://ns.adobe.com/xdm/context/profile",
            "type": "object",
            "meta:xdmType": "object"
        },
        {
            "$ref": "https://ns.adobe.com/xdm/context/profile-person-details",
            "type": "object",
            "meta:xdmType": "object"
        },
        {
            "$ref": "https://ns.adobe.com/xdm/context/profile-personal-details",
            "type": "object",
            "meta:xdmType": "object"
        },
        {
            "$ref": "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
            "type": "object",
            "meta:xdmType": "object"
        },
        {
            "$ref": "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
            "type": "object",
            "meta:xdmType": "object"
        }
    ],
    "refs": [
        "https://ns.adobe.com/xdm/context/profile-person-details",
        "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
        "https://ns.adobe.com/xdm/context/profile-personal-details",
        "https://ns.adobe.com/xdm/context/profile",
        "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691"
    ],
    "imsOrg": "{ORG_ID}",
    "meta:extensible": false,
    "meta:abstract": false,
    "meta:extends": [
        "https://ns.adobe.com/xdm/context/profile-person-details",
        "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
        "https://ns.adobe.com/xdm/context/profile-personal-details",
        "https://ns.adobe.com/xdm/common/auditable",
        "https://ns.adobe.com/xdm/data/record",
        "https://ns.adobe.com/xdm/context/profile",
        "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691"
    ],
    "meta:xdmType": "object",
    "meta:registryMetadata": {
        "repo:createdDate": 1673310304048,
        "repo:lastModifiedDate": 1673313118938,
        "xdm:createdClientId": "{CLIENT_ID}",
        "xdm:lastModifiedClientId": "{CLIENT_ID}",
        "xdm:createdUserId": "{USER_ID}",
        "xdm:lastModifiedUserId": "{USER_ID}",
        "eTag": "6559b197a04bb3fda5bc80bf383a260cfbe32539d528f0139c5750711eebfba2",
        "meta:globalLibVersion": "1.38.2"
    },
    "meta:class": "https://ns.adobe.com/xdm/context/profile",
    "meta:containerId": "tenant",
    "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
    "meta:sandboxType": "production",
    "meta:tenantNamespace": "_{TENANT_ID}",
    "meta:descriptorStatus": {
        "result": []
    }
}

現在のスキーマの表示

GET リクエストを実行して、現在のスキーマを表示し、追加されたフィールドグループがスキーマの全体的な構造にどのように貢献しているかを確認できるようになりました。

API 形式

GET /tenant/schemas/{SCHEMA_ID}
パラメーター
説明
{SCHEMA_ID}
スキーマのmeta:altIdまたはURL エンコードされた$idです。

リクエスト

curl -X GET \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas/_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3 \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -H 'Accept: application/vnd.adobe.xed-full+json; version=1'

応答

application/vnd.adobe.xed-full+json; version=1 Accept ヘッダーを使用すると、すべてのプロパティを示す完全なスキーマを表示できます。 これらのプロパティは、スキーマの作成に使用されたクラスとフィールドグループによって提供されるフィールドです。 以下の応答の例では、最近追加されたフィールドのみがスペースに表示されます。 ドキュメント末尾の付録では、すべてのプロパティとその属性を含む完全なスキーマを参照できます。

"properties"では、カスタムフィールドグループの追加時に作成された_{TENANT_ID}名前空間を確認できます。 その名前空間には、loyaltyTier オブジェクトと、フィールドグループの作成時に定義されたフィールドがあります。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
  "meta:altId": "_{TENANT_ID}.mixins.9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
  "meta:resourceType": "mixins",
  "version": "1.0",
  "title": "Loyalty Tier",
  "type": "object",
  "description": "Captures info about the current loyalty tier of a customer.",
  "definitions": {
    "loyaltyTier": {
      "properties": {
        "_{TENANT_ID}": {
          "type": "object",
          "properties": {
            "loyaltyTier": {
              "type": "object",
              "properties": {
                "id": {
                  "title": "Loyalty Tier Identifier",
                  "type": "string",
                  "description": "Loyalty Tier Identifier.",
                  "meta:xdmType": "string"
                },
                "effectiveDate": {
                  "title": "Effective Date",
                  "type": "string",
                  "format": "date-time",
                  "description": "Date the member joined their current loyalty tier.",
                  "meta:xdmType": "date-time"
                },
                "currentThreshold": {
                  "title": "Current Point Threshold",
                  "type": "integer",
                  "description": "The minimum number of loyalty points the member must maintain to remain in the current tier.",
                  "meta:xdmType": "int"
                },
                "nextThreshold": {
                  "title": "Next Point Threshold",
                  "type": "integer",
                  "description": "The number of loyalty points the member must accrue to graduate to the next tier.",
                  "meta:xdmType": "int"
                }
              },
              "meta:xdmType": "object"
            }
          },
          "meta:xdmType": "object"
        }
      }
    }
  },
  "allOf": [
    {
      "$ref": "#/definitions/loyaltyTier",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": true,
  "meta:abstract": true,
  "meta:intendedToExtend": [
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673313004645,
    "repo:lastModifiedDate": 1673313004645,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "98e5d48808f5a4d9655493777389568a2581cfce013351ab9e1595d82f698dd6",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}"
}

データタイプの作成

作成した「ロイヤルティ層」フィールドグループには、他のスキーマで役立つ特定のプロパティが含まれています。 例えば、データはエクスペリエンスイベントの一部として取得されたり、別のクラスを実装するスキーマによって使用されたりします。 この場合、オブジェクト階層をデータタイプとして保存し、別の場所で簡単に定義を再利用できるようにすると効果的です。

データタイプを使用すると、1 つのオブジェクト階層を 1 回定義し、他のスカラ型と同様にフィールド内で参照できます。

データタイプを使用すると、フィールドの「タイプ」として追加することで、スキーマ内のどこにでも含めることができるため、フィールドグループよりも柔軟性が高く、マルチフィールド構造を一貫して使用できます。

API 形式

POST /tenant/datatypes

リクエスト

データタイプを定義するにはmeta:extendsまたはmeta:intendedToExtend フィールドは必要ありません。また、競合を避けるために、テナント IDの下にフィールドをネストする必要はありません。

curl -X POST \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/datatypes \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '{
        "title": "Loyalty Tier",
        "type": "object",
        "description": "Loyalty Tier data type",
        "definitions": {
          "loyaltyTier": {
            "type": "object",
            "properties": {
              "id": {
                "title": "Loyalty Tier Identifier",
                "type": "string",
                "description": "Loyalty Tier Identifier."
              },
              "effectiveDate": {
                "title": "Effective Date",
                "type": "string",
                "format": "date-time",
                "description": "Date the member joined their current loyalty tier."
              },
              "currentThreshold": {
                "title": "Current Point Threshold",
                "type": "integer",
                "description": "The minimum number of loyalty points the member must maintain to remain in the       current tier."
              },
              "nextThreshold": {
                "title": "Next Point Threshold",
                "type": "integer",
                "description": "The number of loyalty points the member must accrue to graduate to the next tier."
              }
            }
          }
        },
        "allOf": [
          {
            "$ref": "#/definitions/loyaltyTier"
          }
        ]
      }'

応答

リクエストが成功すると、HTTP 応答ステータス 201(作成済み)が返され、応答本文に $idmeta:altIt、および version を含む新しく作成されたデータタイプの詳細が含まれています。す。 これらの値は読み取り専用で、Schema Registryによって割り当てられます。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/datatypes/c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb",
  "meta:altId": "_{TENANT_ID}.datatypes.c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb",
  "meta:resourceType": "datatypes",
  "version": "1.0",
  "title": "Loyalty Tier",
  "type": "object",
  "description": "Loyalty Tier data type",
  "definitions": {
    "loyaltyTier": {
      "type": "object",
      "properties": {
        "id": {
          "title": "Loyalty Tier Identifier",
          "type": "string",
          "description": "Loyalty Tier Identifier.",
          "meta:xdmType": "string"
        },
        "effectiveDate": {
          "title": "Effective Date",
          "type": "string",
          "format": "date-time",
          "description": "Date the member joined their current loyalty tier.",
          "meta:xdmType": "date-time"
        },
        "currentThreshold": {
          "title": "Current Point Threshold",
          "type": "integer",
          "description": "The minimum number of loyalty points the member must maintain to remain in the current tier.",
          "meta:xdmType": "int"
        },
        "nextThreshold": {
          "title": "Next Point Threshold",
          "type": "integer",
          "description": "The number of loyalty points the member must accrue to graduate to the next tier.",
          "meta:xdmType": "int"
        }
      },
      "meta:xdmType": "object"
    }
  },
  "allOf": [
    {
      "$ref": "#/definitions/loyaltyTier",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": true,
  "meta:abstract": true,
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673378256699,
    "repo:lastModifiedDate": 1673378256699,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "8afba84c0c9a68126a7a1389f8523a1112bdf4405badc6dcddbbb4a0e18f5cdb",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}"
}

URL エンコードされた $id URI を使用して参照(GET)リクエストを実行し、新しいデータタイプを直接表示することができます。 参照リクエストのAccept ヘッダーには、versionを必ず含めてください。

スキーマでのデータタイプの使用

ロイヤルティ層のデータタイプが作成されたので、作成したフィールドグループのloyaltyTier フィールドを更新(PATCH)して、以前そこに存在していたフィールドの代わりにデータタイプを参照できます。

API 形式

PATCH /tenant/fieldgroups/{FIELD_GROUP_ID}
パラメーター
説明
{FIELD_GROUP_ID}
更新するフィールドグループのmeta:altIdまたはURL エンコード済み$id

リクエスト

curl -X PATCH \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/fieldgroups/_{TENANT_ID}.mixins.9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691 \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '[
        {
          "op": "replace",
          "path": "/definitions/loyaltyTier/properties/_{TENANT_ID}/properties",
          "value": {
            "loyaltyTier": {
              "title": "Loyalty Tier",
              "$ref": "https://ns.adobe.com/{TENANT_ID}/datatypes/c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb",
              "description": "Loyalty tier info"
            }
          }
        }
      ]'

応答

応答に、以前に定義されたフィールドではなく、loyaltyTier オブジェクトのデータタイプへの参照($ref)が含まれるようになりました。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
  "meta:altId": "_{TENANT_ID}.mixins.9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
  "meta:resourceType": "mixins",
  "version": "1.1",
  "title": "Loyalty Tier",
  "type": "object",
  "description": "Captures info about the current loyalty tier of a customer.",
  "definitions": {
    "loyaltyTier": {
      "properties": {
        "_{TENANT_ID}": {
          "type": "object",
          "properties": {
            "loyaltyTier": {
              "title": "Loyalty Tier",
              "$ref": "https://ns.adobe.com/{TENANT_ID}/datatypes/c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb",
              "description": "Loyalty tier info",
              "type": "object",
              "meta:xdmType": "object"
            }
          },
          "meta:xdmType": "object"
        }
      }
    }
  },
  "allOf": [
    {
      "$ref": "#/definitions/loyaltyTier",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [
    "https://ns.adobe.com/{TENANT_ID}/datatypes/c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb"
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": true,
  "meta:abstract": true,
  "meta:intendedToExtend": [
    "https://ns.adobe.com/xdm/context/profile"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673313004645,
    "repo:lastModifiedDate": 1673378970276,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "4df8fa56d00991590364606bb2e219e1ea8f5717a51c0e6ae57ca956830b6a27",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}",
  "meta:descriptorStatus": {
    "result": []
  }
}

スキーマを検索するためにGET リクエストを実行する場合、loyaltyTier プロパティには、meta:referencedFromの下のデータ型への参照が表示されます。

"_{TENANT_ID}": {
  "type": "object",
  "meta:xdmType": "object",
  "properties": {
    "loyaltyTier": {
      "title": "Loyalty Tier",
      "description": "Loyalty tier info",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "id": {
          "title": "Loyalty Tier Identifier",
          "type": "string",
          "description": "Loyalty Tier Identifier.",
          "meta:xdmType": "string"
        },
        "effectiveDate": {
          "title": "Effective Date",
          "type": "string",
          "format": "date-time",
          "description": "Date the member joined their current loyalty tier.",
          "meta:xdmType": "date-time"
        },
        "currentThreshold": {
          "title": "Current Point Threshold",
          "type": "integer",
          "description": "The minimum number of loyalty points the member must maintain to remain in the current tier.",
          "meta:xdmType": "int"
        },
        "nextThreshold": {
          "title": "Next Point Threshold",
          "type": "integer",
          "description": "The number of loyalty points the member must accrue to graduate to the next tier.",
          "meta:xdmType": "int"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/{TENANT_ID}/datatypes/c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb"
    }
  }
}

ID 記述子の定義

スキーマは、Experience Platformにデータを取り込むために使用されます。 このデータは、最終的に複数のサービスで使用され、個人の単一の統合表示を作成します。 この処理を支援するために、主要フィールドを「ID」としてマークし、データ取得時に、これらのフィールド内のデータをその個人の「ID グラフ」に挿入できます。 その後、グラフデータにReal-Time Customer Profileおよびその他のExperience Platform サービスからアクセスして、個々の顧客の結合されたビューを提供できます。

「ID」として一般的にマークされるフィールドには、電子メールアドレス、電話番号、Experience Cloud ID (ECID)、CRM ID、またはその他の一意のID フィールドが含まれます。 組織に固有の識別子は、適切な ID フィールドである場合もあるので、それらを考慮します。

ID記述子は、sourceSchemasourcePropertyがIDと見なされる一意の識別子であることを示します。

記述子の操作について詳しくは、『スキーマレジストリ開発者ガイド』を参照してください。

API 形式

POST /tenant/descriptors

リクエスト

次のリクエストは、ロイヤルティメンバースキーマのpersonalEmail.address フィールドにID記述子を定義します。 これは、Experience Platformに対し、ロイヤルティメンバーの電子メールアドレスを識別子として使用して、個人に関する情報を結合するように指示します。 この呼び出しでは、xdm:isPrimarytrueに設定することで、このフィールドをスキーマのプライマリ IDとして設定します。これは、​ リアルタイム顧客プロファイル ​で使用するスキーマを有効にするための要件です。

curl -X POST \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/descriptors \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '{
        "@type": "xdm:descriptorIdentity",
        "xdm:sourceSchema": "https://ns.adobe.com/{TENANT_ID}/schemas/533ca5da28087c44344810891b0f03d9",
        "xdm:sourceVersion": 1,
        "xdm:sourceProperty": "/_{TENANT_ID}/loyalty/loyaltyId",
        "xdm:namespace": "Email",
        "xdm:property": "xdm:code",
        "xdm:isPrimary": false
      }'
NOTE
Identity Service APIを使用して、使用可能な「xdm:namespace」値を一覧表示したり、新しい値を作成したりできます。 使用される「xdm:namespace」に応じて、「xdm:property」の値は「xdm:code」または「xdm:id」のいずれかになります。

応答

正常な応答では、新しく作成された記述子の詳細(@id を含む)とと共に、HTTP ステータス 201(作成済み)が返されます。 @idは、Schema Registryによって割り当てられた読み取り専用フィールドで、APIで記述子を参照するために使用されます。

{
  "@id": "719a4391897c097786efbaa6d4262bb928a1cd88540344c6",
  "@type": "xdm:descriptorIdentity",
  "xdm:sourceSchema": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "xdm:sourceVersion": 1,
  "xdm:sourceProperty": "/personalEmail/address",
  "imsOrg": "{ORG_ID}",
  "version": "1",
  "xdm:namespace": "Email",
  "xdm:property": "xdm:code",
  "xdm:isPrimary": true,
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production"
}

Real-Time Customer Profileで使用するスキーマを有効にする profile

スキーマにプライマリ ID記述子が適用されたら、union タグをmeta:immutableTags属性に追加して、Real-Time Customer Profileが使用するロイヤルティメンバースキーマを有効にできます。

NOTE
和集合ビューの操作について詳しくは、Schema Registry開発者ガイドの和集合に関する節を参照してください。

union タグを追加

結合された結合された結合ビューにスキーマを含めるには、union タグをスキーマのmeta:immutableTags属性に追加する必要があります。 これは、PATCH リクエストを通じて行われ、スキーマを更新し、値unionmeta:immutableTags配列を追加します。

API 形式

PATCH /tenant/schemas/{SCHEMA_ID}
パラメーター
説明
{SCHEMA_ID}
プロファイルに対して有効にしているスキーマのmeta:altIdまたはURL エンコードされた$id

リクエスト

curl -X PATCH \
  https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas/_{TENANT_ID}.schemas.533ca5da28087c44344810891b0f03d9 \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'Content-Type: application/json' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}' \
  -d '[
        { "op": "add", "path": "/meta:immutableTags", "value": ["union"]}
      ]'

応答

応答は操作が正常に実行されたことを示し、スキーマには最上位の属性(「和集合」という値を含む meta:immutableTags 列)が含まれています。

{
  "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:resourceType": "schemas",
  "version": "1.4",
  "title": "Loyalty Members",
  "type": "object",
  "description": "Information for all members of the loyalty program",
  "allOf": [
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile-person-details",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/context/profile-personal-details",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
      "type": "object",
      "meta:xdmType": "object"
    },
    {
      "$ref": "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691",
      "type": "object",
      "meta:xdmType": "object"
    }
  ],
  "refs": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
    "https://ns.adobe.com/xdm/context/profile-personal-details",
    "https://ns.adobe.com/xdm/context/profile",
    "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691"
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": false,
  "meta:abstract": false,
  "meta:extends": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
    "https://ns.adobe.com/xdm/context/profile-personal-details",
    "https://ns.adobe.com/xdm/common/auditable",
    "https://ns.adobe.com/xdm/data/record",
    "https://ns.adobe.com/xdm/context/profile",
    "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673310304048,
    "repo:lastModifiedDate": 1673380280074,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "c590ccc7a293040d85c2b7d93276480ef4b4aa9a4fcd6991f50fbb47f58bced2",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:class": "https://ns.adobe.com/xdm/context/profile",
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}",
  "meta:immutableTags": [
    "union"
  ],
  "meta:descriptorStatus": {
    "result": []
  }
}

和集合でのスキーマのリスト

これで、スキーマをXDM Individual Profile結合に正常に追加しました。 同じ和集合に属するすべてのスキーマのリストを表示するには、クエリーパラメーターを使用して GET 要求を実行し、応答をフィルタリングします。

property クエリパラメーターを使用すると、XDM Individual Profile クラスの$idと等しいmeta:classを持つmeta:immutableTags フィールドを含むスキーマのみを返すように指定できます。

API 形式

GET /tenant/schemas?property=meta:immutableTags==union&property=meta:class=={CLASS_ID}

リクエスト

以下のリクエストの例では、XDM Individual Profile和集合の一部であるすべてのスキーマを返します。

curl -X GET \
  'https://platform.adobe.io/data/foundation/schemaregistry/tenant/schemas?property=meta:immutableTags==union&property=meta:class==https://ns.adobe.com/xdm/context/profile' \
  -H 'Accept: application/vnd.adobe.xed-id+json' \
  -H 'Authorization: Bearer {ACCESS_TOKEN}' \
  -H 'x-api-key: {API_KEY}' \
  -H 'x-gw-ims-org-id: {ORG_ID}' \
  -H 'x-sandbox-name: {SANDBOX_NAME}'

応答

応答はフィルターされたリストのスキーマで、両方の要件を満たすもののみが含まれます。 複数のクエリーパラメーターを使用する場合は、AND が想定されることに注意してください。 リスト応答の形式は、リクエストで送信されたAccept ヘッダーによって異なります。

{
  "results": [
    {
      "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/d29a200b5deb6cfb55d3b865ef627f33",
      "meta:altId": "_{TENANT_ID}.schemas.d29a200b5deb6cfb55d3b865ef627f33",
      "version": "1.2",
      "title": "Profile Schema"
    },
    {
      "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/5d70026f5522fc60b3c81f6523b83c86",
      "meta:altId": "_{TENANT_ID}.schemas.5d70026f5522fc60b3c81f6523b83c86",
      "version": "1.3",
      "title": "CRM Onboarding"
    },
    {
      "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/653e53eb04341d09453c9b6a5fb43d1b4ca9526ec274856d",
      "meta:altId": "_{TENANT_ID}.schemas.653e53eb04341d09453c9b6a5fb43d1b4ca9526ec274856d",
      "version": "1.1",
      "title": "Profile consents"
    },
    {
      "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
      "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
      "version": "1.4",
      "title": "Loyalty Members"
    }
  ],
  "_page": {
    "orderby": "updated",
    "next": null,
    "count": 4
  },
  "_links": {
    "next": null,
    "global_schemas": {
      "href": "https://platform.adobe.io/data/foundation/schemaregistry/global/schemas?property=meta:immutableTags==union&property=meta:class==https://ns.adobe.com/xdm/context/profile"
    }
  }
}

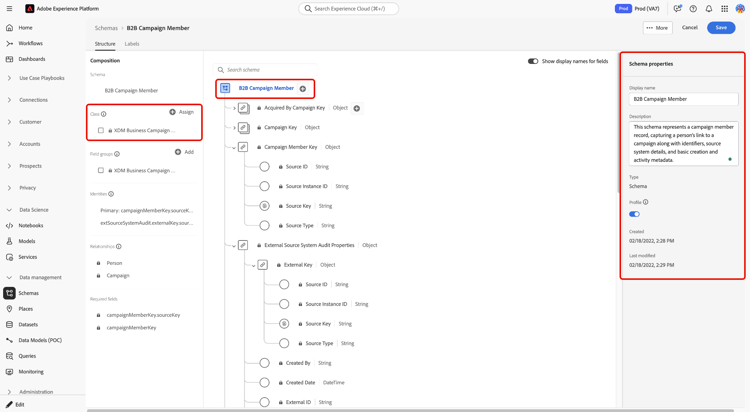

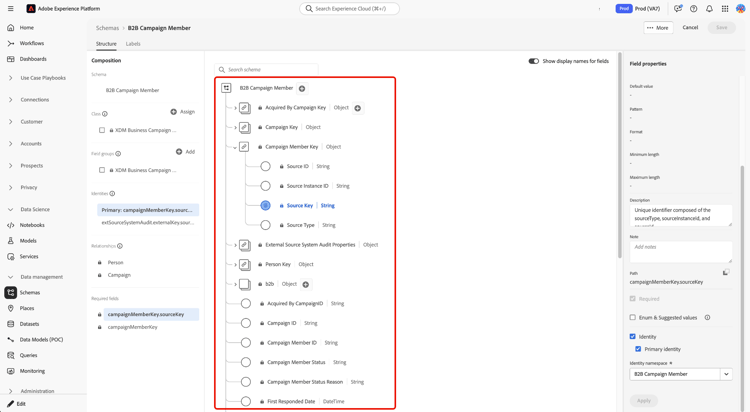

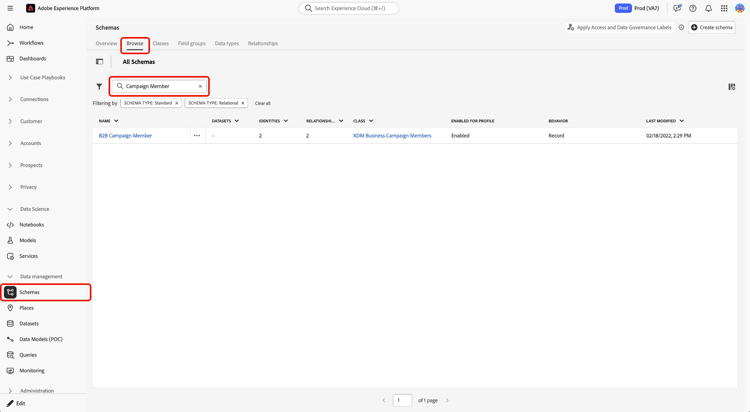

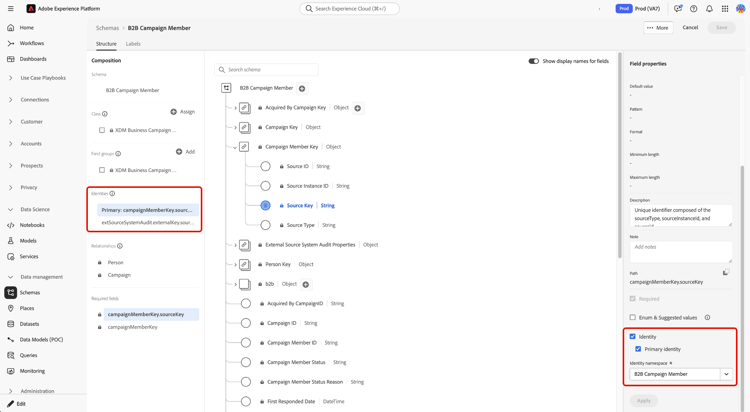

UIを使用してスキーマを検証する validate-in-ui

Experience Platform UIを使用して、Schema Registry APIを通じて作成したスキーマが正しい構造、プロパティ、ID設定を持っているかどうかを検証します。 次の手順に従います。

スキーマの検索

開始するには、スキーマ/参照​に移動します。 テキスト入力フィールドを使用してスキーマ名(例:Campaign Member)を検索し、テーブルからスキーマ名を選択します。

​ スキーマ検索とスキーマの選択のために、テキスト入力フィールドがハイライト表示されたスキーマ参照ビュー。

スキーマ構造の確認

スキーマキャンバスには、スキーマの完全な構造が表示されます。 次のことを確認します。

  • 追加したすべての標準フィールドグループがキャンバスに表示されます。
  • カスタムフィールドグループが構造内に表示され、フィールドを表示するために展開されます。

標準フィールドグループとカスタムフィールドグループが展開された完全なスキーマ構造を表示するスキーマキャンバス。

スキーマプロパティの確認

次に、スキーマルートノードを選択して​スキーマプロパティ パネルを開き、キーメタデータを確認します。

  • スキーマ $id
  • 表示名
  • プロファイルの有効化ステータス

$idは、API応答で返される値と一致する必要があります。

NOTE
割り当てられたクラス(XDM Business Campaign メンバー)は、左側の​構成 パネルに表示されます。

​ スキーマ ルートを選択し、スキーマ プロパティ パネルを開いて主要なメタデータを確認するスキーマ エディターのビュー。

ID フィールドの検証

スキーマに追加された各ID フィールドは、コンポジション パネルの​ID セクションに一覧表示されます。 ID フィールドを選択して、右側のパネルにそのプロパティを表示します。 ID フィールドごとに、次の項目を確認します。

  • ID名前空間が正しいです。
  • 該当する場合、フィールドはプライマリ IDとしてマークされます。

ID フィールドが選択され、右側のパネルにID プロパティが表示されている ​ コンポジションパネル ID セクション。

構造、プロパティ、ID設定がAPI設定と一致する場合は、Schema Registry APIを使用してスキーマを正常に作成および設定しました。

次の手順

このチュートリアルでは、標準フィールドグループと定義したフィールドグループの両方を使用してスキーマを正常に構成しました。 これで、このスキーマを使用して、データセットを作成し、レコードデータを Adobe Experience Platform に取得することができます。

このチュートリアル全体で作成した「ロイヤルティメンバー」スキーマは、次の付録で完全に参照できます。 スキーマを見ると、フィールドグループが全体的な構造にどのように貢献しているのか、データ取り込みに使用できるフィールドはどれかを確認できます。

複数のリレーションを作成したら、関係記述子を使用して、スキーマ間の関係を定義できます。 詳しくは、2 つのスキーマの関係を定義するためのチュートリアルを参照してください 。 レジストリ内のすべての操作(GET、POST、PUT、PATCH、DELETE)を実行する方法の詳細な例については、API を使用する際に、『スキーマレジストリ開発者ガイド』を参照してください。

付録 appendix

次の情報は、API チュートリアルを補完するものです。

ロイヤルティメンバースキーマの完了 complete-schema

このチュートリアル全体で、スキーマは小売ロイヤルティメンバープログラムを説明するために構成されています。

スキーマはXDM Individual Profile クラスを実装し、複数のフィールドグループを組み合わせます。 標準のDemographic Details、個人連絡先の詳細、​ ロイヤルティの詳細 フィールドグループを使用して、また、チュートリアル中に定義されたカスタムロイヤルティ階層フィールドグループを使用して、ロイヤルティメンバーに関する情報を取得します。

以下に、完全な「ロイヤルティメンバー」スキーマを JSON 形式で示します。

完全なスキーマを表示
code language-json
{
  "$id": "https://ns.adobe.com/{TENANT_ID}/schemas/ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:altId": "_{TENANT_ID}.schemas.ee56b80adc7e03b8214e135a28538fe83c7f85bf87f565b3",
  "meta:resourceType": "schemas",
  "version": "1.4",
  "title": "Loyalty Members",
  "type": "object",
  "description": "Information for all members of the loyalty program",
  "properties": {
    "_{TENANT_ID}": {
      "type": "object",
      "properties": {
        "loyaltyTier": {
          "title": "Loyalty Tier",
          "description": "Loyalty tier info",
          "type": "object",
          "meta:xdmType": "object",
          "properties": {
            "id": {
              "title": "Loyalty Tier Identifier",
              "type": "string",
              "description": "Loyalty Tier Identifier.",
              "meta:xdmType": "string"
            },
            "effectiveDate": {
              "title": "Effective Date",
              "type": "string",
              "format": "date-time",
              "description": "Date the member joined their current loyalty tier.",
              "meta:xdmType": "date-time"
            },
            "currentThreshold": {
              "title": "Current Point Threshold",
              "type": "integer",
              "description": "The minimum number of loyalty points the member must maintain to remain in the current tier.",
              "meta:xdmType": "int"
            },
            "nextThreshold": {
              "title": "Next Point Threshold",
              "type": "integer",
              "description": "The number of loyalty points the member must accrue to graduate to the next tier.",
              "meta:xdmType": "int"
            }
          },
          "meta:referencedFrom": "https://ns.adobe.com/{TENANT_ID}/datatypes/c069d13ebfaaa5980d988e7694d794b37b1784fe11d754cb"
        }
      },
      "meta:xdmType": "object"
    },
    "_id": {
      "title": "Identifier",
      "type": "string",
      "format": "uri-reference",
      "description": "A unique identifier for the record.",
      "meta:xdmType": "string",
      "meta:xdmField": "@id"
    },
    "_repo": {
      "properties": {
        "createDate": {
          "type": "string",
          "format": "date-time",
          "meta:immutable": true,
          "meta:usereditable": false,
          "examples": [
            "2004-10-23T12:00:00-06:00"
          ],
          "description": "The server date and time when the resource was created in the repository, such as when an asset file is first uploaded or a directory is created by the server as the parent of a new asset. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
          "meta:xdmType": "date-time",
          "meta:xdmField": "repo:createDate"
        },
        "modifyDate": {
          "type": "string",
          "format": "date-time",
          "meta:usereditable": false,
          "examples": [
            "2004-10-23T12:00:00-06:00"
          ],
          "description": "The server date and time when the resource was last modified in the repository, such as when a new version of an asset is uploaded or a directory's child resource is added or removed. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
          "meta:xdmType": "date-time",
          "meta:xdmField": "repo:modifyDate"
        }
      },
      "type": "object",
      "meta:xdmType": "object",
      "meta:xedConverted": true
    },
    "billingAddress": {
      "title": "Billing Address",
      "description": "Billing postal address.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "_id": {
          "title": "Coordinates ID",
          "type": "string",
          "format": "uri-reference",
          "description": "The unique identifier of the coordinates.",
          "meta:xdmType": "string",
          "meta:xdmField": "@id"
        },
        "_repo": {
          "properties": {
            "createDate": {
              "type": "string",
              "format": "date-time",
              "meta:immutable": true,
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was created in the repository, such as when an asset file is first uploaded or a directory is created by the server as the parent of a new asset. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:createDate"
            },
            "modifyDate": {
              "type": "string",
              "format": "date-time",
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was last modified in the repository, such as when a new version of an asset is uploaded or a directory's child resource is added or removed. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:modifyDate"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "_schema": {
          "properties": {
            "description": {
              "title": "Description",
              "type": "string",
              "description": "A description of what the coordinates identify.",
              "meta:xdmType": "string",
              "meta:xdmField": "schema:description"
            },
            "elevation": {
              "title": "Elevation",
              "type": "number",
              "description": "The specific elevation of the defined coordinate. The value conforms to the [WGS84](http://gisgeography.com/wgs84-world-geodetic-system/) datum and is measured in meters.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:elevation"
            },
            "latitude": {
              "title": "Latitude",
              "type": "number",
              "minimum": -90,
              "maximum": 90,
              "description": "The signed vertical coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:latitude"
            },
            "longitude": {
              "title": "Longitude",
              "type": "number",
              "minimum": -180,
              "maximum": 180,
              "description": "The signed horizontal coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:longitude"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "city": {
          "title": "City",
          "type": "string",
          "description": "The name of the city.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:city"
        },
        "country": {
          "title": "Country",
          "type": "string",
          "description": "The name of the government-administered territory. Other than `xdm:countryCode`, this is a free-form field that can have the country name in any language.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:country"
        },
        "countryCode": {
          "title": "Country code",
          "type": "string",
          "pattern": "^[A-Z]{2}$",
          "description": "The two-character [ISO 3166-1 alpha-2](https://datahub.io/core/country-list) code for the country.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "createdByBatchID": {
          "title": "Created by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The dataset files in Catalog which has been originating the creation of the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:createdByBatchID"
        },
        "dmaID": {
          "title": "Designated market area",
          "type": "integer",
          "description": "The Nielsen media research designated market area.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:dmaID"
        },
        "label": {
          "title": "Label",
          "type": "string",
          "description": "Free form name of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:label"
        },
        "lastVerifiedDate": {
          "title": "Last verified date",
          "type": "string",
          "format": "date",
          "description": "The date that the address was last verified as still associated to the person.",
          "meta:xdmType": "date",
          "meta:xdmField": "xdm:lastVerifiedDate"
        },
        "modifiedByBatchID": {
          "title": "Modified by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The last dataset files in Catalog which has modified the record. At creation time, `modifiedByBatchID` is set as `createdByBatchID`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:modifiedByBatchID"
        },
        "msaID": {
          "title": "Metropolitan statistical area",
          "type": "integer",
          "description": "The metropolitan statistical area in the United States where the observation occurred.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:msaID"
        },
        "postOfficeBox": {
          "title": "Post office box",
          "type": "string",
          "description": "Post office box of the address.",
          "maxLength": 20,
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postOfficeBox"
        },
        "postalCode": {
          "title": "Postal code",
          "type": "string",
          "description": "The postal code of the location. Postal codes are not available for all countries. In some countries, this will only contain part of the postal code.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postalCode"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary address indicator. A profile can have only one `primary` address at a given point of time.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "region": {
          "title": "Region",
          "type": "string",
          "description": "The region, county, or district portion of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:region"
        },
        "repositoryCreatedBy": {
          "title": "Created by user identifier",
          "type": "string",
          "description": "User ID of who created the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryCreatedBy"
        },
        "repositoryLastModifiedBy": {
          "title": "Modified by user identifier",
          "type": "string",
          "description": "User ID of who last modified the record. At creation time, `modifiedByUser` is set as `createdByUser`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryLastModifiedBy"
        },
        "state": {
          "title": "State",
          "type": "string",
          "description": "The name of the State. This is a free-form field.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:state"
        },
        "stateProvince": {
          "title": "State or province",
          "type": "string",
          "description": "The state, or province portion of the observation. The format follows the [ISO 3166-2 (country and subdivision)][http://www.unece.org/cefact/locode/subdivisions.html] standard.",
          "examples": [
            "US-CA",
            "DE-BB",
            "JP-13"
          ],
          "pattern": "([A-Z]{2}-[A-Z0-9]{1,3}|)",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:stateProvince"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the address.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "pending_verification": "Pending verification",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "street1": {
          "title": "Street 1",
          "type": "string",
          "description": "Primary street level information, apartment number, street number, and street name.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street1"
        },
        "street2": {
          "title": "Street 2",
          "type": "string",
          "description": "Optional street information second line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street2"
        },
        "street3": {
          "title": "Street 3",
          "type": "string",
          "description": "Optional street information third line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street3"
        },
        "street4": {
          "title": "Street 4",
          "type": "string",
          "description": "Optional street information fourth line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street4"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/common/address",
      "meta:xdmField": "xdm:billingAddress"
    },
    "createdByBatchID": {
      "title": "Created by batch identifier",
      "type": "string",
      "format": "uri-reference",
      "description": "The dataset files in Catalog which has been originating the creation of the record.",
      "meta:xdmType": "string",
      "meta:xdmField": "xdm:createdByBatchID"
    },
    "faxPhone": {
      "title": "Fax Phone",
      "description": "Fax phone number.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "countryCode": {
          "title": "Country Calling Code",
          "type": "string",
          "description": "Country calling code (CC) as defined by E.164.",
          "minLength": 1,
          "maxLength": 3,
          "pattern": "^[0-9]{1,3}?$",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "extension": {
          "title": "Extension",
          "type": "string",
          "description": "The internal dialing number used to call from a private exchange, operator, or switchboard.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:extension"
        },
        "number": {
          "title": "Number",
          "type": "string",
          "description": "The phone number. Note the phone number is a string and may include meaningful characters such as brackets '()', hyphens '-', or characters to indicate sub-dialing identifiers like extensions 'x' for example,  1-353(0)18391111 or +613 9403600x1234.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:number"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary phone number indicator. Unlike address or email address, there can be multiple primary phone numbers; one per communication channel. The communication channel is defined by the type: `textMessaging`, `mobile`, `phone`, `home`, `work`, `unknown`, and `fax`.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the phone number.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "validity": {
          "title": "Validity",
          "type": "string",
          "description": "A level of technical correctness of the phone number.",
          "meta:enum": {
            "consistent": "Consistent",
            "inconsistent": "Inconsistent",
            "incomplete": "Incomplete",
            "successfullyUsed": "Successfully used"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:validity"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/context/phonenumber",
      "meta:xdmField": "xdm:faxPhone"
    },
    "homeAddress": {
      "title": "Home Address",
      "description": "A home postal address.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "_id": {
          "title": "Coordinates ID",
          "type": "string",
          "format": "uri-reference",
          "description": "The unique identifier of the coordinates.",
          "meta:xdmType": "string",
          "meta:xdmField": "@id"
        },
        "_repo": {
          "properties": {
            "createDate": {
              "type": "string",
              "format": "date-time",
              "meta:immutable": true,
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was created in the repository, such as when an asset file is first uploaded or a directory is created by the server as the parent of a new asset. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:createDate"
            },
            "modifyDate": {
              "type": "string",
              "format": "date-time",
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was last modified in the repository, such as when a new version of an asset is uploaded or a directory's child resource is added or removed. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:modifyDate"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "_schema": {
          "properties": {
            "description": {
              "title": "Description",
              "type": "string",
              "description": "A description of what the coordinates identify.",
              "meta:xdmType": "string",
              "meta:xdmField": "schema:description"
            },
            "elevation": {
              "title": "Elevation",
              "type": "number",
              "description": "The specific elevation of the defined coordinate. The value conforms to the [WGS84](http://gisgeography.com/wgs84-world-geodetic-system/) datum and is measured in meters.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:elevation"
            },
            "latitude": {
              "title": "Latitude",
              "type": "number",
              "minimum": -90,
              "maximum": 90,
              "description": "The signed vertical coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:latitude"
            },
            "longitude": {
              "title": "Longitude",
              "type": "number",
              "minimum": -180,
              "maximum": 180,
              "description": "The signed horizontal coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:longitude"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "city": {
          "title": "City",
          "type": "string",
          "description": "The name of the city.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:city"
        },
        "country": {
          "title": "Country",
          "type": "string",
          "description": "The name of the government-administered territory. Other than `xdm:countryCode`, this is a free-form field that can have the country name in any language.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:country"
        },
        "countryCode": {
          "title": "Country code",
          "type": "string",
          "pattern": "^[A-Z]{2}$",
          "description": "The two-character [ISO 3166-1 alpha-2](https://datahub.io/core/country-list) code for the country.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "createdByBatchID": {
          "title": "Created by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The dataset files in Catalog which has been originating the creation of the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:createdByBatchID"
        },
        "dmaID": {
          "title": "Designated market area",
          "type": "integer",
          "description": "The Nielsen media research designated market area.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:dmaID"
        },
        "label": {
          "title": "Label",
          "type": "string",
          "description": "Free form name of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:label"
        },
        "lastVerifiedDate": {
          "title": "Last verified date",
          "type": "string",
          "format": "date",
          "description": "The date that the address was last verified as still associated to the person.",
          "meta:xdmType": "date",
          "meta:xdmField": "xdm:lastVerifiedDate"
        },
        "modifiedByBatchID": {
          "title": "Modified by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The last dataset files in Catalog which has modified the record. At creation time, `modifiedByBatchID` is set as `createdByBatchID`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:modifiedByBatchID"
        },
        "msaID": {
          "title": "Metropolitan statistical area",
          "type": "integer",
          "description": "The metropolitan statistical area in the United States where the observation occurred.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:msaID"
        },
        "postOfficeBox": {
          "title": "Post office box",
          "type": "string",
          "description": "Post office box of the address.",
          "maxLength": 20,
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postOfficeBox"
        },
        "postalCode": {
          "title": "Postal code",
          "type": "string",
          "description": "The postal code of the location. Postal codes are not available for all countries. In some countries, this will only contain part of the postal code.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postalCode"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary address indicator. A profile can have only one `primary` address at a given point of time.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "region": {
          "title": "Region",
          "type": "string",
          "description": "The region, county, or district portion of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:region"
        },
        "repositoryCreatedBy": {
          "title": "Created by user identifier",
          "type": "string",
          "description": "User ID of who created the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryCreatedBy"
        },
        "repositoryLastModifiedBy": {
          "title": "Modified by user identifier",
          "type": "string",
          "description": "User ID of who last modified the record. At creation time, `modifiedByUser` is set as `createdByUser`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryLastModifiedBy"
        },
        "state": {
          "title": "State",
          "type": "string",
          "description": "The name of the State. This is a free-form field.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:state"
        },
        "stateProvince": {
          "title": "State or province",
          "type": "string",
          "description": "The state, or province portion of the observation. The format follows the [ISO 3166-2 (country and subdivision)][http://www.unece.org/cefact/locode/subdivisions.html] standard.",
          "examples": [
            "US-CA",
            "DE-BB",
            "JP-13"
          ],
          "pattern": "([A-Z]{2}-[A-Z0-9]{1,3}|)",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:stateProvince"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the address.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "pending_verification": "Pending verification",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "street1": {
          "title": "Street 1",
          "type": "string",
          "description": "Primary street level information, apartment number, street number, and street name.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street1"
        },
        "street2": {
          "title": "Street 2",
          "type": "string",
          "description": "Optional street information second line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street2"
        },
        "street3": {
          "title": "Street 3",
          "type": "string",
          "description": "Optional street information third line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street3"
        },
        "street4": {
          "title": "Street 4",
          "type": "string",
          "description": "Optional street information fourth line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street4"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/common/address",
      "meta:xdmField": "xdm:homeAddress"
    },
    "homePhone": {
      "title": "Home Phone",
      "description": "Home phone number.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "countryCode": {
          "title": "Country Calling Code",
          "type": "string",
          "description": "Country calling code (CC) as defined by E.164.",
          "minLength": 1,
          "maxLength": 3,
          "pattern": "^[0-9]{1,3}?$",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "extension": {
          "title": "Extension",
          "type": "string",
          "description": "The internal dialing number used to call from a private exchange, operator, or switchboard.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:extension"
        },
        "number": {
          "title": "Number",
          "type": "string",
          "description": "The phone number. Note the phone number is a string and may include meaningful characters such as brackets '()', hyphens '-', or characters to indicate sub-dialing identifiers like extensions 'x' for example,  1-353(0)18391111 or +613 9403600x1234.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:number"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary phone number indicator. Unlike address or email address, there can be multiple primary phone numbers; one per communication channel. The communication channel is defined by the type: `textMessaging`, `mobile`, `phone`, `home`, `work`, `unknown`, and `fax`.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the phone number.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "validity": {
          "title": "Validity",
          "type": "string",
          "description": "A level of technical correctness of the phone number.",
          "meta:enum": {
            "consistent": "Consistent",
            "inconsistent": "Inconsistent",
            "incomplete": "Incomplete",
            "successfullyUsed": "Successfully used"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:validity"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/context/phonenumber",
      "meta:xdmField": "xdm:homePhone"
    },
    "loyalty": {
      "type": "object",
      "description": "Captures details related to the customer's loyalty rewards.",
      "properties": {
        "joinDate": {
          "title": "Program Join Date",
          "type": "string",
          "format": "date-time",
          "description": "Date which the visitor registered for the loyalty program.",
          "meta:xdmType": "date-time",
          "meta:xdmField": "xdm:joinDate"
        },
        "loyaltyID": {
          "title": "Program ID",
          "type": "array",
          "items": {
            "type": "string",
            "meta:xdmType": "string"
          },
          "description": "The loyalty program ID(s) associated with a specific user, if they are enrolled in the client's loyalty program.",
          "meta:xdmType": "array",
          "meta:xdmField": "xdm:loyaltyID"
        },
        "points": {
          "title": "Program Points Balance",
          "type": "number",
          "description": "Current balance of the loyalty points/awards in a visitor's loyalty account.",
          "meta:xdmType": "number",
          "meta:xdmField": "xdm:points"
        },
        "pointsExpiration": {
          "title": "Points Expiration",
          "type": "array",
          "items": {
            "type": "object",
            "properties": {
              "pointsExpirationDate": {
                "type": "string",
                "format": "date-time",
                "description": "Date on which the given portion of the loyalty points expire.",
                "meta:xdmType": "date-time",
                "meta:xdmField": "xdm:pointsExpirationDate"
              },
              "pointsExpiring": {
                "title": "Points Expiring",
                "type": "number",
                "description": "Point balance expiring as of the associated expiration date.",
                "meta:xdmType": "number",
                "meta:xdmField": "xdm:pointsExpiring"
              }
            },
            "meta:xdmType": "object"
          },
          "meta:xdmType": "array",
          "meta:xdmField": "xdm:pointsExpiration"
        },
        "pointsRedeemed": {
          "title": "Points Redeemed",
          "type": "number",
          "description": "Amount of points applied toward a purchase or otherwise redeemed.",
          "meta:xdmType": "number",
          "meta:xdmField": "xdm:pointsRedeemed"
        },
        "program": {
          "title": "Program Name",
          "type": "string",
          "description": "This should define the loyalty progam in which a visitor is enrolled.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:program"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "Captures the visitor's loyalty progam status, such as active, disabled, or suspended.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "tier": {
          "title": "Tier",
          "type": "string",
          "description": "Captures the loyalty progam tier in which a visitor is enrolled.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:tier"
        },
        "upgradeDate": {
          "title": "Program Name",
          "type": "string",
          "description": "Date which the customer was upgraded to the next tier level.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:upgradeDate"
        }
      },
      "meta:xdmType": "object",
      "meta:xdmField": "xdm:loyalty"
    },
    "mailingAddress": {
      "title": "Mailing Address",
      "description": "Mailing postal address.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "_id": {
          "title": "Coordinates ID",
          "type": "string",
          "format": "uri-reference",
          "description": "The unique identifier of the coordinates.",
          "meta:xdmType": "string",
          "meta:xdmField": "@id"
        },
        "_repo": {
          "properties": {
            "createDate": {
              "type": "string",
              "format": "date-time",
              "meta:immutable": true,
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was created in the repository, such as when an asset file is first uploaded or a directory is created by the server as the parent of a new asset. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:createDate"
            },
            "modifyDate": {
              "type": "string",
              "format": "date-time",
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was last modified in the repository, such as when a new version of an asset is uploaded or a directory's child resource is added or removed. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:modifyDate"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "_schema": {
          "properties": {
            "description": {
              "title": "Description",
              "type": "string",
              "description": "A description of what the coordinates identify.",
              "meta:xdmType": "string",
              "meta:xdmField": "schema:description"
            },
            "elevation": {
              "title": "Elevation",
              "type": "number",
              "description": "The specific elevation of the defined coordinate. The value conforms to the [WGS84](http://gisgeography.com/wgs84-world-geodetic-system/) datum and is measured in meters.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:elevation"
            },
            "latitude": {
              "title": "Latitude",
              "type": "number",
              "minimum": -90,
              "maximum": 90,
              "description": "The signed vertical coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:latitude"
            },
            "longitude": {
              "title": "Longitude",
              "type": "number",
              "minimum": -180,
              "maximum": 180,
              "description": "The signed horizontal coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:longitude"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "city": {
          "title": "City",
          "type": "string",
          "description": "The name of the city.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:city"
        },
        "country": {
          "title": "Country",
          "type": "string",
          "description": "The name of the government-administered territory. Other than `xdm:countryCode`, this is a free-form field that can have the country name in any language.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:country"
        },
        "countryCode": {
          "title": "Country code",
          "type": "string",
          "pattern": "^[A-Z]{2}$",
          "description": "The two-character [ISO 3166-1 alpha-2](https://datahub.io/core/country-list) code for the country.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "createdByBatchID": {
          "title": "Created by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The dataset files in Catalog which has been originating the creation of the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:createdByBatchID"
        },
        "dmaID": {
          "title": "Designated market area",
          "type": "integer",
          "description": "The Nielsen media research designated market area.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:dmaID"
        },
        "label": {
          "title": "Label",
          "type": "string",
          "description": "Free form name of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:label"
        },
        "lastVerifiedDate": {
          "title": "Last verified date",
          "type": "string",
          "format": "date",
          "description": "The date that the address was last verified as still associated to the person.",
          "meta:xdmType": "date",
          "meta:xdmField": "xdm:lastVerifiedDate"
        },
        "modifiedByBatchID": {
          "title": "Modified by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The last dataset files in Catalog which has modified the record. At creation time, `modifiedByBatchID` is set as `createdByBatchID`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:modifiedByBatchID"
        },
        "msaID": {
          "title": "Metropolitan statistical area",
          "type": "integer",
          "description": "The metropolitan statistical area in the United States where the observation occurred.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:msaID"
        },
        "postOfficeBox": {
          "title": "Post office box",
          "type": "string",
          "description": "Post office box of the address.",
          "maxLength": 20,
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postOfficeBox"
        },
        "postalCode": {
          "title": "Postal code",
          "type": "string",
          "description": "The postal code of the location. Postal codes are not available for all countries. In some countries, this will only contain part of the postal code.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postalCode"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary address indicator. A profile can have only one `primary` address at a given point of time.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "region": {
          "title": "Region",
          "type": "string",
          "description": "The region, county, or district portion of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:region"
        },
        "repositoryCreatedBy": {
          "title": "Created by user identifier",
          "type": "string",
          "description": "User ID of who created the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryCreatedBy"
        },
        "repositoryLastModifiedBy": {
          "title": "Modified by user identifier",
          "type": "string",
          "description": "User ID of who last modified the record. At creation time, `modifiedByUser` is set as `createdByUser`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryLastModifiedBy"
        },
        "state": {
          "title": "State",
          "type": "string",
          "description": "The name of the State. This is a free-form field.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:state"
        },
        "stateProvince": {
          "title": "State or province",
          "type": "string",
          "description": "The state, or province portion of the observation. The format follows the [ISO 3166-2 (country and subdivision)][http://www.unece.org/cefact/locode/subdivisions.html] standard.",
          "examples": [
            "US-CA",
            "DE-BB",
            "JP-13"
          ],
          "pattern": "([A-Z]{2}-[A-Z0-9]{1,3}|)",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:stateProvince"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the address.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "pending_verification": "Pending verification",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "street1": {
          "title": "Street 1",
          "type": "string",
          "description": "Primary street level information, apartment number, street number, and street name.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street1"
        },
        "street2": {
          "title": "Street 2",
          "type": "string",
          "description": "Optional street information second line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street2"
        },
        "street3": {
          "title": "Street 3",
          "type": "string",
          "description": "Optional street information third line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street3"
        },
        "street4": {
          "title": "Street 4",
          "type": "string",
          "description": "Optional street information fourth line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street4"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/common/address",
      "meta:xdmField": "xdm:mailingAddress"
    },
    "mobilePhone": {
      "title": "Mobile Phone",
      "description": "Mobile phone number.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "countryCode": {
          "title": "Country Calling Code",
          "type": "string",
          "description": "Country calling code (CC) as defined by E.164.",
          "minLength": 1,
          "maxLength": 3,
          "pattern": "^[0-9]{1,3}?$",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "extension": {
          "title": "Extension",
          "type": "string",
          "description": "The internal dialing number used to call from a private exchange, operator, or switchboard.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:extension"
        },
        "number": {
          "title": "Number",
          "type": "string",
          "description": "The phone number. Note the phone number is a string and may include meaningful characters such as brackets '()', hyphens '-', or characters to indicate sub-dialing identifiers like extensions 'x' for example,  1-353(0)18391111 or +613 9403600x1234.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:number"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary phone number indicator. Unlike address or email address, there can be multiple primary phone numbers; one per communication channel. The communication channel is defined by the type: `textMessaging`, `mobile`, `phone`, `home`, `work`, `unknown`, and `fax`.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the phone number.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "validity": {
          "title": "Validity",
          "type": "string",
          "description": "A level of technical correctness of the phone number.",
          "meta:enum": {
            "consistent": "Consistent",
            "inconsistent": "Inconsistent",
            "incomplete": "Incomplete",
            "successfullyUsed": "Successfully used"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:validity"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/context/phonenumber",
      "meta:xdmField": "xdm:mobilePhone"
    },
    "modifiedByBatchID": {
      "title": "Modified by batch identifier",
      "type": "string",
      "format": "uri-reference",
      "description": "The last dataset files in Catalog which has modified the record. At creation time, `modifiedByBatchID` is set as `createdByBatchID`.",
      "meta:xdmType": "string",
      "meta:xdmField": "xdm:modifiedByBatchID"
    },
    "person": {
      "title": "Person",
      "description": "An individual actor, contact, or owner.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "birthDate": {
          "title": "Birth date(YYYY-MM-DD)",
          "type": "string",
          "format": "date",
          "description": "The full date a person was born.",
          "meta:xdmType": "date",
          "meta:xdmField": "xdm:birthDate"
        },
        "birthDayAndMonth": {
          "title": "Birth date (MM-DD)",
          "type": "string",
          "pattern": "[0-1][0-9]-[0-9][0-9]",
          "description": "The day and month a person was born, in the format MM-DD. This field should be used when the day and month of a person's birth is known, but not the year.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:birthDayAndMonth"
        },
        "birthYear": {
          "title": "Birth year",
          "type": "integer",
          "description": "The year a person was born including the century, for example, 1983.  This field should be used when only the person's age is known, not the full birth date.",
          "minimum": 1,
          "maximum": 32767,
          "meta:xdmType": "short",
          "meta:xdmField": "xdm:birthYear"
        },
        "gender": {
          "title": "Gender",
          "type": "string",
          "enum": [
            "male",
            "female",
            "not_specified",
            "non_specific"
          ],
          "meta:enum": {
            "male": "Male",
            "female": "Female",
            "not_specified": "Not Specified",
            "non_specific": "Non-specific"
          },
          "description": "Gender identity of the person.\n",
          "default": "not_specified",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:gender"
        },
        "maritalStatus": {
          "title": "Marital Status",
          "type": "string",
          "enum": [
            "married",
            "single",
            "divorced",
            "widowed",
            "not_specified"
          ],
          "meta:enum": {
            "married": "Married",
            "single": "Single",
            "divorced": "Divorced",
            "widowed": "Widowed",
            "not_specified": "Not Specified"
          },
          "description": "Describes a person's relationship with a significant other.",
          "default": "not_specified",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:maritalStatus"
        },
        "name": {
          "title": "Full name",
          "description": "The person's full name.",
          "type": "object",
          "meta:xdmType": "object",
          "properties": {
            "courtesyTitle": {
              "title": "Courtesy title",
              "type": "string",
              "description": "Normally an abbreviation of a persons title, honorific, or salutation. The `courtesyTitle` is used in front of full or last name in opening texts. For example, Mr. Miss. or Dr.",
              "meta:xdmType": "string",
              "meta:xdmField": "xdm:courtesyTitle"
            },
            "firstName": {
              "title": "First name",
              "type": "string",
              "description": "The first segment of the name in the writing order most commonly accepted in the language of the name. In many cultures this is the preferred personal or given name. The `firstName` and `lastName` properties have been introduced to maintain compatibility with existing systems that model names in a simplified, non-semantic, and non-internationalizable way. Using `xdm:fullName` is always preferable.",
              "meta:xdmType": "string",
              "meta:xdmField": "xdm:firstName"
            },
            "fullName": {
              "title": "Full name",
              "type": "string",
              "description": "The full name of the person, in writing order most commonly accepted in the language of the name.",
              "meta:xdmType": "string",
              "meta:xdmField": "xdm:fullName"
            },
            "lastName": {
              "title": "Last name",
              "type": "string",
              "description": "The last segment of the name in the writing order most commonly accepted in the language of the name. In many cultures this is the inherited family name, surname, patronymic, or matronymic name. The `firstName` and `lastName` properties have been introduced to maintain compatibility with existing systems that model names in a simplified, non-semantic, and non-internationalizable way. Using `xdm:fullName` is always preferable.",
              "meta:xdmType": "string",
              "meta:xdmField": "xdm:lastName"
            },
            "middleName": {
              "title": "Middle name",
              "type": "string",
              "description": "Middle, alternative, or additional names supplied between the first name and last name.",
              "meta:xdmType": "string",
              "meta:xdmField": "xdm:middleName"
            },
            "suffix": {
              "title": "Suffix",
              "type": "string",
              "description": "A group of letters provided after a person's name to provide additional information. The `suffix` is used at the end of someones name. For example Jr., Sr., M.D., PhD, I, II, III, etc.",
              "meta:xdmType": "string",
              "meta:xdmField": "xdm:suffix"
            }
          },
          "meta:referencedFrom": "https://ns.adobe.com/xdm/context/person-name",
          "meta:xdmField": "xdm:name"
        },
        "nationality": {
          "title": "Nationality",
          "type": "string",
          "pattern": "^[A-Z]{2}$",
          "description": "The legal relationship between a person and their state represented using the ISO 3166-1 Alpha-2 code.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:nationality"
        },
        "taxId": {
          "title": "Tax ID",
          "type": "string",
          "description": "The Tax / Fiscal ID of the person, e.g. the TIN in the US or the CIF/NIF in Spain.",
          "meta:status": "deprecated",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:taxId"
        },
        "type": {
          "title": "Type",
          "type": "string",
          "description": "The type of individual in different business contexts like B2C.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:type"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/context/person",
      "meta:xdmField": "xdm:person"
    },
    "personID": {
      "title": "Person ID",
      "description": "Unique identifier of Person/Profile fragment.",
      "type": "string",
      "meta:xdmType": "string",
      "meta:xdmField": "xdm:personID"
    },
    "personalEmail": {
      "title": "Personal Email",
      "description": "A personal email address.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "address": {
          "title": "Address",
          "type": "string",
          "format": "email",
          "description": "The technical address, for example, 'name@domain.com' as commonly defined in RFC2822 and subsequent standards.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:address",
          "minLength": 1
        },
        "label": {
          "title": "Label",
          "type": "string",
          "description": "Additional display information that maybe available, for example, Microsoft Outlook rich address controls display 'John Smith smithjr@company.uk', 'John Smith' part is data that would be placed in the label.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:label"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary email indicator. A profile can have only one `primary` email address at a given point of time.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the email address.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "pending_verification": "Pending verification",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "type": {
          "title": "Type",
          "type": "string",
          "description": "The way the account relates to the person for example 'work' or 'personal'.",
          "meta:enum": {
            "unknown": "Unknown",
            "personal": "Personal",
            "work": "Work",
            "education": "Education"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:type"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/context/emailaddress",
      "meta:xdmField": "xdm:personalEmail",
      "required": [
        "address"
      ]
    },
    "repositoryCreatedBy": {
      "title": "Created by user identifier",
      "type": "string",
      "description": "User ID of who created the record.",
      "meta:xdmType": "string",
      "meta:xdmField": "xdm:repositoryCreatedBy"
    },
    "repositoryLastModifiedBy": {
      "title": "Modified by user identifier",
      "type": "string",
      "description": "User ID of who last modified the record. At creation time, `modifiedByUser` is set as `createdByUser`.",
      "meta:xdmType": "string",
      "meta:xdmField": "xdm:repositoryLastModifiedBy"
    },
    "shippingAddress": {
      "title": "Shipping Address",
      "description": "Shipping postal address.",
      "type": "object",
      "meta:xdmType": "object",
      "properties": {
        "_id": {
          "title": "Coordinates ID",
          "type": "string",
          "format": "uri-reference",
          "description": "The unique identifier of the coordinates.",
          "meta:xdmType": "string",
          "meta:xdmField": "@id"
        },
        "_repo": {
          "properties": {
            "createDate": {
              "type": "string",
              "format": "date-time",
              "meta:immutable": true,
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was created in the repository, such as when an asset file is first uploaded or a directory is created by the server as the parent of a new asset. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:createDate"
            },
            "modifyDate": {
              "type": "string",
              "format": "date-time",
              "meta:usereditable": false,
              "examples": [
                "2004-10-23T12:00:00-06:00"
              ],
              "description": "The server date and time when the resource was last modified in the repository, such as when a new version of an asset is uploaded or a directory's child resource is added or removed. The date time property should conform to ISO 8601 standard. An example form is \"2004-10-23T12:00:00-06:00\".",
              "meta:xdmType": "date-time",
              "meta:xdmField": "repo:modifyDate"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "_schema": {
          "properties": {
            "description": {
              "title": "Description",
              "type": "string",
              "description": "A description of what the coordinates identify.",
              "meta:xdmType": "string",
              "meta:xdmField": "schema:description"
            },
            "elevation": {
              "title": "Elevation",
              "type": "number",
              "description": "The specific elevation of the defined coordinate. The value conforms to the [WGS84](http://gisgeography.com/wgs84-world-geodetic-system/) datum and is measured in meters.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:elevation"
            },
            "latitude": {
              "title": "Latitude",
              "type": "number",
              "minimum": -90,
              "maximum": 90,
              "description": "The signed vertical coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:latitude"
            },
            "longitude": {
              "title": "Longitude",
              "type": "number",
              "minimum": -180,
              "maximum": 180,
              "description": "The signed horizontal coordinate of a geographic point.",
              "meta:xdmType": "number",
              "meta:xdmField": "schema:longitude"
            }
          },
          "type": "object",
          "meta:xdmType": "object",
          "meta:xedConverted": true
        },
        "city": {
          "title": "City",
          "type": "string",
          "description": "The name of the city.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:city"
        },
        "country": {
          "title": "Country",
          "type": "string",
          "description": "The name of the government-administered territory. Other than `xdm:countryCode`, this is a free-form field that can have the country name in any language.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:country"
        },
        "countryCode": {
          "title": "Country code",
          "type": "string",
          "pattern": "^[A-Z]{2}$",
          "description": "The two-character [ISO 3166-1 alpha-2](https://datahub.io/core/country-list) code for the country.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:countryCode"
        },
        "createdByBatchID": {
          "title": "Created by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The dataset files in Catalog which has been originating the creation of the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:createdByBatchID"
        },
        "dmaID": {
          "title": "Designated market area",
          "type": "integer",
          "description": "The Nielsen media research designated market area.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:dmaID"
        },
        "label": {
          "title": "Label",
          "type": "string",
          "description": "Free form name of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:label"
        },
        "lastVerifiedDate": {
          "title": "Last verified date",
          "type": "string",
          "format": "date",
          "description": "The date that the address was last verified as still associated to the person.",
          "meta:xdmType": "date",
          "meta:xdmField": "xdm:lastVerifiedDate"
        },
        "modifiedByBatchID": {
          "title": "Modified by batch identifier",
          "type": "string",
          "format": "uri-reference",
          "description": "The last dataset files in Catalog which has modified the record. At creation time, `modifiedByBatchID` is set as `createdByBatchID`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:modifiedByBatchID"
        },
        "msaID": {
          "title": "Metropolitan statistical area",
          "type": "integer",
          "description": "The metropolitan statistical area in the United States where the observation occurred.",
          "meta:xdmType": "int",
          "meta:xdmField": "xdm:msaID"
        },
        "postOfficeBox": {
          "title": "Post office box",
          "type": "string",
          "description": "Post office box of the address.",
          "maxLength": 20,
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postOfficeBox"
        },
        "postalCode": {
          "title": "Postal code",
          "type": "string",
          "description": "The postal code of the location. Postal codes are not available for all countries. In some countries, this will only contain part of the postal code.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:postalCode"
        },
        "primary": {
          "title": "Primary",
          "type": "boolean",
          "description": "Primary address indicator. A profile can have only one `primary` address at a given point of time.",
          "meta:xdmType": "boolean",
          "meta:xdmField": "xdm:primary"
        },
        "region": {
          "title": "Region",
          "type": "string",
          "description": "The region, county, or district portion of the address.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:region"
        },
        "repositoryCreatedBy": {
          "title": "Created by user identifier",
          "type": "string",
          "description": "User ID of who created the record.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryCreatedBy"
        },
        "repositoryLastModifiedBy": {
          "title": "Modified by user identifier",
          "type": "string",
          "description": "User ID of who last modified the record. At creation time, `modifiedByUser` is set as `createdByUser`.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:repositoryLastModifiedBy"
        },
        "state": {
          "title": "State",
          "type": "string",
          "description": "The name of the State. This is a free-form field.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:state"
        },
        "stateProvince": {
          "title": "State or province",
          "type": "string",
          "description": "The state, or province portion of the observation. The format follows the [ISO 3166-2 (country and subdivision)][http://www.unece.org/cefact/locode/subdivisions.html] standard.",
          "examples": [
            "US-CA",
            "DE-BB",
            "JP-13"
          ],
          "pattern": "([A-Z]{2}-[A-Z0-9]{1,3}|)",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:stateProvince"
        },
        "status": {
          "title": "Status",
          "type": "string",
          "description": "An indication as to the ability to use the address.",
          "default": "active",
          "meta:enum": {
            "active": "Active",
            "incomplete": "Incomplete",
            "pending_verification": "Pending verification",
            "blacklisted": "Blacklisted",
            "blocked": "Blocked"
          },
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:status"
        },
        "statusReason": {
          "title": "Status reason",
          "type": "string",
          "description": "A description of the current status.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:statusReason"
        },
        "street1": {
          "title": "Street 1",
          "type": "string",
          "description": "Primary street level information, apartment number, street number, and street name.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street1"
        },
        "street2": {
          "title": "Street 2",
          "type": "string",
          "description": "Optional street information second line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street2"
        },
        "street3": {
          "title": "Street 3",
          "type": "string",
          "description": "Optional street information third line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street3"
        },
        "street4": {
          "title": "Street 4",
          "type": "string",
          "description": "Optional street information fourth line.",
          "meta:xdmType": "string",
          "meta:xdmField": "xdm:street4"
        }
      },
      "meta:referencedFrom": "https://ns.adobe.com/xdm/common/address",
      "meta:xdmField": "xdm:shippingAddress"
    }
  },
  "required": [
    "personalEmail"
  ],
  "imsOrg": "{ORG_ID}",
  "meta:extensible": false,
  "meta:abstract": false,
  "meta:extends": [
    "https://ns.adobe.com/xdm/context/profile-person-details",
    "https://ns.adobe.com/xdm/mixins/profile/profile-loyalty-details",
    "https://ns.adobe.com/xdm/context/profile-personal-details",
    "https://ns.adobe.com/xdm/common/auditable",
    "https://ns.adobe.com/xdm/data/record",
    "https://ns.adobe.com/xdm/context/profile",
    "https://ns.adobe.com/{TENANT_ID}/mixins/9068fd4ea2abf813f4fd2fc9c8b413ae453ff0efc7636691"
  ],
  "meta:xdmType": "object",
  "meta:registryMetadata": {
    "repo:createdDate": 1673310304048,
    "repo:lastModifiedDate": 1673380280074,
    "xdm:createdClientId": "{CLIENT_ID}",
    "xdm:lastModifiedClientId": "{CLIENT_ID}",
    "xdm:createdUserId": "{USER_ID}",
    "xdm:lastModifiedUserId": "{USER_ID}",
    "eTag": "c590ccc7a293040d85c2b7d93276480ef4b4aa9a4fcd6991f50fbb47f58bced2",
    "meta:globalLibVersion": "1.38.2"
  },
  "meta:class": "https://ns.adobe.com/xdm/context/profile",
  "meta:containerId": "tenant",
  "meta:sandboxId": "28e74200-e3de-11e9-8f5d-7f27416c5f0d",
  "meta:sandboxType": "production",
  "meta:tenantNamespace": "_{TENANT_ID}",
  "meta:immutableTags": [
    "union"
  ],
  "meta:allFieldAccess": true
}
recommendation-more-help
experience-platform-help-xdm
