View: Actual Hours over Planned Hours in the same column of a task View

Last update: October 31, 2024

CREATED FOR:

  • User

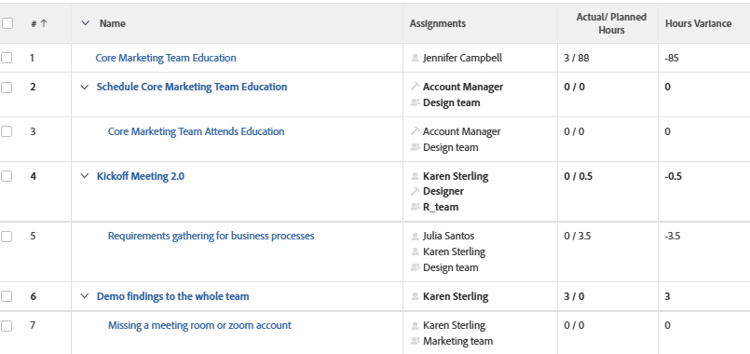

In this task view, the actual amount of hours recorded on a task are displayed over the hours planned for each task. The Hours Variance between the Planned and the Actual Hours also displays in a separate column.


Access requirements

Expand to view access requirements for the functionality in this article.

You must have the following access to perform the steps in this article:

Adobe Workfront planAny
Adobe Workfront license*

New:

  • Contributor to modify a filter

  • Standard to modify a report

Current:

  • Request to modify a filter

  • Plan to modify a report

Access level configurations

Edit access to Reports, Dashboards, Calendars to modify a report

Edit access to Filters, Views, Groupings to modify a filter

Object permissionsManage permissions to a report

*For information, see Access requirements in Workfront documentation.

View Actual Hours over Planned Hours in a task view

To apply this view:

  1. Go to a list of tasks.

  2. From the View drop-down menu, select New View.

  3. In the Column Preview area, eliminate all columns except for one.

  4. Click the header of the remaining column, then click Switch to Text Mode.

  5. Mouse over the text mode area, and click Edit Text Mode.

  6. Remove the text you find in the text mode box, and replace it with the following code:

    column.0.descriptionkey=name
column.0.link.linkproperty.0.name=ID
column.0.link.linkproperty.0.valuefield=ID
column.0.link.linkproperty.0.valueformat=int
column.0.link.lookup=link.view
column.0.link.valuefield=objCode
column.0.link.valueformat=val
column.0.linkedname=direct
column.0.listsort=string(name)
column.0.namekey=name.abbr
column.0.querysort=name
column.0.shortview=false
column.0.stretch=100
column.0.valuefield=name
column.0.valueformat=HTML
column.0.width=150
column.1.viewalias=assignments
column.1.displayname=
column.1.linkedname=direct
column.1.namekey=assignments
column.1.valuefield=assignmentsListString
column.1.valueformat=HTML
column.1.tile.name=component.assignmentslist
column.2.displayname=Actual/ Planned Hours
column.2.linkedname=direct
column.2.namekey=actualworkrequired
column.2.querysort=actualWork
column.2.textmode=true
column.2.valueexpression=CONCAT({actualWorkRequired}/60,' / ',{workRequired}/60)
column.2.valuefield=actualWorkRequired
column.2.valueformat=compound
column.2.viewalias=actualworkrequired
column.3.aggregator.function=SUM
column.3.aggregator.valueexpression=SUB({actualWork}, {workRequired})
column.3.aggregator.valueformat=compound
column.3.displayname=Hours Variance
column.3.linkedname=direct
column.3.textmode=true
column.3.valueexpression=SUB({actualWork}, {workRequired})/60
column.3.valueformat=customNumberAsString

  7. Click Done, then Save View.
