SubstanceEditorTools

Last update: May 1, 2026

Adobe.SubstanceEditor.SubstanceEditorTools Class Reference

Tools and utilities for users to utilize on Editor scripts.

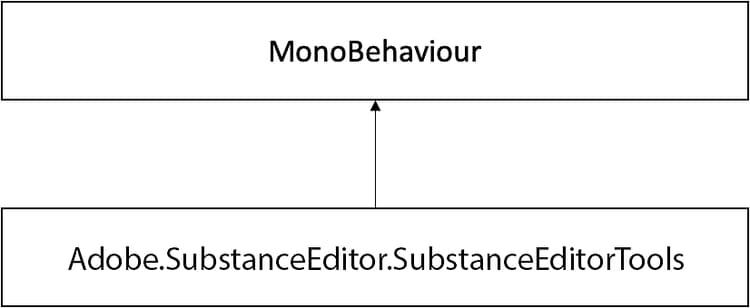

Inheritance diagram for Adobe.SubstanceEditor.SubstanceEditorTools:


• static void SetGraphFloatInput (SubstanceGraphSO graph, int inputId, float value)

Set graph float input.


• static void SetGraphFloat2Input (SubstanceGraphSO graph, int inputId, Vector2 value)

Set graph float2 input.


• static void SetGraphFloat3Input (SubstanceGraphSO graph, int inputId, Vector3 value)

Set graph float3 input.


• static void SetGraphFloat4Input (SubstanceGraphSO graph, int inputId, Vector3 value)

Set graph float4 input.


• static void SetGraphIntInput (SubstanceGraphSO graph, int inputId, int value)

Set graph int input.


• static void SetGraphInt2Input (SubstanceGraphSO graph, int inputId, Vector2Int value)

Set graph int2 input.


• static void SetGraphInt3Input (SubstanceGraphSO graph, int inputId, Vector3Int value)

Set graph int3 input.


• static void SetGraphInt4Input (SubstanceGraphSO graph, int inputId, int value0, int value1, int value2, int value3)

Set graph int4 input.


• static void SetGraphInputString (SubstanceGraphSO graph, int inputId, string value)

Set graph string input.


• static void SetGraphInputTexture (SubstanceGraphSO graph, int inputId, Texture2D value)

Set graph texture input.


• static void RenderGraph (SubstanceGraphSO graph)

Renders target graph and updates its assets.


• static string CreatePresetFromCurrentState (SubstanceGraphSO graph)

Creates a preset XML from the current state of the graph object.


• static List< SubstanceGraphSO > GetGraphs (this SubstanceFileSO fileSO)

Returns the list of SubstanceGraphSOs associated with a SubstanceFileSO.
