Spline Append
In: Spline & Path Tools > Spline Tools
Description
Splines are packaged as a list. This node appends a list of input splines (set #2) onto an existing list (set #1).
The order of the lists is preserved, meaning appending a list D-E-F onto a list A-B-C results in a list A-B-C-D-E-F.
TIP
Be mindful of the order in which you append splines, as this order is taken into account in other nodes, such as Scatter on Splines, the Spline Bridge nodes, etc.
Inputs
Preview #1 Grayscale
The preview of the first set of input splines as a grayscale image.
Spline #1 Coords Color
The coordinates of the first set of input splines’ points encoded in the RGBA channels of a color image.
R - X position
G - Y position
B - Height
A - Packed data:
- Sign: Spline is closed (negative) or open (positive);
- Absolute value: Thickness + 1.
R - X position
G - Y position
B - Height
A - Packed data:
- Sign: Spline is closed (negative) or open (positive);
- Absolute value: Thickness + 1.
Spline #1 Data Color
Additional data of the first set of input splines encoded in the RGBA channels of a color image.
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
Spline #1 Amount Integer
The number of input splines in the first set.
Preview #2 Grayscale
The preview of the second set of input splines as a grayscale image.
Spline #2 Coords Color
The coordinates of the second set of input splines’ points encoded in the RGBA channels of a color image.
R - X position
G - Y position
B - Height
A - Packed data:
- Sign: Spline is closed (negative) or open (positive);
- Absolute value: Thickness + 1.
R - X position
G - Y position
B - Height
A - Packed data:
- Sign: Spline is closed (negative) or open (positive);
- Absolute value: Thickness + 1.
Spline #2 Data Color
Additional data of the second set of input splines encoded in the RGBA channels of a color image.
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
Spline #2 Amount Integer
The number of input splines in the second set.
Outputs
Preview Grayscale
The preview of the output splines as a grayscale image.
Spline Coords Color
The coordinates of the output splines’ points encoded in the RGBA channels of a color image.
R - X position
G - Y position
B - Height
A - Packed data:
- Sign: Spline is closed (negative) or open (positive);
- Absolute value: Thickness + 1.
R - X position
G - Y position
B - Height
A - Packed data:
- Sign: Spline is closed (negative) or open (positive);
- Absolute value: Thickness + 1.
Spline Data Color
Additional data of the output splines encoded in the RGBA channels of a color image.
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
R - Tangents X
G - Tangents Y
B - Unused
A - Unused
Spline Amount Integer
The number of output splines.
Parameters
Flip Spline #1 Direction Boolean
Inverts the direction of the splines in the first set.
Flip Spline #2 Direction Boolean
Inverts the direction of the splines in the second set.
Preview
Segments Amount Integer
Adjusts the number of segments used to draw the spline visualization in the Preview output. A higher value results in a smoother line.
Show Direction Helper Boolean
Displays a dot at the start of the spline and an arrowhead at its end in the Preview output.
Show Thickness Envelope Boolean
Displays additional lines at the edges of the spline’s thickness.
Thickness (px) Float
Adjusts the thickness of the spline visualization in pixels in the Preview output.

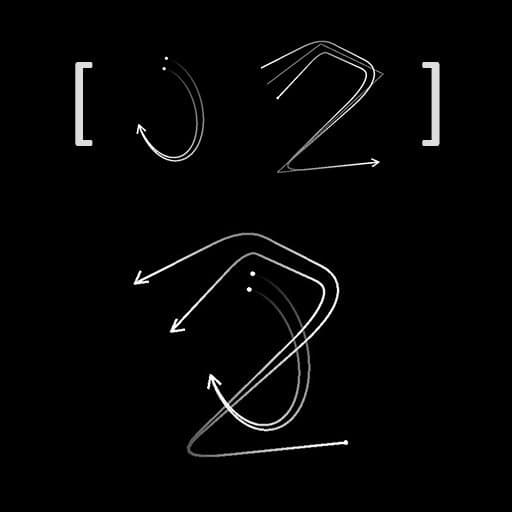

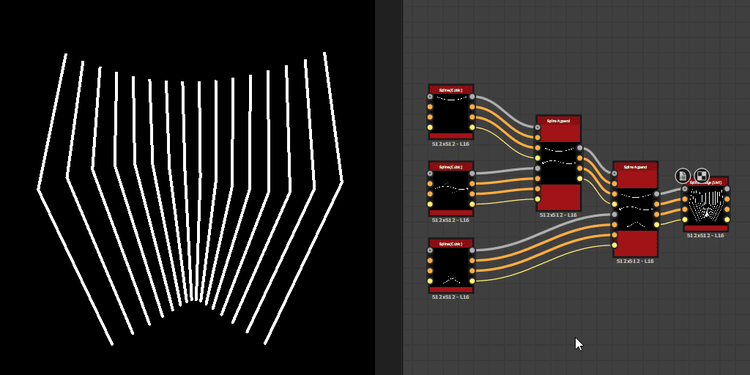

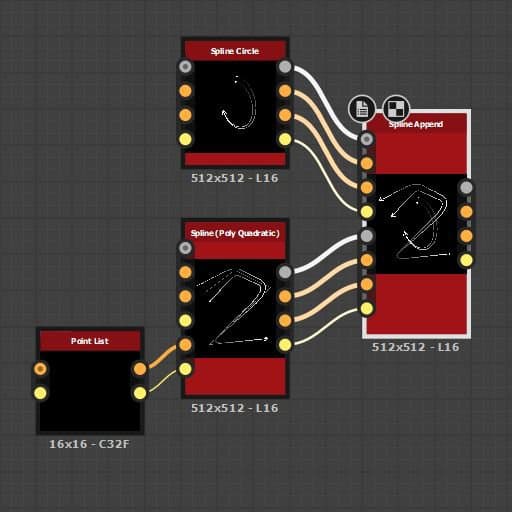

Examples
