Curvature (Filter Node)

{width="128px"}

Curvature

In: Filters/Effects

Simple

Description

Performs a simple, harsh single-pass curvature conversion to input Normalmap. The resulting map has white tints for convex areas and black tints for concave. Curvature will always produce pixel-thin lines and sharp transitions.

This node is useful for some quick highlighting or darkening of certain edges. It is limited in comparison to Curvature Smooth (which produces higher quality results) and Curvature Sobel (which has more options).

Parameters

• Intensity: 0.0 - 10.0Intensity of the effect. Increases contrast of the result.
• Normal Format: DirectX, OpenGL
  Switches between different Normalmap formats (inverts the Green channel).

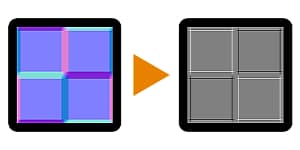

Example Images

table 0-row-1 1-row-1
{width="300px"}
