CloudFront (BYOCDN)

Last update: Mon Feb 23 2026 00:00:00 GMT+0000 (Coordinated Universal Time)

This configuration routes agentic traffic (requests from AI bots and LLM user agents) to the Edge Optimize backend service (live.edgeoptimize.net). Human visitors and SEO bots continue to be served from your origin as usual. To test the configuration, after the setup is complete, look for the header x-edgeoptimize-request-id in the response.

Prerequisites

Before setting up the CloudFront configuration, ensure you have:

  • An existing CloudFront distribution serving your website.
  • AWS IAM permissions to create Lambda functions, IAM roles, CloudFront distributions, and cache policies.
  • Completed the LLM Optimizer onboarding process.
  • Completed CDN log forwarding to LLM Optimizer.
  • An Edge Optimize API key retrieved from the LLM Optimizer UI.

Steps to retrieve your API key:

  1. Navigate to Customer Configuration and select the CDN Configuration tab.

    Navigate to Customer Configuration

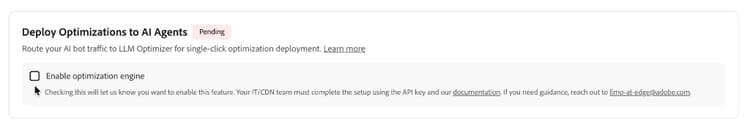

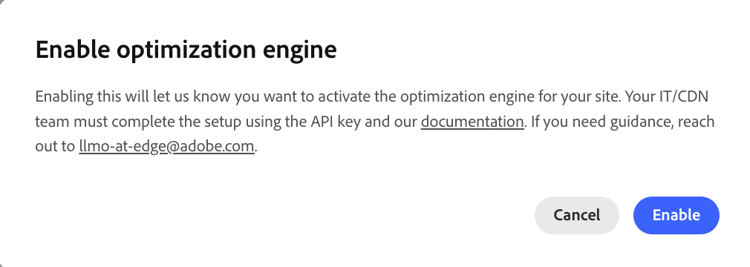

  2. Under AI Traffic Routing to Deploy Optimizations, tick the Deploy Optimizations to AI Agents checkbox.

    Tick Deploy Optimizations to AI Agents

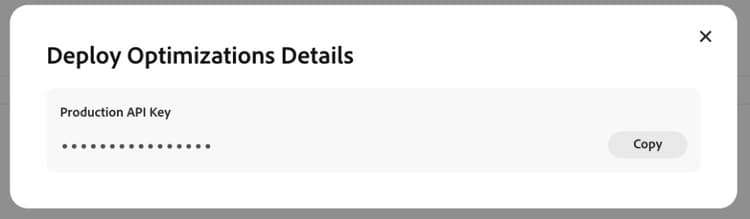

  3. Copy the API key and proceed with the routing configuration steps below.

    Copy the API key

    note note
    NOTE
    At this stage, the status may show a red cross indicating that the setup is not yet completed. This is expected — once you complete the routing configuration below and AI bot traffic starts flowing, the status will update to a green checkmark confirming that routing is successfully enabled.

Additionally, if you require any help with the above steps, reach out to your Adobe account team or llmo-at-edge@adobe.com.

Step 1: Create Edge Optimize Origin

Navigation: AWS Console > CloudFront > Distributions > [Your Distribution] > Origins tab

  1. Click Create origin.

  2. Configure the origin:

    • Origin domain: live.edgeoptimize.net
    • Name: EdgeOptimize_Origin

  3. Leave all other fields with their default values.

  4. Add custom headers:

    table 0-row-2 1-row-2 2-row-2
    Header Value
    x-edgeoptimize-api-key Your API key
    x-forwarded-host www.example.com

    Replace www.example.com with your actual website domain and Your API key with the Edge Optimize API key provided by your Adobe representative.

  5. Click Create origin.

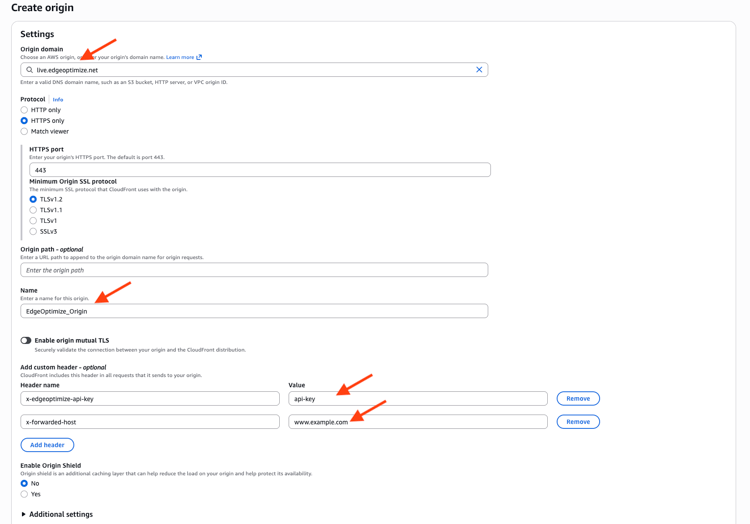

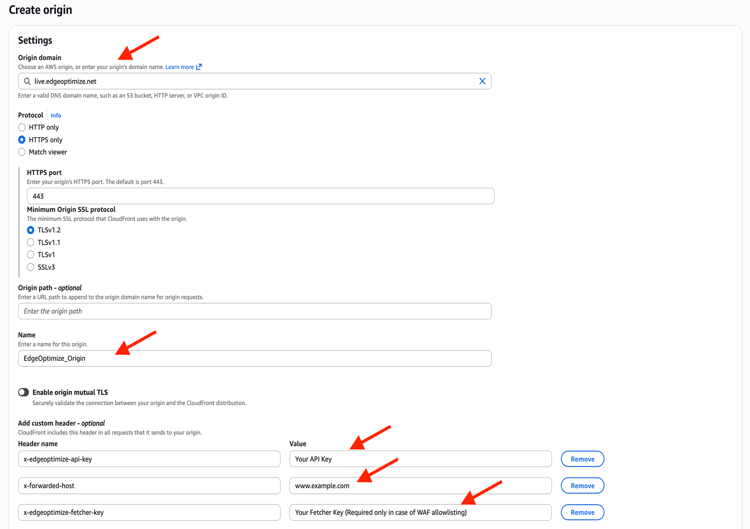

Cloudfront Origin Creation

Step 2: Create viewer request function

Navigation: AWS Console > CloudFront > Functions

  1. Click Create function.

  2. Configure:

    • Name: edgeoptimize-routing
    • Runtime: cloudfront-js-2.0

  3. Replace the default code with the code from viewer-request.js.

    Before publishing,customize the following values in the code:

    • YOUR_DEFAULT_ORIGIN — Replace with the name of your existing default origin (found in CloudFront > Distributions > [Your Distribution] > Origins tab).
    • TARGETED_PATHS — Set to null to target all HTML pages, or set to an array of specific paths, for example, ['/', '/products', '/about'].

  4. Click Save changes > Publish function.

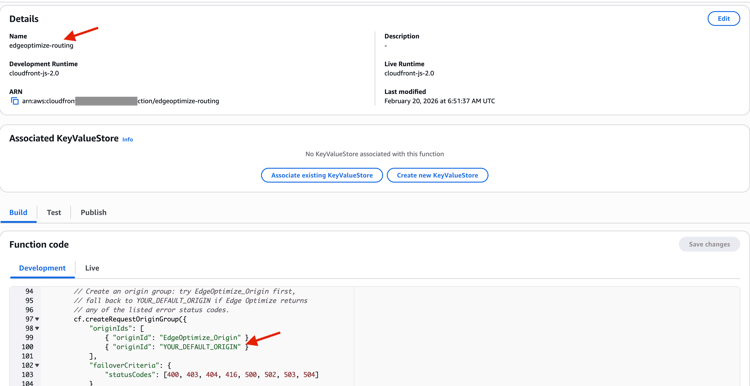

Cloudfront Function Creation

Step 3: Configure cache policy

Navigation: AWS Console > CloudFront > Distributions > [Your Distribution] > Behaviors

Check the cache policy currently attached to your behavior. Click Edit on your behavior and look at the Cache key and origin requests section to identify your scenario:

  • Scenario A (Legacy): You see a radio button labeled Legacy cache settings selected. There is no policy name dropdown — instead you see inline TTL and header settings.
  • Scenario B (Custom policy): You see Cache policy selected with a policy name that you or your team created (not an AWS-provided policy).
  • Scenario C (Managed policy): You see Cache policy selected with an AWS-provided name like CachingOptimized, CachingDisabled, or CachingOptimizedForUncompressedObjects — these cannot be edited.

Scenario A: Legacy cache settings

If your behavior uses legacy cache settings:

  1. Under Cache key and origin requests, you will see Legacy cache settings selected.

  2. Add x-edgeoptimize-config and x-edgeoptimize-url to the Headers allow list:

    • Select Include the following headers from the dropdown.
    • Add x-edgeoptimize-config and x-edgeoptimize-url.
      Cloudfront Cache Legacy

    If you already have All selected in the Headers dropdown, skip this step — all headers are automatically forwarded to the origin.

  3. Check the Object caching setting:

    • If set to Customize — it is recommended to set Minimum TTL to 0. However, if your current Minimum TTL is already very short, you may not need to change it.
    • If set to Use origin cache headers — no change needed.

  4. Click Save changes.

Scenario B: Non-legacy with a custom cache policy

If your behavior already uses a custom cache policy (one you created, not an AWS managed policy):

Navigation: AWS Console > CloudFront > Policies > Cache

  1. Click on your existing policy.

  2. Click Edit.

  3. It is recommended to set Minimum TTL to 0. However, if your current Minimum TTL is already very short, you may not need to change it.

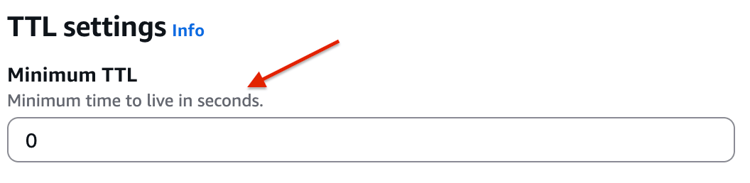

    Cache policy TTL settings

  4. Under Cache key settings > Headers, along with your existing inclusions, add x-edgeoptimize-config and x-edgeoptimize-url.
    Cache policy headers

  5. Click Save changes.

Scenario C: Non-legacy with a managed (AWS) cache policy

If your behavior uses an AWS managed cache policy (for example, CachingOptimized), you cannot edit it. You need to create a new custom cache policy that replicates the existing managed policy settings and adds the Edge Optimize headers on top.

Part 1: Note down your current managed cache policy settings

Navigation: AWS Console > CloudFront > Policies > Cache

  1. Find and click on the managed cache policy currently attached to your behavior (for example, CachingOptimized).

  2. Note down all the existing settings:

    • Minimum TTL, Maximum TTL, Default TTL
    • Headers included in the cache key
    • Cookies included in the cache key
    • Query strings included in the cache key
    • Compression support (Gzip, Brotli)

Part 2: Create a new custom cache policy with the same settings + Edge Optimize config

Navigation: AWS Console > CloudFront > Policies > Cache

  1. Click Create cache policy.

  2. Name: edgeoptimize-cache

    Cache policy name

  3. Replicate all the settings noted in Part 1, with the following modifications:

    • It is recommended to set Minimum TTL to 0. However, if your current Minimum TTL is already very short, you may not need to change it.

    Cache policy TTL settings

    • Under Cache key settings > Headers, include everything the managed policy had, plus add x-edgeoptimize-config and x-edgeoptimize-url.

    Cache policy headers

  4. Click Create.

  5. Go back to your behavior and associate the newly created policy:

    Navigation: AWS Console > CloudFront > Distributions > [Your Distribution] > Behaviors

    1. Edit your behavior.
    2. Under Cache key and origin requests, select Cache policy.
    3. Choose edgeoptimize-cache from the dropdown.
    4. Click Save changes.

Step 4: Create Lambda@Edge function (origin request and response)

IMPORTANT
Lambda@Edge functions must be created in the us-east-1 (N. Virginia) region. This is an AWS requirement. Even though the function is created in us-east-1, AWS automatically replicates it to all CloudFront edge locations worldwide, so it executes at the nearest edge location to the viewer. Make sure you are in the us-east-1 region in the AWS Console before proceeding.

Create the Lambda function

Navigation: AWS Console > Lambda

  1. Click Create function.

  2. Select Author from scratch.

  3. Configure:

    • Function name: edgeoptimize-origin
    • Leave all other fields with their default values.

  4. Click Create function.

  5. In the code editor, replace the default code with the code from origin-request-response.js.

  6. Click Deploy to save the code.

  7. Note the execution role name shown under Configuration > Permissions (for example, edgeoptimize-origin-role-xxxxx). You need this in the following steps.

Update the execution role’s trust policy

The auto-created role only trusts lambda.amazonaws.com. For Lambda@Edge, you must also add edgelambda.amazonaws.com.

Navigation: AWS Console > IAM > Roles > [your role from the previous step] > Trust relationships tab

  1. Click Edit trust policy.

  2. Replace the policy with the content from trust-policy.json.

  3. Click Update policy.

WARNING
The edgelambda.amazonaws.com service principal is required for Lambda@Edge. Without it, CloudFront cannot invoke your function at edge locations.

Fix the CloudWatch Logs permission policy

The auto-created role comes with an AWSLambdaBasicExecutionRole policy configured for regular Lambda, which has the wrong region and log group name for Lambda@Edge. You need to update it.

Navigation: AWS Console > IAM > Roles > [your role] > Permissions tab > click on the attached policy name (for example, AWSLambdaBasicExecutionRole-xxxx)

  1. Click Edit.

  2. Replace the policy with the content from cloudwatch-policy.json.

    In the JSON, replace ACCOUNT_ID with your actual AWS account ID (found in the top-right corner of the AWS Console) and FUNCTION_NAME with the name of your Lambda function (for example, edgeoptimize-origin).

  3. Click Save changes.

WARNING
The region in the ARN must be * — Lambda@Edge executes at the nearest edge location to the viewer, so logs are written to CloudWatch in the region of the edge location (for example, ap-south-1, eu-west-1), not necessarily us-east-1. The log group uses a region-prefixed name: /aws/lambda/us-east-1.FUNCTION_NAME, where us-east-1 is always the function’s home region.

Publish a version

  1. On the function page, click Actions (top right) > Publish new version.

  2. Add a description.

  3. Click Publish.

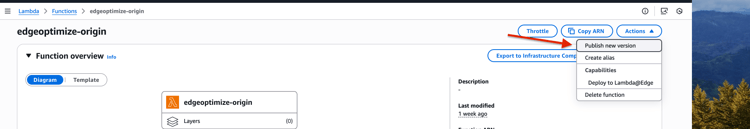

    Lambda Publish

  4. Copy or note down the Function ARN — you need this in the next step.

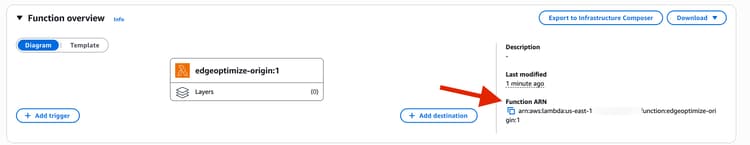

    Lambda ARN

Step 5: Associate the functions and cache policy with behavior

Navigation: AWS Console > CloudFront > Distributions > [Your Distribution] > Behaviors

  1. Edit your behavior.

  2. If you created a new cache policy in Step 3 (Scenario C), set Cache policy to edgeoptimize-cache.

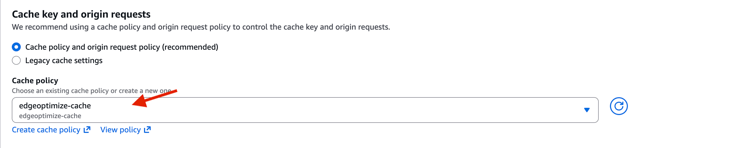

    Cache Policy

  3. Under Function associations, configure:

    • Viewer request: edgeoptimize-routing
    • Origin request: Versioned Function ARN from Step 4 (in Publish a version)
    • Origin response: Versioned Function ARN from Step 4 (in Publish a version)

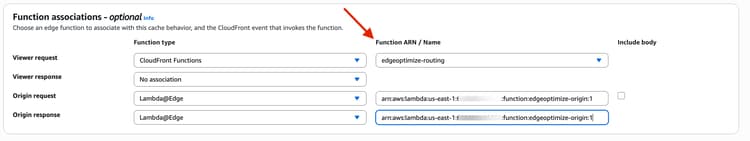

    Function associations configuration

  4. Click Save changes.

Step 6: Test the configuration

1. Test bot traffic (should be optimized)

Send a request with an agentic bot user agent. On the first request, Edge Optimize may return a proxied (non-optimized) response while it processes and caches the page. You can identify this by the x-edgeoptimize-proxy: 1 header in the response.

Simulate an AI bot request using an agentic user-agent:

curl -svo /dev/null https://www.example.com/page.html \
  --header "user-agent: chatgpt-user"

A successful response includes the x-edgeoptimize-request-id header, confirming that the request was routed through Edge Optimize:

< HTTP/2 200
< x-edgeoptimize-request-id: 50fce12d-0519-4fc6-af78-d928785c1b85

2. Test human traffic (should NOT be affected)

Simulate a regular human browser request:

curl -svo /dev/null https://www.example.com/page.html \
  --header "user-agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36"

The response should not contain the x-edgeoptimize-request-id header. The page content and response time should remain identical to before enabling Optimize at Edge.

3. How to differentiate between the two scenarios

Header
Bot traffic (optimized)
Human traffic (unaffected)
x-edgeoptimize-request-id
Present — contains a unique request ID
Absent
x-edgeoptimize-fo
Present only if failover occurred (value: 1)
Absent

The status of the traffic routing can also be checked in the LLM Optimizer UI. Navigate to Customer Configuration and select the CDN Configuration tab.

AI Traffic Routing status with routing enabled

4. Verify logs are flowing correctly

After running the test requests above, verify that logs are being written for both the CloudFront function and the Lambda@Edge function.

CloudFront function logs (edgeoptimize-routing)

Navigation: AWS Console > CloudWatch > Log groups (in us-east-1 or the region where your CloudFront distribution is configured)

  1. Look for a log group named /aws/cloudfront/function/edgeoptimize-routing.

  2. Open the latest log stream.

  3. For agentic requests, you should see entries such as:

    • Adding origin group for userAgent: chatgpt-user
    • Routing to Edge Optimize origin for userAgent: chatgpt-user

  4. For non-agentic requests, you should see:

    • Routing to Default origin for userAgent: ...

You can also check the Metrics tab under AWS Console > CloudFront > Functions > edgeoptimize-routing to view invocation counts and error rates.

Lambda@Edge logs (edgeoptimize-origin)

IMPORTANT
Lambda@Edge logs are written to CloudWatch in the region of the edge location that served the request, not us-east-1. Check CloudWatch in the AWS region closest to where you ran the curl command.

Navigation: AWS Console > CloudWatch > Log groups (ensure you are in the correct region)

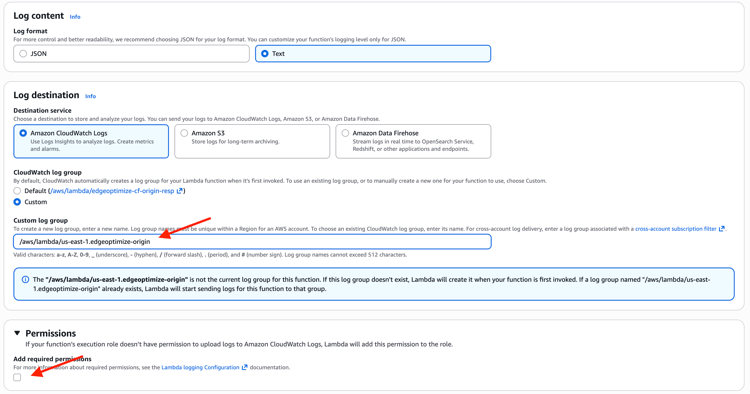

  1. Look for a log group named /aws/lambda/us-east-1.edgeoptimize-origin.

  2. Open the latest log stream.

  3. For agentic requests, you should see entries such as:

    • Calling Edge Optimize Origin for agentic requests — primary path
    • Calling Default Origin in case of failover for agentic requests — failover path
    • Failover Triggered for agentic requests — origin-response failover detection

If the log group is not present, verify that the IAM permissions were updated correctly in Step 4. Also check other nearby AWS regions — the edge location that served your request may differ from what you expect.

Troubleshooting

Issue
Possible Cause
Solution
No x-edgeoptimize-request-id in response for agentic requests
Origin group not routing to Edge Optimize
Verify YOUR_DEFAULT_ORIGIN was replaced correctly in the CloudFront function code (Step 2).
403 errors on agentic requests
Invalid or missing API key
Check the x-edgeoptimize-api-key header value in the Edge Optimize origin custom headers (Step 1).
Cannot find CloudWatch logs for Lambda@Edge
Wrong IAM permissions
Verify the CloudWatch Logs permission policy was updated (Step 4). Note: Lambda@Edge logs appear in the edge region that served the request, not necessarily us-east-1.
Cache not honoring cache-control: no-store
Minimum TTL may be too high
Set Minimum TTL to 0 in your cache policy (Step 3). If your Minimum TTL is already very short, this may not be the issue.
Regular (non-agentic) traffic broken after setup
Cache policy misconfiguration
If you created a new cache policy (Scenario C), ensure you replicated all settings from the original managed policy.

Disabling and Re-enabling Optimize at Edge

The Lambda@Edge function (edgeoptimize-origin) is associated with the origin request and origin response events of your CloudFront behavior. Because it runs inline on every request passing through that behavior — both human and agentic — a Lambda@Edge outage will impact all live traffic, not just agentic requests. If you detect a Lambda@Edge outage, remove the function associations immediately to restore normal traffic flow to your default origin.

How to detect a Lambda@Edge outage

  • AWS Service Health Dashboard — Check the AWS Service Health Dashboard for any active incidents affecting Amazon CloudFront or AWS Lambda. A global or regional outage reported here is the fastest way to confirm the issue is on the AWS infrastructure side rather than in your configuration.
  • Lambda@Edge errors — Navigate to AWS Console > CloudFront > Monitoring > [Your Distribution]. Open the Lambda@Edge errors tab and check the Execution errors graph for execution errors. If these are high, Lambda@Edge might be down.

Detaching the Lambda@Edge function

Navigation: AWS Console > CloudFront > Distributions > [Your Distribution] > Behaviors

  1. Click Edit on your behavior.

  2. Scroll down to the Function associations section.

  3. Set the following associations to No association:

    table 0-row-2 1-row-2 2-row-2 3-row-2
    Event Change to
    Viewer request No association
    Origin request No association
    Origin response No association

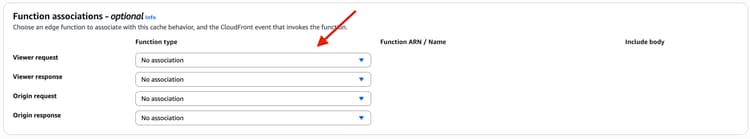

    Function associations configuration

  4. Click Save changes.

  5. Wait for the CloudFront distribution to finish deploying. The status changes from Deploying to the last modified date, typically within a few minutes.

Once deployed, all traffic routes directly to your default origin. No configuration is deleted; the Lambda function and its associations can be restored at any time.

Re-attaching the Lambda@Edge function

Navigation: AWS Console > CloudFront > Distributions > [Your Distribution] > Behaviors

  1. Click Edit on your behavior.

  2. Scroll down to the Function associations section.

  3. Restore the associations:

    table 0-row-2 1-row-2 2-row-2 3-row-2
    Event Set to
    Viewer request edgeoptimize-routing (CloudFront function)
    Origin request Versioned Lambda ARN from Step 4
    Origin response Versioned Lambda ARN from Step 4

    Use the versioned Function ARN you noted in Step 4 (in Publish a version).

    Function associations configuration

  4. Click Save changes.

  5. Wait for the distribution to finish deploying, then verify that agentic requests return the x-edgeoptimize-request-id header as described in Step 6.

To learn more about Optimize at Edge, including available opportunities, auto-optimization workflows, and FAQs, return to the Optimize at Edge overview.

recommendation-more-help
e65680c9-2bec-439b-acb0-8209e7c74d0d
