Geo Shape data type

Last update: Fri Dec 15 2023 00:00:00 GMT+0000 (Coordinated Universal Time)

CREATED FOR:

  • Developer

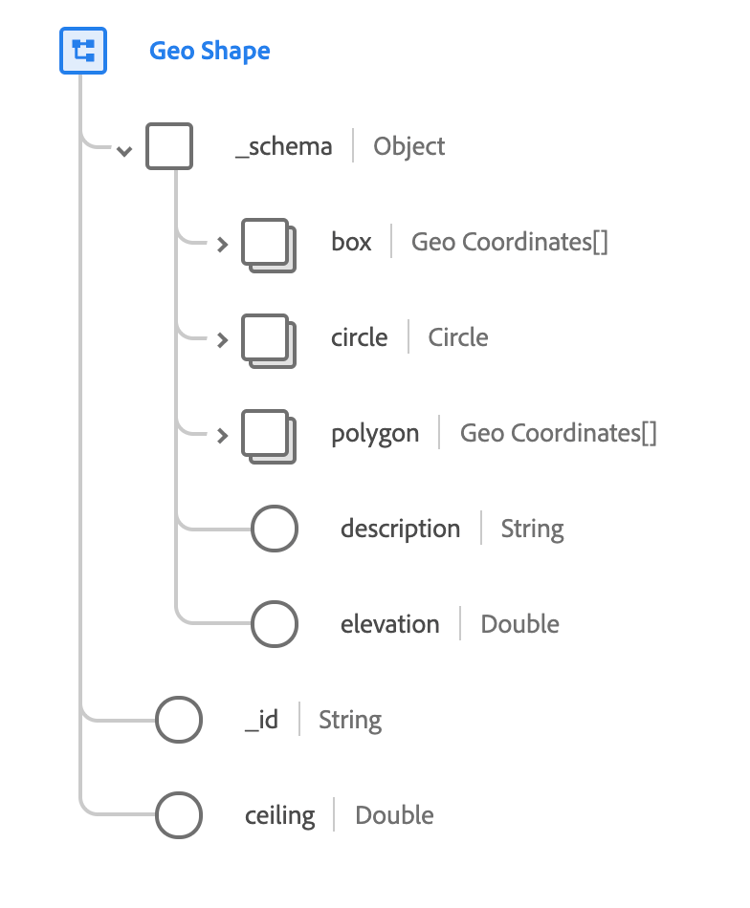

Geo Shape is a standard XDM data type that describes the shape of a geographic area. This data type is based on the public specification documented on schema.org.

{width="500"}

Property
Data type
Description
_schema.box
Array of Geo Coordinates
Describes a geographical area enclosed by a rectangle formed by two coordinates. The first coordinate is the lower corner of the rectangle, and the second coordinate is the upper corner.
_schema.circle
Array of Geo Coordinates
Describes a circular region with a specific radius centered on a geographic coordinate.
_schema.polygon
Geo Circle
A series of four or more coordinates where the first and final coordinates are identical.
_schema.description
String
A description of what the shape is defining.
_schema.elevation
Double
The specific or minimum elevation of the shape. This value conforms to the WGS84 datum and is measured in meters. In combination with ceiling, this property can be used to express a three-dimensional bounding box for a location.
_id
String
A unique, system-generated identifier for the shape.
ceiling
Double
The maximum elevation of the shape. This property is only valid when used in combination with elevation. The value conforms to the WGS84 datum and is measured in meters. In combination with elevation, this property can be used to express a three-dimensional bounding box for a location.
