Using Adobe Journey Optimizer with the Experience Platform Web SDK

Last update: April 2, 2025

CREATED FOR:

  • Developer

Adobe Experience Platform Web SDK can deliver and render personalized experiences managed in Adobe Journey Optimizer to the web channel. You can use a WYSIWYG editor, Adobe Journey Optimizer Web Channel, or a non-visual interface, the Code-based Experience Channel to create, activate, and deliver your Journey Optimizer Web campaigns and personalization experiences.

IMPORTANT
Read the Adobe Journey Optimizer Web Channel documentation for information on getting started with Journey Optimizer Web experience authoring and reporting.

Terminology

Surface: A web surface is a web page or location on a page identified by a URI where the Adobe Journey Optimizer experience content will be delivered.

Propositions: In Adobe Journey Optimizer, propositions correlate to the experience selected from a Journey Optimizer Campaign.

Enabling Adobe Journey Optimizer

To start using Adobe Journey Optimizer, follow the steps below.

  1. Go through the prerequisites from the Adobe Journey Optimizer Web Experiences Guide, specifically:

    • Set up Adobe Experience Cloud Visual Editing Helper.
    • Enable Adobe Journey Optimizer in your datastream.
    • Enable the Active-On-Edge Merge Policy option.

  2. Add the renderDecisions option to your events. Set renderDecisions to true for automatic rendering of delivered Journey Optimizer content propositions on your web page surfaces.

    alloy("sendEvent", {
    ...,
    "renderDecisions": true
})

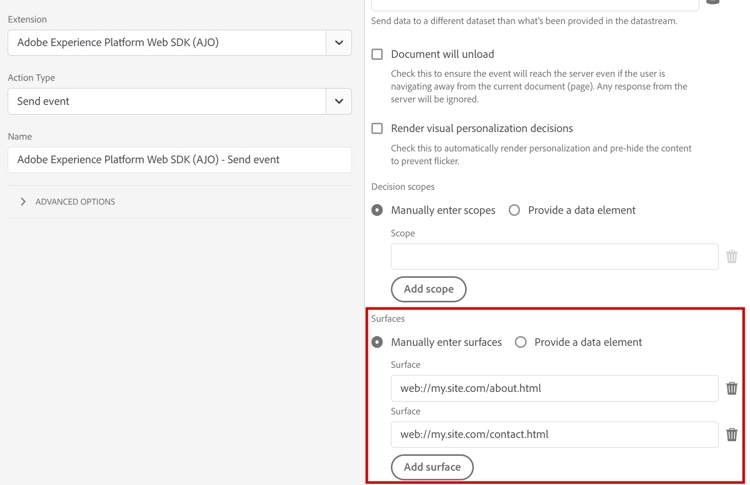

  3. Optionally, specify additional surfaces in your events. By default, the Web SDK will automatically generate the web surface for the current web page and include it in the request to the Edge Network. If required, additional surfaces can be included in the request by specifying these in the personalization.surfaces option of the sendEvent command, or in the corresponding Surfaces Send event action configuration of the Web SDK Extension.

    alloy("sendEvent", {
    ...
    "personalization": {
        "surfaces": [ "web://my.site.com/about.html", "web://my.site.com/contact.html" ]
    }
})

    extension-add-surface

    Event surfaces are included in the query.personalization.surfaces request field:

    {
"events": [
    {
        "query": {
            "personalization": {
            "schemas": [
                ...
            ],
            "decisionScopes": [
                "__view__"
            ],
            "surfaces": [
                "web://ajostage.weebly.com/"
            ]
            }
        },
        ...
    }
]
}

  4. Similar to other personalization features, you can add a prehiding snippet to hide only certain portions of the page while fetching experiences.

Creating Adobe Journey Optimizer Web experiences

Follow the web campaign authoring instructions from the Adobe Journey Optimizer Web Experiences Guide to create Journey Optimizer Web campaigns and experiences.

Rendering personalized content

See the documentation on rendering personalization content for more information.

Adobe Journey Optimizer propositions for web surfaces are processed in a similar manner to the __view__ decision scope propositions. Specifically, when renderDecisions option is set to true in the sendEvent command these will be automatically rendered by the Web SDK.

Sample Journey Optimizer content proposition:

{
    "scope": "web://ajostage.weebly.com/",
    "scopeDetails": {
        "correlationID": "ccfaf19c-6360-4aea-b464-0cf924db5da7",
        "characteristics": {
            "eventToken": "eyJtZXNzYWdlRXhlY3V0aW9uIjp7Im1lc3NhZ2VFeGVjdXRpb25JRCI6ImEzNDYxYTMzLTc5MjktNGQyNS1hNmMxLTVkYzM2YWY1NzRmMyIsIm1lc3NhZ2VJRCI6ImNjZmFmMTljLTYzNjAtNGFlYS1iNDY0LTBjZjkyNGRiNWRhNyIsIm1lc3NhZ2VUeXBlIjoibWFya2V0aW5nIiwiY2FtcGFpZ25JRCI6IjEzN2JmMzllLWM1ODgtNGI1My1iODQxLTJiMWZiZDYxM2JkYiIsImNhbXBhaWduVmVyc2lvbklEIjoiMTA1NzY1MmEtZWYwNS00YjE3LWExMmUtY2FlOTQyOTFhMWFjIiwiY2FtcGFpZ25BY3Rpb25JRCI6ImViNTlmODQ4LTk5ZDYtNGE1OC05YmU4LTk4MjIxODU0NmYzNiIsIm1lc3NhZ2VQdWJsaWNhdGlvbklEIjoiYzg2NzFjZmItNDdjYS00YTVjLTg4Y2YtNzYwZDFlZjU1MzQyIn0sIm1lc3NhZ2VQcm9maWxlIjp7ImNoYW5uZWwiOnsiX2lkIjoiaHR0cHM6Ly9ucy5hZG9iZS5jb20veGRtL2NoYW5uZWxzL3dlYiIsIl90eXBlIjoiaHR0cHM6Ly9ucy5hZG9iZS5jb20veGRtL2NoYW5uZWwtdHlwZXMvd2ViIn0sIm1lc3NhZ2VQcm9maWxlSUQiOiI2YTViY2I3ZC02MmYxLTQ5NDItODRkMC02MzE5ZjM5Zjk1ZGUifX0="
        },
        "decisionProvider": "AJO",
        "activity": {
            "id": "137bf39e-c588-4b53-b841-2b1fbd613bdb#eb59f848-99d6-4a58-9be8-982218546f36"
        }
    },
    "id": "002321c0-dff5-4153-b171-a9dfb70b9750",
    "items": [
        {
            "schema": "https://ns.adobe.com/personalization/dom-action",
            "data": {
                "uiData": {
                    "tagType": "Text",
                    "actionType": "changed"
                },
                "content": "Welcome AJO!",
                "prehidingSelector": "#wsite-content > DIV:nth-of-type(2) > DIV:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(3) > FONT:nth-of-type(1) > SPAN:nth-of-type(1)",
                "type": "setHtml",
                "selector": "#wsite-content > DIV.wsite-section-wrap:eq(1) > DIV.wsite-section:eq(0) > DIV.wsite-section-content:eq(0) > DIV.container:eq(0) > DIV.wsite-section-elements:eq(0) > DIV.paragraph:eq(0) > FONT:nth-of-type(1) > SPAN:nth-of-type(1)"
            },
            "id": "0a522f66-9e6a-4ded-b1d0-e9167f103290"
        },
        {
            "schema": "https://ns.adobe.com/personalization/dom-action",
            "data": {
                "uiData": {
                    "tagType": "Text",
                    "actionType": "changed"
                },
                "content": {
                    "font-weight": "bold"
                },
                "prehidingSelector": "#wsite-content > DIV:nth-of-type(2) > DIV:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(1) > DIV:nth-of-type(3) > FONT:nth-of-type(1) > SPAN:nth-of-type(1)",
                "type": "setStyle",
                "selector": "#wsite-content > DIV.wsite-section-wrap:eq(1) > DIV.wsite-section:eq(0) > DIV.wsite-section-content:eq(0) > DIV.container:eq(0) > DIV.wsite-section-elements:eq(0) > DIV.paragraph:eq(0) > FONT:nth-of-type(1) > SPAN:nth-of-type(1)"
            },
            "id": "66216ca5-5d0f-4239-a8c8-6bc4a5a7cbdb"
        }
    ]
}
