Event types
This page describes the Adobe Experience Platform event types provided by the Adobe Experience Platform Web SDK tag extension. These are used to build rules and should not be confused with the eventType
field in the xdm
object.

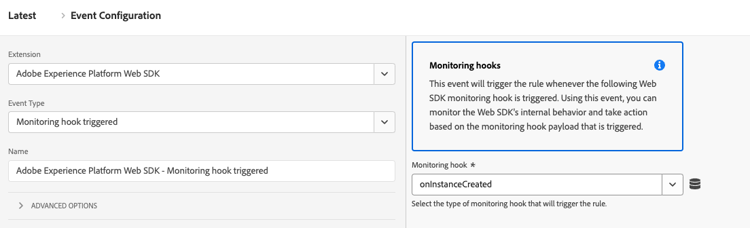

Monitoring hook triggered monitoring-hook-triggered
The Adobe Experience Platform Web SDK includes monitoring hooks which you can use to monitor various system events. These tools are useful for developing your own debugging tools and to capture Web SDK logs.
For complete details about what parameters each monitoring hook event contains, see the Web SDK monitoring hooks documentation.
The Web SDK tag extension supports the following monitoring hooks:
-
onInstanceCreated: This monitoring hook event is triggered when you have successfully created a new Web SDK instance.
-
onInstanceConfigured: This monitoring hook event is triggered by the Web SDK when the
configure
command is successfully resolved -
onBeforeCommand: This monitoring hook event is triggered by Web SDK before any other command is executed. You can use this monitoring hook to retrieve the configuration options of a specific command.
-
onCommandResolved: This monitoring hook event is triggered before resolving command promise. You can use this function to see the command options and result.
-
onCommandRejected: This monitoring hook event is triggered when a command promise is rejected and it contains information about the cause of the error.
-
onBeforeNetworkRequest: This monitoring hook event is triggered before a network request is executed.
-
onNetworkResponse: This monitoring hook event is triggered when the browser receives a response.
-
onNetworkError: This monitoring hook event is triggered when the network request failed.
-
onBeforeLog: This monitoring hook event is triggered before the Web SDK logs anything to the console.
-
onContentRendering: This monitoring hook event is triggered by the
personalization
component and it helps you debug the rendering of the personalization content. This event can have different statuses:rendering-started
: Indicates that the Web SDK is about to render propositions. Before the Web SDK starts to render a decision scope or a view, in thedata
object you can see the propositions that are about to be rendered by thepersonalization
component and the scope name.no-offers
: Indicates that no payload was received for the requested parameters.rendering-failed
: Indicates that Web SDK failed to render a proposition.rendering-succeeded
: Indicates that rendering has completed for a decision scope.rendering-redirect
: Indicates that Web SDK will execute a redirect proposition.
-
onContentHiding: This monitoring hook event is triggered when a prehiding style is applied or removed.
Send event complete
Typically, your property would have one or more rules using the Send event action to send events to Adobe Experience Platform Edge Network. Each time an event is sent to Edge Network, a response is returned to the browser with useful data. Without the Send event complete event type, you wouldn’t have access to this returned data.
To access the returned data, create a separate rule, then add a Send event complete event to the rule. This rule is triggered each time a successful response is received from the server as a result of a Send event action.
When a Send event complete event triggers a rule, it provides data returned from the server that may be useful to accomplish certain tasks. Typically, you will add a Custom code action (from the Core extension) to the same rule that contains the Send event complete event. In the Custom code action, your custom code will have access to a variable named event
. This event
variable will contain the data returned from the server.
Your rule for handling data returned from Edge Network might look something like this:
Below are some examples of how to perform certain tasks using the Custom code action in this rule.
Manually render personalized content
In the Custom Code action, which is in the rule for handling response data, you can access personalization propositions that were returned from the server. To do so, you would type the following custom code:
var propositions = event.propositions;
If event.propositions
exists, it is an array containing personalization proposition objects. The propositions included in the array are determined, in large part, by how the event was sent to the server.
For this first scenario, assume you have not checked the Render decisions checkbox and have not provided any decision scopes inside the Send event action responsible for sending the event.
In this example, the propositions
array only contains propositions related to the event that are eligible for automatic rendering.
The propositions
array might look similar to this example:
[
{
"id": "AT:eyJhY3Rpdml0eUlkIjoiMTI3MDE5IiwiZXhwZXJpZW5jZUlkIjoiMCJ9",
"scope": "__view__",
"items": [
{
"id": "11223344",
"schema": "https://ns.adobe.com/personalization/dom-action",
"data": {
"content": "<h2 style=\"color: yellow\">An HTML proposition.</h2>",
"selector": "#hero",
"type": "setHtml"
},
"meta": {}
}
],
"renderAttempted": false
},
{
"id": "AT:PyJhY3Rpdml0eUlkIjoiMTI3MDE5IiwiZXhwZXJpZW5jZUlkIjoiMCJ8",
"scope": "__view__",
"items": [
{
"id": "11223345",
"schema": "https://ns.adobe.com/personalization/dom-action",
"data": {
"content": "<h2 style=\"color: yellow\">Another HTML proposition.</h2>",
"selector": "#sidebar",
"type": "setHtml"
},
"meta": {}
}
],
"renderAttempted": false
}
]
When sending the event, the Render decisions checkbox was not checked, so the SDK did not attempt to automatically render any content. The SDK still automatically retrieved the content eligible for automatic rendering, however, and provided it to you to manually render if you would like to do so. Notice that each proposition object has its renderAttempted
property set to false
.
If you would have instead checked the Render decisions checkbox when sending the event, the SDK would have attempted to render any propositions eligible for automatic rendering. As a consequence, each of the proposition objects would have its renderAttempted
property set to true
. There would be no need to manually render these propositions in this case.
So far, you’ve only looked at personalization content that is eligible for automatic rendering (for example, any content created in Adobe Target’s Visual Experience Composer). To retrieve any personalization content not eligible for automatic rendering, request the content by providing decision scopes using the Decision scopes field in the Send event action. A scope is a string that identifies a particular proposition you would like to retrieve from the server.
The Send event action would look as follows:
In this example, if propositions are found on the server matching the salutation
or discount
scope, they are returned and included in the propositions
array. Be aware that propositions qualifying for automatic rendering will continue to be included in the propositions
array, regardless of how you configure the Render decisions or Decision scopes fields in the Send event action. The propositions
array, in this case, would look similar to this example:
[
{
"id": "AT:cZJhY3Rpdml0eUlkIjoiMTI3MDE5IiwiZXhwZXJpZW5jZUlkIjoiMCJ2",
"scope": "salutation",
"items": [
{
"schema": "https://ns.adobe.com/personalization/json-content-item",
"data": {
"id": "4433221",
"content": {
"salutation": "Welcome, esteemed visitor!"
}
},
"meta": {}
}
],
"renderAttempted": false
},
{
"id": "AT:FZJhY3Rpdml0eUlkIjoiMTI3MDE5IiwiZXhwZXJpZW5jZUlkIjoiMCJ0",
"scope": "discount",
"items": [
{
"schema": "https://ns.adobe.com/personalization/html-content-item",
"data": {
"id": "4433222",
"content": "<div>50% off your order!</div>",
"format": "text/html"
},
"meta": {}
}
],
"renderAttempted": false
},
{
"id": "AT:eyJhY3Rpdml0eUlkIjoiMTI3MDE5IiwiZXhwZXJpZW5jZUlkIjoiMCJ9",
"scope": "__view__",
"items": [
{
"id": "11223344",
"schema": "https://ns.adobe.com/personalization/dom-action",
"data": {
"content": "<h2 style=\"color: yellow\">An HTML proposition.</h2>",
"selector": "#hero",
"type": "setHtml"
},
"meta": {}
}
],
"renderAttempted": false
},
{
"id": "AT:PyJhY3Rpdml0eUlkIjoiMTI3MDE5IiwiZXhwZXJpZW5jZUlkIjoiMCJ8",
"scope": "__view__",
"items": [
{
"id": "11223345",
"schema": "https://ns.adobe.com/personalization/dom-action",
"data": {
"content": "<h2 style=\"color: yellow\">Another HTML proposition.</h2>",
"selector": "#sidebar",
"type": "setHtml"
},
"meta": {}
}
],
"renderAttempted": false
}
]
At this point, you can render proposition content as you see fit. In this example, the proposition matching the discount
scope is an HTML proposition built using Adobe Target’s Form-based Experience Composer. Assume you have an element on your page with the ID of daily-special
and wish to render the content from the discount
proposition into the daily-special
element. Do the following:
- Extract propositions from the
event
object. - Loop through each proposition, looking for the proposition with a scope of
discount
. - If you find a proposition, loop through each item in the proposition, looking for the item that is HTML content. (It’s better to check than to assume.)
- If you find an item containing HTML content, find the
daily-special
element on the page and replace its HTML with the personalized content.
Your custom code within the Custom code action might appear as follows:
var propositions = event.propositions;
var discountProposition;
if (propositions) {
// Find the discount proposition, if it exists.
for (var i = 0; i < propositions.length; i++) {
var proposition = propositions[i];
if (proposition.scope === "discount") {
discountProposition = proposition;
break;
}
}
}
var discountHtml;
if (discountProposition) {
// Find the item from proposition that should be rendered.
// Rather than assuming there a single item that has HTML
// content, find the first item whose schema indicates
// it contains HTML content.
for (var j = 0; j < discountProposition.items.length; j++) {
var discountPropositionItem = discountProposition.items[i];
if (discountPropositionItem.schema === "https://ns.adobe.com/personalization/html-content-item") {
discountHtml = discountPropositionItem.data.content;
break;
}
}
}
if (discountHtml) {
// Discount HTML exists. Time to render it.
var dailySpecialElement = document.getElementById("daily-special");
dailySpecialElement.innerHTML = discountHtml;
}
Accessing Adobe Target response tokens
Personalization content returned from Adobe Target includes response tokens, which are details about the activity, offer, experience, user profile, geo information, and more. These details can be shared with third-party tools or used for debugging. Response tokens can be configured in the Adobe Target user interface.
In the Custom Code action, which is in the rule for handling response data, you can access personalization propositions that were returned from the server. To do so, type the following custom code:
var propositions = event.propositions;
If event.propositions
exists, it is an array containing personalization proposition objects. See Manually render personalized content for more information on the content of result.propositions
.
Assume you would like to gather all activity names from all propositions that were automatically rendered by the web SDK and push them into a single array. You could then send the single array to a third party. In this case, write custom code inside the Custom code action to:
- Extract propositions from the
event
object. - Loop through each proposition.
- Determine if the SDK rendered the proposition.
- If so, loop through each item in the proposition.
- Retrieve the activity name from the
meta
property, which is an object containing response tokens. - Push the activity name into an array.
- Send the activity names to a third party.
var propositions = event.propositions;
if (propositions) {
var activityNames = [];
propositions.forEach(function(proposition) {
if (proposition.renderAttempted) {
proposition.items.forEach(function(item) {
if (item.meta) {
// item.meta contains the response tokens.
var activityName = item.meta["activity.name"];
// Ignore duplicates
if (activityNames.indexOf(activityName) === -1) {
activityNames.push(activityName);
}
}
});
}
});
// Now that activity names are in an array,
// you can send them to a third party or use
// them in some other way.
}

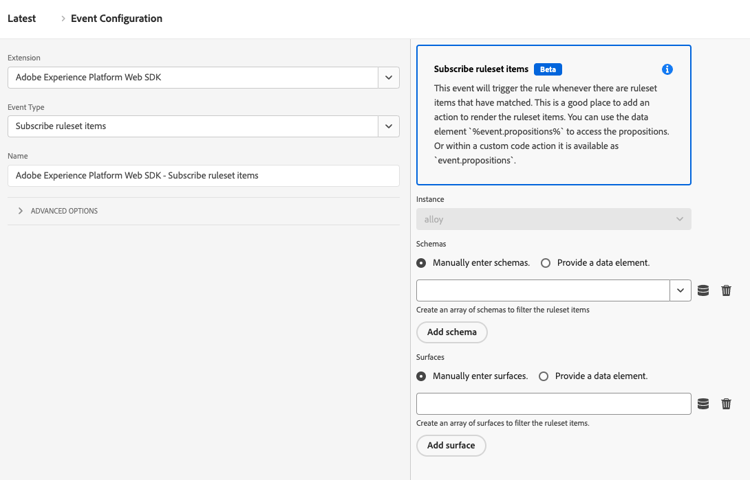

Subscribe ruleset items subscribe-ruleset-items
The Subscribe ruleset items event type allows you to subscribe to Adobe Journey Optimizer content cards for a surface. Any time the rulesets are evaluated, the callback provided to this command receives a result object with propositions that hold the content card data.
This event type supports the following configurable properties:
- Schemas: An array of schemas for which you want to subscribe to content cards. You can enter the schemas manually or by providing a data element.
- Surfaces: An array of surfaces for which you want to subscribe to content cards. You can enter the surfaces manually or by providing a data element.
