Custom domain name with Adobe CDN
Learn how to implement a custom domain name for an AEM as a Cloud Service web site that uses the Adobe Content Delivery Network (CDN).
In this tutorial, the branding of the sample AEM WKND site is enhanced by adding an HTTPS-addressable custom domain name wknd.enablementadobe.com with Transport Layer Security (TLS).

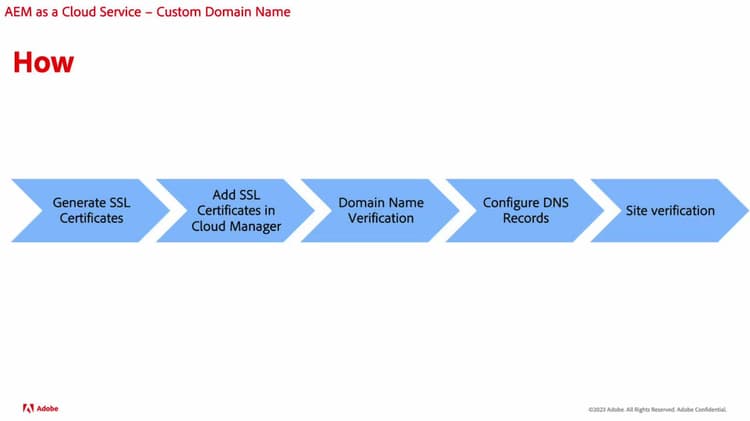

The high-level steps are:

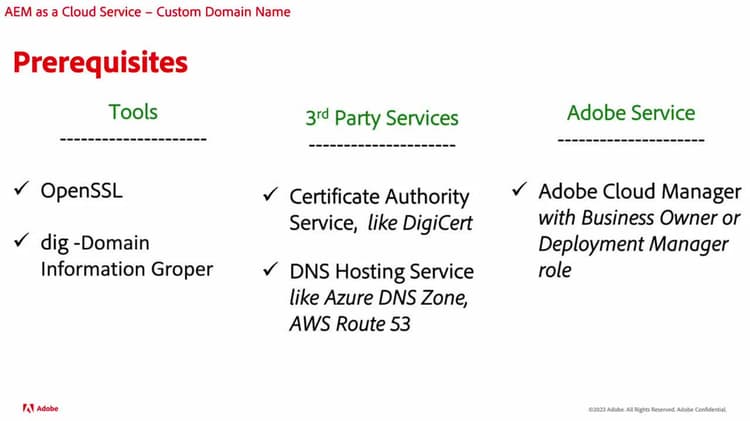

Prerequisites
-
Access to third-party services:
- Certificate Authority (CA) - to request the signed certificate for your site domain, like DigitCert
- Domain Name System (DNS) hosting service - to add DNS records for your custom domain, like Azure DNS, or AWS Route 53.
-
Access to Adobe Cloud Manager as Business Owner or Deployment Manager role.
-
Sample AEM WKND site is deployed to the AEM as a Cloud Service environment of production program type.
If you do not have access to third-party services, collaborate with your security or hosting team to complete the steps.
Generate SSL certificate
You have two options:
- Use the
opensslcommand-line tool to generate a private key and a Certificate Signing Request (CSR) for your site domain. To request a signed certificate, submit the CSR to a Certificate Authority (CA). - Your hosting team provides the required private key and signed certificate for your site.
Let’s review the steps for the first option.
To generate a private key and a CSR, run the following commands and provide the required information when prompted:
# Generate a private key and a CSR
$ openssl req -newkey rsa:2048 -keyout <YOUR-SITE-NAME>.key -out <YOUR-SITE-NAME>.csr -nodes
To request a signed certificate, provide the generated CSR to the CA by following the CA’s documentation. Once the CA signs the CSR, you receive the signed certificate file.
Review signed certificate
Review the signed certificate before adding it to the Cloud Manager. Review the certificate details using the following command:
# Review the certificate details
$ openssl crl2pkcs7 -nocrl -certfile <YOUR-SIGNED-CERT>.crt | openssl pkcs7 -print_certs -noout
The signed certificate may contain the certificate chain, which includes the root and intermediate certificates along with the end-entity certificate.
Adobe Cloud Manager accepts the end-entity certificate and the certificate chain in separate form fields, so you must extract the end-entity certificate and the certificate chain from the signed certificate.
In this tutorial, the DigitCert signed certificate issued against *.enablementadobe.com domain is used as an example. The end-entity and certificate chain is extracted by opening the signed certificate in a text editor and copying the content between the -----BEGIN CERTIFICATE----- and -----END CERTIFICATE----- markers.

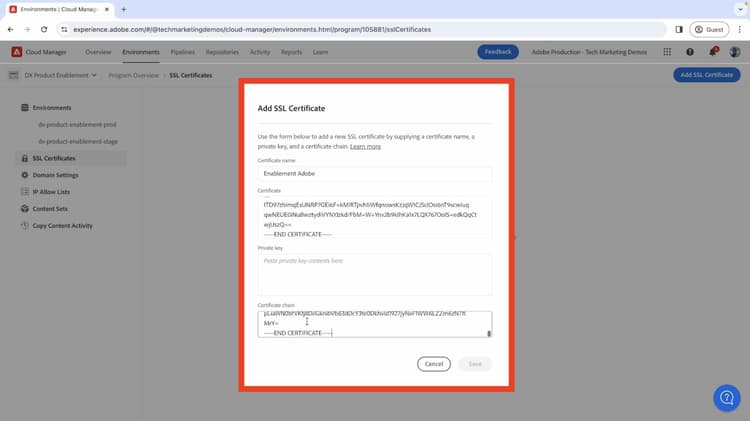

Add SSL certificate in Cloud Manager
To add the SSL certificate in Cloud Manager, follow the add SSL Certificate documentation.
Domain name verification
To verify the domain name follow these steps:
- Add a domain name in Cloud Manager by following the add custom domain name documentation.
- Add an AEM-specific TXT record in your DNS hosting service.
- Verify the above steps by querying the DNS servers using the
digcommand.
# General syntax, the `_aemverification` is prefix provided by Adobe
$ dig _aemverification.[YOUR-DOMAIN-NAME] -t txt
# This tutorial specific example, as the subdomain `wknd.enablementadobe.com` is used
$ dig _aemverification.wknd.enablementadobe.com -t txt
The sample successful response looks like this:
; <<>> DiG 9.10.6 <<>> _aemverification.wknd.enablementadobe.com -t txt
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 8636
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1220
;; QUESTION SECTION:
;_aemverification.wknd.enablementadobe.com. IN TXT
;; ANSWER SECTION:
_aemverification.wknd.enablementadobe.com. 3600 IN TXT "adobe-aem-verification=wknd.enablementadobe.com/105881/991000/bef0e843-9280-4385-9984-357ed9a4217b"
;; Query time: 81 msec
;; SERVER: 153.32.14.247#53(153.32.14.247)
;; WHEN: Tue Mar 12 15:54:25 EDT 2024
;; MSG SIZE rcvd: 181
This tutorial uses Azure DNS, however any DNS provider can be used. To add the TXT record, you must follow the documentation of your DNS hosting service.
Review the checking domain name status documentation if there is an issue.
Configure DNS record
To configure the DNS record for your custom domain follow these steps:
- Determine the DNS record type (CNAME or APEX) based on the domain type, like root domain (APEX) or subdomain (CNAME), and follow the Configuring DNS Settings documentation.
- Add the DNS record in your DNS hosting service.

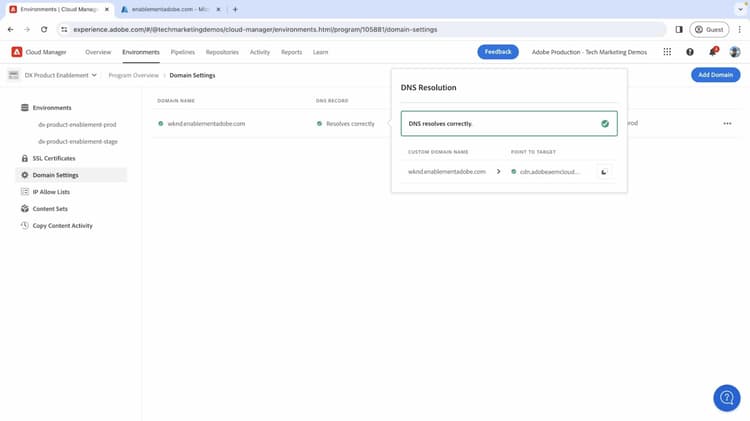

- Trigger the DNS record validation by following the Checking DNS Record Status documentation.
In this tutorial, as a subdomain wknd.enablementadobe.com is used, the CNAME record type that points to cdn.adobeaemcloud.com is added.
However, if you are using the root domain, you must add an APEX record type (aka A, ALIAS, or ANAME) that points to the specific IP addresses provided by Adobe.
Site verification

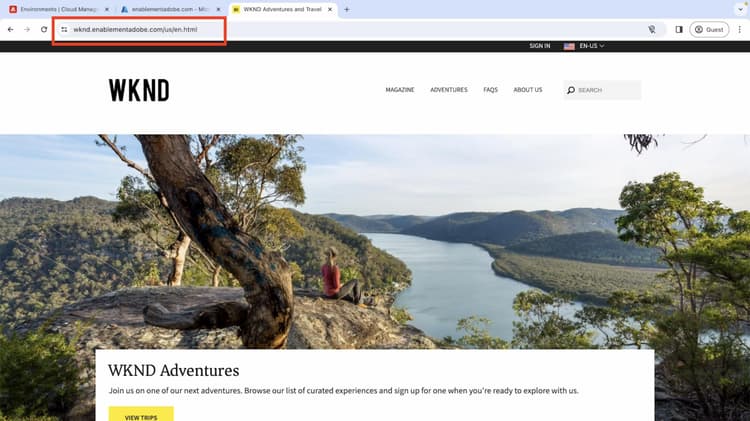

To verify the site is accessible using the custom domain name, open a web browser and navigate to the custom domain URL. Make sure that the site is accessible and the browser shows a secure connection with the padlock icon.
End-to-end video
You can also watch the end-to-end video that demonstrates the overview, prerequisites, and above steps to add a custom domain name to AEM as a Cloud Service-hosted site.
