Customer Managed Keys Setup for AEM as a Cloud Service customer-managed-keys-for-aem-as-a-cloud-service

AEM as a Cloud Service currently stores customer data in Azure Blob Storage and MongoDB, utilizing provider-managed encryption keys by default to secure data. While this setup meets the security needs of many organizations, businesses in regulated industries or those requiring enhanced data security may seek greater control over their encryption practices. For organizations that prioritize data security, compliance, and the ability to manage their encryption keys, the Customer-Managed Keys (CMK) solution offers a critical enhancement.

The Problem Being Solved the-problem-being-solved

Provider managed keys can create concerns for businesses that require additional privacy and integrity. Without control over key management, organizations face challenges in meeting compliance requirements, implementing custom security policies, and ensuring complete data security.

The introduction of Customer-Managed Keys (CMK) addresses these concerns by empowering AEM customers with full control over their encryption keys. By authenticating via Microsoft Entra ID (formerly Azure Active Directory), AEM CS securely connects to the customer’s Azure Key Vault, allowing them to manage the lifecycle of their encryption keys—covering key creation, rotation, and revocation.

CMK provides several advantages:

By adopting CMK, customers can increase control over their data security and encryption practices, enhancing security and mitigating risks, all while continuing to enjoy the scalability and flexibility of AEM CS.

AEM as a Cloud Service allows you to bring your own encryption keys for encrypting data at rest. This guide provides steps for setting up a customer managed key (CMK) in Azure Key Vault for AEM as a Cloud Service.

You will also be guided through the following steps for creating and configuring the required infrastructure:

You will need to share the key vault URL, the encryption key name and information about the key vault with Adobe.

Setup your Environment setup-your-environment

The Azure Command Line Interface (CLI) is the only requirement for this guide. If you do not already have the Azure CLI installed, follow the official installation instructions here.

Before proceeding with the rest of this guide, please login to your CLI with az login.

Start the CMK configuration process for AEM as a Cloud Service request-cmk-for-aem-as-a-cloud-service

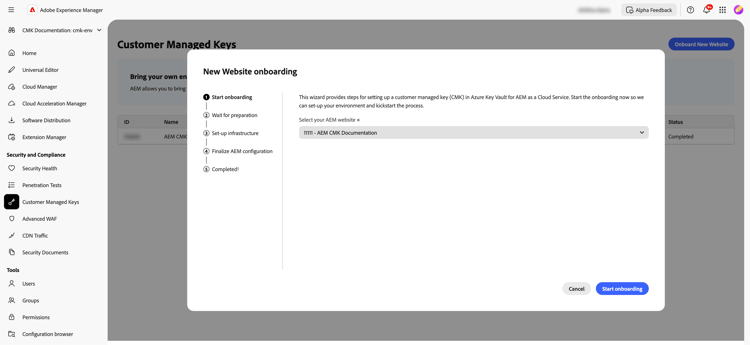

You need to request the Customer Managed Keys (CMK) configuration for your AEM as a Cloud Service environment via the UI. To do this, navigate to the AEM Home Security UI, under the Customer Managed Keys section.

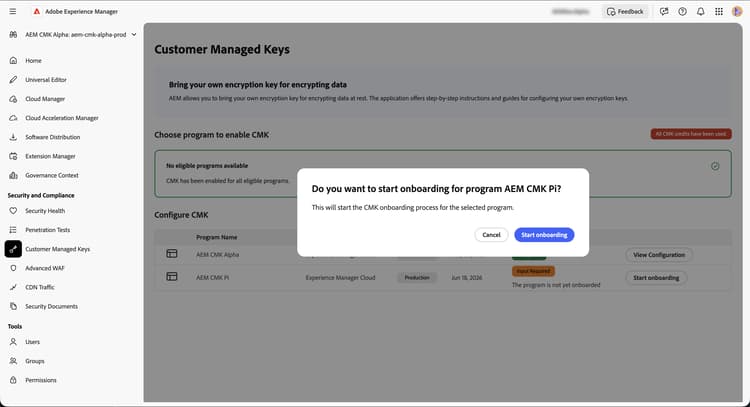

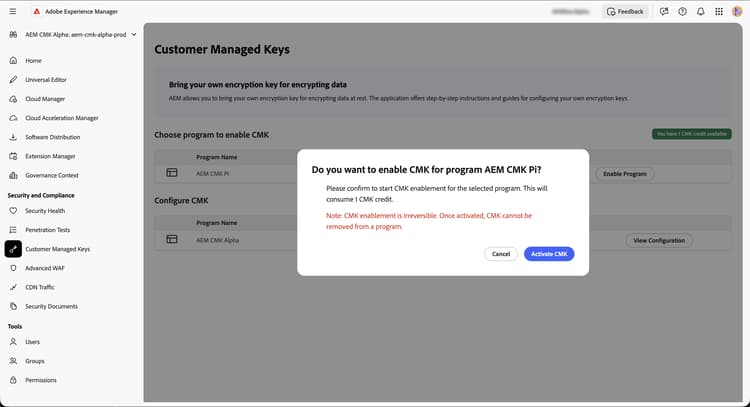

You can then start the onboarding process by clicking on the Start onboarding button.

Obtain an Application ID from Adobe obtain-an-application-id-from-adobe

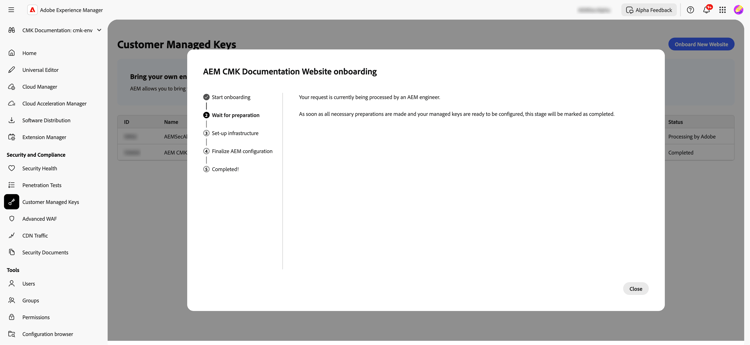

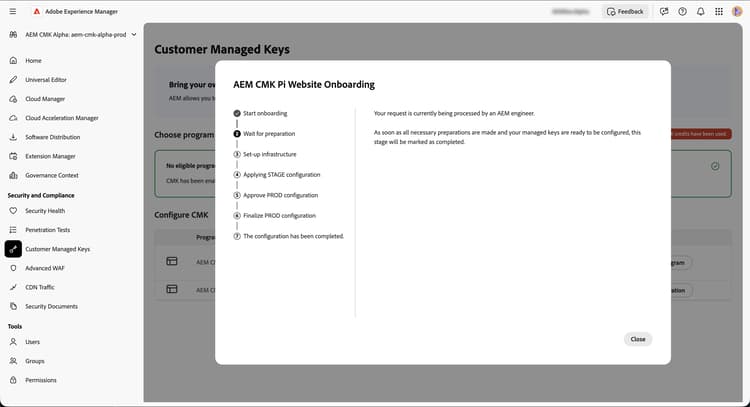

After starting the onboarding process, an Entra application ID will be provided by Adobe. This application ID is necessary for the rest of the guide and will be used to create a service principal that allows Adobe to access your key vault. If you don’t already have an application ID, you need to wait until it is provided by Adobe.

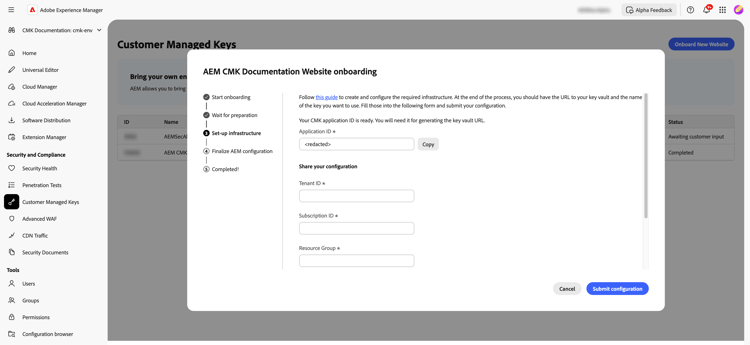

After the request is completed, you will be able to see the application ID in the CMK UI.

Create a New Resource Group create-a-new-resource-group

Create a new resource group in a location of your choice.

# Choose a location and a name for the resource group.
$location="<AZURE LOCATION>"
$resourceGroup="<RESOURCE GROUP>"

# Create the resource group.
az group create --location $location --resource-group $resourceGroup

If you already have a resource group, feel free to use it instead. In the rest of this guide, the location of the resource group and its name are identified with $location and $resourceGroup, respectively.

Create a Key Vault create-a-key-vault

You will need to create a key vault to contain your encryption key. The key vault must have purge protection enabled. Purge protection is necessary for encrypting data at rest from other Azure services. Public network access must be enabled to ensure that the Adobe services can access the key vault.

# Reuse this information from the previous step.
$location="<AZURE LOCATION>"
$resourceGroup="<RESOURCE GROUP>"

# Choose a name for the key vault.
$keyVaultName="<KEY VAULT NAME>"

# Create the key vault.
az keyvault create `
  --location $location `
  --resource-group $resourceGroup `
  --name $keyVaultName `
  --default-action=Allow `
  --enable-purge-protection `
  --enable-rbac-authorization `
  --public-network-access Enabled

Grant Adobe Access to the Key Vault grant-adobe-access-to-the-key-vault

In this step you will allow Adobe to access your key vault via an Entra application. The ID of the Entra application should have been already provided by Adobe.

First, you must create a service principal attached to the Entra application and assign to it the Key Vault Reader and Key Vault Crypto User roles. The roles are limited to the key vault created in this guide.

# Reuse this information from the previous steps.
$resourceGroup="<RESOURCE GROUP>"
$keyVaultName="<KEY VAULT NAME>"

# The application ID is provided by Adobe.
$appId="<APPLICATION ID>"

# Retrieve the ID of the key vault.
$keyVaultId=(az keyvault show --resource-group $resourceGroup --name $keyVaultName --query id --output tsv)

# Create a new service principal.
$servicePrincipalId=(az ad sp create --id $appId --query id --out tsv)

# Assign the roles to the service principal.
az role assignment create --assignee $servicePrincipalId --role "Key Vault Reader" --scope $keyVaultId
az role assignment create --assignee $servicePrincipalId --role "Key Vault Crypto User" --scope $keyVaultId

Create an Encryption Key create-an-encryption-key

Finally, you can create an encryption key in your key vault. Please note that you will need the Key Vault Crypto Officer role to complete this step. If the logged in user does not have this role, contact your system administrator to have this role granted to you or ask someone who already has that role to complete this step for you.

Network access to the key vault is required to create the encryption key. First verify that you can access the key vault and proceed with creating the key:

# Reuse this information from the previous steps.
$keyVaultName="<KEY VAULT NAME>"

# Choose a name for your key.
$keyName="<KEY NAME>"

# Create the key.
az keyvault key create --vault-name $keyVaultName --name $keyName

Share the Key Vault Information share-the-key-vault-information

At this point, you are all set. You just need to share some required information through the CMK UI, which will start the environment configuration process.

# Reuse this information from the previous steps.
$resourceGroup="<RESOURCE GROUP>"
$keyVaultName="<KEY VAULT NAME>"

# Retrieve the URL of your key vault.
$keyVaultUri=(az keyvault show --name $keyVaultName `
    --resource-group $resourceGroup `
    --query properties.vaultUri `
    --output tsv)

# In addition we would need the tenantId and the subscriptionId in order to setup the connection.
$tenantId=(az keyvault show --name $keyVaultName `
    --resource-group $resourceGroup `
    --query properties.tenantId `
    --output tsv)
$subscriptionId="<Subscription ID>"

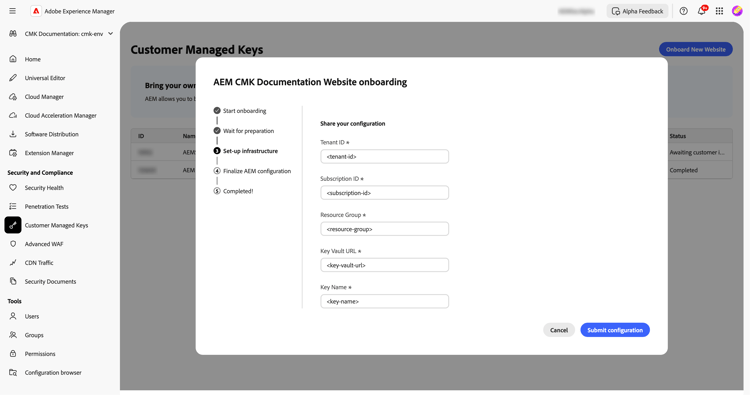

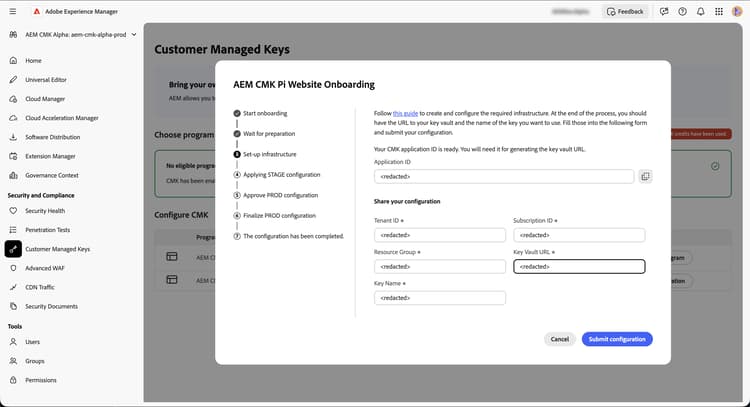

Provide this information in the CMK UI:

Implications of Revoking Key Access implications-of-revoking-key-access

Revoking or disabling access to the Key Vault, key, or CMK app can result in significant disruptions, that include breaking changes to your Platform’s operations. Once these keys are disabled, data in Platform may become inaccessible, and any downstream operations that rely on this data will cease to function. It is crucial to fully understand the downstream impacts before making any changes to your key configurations.

If you decide to revoke Platform access to your data, you can do so by removing the user role associated with the application from the Key Vault within Azure.

Next steps next-steps

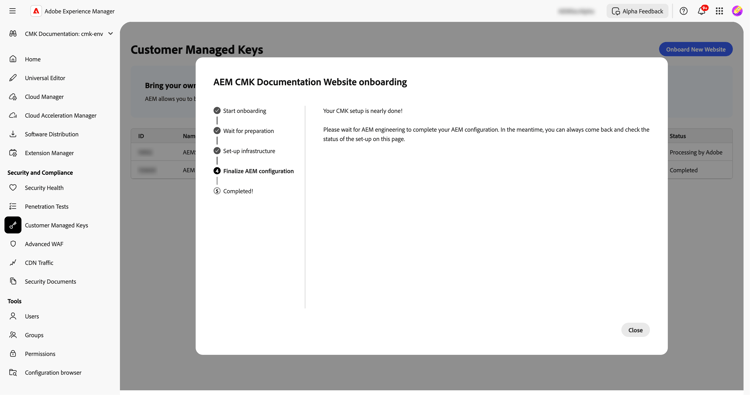

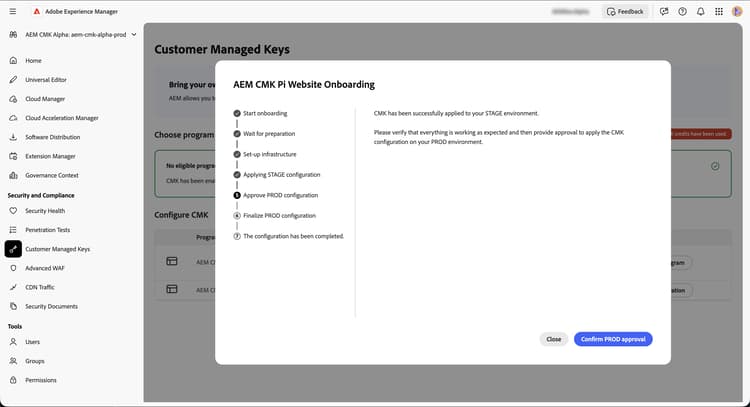

After you have provided the required information in the CMK UI, Adobe will start the configuration process for your AEM as a Cloud Service environment. This process may take some time, and you will be notified once it is completed.

Complete the CMK Setup complete-the-cmk-setup

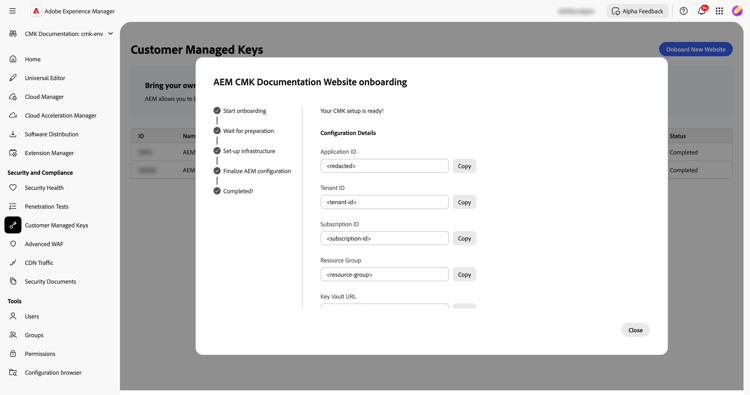

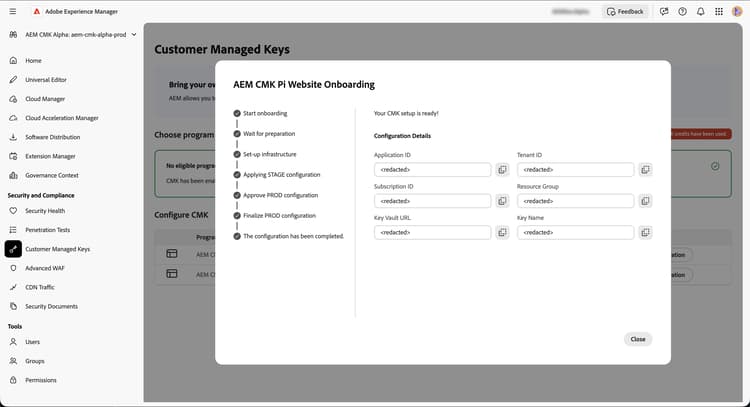

Once the configuration process is completed, you will be able to see the status of your CMK setup in the UI. You can also see the key vault and the encryption key.

Questions and Support questions-and-support

Reach out to us if you have any questions, inquiries, or need assistance with the Customer Managed Keys setup for AEM as a Cloud Service. Adobe Support can help you with any questions you might have.
