Health Assessment about-health-assessment

Health Assessment is an automated, non-intrusive scan for Production and Stage environments in Cloud Manager within AEM as a Cloud Service. It evaluates content, code, and configurations to find anti-patterns and departures from best practices, improving security and performance.

The health assessment service does the following:

  • Scans environments and exposes performance bottlenecks, inefficiencies, and risks.
  • Analyzes content structures, such as blueprints, live copies, and customer configurations.
  • Detects outdated dependencies, including AEM SDK and third-party libraries.
  • Flags code quality issues, such as incorrect annotations and inefficient patterns.
  • Delivers actionable guidance in dashboards (for example, Action Center).
  • Drives proactive remediation to improve system performance.

Each run lists issues by severity, links to guidance and recommended fixes, and supports a PDF export of the report. You can use the Latest Report view for the current state and Past Reports to compare runs.

See also Health Assessment patterns for rule definitions and remediation details.

Access the Health Assessment page access-health-assessment

  1. Sign into Cloud Manager at experiece.adobe.com.

  2. In the Quick access section, click Experience Manager.

  3. In the left side panel, click Cloud Manager.

  4. Select an organization that you want. The image below is for illustration. Select your own organization name.

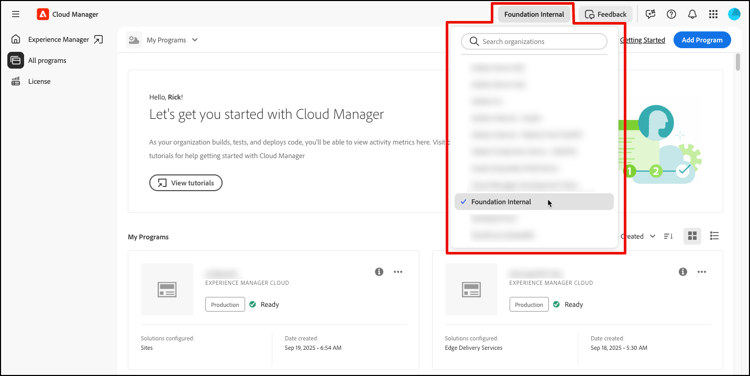

    Selecting an organization in Cloud Manager

  5. On the My Programs console, click the program for which you want to view its report.

  6. Do either one of the following:

    • In the Environments card, to the right of an environment name, click Ellipsis icon or More icon , then choose Health Assessment from the menu.

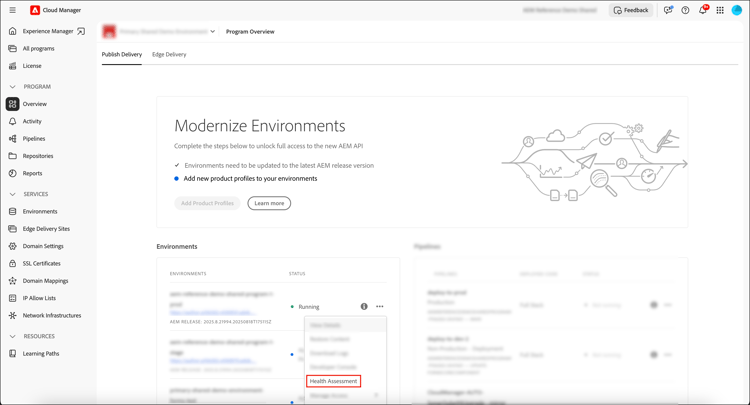

      Selecting Health Assessment from the ellipsis menu in the Environments card

    • From the left side menu, under Services, click Data icon Environments. On the Environments page, to the right of an environment name, click Ellipsis icon or More icon , then choose Health Assessment from the menu.

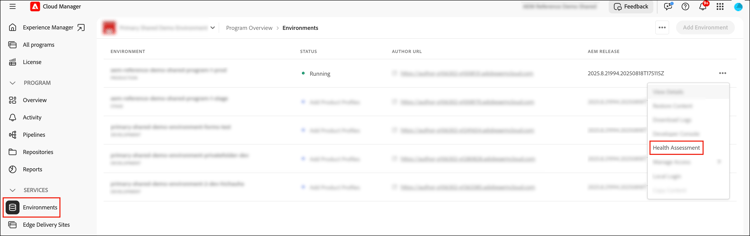

      Selecting Health Assessment from the ellipsis menu on the Environments page

Run a new report for a selected environment run-report

  1. Access the Health Assessment page.

  2. In the upper-right corner of the Health Assessment page, confirm the target environment that you are about to assess.

    If the environment is incorrect, click Chevron down or drop-down menu to selected a different environment to choose the correct environment from the list.

  3. Click Run Report.

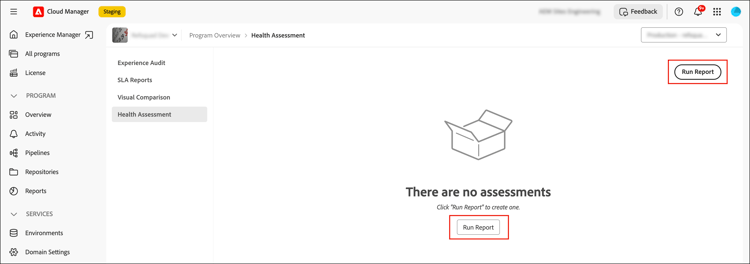

    Click the Generate new report button on the Health Assessment page

    While a report runs for the selected environment, Run Report stays disabled until it finishes.

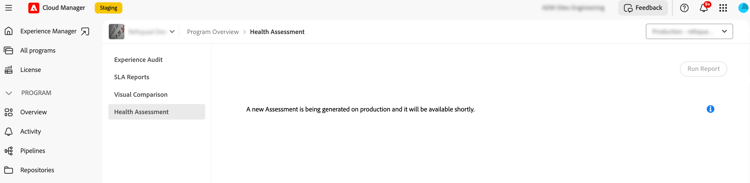

    Report in the middle of running

    When the report is complete, the report appears on the Health Assessment page, in the Latest Report section.

View the latest report view-latest-report

  • On the Health Assessment page, review the Latest report section for the following information:

    • Results from the most recent run.
    • Run date and time.
    • Total issue count.
    • Highlights of top critical issues.
    • Actions: View details or Download PDF of all issues.

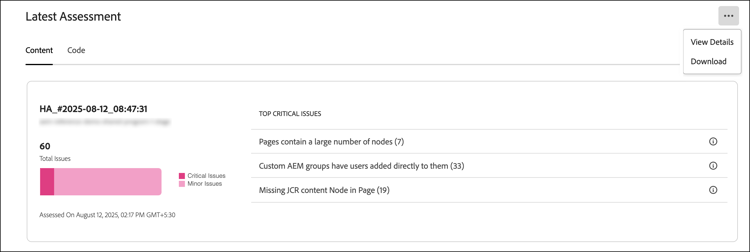

    The Latest Assessment page following the generation of a new report for a selected environment

View the latest report details view-report-details

  • On the Health Assessment page, to the right of the Latest Report title, click Ellipsis icon or More icon , then click View details or Download.

    The View details option shows you the following:

    • A comprehensive list of issues.

    • Ability to view findings and issue descriptions.

    • Ability to view documentation with potential fixes.

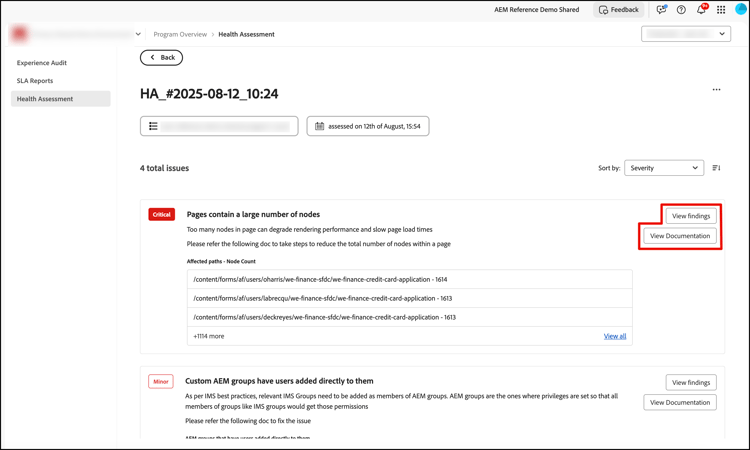

      Issue descriptions and finding

    • The Download option gives you the ability to download individual issue reports in PDF.

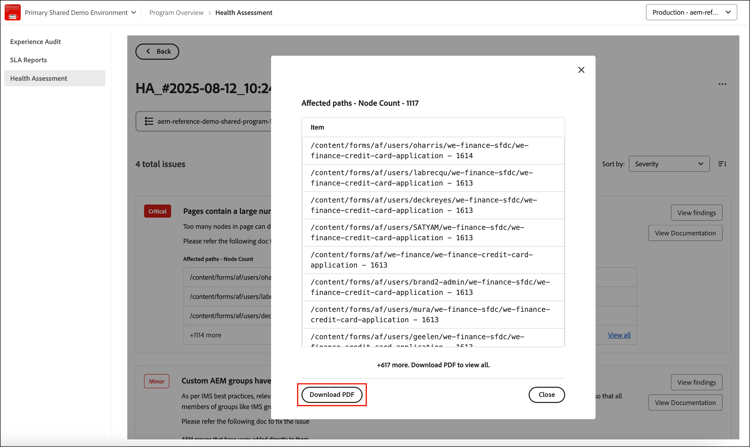

      Download PDF of individual issue reports

Download PDF of entire report download-pdf-report

  • Near the upper-right corner of the report page, click Download.

    A ZIP file is generated that contains PDFs for all issues detected in that report.

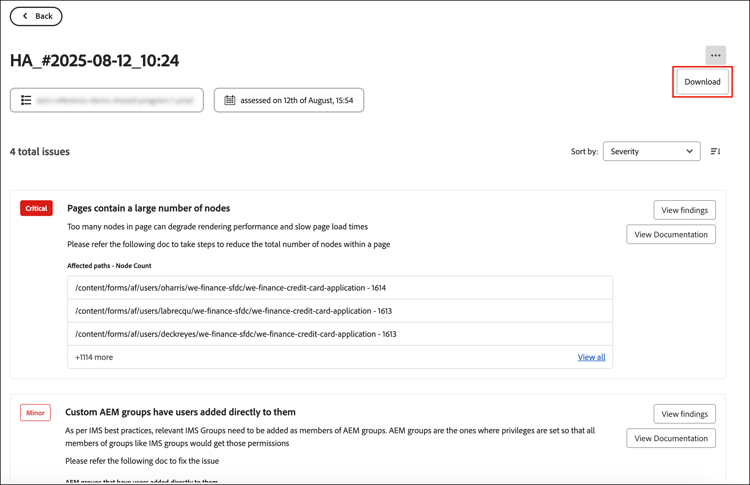

    Download PDF of all issues found in a report

Review past reports review-past-reports

On the Health Assessment page, review the Past Reports section for the following information:

  • View details of any prior report.
  • View each run’s date.
  • Download a PDF for any report.
  • Sort by date, issue count, or environment.

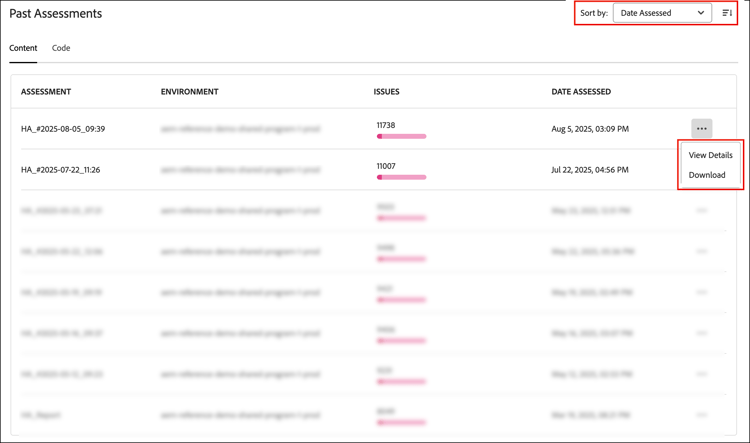

Review past reports

  • To the right of the Past Reports heading, click Chevron down or drop-down menu to selected a different environment to sort past reports by date.
  • To the far right of a report, click Ellipsis icon or More icon , then click View details or Download.

Health Assessment patterns ha-patterns

The following is the full list of anti-patterns and issues that Health Assessment detects in AEM as a Cloud Service. The table groups items into three types: Content Analysis, Code Analysis, and Cloud Service Optimizer anti-patterns, with an explanation for each.

Pattern name
Category
Type
Description
Impact
Auto-fixed?
Custom AEM Groups with Direct User Additions
Security
Content Analysis
Users added directly to AEM groups instead of adding IMS groups as members.
Permission management and security governance can become complicated. IMS Support
No
Missing JCR Content Node in Pages
Repository Structure
Content Analysis
Missing jcr:content node in page.
Functional limitations in Experience Manager as a Cloud Service. Pattern detection - ACV
No
Missing Sling Resource Type in Pages
Repository Structure
Content Analysis
Missing sling:resourceType in page.
Functional limitations in Experience Manager as a Cloud Service. Pattern detection - ACV
No
Pages with Excessive Node Count
Performance
Content Analysis
Pages contain a large number of nodes in their structure.
Slow page load times and poor user experience. Pattern detection - PCX
No
Excessive Running Workflow Instances
Performance
Content Analysis
Too many workflow instances are running.
Overall system performance degradation. Maintenance tasks
No
Unpurged Completed Workflow Instances
Performance
Content Analysis
Older completed workflow instances are not being purged.
Decreased system efficiency and increased storage costs. Maintenance tasks
No
Content Fragment Usage Statistics
Statistics
Content Analysis
Tracks the number of Content Fragments in use.
N/A
N/A
Content Fragment Model Usage Statistics
Statistics
Content Analysis
Tracks the number of Content Fragment Models in use.
N/A
N/A
MSM Large Number of Blueprints
Statistics
Content Analysis
Tracks the number of blueprints.
It can increase management complexity and make content governance more difficult.
N/A
MSM Pages per Blueprint
Statistics
Content Analysis
Tracks the number of pages per blueprint.
It can increase management complexity and make content governance more difficult.
N/A
MSM Excessive Live Copies
Statistics
Content Analysis
Tracks the number of live copies.
It can lead to performance issues during rollouts and complicate content synchronization.
N/A
MSM Excessive Live Copies per Blueprint
Statistics
Content Analysis
Tracks the number of live copies per blueprint.
It can lead to performance issues during rollouts and complicate content synchronization.
N/A
Number of Assets
Statistics
Content Analysis
Tracks the number of assets.
N/A
N/A
Number of Sites
Statistics
Content Analysis
Tracks the number of sites.
N/A
N/A
Number of Forms
Statistics
Content Analysis
Tracks the number of forms.
N/A
N/A
Form Fragments
Statistics
Content Analysis
Tracks the number of form fragments.
N/A
N/A
Interaction Communications
Statistics
Content Analysis
Tracks the number of form communication interactions.
N/A
N/A
FDMs
Statistics
Content Analysis
Tracks the number of form data models.
N/A
N/A
Outdated Dependencies
Dependencies
Code Analysis
Highlights outdated dependencies in the customer repository.
Incompatibility with newer AEM versions; potential security vulnerabilities.
No
AEM SDK Version Mismatch
Dependencies
Code Analysis
Versions older than (n-2) compared to the Cloud Manager environment version.
It can cause build errors in Cloud Manager and issues in local development environments.
No
Outdated Mockito Core Dependency
Dependencies
Code Analysis
Versions below 4.x.x are considered outdated for AEM as a Cloud Service.
It can cause build errors in Cloud Manager and issues in local development environments.
No
Unsupported Annotations
Dependencies
Code Analysis
Unsupported annotations in the customer’s Cloud Manager repository.
Potential application failures and decreased performance.
No
@Inject Annotation in Sling Models
Dependencies
Code Analysis
Deprecated @Inject annotation.
Reduced application performance due to injection resolution overhead.
No
Outbound HTTP Requests
Performance
Cloud Service Optimizer anti-patterns
Problematic use in request context, high timeouts, or not closing connections.
Overall system performance degradation and possible outages.
Yes
Slow Queries
Performance
Cloud Service Optimizer anti-patterns
Slow queries in customer code.
Degraded system performance and potential timeouts.
Yes

Categories ha-patterns-categories

Category
Description
Security
Patterns related to security practices, user management, and access control.
Performance
Patterns that impact application and system performance.
Repository Structure
Patterns related to JCR repository organization and structure.
Dependencies
Patterns related to code dependencies and version management.
Statistics
Patterns that represent usage statistics and metrics.
