Integrating API in Rule Editor

Integrating API in Rule Editor is under Early Adopter Program. You can write to aem-forms-ea@adobe.com from your official email id to join the early adopter program and request access to the capability.

The Visual Rule Editor in Adaptive Forms supports direct API integration without creating a Form Data Model. You can connect to an API endpoint by either entering the API URL (in JSON format) or importing the configuration through a cURL command. Once integrated, the Invoke Service action can be used to call the API.

Form fields can be mapped directly to the input parameters defined in the API configuration. Similarly, output parameters can be mapped to form fields using the event payload option for the corresponding API response.

Additionally, the Visual Rule Editor lets you define success and failure handlers when invoking a service. Success handlers specify the actions to be executed after a successful API call, while failure handlers define how the form should respond when an error occurs.

Comparison: API Integration Methods

API Integration Configuration

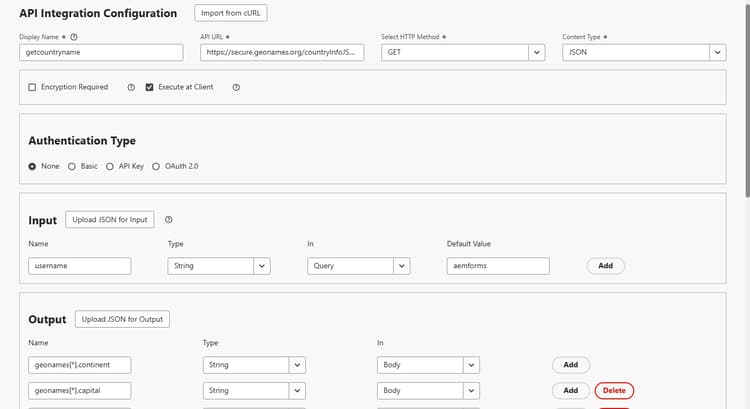

The screenshot below displays the API integration configuration window:

Key Configuration Options

API Integration Configuration

Authentication Type

Input Parameters

Output Parameters

Use Case: Populating Country Fields in a Visa Application Form

Scenario: A government agency provides an online Visa Application Form with the following fields:

Instead of maintaining a static list of countries, the form dynamically fetches country information (continent, capital, ISO Alpha codes, etc.) using the getcountryname API:

https://secure.geonames.org/countryInfoJSON?username=aemforms

This ensures applicants always see an up-to-date and accurate list of countries while filling out the form.

Implementation Using API Integration in the Rule Editor

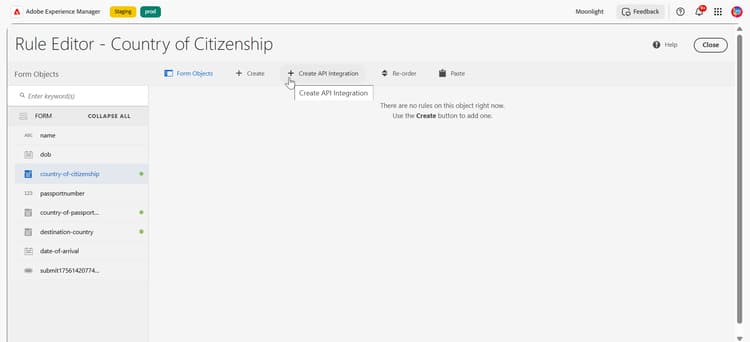

You can integrate an API without creating a Form Data Model by clicking the Create API Integration button in the Rule Editor.

An API service named getcountryname is configured under API Integration Configuration in the Rule Editor:

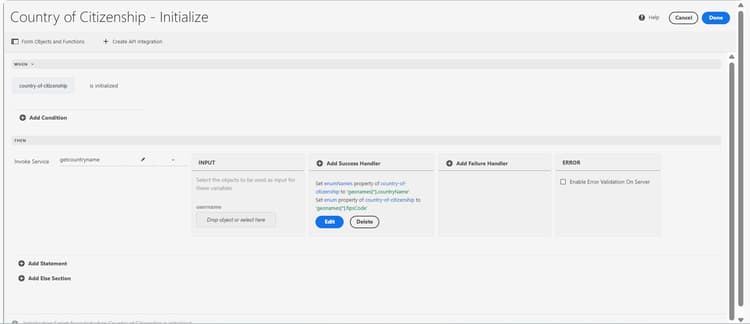

In the Visa Application Form, the three drop-down fields, Country of Citizenship, Country of Passport Issuance, and Destination Country, are bound to the Invoke Service action.

When the form loads, Invoke Service fetches the list of countries from the API. The response is then mapped to automatically populate the drop-down options.

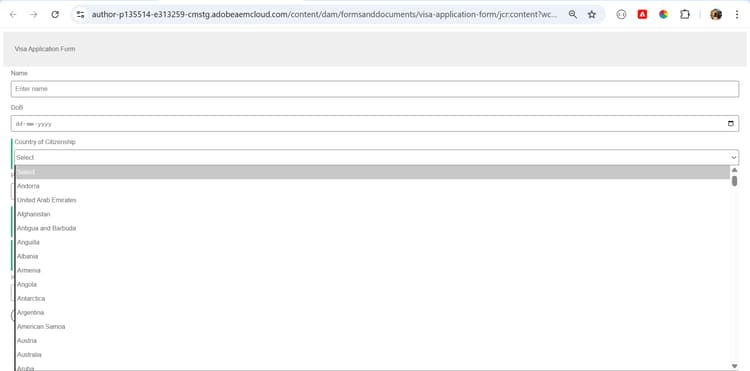

For example, when the user opens Country of Citizenship, the list of countries is displayed dynamically from the API response.

Similarly, Country of Passport Issuance and Destination Country use the same API call, ensuring consistent and up-to-date data across all three fields.

![NOTE]

You can retrieve property values from a JSON array by invoking an API and using a custom function. This approach lets you extract values and bind them directly to form fields.

Implementing Retry Mechanism for API Failures

When an API request fails, it’s often useful to retry the request before reporting an error to the user. You can implement a polling and retry mechanism by writing custom code in the function.js file.

The following example demonstrates how to handle API failures with up to two retry attempts and exponential backoff between retries:

/**
 * Handles request retries with up to 2 retry attempts
 * @param {function} requestFn - The request function to execute
 * @return {Promise} A promise that resolves with the response or rejects after all retries
 */
function retryHandler(requestFn) {
    const MAX_RETRIES = 2;

    /**
     * Attempts the request with retry metadata
     * @param {number} retryCount - Current retry attempt count
     * @return {Promise} The request promise
     */
    function attemptRequest(retryCount = 0) {
        // Include retry metadata if this is a retry
        const requestOptions = retryCount > 0 ? {
            headers: {
                'X-Retry': 'true',
                'X-Retry-Count': retryCount.toString(),
                'X-Retry-Time': new Date().toISOString()
            },
            body: {
                retry: true,
                retryCount: retryCount,
                timestamp: Date.now()
            }
        } : undefined;

        return requestFn(requestOptions)
            .then(function(response) {
                if (response && response.status >= 400) {
                    console.warn('Request failed with status ' + response.status);
                    throw new Error('Request failed with status ' + response.status);
                }
                return response;
            })
            .catch(function(error) {
                console.warn('Request attempt ' + (retryCount + 1) + ' failed:', error.message);

                // Retry if max attempts not reached
                if (retryCount < MAX_RETRIES) {
                    console.log('Retrying request, attempt ' + (retryCount + 2) + ' of ' + (MAX_RETRIES + 1));

                    // Exponential backoff delay: 1s, 2s, 4s...
                    const delay = Math.pow(2, retryCount) * 1000;

                    return new Promise(function(resolve) {
                        setTimeout(resolve, delay);
                    }).then(function() {
                        return attemptRequest(retryCount + 1);
                    });
                } else {
                    // All retries exhausted
                    console.error('All retry attempts failed. Final error:', error.message);
                    throw new Error('Request failed after ' + (MAX_RETRIES + 1) + ' attempts: ' + error.message);
                }
            });
    }

    // Start the first attempt
    return attemptRequest(0);
}

In the above code, the retryHandler function manages API requests with automatic retries in case of failure. It takes a request function (requestFn) and attempts the request up to two times, adding metadata for each retry.
