Create API Integration
In this tutorial, 2 API integrations are created
- GetAllCountries returns a list of countries
- GetChildren - Return immediate children of the country or state represented by the geonameId

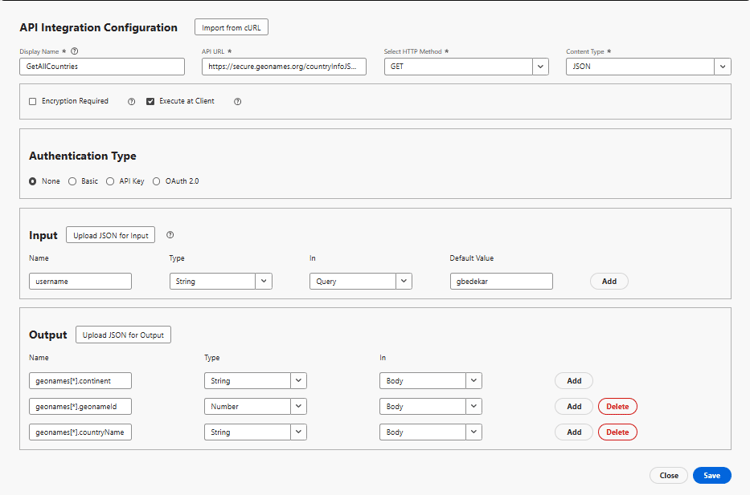

GetAllCountries - API Integration Configuration
-
API Integration Configuration
-
Display Name: GetAllCountries → a label for this API in your system.
-
API URL:
https://secure.geonames.org/countryInfoJSON- the endpoint you’re calling. -
HTTP Method: GET - you’re making a simple GET request.
-
Content Type: JSON - response is expected in JSON format.
-
-
Options:
-
Encryption Required unchecked - no encryption layer beyond HTTPS.
-
Execute at Client checked - the call is executed from the client/browser, not server-side.
-
-
Authentication Type
- None- since the GeoNames API doesn’t require OAuth or API keys in headers
-
Input:
- The input section defines what is sent into the API
- username → type: String, sent in the Query, default: gbedekar.
- Every request appends ?username=gbedekar to the URL
-
Output
- Output defines what fields from the JSON response are to be extracted and used.

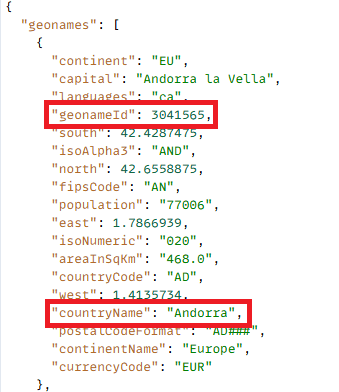

The GeoNames response looks like:
-
Mapped two fields from inside the geonames array:
geonames[*].geonameId → as a Number
geonames[*].countryName → as a String
The [*] means it repeats for each country in the array.
- Output defines what fields from the JSON response are to be extracted and used.

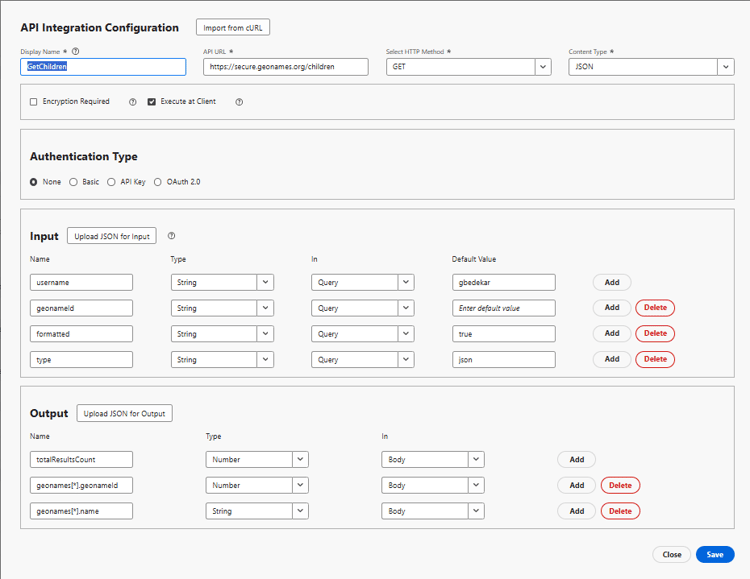

GetChildren
It asks GeoNames for the immediate children of the place whose geonamesId is passed as a query parameter
-
API Integration Configuration
-
Display Name: GetAllCountries → a label for this API in your system.
-
API URL:
https://secure.geonames.org/children→ the endpoint you’re calling. -
HTTP Method: GET → you’re making a simple GET request.
-
Content Type: JSON → response is expected in JSON format.
-
-
Options:
-
Encryption Required unchecked → no encryption layer beyond HTTPS.
-
Execute at Client checked → the call is executed from the client/browser, not server-side.
-
-
Authentication Type
- None- since the GeoNames API doesn’t require OAuth or API keys in headers
-
Input:
- Defines what is sent into the API
- username → type: String, sent in the Query, default: gbedekar.
- Every request appends ?username=gbedekar to the URL
- geonameId -> type: String. Returns the children of the country/state represented by the geonameId
- type =>String. Setting to json returns the response in JSON format.
-
Output
- Defines what fields from the JSON response are to be extracted and used.

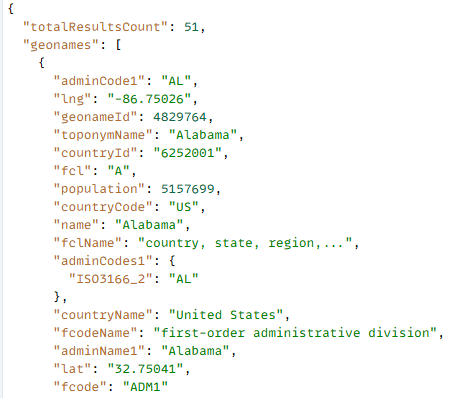

The GeoNames response looks like:
-
Mapped two fields from inside the geonames array:
geonames[*].geonameId → as a Number
geonames[*].name → as a String
The [*] means it repeats for each country in the array.
- Defines what fields from the JSON response are to be extracted and used.
