Create and configure Asset Editor pages

Last update: March 5, 2025

Topics:
Developer Tools,Asset Management

CREATED FOR:

User
Admin

This document describes the following:

Why you would create customized Asset Editor pages.
How to create and customize Asset Editor pages, which are WCM pages that let you view and edit metadata and perform actions on the asset.
How to edit multiple assets simultaneously.

NOTE

Asset Share is available as an open-source reference implementation. See Asset Share Commons. It is not officially supported.

Why create and configure Asset Editor pages?

Digital Asset Management is being used in more scenarios. When moving from a small-scale solution for a small user group of professionally trained users - for example, photographers or taxonomists - to larger and more diverse user groups - for example, business users, WCM authors, and journalists - the powerful user interface of Adobe Experience Manager Assets can provide too much information. Stakeholders start to request specific user interfaces or applications to access the digital assets that are of relevance to them.

These asset-centric applications can be simple photo galleries in an intranet where employees can upload photos from trade show visits or a press center in a public-facing website. Asset-centric applications can also extend to complete solutions including shopping carts, checkout, and verification processes.

Creating an asset-centric application becomes a configuration process that does not require coding, only knowledge of user groups and their needs and knowledge of the metadata being used. Asset-centric applications created with Assets are extensible: with moderate coding effort reusable components for searching, viewing, and modifying assets can be created.

An asset-centric application in Experience Manager consists of an Asset Editor page, which can be used to get a detailed view of a specific asset. An Asset Editor page also allows for the editing of metadata, provided the user accessing the asset has the necessary permissions.

Create and configure an Asset Editor page

You can customize the Asset Editor to determine how users can view and edit the digital assets. To do this, you create an Asset Editor page and then customize the views and the actions that users can perform on that page.

NOTE

If you want to add custom fields to the DAM Asset Editor, add new cq:Widget nodes to /apps/dam/content/asseteditors.

Create an Asset Editor page

When creating the Asset Editor page, a good practice is to create the page directly below the Asset Share page.

To create an Asset Editor page:

In the Websites tab, navigate to the place where you want to create an Asset Editor page and click New.

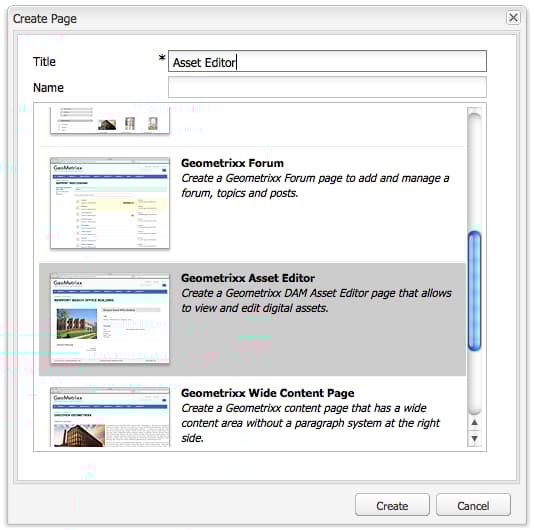

Select Geometrixx Asset Editor and click Create. The new page is created and the page is listed in the Websites tab.

screen_shot_2012-04-23at15858pm

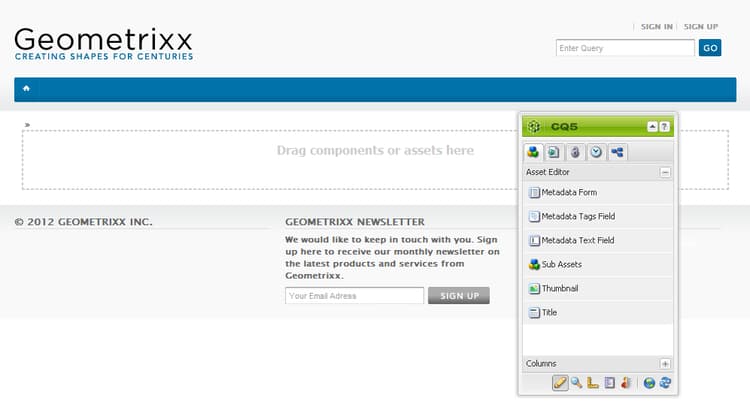

The basic page created using the Geometrixx Asset Editor template looks as follows:

assetshare5

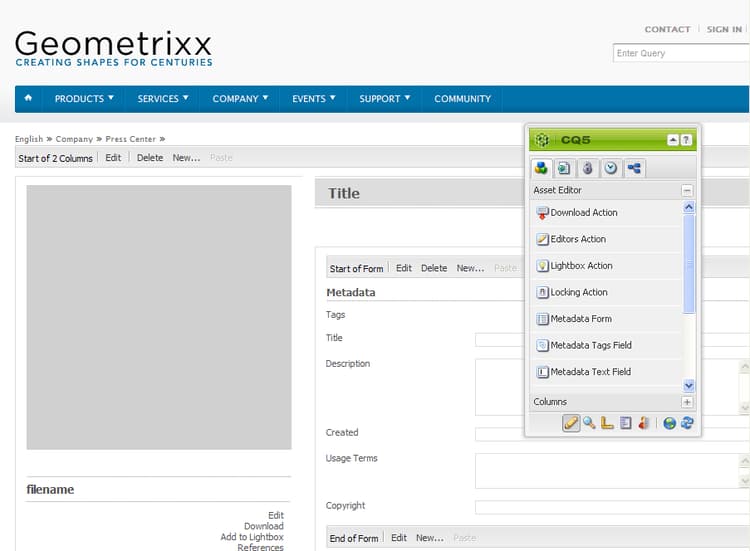

To customize your Asset Editor page, use elements from the sidekick. The Asset Editor page that is accessed from the Geometrixx Press Center is a customized version of a page based on this template:

assetshare6

After you have created the customized Asset Editor page, ensure that when you double-click assets that the customized Asset Share you created opens the assets in the customized Editor page.

To set the Asset Editor page:

In the Asset Share page, click Edit next to the Query Builder.

screen_shot_2012-04-23at20123pm

Click the General tab if it is not already selected.

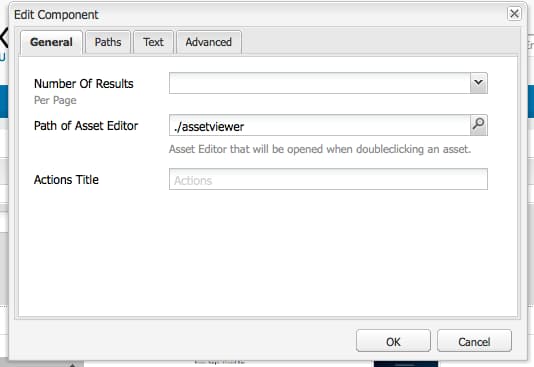

In the Path of Asset Editor field, enter the path to the Asset Editor you want the Asset Share page to open assets in and click OK.

screen_shot_2012-04-23at21653pm

Add Asset Editor components

You determine what functionality that an Asset Editor has by adding components to the page.

To add Asset Editor components:

In the Asset Editor page that you want to customize, select Asset Editor in the sidekick. All available Asset Editor components are displayed.

NOTE

What you can customize depends on what components are available. To enable components, go to Design mode and select the components you need enabled.

Drag the components from the sidekick to the Asset Editor and make any edits in the component dialog boxes. The components are described in the following table and described in the detailed instructions that follow.

NOTE

When designing the Asset Editor page, you create components that are either read-only or editable. Users know that a field can be edited if an image of a pencil appears in that component. By default, most components are set up as read-only.

Component

Description

Metadata Form and Metadata Text Field

Lets you add additional metadata to an asset and perform an action, such as submitting, on that asset.

Sub Assets

Lets you customize sub-assets.

Tags

Lets users select and add tags to an asset.

Thumbnail

Shows a thumbnail of the asset, its filename, and lets you add an alternate text. You can add Asset Editor actions here as well.

Title

Displays the asset title, which can be customized.

screen_shot_2012-04-23at22743pm

Metadata Form and Text Field - Configuring the View Metadata Component

The Metadata Form is a form that includes a start and end action. In between, you enter Text fields. See Forms for more information on working with forms.

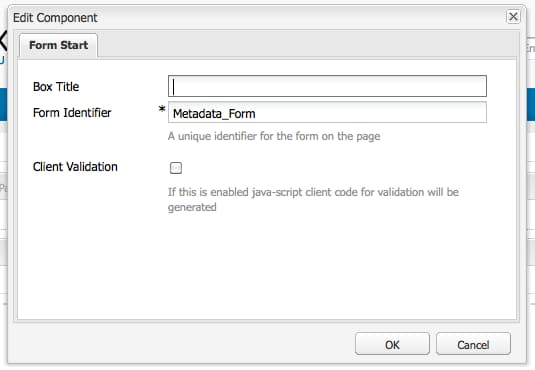

Create a start action by clicking Edit in the Start area of the form. You can enter a Box title, if desired. By default, the Box title is Metadata. Select the Client Validation check box if you want the JavaScript client code for validation generated.

screen_shot_2012-04-23at22911pm

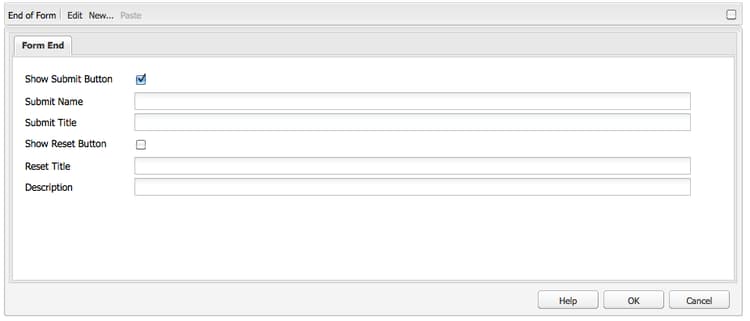

Create an End action by clicking Edit in the End area of the form. For example, you may want to create a Submit option to allow users to submit their metadata changes. Optionally, you can add a Reset option that resets the metadata to its original state.

screen_shot_2012-04-23at23138pm

In between the Form Start and the Form End, drag Metadata Text Fields to the form. Users populate metadata into these text fields, which they can submit or complete another action on.

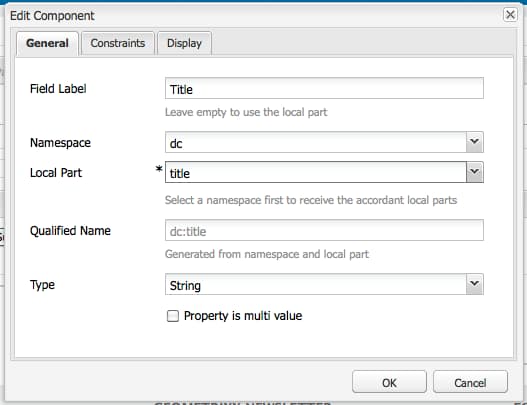

Double-click the field name, for example, Title to open the metadata field and make changes. In the General tab of the Edit Component window, you define the namespace and the field label and type, for example, dc:title.

screen_shot_2012-04-23at23305pm

See Customizing and Extending Assets for information on modifying the namespaces available in the metadata form.

Click the Constraints tab. Here you can select whether a field is required and if necessary, add any constraints.

screen_shot_2012-04-23at23435pm

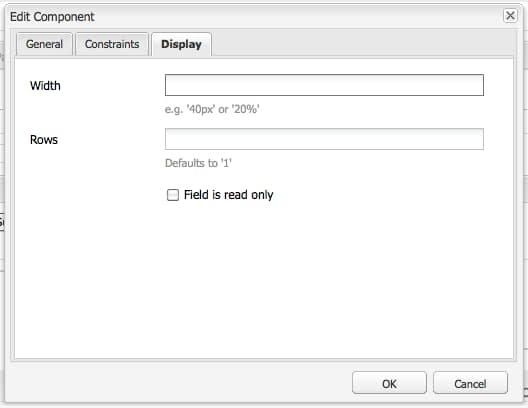

Click the Display tab. Here, you can enter a new width and number of rows for the metadata field. Select the Field is read only checkbox to let users edit the metadata.

screen_shot_2012-04-23at23446pm

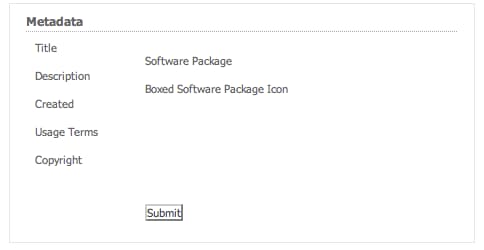

The following is an example of a Metadata form with various fields:

metadata

On the Asset Editor page, users can then enter values into the metadata fields (if they are editable) and perform the end action (for example, submitting the changes).

Sub-assets

The Sub Assets component is where you can view and select sub-assets. You can determine what names appear under the main asset and sub-assets.

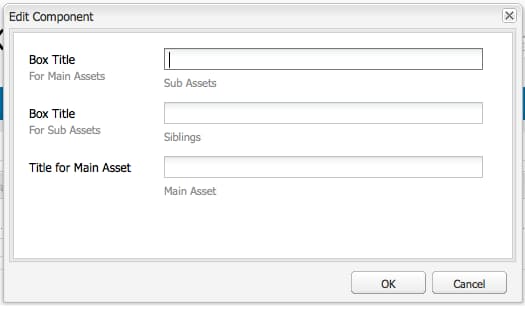

Double-click the Sub Assets component so you can open the sub assets dialog box where you can change the titles for the main asset and any sub assets. The default values appear below the corresponding field.

screen_shot_2012-04-23at23907pm

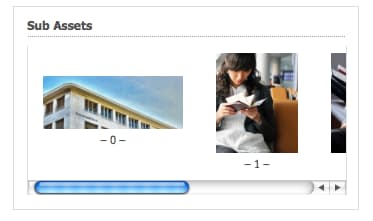

The following is an example of a populated Sub Assets component:

screen_shot_2012-04-23at24442pm

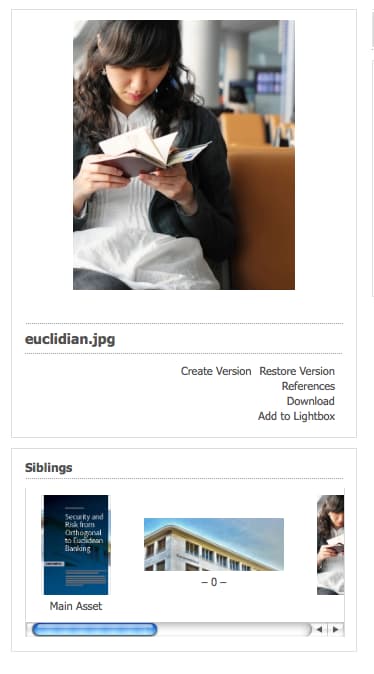

For example, if you select a sub asset, note how the component displays the appropriate page and the Box title changes from Sub Assets to Siblings.

screen_shot_2012-04-23at24552pm

Thumbnail

The Thumbnail component is where the asset displays the selected thumbnail (for many of the formats the thumbnail is extracted automatically). In addition, the component displays the filename, and actions that you can modify.

screen_shot_2012-04-23at25452pm

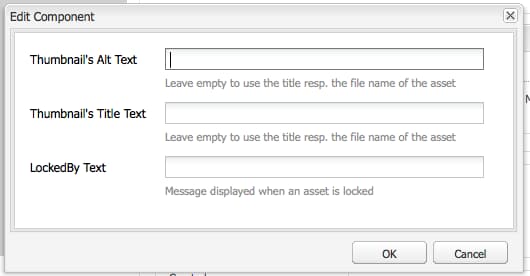

Double-click the thumbnail component so you can open the thumbnail dialog where you can change the alt text. By default, the thumbnail alt text defaults to Click to download asset.

screen_shot_2012-04-23at25604pm

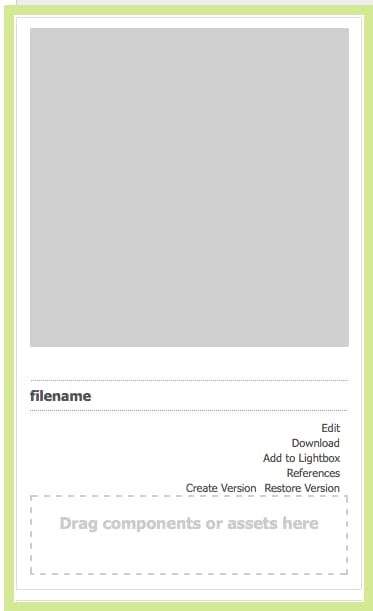

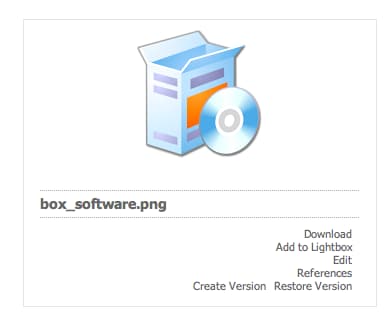

The following is an example of a populated Thumbnail component:

screen_shot_2012-04-23at34815pm

Title

The Title component displays the title of the asset and a description.

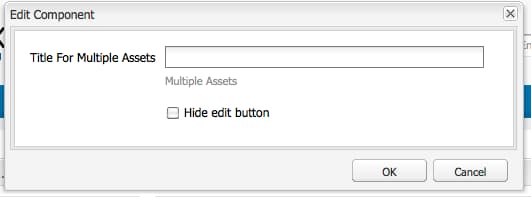

By default, it is in read-only mode so users cannot edit it. To make it editable, double-click the component and clear the Hide edit button checkbox. In addition, enter a title for multiple assets.

screen_shot_2012-04-23at35100pm

If the Title can be edited, you can add a title and description by clicking the Pencil to open the Asset Properties window. In addition, you can turn the asset on and off by selecting the date and time.

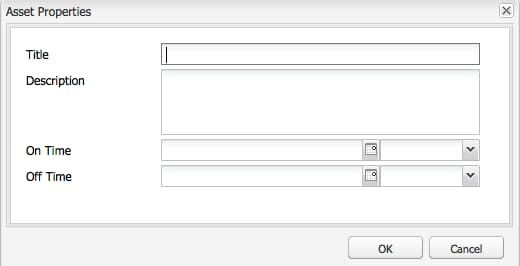

When editing the Title, users can change the Title, Description, and enter On and Off Times to turn the asset on and off.

screen_shot_2012-04-23at35241pm

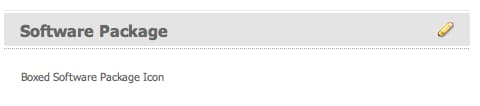

The following is an example of a populated Title component:

chlimage_1-164

Add Asset Editor actions

You can determine what actions users can perform on selected digital assets from a selection of predefined actions.

To add actions to the Asset Editor page:

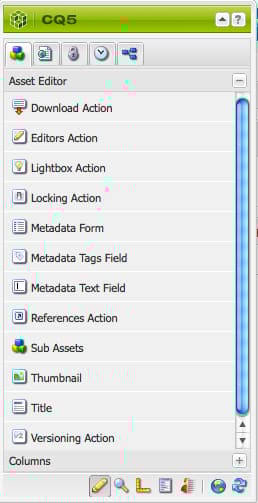

In the Asset Editor page that you want to customize, click Asset Editor in the sidekick.

screen_shot_2012-04-23at35515pm

The following actions are available:

Action

Description

Download

Lets users download selected assets to their computers.

Editors

Lets users edit an image (interactive editing)

Lightbox

Saves assets to a “lightbox” where you can perform other actions on them. This comes in handy when working with assets across multiple pages.

Locking

Lets users lock an asset. This functionality is not enabled by default and must be enabled in the list of components.

References

Click this to show on what pages the asset is being used.

Versioning

Lets you create and restore versions of an asset.

Drag the appropriate action to the Actions area on the page. It creates an option that is used to execute the action that is dragged on the page.

chlimage_1-165

Multi-edit assets with the Asset Editor page

With Experience Manager Assets, you can change several assets at once. After having selected the assets, you can simultaneously change tags and meta data.

To multi-edit assets with the Asset Editor page:

Open the Geometrixx Press Center page:
https://localhost:4502/content/geometrixx/en/company/press.html
Select the assets:
- on Windows: Ctrl + click each asset.
- on Mac: Cmd + click each asset.
To select a range of assets: click the first asset then Shift + click the last asset.
Click Edit Metadata in the Actions field (left part of the page).
The Geometrixx Press Center Asset Editor page opens in a new tab. The metadata of the assets are displayed as follows:
- A tag–that does not apply to all the assets but only to a few ones–is displayed in italics.
- A tag that applies to all the assets is displayed with a normal font.
- Metadata other than tags: the value of the field is only displayed if it is the same for all the selected assets.
Click Download to download a ZIP file containing the assets original renditions.

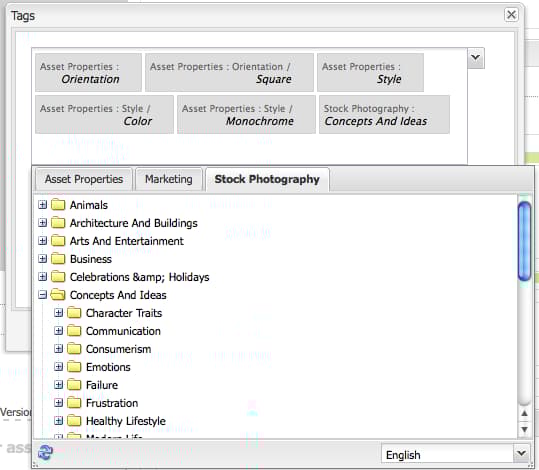

Click edit the tags option that is next to the Tags field.
- A tag that does not apply to all the assets, but only to a few ones has a gray background.
- A tag that applies to all the assets has a white background.
You can:
- Click x to remove the tag for all the assets.
- Click + to add the tag to all the assets.
- Click the arrow and select a tag to add a new tag to all the assets.
Click OK to write the changes to the form. The box beside the Tags field is automatically checked.
Edit the Description field. For example, set it to:

This is a common description

When a field is edited, its value overwrites the existing values of the selected assets when the form is submitted.

Note: the box beside the field is automatically checked when the field is edited.
Click Update Metadata to submit the form and save the changes for all the assets.

Note: only the checked metadata are modified.
