Create Schema Relationship

Last update: September 11, 2026

CREATED FOR:

  • Developer
  • User

  1. Click on the Step 2 - Relationship Descriptor Customer Account To Plan API request in the XDM Schema Lab -> Create Relationship Descriptors folder

    note caution
    CAUTION
    Do not execute the request…yet

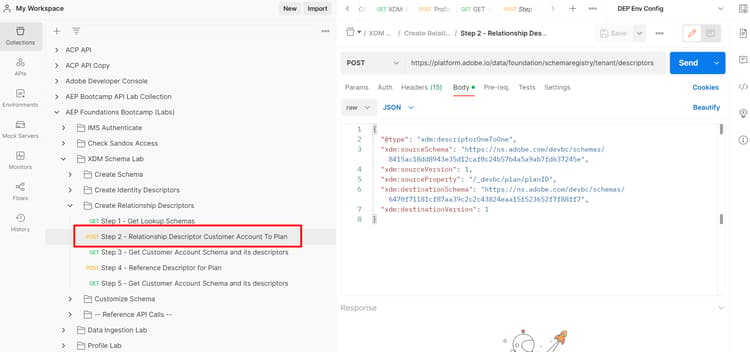

    Step 2 - Relationship Descriptor Customer Account to Plan API request

  2. Update the following properties in the body of the API call.

  • Set the value of the xdm:sourceSchema property to the $id of the Customer Account schema you saved from the Create Schema lab step
  • Set the value of the xdm:sourceProperty to the path of the planID field from the Customer Account Schema.
  • Set the value of the xdm:destinationSchema property to the $id of dep: Lookup Plan schema you saved in 1st step
NOTE
Use the dot notation value of the planId field from the Customer Account Schema and replace the . with /
Don’t forget the leading / either 😄

EXAMPLE ONLY

{
  "@type": "xdm:descriptorOneToOne",
  "xdm:sourceSchema": "https://ns.adobe.com/devbc/schemas/8415ac18dd8943e35d12caf0c24b57b4a5a9ab7fd637245e",
  "xdm:sourceVersion": 1,
  "xdm:sourceProperty": "/_devbc/plan/planID",
  "xdm:destinationSchema": "https://ns.adobe.com/devbc/schemas/6470f71181cf87aa39c2c2c43824eaa15f523652f7f88ff7"
,
  "xdm:destinationVersion": 1
}
NOTE
Remember to update the tenant name above (_devbc) with the your own

  1. Save your request before continuing using the Save button

  2. Execute the API by clicking the Send button

You should now see a 201 Created response like below

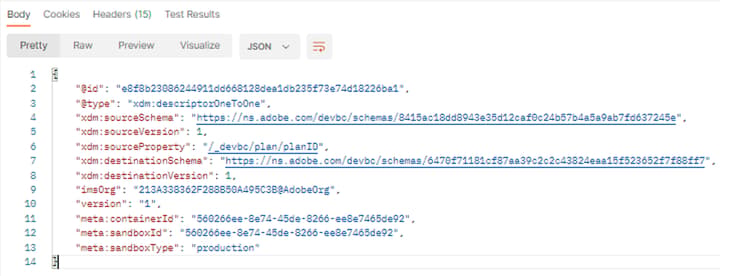

201 Created response after creating the Customer Account to Plan relationship descriptor

NOTE
Remember the Real-Time Customer Profile (and all of Experience Platform) only supports what we call a one (1) hop join from either the XDM Individual Profile or XDM Experience Event schemas (i.e. you can only create one (1) level lookup relationships)
NOTE
Did you notice the relationship descriptor @type is set to a value of OneToOne? Isn’t the relationship between the Customer Account and Plan table in the XDM ERD on Paper a 1:N? What is going on?
The Real-Time Customer Profile is built to describe the traits and behaviors of an individual person. Therefore from a individual person lens a lookup table is only ever defined as a 1:1 relationship during segmentation.
Its okay if your brain hurts…
