跳过一个章节的 VOD 播放

场景

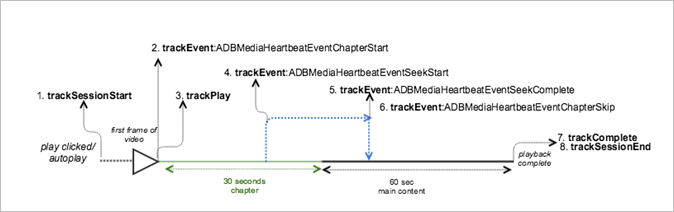

在此方案中，用户将跳过主内容中的一章。

此方案与包含一个章节的 VOD 播放方案相同，但此例中的用户希望从章节中搜寻，从而跳过该章节以进入主内容。

触发器 心跳方法 网络调用 注释
用户点击​播放 trackSessionStart Analytics 内容开始，心跳内容开始 测量库不知道存在一个前置广告。这些网络调用仍然与 iOS 种不含广告的播放方案完全相同。
章节开始。 trackEvent:ChapterStart 心跳章节开始
将播放章节的第一帧。 trackPlay 心跳章节播放 当章节内容在主内容之前播放时，我们希望在章节开始时开始播放心跳。
将播放章节。 章节心跳
搜寻开始跳过第一章。 trackEvent:trackSeekStart 搜寻期间没有心跳
搜寻结束。 trackEvent:trackSeekComplete 心跳会继续发布此内容。
应用程序可实现用户从常规的章节边界进行搜寻。 trackEvent:trackChapterSkip
将播放内容。 内容心跳
内容结束播放。 trackComplete 心跳内容结束 此网络调用与 iOS 中没有中断的播放方案完全相同。
会话结束。 trackSessionEnd SessionEnd 是指观看会话结束。即使用户没有观看至媒体结束，也必须调用此 API。

参数

在章节播放过程中使用的参数与包含一个章节的 VOD 播放场景中的参数相同，不同之处仅在于没有章节结束网络调用。

示例代码

Android

要在 Android 中查看此方案，请设置以下代码：

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD

);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Chapter
HashMap<String, String> chapterMetadata = new HashMap<String, String>();
chapterMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
MediaObject chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                   CHAPTER_POSITION,
                                   CHAPTER_LENGTH,
                                   CHAPTER_START_TIME);

// 2. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart,
                         chapterDataInfo,
                         chapterMetadata);

.......
.......

// 3. Call trackPlay() when the playback actually starts, i.e., when the first frame
//    of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 4. Track the MediaHeartbeat.Event.SeekStart event when the user begins to seek out
//    of the chapter with the intent to skip it.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekStart, null, null);

.......
.......

// 5. Track the MediaHeartbeat.Event.SeekComplete event when the user seeks out of the
//    chapter with the intent to skip it.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.ChapterSkip event because the user skipped the
//    chapter by seeking out of it in the steps above.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterSkip, null, null);

.......
.......

// 7. Call trackComplete() when the playback reaches the end, i.e., when the media
//    completes and finishes playing.
_mediaHeartbeat.trackComplete();

........

........

// 8. Call trackSessionEnd() when the playback session is over. This method must be
//    called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

要在 iOS 中查看此方案，请设置以下代码：

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there's an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// Chapter
NSMutableDictionary *chapterContextData = [[NSMutableDictionary alloc] init];
[chapterContextData setObject:CONTEXT_DATA_VALUE forKey:CONTEXT_DATA_KEY];

id chapterInfo =
[ADBMediaHeartbeat createChapterObjectWithName:CHAPTER_NAME
                   position:CHAPTER_POSITION
                   length:CHAPTER_LENGTH
                   startTime:CHAPTER_START_TIME];

// 2. Track the ADBMediaHeartbeatEventChapterStart event when the chapter starts.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterStart
               mediaObject:chapterInfo
               data:chapterContextData];
.......
.......

// 3. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 4. Track the trackEvent:ADBMediaHeartbeatEventSeekStart event when the user
//    begins to seek out of the chapter with the intent to skip it.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventSeekStart mediaObject:nil data:nil];
.......
.......

// 5. Track the trackEvent:ADBMediaHeartbeatEventSeekComplete event when the
//    user seeks out of the chapter with the intent to skip it.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventSeekComplete mediaObject:nil data:nil];
.......
.......

// 6. Track the trackEvent:ADBMediaHeartbeatEventChapterSkip event because the
//    user skipped the chapter by seeking out of it in the steps above.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterSkip
               mediaObject:chapterInfo
               data:chapterContextData];
.......
.......

// 7. Call trackComplete when the playback reaches the end, i.e., when the media
//    completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 8. Call trackSessionEnd when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

要在 JavaScript 中查看此方案，请输入以下文本：

// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

var mediaMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2,
  CUSTOM_KEY_3 : CUSTOM_VAL_3

};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Chapter
var chapterMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1
};

var chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                  CHAPTER_POSITION,
                                  CHAPTER_LENGTH,
                                  CHAPTER_START_TIME);

// 2. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart,
                              chapterDataInfo,
                              chapterMetadata);

.......
.......

// 3. Call trackPlay() when the playback actually starts, i.e., when the
//    first frame of the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 4. Track the MediaHeartbeat.Event.SeekStart event when the user begins
//    to seek out of the chapter with the intent to skip it.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekStart);

.......
.......

// 5. Track the MediaHeartbeat.Event.SeekComplete event when the user seeks
//    out of the chapter with the intent to skip it.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekComplete);

.......
.......

// 6. Track the MediaHeartbeat.Event.ChapterSkip event because the user
//    skipped the chapter by seeking out of it in the steps above.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterSkip);

.......
.......

// 7. Call trackComplete() when the playback reaches the end, i.e., completes
//    and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 8. Call trackSessionEnd() when the playback session is over. This method must be
//    called even if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........
