Riproduzione VOD con un capitolo saltato vod-playback-with-a-skipped-chapter

Scenario scenario

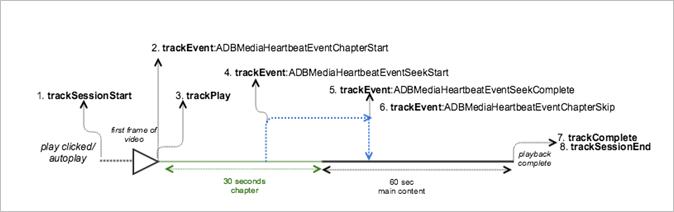

In questo scenario, l’utente salta un capitolo nel contenuto principale.

Questo è lo stesso scenario della Riproduzione VOD con un capitolo, tranne che l’utente in questo caso intende effettuare una ricerca all’interno del capitolo, saltando in tal modo il contenuto principale.

Trigger
metodo Heartbeat
Chiamate di rete
Note
L’utente fa clic su Play
trackSessionStart
Inizio contenuto Analytics, inizio contenuto Heartbeat
La libreria di misurazione ignora l’esistenza di un annuncio pre-roll. Queste chiamate di rete sono ancora esattamente le stesse dello scenario della Riproduzione senza interruzioni in iOS.
Il capitolo viene avviato.
trackEvent:ChapterStart
Heartbeat Chapter Start
Viene riprodotto il primo fotogramma del capitolo.
trackPlay
Riproduzione capitolo heartbeat
Se il contenuto del capitolo viene riprodotto prima del contenuto principale, è ideale avviare gli heartbeat all’inizio del capitolo.
Il capitolo viene riprodotto.
Chapter Heartbeats
La ricerca inizia a saltare il primo capitolo.
trackEvent:trackSeekStart
Nessun heartbeat durante la ricerca
La ricerca è completa.
trackEvent:trackSeekComplete
Dopo gli heartbeat dovrebbero riprendere.
L’applicazione si rende conto che l’utente ha effettuato una ricerca al di fuori del normale limite del capitolo.
trackEvent:trackChapterSkip
Il contenuto viene riprodotto.
Heartbeat dei contenuti
La riproduzione del contenuto viene completata.
trackComplete
Contenuto Heartbeat completato
Questa chiamata di rete è esattamente la stessa dello scenario della Riproduzione senza interruzioni in iOS.
La sessione viene terminata.
trackSessionEnd
SessionEnd indica la fine di una sessione di visualizzazione. Questa API deve essere chiamata anche se l’utente non guarda il contenuto multimediale fino alla fine.

Parametri parameters

I parametri utilizzati durante la riproduzione dei capitoli sono identici a quelli dello scenario Riproduzione VOD con un capitolo, tranne che non esiste una chiamata di rete per il completamento del capitolo.

Codice di esempio sample-code

Android

Per visualizzare questo scenario in Android, imposta il seguente codice:

// Set up mediaObject
MediaObject mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD

);

HashMap<String, String> mediaMetadata = new HashMap<String, String>();
mediaMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
mediaMetadata.put(CUSTOM_KEY_2, CUSTOM_VAL_2);

// 1. Call trackSessionStart() when the user clicks Play or if autoplay is used,
//    i.e., there is an intent to start playback.
_mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Chapter
HashMap<String, String> chapterMetadata = new HashMap<String, String>();
chapterMetadata.put(CUSTOM_KEY_1, CUSTOM_VAL_1);
MediaObject chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                   CHAPTER_POSITION,
                                   CHAPTER_LENGTH,
                                   CHAPTER_START_TIME);

// 2. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart,
                         chapterDataInfo,
                         chapterMetadata);

.......
.......

// 3. Call trackPlay() when the playback actually starts, i.e., when the first frame
//    of the main content is rendered on the screen.
_mediaHeartbeat.trackPlay();

.......
.......

// 4. Track the MediaHeartbeat.Event.SeekStart event when the user begins to seek out
//    of the chapter with the intent to skip it.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekStart, null, null);

.......
.......

// 5. Track the MediaHeartbeat.Event.SeekComplete event when the user seeks out of the
//    chapter with the intent to skip it.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekComplete, null, null);

.......
.......

// 6. Track the MediaHeartbeat.Event.ChapterSkip event because the user skipped the
//    chapter by seeking out of it in the steps above.
_mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterSkip, null, null);

.......
.......

// 7. Call trackComplete() when the playback reaches the end, i.e., when the media
//    completes and finishes playing.
_mediaHeartbeat.trackComplete();

........

........

// 8. Call trackSessionEnd() when the playback session is over. This method must be
//    called even if the user does not watch the media to completion.
_mediaHeartbeat.trackSessionEnd();

........
........

iOS

Per visualizzare questo scenario in iOS, imposta il seguente codice:

// Set up mediaObject
ADBMediaObject *mediaObject =
[ADBMediaHeartbeat createMediaObjectWithName:MEDIA_NAME
                   length:MEDIA_LENGTH
                   streamType:ADBMediaHeartbeatStreamTypeVOD];

NSMutableDictionary *mediaContextData = [[NSMutableDictionary alloc] init];
[mediaContextData setObject:CUSTOM_VAL_1 forKey:CUSTOM_KEY_1];
[mediaContextData setObject:CUSTOM_VAL_2 forKey:CUSTOM_KEY_2];

// 1. Call trackSessionStart when the user clicks Play or if autoplay is used,
//    i.e., there's an intent to start playback.
[_mediaHeartbeat trackSessionStart:mediaObject data:mediaContextData];
.......
.......

// Chapter
NSMutableDictionary *chapterContextData = [[NSMutableDictionary alloc] init];
[chapterContextData setObject:CONTEXT_DATA_VALUE forKey:CONTEXT_DATA_KEY];

id chapterInfo =
[ADBMediaHeartbeat createChapterObjectWithName:CHAPTER_NAME
                   position:CHAPTER_POSITION
                   length:CHAPTER_LENGTH
                   startTime:CHAPTER_START_TIME];

// 2. Track the ADBMediaHeartbeatEventChapterStart event when the chapter starts.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterStart
               mediaObject:chapterInfo
               data:chapterContextData];
.......
.......

// 3. Call trackPlay when the playback actually starts, i.e., when the first
//    frame of the main content is rendered on the screen.
[_mediaHeartbeat trackPlay];
.......
.......

// 4. Track the trackEvent:ADBMediaHeartbeatEventSeekStart event when the user
//    begins to seek out of the chapter with the intent to skip it.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventSeekStart mediaObject:nil data:nil];
.......
.......

// 5. Track the trackEvent:ADBMediaHeartbeatEventSeekComplete event when the
//    user seeks out of the chapter with the intent to skip it.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventSeekComplete mediaObject:nil data:nil];
.......
.......

// 6. Track the trackEvent:ADBMediaHeartbeatEventChapterSkip event because the
//    user skipped the chapter by seeking out of it in the steps above.
[_mediaHeartbeat trackEvent:ADBMediaHeartbeatEventChapterSkip
               mediaObject:chapterInfo
               data:chapterContextData];
.......
.......

// 7. Call trackComplete when the playback reaches the end, i.e., when the media
//    completes and finishes playing.
[_mediaHeartbeat trackComplete];
.......
.......

// 8. Call trackSessionEnd when the playback session is over. This method must
//    be called even if the user does not watch the media to completion.
[_mediaHeartbeat trackSessionEnd];
.......
.......

JavaScript

Per visualizzare questo scenario in JavaScript, immetti il testo seguente:

// Set up mediaObject
var mediaInfo = MediaHeartbeat.createMediaObject(
  Configuration.MEDIA_NAME,
  Configuration.MEDIA_ID,
  Configuration.MEDIA_LENGTH,
  MediaHeartbeat.StreamType.VOD
);

var mediaMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1,
  CUSTOM_KEY_2 : CUSTOM_VAL_2,
  CUSTOM_KEY_3 : CUSTOM_VAL_3

};

// 1. Call trackSessionStart() when Play is clicked or if autoplay is used,
//    i.e., there's an intent to start playback.
this._mediaHeartbeat.trackSessionStart(mediaInfo, mediaMetadata);

......
......

// Chapter
var chapterMetadata = {
  CUSTOM_KEY_1 : CUSTOM_VAL_1
};

var chapterDataInfo =
MediaHeartbeat.createChapterObject(CHAPTER_NAME,
                                  CHAPTER_POSITION,
                                  CHAPTER_LENGTH,
                                  CHAPTER_START_TIME);

// 2. Track the MediaHeartbeat.Event.ChapterStart event when the chapter starts to play.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterStart,
                              chapterDataInfo,
                              chapterMetadata);

.......
.......

// 3. Call trackPlay() when the playback actually starts, i.e., when the
//    first frame of the main content is rendered on the screen.
this._mediaHeartbeat.trackPlay();

.......
.......

// 4. Track the MediaHeartbeat.Event.SeekStart event when the user begins
//    to seek out of the chapter with the intent to skip it.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekStart);

.......
.......

// 5. Track the MediaHeartbeat.Event.SeekComplete event when the user seeks
//    out of the chapter with the intent to skip it.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.SeekComplete);

.......
.......

// 6. Track the MediaHeartbeat.Event.ChapterSkip event because the user
//    skipped the chapter by seeking out of it in the steps above.
this._mediaHeartbeat.trackEvent(MediaHeartbeat.Event.ChapterSkip);

.......
.......

// 7. Call trackComplete() when the playback reaches the end, i.e., completes
//    and finishes playing.
this._mediaHeartbeat.trackComplete();

........
........

// 8. Call trackSessionEnd() when the playback session is over. This method must be
//    called even if the user does not watch the media to completion.
this._mediaHeartbeat.trackSessionEnd();

........
........
